Asus P4S800-MX SE User manual

Motherboard
P4S800-MX
User Guide

ii
Checklist
Copyright © 2003 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE.
IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGEATANY TIME
WITHOUT NOTICE,AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BYASUS.
ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
E1447
Revised Edition V2
October 2003

iii
Contents
Notices ............................................................................................v
Safety information ..........................................................................vi
P4S800-MX specification summary .............................................. vii
About this guide............................................................................ viii
Chapter 1: Product introduction
1.1 Welcome! ........................................................................... 1-2
1.2 Package contents............................................................... 1-2
1.3 Special features.................................................................. 1-2
1.4 Before you proceed ............................................................ 1-5

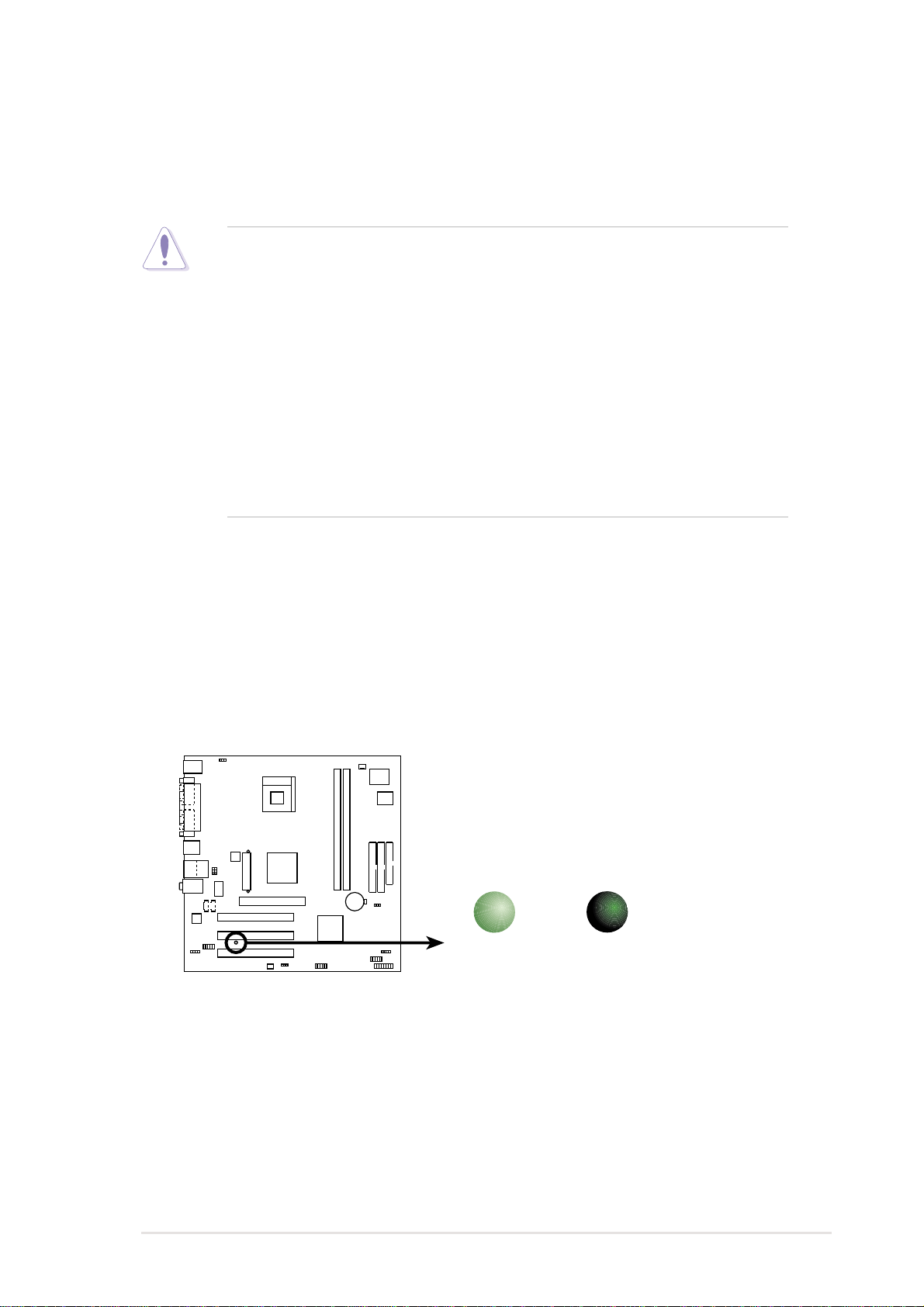

Onboard LED ..................................................................... 1-5
1.5 Motherboard overview........................................................ 1-6

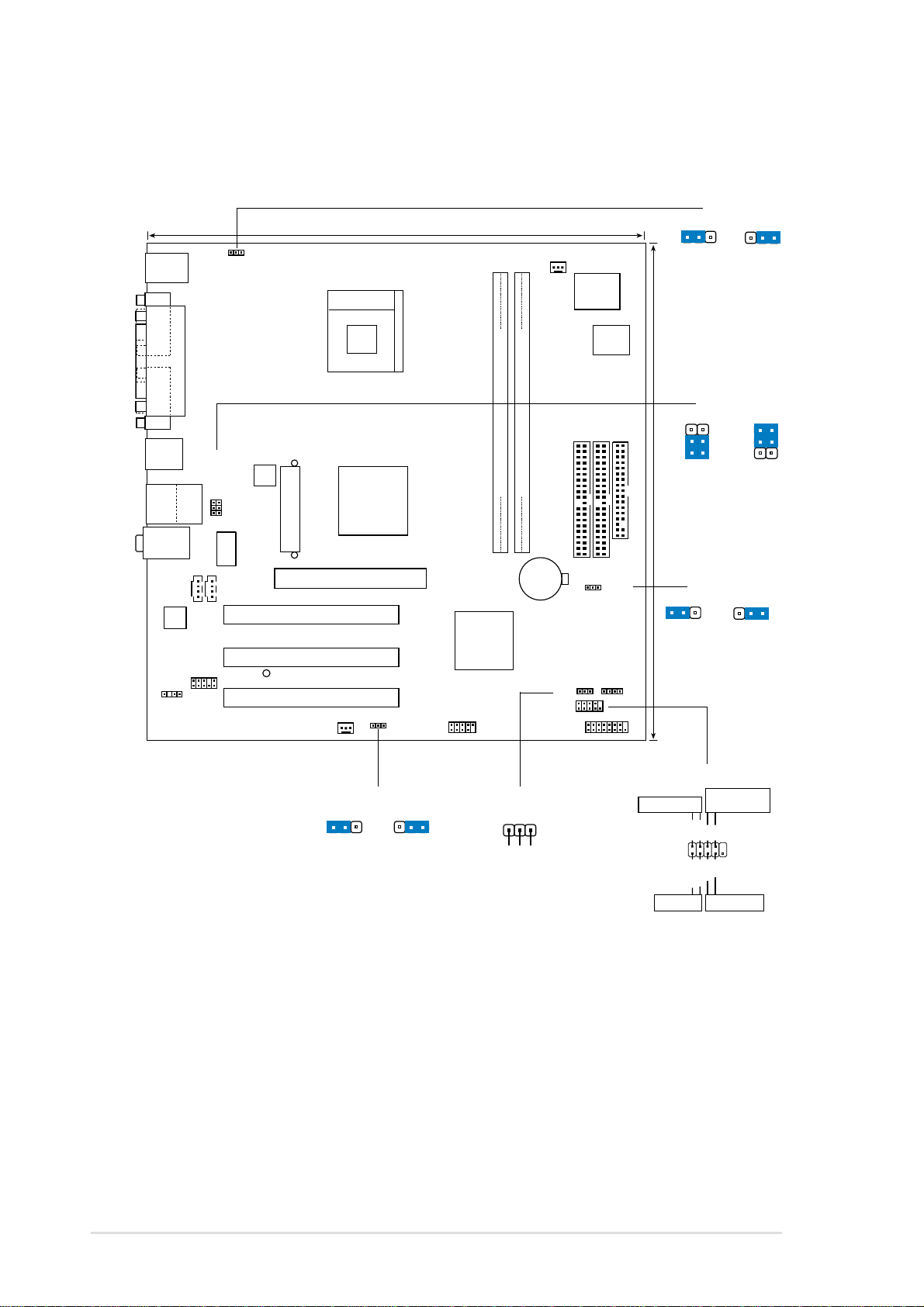

1.5.1 Motherboard layout ................................................ 1-6
1.5.2 Placement direction ............................................... 1-7

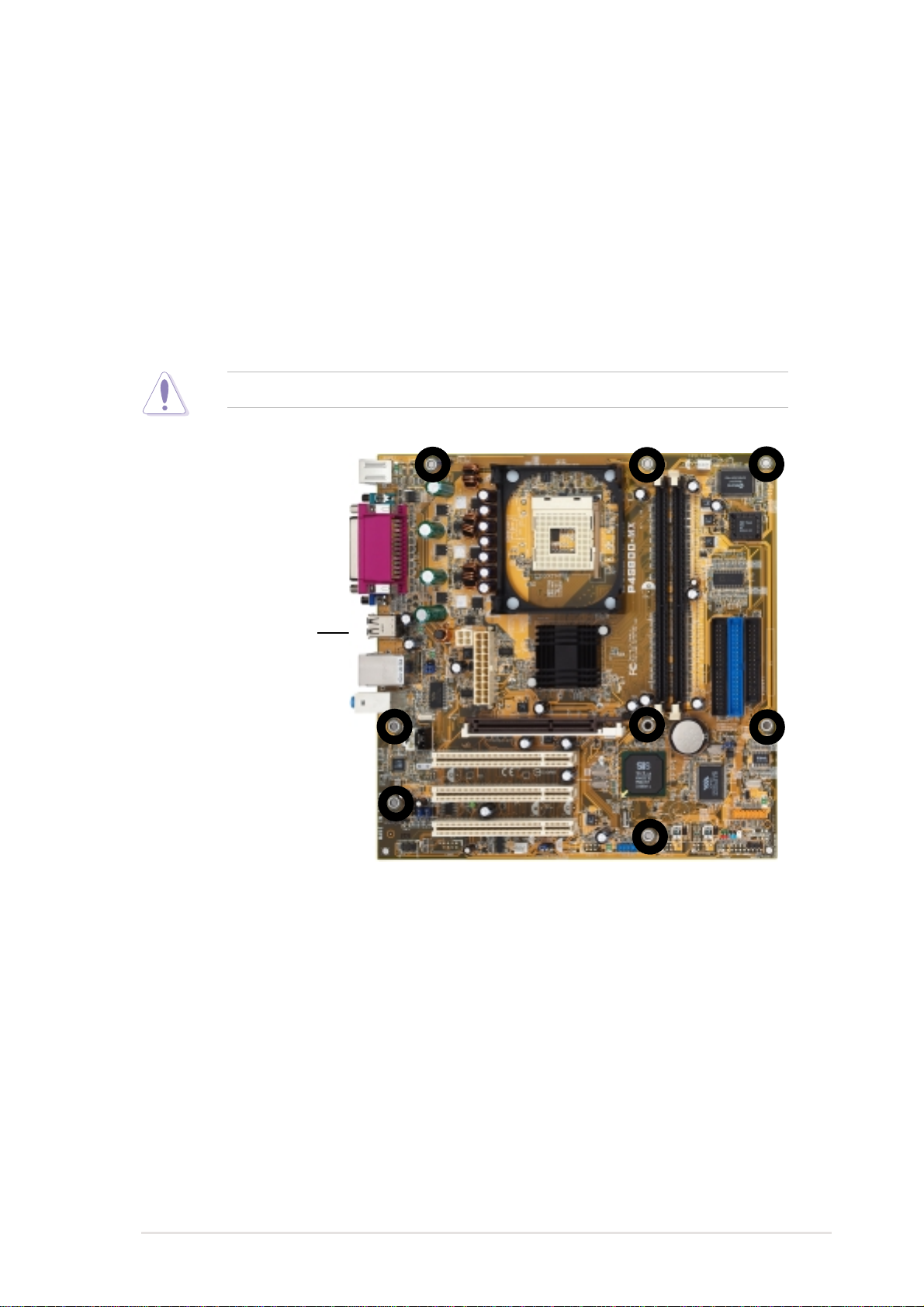

1.5.3 Screw holes ........................................................... 1-7
1.6 Central Processing Unit (CPU)........................................... 1-8
1.6.1 Overview ................................................................ 1-8
1.6.2 Installing the CPU .................................................. 1-9
1.7 System memory ............................................................... 1-10
1.7.1 DIMM sockets location......................................... 1-10
1.7.2 Memory configurations ........................................ 1-10

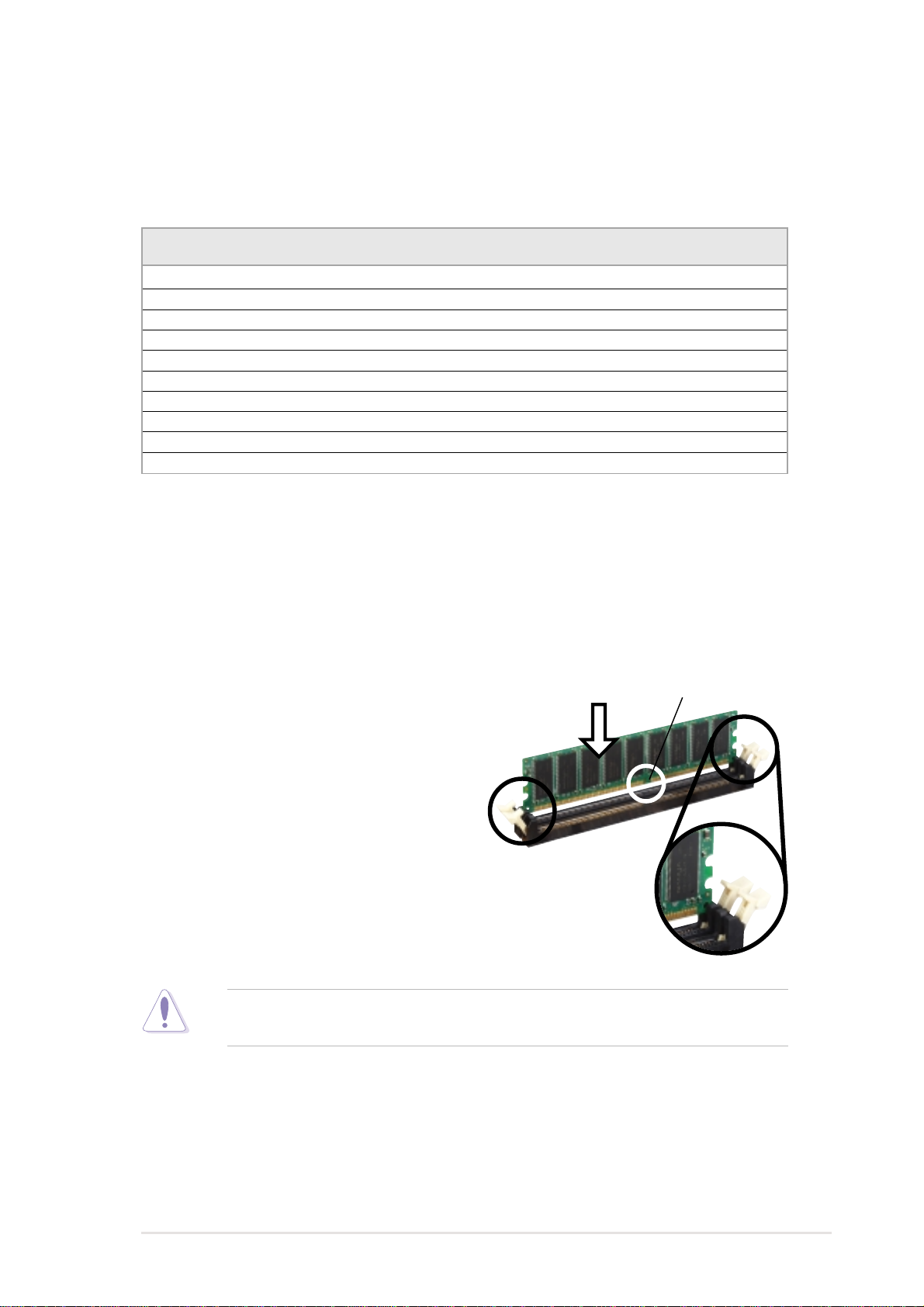

1.7.3 Installing a DIMM ..................................................1-11
1.8 Expansion slots ................................................................ 1-12
1.8.1 Installing an expansion card ................................ 1-12
1.8.2 Configuring an expansion card ............................ 1-12
1.8.3 PCI slots .............................................................. 1-14
1.8.4 AGP slot............................................................... 1-14
1.9 Jumpers............................................................................ 1-15
1.10 Connectors ....................................................................... 1-17
1.10.1 Rear panel connectors......................................... 1-17
1.10.2 Internal connectors .............................................. 1-18

iv
Safeguards
Contents
Chapter 2: BIOS information
2.1 Managing and updating your BIOS .................................... 2-2
2.1.1 Creating a bootable floppy disk ............................. 2-2
2.1.2 Using ASUS EZ Flash to update the BIOS ............ 2-3
2.1.3 Using the AFLASH utility........................................ 2-4
2.1.3 Recovering the BIOS with CrashFree BIOS .......... 2-6
2.1.4 ASUS Update ........................................................ 2-7
2.2 BIOS Setup program .......................................................... 2-9
2.2.1 BIOS menu bar ...................................................... 2-9
2.2.2 Legend bar........................................................... 2-10
2.3 Main Menu.........................................................................2-11
2.3.1 Primary and Secondary Master/Slave ................. 2-13
2.3.2 Keyboard Features .............................................. 2-15
2.4 Advanced Menu ............................................................... 2-16
2.4.1 Chip Configuration ............................................... 2-18
2.4.2 I/O Device Configuration...................................... 2-20
2.4.3 PCI Configuration ................................................ 2-21
2.5 Power Menu ..................................................................... 2-23
2.5.1 Power Up Control ................................................ 2-24
2.5.2 Hardware Monitor ................................................ 2-25
2.6 Boot Menu ........................................................................ 2-26
2.7 Exit Menu ......................................................................... 2-28
Chapter 3: Software support
3.1 Install an operating system................................................. 3-2
3.2 Support CD information...................................................... 3-2
3.2.1 Running the support CD ........................................ 3-2
3.2.2 Drivers menu ......................................................... 3-3
3.2.3 Utilities menu ......................................................... 3-3
3.2.4 ASUS contact information...................................... 3-4

v
Notices
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
The use of shielded cables for connection of the monitor to the
graphics card is required to assure compliance with FCC regulations.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate this equipment.

vi
Safety information
Electrical safety
•To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
•When adding or removing devices to or from the system, ensure that
the power cables for the devices are unplugged before the signal
cables are connected. If possible, disconnect all power cables from the
existing system before you add a device.
•Before connecting or removing signal cables from the motherboard,
ensure that all power cables are unplugged.
•Seek professional assistance before using an adpater or extension
cord. These devices could interrupt the grounding circuit.
•Make sure that your power supply is set to the correct voltage in your
area. If you are not sure about the voltage of the electrical outlet you
are using, contact your local power company.
•If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.
Operation safety
•Before installing the motherboard and adding devices on it, carefully
read all the manuals that came with the package.
•Before using the product, make sure all cables are correctly connected
and the power cables are not damaged. If you detect any damage,
contact your dealer immediately.
•To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
•Avoid dust, humidity, and temperature extremes. Do not place the
product in any area where it may become wet.
•Place the product on a stable surface.
•If you encounter technical problems with the product, contact a
qualified service technician or your retailer.

vii
P4S800-MX specification summary*
CPU
Chipset
Front Side Bus (FSB)
Memory
Expansion slots
VGA
Storage
Audio
LAN
Hardware monitoring
Special features
Rear panel I/O
Internal I/O
(Continued on the next page.)
Socket 478 for Intel
®
Pentium
®
4 Northwood/Willamette
processor
Intel
®
Hyper-Threading technology ready
New power design for next generation Intel
®
Prescott CPU
SiS661 FX
SiS963L
800/533/400 MHz
2 x 184-pin DDR DIMM sockets for up to 2GB memory
Supports PC3200/2700/2100 unbuffered non-ECC DDR
DIMMs.
1 x AGP 8X/4X (1.5V only)
3 x PCI
SiS Real256E integrated graphics
2 x UltraATA133, PIO Mode 0 ~ 4
ADI AD1888 6-channel audio CODEC
Integrated MAC with VIA 6103L 10/100 LAN PHY
Super I/O integrated monitoring of CPU/chassis fan rotation
and MB/CPU temperature
Power loss restart
Digital audio via an S/PDIF out inteface
1 x Parallel port
1 x Serial port
1 x Video port
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x RJ-45 port
4 x USB 2.0/USB 1.1 ports
Line In/Line Out/Microphone ports
1 x USB 2.0 connector for additional two USB ports
CPU and chassis fan connectors
20-pin/4-pin ATX 12V power connectors
CD/AUX audio connectors
S/PDIF out connector
Front panel audio connector
Panel connector
Speaker out connector
GAME/MIDI connector
Power LED connector**
* Specifications are subject to change without notice.
** Present only on PCB versions 1.03 or later.

viii
P4S800-MX specification summary
2Mb Flash EEPROM, DMI, PnP features, SM BIOS 2.3,
WfM 2.0, ASUS CrashFree BIOS, ASUS EZ Flash, and
ASUS C.P.U. (CPU Parameter Recall)
PCI 2.2, USB 2.0/1.1
WOL/WOR by PME, Wake on USB KB/Mouse
Micro-ATX form factor: 9.6 in x 9.6 in (24.5 cm x 24.5 cm)
Device drivers
ASUS PC Probe
ASUS LiveUpdate
ASUS Screensaver
Adobe Acrobat Reader
Trend Micro™PC-cillin 2002 anti-virus software
Microsoft
®
DirectX 8.1
BIOS features
Industry standard
Manageability
Form Factor
Support CD contents
About this guide
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the
following symbols used throughout this guide.
WARNING: Information to prevent injury to yourself when trying
to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a
task.
NOTE: Tips and additional information to aid in completing a task.

Chapter
This chapter describes the features of the
motherboard. It includes brief descriptions of the
motherboard components, and illustrations of the
layout, jumper settings, and connectors.
Product introduction

1-2 Chapter 1: Product introduction
. Welcome!
Thank you for buying the ASUS
®
P4S800-MX motherboard!
The ASUS
P4S800-MX motherboard delivers a host of new features and latest
technologies making it another standout in the long line of ASUS quality
motherboards!
Before you start installing the motherboard, and hardware devices on it, check the
items in your package with the list below.
.2 Package contents
Check your P4S800-MX package for the following items.
ASUS P4S800-MX motherboard
Micro-ATX form factor: 9.6 in x 9.6 in (24.5 cm x 24.5 cm)
ASUS P4S800-MX series support CD
80-conductor UltraATA IDE cable
Ribbon cable for a 3.5-inch floppy drive
I/O shield
Bag of extra jumper caps
User Guide
If any of the above items is damaged or missing, contact your retailer.
.3 Special features
Intel
®
800MHz FSB CPU support
The P4S800-MX comes with a 478-pin surface mount, Zero Insertion Force (ZIF)
socket for the Intel
®
Pentium
®
4 processor and 512/256KB L2 cache on 0.13
micron process. This motherboard supports 800/533/400 MHz system front side
bus that allows 6.4GB/s, 4.3GB/s and 3.2GB/s data transfer rates, respectively.
The P4S800-MX also supports the Intel
®
Hyper-Threading Technology and the
next-generation Intel
®
Prescott CPU. See page 1-8.
SiS661FX/963L chipset
Embedded in this motherboard is the SiS661FX/963L chipset that integrates
various SiS-developed technologies to ensure an efficient and reliable computing
performance.

ASUS P4S800-MX motherboard user guide 1-3
The SiS661FX chipset provides a high performance host interface for the Intel
®
Pentium
®
4 processor, and supports AGP 8X, 800MHz front side bus, and
DDR400. The SiS661FX features the SiS HyperStreaming™Engine that smartly
manages data streams between peripherals, core logic chipsets, front side bus,
memory and graphic interfaces. This technology dramatically optimizes and
improves the entire computer system performance.
Providing I/O and peripheral support is the SiS963L southbridge. The southbridge
is a subsystem that integrates various I/O functions including dual-channel ATA133
bus master IDE, USB 2.0/1.1, Ethernet, and audio controllers. The SiS963L
provides LPC and AC’97 interfaces, and complies with the Advanced Power
Management (APM) 1.2 specification. The SiS963L interconnects with the
northbridge at up to 1GB/s using the SiS proprietary MuTIOL
®
bus interface.
DDR400 support
The motherboard supports up to 2GB of system memory using PC3200/2700/2100
non-ECC DDR DIMMs to deliver up to 3.2GB/s data transfer rate for the latest 3D
graphics, multimedia, and Internet applications. See page 1-10.
Real256E integrated graphics
Embedded in the northbridge is the SiS Real256E integrated graphics with a
256-bit 3D engine and 2D graphics accelerator with a maximum 64MB shared
display memory. The Real256E integrated graphics engine incorporates the
UltraAGPII™technology to provide a faster link between the built-in graphic engine
and the northbridge memory controller. This technology boosts VGA throughput to
up to 3.2GB/s to bring clearer and sharper images for your multimedia and
graphic-intensive applications. The Real256E integrated graphics achieves a
maximum resolution of 2048x1526 at 32bpp. See page 2-19.
Integrated 10/100 Mbps LAN controller
Onboard is a VIA 6103L LAN PHY that that interconnects with the SiS963L
southbridge LAN controller to fully support 10BASE-T/ 100BASE-TX Ethernet
networking. See page 1-17.
SoundMAX digital audio system
The SoundMax Digital Audio System is the industry’s highest performance and
most reliable audio solution for business professionals, audiophiles, musicians,
and gamers. SoundMAX Digital Audio System can output 5.1 channel surround
and features state-of-the-art DLS2 MIDI synthesizer with Yamaha DLSbyXG sound
set, 5.1 Virtual Theater™and supports all major game audio technologies
including Microsoft DirectX™8.0, Microsoft DirectSound 3D™, A3D, MacroFX,
ZoomFX, MultiDrive 5.1 and EAX. See page 1-17.

1-4 Chapter 1: Product introduction
USB 2.0 connectivity
The P4S800-MX rear panel is equipped with four (4) Universal Serial Bus (USB)
ports to connect USB 2.0 devices. A USB header is also available at mid-board to
accommodate a USB module for two (2) additional USB ports. The USB ports and
header comply with USB 2.0 specification that supports up to 480 Mbps connection
speed. This speed advantage over the conventional USB 1.1 (12 Mbps) allows
faster Internet connection, interactive gaming, and simultaneous running of
high-speed peripherals. USB 2.0 is backward compatible with USB 1.1.
See pages 1-17 and 1-20.
ASUS CrashFree BIOS
CrashFree BIOS allows users to restore BIOS data from a floppy diskette even
when BIOS code and data are corrupted during upgrade or invaded by a virus.
Unlike other competing vendors’products, ASUS motherboards now enable users
to enjoy this protection feature without the need to pay for an optional ROM.
See page 2-6.
ASUS EZ Flash BIOS
With the ASUS EZ Flash, you can easily update the system BIOS even before
loading the operating system. No need to use a DOS-based utility or boot from a
floppy disk. See page 2-3.

ASUS P4S800-MX motherboard user guide 1-5
.4 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any
component.
2. Use a grounded wrist strap or touch a safely grounded object or to a metal
object, such as the power supply case, before handling components to
avoid damaging them due to static electricity.
3. Hold components by the edges to avoid touching the ICs on them.
4. Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
5. Before you install or remove any component, ensure that the ATX
power supply is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
Onboard LED
The P4S800-MX comes with a stand-by power LED. When lit, the green LED
indicates that the system is ON, in sleep mode, or in soft-off mode, a reminder that
you should shut down the system and unplug the power cable before removing or
plugging in any motherboard component. The illustration below shows the location
of the onboard LED.
P4S800-MX
P4S800-MX Onboard LED
SB_PWR1
ON
Standby
Power
OFF
Powered
Off

1-6 Chapter 1: Product introduction
.5 Motherboard overview
1.5.1 Motherboard layout
24.5cm (9.6in)
PCI1
P4S800-MX
CR2032 3V
Lithium Cell
CMOS Power
CD1AUX1
Super
I/O
2Mb
ISA
PS/2KBMS
T: Mouse
B: Keyboard
Below:Mic In
Center:Line Out
Top:Line In
Accelerated Graphics Port (AGP1)
CPU_FAN1
FP_AUDIO1
AD1888
CODEC
USB2.0
T: USB3
B: USB4 Top:
RJ-45
GAME1
CLRTC
FLOPPY1 PRI_IDE1 SEC_IDE1
ATX Power Connector
DDR DIMM1 (64 bit,184-pin module) DDR DIMM2 (64 bit,184-pin module)
CHA_FAN1
USB1
USB2
USB56
24.5cm (9.6in)
USBPWR12 USBPWR34
USBPW56
PARALLEL PORT
COM1
VGA1
PCI2
PCI3
SPDIF
VIA
VT6103
SiS
661FX
North Bridge
SiS
963L
Chipset
SB_PWR1
KBPWR1
Socket 478
ATX12V1
F_PANEL1
SPEAKER1
PLED1
F_PANEL1
12 23
CLRTC1
Normal Clear CMOS
(Default)
(Default)
+5V +5VSB
KBPWR12312
+5V
(Default) +5VSB
2
1
3
2
USBPW12
USBPW34
2321
+5V
(Default) +5VSB
USBPW56
PLED- PWR PLED+
Ground GNDReset
IDE_LED+
IDE_LED-
Power LED
Reset SW
ATX Power
Switch*
IDE_LED
* Requires an ATX power supply.
PLED1
PLED+
1
NC
PLED-

ASUS P4S800-MX motherboard user guide 1-7
Do not overtighten the screws! Doing so may damage the motherboard.
1.5.2 Placement direction
When installing the motherboard, make sure that you place it into the chassis in
the correct orientation. The edge with external ports goes to the rear part of the
chassis as indicated in the image below.
1.5.3 Screw holes
Place eight (8) screws into the holes indicated by circles to secure the
motherboard to the chassis.
Place this side towards
the rear of the chassis

1-8 Chapter 1: Product introduction
.6 Central Processing Unit (CPU)
1.6.1 Overview
The Intel
®
Pentium
®
4 processor has a gold triangular mark on one corner. This
mark indicates the processor Pin 1 that should match a specific corner of the CPU
socket.
Incorrect installation of the CPU into the socket may bend the pins and
severely damage the CPU!
Notes on Intel
®
Hyper-Threading Technology
1. Hyper-Threading Technology is supported under Windows XP and Linux
2.4.x (kernel) and later versions only. Under Linux, use the Hyper-Threading
compliler to compile the code. If you are using any other operating systems,
disable the Hyper-Threading Techonology item in BIOS to ensure system
stability and performance.
2. It is recommended that you install WinXP Service Pack 1.
3. Make sure to enable the Hyper-Threading Technology item in BIOS before
installing a supported operating system.
4. For more information on Hyper-Threading Technology, visit www.intel.com/
info/hyperthreading.
P4S800-MX
P4S800-MX Socket 478
Gold Arrow

ASUS P4S800-MX motherboard user guide 1-9
1.6.2 Installing the CPU
Follow these steps to install a CPU.
1. Locate the 478-pin ZIF socket on the motherboard.
2. Unlock the socket by pressing the
lever sideways, then lift it up to a 90°-
100°angle.
Make sure that the socket lever is
lifted up to 90°-100°angle,
otherwise the CPU does not fit in
completely.
3. Position the CPU above the socket
such that its marked corner matches
the base of the socket lever.
4. Carefully insert the CPU into the
socket until it fits in place.
The CPU fits only in one correct
orientation. DO NOT force the
CPU into the socket to prevent
bending the pins and damaging
the CPU!
5. When the CPU is in place, push down
the socket lever to secure the CPU.
The lever clicks on the side tab to
indicate that it is locked.
6. Install a CPU heatsink and fan
following the instructions that came
with the heatsink package.
7. Connect the CPU fan cable to the
CPU_FAN1 connector on the
motherboard.
Socket Lever
90 -100
Gold Mark

1-10 Chapter 1: Product introduction
.7 System memory
1.7.1 DIMM sockets location
The following figure illustrates the location of the DDR DIMM sockets.
Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to both
the motherboard and the components.
When installing long AGP cards, it is recommended to install the memory
modules first. Long AGP cards, when installed, may interfere with the memory
sockets.
1.7.2 Memory configurations
You may install 64MB, 128MB, 256MB, 512MB, and 1GB DDR DIMMs into the
DIMM sockets.
P4S800-MX
P4S800-MX 184-Pin DDR DIMM Sockets
80 Pins104 Pins
DIMM1 DIMM2
Obtain DDR DIMMs only from ASUS qualified vendors. Refer to the Qualified
DDR400 vendors list next page. Visit the ASUS website (www.asus.com) for the
latest DDR Qualified Vendors List.

ASUS P4S800-MX motherboard user guide 1-11
Table 1 Qualified DDR400 vendors list
This table lists the memory modules that have been tested and qualified for use
with this motherboard.
Size Vendor Part Number Chip Brand Side/s* Chip Number
512MB MICRON MT16VDDT6464AG-40BC4 MICRON DS MT46V32M8TG-5BC
512MB CENTURY DXV2S8SSCCE3K27E SAMSUNG DS K4H560838E-TCCC
256MB CENTURY DXV6S8MC5BC3U27E MICRON SS MT46V32M8TG-5BC
256MB BRAIN POWER B6U808-256M-SAM-400 SAMSUNG SS K4H560838D-TCC4
256MB Transcend TS32MLD64V4F3 MOSEL SS V58C2256804SAT5
256MB Apacer 77.10636.465 SAMSUNG SS K4H560838D-TCC4
256MB ATP AG32L64T8SQC4S SAMSUNG SS K4H560838D-TCC4
256MB NANYA NT256D64S88B1G-5T NANYA SS NT5DS32M8BT-5T
256MB MICRON MT8VDDT3264AG-40BC4 MICRON SS MT46V32M8TG-5BC
512MB elixir M2U25664DS8HB3G-5T elixir DS N2DS25680BT-5T
1.7.3 Installing a DIMM
Follow these steps to install a DIMM.
1. Unlock a DIMM socket by pressing
the retaining clips outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in
place and the DIMM is properly
seated.
A DDR DIMM is keyed with a notch so that it fits in only one direction. DO NOT
force a DIMM into a socket to avoid damaging the DIMM.
Unlocked
Retaining Clip
DDR DIMM notch
* Side/s:
DS - Double-sided
SS - Single-sided

1-12 Chapter 1: Product introduction
1.8.1 Installing an expansion card
Follow these steps to install an expansion card.
1. Before installing the expansion card, read the documentation that came with it
and make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw
for later use.
4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
.8 Expansion slots
In the future, you may need to install expansion cards. The following sub-sections
describe the slots and the expansion cards that they support.
Make sure to unplug the power cord before adding or removing expansion
cards. Failure to do so may cause you physical injury and damage motherboard
components.
1.8.2 Configuring an expansion card
After installing the expansion card, configure the it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See
Chapter 2 for information on BIOS setup.
2. Assign an IRQ to the card. Refer to the tables on the next page.
3. Install the software drivers for the expansion card.
