Asus PRIME B365-PLUS User manual

Motherboard
PRIME B365-PLUS

ii
E15233
First Edition
March 2019
Copyright © 2019 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address [email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

iii
Contents
Safety information...................................................................................................... iv
About this guide......................................................................................................... iv
Package contents....................................................................................................... vi
PRIME B365-PLUS specications summary ........................................................... vi
Chapter 1: Product introduction
1.1 Before you proceed...................................................................................... 1-1
1.2 Motherboard overview ................................................................................. 1-1
1.3 Central Processing Unit (CPU).................................................................. 1-10
1.4 System memory.......................................................................................... 1-11
Chapter 2: BIOS information
2.1 Managing and updating your BIOS............................................................. 2-1
2.2 BIOS setup program..................................................................................... 2-5
2.3 Exit menu .................................................................................................... 2-10
Appendix
Notices ..................................................................................................................... A-1
ASUS contact information...................................................................................... A-5

iv
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS information
This chapter discusses changing system settings through the BIOS Setup menus.

v
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task
IMPORTANT: Instructions that you MUST follow to complete a
task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).

vi
(continued on the next page)
PRIME B365-PLUS specications summary
CPU LGA1151 socket for 9th / 8th Generation Intel®Core™, Pentium®Gold, and
Celeron®processors*
Supports 14nm CPU
Supports Intel®Turbo Boost Technology 2.0**
*Refer to www.asus.com for Intel®CPU support list.
** Intel®Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset Intel®B365 Chipset
Memory 4 x DIMM, maximum 64 GB, DDR4 2666/ 2400/ 2133MHz, non-ECC, un-
buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Prole (XMP)
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel®
8th Generation 6-core or higher processors.
*** Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).
Expansion slots 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode)
4 x PCI Express 3.0/2.0 x1 slots
Multi-GPU support Supports AMD®2-Way CrossFireX™ Technology
Graphics Integrated graphics processor - Intel®UHD Graphics support
Multi-VGA output support: HDMI, DVI-D, and D-sub ports
- Supports HDMI 1.4b with max. resolution of 4096 x 2160@24Hz
- Supports DVI-D with max. resolution of 1920 x 1200@60Hz
- Supports D-sub with max. resolution of 1920 x 1200@60Hz
Supports Intel®InTru™ 3D/Quick Sync Video/Clear Video HD Technology/
Insider™
LAN Realtek®8111H, 1 x Gigabit LAN controller
ASUS LANGuard
Package contents
Check your motherboard package for the following items.
Motherboard ASUS PRIME B365-PLUS motherboard
Cables 2 x Serial ATA 6.0 Gb/s cables
Accessories 1 x I/O Shield
2 x M.2 Screws
Application DVD Support DVD
Documentation User Guide
If any of the above items is damaged or missing, contact your retailer.

vii
PRIME B365-PLUS specications summary
(continued on the next page)
Storage Intel®B365 Chipset with RAID 0, 1, 5, 10 and Intel Rapid
Storage Technology support
- 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 storage devices
support (both SATA mode & PCIe x2 modes)*
- 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 storage
devices support (PCIe x4 mode)
- 6 x SATA 6.0 Gb/s ports
- Intel®Optane™ Memory Ready
* When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port
cannot be used. Adjust the BIOS settings to use a SATA device.
Audio Realtek® ALC887 8-channel* high denition audio CODEC
- Audio Shielding: Ensures precision analog/digital separation and greatly
reduces multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels
to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and
immersive sound with exceptional clarity and delity
- Supports jack-detection and front panel jack-retasking
* Use a chassis with HD audio module in the front panel to support an 8-channel
audio output.
USB Intel®B365 Chipset:
- 8 x USB 3.1 Gen 1 (up to 5Gbps) ports (4 ports at mid-board; 4 ports at
the back panel)
- 6 x USB 2.0/1.1 ports (4 ports at mid-board; 2 ports at the back panel)
ASUS unique
features
ASUS 5X PROTECTION III
- ASUS SafeSlot Core: Fortied PCIe with solid soldering
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power
design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater
durability!
- ASUS DIGI+ VRM power design
AURA
- Aura Sync
- Aura RGB Headers
ASUS EPU
- EPU
ASUS Quiet Thermal Solution
- ASUS Fan Xpert 2+
- Stylish Fanless Design: Heat-sink solution & MOS Heatsink
ASUS Exclusive Features
- ASUS Ai Charger
- ASUS AI Suite 3
ASUS EZ DIY
- ASUS UEFI BIOS EZ Mode
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3

viii
Specications are subject to change without notice.
ASUS unique
features ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

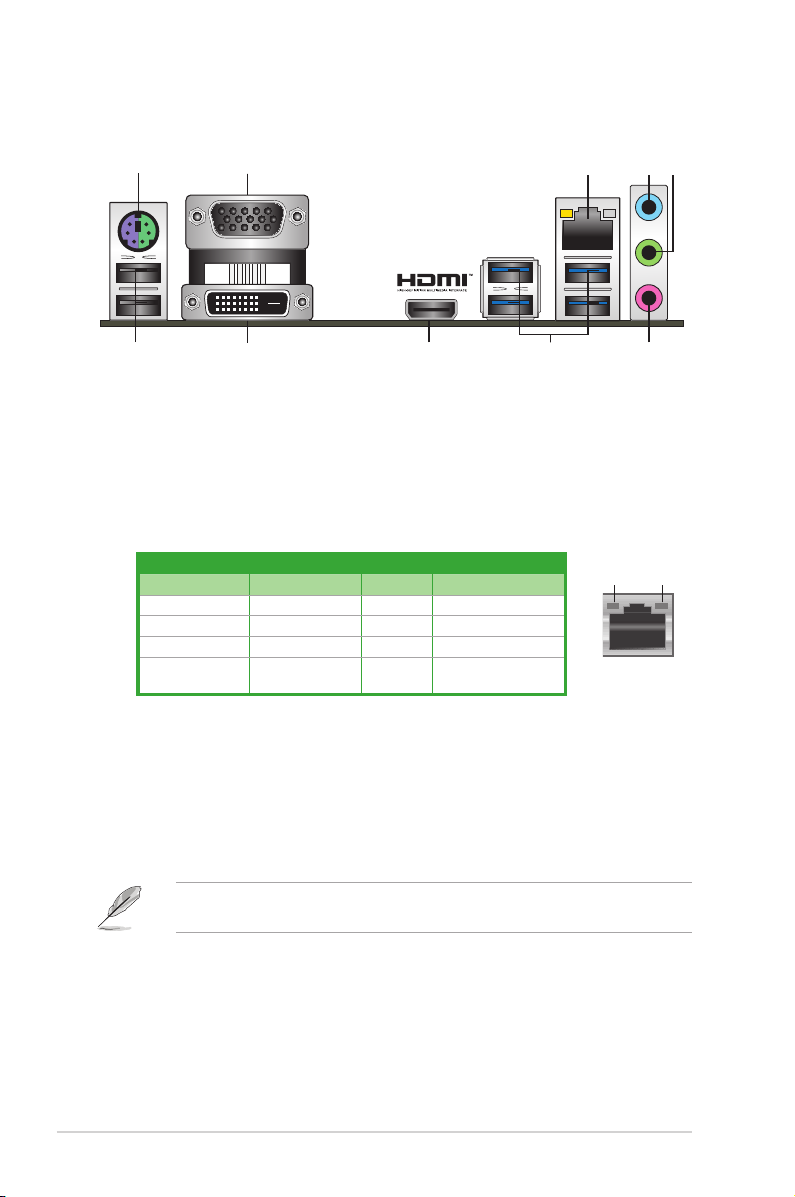

Back panel I/O
ports
1 x PS/2 keyboard/mouse combo port
1 x HDMI port
1 x DVI-D port
1 x D-sub port
1 x LAN (RJ-45) port
4 x USB 3.1 Gen 1 (up to 5Gbps) Type A ports (blue)
2 x USB 2.0/1.1 ports
3-Jack 8-Channel Audio I/O ports
Internal I/O
connectors
2 x USB 3.1 Gen 1 (up to 5Gbps) connector supports additional 4 USB ports
(19-pin)
2 x USB 2.0 connectors support additional 4 USB ports
1 x M.2_1 Socket 3 (for M Key, type 2242/2260/2280 devices)
1 x M.2_2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices)
6 x SATA 6.0 Gb/s connectors (gray)
2 x RGB headers
1 x 4-pin CPU Fan connector (support DC/PWM modes)
3 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode)
coolers control
1 x Front panel audio connector (AAFP)
1 x S/PDIF out header
1 x System panel connector*
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x TPM connector
1 x COM connector
1 x Clear CMOS jumper
1 x Mono out header
* Chassis intrusion header is built in the system panel connector.
BIOS features 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-
language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard,
F6 Qfan Control, F3 My Favorites, Last Modied log, F12 PrintScreen, and
ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Support DVD Drivers
ASUS utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating
system support Windows®10 (64-bit)
Form factor ATX form factor: 12.0 in. x 8.7 in. (30.5 cm x 22.1 cm)
PRIME B365-PLUS specications summary

ASUS PRIME B365-PLUS
1-1
PCIEX16_1
PCIEX16_2
PCIEX1_1
PCIEX1_2
PCIEX1_3
PCIEX1_4
ALC
887
M.2_1(SOCKET3)
M.2_2(SOCKET3)
M.2_2(SOCKET3)
USB1112 USB1314
AAFP
SPDIF_OUT
CLRTC
EATXPWR
BATTERY
Super
I/O
2280 2260 2242
228022110 2260 2242
KBMS_USB910
DVI
VGA
22.1cm(8.7in)
DDR4 DIMM_B1 (64bit, 288-pin module) DDR4 DIMM_B2 (64bit, 288-pin module) DDR4 DIMM_A1 (64bit, 288-pin module) DDR4 DIMM_A2 (64bit, 288-pin module)
SATA6G_6 SATA6G_5
LAN_U31G1_78
U31G1_34
HDMI
CHA_FAN2
CHA_FAN3
CPU_FAN
RGB_HEADER2
RGB_HEADER1 CHA_FAN1
30.5cm(12.0in)
LGA1151
DIGI
+VRM
COM
MONO_OUT
EATX12V
U31G1_12
U31G1_56
Intel®
B365
Realtek®
8111H
128Mb
BIOS
PANEL
AUDIO
SATA6G_2 SATA6G_1
SATA6G_4 SATA6G_3
LANGuard
PCIE SATA IRST
X4 VX
M.2_1(SOCKET3)
PCIE SATA IRST
X2 VV
TPM
CPU_LED
DRAM_LED
VGA_LED
BOOT_DEVICE_LED
21 3 52 4
10 961112131516 14
1
6
4
2
7
8
18
17
17
18
17
Product introduction
1
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
to static electricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switched off or the power cord is detached from the power supply. Failure to do so
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodosocan
cause you physical injury and damage motherboard components.
1.2 Motherboard overview
Place this
side towards
the rear of the
chassis

1-2
Chapter 1: Product introduction

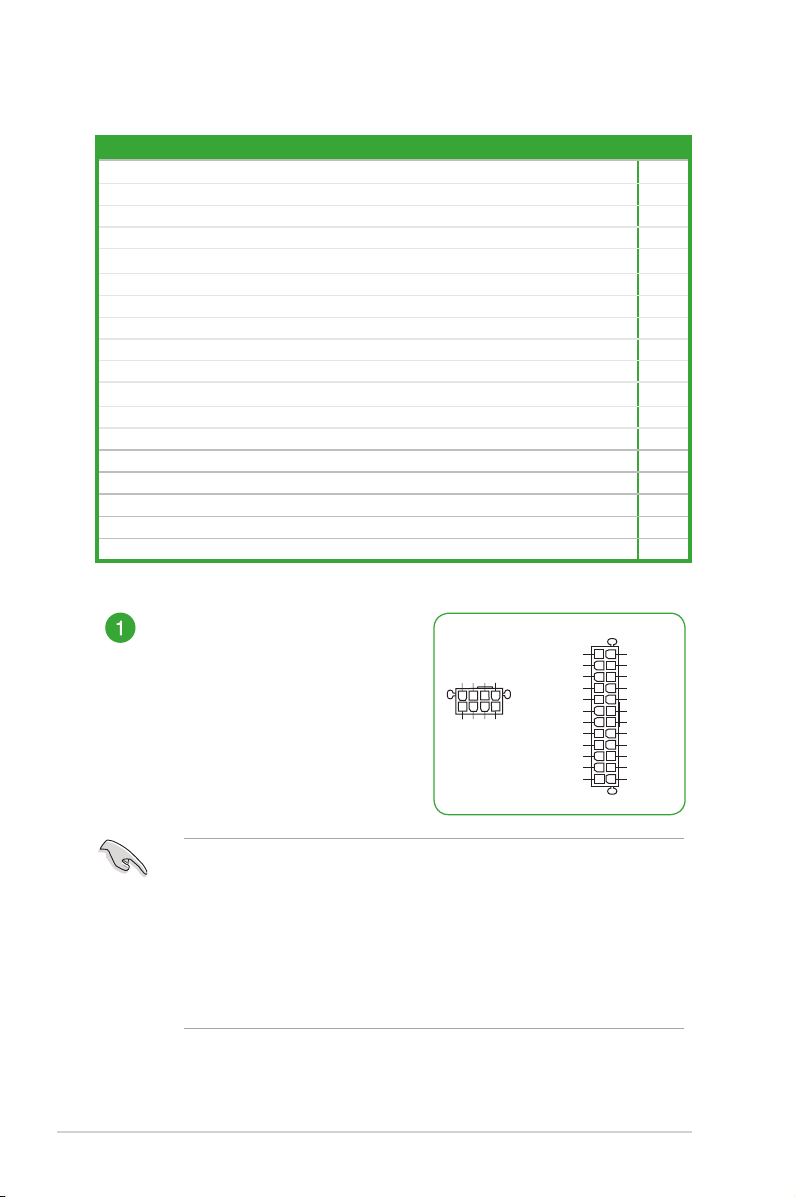

1.2.1 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATXpowerconnectors(24-pinEATXPWR,8-pinEATX12V) 1-2
2. CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN1~3) 1-3
3. Intel®LGA1151CPUsocket 1-3
4. RGBheaders(4-pinRGB_HEADER1,RGB_HEADER2) 1-3
5. DDR4DIMMslots 1-4
6. USB3.1Gen1(upto5Gbps)connectors(20-1pinU31G1_12,U31G1_56) 1-4
7. M.2Socket3 1-4
8. Intel®B365SerialATA6.0Gb/sconnector(7-pinSATA6G_1~6) 1-5
9. ClearRTCRAM(2-pinCLRTC) 1-5
10. Systempanelconnector(20-3pinPANEL) 1-5

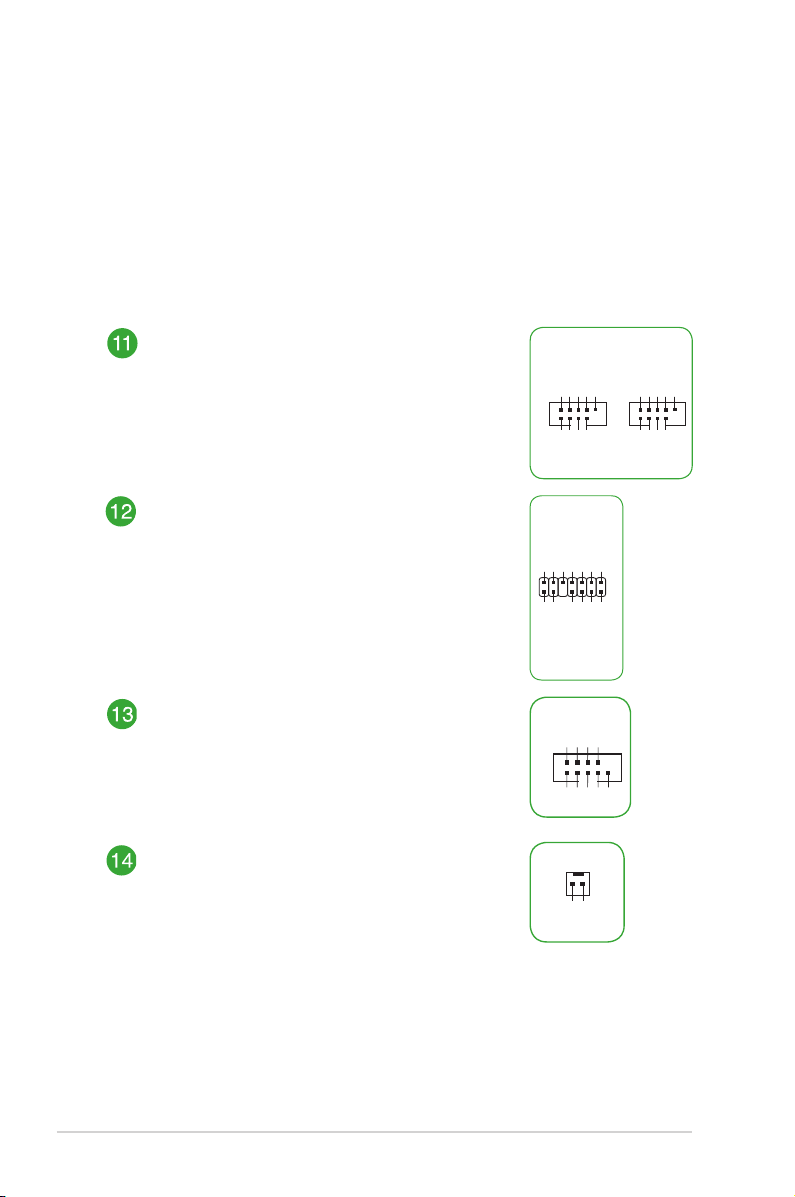

11. USB2.0connectors(10-1pinUSB1112,USB1314) 1-6
12. TPMconnector(14-1pinTPM) 1-6
13. Serialportconnector(10-1pinCOM) 1-6
14. Monooutheader(2-pinMONO_OUT) 1-6

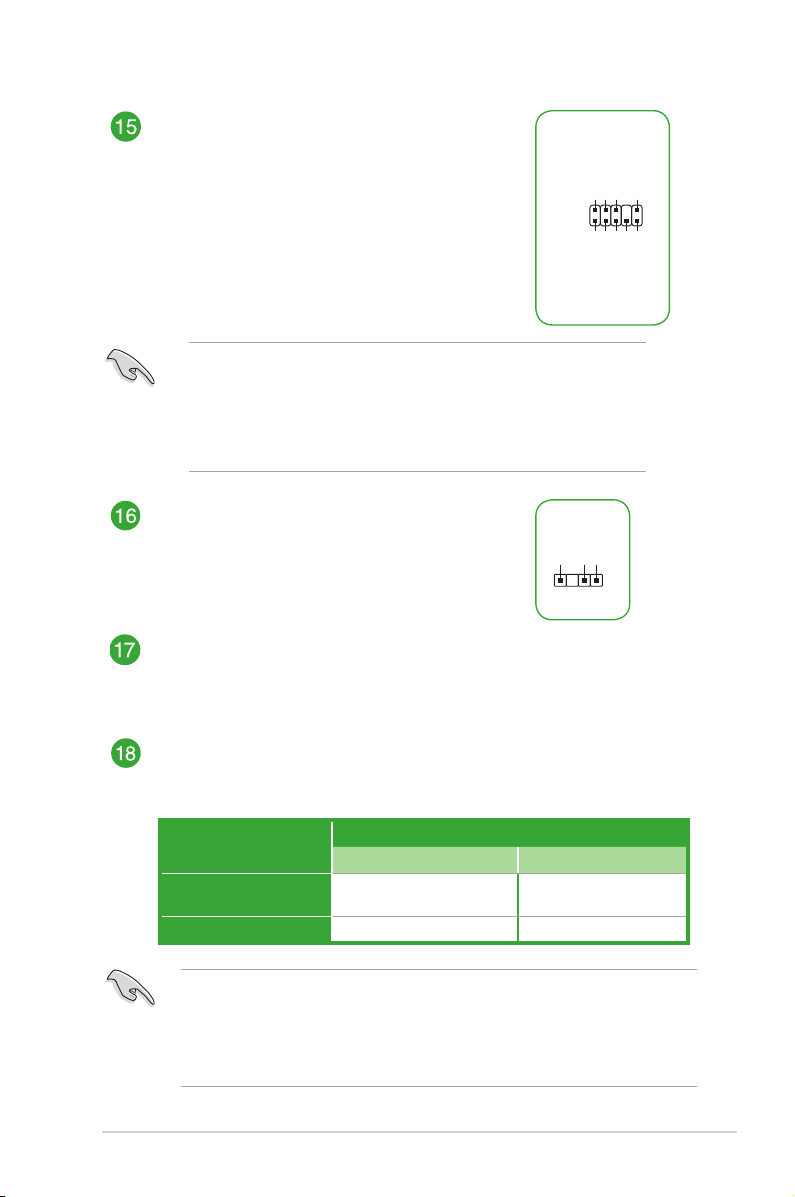

15. Frontpanelaudioconnector(10-1pinAAFP) 1-7
16. Digitalaudioconnector(4-1pinSPDIF_OUT) 1-7
17. PCIExpress3.0/2.0x1slots 1-7
18. PCIExpress3.0/2.0x16slots 1-7
ATX power connectors (24-pin
EATXPWR, 8-pin EATX12V)
CorrectlyorienttheATXpowersupply
plugs into these connectors and
pushdownrmlyuntiltheconnectors
completelyt.
EATX12V
+12V DC
+12V DC
+12V DC
+12V DC
GND
GND
GND
GND
EATXPWR
PIN 1
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
• Forafullyconguredsystem,werecommendthatyouuseapowersupplyunit
(PSU)thatcomplieswithATX12VSpecication2.0(orlaterversion)andprovides
aminimumpowerof350W.ThisPSUtypehas24-pinand8-pinpowerplugs.
• DONOTforgettoconnectthe8-pinEATX+12Vpowerplug.Otherwise,thesystem
will not boot up.
• WerecommendthatyouuseaPSUwithhigherpoweroutputwhenconguringa
systemwithmorepower-consumingdevicesorwhenyouintendtoinstalladditional
devices.Thesystemmaybecomeunstableormaynotbootupifthepoweris
inadequate.

ASUS PRIME B365-PLUS
1-3
CPU and chassis fan connectors (4-pin
CPU_FAN, 4-pin CHA_FAN1~3)
Connect the fan cables to the fan
connectorsonthemotherboard,ensuring
that the black wire of each cable matches
the ground pin of the connector.
CHA FAN PWM
CHA FAN IN
CHA FAN PWR
GND
CPU_FAN CHA_FAN3
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA_FAN1
CHA FAN PWM
CHA FAN IN
CHA FAN PWR
GND
CHA_FAN2
GND CHA FAN PWR CHA FAN IN CHA FAN PWM
Intel®LGA1151 CPU socket
Install Intel®LGA1151CPUintothissurfacemountLGA1151socket,whichis
designedfor9th/8th Generation Intel®Core™,Pentium®Gold,andCeleron®
processors.
Donotforgettoconnectthefancables
tothefanconnectors.Insufcientair
owinsidethesystemmaydamagethe
motherboard components. These are not
jumpers!Donotplacejumpercapsonthe
fanconnectors!TheCPU_FANconnector
supportsaCPUfanofmaximum1A(12W)
fan power.
Formoredetails,refertoCentral Processing Unit (CPU).
TheRGBheadersupports5050RGB
multi-colorLEDstrips(12V/G/R/B),witha
maximumpowerratingof3A(12V),and
nolongerthan3m.
Beforeyouinstallorremoveany
component,ensurethattheATXpower
supply is switched off or the power cord is
detached from the power supply. Failure
todosomaycauseseveredamagetothemotherboard,peripherals,orcomponents.
• ActuallightingandcolorwillvarywithLEDstrip.
• IfyourLEDstripdoesnotlightup,checkiftheRGBLEDextensioncableandthe
RGBLEDstripisconnectedinthecorrectorientation,andthe12Vconnectoris
alignedwiththe12Vheaderonthemotherboard.
• TheLEDstripwillonlylightupwhenthesystemisoperating.
• TheLEDstripsarepurchasedseparately.
12VG
RB
RGB_HEADER
PIN 1
+12V G R B
RGB headers (4-pin RGB_HEADER1, RGB_HEADER2)
TheseheadersareforRGBLEDstrips.

1-4
Chapter 1: Product introduction

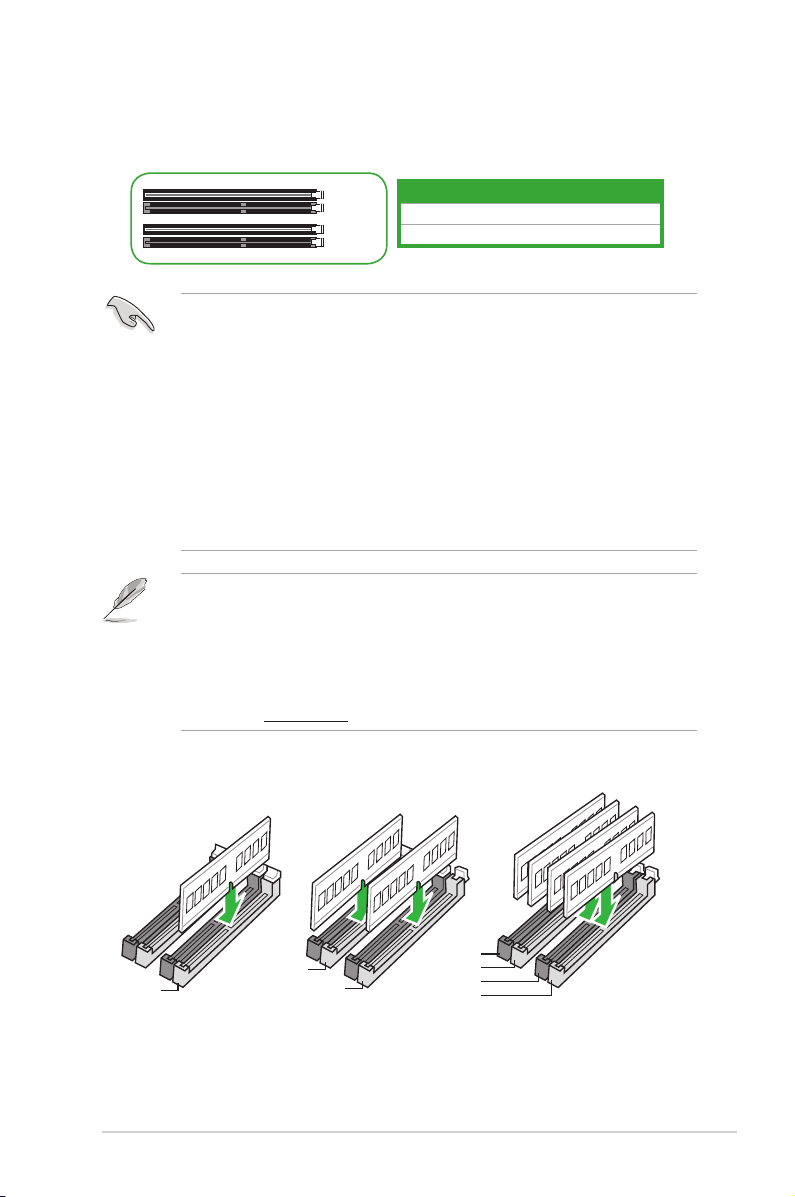

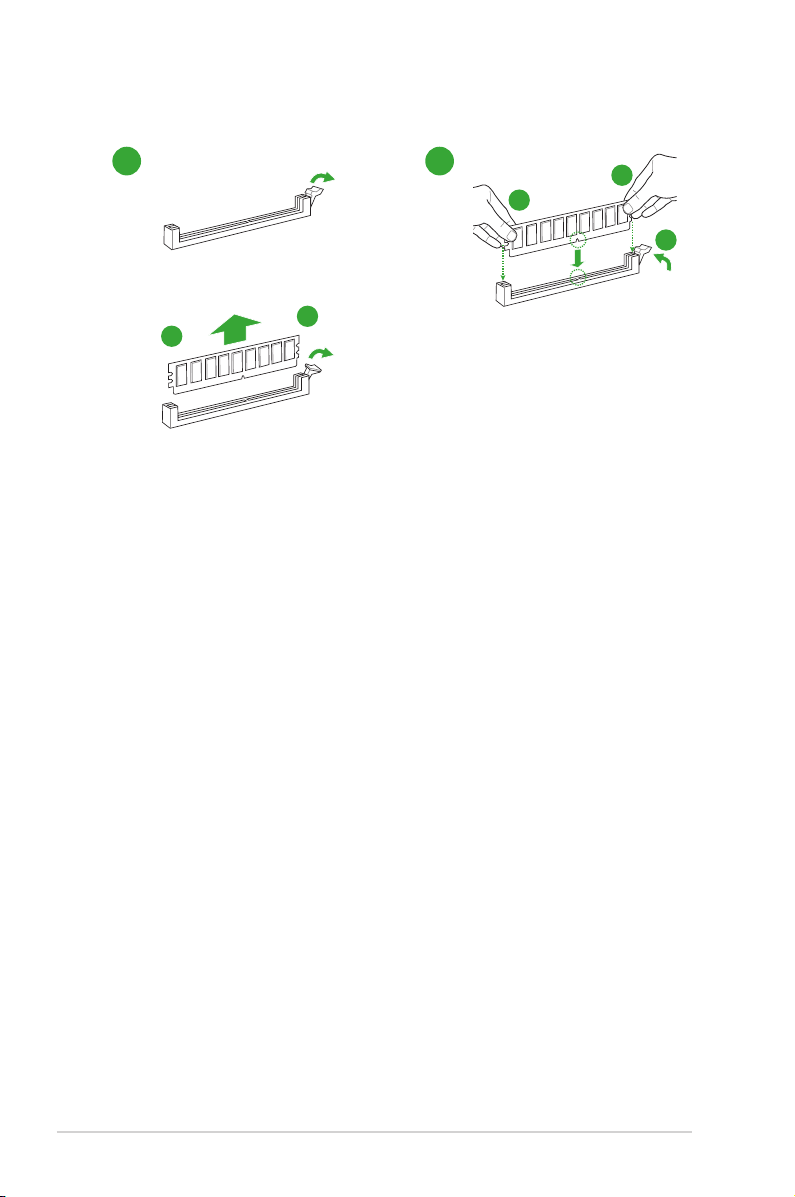

DDR4 DIMM slots
Install2GB,4GB,8GB,and16GBunbufferednon-ECCDDR4DIMMsintothese
DIMMsockets.
USB 3.1 Gen 1 (up to 5Gbps) connectors (20-1 pin
U31G1_12, U31G1_56)
ConnectaUSB3.1Gen1moduletoanyofthese
connectorsforadditionalUSB3.1Gen1frontorrear
panelports.TheseconnectorscomplywithUSB3.1
Gen1specicationsandprovidefasterdatatransfer
speedsofupto5Gbps,fasterchargingtimeforUSB-
chargeabledevices,optimizedpowerefciency,and
backwardcompatibilitywithUSB2.0.
U31G1_56
USB3+5V
IntA_P1_SSRX-
IntA_P1_SSRX+
GND
IntA_P1_SSTX-
IntA_P1_SSTX+
GND
IntA_P1_D-
IntA_P1_D+
GND
PIN 1
USB3+5V
IntA_P2_SSRX-
IntA_P2_SSRX+
GND
IntA_P2_SSTX-
IntA_P2_SSTX+
GND
IntA_P2_D-
IntA_P2_D+
U31G1_12
USB3+5V IntA_P1_SSRX- IntA_P1_SSRX+ GND IntA_P1_SSTX- IntA_P1_SSTX+ GND IntA_P1_D- IntA_P1_D+ GND
PIN 1
USB3+5V
IntA_P2_SSRX-
IntA_P2_SSRX+
GND
IntA_P2_SSTX-
IntA_P2_SSTX+
GND
IntA_P2_D-
IntA_P2_D+
M.2 socket 3
These sockets allow you to install M.2(NGFF)SSDmodules.
• TheM.2_1socketsupportsMKeyandtype2242/2260/2280storagedevices.
• TheM.2_2socketsupportsMKeyandtype2242/2260/2280/22110storage
devices.
• BothsocketscansupportIntel®Optane™Memory.
• TheM.2_1socketsupportsdatatransferspeedupto16Gb/s.
• TheM.2_2socketsupportsdatatransferspeedupto32Gb/s.
• OnlytheM.2_1socketcansupportSATAmodestoragedevices.Whenadevicein
SATAmodeisinstalledontheM.2_1socket,SATA_2isdisabled.
M.2_2(SOCKET3)
228022110 2260 2242
M.2_1(SOCKET3)
2280 2260 2242
Formoredetails,refertoSystem memory.

ASUS PRIME B365-PLUS
1-5

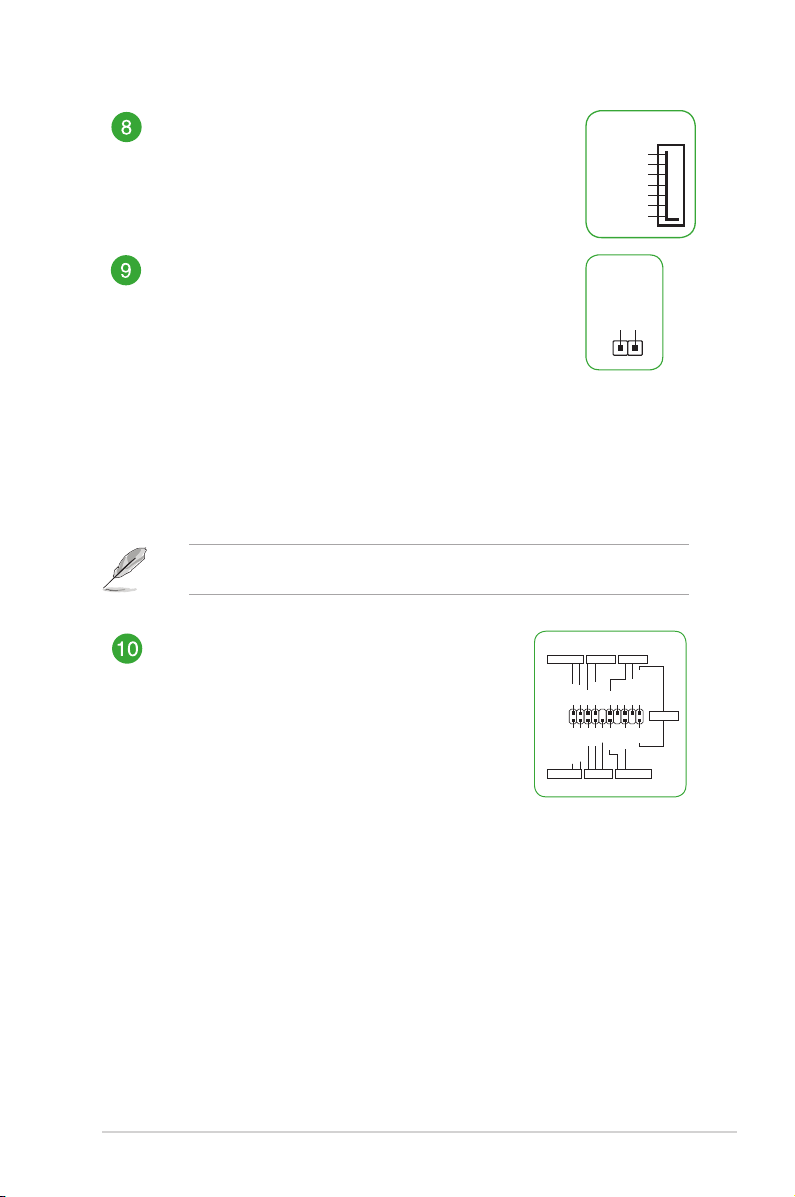

Intel®B365 Serial ATA 6.0Gb/s connectors (7-pin
SATA6G_1~6)
TheseconnectorsconnecttoSerialATA6.0Gb/sharddisk
drivesviaSerialATA6.0Gb/ssignalcables.
GND
RSATA_TXP
RSATA_TXN
GND
RSATA_RXN
RSATA_RXP
GND
SATA6G
Clear RTC RAM (2-pin CLRTC)
ThisheaderallowsyoutocleartheCMOSRTCRAMdataof
thesystemsetupinformationsuchasdate,time,andsystem
passwords.
To erase the RTC RAM:
1. TurnOFFthecomputerandunplugthepowercord.
2. Useametalobjectsuchasascrewdrivertoshortthetwo
pins.
3. PlugthepowercordandturnONthecomputer.
4. Holddownthe<Del> key during the boot process and
enterBIOSsetuptore-enterdata.
CLRTC
+3V_BAT GND
PIN 1
Ifthestepsabovedonothelp,removetheonboardbatteryandshortthetwopinsagain
tocleartheCMOSRTCRAMdata.AfterclearingtheCMOS,reinstallthebattery.
System panel connector (20-3 pin F_PANEL)
Thisconnectorsupportsseveralchassis-mounted
functions.
• SystempowerLED(4-pin+PWR_LED-)
This4-pinconnectorisforthesystempowerLED.
ConnectthechassispowerLEDcabletothis
connector.ThesystempowerLEDlightsupwhen
youturnonthesystempower,andblinkswhen
the system is in sleep mode.
PLED+ PLED- PWR Ground +5V Ground Ground Speaker CASEOPEN
HDD_LED+
HDD_LED-
GND
Reset
+5V
PLED+
PLED-
GND
PIN 1
+PWR_LED-
+PWR_LED-
SPEAKER
PANEL
+HDD_LED-
PWR_SW
RESET
* Requires an ATX power supply
CHASSIS
• HarddiskdriveactivityLED(2-pin+HDD_LED-)
This2-pinconnectorisfortheHDDActivityLED.ConnecttheHDDActivity
LEDcabletothisconnector.TheHDDLEDlightsuporasheswhendatais
readfromorwrittentotheHDD.
• Systemwarningspeaker(4-pinSPEAKER)
This4-pinconnectorisforthechassis-mountedsystemwarningspeaker.
The speaker allows you to hear system beeps and warnings.
• ATXpowerbutton/soft-offbutton(2-pinPWR_SW)
Thisconnectorisforthesystempowerbutton.Pressingthepowerbutton
turns the system on or puts the system in sleep or soft-off mode depending
ontheoperatingsystemsettings.Pressingthepowerswitchformorethan
foursecondswhilethesystemisONturnsthesystemOFF.

1-6
Chapter 1: Product introduction
• Resetbutton(2-pinRESET)
This 2-pin connector is for the chassis-mounted reset button for system
reboot without turning off the system power.
• Chassisintrusionheader(2-pinCHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
connector.Thechassisintrusionsensororswitchsendsahigh-levelsignalto
thisconnectorwhenachassiscomponentisremovedorreplaced.Thesignal
isthengeneratedasachassisintrusionevent.
USB 2.0 connectors (10-1 pin USB1112, USB1314)
ConnectaUSBmodulecabletoanyofthese
connectors,theninstallthemoduletoaslotopeningat
thebackofthesystemchassis.TheseUSBconnectors
complywithUSB2.0specicationsandsupportsupto
480Mbpsconnectionspeed.
USB+5V USB_P11- USB_P11+ GND NC
USB+5V
USB_P12-
USB_P12+
GND
USB1112
PIN 1
USB+5V USB_P13- USB_P13+ GND NC
USB+5V
USB_P14-
USB_P14+
GND
USB1314
PIN 1
TPM connector (14-1 pin TPM)
ThisconnectorsupportsaTrustedPlatformModule
(TPM)system,whichcansecurelystorekeys,digital
certicates,passwords,anddata.ATPMsystem
alsohelpsenhancenetworksecurity,protectsdigital
identities,andensuresplatformintegrity.
TPM
PIN 1
+3VSB
S_PCIRST#_TBD
GND
C_PCICLK_TPM
+3V +3V
TPM_PD# F_SERIRQ F_FRAME# F_LAD3 F_LAD2 F_LAD1 F_LAD0
Serial port connector (10-1 pin COM)
Thisconnectorisforaserial(COM)port.Connectthe
serialportmodulecabletothisconnector,theninstall
the module to a slot opening at the back of the system
chassis.
PIN 1
COM
DCD
TXD
GND
RTS
RI
RXD
DTR
DSR
CTS
Mono out header (2-pin MONO_OUT)
This internal mono out header allows connection to an
internal,lowpowerspeakerforbasicsystemsound
capability.Thesubsystemiscapableofdrivinga
speakerloadof4Ohmsat2Watts(rms).
R_OUT-
R_OUT+
PIN 1
MONO_OUT

ASUS PRIME B365-PLUS
1-7
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel
audioI/OmodulethatsupportsHDaudiostandard.
ConnectoneendofthefrontpanelaudioI/Omodule
cable to this connector.
AAFP
AGND NC SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
• Werecommendthatyouconnectahigh-denitionfrontpanelaudio
moduletothisconnectortoavailofthemotherboard’shigh-denitionaudio
capability.
• Ifyouwanttoconnectahigh-denitionfrontpanelaudiomoduletothis
connector,settheFrontPanelTypeitemintheBIOSsetupto[HDAudio].
Bydefault,thisconnectorissetto[HDAudio].
Digital audio connector (4-1 pin SPDIF_OUT)
ThisconnectorisforanadditionalSony/PhilipsDigital
Interface(S/PDIF)port.ConnecttheS/PDIFOutmodule
cabletothisconnector,theninstallthemoduletoaslot
opening at the back of the system chassis.
SPDIF_OUT
+5V
SPDIFOUT
GND
• InsingleVGAcardmode,usethePCIe3.0x16_1slot(gray)foraPCIExpressx16
graphics card to get better performance.
• WerecommendthatyouprovidesufcientpowerwhenrunningCrossFireX™mode.
• ConnectachassisfantothemotherboardconnectorlabeledCHA_FAN1/2/3when
usingmultiplegraphicscardsforbetterthermalenvironment.
VGAconguration
PCI Express operating mode
PCIe 3.0 x16_1 (gray) PCIe 3.0 x16_2
Single VGA/PCIe card x16(Recommendedforsingle
VGAcard) N/A
Dual VGA/PCIe cards x16 x4
PCI Express 3.0/2.0 x1 slots
ThismotherboardhastwoPCIExpress3.0/2.0x1slotsthatsupportPCIExpress
x1networkcards,SCSIcards,andothercardsthatcomplywiththePCIExpress
specications.
PCI Express 3.0/2.0 x16 slots
ThismotherboardsupportstwoPCIExpress3.0/2.0x16graphiccardsthatcomply
withthePCIExpressspecications.

1-8
Chapter 1: Product introduction
1.2.2 Rear panel connectors
4. Line In port (light blue).Thisportconnectsthetape,CD,DVDplayer,orotheraudio
sources.
5. Line Out port (lime).Thisportconnectsaheadphoneoraspeaker.In4.1-channel,
5.1-channel,and7.1-channelcongurations,thefunctionofthisportbecomesFront
SpeakerOut.
6. Microphone port (pink). This port connects a microphone.
Refertotheaudiocongurationtableonthenextpageforthefunctionoftheaudioportsin
2.1,4.1,5.1,or7.1-channelconguration.
LAN port
Speed
LED
Activity Link
LED
Activity/Link LED Speed LED
Status Description Status Description
Off Nolink OFF 10Mbpsconnection
Orange Linked ORANGE 100Mbpsconnection
Orange(Blinking) Dataactivity GREEN 1Gbps connection
Orange(Blinking
thensteady)
Readytowake
upfromS5mode
3
7
1
10
4 5
6
8
2
9
1. PS/2 keyboard/mouse combo port.ThisportisforaPS/2mouseorkeyboard.
2. Video Graphics Adapter (VGA) port. This15-pinportisforaVGAmonitororother
VGA-compatibledevices.
3. LAN (RJ-45) port.ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
throughanetworkhub.RefertothetablebelowfortheLANportLEDindications.
LAN port LED indications

ASUS PRIME B365-PLUS
1-9
Audio2.1,4.1,5.1or7.1-channelconguration
Port Headset
2.1-channel 4.1-channel 5.1-channel 7.1-channel
LightBlue
(Rearpanel) Line In RearSpeakerOut RearSpeakerOut RearSpeakerOut
Lime(Rearpanel) LineOut FrontSpeakerOut FrontSpeakerOut FrontSpeakerOut
Pink(Rearpanel) MicIn MicIn Bass/Center Bass/Center
Lime(Frontpanel) — — — SideSpeakerOut
Tocongurea7.1-channelaudiooutput:
 UseachassiswithHDaudiomoduleinthefrontpaneltosupporta7.1-channelaudio
output.
7. USB 3.1 Gen 1 (up to 5Gbps) ports.These9-pinUniversalSerialBus(USB)ports
connecttoUSB3.1Gen1devices.
• USB3.1Gen1devicescanonlybeusedfordatastorage.
• DuetothedesignoftheIntel®300serieschipset,allUSBdevicesconnectedtothe
USB2.0andUSB3.1Gen1portsarecontrolledbythexHCIcontroller.Somelegacy
USBdevicesmustupdatetheirrmwareforbettercompatibility.
• WestronglyrecommendthatyouconnectUSB3.1Gen1devicestoUSB3.1Gen1
portsforfasterandbetterperformancefromyourUSB3.1Gen1devices.
8. HDMI port.ThisportisforaHigh-DenitionMultimediaInterface(HDMI)connector,
andisHDCPcompliantallowingplaybackofHDDVD,Blu-ray,andotherprotected
content.
9. DVI-D port.ThisportisforanyDVI-Dcompatibledevice.
DVI-DcannotbeconvertedtooutputfromRGBSignaltoCRTandisnotcompatiblewith
DVI-I.
10. USB 2.0 portsThese4-pinUniversalSerialBus(USB)portsareforUSB2.0/1.1
devices.

1-10
Chapter 1: Product introduction
1.3 Central Processing Unit (CPU)
ThismotherboardcomeswithasurfacemountLGA1151socket
designedforthe9th/8thGenerationIntel®Core™,Pentium®Gold,and
Celeron®processors.
UnplugallpowercablesbeforeinstallingtheCPU.
• EnsurethatyouinstallthecorrectCPUdesignedforthe
LGA1151socketonly.DONOTinstallaCPUdesignedforLGA1150,LGA1155and
LGA1156socketsontheLGA1151socket.
• Uponpurchaseofthemotherboard,ensurethatthePnPcapisonthesocketand
thesocketcontactsarenotbent.ContactyourretailerimmediatelyifthePnPcap
ismissing,orifyouseeanydamagetothePnPcap/socketcontacts/motherboard
components.
• Keepthecapafterinstallingthemotherboard.ASUSwillprocessReturnMerchandise
Authorization(RMA)requestsonlyifthemotherboardcomeswiththecaponthe
LGA1151socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontactsresultingfrom
incorrectCPUinstallation/removal,ormisplacement/loss/incorrectremovalofthePnP
cap.
Installing the CPU
1
4
ApplytheThermalInterfaceMaterialtotheCPUheatsinkandCPUbeforeyouinstallthe
heatsink and fan if necessary.
2
3
A
B
A
B
C
D
5
4
4
5

ASUS PRIME B365-PLUS
1-11
1.4 System memory
ThismotherboardcomeswithfourDoubleDataRate4(DDR4)DualInlineMemoryModule
(DIMM)sockets.ThegureillustratesthelocationoftheDDR4DIMMsockets:
Channel Sockets
ChannelA DIMM_A1&DIMM_A2
ChannelB DIMM_B1&DIMM_B2
• YoumayinstallvaryingmemorysizesinChannelAandChannelB.Thesystem
mapsthetotalsizeofthelower-sizedchannelforthedual-channelconguration.Any
excessmemoryfromthehigher-sizedchannelisthenmappedforsingle-channel
operation.
• AlwaysinstallDIMMswiththesameCASlatency.Foroptimalcompatibility,we
recommendthatyouinstallmemorymodulesofthesameversionordatecode(D/C)
fromthesamevendor.Checkwiththeretailertogetthecorrectmemorymodules.
• DDR42666MHzandhighermemorymoduleswillrunatmax.2666MHzonIntel®8th
Generation 6-core or higher processors.
• Memorymoduleswithmemoryfrequencyhigherthan2133MHzanditscorresponding
timingortheloadedX.M.P.ProleisnottheJEDECmemorystandard.Thestability
andcompatibilityofthesememorymodulesdependontheCPU’scapabilitiesand
otherinstalleddevices.
• ThedefaultmemoryoperationfrequencyisdependentonitsSerialPresenceDetect
(SPD),whichisthestandardwayofaccessinginformationfromamemorymodule.
Underthedefaultstate,somememorymodulesforoverclockingmayoperateata
lowerfrequencythanthevendor-markedvalue.
• Forsystemstability,useamoreefcientmemorycoolingsystemtosupportafull
memoryload(4DIMMs).
• Refertowww.asus.comforthelatestMemoryQVL(QualiedVendorsList)
DIMM_B1
DIMM_B2
DIMM_A1
DIMM_A2
Recommendedmemorycongurations
DIMM_A2
DIMM_B1
DIMM_B2
DIMM_A2
DIMM_B2
DIMM_A1
DIMM_A2

1-12
Chapter 1: Product introduction
Installing a DIMM
12
To remove a DIMM
B
A
B
A
A
