Asus P4S8X-X User manual

Motherboard
P4S8X-X
User Guide

ii
Checklist
Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE.
IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGEATANY TIME
WITHOUT NOTICE,AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BYASUS.
ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
E1207
First Edition V1
January 2003

iii
Features
Contents
Notices ............................................................................................v
Safety information ..........................................................................vi
About this guide............................................................................. vii
ASUS contact information ............................................................ viii
P4S8X-X specifications summary ..................................................ix
Chapter 1: Product introduction
1.1 Welcome! ........................................................................... 1-2
1.2 Package contents............................................................... 1-2

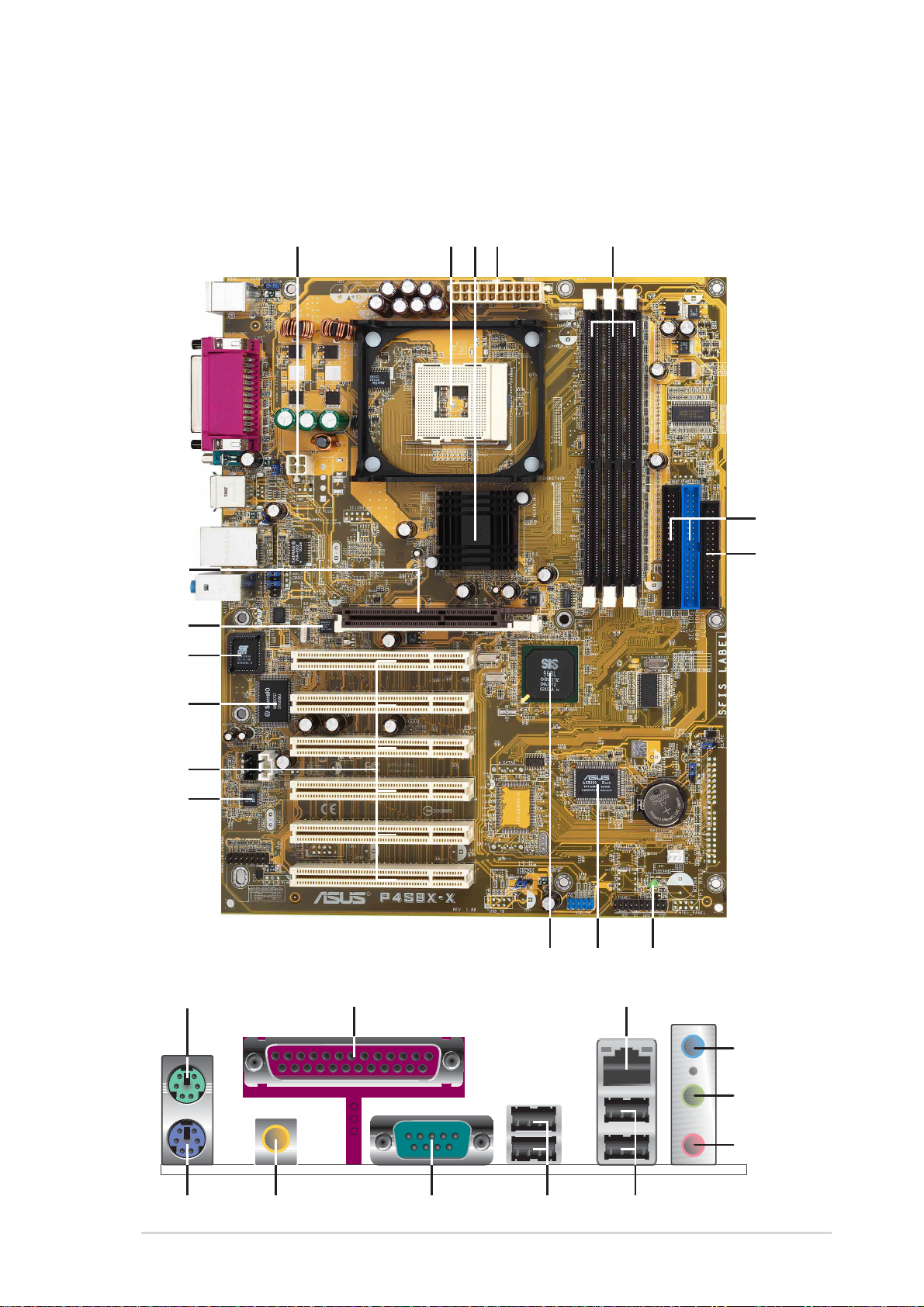

1.3 Motherboard components .................................................. 1-3
1.4 Special Features ................................................................ 1-6
1.4.1 Product highlights .................................................. 1-6

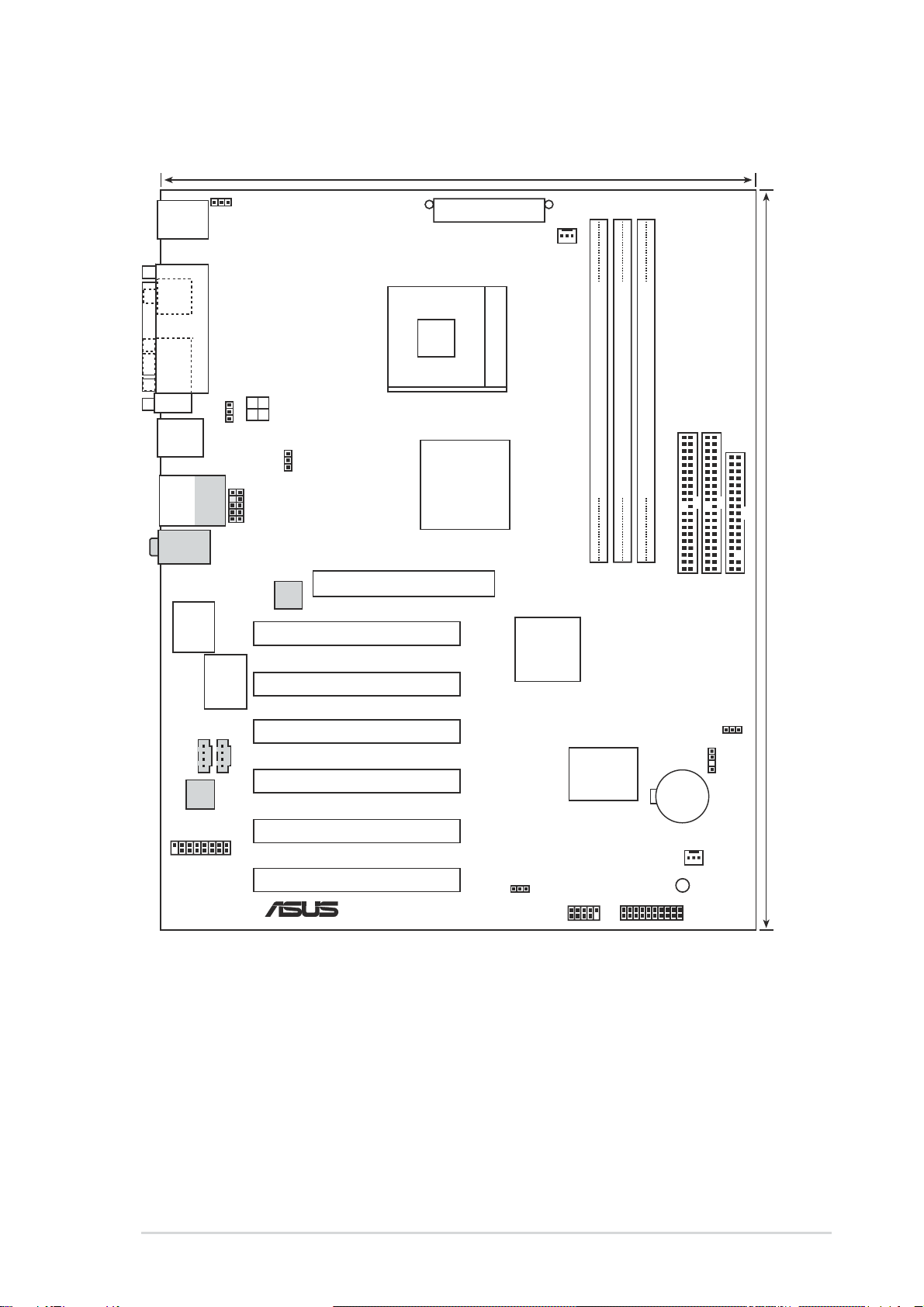

1.5 Motherboard layout ............................................................ 1-7
1.6 Before you proceed ............................................................ 1-8
1.7 Motherboard installation ..................................................... 1-9
1.7.1 Placement direction ............................................... 1-9

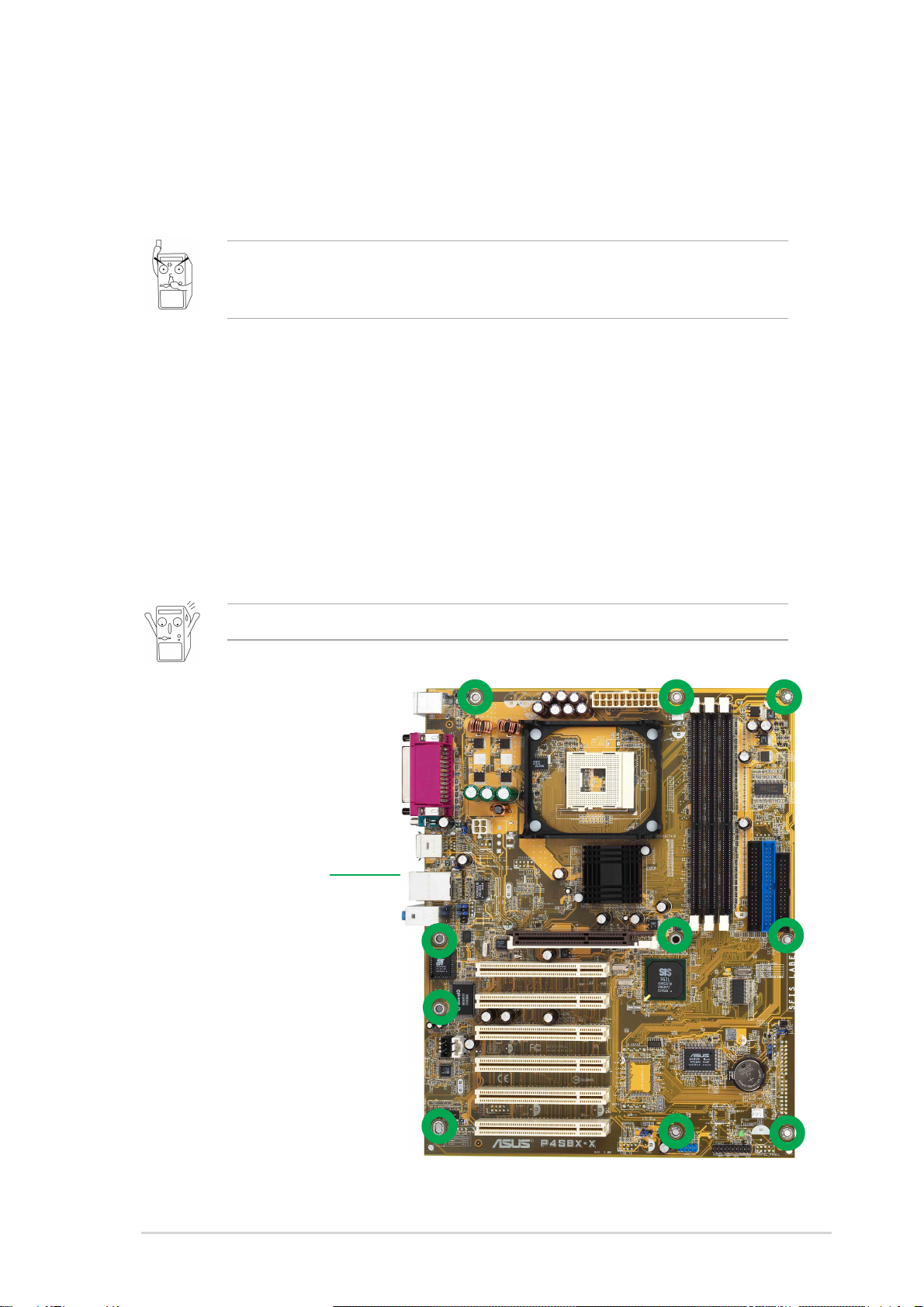

1.7.2 Screw holes ........................................................... 1-9
1.8 Central Processing Unit (CPU)......................................... 1-10
1.8.1 Overview .............................................................. 1-10
Notes on Hyper-Threading Technology ............... 1-10

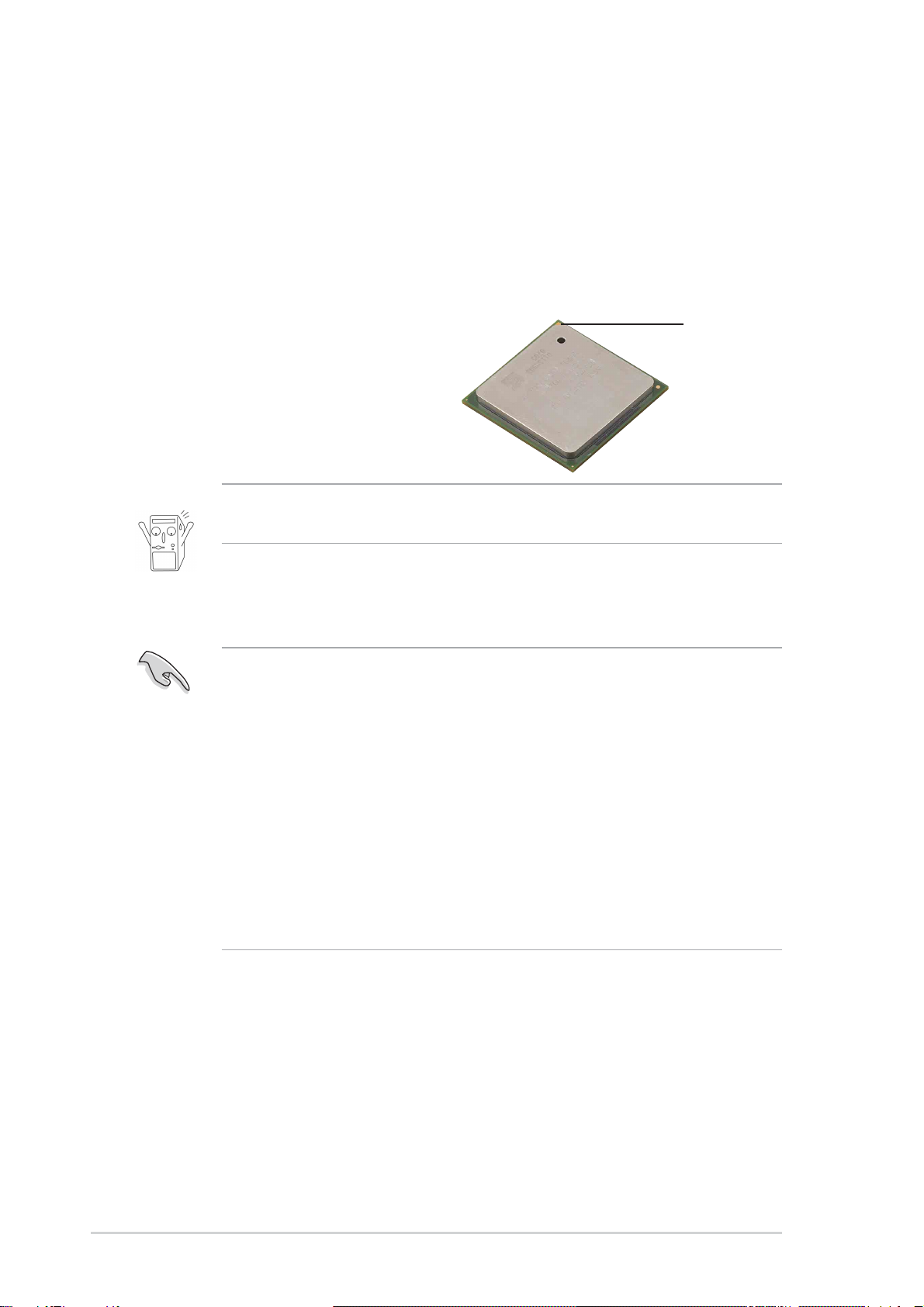

1.8.2 Installing the CPU .................................................1-11
1.9 System memory ............................................................... 1-12
DDR Qualified Vendor List ................................... 1-13
1.10 Expansion slots ................................................................ 1-14
1.10.1 Standard interrupt assignments ........................... 1-14
1.10.1 IRQ assignments for this motherboard ................ 1-14
1.11 Switches and jumpers ...................................................... 1-15
1.12 Connectors ....................................................................... 1-17
Chapter 2: BIOS information
2.1 Managing and updating your BIOS .................................... 2-2
2.1.1 Using ASUS EZ Flash to update the BIOS ............ 2-2
2.1.2 Using AFLASH to update the BIOS ....................... 2-4

iv
Safeguards
Contents
2.1.3 CrashFree BIOS 2 (BIOS Auto-recovery Procedure) . 2-7
2.1.4 BIOS beep codes................................................... 2-7
2.2 BIOS Setup program .......................................................... 2-8
2.2.1 BIOS menu bar ...................................................... 2-8
2.2.2 Legend bar............................................................. 2-9
2.3 Main Menu........................................................................ 2-10
2.3.1 Primary and Secondary Master/Slave ................. 2-12
2.3.2 Keyboard Features .............................................. 2-14
2.4 Advanced Menu ............................................................... 2-15
2.4.1 Chip Configuration ............................................... 2-18
2.4.2 I/O Device Configuration...................................... 2-20
2.4.3 PCI Configuration ................................................ 2-21
2.5 Power Menu ..................................................................... 2-23
2.5.1 Power Up Control ................................................ 2-24
2.5.2 Hardware Monitor ................................................ 2-25
2.6 Boot Menu ........................................................................ 2-26
2.7 Exit Menu ......................................................................... 2-28
Chapter 3: Software support
3.1 Install an operating system................................................. 3-2
3.2 Support CD information...................................................... 3-2
3.2.1 Running the support CD ........................................ 3-2
3.2.2 Drivers menu ......................................................... 3-3
3.2.3 Utilities menu ......................................................... 3-3
3.2.4 ASUS Contact Information..................................... 3-4
27720204

v
Notices
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
The use of shielded cables for connection of the monitor to the
graphics card is required to assure compliance with FCC regulations.
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate this equipment.

vi
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that
the power cables for the devices are unplugged before the signal
cables are connected. If possible, disconnect all power cables from the
existing system before you add a device.
• Before connecting or removing signal cables from the motherboard,
ensure that all power cables are unplugged.
• Seek professional assistance before using an adpater or extension
cord. These devices could interrupt the grounding circuit.
• Make sure that your power supply is set to the correct voltage in your
area. If you are not sure about the voltage of the electrical outlet you
are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully
read all the manuals that came with the package.
• Before using the product, make sure all cables are correctly connected
and the power cables are not damaged. If you detect any damage,
contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the
product in any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a
qualified service technician or your retailer.

vii
About this guide
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the
following symbols used throughout this manual.
Where to find more information
Refer to the following sources for additional information and for product
and software updates.
1. ASUS Websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. The ASUS websites are listed in the
ASUS Contact Information on page viii.
2. Optional Documentation
Your product package may include optional documentation, such as
warranty flyers, that may have been added by your dealer. These
documents are not part of the standard package.
DANGER: Information to prevent injury to yourself when trying to
complete a task.
CAUTION/WARNING: Information to prevent damage to the
components when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a
task.
NOTE: Tips and additional information to aid in completing a task.

viii
ASUS contact information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
General Tel: [phone]
General Fax: [phone]
General Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel): [phone] (English)
Support Fax: [phone]
Support Email: [email protected]
Web Site: www.asus.com.tw
Newsgroup: cscnews.asus.com.tw
ASUS COMPUTER INTERNATIONAL (America)
Address: 6737 Mowry Avenue, Mowry Business Center,
Building 2, Newark, CA 94560, USA
General Fax: [phone]
General Email: [email protected]
Technical Support
Support Fax: [phone]
General Support: [phone]
Web Site: www.asus.com
Support Email: [email protected]
ASUS COMPUTER GmbH (Germany and Austria)
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
General Fax: [phone]
General Email: [email protected] (for marketing requests only)
Technical Support
Support Hotline: MB/Others: [phone]
Notebook: [phone]
Support Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
Web Site: www.asuscom.de

ix
P4S8X-X specifications summary
CPU
Chipset
Front Side Bus (FSB)
Memory
Expansion slots
IDE
Audio
LAN
Special features
Rear panel I/O
Internal I/O
Overclock Features
Socket 478 for Intel
®
Pentium
®
4
New power design with speed up to 3.06+ GHz
Supports Hyper-Threading Technology
Northbridge: SiS 648
Southbridge: SiS 963
533/400 MHz
3 x 184-pin DDR DIMM sockets for up to 3GB memory
Supports PC2700/PC2100/PC1600 unbuffered non-ECC
DDR DIMMs
(Note: PC2700 maximum to 2 DIMMs support only.)
1 x AGP 8X (1.5V only)
6 x PCI
2 x UltraDMA 133/100/66/33 connectors
ADI AD1980 6-channel audio CODEC
SiS 963 integrated 10/100 Mbps Fast Ethernet controller
with external Realtek RTL8201BL PHY
Power Loss Restart
Wake-on-Ring, LAN, Keyboard and Mouse
Suspend-to-RAM (STR)
Suspend-to-Disk (STD)
ASUS EZ Flash
CrashFree BIOS 2
1 x Parallel port
1 x Serial port
1 x S/PDIF out
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x RJ-45 port
Line In/Line Out/Microphone ports
1 x USB 2.0 connector for 2 additional USB 2.0 ports
1 x GAME port
20-pin/4-pin ATX 12V power connectors
IDE LED/Power LED connectors
CPU/Chassis Fan connectors
CD/AUX audio connectors
20-pin panel connector
4-1 Chassis intrusion connector
Intel Front PanelAudio connector
CPU, Memory and AGP voltage adjustable
FSB frequency adjustable with 1MHz step (SFS)
AGP/PCI asynchronous mode with FSB
ASUS C.P.R. (CPU Parameter Recall)

x
P4S8X-X specifications summary
2Mb Flash ROM, Award BIOS, TCAV, PnP, DMI 2.3.1,
WfM2.0, SM BIOS2.3, CrashFree BIOS 2
PCI 2.2, USB 2.0, USB 1.1, WfM 2.0, DMI 2.3.1
WfM 2.0. DMI 2.3.1, WOL/WOR by PME, chassis intrusion,
SMBus
ATX form factor: 12.0 in x 9.6 in
Device drivers
ASUS PC Probe
ASUS LiveUpdate
Trend Micro™ PC-cillin 2002 anti-virus software
BIOS features
Industry standard
Manageability
Form Factor
Support CD contents

Chapter 1
This chapter describes the features of the
P4S8X-X motherboard. It includes brief
descriptions of the motherboard components,
and illustrations of the layout, jumper settings,
and connectors.
Product introduction

1-2 Chapter 1: Product introduction
1.1 Welcome!
Thank you for buying the ASUS
®
P4S8X-X motherboard!
The ASUS
P4S8X-X motherboard delivers a host of new features and latest
technologies making it another standout in the long line of ASUS quality
motherboards!
The motherboard incorporates the Intel
®
Pentium
®
4 Processor in 478-pin package
coupled with the SiS
®
648 chipset to set a new benchmark for a cost-effective
desktop platform solution.
Supporting up to 3GB of system memory with the PC2700/2100/1600 DDR DIMMs
high-resolution graphics via an AGP 8X slot, USB 2.0, and 6-channel audio
features, the P4S8X-X is your affordable vehicle to enter the world of computing!
Before you start installing the motherboard, and hardware devices on it, check the
items in your package with the list below.
1.2 Package contents
Check your P4S8X-X package for the following items.
ASUS P4S8X-X motherboard
ATX form factor: 12.0 in x 9.6 in
ASUS P4S8X-X series support CD
80-conductor UltraDMA/66/100/133 IDE cable
Ribbon cable for a 3.5-inch floppy drive
I/O shield
Bag of extra jumper caps
User Guide
If any of the above items is damaged or missing, contact your retailer.

ASUS P4S8X-X motherboard user guide 1-3
1.3 Motherboard components
Before you install the motherboard, learn about its major components and
available features to facilitate the installation and future upgrades. Refer to the
succeeding pages for the component descriptions.
17
27 24
2
0
2
1
2
2
23
18 19
2526
35
15
11
1
6
7
10 8
12
2
14
13
9
4
16

1-4 Chapter 1: Product introduction
ATX 12V connector. This power connector connects the 4-pin 12V plug from
theATX 12V power supply.
CPU socket. A478-pin surface mount, Zero Insertion Force (ZIF) socket for
the Intel
®
Pentium
®
4 Processor, with 533/400MHz system bus that allows
4.2GB/s and 3.2GB/s data transfer rates, respectively.
North bridge controller. This SiS648 controller integrates a high
performance host interface for the Intel Pentium 4 processor, a memory
controller, and SiS MuTIOL technology.
ATX power connector. This 20-pin connector connects to an ATX +12V
power supply. The power supply must have at least 1Aon the +5V standby
lead (+5VSB).
DDR DIMM sockets. These three 184-pin DIMM sockets support up to 3GB
system memory using unbuffered non-ECC PC2700/PC2100/PC1600 DDR
DIMMs.
IDE connectors. These dual-channel bus master IDE connectors support
Ultra DMA133/100/66, PIO Modes 3 & 4 IDE devices. Both the primary (blue)
and secondary (black) connectors are slotted to prevent incorrect insertion of
the IDE ribbon cable.
Floppy disk connector. This connector accommodates the provided ribbon
cable for the floppy disk drive. One side of the connector is slotted to prevent
incorrect insertion of the floppy disk cable.
Standby power LED. This LED lights up if there is a standby power on the
motherboard. This LED acts as a reminder to turn off the system power before
plugging or unplugging devices.
ASUS ASIC. This chip performs multiple system functions that include
hardware and system voltage monitoring.
South bridge controller. Referred to as the SiS963 MuTIOL Media I/O, this
controller integrates the audio controller with AC’97 Interface, Ethernet
MAC, Dual Universal Serial Bus Host controllers, IDE Master/Slave
controllers, and the MuTIOL Connect to PCI Bridge.
Audio CODEC. The ADI AD1980 is an AC’97 CODEC that allows 6-channel
audio playback. The audio CODEC provides six DAC channels for 5.1
surround sound, S/PDIF interface, AUX and Line In stereo inputs,
integrated headphone amplifier, greater than 90dB dynamic range, and Mic
PREAMP support.
PCI slots. These six 32-bit PCI 2.2 expansion slots support bus master
PCI cards like SCSI or LAN cards with 133MB/s maximum throughput.
Super I/O controller. This Low Pin Count (LPC) interface provides the
commonly used Super I/O functionality. The chipset supports a high-
performance floppy disk controller for a 360K/720K/1.44M/2.88M floppy disk
drive, a multi-mode parallel port, two standard compatible UARTs, and a Flash
ROM interface.
Flash ROM. This 2Mb firmware contains the programmable BIOS program.
11
12
13
14
10
9
8
7
6
5
4
3
2
1

ASUS P4S8X-X motherboard user guide 1-5
LAN PHY. The SiS 963 integrated 10/100Mbps Fast Ethernet with Realtek
RTL8201BL external PHY supports your local area networking needs.
AGP slot. ThisAccelerated Graphics Port (AGP) slot supports 1.5V AGP4X
or AGP8X mode graphics cards for 3D graphical applications.
PS/2 mouse port. This green 6-pin connector is for a PS/2 mouse.
Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
RJ-45 port. This port allows connection to a Local Area Network (LAN)
through a network hub.
Line In jack. This Line In (light blue) jack connects a tape player or other
audio sources. In 6-channel mode, the function of this jack becomes Bass/
Center.
Line Out jack. This Line Out (lime) jack connects a headphone or a
speaker. In 6-channel mode, the function of this jack becomes Front
Speaker Out.
Microphone jack. This Mic (pink) jack connects a microphone. In 6-channel
mode, the function of this jack becomes Rear Speaker Out.
15
16
17
18
19
20
22
21
The functions of the Line Out (lime), Line In (blue) and Microphone (pink) jacks
change when you select the 6-channel audio configuration as shown in the
following table:
Audio 2, 4 or 6-channel configuration
Headphone/
2-Speaker 4-Speaker 6-Speaker
Light Blue Line In Line In Bass/Center
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Rear Speaker Out Rear Speaker Out
USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
Serial port. This 9-pin COM port connects to serial devices such as serial
mouse or keyboard..
S/PDIF port. This port is for S/PDIF digital audio output devices.
PS/2 keyboard port. This purple connector is for a PS/2 keyboard.
23
24
25
27
26

1-6 Chapter 1: Product introduction
1.4 Special Features
1.4.1 Product highlights
Latest processor technology
The P4S8X-X motherboard supports the latest Intel
®
Pentium
®
4 Processor via a 478-
pin surface mount ZIF socket. The Pentium 4 processor with 512KB L2 cache on 0.13
micron process includes a 533/400 MHz system bus and features the new Hyper-
Threading technology and FMB2 power design that allow up to 3.0+ GHz core
frequencies for up to 4.2GB/s data transfer rates. When available, CPUs
supporting the Intel
®
Hyper-Threading technology for up to 3.06GHz and faster
frequencies are also supported on this motherboard.
ASUS EZ Flash
With ASUS EZ Flash, you can update BIOS before entering operating
system. No more DOS-based flash utility and bootable diskette required.
C.P.R. (CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to
open the case to clear the CMOS data. Simply restart the system and the
BIOS will automatically restore the CPU default setting for each parameter.
CrashFree BIOS 2
CrashFree BIOS 2 allows users to restore BIOS data from a floppy diskette or
recovery CD when BIOS code and data are corrupted during upgrade or when
invaded by a virus. ASUS motherboards now enable users to enjoy this protection
feature without the need to pay for an optional ROM.
AGP 8X support
AGP 8X (AGP 3.0) is the next generation VGA interface specification that enables
enhanced graphics performance with high bandwidth speed up to 2.12 GB/s. With
a bus frequency of 533Mhz, AGP 8x is twice as fast as AGP 4X.
SoundMAX Digital Audio System
The SoundMax Digital Audio System is the industry’s highest performance and
most reliable audio solution for business professionals, audiophiles, musicians,
and gamers. SoundMAX Digital Audio System can output 5.1 channel surround
and features state-of-the-art DLS2 MIDI synthesizer with Yamaha DLSbyXG sound
set, 5.1 Virtual Theater™ and supports all major game audio technologies
including Microsoft DirectX™8.0, Microsoft DirectSound 3D™, A3D, MacroFX,
ZoomFX, MultiDrive 5.1 and EAX.
(page 2-2)
(page 1-16)
(page 2-7)
(page 1-10)
(page 1-14)

ASUS P4S8X-X motherboard user guide 1-7
1.5 Motherboard layout
FLOPPY
PANEL
CD
CHA_FAN
SiS648
HOST/
Memory
Controller
AUX
P4S8X-X
GAME
Super
I/O
2Mbit Flash
BIOS
PCI Slot 2
SEC_IDE
Accelerated Graphics Port
(AGP)
KBPWR
SiS963L
MuTLOL
Media
I/0
ATX12V
CPU_FAN
30.5cm (12.0in)
PRI_IDE
USBPW56
USB56
Socket 478
ATX Power Connector
DDR DIMM2 (64/72 bit, 184-pin module)
2 3
DDR DIMM1 (64/72 bit, 184-pin module)
01
USBPW12
Audio
Codec
CLRTC
CR2032 3V
Lithium Cell
CMOS Power
24.4cm (9.6in)
PCI Slot 3
PCI Slot 4
PCI Slot 5
PCI Slot 6
PS/2KBMS
T: Mouse
B: Keyboard
USB12
RJ-45
Top:
USB3
USB4
Bottom:
Below:Mic In
Center:Line Out
Top:Line In
PARALLEL PORT
COM1
SPDIF_OUT
PCI Slot 1
DDR DIMM3 (64/72 bit, 184-pin module)
4 5
CHASSIS
USBPW34
ASUS
ASIC
with
Hardware
Monitor
FP_AUDIO
®
Realtek
RTL8201
SB_PWR

1-8 Chapter 1: Product introduction
1.6 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any
component.
2. Use a grounded wrist strap or touch a safely grounded object or to a metal
object, such as the power supply case, before handling components to
avoid damaging them due to static electricity.
3. Hold components by the edges to avoid touching the ICs on them.
4. Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
5. Before you install or remove any component, ensure that the ATX
power supply is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
When lit, the green LED (SB_PWR) indicates that the system is ON, in sleep
mode, or in soft-off mode, a reminder that you should shut down the system and
unplug the power cable before removing or plugging in any motherboard
component.
Install only 1.5V AGP cards on this motherboard to prevent damage to your
AGP card or motherboard.
P4S8X-X
®
P4S8X-X Onboard LED
ON OFF
Standby
Power Powere
d
Off
SB_PWR

ASUS P4S8X-X motherboard user guide 1-9
1.7 Motherboard installation
Before you install the motherboard, study the configuration of your chassis to
ensure that the motherboard fits into it. The motherboard uses theATX form factor
that measures 12 inches x 9.6 inches (30.5 cm x 24.5 cm).
1.7.1 Placement direction
When installing the motherboard, make sure that you place it into the chassis in
the correct orientation. The edge with external ports goes to the rear part of the
chassis as indicated in the image below.
1.7.2 Screw holes
Place ten (10) screws into the holes indicated by circles to secure the motherboard
to the chassis.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause you physical injury and damage
motherboard components.
Do not overtighten the screws! Doing so may damage the motherboard.
Place this side towards
the rear of the chassis

1-10 Chapter 1: Product introduction
1.8 Central Processing Unit (CPU)
1.8.1 Overview
The motherboard comes with a surface mount 478-pin Zero Insertion Force (ZIF)
socket. The socket is designed for the Intel
®
Pentium
®
4 Processor in the 478-pin
package with 512/256KB L2 cache on 0.13 micron process. This processor
supports 533/400MHz front side bus (FSB), and allows data transfer rates of
4.2GB/s and 3.2GB/s.
Note in the illustration that the CPU has a
gold triangular mark on one corner. This
mark indicates the processor Pin 1 that
should match a specific corner of the
CPU socket.
Gold Mark
Incorrect installation of the CPU into the socket may bend the pins and
severely damage the CPU!
Notes on Intel
®
Hyper-Threading Technology
1. This motherboard supports Intel Pentium 4 CPUs with Hyper-Threading
Technology.
2. Hyper-Threading Technology is supported under Windows XP and Linux
2.4.x (kernel) and later versions only. Under Linux, use the Hyper-Threading
compliler to compile the code. If you are using any other operating systems,
disable the Hyper-Threading Techonology item in BIOS to ensure system
stability and performance.
3. It is recommended that you install WinXP Service Pack 1.
4. Make sure to enable the Hyper-Threading Technology item in BIOS before
installing a supported operating system.
5. For more information on Hyper-Threading Technology, visit www.intel.com/
info/hyperthreading.
To use the Hyper-Threading Technology on this motherboard:
1. Buy an Intel Pentium 4 CPU that supports Hyper-Threading Technology. Install
the CPU.
2. Power up the system and enter BIOS Setup (see Chapter 2). Under the Boot
Menu, make sure that the item Hyper-Threading Technology is set to
Enabled. The item appears only if you installed a CPU that supports Hyper-
Threading Techonology.
3. Reboot the computer.
