Asus P4SE U2 User manual

Motherboard
P4SE/U2
User Guide

ii
Checklist
Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language in any form or by any means, except documentation kept by the purchaser for
backup purposes, without the express written permission of ASUSTeK COMPUTER INC.
(“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE.
IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGEATANY TIME
WITHOUT NOTICE,AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BYASUS.
ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
E1171
First Edition
November 2002

iii
Features
Contents
Contents ......................................................................................... iii
FCC/CDC statements......................................................................v
Federal Communications Commission Statement .................v
Canadian Department of Communications Statement ...........v
Safety information ..........................................................................vi
About this guide............................................................................. vii
Conventions used in this guide ............................................ vii
Where to find more information ............................................ vii
ASUS contact information ............................................................ viii
Specifications summary .................................................................ix
Chapter 1 - Motherboard Info ................................................... 1-1
1.1 Welcome ...................................................................... 1-2
1.2 Package contents ....................................................... 1-2

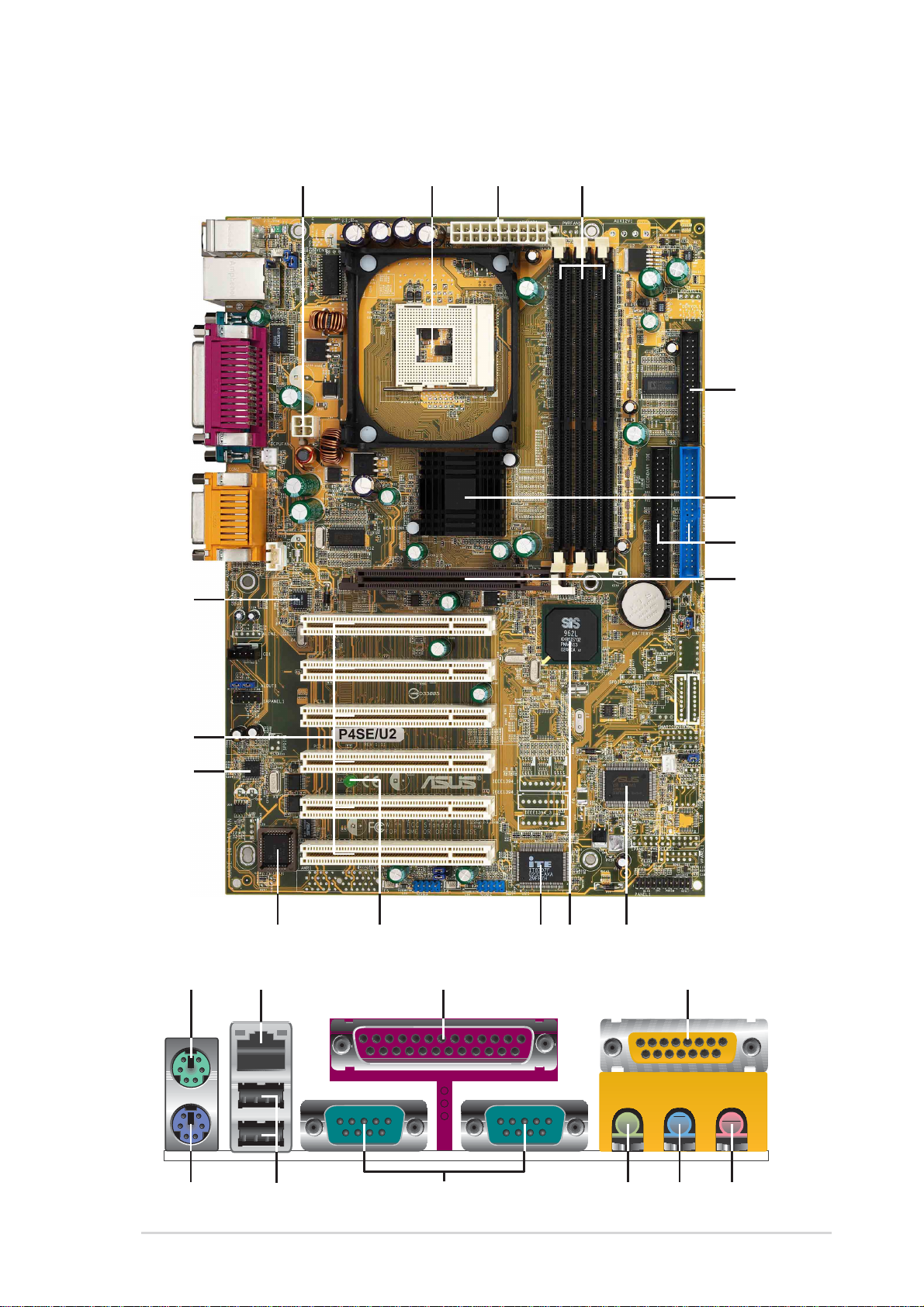

1.3 Motherboard components .......................................... 1-3

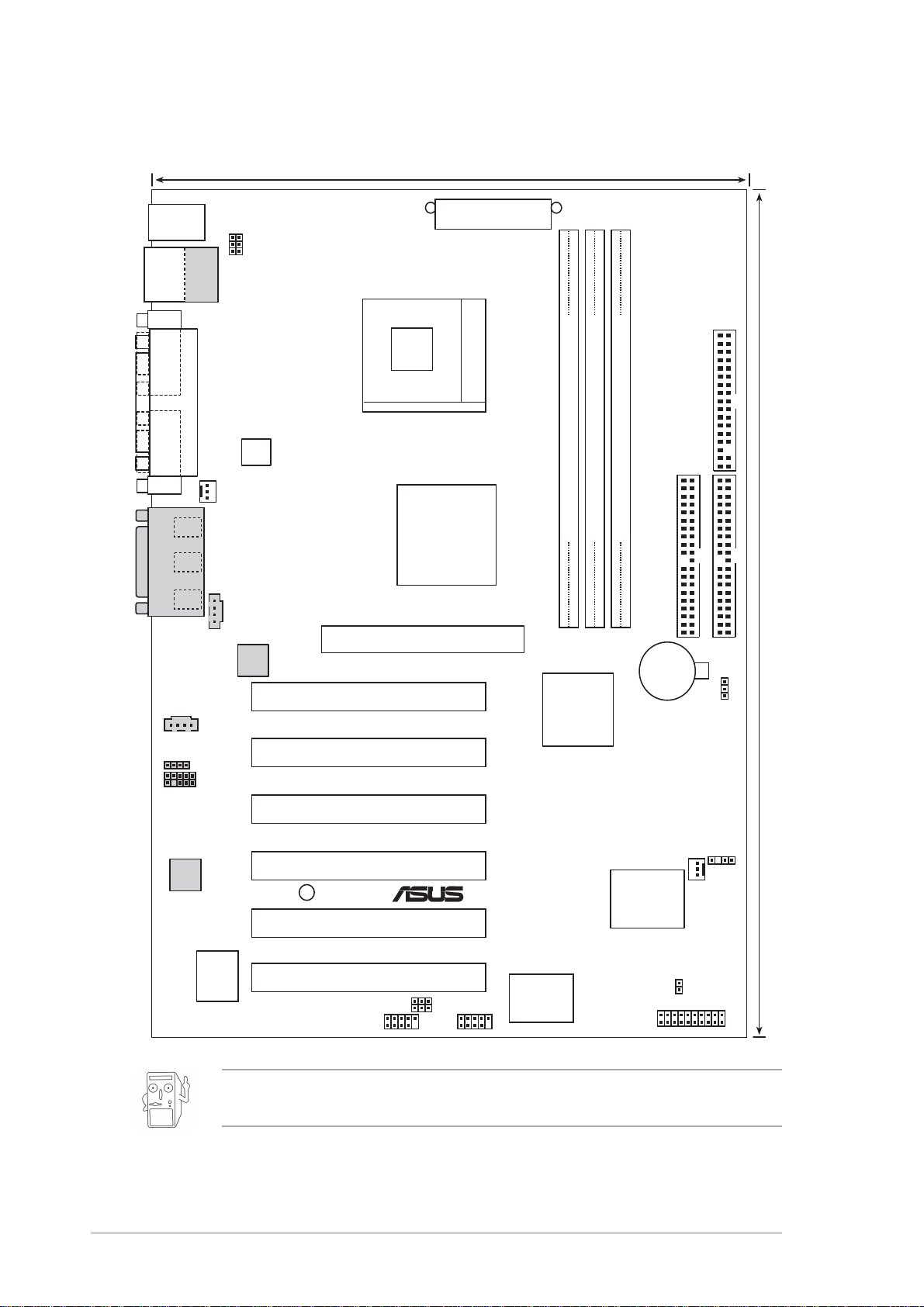

1.4 Motherboard layout..................................................... 1-6
1.5 Before you proceed..................................................... 1-7
1.6 Central Processing Unit (CPU)................................... 1-7

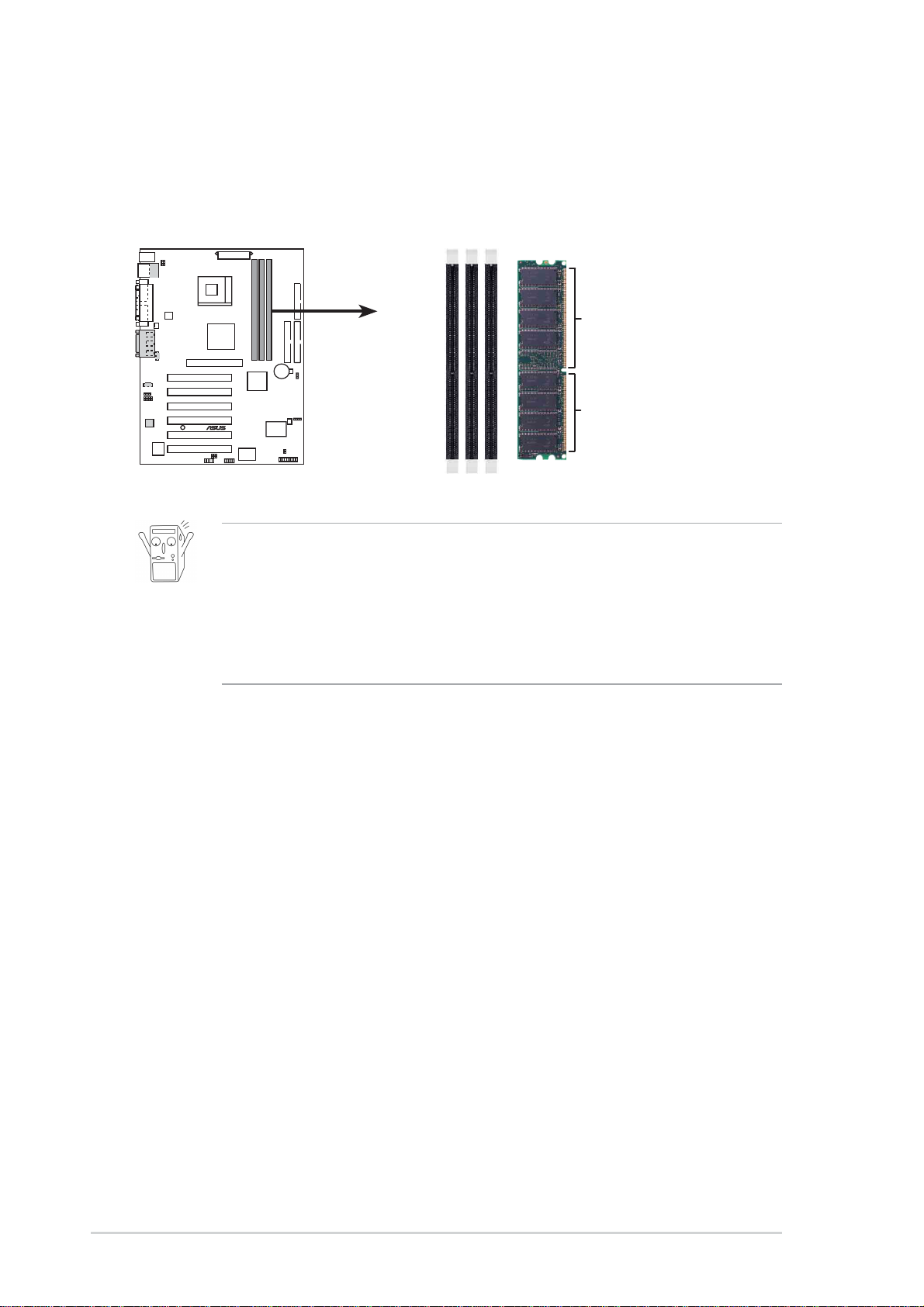

1.7 System memory........................................................... 1-8
1.8 Expansion Slots........................................................... 1-8
1.8.1 Configuring an expansion card .................................. 1-9
1.8.2 Standard Interrupt Assignments ................................ 1-9
1.8.3 AGP Slot ........................................................ 1-9
1.9 Jumpers ....................................................................... 1-10
1.10 Connectors ................................................................. 1-13
Chapter 2 - BIOS Information ..................................................... .2-1
2.1 Managing and updating your BIOS ............................ 2-2
2.1.1 Using ASUS EZFLASH to update the BIOS................ 2-2
2.1.2 Using ASUS AFLASH to update the BIOS................... 2-4
Updating BIOS procedures.................................... 2-5
2.2 BIOS Setup Program ................................................... 2-7
2.2.1 BIOS menu bar ........................................................... 2-7
2.2.2 Legend bar .................................................................. 2-8

iv
Safeguards
Contents
2.3 Main Menu .................................................................... 2-9
2.3.1 Primary and Secondary Master/Slave......................... 2-11
2.3.2 Keyboard Features ..................................................... 2-13
2.4 Advanced Menu ........................................................... 2-14
2.4.1 Chip Configuration ...................................................... 2-15
2.4.2 I/O Device Configuration ............................................. 2-17
2.4.3 PCI Configuration ........................................................ 2-18
2.4.3.1 PCI IRQ Resource Exclusion ................................... 2-19
2.5 Power Menu .................................................................. 2-20
2.5.1 Power-up Control ........................................................ 2-22
2.5.2 Hardware Monitor ........................................................ 2-23
2.6 Boot Menu ..................................................................... 2-24
2.7 Exit Menu ................................................................. 2-25
Chapter 3 - Starting Up .............................................................. 3-1
3.1 Install an operating system......................................... 3-2
3.2 Support CD information.............................................. 3-2
3.2.1 Running the support CD ............................................ 3-2
3.2.2 Software drivers and installation menus .................... 3-3
3.3 Software Information................................................... 3-5
3.3.1 ASUS Update ............................................................. 3-5
3.3.2 ASUS PC Probe ......................................................... 3-6
Starting ASUS PC Probe ...................................... 3-6
Using ASUS PC Probe ......................................... 3-7
ASUS PC Probe Task Bar Icon ............................... 3-9

v
FCC/CDC statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modifications
to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.

vi
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that
the power cables for the devices are unplugged before the signal
cables are connected. If possible, disconnect all power cables from the
existing system before you add a device.
• Before connecting or removing signal cables from the motherboard,
ensure that all power cables are unplugged.
• Seek professional assistance before using an adpater or extension
cord. These devices could interrupt the grounding circuit.
• Make sure that your power supply is set to the correct voltage in your
area. If you are not sure about the voltage of the electrical outlet you
are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.
Operation safety
• Before installing the motherboard and adding devices on it, carefully
read all the manuals that came with the package.
• Before using the product, make sure all cables are correctly connected
and the power cables are not damaged. If you detect any damage,
contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the
product in any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a
qualified service technician or your retailer.

vii
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the
following symbols used throughout this manual.
Where to find more information
Refer to the following sources for additional information and for product
and software updates.
1. ASUS Websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. The ASUS websites are listed in the
ASUS Contact Information on page viii.
2. Optional Documentation
Your product package may include optional documentation, such as
warranty flyers, that may have been added by your dealer. These
documents are not part of the standard package.
WARNING/DANGER: Information to prevent injury to yourself
when trying to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a
task.
NOTE: Tips and additional information to aid in completing a task.

viii
ASUS contact information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
General Tel: [phone]
General Fax: [phone]
General Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel): [phone] (English)
Support Fax: [phone]
Support Email: [email protected]
Web Site: www.asus.com.tw
Newsgroup: cscnews.asus.com.tw
ASUS COMPUTER INTERNATIONAL (America)
Address: 6737 Mowry Avenue, Mowry Business Center,
Building 2, Newark, CA 94560, USA
General Fax: [phone]
General Email: [email protected]
Technical Support
Support Fax: [phone]
General Support: [phone]
Web Site: www.asus.com
Support Email: [email protected]
ASUS COMPUTER GmbH (Germany and Austria)
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
General Fax: [phone]
General Email: [email protected] (for marketing requests only)
Technical Support
Support Hotline: MB/Others: [phone]
Notebook (Tel): [phone]
Support Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
Web Site: www.asuscom.de

ix
P4SE/U2 specifications summary
CPU
Chipset
Front Side Bus (FSB)
Memory
Expansion slots
IDE
Audio (optional)
LAN (optional)
Special Features
Back Panel I/O Ports
Internal I/O
Connectors
(continued on the next page)
Socket 478 for Intel Pentium 4/Celeron Northwood/
Willamette processors with frequency up to 3.06+ GHz
Northbridge: SiS 645
Southbridge: SiS962L
400 MHz
3 x DDR DIMM Sockets supports a maximum of 3 GB
unbuffered PC2100/1600 non-ECC DDR DIMMs
(Note: PC2700 max. to 4 banks only.)
1 x AGP 4X
6 x PCI
2 x UltraDMA 133/100/66
C-Media 4-channel CODEC
SiS 962L integrated 10/100 Mbps Fast Ethernet with Realtek
external PHY
ASUS C.P.R. (CPU Parameter Recall)
ASUS EZ Flash
ASUS MyLogo for customized boot logos
ASUS Jumperfree
ASUS CrashFree BIOS
SFS (Stepless Frequency Selection)
Suspend-to-RAM
1 x Parallel
2 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
2 x USB 2.0
1 x Audio I/O, Game/MIDI(on audio model only)
1 x RJ-45 Port (on LAN model only)
CPU/Chassis FAN connector
20-pin ATX power connector
4-pin ATX 12V power connector
Chassis intrusion
IDE LED
CD/AUX audio in (on audio model only)
ASUS front panel audio connector (on audio model only)
2 x USB Headers support additional 4 USB 2.0 ports

x
P4SE/U2 specifications summary
BIOS features
Industry standard
Manageability
Form Factor
Support CD contents
Accessories
* Specifications are subject to change without notice.
2Mb Flash EEPROM, ASUS JumperFree, ASUS MyLogo,
Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green, TCAV
(Trend Chip Away Virus)
PCI 2.2, USB 2.0
WfM2.0, DMI2.0, WOR, WOL, Chassis Intrusion
ATX form factor: 12 in x 8.6 in (30.5 cm x 21.9 cm)
Device drivers
ASUS PC Probe
Trend Micro
tm
PC-cillin 2002 anti-virus software
ASUS LiveUpdate Utility
User’s manual
Support CD
1 x UltraDMA 133/100/66 cable
FDD cable
I/O Shield

1-1 ASUS P4SE/U2 Motherboard
This chapter gives information about the ASUS
P4SE/U2 motherboard that came with the
system.This chapter includes the motherboard
layout, jumper settings, and connector locations.
Motherboard Info
Chapter 1

1-2
1.1 Welcome!
Thank you for buying the ASUS
®
P4SE/U2 motherboard!
TheASUS P4SE/U2 motherboard is loaded with the most advanced technologies to
deliver the maximum performance for Pentium
®
4 processors. This motherboard is
loadedwithvalue-addedfeaturesforguaranteedconsumersatisfaction.UniqueASUS
features such as ASUS C.P.R. (CPU Parameter Recall), ASUS EZ Flash, ASUS
MyLogo and more are included to ensure the best user experience and value in a
motherboard. For future upgrades or system reconfiguration, this chapter provides
technical information about the motherboard.
Before you start installing the motherboard and hardware devices on it, check the
items in your package with the list below.
1.2 Package contents
Check your ASUS P4SE/U2 package for the following items.
ASUS P4SE/U2 motherboard
ATX form factor: 12 in x 8.6 in
ASUS P4SE/U2 series support CD
1 pc. 80-conductor ribbon cable for UltraDMA/66/100/133 IDE drives
Ribbon cable for a 3.5-inch floppy drive
Bag of extra jumper caps
User Manual
I/O shield

ASUS P4SE/U2 Motherboard 1-3
1.3 Motherboard components
23 4
13
1
912 10
7
5
11
6
15
8
16
14
17 19 20
21222326 24
25
18

1-4 Chapter 1: Motherboard Information
11
ATX 12V connector. This power connector connects the 4-pin 12V
plug from the ATX 12V power supply.
CPU Sockets. A478-pin surface mount, Zero Insertion Force (ZIF)
socket for the Intel
®
Pentium
®
4 478/Northwood Processor with 400
MHz system bus that allows 3.2 GB/s data transfer rates
respectively.
ATX power connector. This standard 20-pin connector connects to
an ATX 12V power supply. The power supply must have at least 1A
on the +5V standby lead (+5VSB).
DDR DIMM Sockets. These three 184-pin DIMM sockets support
up to 3GB using non-ECC PC2100/1600 DDR SDRAM DIMMs.
(Note: PC 2700 max. to 4 banks only.)
Floppy Disk connector. This connector connects the provided
ribbon cable for the floppy disk drive. One side of the connector is
slotted to prevent incorrect insertion of the floppy disk cable.
Northbridge Controller. This SiS 645 controller integrates a high
performance host interface for the Intel
®
Pentium
®
4 processor, a
memory controller and an integrated graphics interface.
IDE Connectors. These dual-channel bus master IDE connectors
support up to four Ultra DMA133/100/66, PIO Modes 3 & 4 IDE
devices. Both the primary(blue) and secondary(black) connectors
are slotted to prevent incorrect insertion of the IDE ribbon cable.
AGP slot. ThisAccelerated Graphics Port (AGP) slot supports
AGP4x mode graphic cards for 3D graphical applications.
ASUS ASIC. This chip performs multile system functions that
include hardware and system voltage monitoring.
South bridge controller. This SiS 962L controller integrates the
AC’97 Interface, Universal Serial Bus 2.0 Host controllers, two IDE
Master/Slave controllers.
Super I/O chipset. This interface provides the commonly used
Super I/O functionality. The chipset supports a high-performance
floppy disk controller for a 360K/720K/1.44M/2.88M floppy disk
drive, a PS/2 keyboard and mouse port, a multi-mode parallel port,
a game port and, a serial port.
10
1
2
3
4
5
6
7
8
9

ASUS P4SE/U2 Motherboard 1-5
Standby power LED. This green LED lights up if there is a standby
power on the motherboard. The LED acts as a reminder to turn off
the system power before plugging or unplugging devices.
Flash ROM. This 2Mb firmware contains the programmable BIOS
program.
Audio CODEC. The CMedia 4-channel CODEC is an AC’97
compliant audio CODEC designed for PC multimedia systems.
(on audio models only)
PCI slots. These 32-bit PCI 2.2 expansion slots support bus
master PCI cards like SCSI and LAN cards with 133MB/s maximum
output.
LAN PHY. This SiS 962L integrated 10/100 Mbps Fast Ethernet
with Realtek external PHY supports your local area networking
needs.
PS/2 mouse port. This green 6-pin connector is for a PS/2 mouse.
RJ-45 port. This port allows connection to a Local Area Network
(LAN) through a network hub. (on LAN models only)
Parallel port. This 25-pin port connects a parallel printer, a
scanner, or other devices.
GAME/MIDI port. This connector supports a joystick or a game
pad for playing games, and MIDI devices for playing or editing
audio files.
Microphone jack. This Mic (pink) jack connects a microphone.
Line In jack. This Line In (light blue) jack connects a tape player or
other audio sources.
Line Out jack. This Line Out (lime) jack connects a headphone or
a speaker.
Serial ports. These ports connect to your serial mouse and other
serial devices.
USB ports. These two 4-pin Universal Serial Bus 2.0 (USB 2.0)
ports are available for connecting USB devices such as a mouse
and PDA.
PS/2 keyboard port. This purple 6-pin connector is for a PS/2
keyboard.
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

1-6 Chapter 1: Motherboard Information
1.4 Motherboard layout
21.9cm (8.6in)
30.5cm (12.0in)
PRIMARY IDE
P4SE/U2
®
CR2032 3V
Lithium Cell
CMOS Power
CD1
AUX1
IAPANEL1
IDELED1
Accelerated Graphics Port
AGP
ALOUT1
GAME_AUDIO
Mic
In
Line
Out
Line
In
PANEL1
Super
I/O
2Mbit
Firmware
Hub
Socket 478
USBV1
KBPWR1
USBV3
DDR DIMM1 (64/72 bit, 184-pin module)
0 1
DDR DIMM3 (64/72 bit, 184-pin module)
4 5
DDR DIMM2 (64/72 bit, 184-pin module)
2 3
USB2
PARALLEL PORT
COM1
COM2 CPUFAN1
PCI5
PCI6
PCI4
PCI3
PCI2
PCI1
ATX Power Connector
SECONDARY IDE
LED1
USB3
USBV2
CLRCMOS1
PS/2KBMS
T: Mouse
B: Keyboard
ATX12V1
FLOPPY1
ASUS
ASIC
with
Hardware
Monitor
SiS645
HOST/
Memory
Controller
SiS962L
MuTLOL
Media
I/O
CHASFAN1 CHASSIS1
C-Media
4CH
USB2.0
T: USB4
B: USB3
Top:
RJ-45
REALTEK
PHY
The audio and LAN features are optional. These components are grayed out in
the above motherboard layout.

ASUS P4SE/U2 Motherboard 1-7
1.5 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any
component.
2. Use a grounded wrist strap or touch a safely grounded object or to a metal
object, such as the power supply case, before handling components to
avoid damaging them due to static electricity.
3. Hold components by the edges to avoid touching the ICs on them.
4. Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.
5. Before you install or remove any component, ensure that the ATX
power supply is switched off or the power cord is detached from the
power supply. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
1.6 Central Processing Unit (CPU)
The motherboard comes with a surface mount 478-pin Zero Insertion Force (ZIF)
socket. This socket is specifically designed for the Intel
®
Pentium
®
4 processors.
P4SE/U2
®
P4SE/U2 Socket 478
Gold Arrow

1-8 Chapter 1: Motherboard Information
1.8 Expansion slots
The P4SE/U2 motherboard has six (6) expansion slots. The following sub-sections
describe the slots and the expansion cards that they support.
1.8.1 Configuring an expansion card
After physically installing the expansion card, configure the card by adjusting the
software settings.
1. Turn on the system and change the necessary BIOS settings, if any.
2. Assign an IRQ to the card. Refer to the tables below.
3. Install the software drivers for the expansion card.
1.7 System memory
The motherboard has three Double Data Rate (DDR) DIMM sockets that supports
up to 3GB non-ECC PC2100/1600 DDR. (Note: PC2700 max. to 4 banks only.)
1. Make sure the memory frequency and bus frequency setting in the
BIOS are the same or set to [Auto] for optimum system performance.
2. A DDR DIMM is keyed with a notch so that it fits in only one direction.
DO NOT force a DIMM into a socket to avoid damaging the DIMM.
3. Visit ASUS website (www.asus.com) for latest DDR333 Qualified Vendor List.
P4SE/U2
®
P4SE/U2 184-Pin DDR DIMM Sockets
80 Pins
104 Pin
s

ASUS P4SE/U2 Motherboard 1-9
1.8.2 Standard Interrupt Assignments
IRQ Standard Function
0 System Timer
1 Keyboard Controller
2 Programmable Interrupt Controller
3* USB Universal Host Controller
4* Communications Port (COM1)
5* Onboard Audio
6 Standard Floppy Disk Controller
7* Printer Port (LPT1)
8 System CMOS/Real Time Clock
9* Onboard LAN
10* USB Universal Host Controller
11* Onboard VGA
12* PS/2 Compatible Mouse Port
13 Numeric Data Processor
14* Ultra ATA Controller
15* Secondary Ultra ATA Controller
*These IRQs are usually available for ISA or PCI devices.
IRQ assignments for this motherboard
ABCDEFGH
PCI slot 1 shared — — — — — — —
PCI slot 2 — shared — — — — — —
PCI slot 3 — — shared — — — — —
PCI slot 4 — — — shared — — — —
PCI slot 5 shared — — — — — — —
PCI slot 6 — shared — — — — — —
Onboard USB 1.1 controller CHC0 — — — — used — — —
Onboard USB 1.1 controller CHC1 — — — — — used — —
Onboard USB 1.1 controller CHC2 — — — — — — used —
Onboard USB 2.0 controller EHC3 — — — — — — — used
Onboard LAN — — — shared — — — —
Onboard Audio — — shared — — — — —
1.8.3 AGP slot
This motherboard has an Accelerated Graphics Port (AGP) slot that supports AGP
4X cards. Note the notches on the card golden fingers to ensure that they fit the
AGP slot on your motherboard.
P4SE/U2
®
P4SE/U2 Accelerated Graphics Port (AGP)

1-10 Chapter 1: Motherboard Information
1.9 Jumpers
This section describes and illustrates the jumpers on the motherboard.
1. Keyboard power (3-pin KBPWR1)
This jumper allows you to enable or disable the keyboard wake-up feature. Set
this jumper to pins 2-3 (+5VSB) if you wish to wake up the computer when you
press a key on the keyboard (the default value is [Disabled]). This feature
requires an ATX power supply that can supply at least 1A on the +5VSB lead,
and a corresponding setting in the BIOS (see section 2.5.1 Power Up Control).
P4SE/U2
®
P4SE/U2 Keyboard Power Setting
KBPWR1
+5V (Defaul
t)
1
2
+5VSB
2
3
2. Clear RTC RAM (CLRCMOS1)
These jumpers allow you to clear the Real Time Clock (RTC) RAM in CMOS.
You can clear the CMOS memory of date, time, and system setup parameters
by erasing the CMOS RTC RAM data. The RAM data in CMOS is powered by
the onboard button cell battery.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Remove the battery.
3. Short the jumper by replacing the jumper cap and removing it after 3 secs.
4. Re-install the battery.
5. Plug the power cord and turn ON the computer.
6. Hold down the <Del> key during the boot process and enter BIOS setup to
re-enter data.
P4SE/U2
®
P4SE/U2 Clear RTC RAM
CLRCMOS1
Normal Clear CMOS
(Default)
1
22
3
