Asus PRIME H510T2-CSM R2.0 User manual

Motherboard
PRIME
H510T2-CSM R2.0

ii
E21921
First Edition
May 2023
Copyright © 2023 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Safety information...................................................................................................... iv
About this guide.......................................................................................................... v
Package contents....................................................................................................... vi
PRIME H510T2-CSM R2.0 specications summary ................................................ vi
Chapter 1: Product Introduction
1.1 Before you proceed...................................................................................... 1-1
1.2 Motherboard overview ................................................................................. 1-2
1.3 Central Processing Unit (CPU).................................................................... 1-9
1.4 System memory.......................................................................................... 1-10
Chapter 2: BIOS Information
2.1 BIOS setup program..................................................................................... 2-1
2.2 BIOS menu screen........................................................................................ 2-2
2.3 Exit menu ...................................................................................................... 2-3
Appendix
Notices ..................................................................................................................... A-1
Warranty................................................................................................................... A-6
ASUS contact information...................................................................................... A-8
Service and Support ............................................................................................... A-8

iv

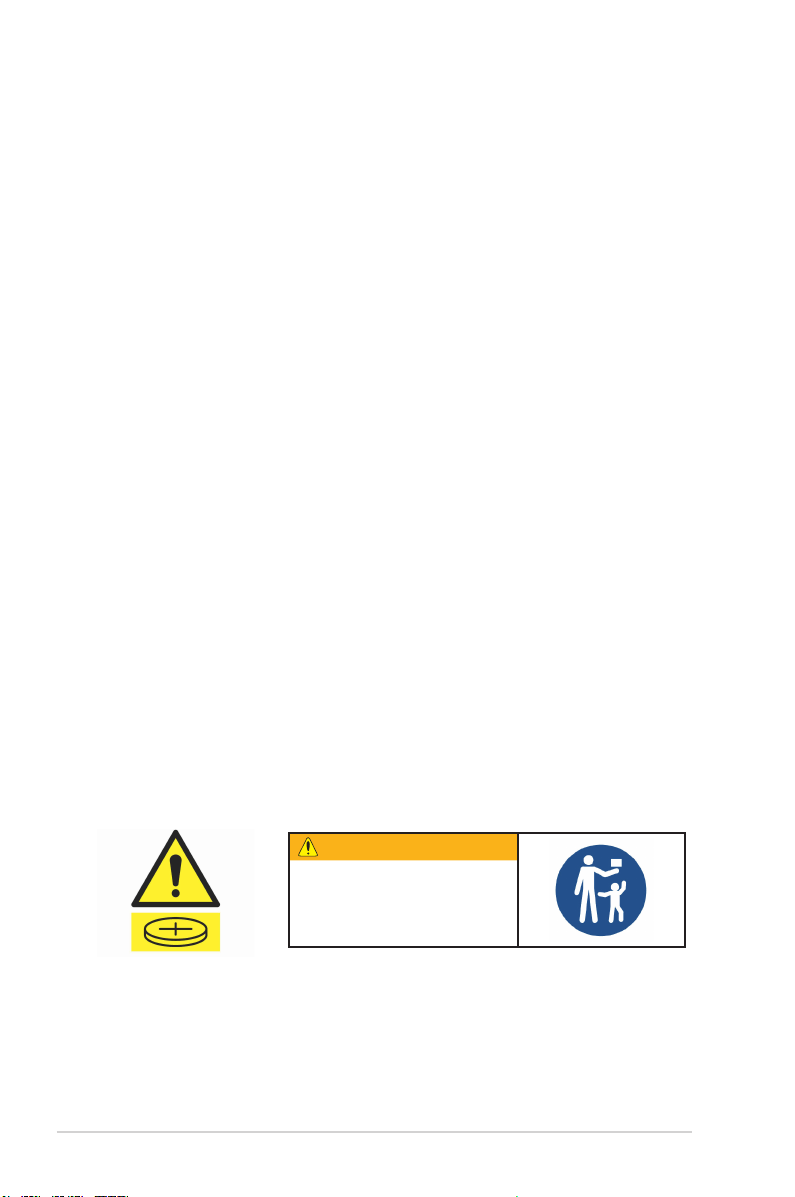

Button/Coin Batteries Safety Information
WARNING
KEEP OUT OF REACH OF CHILDREN
Swallowing can lead to chemical burns,
perforation of soft tissue, and death. Severe
burns can occur within 2 hours of ingestion.
Seek medical attention immediately.
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.

v
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS Information
This chapter tells how to boot into the BIOS, upgrade BIOS using the EZ Flash Utility.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website (www.asus.com) provides updated information on ASUS hardware
and software products.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to yourself when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

vi
PRIME H510T2-CSM R2.0 specications summary
CPU
Intel®Socket LGA1200 for 11th Gen Intel®Core™ & 10th Gen Intel®Core™,
Pentium®Gold and Celeron®Processors*
Supports Intel®14 nm CPU*
Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max
Technology 3.0**
* CPU only supports up to 65W.
* Refer to www.asus.com for CPU support list.
** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel®H470 Chipset
Memory
2 x SO-DIMM slots, Max. 64GB DDR4 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Prole (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary
depending on the CPU and memory conguration, for more information please refer
to CPU/Memory Support list under the Support tab of product information site or
visit https://www.asus.com/support/.
Graphics
1 x VGA port
2 x HDMI™ 2.1 ports**
1 x HDMI™ 1.4 header**
1 x LVDS header
* Graphics specications may vary between CPU types.
* Supports 3 graphics outputs simultaneously.
* Graphics output priority: LVDS > HDMI3 > HDMI2 > HDMI1 > VGA
** Only HDMI3(header) can be used when you connect HDMI2 and HDMI3 to
devices simultaneously.
**
Only Intel
®
11
th
Gen processors support HDMI™ 2.1 with max. resolution of
4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.
Please refer to www.intel.com for any updates.
Storage
Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port*
Intel®H470 Chipset
M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 & SATA modes)
1 x SATA 6Gb/s port
Ethernet 1 x Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard 1 x PRIME H510T2-CSM R2.0 motherboard
Documentation 1 x User guide
If any of the above items is damaged or missing, contact your retailer.

vii
PRIME H510T2-CSM R2.0 specications summary
Audio
Realtek 7.1 Surround Sound High Denition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
* A chassis with an HD audio module in the front panel is required to support
7.1 Surround Sound audio output.

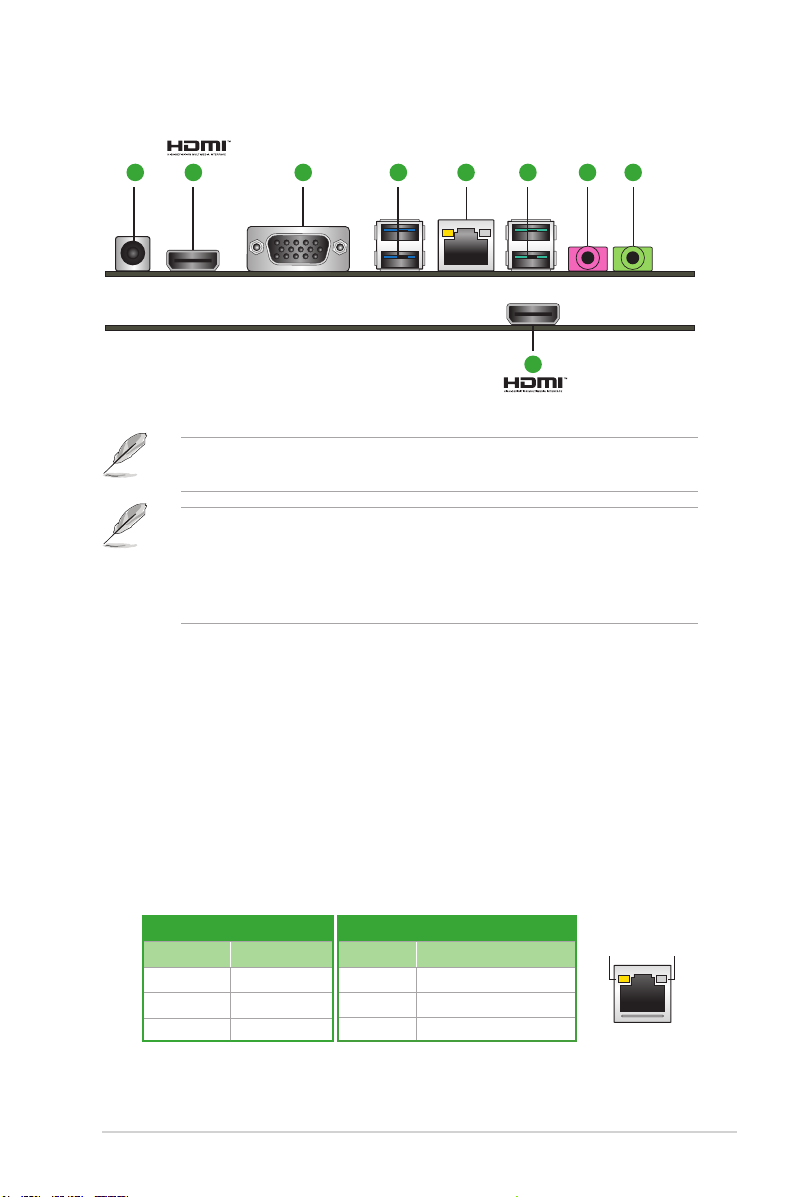

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek RTL8111H 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Supports 19V)
Internal I/O
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
Power related
1 x 4-pin +19V Power connector
1 x SATA power connector
Storage related
1 x M.2 slot (Key M)
1 x SATA 6Gb/s port
USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
AIO System related
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
Flat panel display related
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LVDS header
1 x HDMI™ header
1 x HDMI™ port
1 x M.2 slot (Key E)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
(continued on the next page)

viii
PRIME H510T2-CSM R2.0 specications summary
BIOS 128Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME
Operating System Windows®10 64-bit
Form Factor Thin Mini-ITX Form Factor
6.7 inch x 6.7 inch (17.0 cm x 17.0 cm)
• Specifications are subject to change without notice. Please refer to the ASUS website
for the latest specifications.
• For more information on downloading and installing drivers and utilities for your
motherboard, please scan the code below:

1-1
1
PRIME H510T2-CSM R2.0
Product Introduction
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
• The pin definitions in this chapter are for reference only. The pin names depend on the
location of the header/jumper/connector.
• For more information on installing your motherboard, please scan the code below:
Chapter 1: Product Introduction

1-2

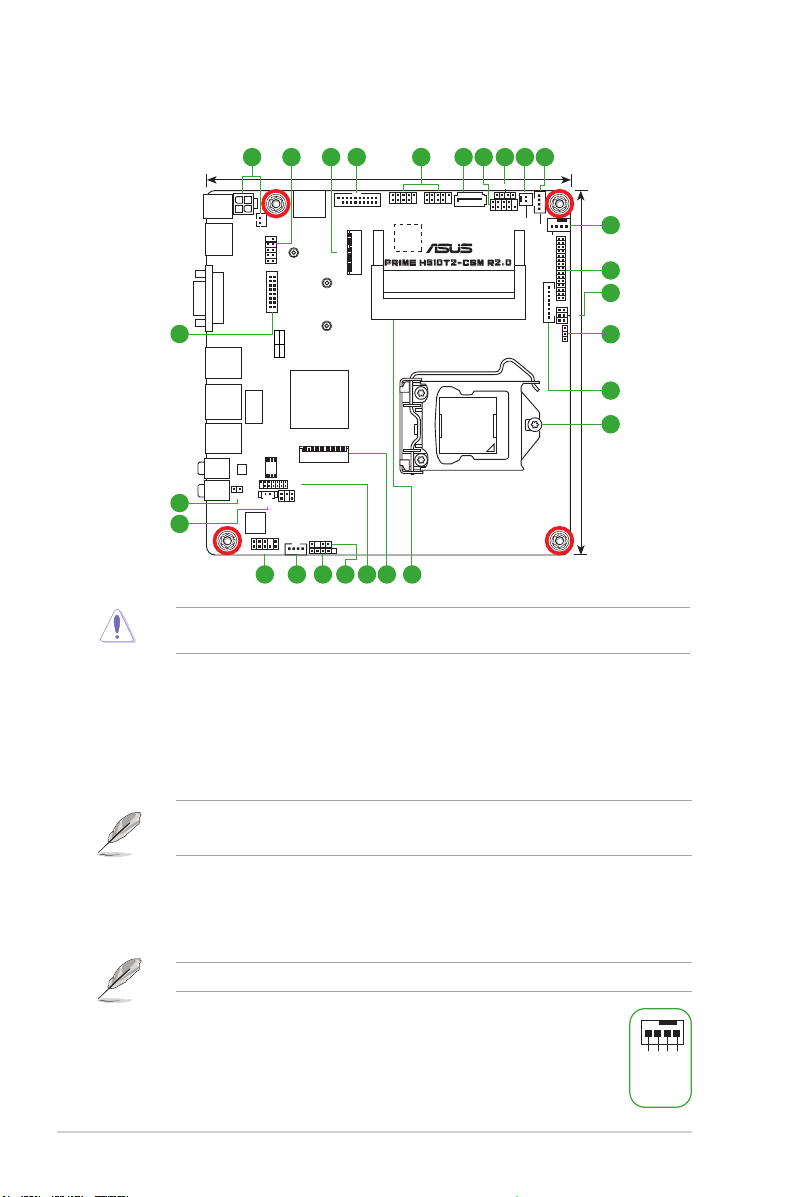

1.2.1 Layout contents
1. CPU socket
The motherboard comes with a LGA1200 socket designed for 11th Gen Intel®Core™ & 10th
Gen Intel®Core™, Pentium®Gold and Celeron®Processors.
• Supports up to Intel®65W CPU.
• For more details, refer to Central Processing Unit (CPU).

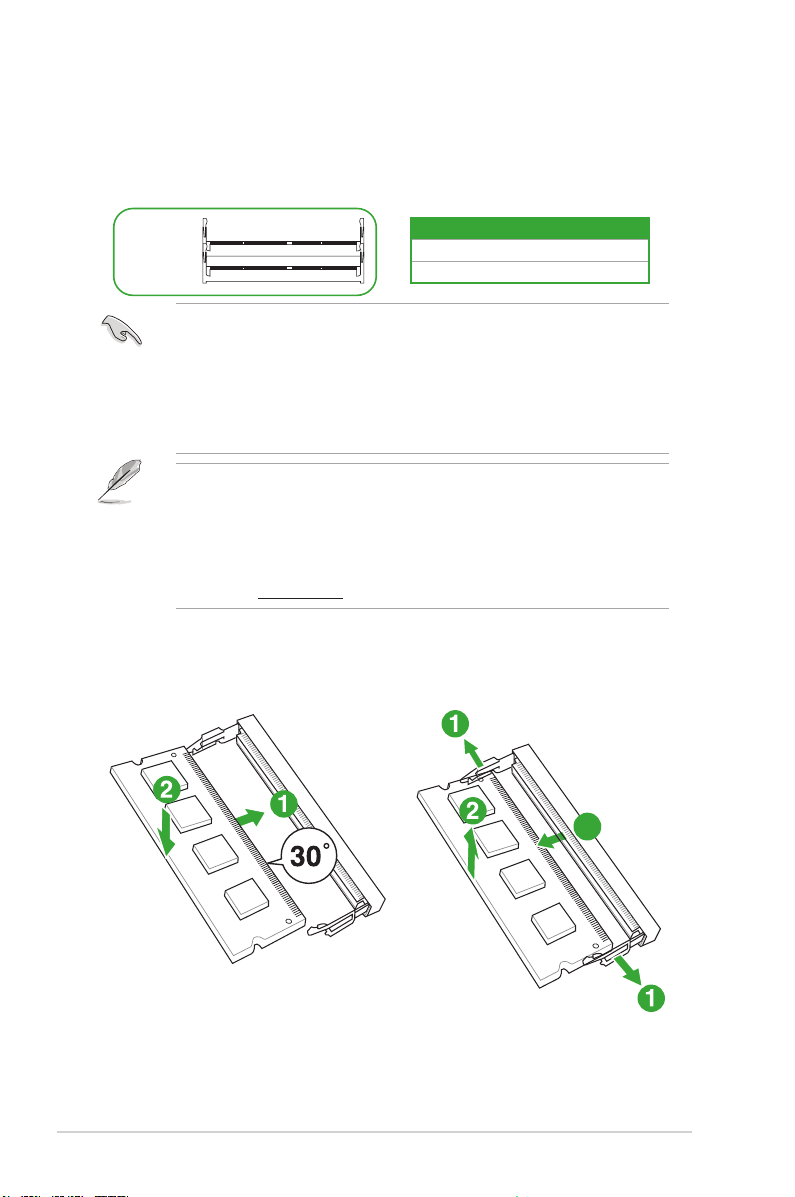

2. DDR4 SO-DIMM slots
This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual Inline
Memory Modules (SO-DIMM) slots.
For more details, refer to System memory.
3. Fan header
The Fan header allows you to connect fans to cool the system.
FAN PWM
FAN IN
FAN PWR
GND
Chapter 1: Product Introduction
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.
1.2 Motherboard overview
17.0cm(6.7in)
17.0cm(6.7in)
PANEL_SW
HDD_PWR
CPU_FAN
DDR4 SO-DIMM_A (64bit, 260-pin module)
DDR4 SO-DIMM_B (64bit, 260-pin module)
M.2(SOCKET3)
PCIE SATA
3.0 X4 V
BATT_CON
M.2(SOCKET3)
VCC_PWR_SEL
LCD_BLKT_PANEL
BLKT_PWR_SEL
LGA1200
F_PANEL
USB_910USB78
COM
PWR_2PIN
ATX19V
SATA6G
SPEAKER
AAFP
U32G1_34
U32G2_12
LAN
LANGuard
LINE_OUT
MIC IN
HDMI1
VGA
HDMI2
Intel®
H470
TPM
COM_DEBUG
2280
2260
U32G1_56
DC_PWR
Super
I/O
M.2(WIFI)
SPK_OUT
DMIC
CHASSIS
CLRTC
LVDS
HDMI3
128Mb
BIOS
Ethernet
Audio
Codec
4 13
10
18
3
1
2 5
14 11 25 15
12
9
17
2
720 8 6 16212224
19
26
23

1-3

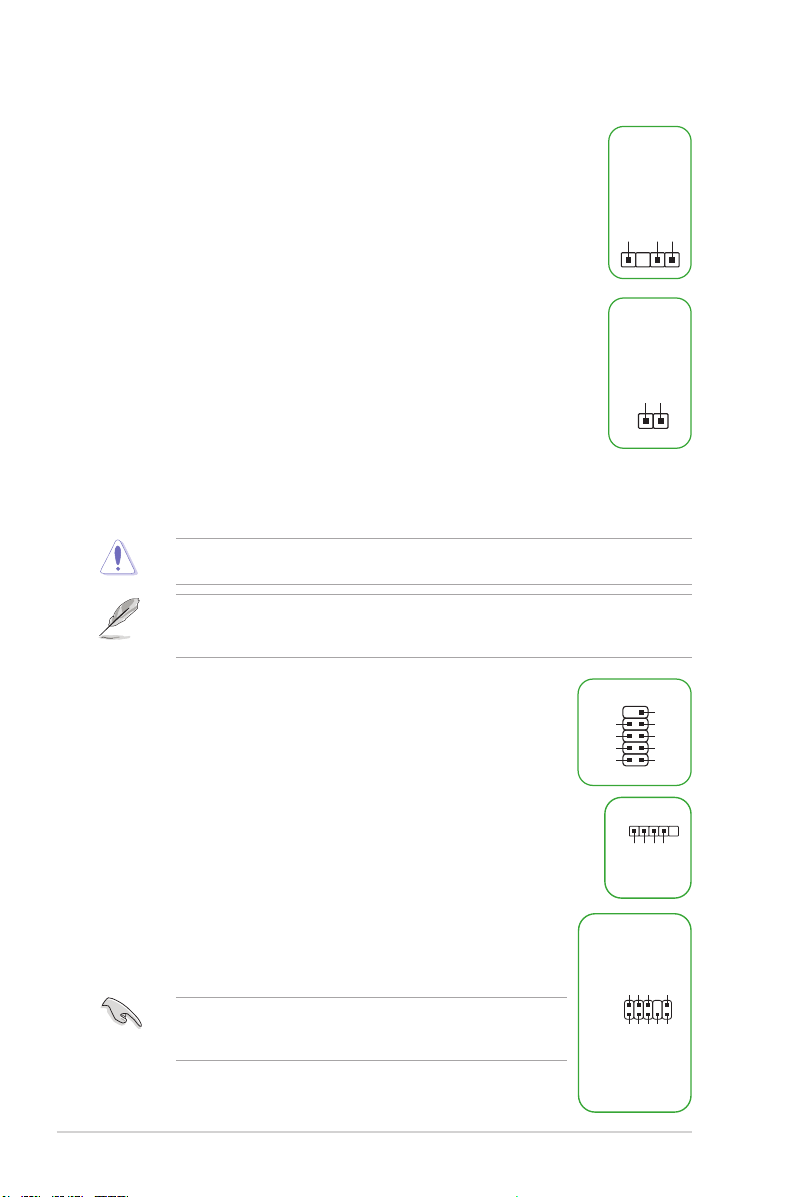

4. Power connectors
These Power connectors allow you to connect your motherboard to a power supply. The
power supply plugs are designed to t in only one orientation. Find the proper orientation and
push down rmly until the power supply plugs are fully inserted.
These power connectors support 19V. Refer to the specication sheet for more details.
5. M.2 slot (Key M)
The M.2 slot allows you to install a M.2 device such as a M.2 SSD module.
Intel®H470 Chipset
M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 & SATA modes)
The M.2 SSD module is purchased separately.
6. SATA 6Gb/s port
The SATA 6Gb/s port allows you to connect SATA devices such as optical disc drives and
hard disk drives via a SATA cable.
7. USB 3.2 Gen 1 header
The USB 3.2 Gen 1 header allows you to connect USB 3.2 Gen 1 modules
for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1 header provides
data transfer speeds of up to 5 Gb/s.
The USB 3.2 Gen 1 module is purchased separately.
8. USB 2.0 headers
The USB 2.0 headers allow you to connect USB modules for additional USB 2.0
ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.
DO NOT connect a 1394 cable to the USB connectors. Doing so will damage
the motherboard!
The USB 2.0 module is purchased separately.
9. Battery connector
This connector is for the lithium CMOS battery.
10. Backlight Inverter Voltage Selection header
1 2
2 3
12V
(Default)
19V
BLKT_PWR_SEL
PIN 1
Pins Setting
1-2 (Default) 12V
2-3 19V
GND
IntA_P3_D+
IntA_P3_D-
GND
IntA_P3_SSTX+
IntA_P3_SSTX-
GND
IntA_P3_SSRX+
IntA_P3_SSRX-
USB3+5V
PIN 1
IntA_P4_D+ IntA_P4_D- GND IntA_P4_SSTX+ IntA_P4_SSTX- GND IntA_P4_SSRX+ IntA_P4_SSRX- USB3+5V
U32G1_34
USB+5V USB_P7- USB_P7+ GND NC
USB+5V
USB_P8-
USB_P8+
GND
PIN 1
USB_78
PIN 1
VBAT GND
BATT_CON
PRIME H510T2-CSM R2.0

1-4

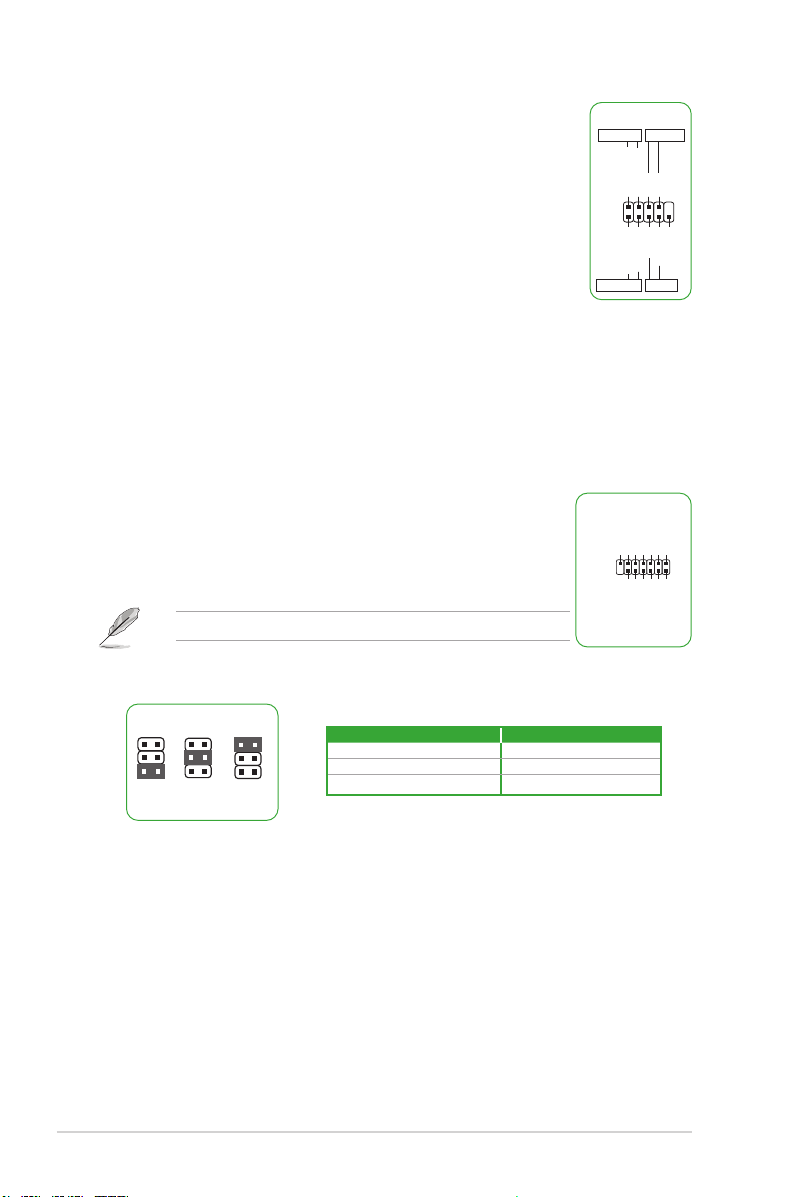

11. Chassis intrusion header
This header is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
header. The chassis intrusion sensor or switch sends a high-level signal to this
header when a chassis component is removed or replaced. The signal is then
generated as a chassis intrusion event.
12. Clear CMOS header
The Clear CMOS header allows you to clear the Real Time Clock (RTC) RAM
in the CMOS, which contains the date, time, system passwords, and system
setup parameters.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Short-circuit pin 1-2 with a metal object or jumper cap for about
5-10 seconds.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS setup to
re-enter data.
DO NOT short-circuit the pins except when clearing the RTC RAM. Short-circuiting or
placing a jumper cap will cause system boot failure!
If the steps above do not help, remove the onboard button cell battery and short the two
pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button
cell battery.
13. COM Port header
This header is for a serial (COM) port. Connect the serial port module
cable to this header, then install the module to a slot opening at the back
of the system chassis.
14. DMIC header
The DMIC header is for connecting the digital microphone module used in
All-in-One chassis.
15. Front panel audio header
This header is for a chassis-mounted front panel audio I/O module that
supports HD audio standard. Connect one end of the front panel audio
I/O module cable to this header.
We recommend that you connect a high-denition front panel audio
module to this header to avail of the motherboard’s high-denition
audio capability.
+5VSB_MB Chassis Signal GND
CHASSIS
CLRTC
+3V_BAT_RTC GND
PIN 1
COM
PIN 1
RI
RTS
GND
TXD
DCD
CTS
DSR
DTR
RXD
PIN 1
+3V
DMIC_DATA
GND
DMIC_CLK
DMIC
AAFP
AGND NC SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
Chapter 1: Product Introduction

1-5

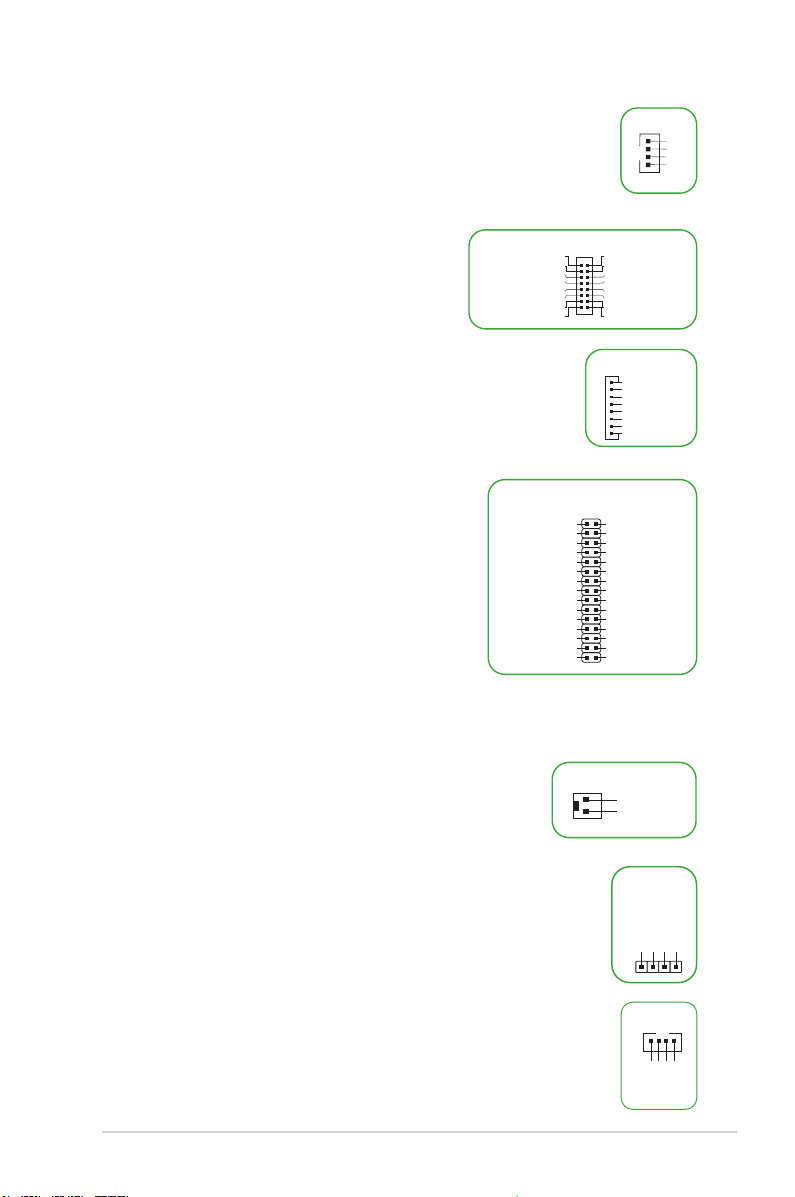

16. SATA power connector
This connector is for the SATA power cable. The power cable plug is designed
to t this connector in only one orientation. Find the proper orientation and push
down rmly until the connector completely t. To provide power to your SATA
device, connect the SATA power cable to this connector.
17. HDMI™ header
This header is used to connect the adapter cable to an
HDMI™ port.
18. FPD Brightness header
This header is for the LCD panel backlight and brightness controls. It
enables the LCD panel backlight, provides backlight control signals, and
provides brightness control signals for the brightness button on the front
panel.
19. LVDS header
This header is for an LCD monitor that supports Low
Voltage Differential Signalling (LVDS) interface.
20. M.2 slot (Key E)
This slot allows you to install an M.2 (WIFI) module.
21. Panel Off header
This 2-pin header is for connecting a monitor switch that can turn off
the LCD panel display backlight.
22. Speaker header
The 4-pin header is for the chassis-mounted system warning speaker. The
speaker allows you hear system beeps and warnings.
23. Stereo Speaker connector
The internal stereo speaker connector allows connection to an internal, low-
power speaker for basic system sound capability. The subsystem is capable of
driving both 4Ω 3W speakers at the same time.
PIN 1
+12V
GND
GND
+5V
HDD_PWR
PIN 1
SW_HDMI3_TXDP2_R
SW_HDMI3_TXDN2_R
SW_HDMI3_TXDP1_R
SW_HDMI3_TXDN1_R
SW_HDMI3_TXDP0_R
SW_HDMI3_TXDN0_R
SW_HDMI3_TXCP_R
SW_HDMI3_TXCN_R
SW_HDMI3_DDC_CLK
SW_HDMI3_DDC_DATA
SW_HDMI3_HPD
+5V_DVI/HDMI
GND
GND
GND
HDMI3
NC
PIN 1
INV_ENABKL_S
LCD_BL_PWM_R
BLKT_PWR
BLKT_PWR
GND
GND
H_LCD_BRI_UP
H_LCD_BRI_DOWN
LCD_BLKT_PANEL
LVDS
PIN 1
LCD_VCC
GND
GND
LVDS_TX_TA0P_R
LVDS_TX_TB0P_R
LVDS_TX_TC0P_R
GND
LVDS_TX_TCLK0P
LVDS_TX_TD0P_R
LVDS_TX_TA1P_R
LVDS_TX_TB1P_R
LVDS_TX_TC1P_R
GND
LVDS_TX_TCLK1P
LVDS_TX_TD1P_R
LCD_VCC
LCD_VCC
GND
LVDS_TX_TA0N_R
LVDS_TX_TB0N_R
LVDS_TX_TC0N_R
GND
LVDS_TX_TCLK0N
LVDS_TX_TD0N_R
LVDS_TX_TA1N_R
LVDS_TX_TB1N_R
LVDS_TX_TC1N_R
GND
LVDS_TX_TCLK1N
LVDS_TX_TD1N_R
PIN 1
GND
MONITER_SW
PANEL_SW
+5V GND GND Speaker Out
SPEAKER
PIN 1
SPK_OUT
PIN 1
A_SPK_R- A_SPK_R+ A_SPK_L+ A_SPK_L-
PRIME H510T2-CSM R2.0

1-6
24. 10-1 pin System Panel header
This header supports several chassis-mounted functions.
• System power LED (2-pin +PWR_LED-)
This 2-pin header is for the system power LED. Connect the chassis
power LED cable to this header. The system power LED lights up
when you turn on the system power, and blinks when the system is in
sleep mode.
• Hard disk drive activity LED (2-pin +HDD_LED-)
This 2-pin header is for the HDD Activity LED. Connect the HDD
Activity LED cable to this header. The HDD LED lights up or flashes
when data is read from or written to the HDD.
• Power button/Soft-off button (2-pin PWR_BTN)
This header is for the system power button.
• Reset button (2-pin RESET)
This 2-pin header is for the chassis-mounted reset button for system reboot without
turning off the system power.
25. SPI TPM header
This header supports a Trusted Platform Module (TPM) system with a
Serial Peripheral Interface (SPI), allowing you to securely store keys,
digital certicates, passwords, and data. A TPM system also helps
enhance network security, protects digital identities, and ensures platform
integrity.
The SPI TPM module is purchased separately.
26. Panel voltage selection header
3
12V
2
5V
(Default)
VCC_PWR_SEL
1
3V PIN 1
Pins Setting
1 3V
2 (Default) 5V
3 12V
PIN 1
PWR_BTN
PWR_LED+ PWR_LED- PWR GND
HDD_LED+
HDD_LED-
Ground
HWRST#
(NC)
F_PANEL
+PWR_LED-
+HDD_LED- RESET
TPM
PIN 1
T_SPI_MOSI
T_SPI_CLK
GND
F_BIOS_WP#_R
S_SPI_TPM_CS2#
S_SPI_TPM_IRQ#
F_SPI_HOLD#_R T_SPI_MISO F_SPI_CS0#_R +3V_SPI F2_SPI_CS1#_R S_PLTRST# VCCSPI
Chapter 1: Product Introduction

1-7
1.2.2 Rear panel connectors
1 2 4 65 7 83
2
1. DC power connector. Insert the power adapter into this port.
• Supports 19V DC input.
• The power adapter is purchased separately.
• Use the appropriate DC power adapter for the following scenarios:
- Use a 120W adapter when a 35W CPU is installed on the system.
- Use a 120W adapter when using your system with an LVDS panel.
- Use a high-rated adapter (above 120W) when a 65W CPU is installed on the
system.
2. HDMI™ ports. These ports are for High-Denition Multimedia Interface (HDMI™)
connectors, and are HDCP compliant allowing playback of HD DVD, Blu-ray, and other
protected content.
3. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
4. USB 3.2 Gen 1 (up to 5Gbps) ports. These Universal Serial Bus (USB) ports connect
to USB 3.2 Gen 1 devices.
5. Realtek RTL8111H 1Gb Ethernet port. This port allows 1Gbps Ethernet connection
to a Local Area Network (LAN) through a network hub. Refer to the table below for the
Ethernet port LED indications.
Realtek RTL8111H 1Gb Ethernet port LED indications
Speed LED
Status Description
OFF 10 Mbps connection
ORANGE 100 Mbps connection
GREEN 1 Gbps connection
Activity Link LED
Status Description
OFF No link
ORANGE Linked
BLINKING Data activity
ACT/LINK
LED
SPEED
LED
LAN port
PRIME H510T2-CSM R2.0

1-8
6. USB 3.2 Gen 2 (up to 10Gbps) ports. These Universal Serial Bus (USB) ports
connect to USB 3.2 Gen 2 devices.
7. Microphone port (pink). This port connects a microphone.
8. Line Out port (lime). This port connects a headphone or a speaker.
Refer to the audio conguration table for the function of the audio ports in 2, 4, 5.1, or
7.1-channel conguration.
Audio 2, 4, 5.1 or 7.1-channel conguration
Port Headset
2-channel 4-channel 5.1-channel 7.1-channel
Line Out (Rear
panel)
Front Speaker
Out Front Speaker Out Front Speaker Out Front Speaker Out
MIC(Rear panel) MIC Rear Speaker Out Rear Speaker Out Rear Speaker Out
Headphone (Front
panel) Headphone Headphone Center/Subwoofer
Speaker Out
Center/Subwoofer
Speaker Out
MIC (Front panel) MIC MIC MIC Side Speaker Out
A chassis with an HD audio module in the front panel is required to support 7.1-channel
audio output.
Chapter 1: Product Introduction

1-9
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount Intel® Socket LGA1200
designed for 11th Gen Intel®Core™ Processors & 10th Gen Intel®
Core™, Pentium®Gold and Celeron®Processors.
Unplug all power cables before installing the CPU.
• Supports up to Intel® 65W CPU.
• Ensure that you install the correct CPU designed for the LGA1200 socket only. DO
NOT install a CPU designed for LGA1150, LGA1151, LGA1155 and LGA1156 sockets
on the LGA1200 socket.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1200 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
Installing the CPU
1
4
Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the
heatsink and fan if necessary.
2
3
A
B
A
B
C
D
5
4
4
5
PRIME H510T2-CSM R2.0

1-10
This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual
Inline Memory Modules (SO-DIMM) sockets. The gure illustrates the location of
the DDR4 SO-DIMM sockets:
Installing a DIMM
3
To install a DIMM To remove a DIMM
3
1.4 System memory
DIMM_A
DIMM_B
Channel Sockets
Channel A DIMM_A
Channel B DIMM_B
• You may install varying memory sizes in Channel A and Channel B. The system
maps the total size of the lower-sized channel for the dual-channel conguration.
Any excess memory from the higher-sized channel is then mapped for single-
channel operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code
(D/C) from the same vendor. Check with the retailer to get the correct memory
modules.
• The default memory operation frequency is dependent on its Serial Presence
Detect (SPD), which is the standard way of accessing information from a memory
module. Under the default state, some memory modules for overclocking may
operate at a lower frequency than the vendor-marked value.
• For system stability, use a more efcient memory cooling system to support a full
memory load (2 DIMMs).
• Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).
Chapter 1: Product Introduction

2-1
2
ASUS Self-Recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system’s BIOS with a veried
backup in the event of an update failure, preventing the need to replace or reinstall your hardware.
• Ensures safe BIOS updates
• Requires no additional software
• Provides automatic update failure detection and recovery
• Reduces maintenance frequency and costs
The system will automatically activate ASUS Self-Recovering BIOS after reboot from the
BIOS update failure.
2.1 BIOS setup program
Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS
screens include navigation keys and brief online help to guide you in using the BIOS Setup
program.
Entering BIOS Setup at startup
To enter BIOS Setup at startup:
Press <Delete> or <F2> during the Power-On Self Test (POST). If you do not press <Delete>
or <F2>, POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
• Press <Ctrl>+<Alt>+<Del> simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the rst two options.
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a
running operating system can cause damage to your data or system. We recommend you
always shut down the system properly from the operating system.
BIOS Information
PRIME H510T2-CSM R2.0
Chapter 2: BIOS Information

2-2
2.2 BIOS menu screen
• The BIOS setup screens shown in this section are for reference purposes only, and
may not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS le for this
motherboard.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu or press hotkey F5.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See section Motherboard overview for
information on how to erase the RTC RAM.
Menu bar
Menu items
General Help
Conguration eldsSub-menu item
Chapter 2: BIOS Information
