Asus PRIME H510TS User manual

Motherboard
PRIME H510TS

ii
E19097
First Edition
September 2021
Copyright © 2021 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Safety information...................................................................................................... iv
About this guide.......................................................................................................... v
Package contents....................................................................................................... vi
PRIME H510TS specications summary.................................................................. vi
Chapter 1 Product Introduction
1.1 Before you proceed...................................................................................... 1-1
1.2 Motherboard overview ................................................................................. 1-1
1.3 Central Processing Unit (CPU).................................................................... 1-9
1.4 System memory.......................................................................................... 1-10
Chapter 2 BIOS Information
2.1 Knowing BIOS............................................................................................... 2-1
2.2 BIOS Setup program .................................................................................... 2-2
2.3 ASUS EZ Flash 3........................................................................................... 2-3
2.4 ASUS CrashFree BIOS 3.............................................................................. 2-4
Appendix
Notices ..................................................................................................................... A-1
Warranty................................................................................................................... A-6
ASUS contact information...................................................................................... A-8
Service and Support ............................................................................................... A-8

iv
Safety information
Electrical safety
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power
cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables
are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures
between 0°C and 40°C.

v
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS Information
This chapter tells how to boot into the BIOS and upgrade BIOS using the EZ Flash
Utility.
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS website
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty flyers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to yourself when
trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

vi
PRIME H510TS specications summary
CPU
Intel®Socket LGA1200 for 11th Gen Intel®Core™ Processors & 10th
Gen Intel®Core™, Pentium®Gold and Celeron®Processors*
Supports up to Intel® 65W CPU
Supports Intel® 14nm CPU
Supports Intel®Turbo Boost Technology 2.0 and Intel®Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
**Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel®H510 Chipset
Memory
2 x SO-DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Prole (XMP)
*11th Gen Intel®processors support 2933/2800/2666/2400/2133 natively.
*10th Gen Intel®Core™ i7/i9 processors support 2933/2800/2666/2400/2133
natively, others will run at the maximum transfer rate of DDR4 2666.
**Refer to www.asus.com for the Memory QVL (Qualied Vendors Lists), and
memory frequency support depends on the CPU types.
Graphics
2 x VGA (1 x port; 1 x header)*
3 x HDMI® 2.0 (2 x ports; 1 x header)**
1 x LVDS header
*Only VGA2 (header) can be used when you connect VGA1 and VGA2 to devices
simultaneously.
**Only HDMI2 (port) can be used when you connect HDMI2 and HDMI3 to devices
simultaneously.
**HDMI3 only supports HDMI®1.4
**Only Intel®11th Gen processors support HDMI®2.0 with max. resolution of
4K@60Hz, others will only support HDMI®1.4 with max. resolution of 4K@30Hz.
Please refer to www.intel.com for any updates.
***Graphics specications may vary between CPU types.
(continued on the next page)
Package contents
Check your motherboard package for the following items.
Motherboard 1 x PRIME H510TS motherboard
Cables 1 x SATA 6Gb/s cable
Miscellaneous 2 x I/O Shield
If any of the above items is damaged or missing, contact your retailer.

vii
PRIME H510TS specications summary
Storage
Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port
1 x M.2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 & SATA
modes)*
1 x SATA 6Gb/s port
*Only Intel®11th Gen processors support PCIe 4.0 x4 mode, the PCIe mode will
be disabled for other CPUs.
Ethernet 1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Denition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
*A chassis with an HD audio module in the front panel is required to support
7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x HDMI®port
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
Power related
1 x 4-pin +19V Power connector
1 x SATA power connector
Storage related
1 x M.2 slot (Key M)
1 x SATA 6Gb/s port
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
AIO System related
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
(continued on the next page)

viii
PRIME H510TS specications summary
Internal I/O
Connectors
Flat panel display related
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x COM debug header
1 x Front Panel Audio header (AAFP)
1 x HDMI®header
1 x LVDS header
1 x HDMI®Port
1 x M.2 slot (Key E)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x VGA header
1 x 10-1 pin System Panel header
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME
Operating System Windows®11 64-bit, Windows®10 64-bit
Form Factor Thin Mini-ITX Form Factor
6.7 inch x 6.7 inch (17.0 cm x 17.0 cm)
Specications are subject to change without notice.

1-1
Product Introduction
1.1 Before you proceed
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
Unplug the power cord before installing or removing the motherboard. Failure to do so can
cause you physical injury and damage motherboard components.

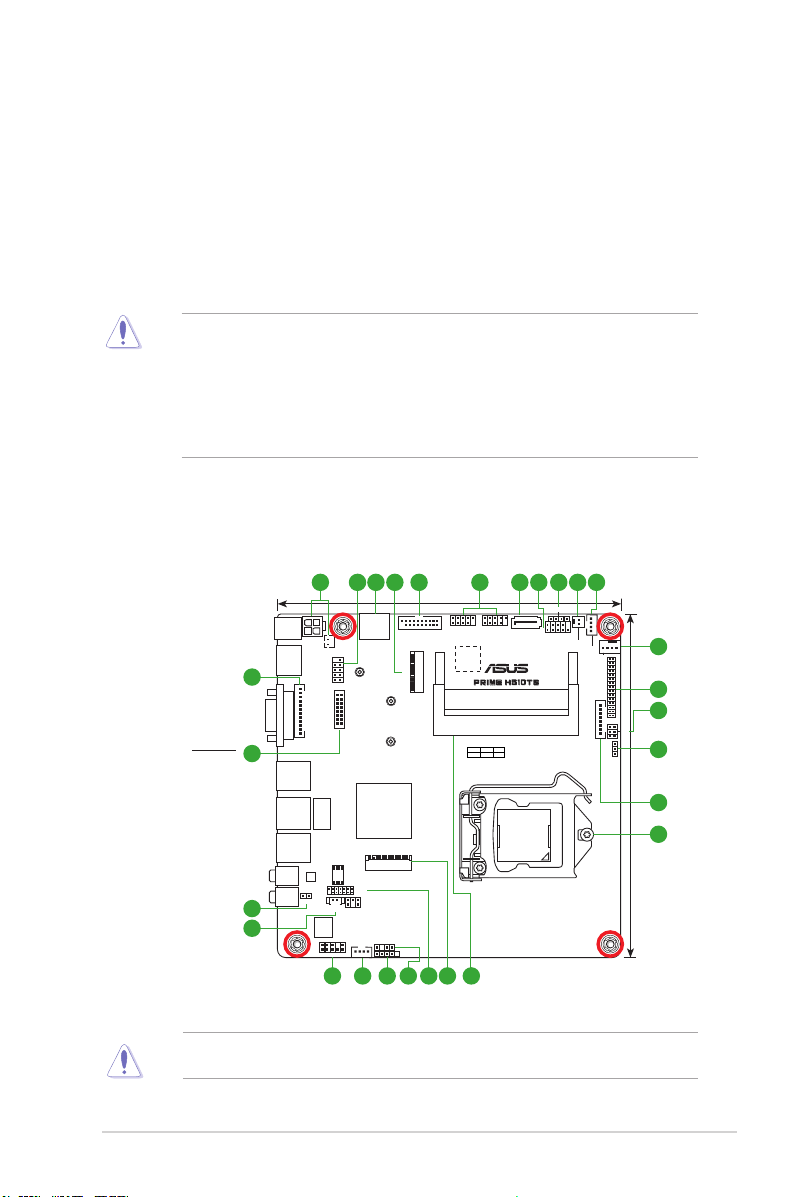

1.2 Motherboard overview
Place this
side towards
the rear of the
chassis
17.0cm(6.7in)
17.0cm(6.7in)
PANEL_SW
HDD_PWR
CPU_FAN
DDR4 SO-DIMM_A1* (64bit, 260-pin module)
DDR4 SO-DIMM_B1* (64bit, 260-pin module)
M.2(SOCKET3)
PCIE SATA IRST
4.0 X4 XV
BATT_CON
M.2(SOCKET3)
VCC_PWR_SEL
LCD_BLKT_PANEL
BLKT_PWR_SEL
LGA1200
F_PANEL
USB_E12USB78
COM
PWR_2PIN
ATX19V
SATA6G_1
SPEAKER
AAFP
U32G1_34
USB56
LAN
LANGuard
LINE_OUT
MIC IN
HDMI1
VGA1
VGA2
HDMI2
Intel®
H510
TPM
COM_DEBUG
2280
2260
U32G1_12
DC_PWR
Super
I/O
M.2(WIFI)
SPK_OUT
DMIC
CHASSIS
CLRTC
LVDS
HDMI3
128Mb
BIOS
Ethernet
Audio
Codec
4 2213
10
18
3
1
2 5
14 11 26 15
28
12
9
17
2
720 8 6 16212325
19
27
24
1
ASUS PRIME H510TS

1-2
1.2.1 Layout contents
1. CPU socket
The motherboard comes with a surface mount Intel®Socket LGA1200 designed for 11th Gen
Intel®Core™ Processors & 10th Gen Intel®Core™, Pentium®Gold and Celeron®Processors.
• Supports up to Intel®65W CPU.
• For more details, refer to Central Processing Unit (CPU).
2. DDR4 SO-DIMM slots
This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual Inline
Memory Modules (SO-DIMM) slots.
For more details, refer to System memory.
3. Fan header
The Fan header allows you to connect fans to cool the system.
4. Power connectors
These Power connectors allow you to connect your motherboard to a power supply. The
power supply plugs are designed to t in only one orientation. Find the proper orientation and
push down rmly until the power supply plugs are fully inserted.
These power connectors support 19V. Refer to the specication sheet for more details.
5. M.2 slot (Key M)
The M.2 slot allows you to install a M.2 device such as a M.2 SSD module.
M.2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 & SATA modes)
6. SATA 6Gb/s port
The SATA 6Gb/s port allows you to connect a SATA device such as an optical disc drive or a
hard disk driver via a SATA cable.
7. USB 3.2 Gen 1 header
The USB 3.2 Gen 1 header allows you to connect a USB 3.2 Gen
1 module for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1
header provides data transfer speeds of up to 5 Gb/s.
The USB 3.2 Gen 1 module is purchased separately.
FAN PWM
FAN IN
FAN PWR
GND
USB3+5V IntA_P1_SSRX- IntA_P1_SSRX+ GND IntA_P1_SSTX- IntA_P1_SSTX+ GND IntA_P1_D- IntA_P1_D+ GND
PIN 1
USB3+5V
IntA_P2_SSRX-
IntA_P2_SSRX+
GND
IntA_P2_SSTX-
IntA_P2_SSTX+
GND
IntA_P2_D-
IntA_P2_D+
Chapter 1: Product Introduction

1-3

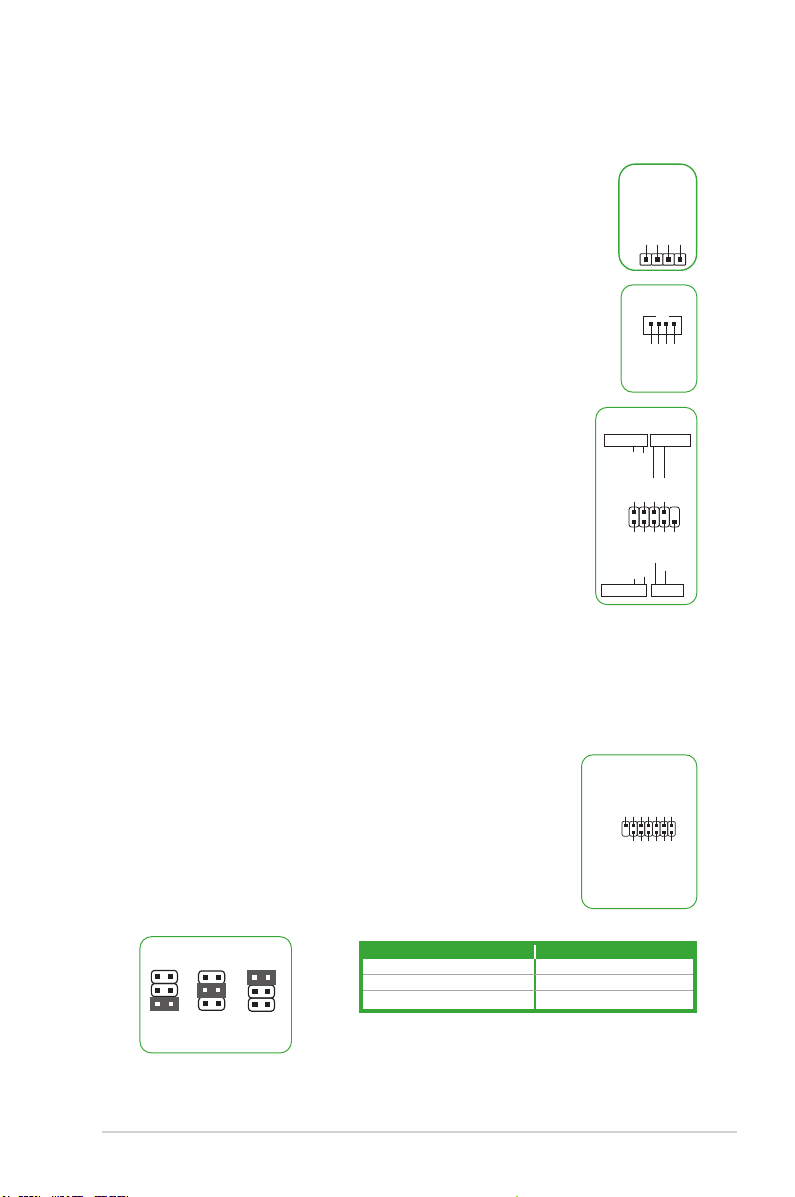

8. USB 2.0 headers
The USB 2.0 headers allow you to connect USB modules for additional USB
2.0 ports. The USB 2.0 headers provide data transfer speeds of up to 480
Mb/s.
DO NOT connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!
• The USB 2.0 module is purchased separately.
• The pin denitions in this chapter are for reference only. The pin names depend on the
location of the header/jumper/connector.
9. Battery connector
This connector is for the lithium CMOS battery.
10. Backlight Inverter Voltage Selection header
11. Chassis intrusion header
This header is for a chassis-mounted intrusion detection sensor or switch.
Connect one end of the chassis intrusion sensor or switch cable to this
header. The chassis intrusion sensor or switch sends a high-level signal to this
header when a chassis component is removed or replaced. The signal is then
generated as a chassis intrusion event.
12. Clear CMOS header
This header allows you to clear the CMOS RTC RAM data of the system setup information
such as date, time, and system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter BIOS
Setup to re-enter data.
If the steps above do not help, remove the onboard battery and short the two pins again to
clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
13. COM Port header
This header is for a serial (COM) port. Connect the serial port module
cable to this header, then install the module to a slot opening at the back
of the system chassis.
PIN 1
USB+5V USB_P1- USB_P1+ GND NC
USB+5V
USB_P2-
USB_P2+
GND
PIN 1
VBAT GND
BATT_CON
+5VSB_MB Chassis Signal GND
CHASSIS
CLRTC
+3V_BAT_RTC GND
PIN 1
COM
PIN 1
RI
RTS
GND
TXD
DCD
CTS
DSR
DTR
RXD
Pins Setting
1-2 (Default) 12V
2-3 19V
1 2
2 3
12V
(Default)
19V
BLKT_PWR_SEL
PIN 1
ASUS PRIME H510TS

1-4

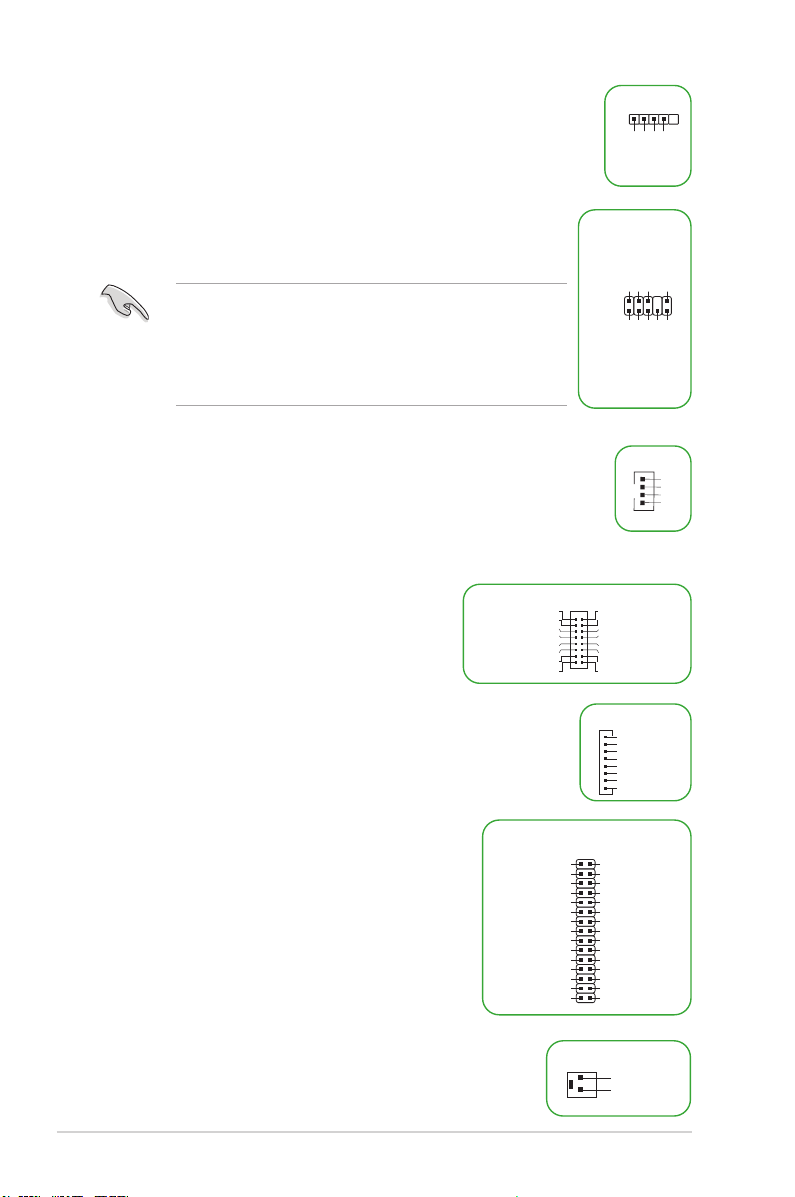

14. DMIC header
The DMIC header is for connecting the digital microphone module used in
All-in-One chassis.
15. Front panel audio header
This header is for a chassis-mounted front panel audio I/O module that
supports HD audio standard. Connect one end of the front panel audio
I/O module cable to this header.
• We recommend that you connect a high-denition front panel
audio module to this header to avail of the motherboard’s high-
denition audio capability.
• If you want to connect a high-denition front panel audio module
to this header, set the Front Panel Type item in the BIOS Setup
to [HD Audio]. By default, this header is set to [HD Audio].
16. SATA power connector
This connector is for the SATA power cable. The power cable plug is
designed to t this connector in only one orientation. Find the proper
orientation and push down rmly until the connector completely t. To provide
power to your SATA device, connect the SATA power cable to this connector.
17. HDMI®header
This header is used to connect the adapter cable to an
HDMI®port.
18. FPD Brightness header
This header is for the LCD panel backlight and brightness controls. It
enables the LCD panel backlight, provides backlight control signals, and
provides brightness control signals for the brightness button on the front
panel.
19. LVDS header
This header is for an LCD monitor that supports Low
Voltage Differential Signalling (LVDS) interface.
20. M.2 slot (Key E)
This slot allows you to install an M.2 (WIFI) module.
21. Panel Off header
This 2-pin header is for connecting a monitor switch that can turn off
the LCD panel display backlight.
PIN 1
+3V
DMIC_DATA
GND
DMIC_CLK
DMIC
AAFP
AGND NC SENSE1_RETUR SENSE2_RETUR
PORT1 L
PORT1 R PORT2 R
SENSE_SEND
PORT2 L
HD-audio-compliant
pin definition
PIN 1
+12V
GND
GND
+5V
HDD_PWR
PIN 1
SW_HDMI3_TXDP2_R
SW_HDMI3_TXDN2_R
SW_HDMI3_TXDP1_R
SW_HDMI3_TXDN1_R
SW_HDMI3_TXDP0_R
SW_HDMI3_TXDN0_R
SW_HDMI3_TXCP_R
SW_HDMI3_TXCN_R
SW_HDMI3_DDC_CLK
SW_HDMI3_DDC_DATA
SW_HDMI3_HPD
+5V_DVI/HDMI
GND
GND
GND
HDMI3
NC
PIN 1
INV_ENABKL_S
LCD_BL_PWM_R
BLKT_PWR
BLKT_PWR
GND
GND
H_LCD_BRI_UP
H_LCD_BRI_DOWN
LCD_BLKT_PANEL
LVDS
PIN 1
LCD_VCC
GND
GND
LVDS_TX_TA0P_R
LVDS_TX_TB0P_R
LVDS_TX_TC0P_R
GND
LVDS_TX_TCLK0P
LVDS_TX_TD0P_R
LVDS_TX_TA1P_R
LVDS_TX_TB1P_R
LVDS_TX_TC1P_R
GND
LVDS_TX_TCLK1P
LVDS_TX_TD1P_R
LCD_VCC
LCD_VCC
GND
LVDS_TX_TA0N_R
LVDS_TX_TB0N_R
LVDS_TX_TC0N_R
GND
LVDS_TX_TCLK0N
LVDS_TX_TD0N_R
LVDS_TX_TA1N_R
LVDS_TX_TB1N_R
LVDS_TX_TC1N_R
GND
LVDS_TX_TCLK1N
LVDS_TX_TD1N_R
PIN 1
GND
MONITER_SW
PANEL_SW
Chapter 1: Product Introduction

1-5
22. HDMI® port
This port is for a High-Denition Multimedia Interface (HDMI®) connector, and is HDCP
compliant allowing playback of HD DVD, Blu-ray, and other protected content.
23. Speaker header
The 4-pin header is for the chassis-mounted system warning speaker. The
speaker allows you hear system beeps and warnings.
24. Stereo Speaker connector
The internal stereo speaker connector allows connection to an internal, low-
power speaker for basic system sound capability. The subsystem is capable of
driving both 4Ω 3W speakers at the same time.
25. 10-1 pin System Panel header
This header supports several chassis-mounted functions.
• System power LED (2-pin +PWR_LED-)
This 2-pin header is for the system power LED. Connect the chassis
power LED cable to this header. The system power LED lights up
when you turn on the system power, and blinks when the system is in
sleep mode.
• Hard disk drive activity LED (2-pin +HDD_LED-)
This 2-pin header is for the HDD Activity LED. Connect the HDD
Activity LED cable to this header. The HDD LED lights up or flashes
when data is read from or written to the HDD.
• Power button/Soft-off button (2-pin PWR_BTN)
This header is for the system power button.
• Reset button (2-pin RESET)
This 2-pin header is for the chassis-mounted reset button for system reboot without
turning off the system power.
26. SPI TPM header
This header supports a Trusted Platform Module (TPM) system with a
Serial Peripheral Interface (SPI), allowing you to securely store keys,
digital certicates, passwords, and data. A TPM system also helps
enhance network security, protects digital identities, and ensures platform
integrity.
27. Panel voltage selection header
Pins Setting
1 3V
2 (Default) 5V
3 12V
+5V GND GND Speaker Out
SPEAKER
PIN 1
SPK_OUT
PIN 1
A_SPK_R- A_SPK_R+ A_SPK_L+ A_SPK_L-
PIN 1
PWR_BTN
PWR_LED+ PWR_LED- PWR GND
HDD_LED+
HDD_LED-
Ground
HWRST#
(NC)
F_PANEL
+PWR_LED-
+HDD_LED- RESET
TPM
PIN 1
T_SPI_MOSI
T_SPI_CLK
GND
F_BIOS_WP#_R
S_SPI_TPM_CS2#
S_SPI_TPM_IRQ#
F_SPI_HOLD#_R T_SPI_MISO F_SPI_CS0#_R +3V_SPI F2_SPI_CS1#_R S_PLTRST# VCCSPI
3
12V
2
5V
(Default)
VCC_PWR_SEL
1
3V PIN 1
ASUS PRIME H510TS

1-6
28. Video Graphics Adapter (VGA) header
This header is used to connect the adapter cable to a VGA port.
PIN 1
VGA2
VGA2_DDC_CLK_R
VGA2_DDC_DATA_R
GND
VGA2_BLUE_L
GND
VGA2_GREEN_L
GND
VGA2_RED_L
GND
VGA2_HSYNC_R
VGA2_VSYNC_R
+5V_D_VGA
Chapter 1: Product Introduction

1-7

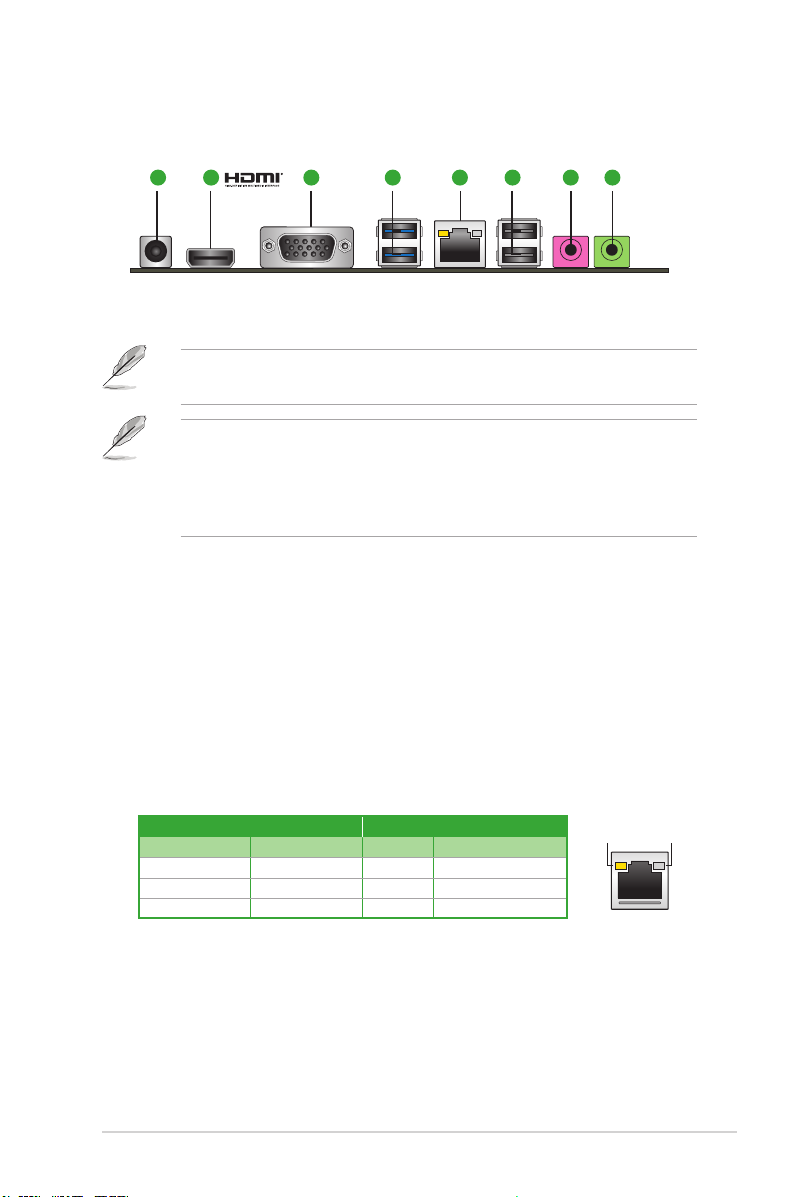

1.2.2 Rear panel connectors
1 2 4 65 7 83
2
ACT/LINK
LED
SPEED
LED
Ethernet port
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1. DC power connector. Insert the power adapter into this port.
• Supports 19V DC input.
• The power adapter is purchased separately.
• Use the appropriate DC power adapter for the following scenarios:
- Use a 90W adapter when a 35W CPU is installed on the system.
- Use a 120W adapter when using your system with an LVDS panel.
- Use a high-rated adapter (above 120W) when a 65W CPU is installed on the
system.
2. HDMI®port. This port is for a High-Denition Multimedia Interface (HDMI®) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
3. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
4. USB 3.2 Gen 1 (up to 5Gbps) ports. These 9-pin Universal Serial Bus (USB) ports
connect to USB 3.2 Gen 1 devices.
5. Ethernet port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the Ethernet port LED indications.
Ethernet port LED indications
6. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0 devices.
7. Microphone port (pink). This port connects a microphone.
8. Line Out port (lime). This port connects a headphone or a speaker.
ASUS PRIME H510TS

1-8
Refer to the audio conguration table for the function of the audio ports in 2, 4, 5.1, or
7.1-channel conguration.
Audio 2, 4, 5.1 or 7.1-channel conguration
Port Headset
2-channel 4-channel 5.1-channel 7.1-channel
Line Ourt (Rear
panel)
Front Speaker
Out Front Speaker Out Front Speaker Out Front Speaker Out
MIC(Rear panel) MIC Rear Speaker Out Rear Speaker Out Rear Speaker Out
Headphone (Front
panel) Headphone Headphone Center/Subwoofer Speaker Out
Center/Subwoofer
Speaker Out
MIC (Front panel) MIC MIC MIC Side Speaker Out
A chassis with an HD audio module in the front panel is required to support 7.1-channel
audio output.
Chapter 1: Product Introduction

1-9
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount Intel® Socket LGA1200
designed for 11th Gen Intel®Core™ Processors & 10th Gen Intel®
Core™, Pentium®Gold and Celeron®Processors.
Unplug all power cables before installing the CPU.
• Supports up to Intel® 65W CPU.
• Ensure that you install the correct CPU designed for the LGA1200 socket only. DO
NOT install a CPU designed for LGA1150, LGA1151, LGA1155 and LGA1156 sockets
on the LGA1200 socket.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1200 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.

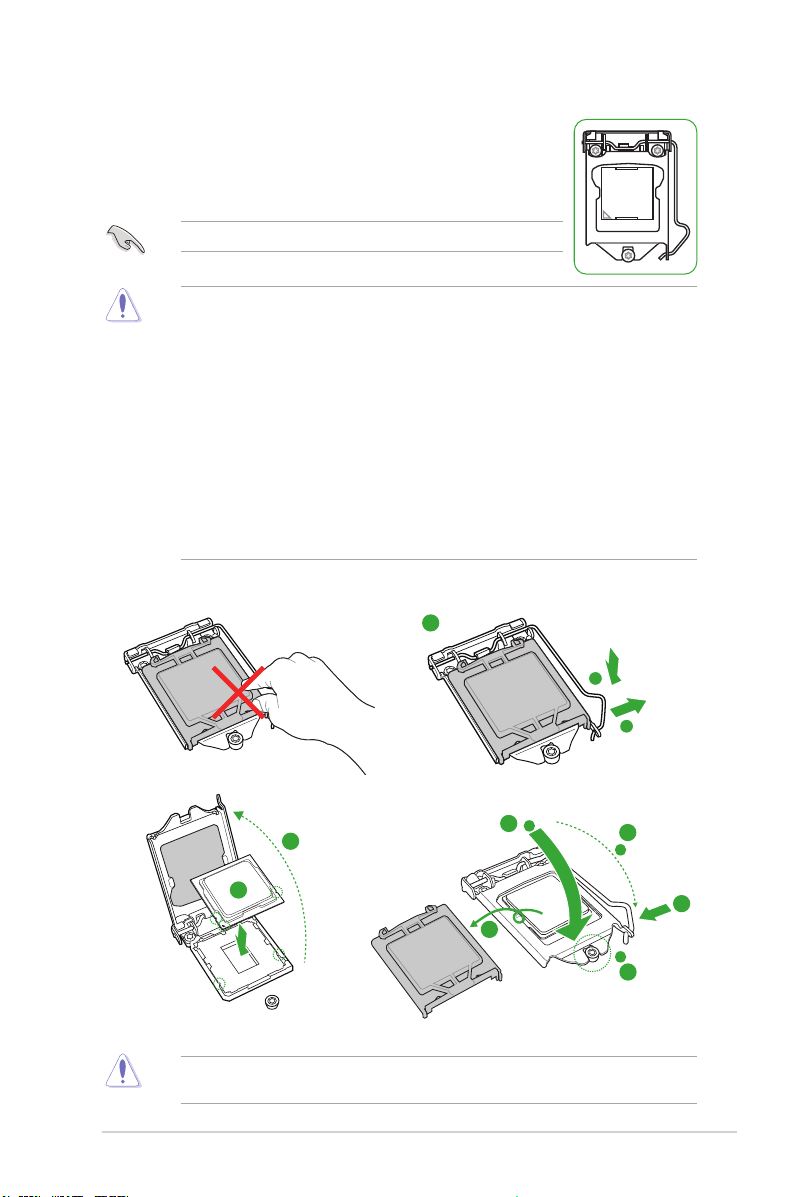

Installing the CPU
1
4
Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the
heatsink and fan if necessary.
2
3
A
B
A
B
C
D
5
4
4
5
ASUS PRIME H510TS

1-10
This motherboard comes with two Double Data Rate 4 (DDR4) Small Outline Dual
Inline Memory Modules (SO-DIMM) sockets. The gure illustrates the location of
the DDR4 SO-DIMM sockets:
Installing a DIMM
3
To install a DIMM To remove a DIMM
3
1.4 System memory
DIMM_A1*
DIMM_B1*
Channel Sockets
Channel A DIMM_A1*
Channel B DIMM_B1*
• You may install varying memory sizes in Channel A and Channel B. The system
maps the total size of the lower-sized channel for the dual-channel conguration.
Any excess memory from the higher-sized channel is then mapped for single-
channel operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code
(D/C) from the same vendor. Check with the retailer to get the correct memory
modules.
• 11th Gen Intel®processors support 2933/2800/2666/2400/2133 natively.
• 10th Gen Intel®Core™ i7/i9 processors support 2933/2800/2666/2400/2133
natively, others will run at the maximum transfer rate of DDR4 2666.
• The default memory operation frequency is dependent on its Serial Presence
Detect (SPD), which is the standard way of accessing information from a memory
module. Under the default state, some memory modules for overclocking may
operate at a lower frequency than the vendor-marked value.
• For system stability, use a more efcient memory cooling system to support a full
memory load (2 DIMMs).
• Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).
Chapter 1: Product Introduction

2-1
2.1 Knowing BIOS
The new ASUS UEFI BIOS is a Unied Extensible Interface that complies with UEFI
architecture, offering a user-friendly interface that goes beyond the traditional keyboard-
only BIOS controls to enable a more flexible and convenient mouse input. You can easily
navigate the new UEFI BIOS with the same smoothness as your operating system. The
term “BIOS” in this user manual refers to “UEFI BIOS” unless otherwise specied.
BIOS (Basic Input and Output System) stores system hardware settings such as storage
device conguration, overclocking settings, advanced power management, and boot
device conguration that are needed for system startup in the motherboard CMOS. In
normal circumstances, the default BIOS settings apply to most conditions to ensure
optimal performance. DO NOT change the default BIOS settings except in the following
circumstances:
• An error message appears on the screen during the system bootup and requests you
to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or
update.
Inappropriate BIOS settings may result to instability or boot failure. We strongly
recommend that you change the BIOS settings only with the help of a trained service
personnel.
BIOS settings and options may vary due to different BIOS release versions. Please refer to
the latest BIOS version for settings and options.
For more information on BIOS congurations, please refer to
https://www.asus.com/support, or download the BIOS manual by
scanning the QR code.
BIOS Information
2
ASUS PRIME H510TS

2-2
2.2 BIOS Setup program
Use the BIOS Setup to update the BIOS or congure its parameters. The BIOS screens
include navigation keys and brief onscreen help to guide you in using the BIOS Setup
program.
Entering BIOS at startup
To enter BIOS Setup at startup, press <Delete> or <F2> during the Power-On Self Test
(POST). If you do not press <Delete> or <F2>, POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
• Press <Ctrl>+<Alt>+<Delete> simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the rst two options.
After doing either of the three options, press <Delete> key to enter BIOS.
• Ensure that a USB mouse is connected to your motherboard if you want to use the
mouse to control the BIOS setup program.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu or press hotkey <F5>.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value.
• The BIOS setup program does not support Bluetooth devices.
BIOS menu screen
The BIOS Setup program can be used under two modes: EZ Mode and Advanced Mode.
You can change modes from Setup Mode in Boot menu or by pressing the <F7> hotkey.
Chapter 2: BIOS Information
