Asus PRO H310M-R R2.0 WI-FI User manual

Motherboard
PRO H310M-R R2.0 WI-FI
PRO H310M-R R2.0 WI-FI/CSM

ii
E14979
First Edition
January 2019
Copyright © 2019 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
Offer to Provide Source Code of Certain Software
This product contains copyrighted software that is licensed under the General Public License (“GPL”),
under the Lesser General Public License Version (“LGPL”) and/or other Free Open Source Software
Licenses. Such software in this product is distributed without any warranty to the extent permitted by the
applicable law. Copies of these licenses are included in this product.
Where the applicable license entitles you to the source code of such software and/or other additional data,
you may obtain it for a period of three years after our last shipment of the product, either
(1) for free by downloading it from http://support.asus.com/download
or
(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location
where you want to have it shipped to, by sending a request to:
ASUSTeK Computer Inc.
Legal Compliance Dept.
15 Li Te Rd.,
Beitou, Taipei 112
Taiwan
In your request please provide the name, model number and version, as stated in the About Box of the
product for which you wish to obtain the corresponding source code and your contact details so that we
can coordinate the terms and cost of shipment with you.
The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as
the corresponding binary/object code.
This offer is valid to anyone in receipt of this information.
ASUSTeK is eager to duly provide complete source code as required under various Free Open Source
Software licenses. If however you encounter any problems in obtaining the full corresponding source
code we would be much obliged if you give us a notication to the email address [email protected], stating
the product and describing the problem (please DO NOT send large attachments such as source code
archives, etc. to this email address).

iii
Contents
Safety information ...................................................................................... iv
About this guide ......................................................................................... iv
Package contents ....................................................................................... vi
PRO H310M-R R2.0 WI-FI specications summary ................................. vi
Chapter 1: Product introduction
Motherboard overview ............................................................................. 1-1
Central Processing Unit (CPU)................................................................ 1-7
System memory........................................................................................ 1-8
Chapter 2: BIOS information
BIOS setup program................................................................................. 2-1

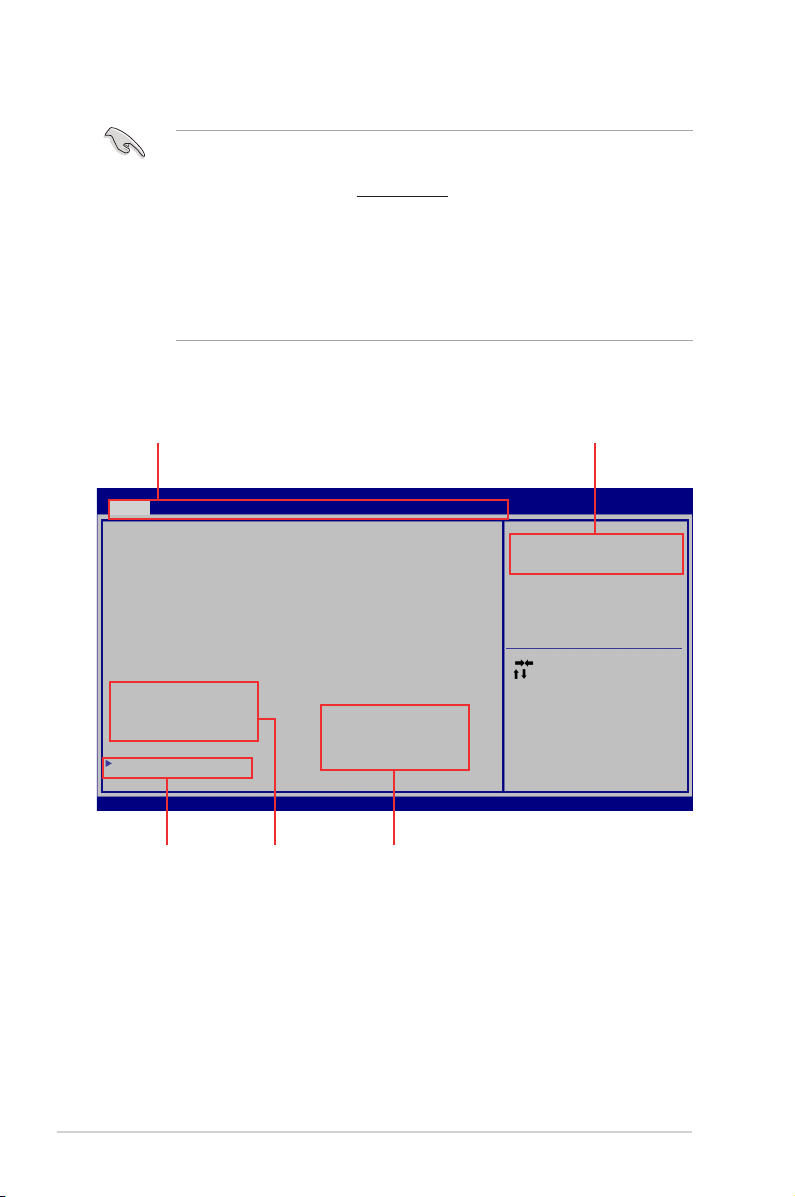

BIOS menu screen.................................................................................... 2-2
Exit menu................................................................................................... 2-3
Appendix
Notices.......................................................................................................A-1
ASUS contact information .......................................................................A-7

iv
Safety information
Electrical safety
• To prevent electrical shock hazards, disconnect the power cable from the electrical outlet
before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables
for the devices are unplugged before the signal cables are connected. If possible,
disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all
power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices
could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not
sure about the voltage of the electrical outlet you are using, contact your local power
company.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
Operation safety
• Before installing the motherboard and adding components, carefully read all the manuals
that came with the package.
• Before using the product, ensure all cables are correctly connected and the power
cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors,
slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area
where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied service
technician or your retailer.
About this guide
This user guide contains the information you need when installing and conguring the
motherboard.
How this guide is organized
This guide contains the following parts:
• Chapter 1: Product introduction
This chapter describes the features of the motherboard and the new technology it
supports. It includes descriptions of the switches, jumpers, and connectors on the
motherboard.
• Chapter 2: BIOS information
This chapter discusses changing system settings through the BIOS Setup menus.
Detailed descriptions for the BIOS parameters are also provided.

v
Where to nd more information
Refer to the following sources for additional information and for product and software
updates.
1. ASUS websites
The ASUS website provides updated information on ASUS hardware and software
products. Refer to the ASUS contact information.
2. Optional documentation
Your product package may include optional documentation, such as warranty yers,
that may have been added by your dealer. These documents are not part of the
standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself when
completing a task.
CAUTION: Information to prevent damage to the components when
completing a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-than sign
means that you must press the enclosed key.
Example: <Enter> means that you must press the Enter or
Return key.
<Key1> + <Key2> + <Key3> If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+).

vi
PRO H310M-R R2.0 WI-FI specications summary
Package contents
Check your motherboard package for the following items.
Motherboard ASUS PRO H310M-R R2.0 WI-FI motherboard
Cables 2 x Serial ATA 6.0 Gb/s cables
Accessories 1 x ASUS I/O Shield
1 x 1T1R Wi-Fi antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
Application DVD Support DVD
Documentation User Guide
If any of the above items are damaged or missing, contact your retailer.
Chipset Intel®H310 Chipset
Memory
2 x DIMMs, max 32GB, DDR4 2666 / 2400 / 2133 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Supports Intel® Extreme Memory Prole (XMP)
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel®8th Gen.
6-core or higher processors.
*** Refer to www.asus.com for the Memory QVL (Qualied Vendors List).
Expansion
slots
1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 2.0 x1 slot
CPU
LGA1151 socket for Intel®8th Generation Core™ i7 / i5 / i3, Pentium®, and Celeron®
processors
Supports Intel®14nm CPU
Supports Intel®Turbo Boost Technology 2.0*
* The Intel®Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel®CPU support list.
Graphics
Integrated graphics processor - Intel®HD Graphics support
Multi-VGA out support: HDMI / DisplayPort / D-Sub ports
- Supports HDMI 1.4b output with a maximum resolution of 4096 x 2304 @24Hz
- Supports DisplayPort output with a maximum resolution of 4096 x 2340 @60Hz
- Supports D-Sub output with a maximum resolution of 1920 x 1200 @60Hz
Supports up to 2 displays simultaneously
Maximum shared memory of 1024MB
Storage Intel®H310 Chipset:
- 4 x SATA 6.0 Gb/s ports (gray)
LAN Realtek®8111H Gigabit LAN supports LANGuard
USB
ASM3142IC
- 1 x USB 3.1 Gen2 port (Type C port at mid-board)
Intel®H310 Chipset:
- 4 x USB 3.1 Gen 1 ports (2 ports at mid-board, 2 ports at back panel)
- 4 x USB 2.0/1.1 ports (2 ports at mid-board; 2 ports at back panel)
(continued on the next page)

vii
PRO H310M-R R2.0 WI-FI specications summary
Wireless
Data
Network
Wi-Fi 802.11a/b/g/n/ac support dual frequency band 2.4/5 Ghz support up to 433.3
Mbps*
*Actual speed varies, and depends on networking conditions
Bluetooth Bluetooth v5.0
Audio
Realtek® ALC887 8-channel High Denition Audio CODEC*
- Supports jack-detection and front panel jack-retasking
* Choose the chassis with HD audio module in the front panel to support an 8-channel audio
output.
ASUS
special
features
Bespoke Motherboard Design & Business Focused Features :
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash
happen.
- ASUS Event Log: Record activities of system and provides information in BIOS.
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS
design.
- Anti-Moisture: Against moisture and corrosion — prolonging the life of your
motherboard.
-24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to
ensure handle diverse environment.
- Overcurrent Protection: Short circuit prevention, protects your system
Easy Assembly Design :
- Fixed-position&Color-coded Connectors: Enable easy identication and cable-
matching, speeding up the production line.
- Box Headers: USB headers are box style, enabling fast connector installation and
preventing pin damage.
Rear panel
I/O ports
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
2 x USB 3.1 Gen 1 (up to 5Gbps) ports (Type-A, blue)
2 x USB 2.0/1.1 ports
1 x HDMI port
1 x D-Sub port
1 x Display port
2 x Wi-Fi antenna port(s)
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output*
* Use a chassis with HD audio module in the front panel to support a 8-channel audio output.
Internal
connectors
1 x USB 3.1 Gen 2 (up to 10Gbps) connector supporting an additional 1 USB 3.1 Gen
2 port (Type-c)
1 x USB 3.1 Gen 1 (up to 5Gbps) connector supporting an additional 2 USB 3.1 Gen
1 ports (19-pin)
1 x USB 2.0/1.1 connector supporting a additional 2 USB 2.0/1.1 ports
4 x SATA 6.0Gb/s connectors
1 x 4-pin CPU Fan connector for 4-pin PWM mode
1 x 4-pin Chassis Fan connector for 4-pin PWM mode
(continued on the next page)

viii
PRO H310M-R R2.0 WI-FI specications summary
Specications are subject to change without notice.
Internal
connectors
1 x COM connector
1 x Front panel audio connector (AAFP)
1 x Speaker connector
1 x Chassis Intrusion header
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System panel connector
1 x Clear CMOS jumper (2-pin)
1 x LPC Debug header
1 x SPI TPM header
BIOS features
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.1, Multi-
language BIOS, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event
lg, ASUS Commercial Kit
Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
Support DVD
Drivers
ASUS utilities
EZ Update
Anti-virus software (OEM version)
OS support Windows®10 (64-bit)
Form factor uATX Form Factor 8.9”*7.1” (22.60 cm*18.03 cm)

ASUS PRO H310M-R R2.0 Wi-Fi 1-1
Product introduction
1
Motherboard overview
• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded
object or a metal object, such as the power supply case, to avoid damaging them due
to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is
switched off or the power cord is detached from the power supply. Failure to do so
may cause severe damage to the motherboard, peripherals, or components.
• Unplug the power cord before installing or removing the motherboard. Failure to do so
can cause you physical injury and damage to motherboard components.
Place this
side towards
the rear of the
chassis
Scan the QR code to get the detailed pin denitions.
PCIEX16
USB3_12
F_PANEL
USB78
COM
LPC_DEBUG
AAFP
CHA_FAN
SPEAKER
CLRTC
ATX12V
EATXPWR
CPU_FAN
Super
I/O
ALC
887 ASM
1142
Realtek
8111H
LGA1151
Intel®
H310
BATTERY
DDR4 DIMM_A1* (64bit, 288-pin module) DDR4 DIMM_B1* (64bit, 288-pin module)
SATA6G_1
SATA6G_4SATA6G_3
SATA6G_2
AUDIO
M.2(WIFI)
KBMS
18.0cm(7.1in)
22.6cm(8.9in)
128Mb
BIOS
LAN_USB56
U31G1_34
HDMI_DP
VGA
U31G2_EC1
SPI_TPM
DIGI
+VRM
PCIEX1
2 3 21 4
1
5
12131415
7
6
61011 89
17
16

1-2 Chapter 1: Product introduction
ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
Correctly orient the ATX power supply plugs into these connectors and push down
rmly until the connectors completely t.
• For a fully congured system, we recommend that you use a power supply unit
(PSU) that complies with ATX 12V Specication 2.0 (or later version) and provides
a minimum power of 350 W. Ensure this PSU type has 24-pin and 4-pin power
plugs.
• We recommend that you use a PSU with higher power output when conguring a
system with more power-consuming devices or when you intend to install additional
devices. The system may become unstable or may not boot up if the power is
inadequate.
• DO NOT forget to connect the 4-pin ATX +12V power plug. Otherwise,the system
will not boot up.
CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN)
Connect the fan cables to the fan connectors on the motherboard, ensuring that the
black wire of each cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside
the system may damage the motherboard components. These are not jumpers! Do not
place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan
of maximum 0.5A (6 W) fan power.
Intel®LGA1151 CPU socket
Install Intel®LGA1151 CPU into this surface mount LGA1151 socket, which is
designed for 8th Generation Intel®Core™ i7 / i5 / i3, Pentium®, and Celeron®
processors.
For more details, refer to Central Processing Unit (CPU).
DDR4 DIMM slots
Install 2 GB, 4 GB, 8 GB, and 16 GB unbuffered non-ECC DDR4 DIMMs into these
DIMM sockets.
For more details, refer to System memory.
USB 3.1 Gen 1 (up to 5Gb/s) connector (20-1 pin U31G1_12)
Connect a USB 3.1 Gen 1 module to this connector for additional USB 3.1
Gen 1 front or rear panel ports. This connector complies with USB 3.1 Gen 1
specications and provides faster data transfer speeds of up to 5 Gbps, faster
charging time for USB-chargeable devices, optimized power efciency, and
backward compatibility with USB 2.0.
Intel®H310 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~4)
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA
6.0 Gb/s signal cables.

ASUS PRO H310M-R R2.0 Wi-Fi 1-3
Clear RTC RAM (2-pin CLRTC)
This header allows you to clear the CMOS RTC RAM
data of the system setup information such as date, time,
and system passwords.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power
cord.
2. Use a metal object such as a screwdriver to short
the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process
and enter BIOS setup to re-enter data.
If the steps above do not help, remove the onboard battery and short the two pins again
to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.
Speaker connector (4-pin SPEAKER)
The 4-pin connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
TPM connector (14-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system with a serial
peripheral Interface (SPI), allowing you to securely store keys, digital certicates,
passwords and data. A TPM system also enhances network security, protects
digital identities, and ensures platform integrity.
USB 3.1 Gen 2 front panel connector (U31G2_EC1)
This connector allows you to connect a USB 3.1 Gen 2 module for additional USB
3.1 Gen 2 ports. The latest USB 3.1 Gen 2 connectivity provides data transfer
speeds of up to 10 Gbps.
USB 2.0 connectors (10-1 pin USB78, USB910_F)
Connect a USB module cable to this connectors, then install the module to a slot
opening at the back of the system chassis. This USB connector complies with USB
2.0 specications and supports up to 480Mbps connection speeds.
Serial port connector (10-1 pin COM)
Connect the serial port module cable to this connector, then install the module to a
slot opening at the back of the system chassis.
LPC Debug header
This header allows connection to a LPC debug card.
CLRTC
+3V_BAT GND
PIN 1

1-4 Chapter 1: Product introduction
1 4
91112
5 6
7
23
810
1. PS/2 Mouse port (green). This port connects to a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
• Scan the QR code to view the meaning of each
debug code.
• Debug codes are only available for ASUS LPC debug
card.
• Contact your region sales representative for LPC
debug header ordering.
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
HD audio standard. Connect one end of the front panel audio I/O module cable to
this connector.
• We recommend that you connect a high-denition front panel audio module to this
connector to avail of the motherboard’s high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this connector,
set the Front Panel Type item in the BIOS setup to [HD Audio].
PCI Express 2.0 x1 slot
This motherboard has one PCI Express 2.0 x1 slot that supports PCI Express x1
network cards, SCSI cards, and other cards that comply with the PCI Express
specication.
PCI Express 3.0/2.0 x16 slot
This motherboard supports a PCI Express 3.0/2.0 x16 graphic card that complies
with the PCI Express specications.
Rear panel connectors

ASUS PRO H310M-R R2.0 Wi-Fi 1-5
3. DisplayPort. This port is for a DisplayPort-compatible devices.
4.LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.

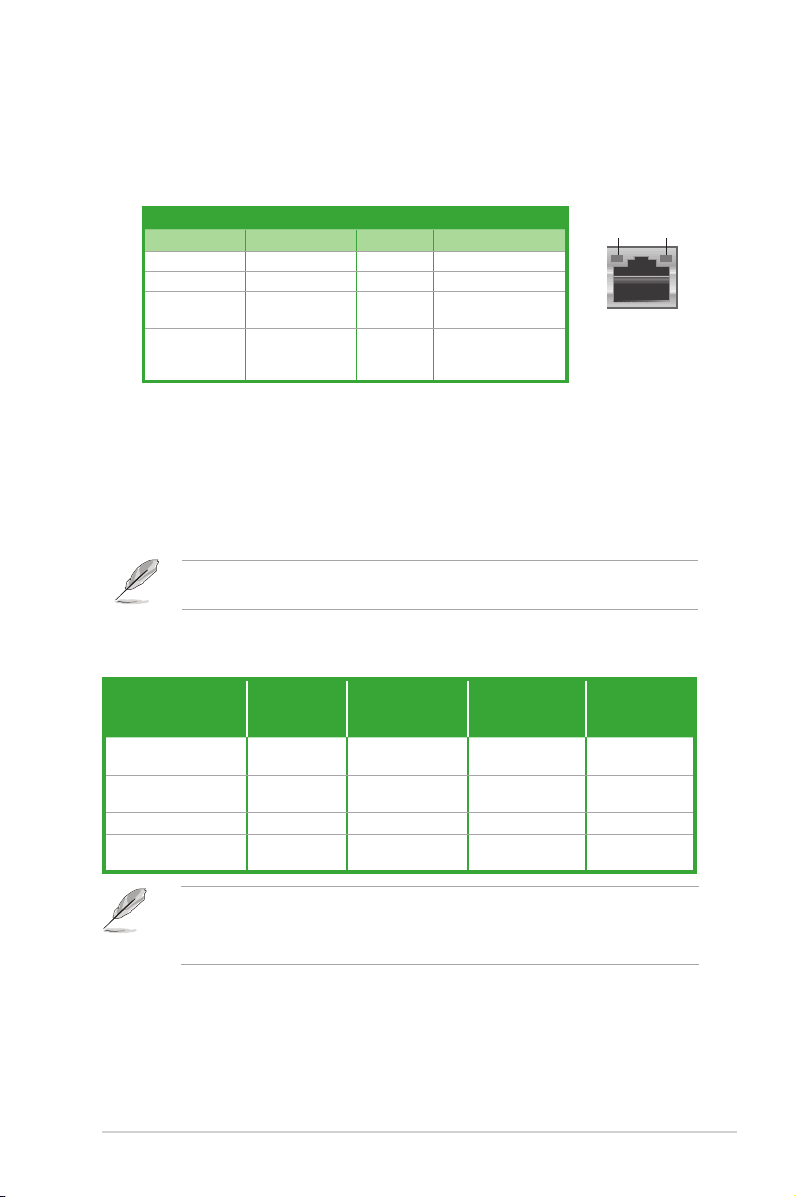

LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Orange
(Blinking)
Data activity GREEN 1Gbps connection
Orange
(Blinking then
steady)
Ready to wake
up from S5 mode
LAN port
Speed
LED
Activity Link
LED
5. Line In port (light blue). This port connects to the tape, CD, DVD player, or other
audio sources.
6. Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1,
5.1and 7.1-channel congurations, the function of this port becomes Front Speaker
Out.
7. Microphone port (pink). This port connects to a microphone.
Refer to the audio conguration table for the function of the audio ports in 2.1, 4.1, 5.1, or
7.1-channel conguration.
Audio 2.1, 4.1, 5.1 or 7.1-channel conguration
Port Headset
2.1-channel 4.1-channel 5.1-channel 7.1-channel
Light Blue (Rear
panel) Line In Rear Speaker Out Rear Speaker Out
Rear Speaker
Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker
Out
Front Speaker
Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) - - - Side Speaker
Out
To congure a 7.1-channel audio output:
Use a chassis with HD audio module in the front panel to support a 7.1-channel audio
output.
8. Wi-Fi ports. Connect the bundled ASUS 1T1R Wi-Fi Antenna connectors to this ports.
9. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1
devices.

1-6 Chapter 1: Product introduction
10. USB 3.1 Type A port. This 9-pin Universal Serial Bus (USB) Type A port is for USB
3.1 devices.
11. HDMI port. This port is for a High-Denition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
12. PS/2 Keyboard port (purple). This port connects to a PS/2 keyboard

ASUS PRO H310M-R R2.0 Wi-Fi 1-7
Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1151 socket
designed for the 8th Generation Intel®Core™ i7 / Core™ i5 / Core™ i3,
Pentium®, and Celeron®processors.
Unplug all power cables before installing the CPU.
• Ensure that you install the correct CPU designed for the LGA1151 socket only. DO
NOT install a CPU designed for LGA1150, LGA1155 and LGA1156 sockets on the
LGA1151 socket.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
is missing, or if you see any damage to the PnP cap/socket contacts/motherboard
components.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise
Authorization (RMA) requests only if the motherboard comes with the cap on the
LGA1151 socket.
• The product warranty does not cover damage to the socket contacts resulting from
incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP
cap.
Installing the CPU
1
4
Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the
heatsink and fan if necessary.
2
3
A
B
A
B
C
D
5
4
4
5

1-8 Chapter 1: Product introduction
System memory
Overview
This motherboard comes with two Double Data Rate 4 (DDR4) Dual Inline Memory Module
(DIMM) sockets. The gure illustrates the location of the DDR4 DIMM sockets:
• You may install varying memory sizes in Channel A and Channel B. The system
maps the total size of the lower-sized channel for the dual-channel conguration. Any
excess memory from the higher-sized channel is then mapped for single-channel
operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we
recommend that you install memory modules of the same version or date code (D/C)
from the same vendor. Check with the retailer to get the correct memory modules.
• DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel®8th
Generation 6-core or higher processors.
• Memory modules with memory frequency higher than 2133 MHz and its
corresponding timing or the loaded X.M.P. Prole is not the JEDEC memory standard.
The stability and compatibility of these memory modules depend on the CPU’s
capabilities and other installed devices.
• The default memory operation frequency is dependent on its Serial Presence Detect
(SPD), which is the standard way of accessing information from a memory module.
Under the default state, some memory modules for overclocking may operate at a
lower frequency than the vendor-marked value.
• For system stability, use a more efcient memory cooling system to support a full
memory load (2 DIMMs).
• Refer to www.asus.com for the latest Memory QVL (Qualied Vendors List).
Recommended memory conguration
*
*
*
Channel Sockets
Channel A DIMM_A1*
Channel B DIMM_B1*
DIMM_B1*
DIMM_A1*

ASUS PRO H310M-R R2.0 Wi-Fi 1-9
Installing a DIMM
1 2
To remove a DIMM
BA
B
A
A

BIOS information
2
Scan the QR code to view the BIOS update guide.
BIOS setup program
Use the BIOS Setup program to update the BIOS or congure its parameters. The BIOS
screens include navigation keys and brief online help to guide you in using the BIOS Setup
program.
Entering BIOS Setup at startup
To enter BIOS Setup at startup:
Press <Delete> or <F2> during the Power-On Self Test (POST). If you do not press <Delete>
or <F2>, POST continues with its routines.
Entering BIOS Setup after POST
To enter BIOS Setup after POST:
• Press <Ctrl>+<Alt>+<Del> simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you
failed to enter BIOS Setup using the rst two options.
Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a
running operating system can cause damage to your data or system. We recommend you
always shut down the system properly from the operating system.
ASUS PRO H310M-R R2.0 Wi-Fi2-1

:Select Screen
: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save & Exit
ESC: Exit
Version 2.19.1269 Copyright (C) 2018 American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc.
Main Ai Tweaker Advanced Monitor Boot Tool Exit
Choose the default
language
BIOS Version 0205 x64
Build Date and Time 11/27/2018 15:26:26
ME Firmware Version 11.8.55.3510
Processor Information
Brand String Genuine Intel(R)
CPU 0000 @ 2.90GHz
CPU Speed 2900MHz
Total Memory 4096MB
Memory Frequency 2133MHz
System Language [English]
System Date [Mon 01/08/2018]
System Time [17:25:25]
Access Level Administrator
Security
BIOS Information
Menu bar
Menu items
General Help
Conguration elds
Sub-menu item
BIOS menu screen
Version 2.19.1269 Copyright (C) 2017 American Megatrends, Inc.
• The BIOS setup screens shown in this section are for reference purposes only, and
may not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS le for this
motherboard.
• If the system becomes unstable after changing any BIOS setting, load the default
settings to ensure system compatibility and stability. Select the Load Optimized
Defaults item under the Exit menu or press hotkey F5.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and
reset the motherboard to the default value. See section Motherboard overview for
information on how to erase the RTC RAM.
2-2Chapter 2: BIOS information

Exit menu
The Exit menu items allow you to load the optimal default values for the BIOS items, and
save or discard your changes to the BIOS items.
:Select Screen
: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save & Exit
ESC: Exit
Exit system setup without
saving any changes.
Load Optimized Defaults
Save Changes & Reset
Discard Changes & Exit
Launch EFI Shell from USB drives
Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc.
Main Ai Tweaker Advanced Monitor Boot Tool Exit
Load Optimized Defaults
This option allows you to load the default values for each of the parameters on the Setup
menus. When you select this option or if you press <F5>, a conrmation window appears.
Select OK to load the default values.
Save Changes & Reset
Once you are nished making your selections, choose this option from the Exit menu to
ensure the values you selected are saved. When you select this option or if you press <F10>,
a conrmation window appears. Select OK to save changes and exit.
Discard Changes & Exit
This option allows you to exit the Setup program without saving your changes. When you
select this option or if you press <Esc>, a conrmation window appears. Select OK to discard
changes and exit.
Launch EFI Shell from USB drives
This option allows you to attempt to launch the EFI Shell application (shellx64.e) from one of
the available USB devices.
ASUS PRO H310M-R R2.0 Wi-Fi2-3
