Quick Start Guide
WL-500W SuperSpeed N
QE2654/ June 2006
Wireless Multi-Function Router
EnglishDeutschFrançaisItalianoEspañol

®
Wireless multi-function router
WL-500W

2
English Deutsch Français Italiano Español 
Manufacturer Contact Information
ASUSTeK COMPUTER INC. (Asia-Pacic)
Company address: 15 Li-Te Road, Beitou, Taipei 11259
General (tel): [phone] Web site address: www.asus.com.tw
General (fax): [phone] General email: [email protected]
ASUS COMPUTER INTERNATIONAL (America)
Company address: 44370 Nobel Drive, Fremont, CA 94538, USA
General (fax): [phone] Web site address: usa.asus.com
Technical support
General support: [phone] Support (fax): [phone]
Online support: http://vip.asus.com/eservice/techserv.aspx
ASUS COMPUTER GmbH (Germany & Austria)
Company address: Harkort Str. 25, D-40880 Ratingen, Germany
General (tel): [phone] Web site address: www.asuscom.de
General (fax): [phone] Online contact: www.asuscom.de/sales
Technical support
Components: [phone] Online support: www.asuscom.de/support
Notebook: [phone] Support (fax): [phone]

WL-500W Wireless Router Quick Start Guide
3
English
Table of contents
1. Package contents.................................................................................2
2. Connecting ADSL modem and wireless router .................................2
1) Cable connection...............................................................................2
2) Status indicators ................................................................................3
3) Wall mount option ..............................................................................3
3. Getting started......................................................................................4
1) Wired connection ...............................................................................4
2) Wireless Connection..........................................................................4
3) Setting the IP address for wired or wireless client.............................4
4) Conguring the wireless router ..........................................................5
5) Quick setup .......................................................................................6
4. Application features ........................................................................... 11
1) Sharing USB storage....................................................................... 11
2) Setting up FTP site ..........................................................................13
3) Download Master.............................................................................14
4) Sharing USB printer.........................................................................16

WL-500W Wireless Router Quick Start Guide
4
English
2. Connecting ADSL modem and wireless router
1. Package contents
• WL-500W wireless router x 1
• Power adapter x 1
• Utility CD x 1
• RJ45 cable x 1
• Quick Start Guide x 1
1) Cable connection
1
3
2
Modem
Wall telephone outlet
Wall power outlet
Phone
Power
Wall power outlet
LAN
Power
ASUS Wireless Router
Modem
Wall telephone outlet
Wall power outlet
LAN
Power
Phone
Power
ASUS Wireless Router
WAN

WL-500W Wireless Router Quick Start Guide
5
English
2) Status indicators
PWR (Power)
Off No power
On System ready
Flashing-slow Firmware upgrade failed
Flashing-quick EZsetup processing
AIR (Wireless Network)
Off No power
On Wireless system ready
Flashing Transmitting or receiving data (wireless)
WAN (Wide Area Network)
Off No power or no physical connection
On Has physical connection to an Ethernet network
Flashing Transmitting or receiving data (through Ethernet cable)
LAN 1-4 (Local Area Network)
Off No power or no physical connection
On Has physical connection to an Ethernet network
Flashing Transmitting or receiving data (through Ethernet cable)
3) Wall mount option
Out of the box, ASUS WL-500W Wireless Router
is designed to sit on a raised flat surface like a
file cabinet or book shelf. The unit may also be
converted for mounting to a wall or ceiling.
Follow these steps to mount the ASUS Wireless
Router to a wall:
1. Look on the underside for the two mounting
hooks.
2. Mark two upper holes in a at surface.
3. Tighten two screws until only 1/4'' is showing.
4. Latch the hooks of the ASUS Wireless Router onto the screws.
Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the
screws or if it is too loose.
PWR
AIR WANLAN
Wireless multi-function router
WL-500W

WL-500W Wireless Router Quick Start Guide
6
English
The ASUS WL-500W Wireless Router can meet various working scenarios with proper
conguration. The default settings of the wireless router may change to meet your individual needs.
Thus, before using the wireless router, check the basic settings to make sure they all work in your
environment.
ASUS provides a utility named EZSetup for fast wireless conguration. If you would like to use
EZSetup for your router conguration, refer to chapter 6 of user manual in support CD.
Note: Wired connection for initial conguration is recommended to avoid possible
setup problems due to wireless uncertainty.
1) Wired connection
The WL-500W Wireless Router is supplied with an Ethernet cable in the package. The wireless
router has an integrated auto-crossover function. Thus, you can either use a straight-through or
a crossover cable for wired connection. Plug one end of the cable to the LAN port on the rear
panel of the router and the other end to the Ethernet port on your PC.
2) Wireless Connection
For establishing wireless connection, you need an IEEE 802.11b/g compatible WLAN card.
Refer to your wireless adapter user manual for wireless connection procedures. By default,
the SSID of the wireless router is “default” (in lower case), encryption is disabled and open
system authentication is used.
3) Setting IP address for wired or wireless client
To access the WL-500W Wireless Router, you must have the correct TCP/IP settings on your
wired or wireless clients. Set the IP addresses of the clients within the same subnet of WL-500W.
Getting an IP address automatically
The WL-500W Wireless Router integrates DHCP server functions, thus, your PC gets an IP
address automatically.
Note: Before rebooting your PC, switch ON the
wireless router and make sure the router is ready.
Setting up the IP address manually
To manually set the IP address, you need to know the
default settings of the wireless router:
• IP address 192.168.1.1
• Subnet Mask 255.255.255.0
3. Getting started

WL-500W Wireless Router Quick Start Guide
7
English
To set up the connection with a manually assigned
IP address, the address of your PC and the wireless
router must be within the same subnet:
• IP address: 192.168.1.xxx (xxx can be any
number between 2 and 254. Make sure the IP
address is not used by other device)
• Subnet Mask: 255.255.255.0 (same as WL-
500W)
• Gateway: 192.168.1.1 (IP address of WL-500W)
• DNS: 192.168.1.1 (WL-500W), or assign a known
DNS server in your network.
4) Conguring the wireless router
Follow the steps below to enter the Web conguration interface of WL-500W.
Defaults
User name: admin Password: admin
Enter the following address in your
web browser: http://192.168.1.1
After logging in, you can see the ASUS Wireless Router home page.
The homepage displays quick links to congure the main features of the wireless
router.
2
1
3

WL-500W Wireless Router Quick Start Guide
8
English
1. Select your time zone and click
Next.
5) Quick setup
To start quick setup, click Next to enter the “Quick Setup”
page. Follow the instructions to setup the ASUS Wireless
Router.
2. ASUS wireless router supports
five types of ISP services: cable,
PPPoE, PPTP, static WAN IP,
and Telstra BigPond. Select your
connection type and click Next to
continue.
Cable or dynamic IP user
If you are using services provided by
cable ISP, select Cable Modem or other
connection that gets IP automatically.
If your ISP provides you with the
hostname, the MAC address, and the
heartbeat server address, fill these
information into the boxes on the setting
page; if not, click Next to skip this step.
PPPoE user
If you use PPPoE service, select ADSL
connection that requires username
and password. It is known as PPPoE.
You need to input the username and
password provided by your ISP. Click
Next to continue.

WL-500W Wireless Router Quick Start Guide
9
English
3. To set up your wireless interface, specify
an SSID (Service Set Identifier), which
is a unique identier attached to packets
sent over WLAN. This identier emulates
a password when a device attempts to
communicate with your wireless router
via WLAN.
If you want to protect transmitted data, select a Security Level to enable encryption methods.
Medium: Only users with the same WEP key settings can connect to your wireless router
and transmit data using 64bits or 128bits WEP key encryption.
High: Only users with the same WPA pre-shared key settings can connect to your wireless
router and transmit data using TKIP encryption.
PPTP user
If you are using PPTP services, select ADSL
connection that requires username,
password and IP address. Fill in the
username, password and IP address
provided by your ISP into the fields. Click
Next to continue.
Static IP user
If you are using ADSL or other connection
type that uses static IP address, select ADSL
or other connection type that uses static
IP address. Input the IP address, subnet
mask, and default gateway provided by your
ISP. You can specify DNS servers, or get
DNS information automatically.
herk036@adsl-comfort

WL-500W Wireless Router Quick Start Guide
10
English
4. Input four sets of WEP keys in the WEP
Key fields (10 hexadecimal digits for
WEP 64bits, 26 hexadecimal digits
for WEP 128bits). You can also let the
system generate the keys by inputting
a Passphrase. Record the Passphrase
and the WEP keys in your notebook,
then click Finish.
For example, if we select WEP 64bits
encryption mode and input 11111 as
the Passphrase, the WEP Keys are
generated automatically.
5. Click Save&Restart to restart the
wireless router and activate the new
settings.
6. To connect the wireless router from a wireless client, you can use Windows®Wireless
Zero Conguration service to set up the connection. If you use ASUS Wireless Card on
your computer, you can use the One Touch Wizard utility supplied in WLAN Card support
CD for wireless connection.
Conguring ASUS WLAN Card with One Touch Wizard
If you have installed ASUS wireless card together with its utilities and drives on your PC, click Start
-> All Programs -> ASUS Utility-> WLAN Card -> One Touch Wizard to launch the One Touch
Wizard utility.

WL-500W Wireless Router Quick Start Guide
11
English
3) Set the authentication and encryption of
your WLAN card the same with those at
WL-500W. In the previous steps the Key
Length is 64 bits, Passphrase is 11111
Click Next to continue.
1) Select Connect to an existing wireless
LAN (Station) radio button and click
Next to continue.
2) One Touch Wizard searches and displays
the available APs in the Available
Networks list. Select WL-500W and
press Next to continue.
4) It takes several seconds for the wireless
card to associate with WL-500W. Press
Next to setup TCP/IP for your WLAN Card.
5) Setup the IP address of the WLAN Card
according to your network condition.
After the setup is complete, click Finish
to exit the One Touch Wizard.

WL-500W Wireless Router Quick Start Guide
12
English
7. Conguring advanced features
To view and adjust other settings of the wireless router,
enter the Web conguration page of WL-500W. Click
on items on the menu to open a submenu and follow
the instructions to setup the router. Tips show up when
you move your cursor over each item. Refer to user
manual in support CD for detailed information.
Conguring WLAN card with Windows®WZC service
If you use non-ASUS wireless card, you can set up the wireless connection with Windows®
Wireless Zero Conguration (WZC) service.
2) Input the 10-digit keys you have set on
the wireless router and click Connect.
The connection is complete within
several seconds.
1) Double-click the wireless network icon on
the task bar to view available networks.
Select your wireless router and click
Connect.

WL-500W Wireless Router Quick Start Guide
13
English
The WL-500W Wireless Router provides multiple application features such as
the USB storage share, the Download Master (a download utility), and the USB
printer share. In this Quick Start Guide, the most popular features and their setup
procedures are introduced. For more application features, please refer to the full
version of the user manual included in the support CD.
Warning: Before unplugging the USB storage disk from WL-500W, you must eject
the disk in Status & Log -> External USB Disk page to prevent data corruption.
Note: Before applying change and rebooting WL-500W, make sure all USB applications
are disabled, it would take more than 20 seconds for WL-500W to reboot.

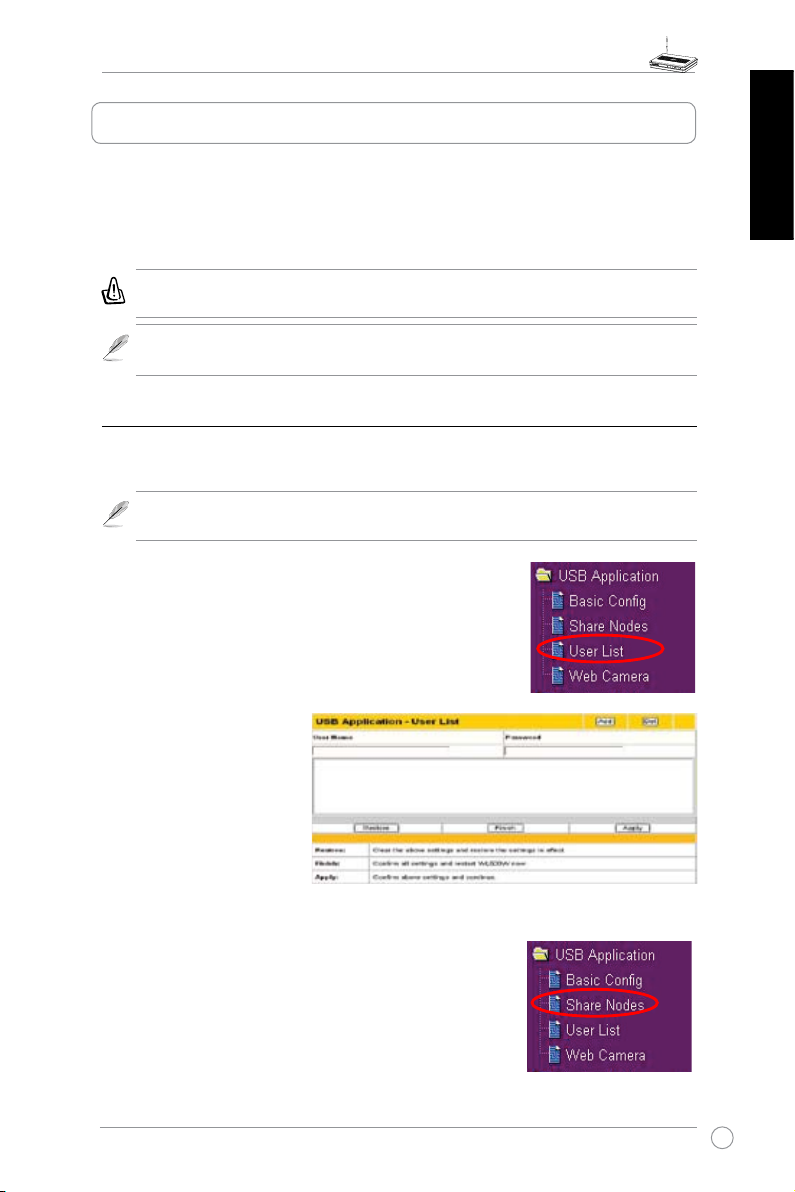

1) Sharing USB storage
To use this feature, you need to plug a USB storage disk to the USB2.0 port on the
rear panel of WL-500W. Make sure the hard disk is formatted and partitioned properly.
Note: FAT32 has a 2GB le size limitation and do not support les above that size. If
you want to use les of over 2GB, you must format the disk to EXT2 le system.
2. I n p u t User Name a nd
Password for the accounts.
Click Add to add the account
to the list.
3. To delete an account,
select the account from the
list and click Del.
4. Click Apply to apply the
changes and restart the
wireless router.
Creating share folder and access right
You can create a new share folder or share an existing
folder in your hard disk.
1. Click USB Application -> Share Nodes in the left side menu
to open the conguration page.
Creating user account
To share the data in the USB storage, you need to create
user accounts rst.
1. Click USB Application -> User List in the left side menu to
open the conguration page.
4. Application features

WL-500W Wireless Router Quick Start Guide
14
English
2. Click Add to add a share
folder.
3. Select the folder you want to share
from Folder Manager and click Ok.
To create a share folder, input the
folder name in Add Folder field
and press Add.
4. Dene the access right for
the share folder by appoint
User Name and Access
Right. Click Add to add
the access right rule. When
finished, click Apply to
save the conguration.
6. Click Finish.
5. Set Network Neighbourhood
Mode to Apply rules in
shared node list, Work
Group to WORKGROUP to
enable all computers within
WORKGROUP to access
WL-500W USB storage.
7. Click Save & Restart to
restart the wireless router
and activate the settings.
8. Open My Network Place
from a computer connected
to WL-500W. Click view
work group computers,
you can see WL-500W in
the Workgroup category.
All les on the USB storage
are ready for sharing.

WL-500W Wireless Router Quick Start Guide
15
English
2) Setting up FTP site
WL-500W can also serve as an FTP site. You can make your FTP site accessible to
all users, or set up an access policy to restrict anonymous login. To use this feature,
you need to plug a USB storage disk to the USB2.0 port on the rear panel of WL-
500W. Make sure the hard disk is formatted and partitioned properly.
1. To a l l o w a n o n y m o u s
login: Set Network
Neighbourhood Mode to
Share all partitions in
disk, FTP Mode to Login
to first partition. The
anonymous login directory
is the root directory of rst
partition.
To allow accout login only: Set
Network Neighbourhood Mode
to Apply rules in shared node
list, FTP Mode to Login to
first matched shared node.
Click Add in the Share Node List
to specify the access directory
and access right of FTP account.
2. The Maximum Login User eld
species the maximum number
of concurrent users. The default
value is 6.
3. Click Finish to activate the
settings and reboot. This process
may take several minutes.
4. Type ftp://192.168.1.1 into
the address box of your Web
browser and press Enter to
login the FTP site.

WL-500W Wireless Router Quick Start Guide
16
English
1. Click Basic Cong page in USB Application folder.
2. Set Enable Download Master
to Yes. If you want to share the
downloaded file with your LAN
users, set Enable Download
Share to Yes. Click Finish and
save and restart the wireless
router.
3) Download Master
The Download Master helps to manage the download tasks without turning your
computer on. To use this function, you need to: 1) mount a USB storage to WL-500W
Wireless Router; and 2) install ASUS Utilities from the support CD.
4. HTTP download (1)
Right click the download link
on the Web page and click
Download using ASUS
Download. A window in
step 5 appears to indicate
download progress.
HTTP download (2)
Right click the download
link on the Web page and
click Properties. Copy the
download Address (URL).
3. Open Download Master from Start
-> All Programs -> ASUS Utility
->WL-500W Wireless Router ->
Download Master. Click File ->
Connect to associate with WL-
500W.

WL-500W Wireless Router Quick Start Guide
17
English
If you select Download using
ASUS Download, you can see
the download task is added to
the Transfer list. The blue bars
indicate the progress of download
tasks.
If you copy the download address,
click Assign button in the utility.
Paste the address into Getting
File From box, select HTTP from
Options eld, and click Download
button to start.
7. Click Folder button to view the
download le. Open the Complete
folder to view or copy the nished
files to your local hard disk. The
unfinished tasks are kept in
InComplete folder.
5. FTP download
Click Transfer button of the
Download Master and select FTP
in the Options eld. Input the FTP
site address, Port number, User
Name, Password. Click Download
to start.
6. BT download
S a v e t h e B T s e e d o n y o u r
computer. Click Transfer button of
the Download Master and select
BT in the Options field. Click
Browse to locate the seed file.
Click Download to start.

WL-500W Wireless Router Quick Start Guide
18
English
4) Sharing USB printer
You can connect a comptible USB printer to the USB2.0 port of WL-500W to
share the printer with your LAN users. Follow the procedures below to setup your
computers to utilize the printer server function of WL-500W.
Installing USB printer
Plug your USB printer to the USB2.0 port on WL-500W rear
panel. To verify whether your printer is properly installed to the
WL-500W Wireless router, click Status & Log -> Status. If
Printer Model is correct and Printer Status is On-Line, you can
share this printer within your LAN.
Setting up printer client under Windows XP
Follow the steps below to install network printer on your clients.
1. Run Add Printer Wizard from Start ->
Printers and Faxes -> Add a printer.
2. Select Local printer attached to this
computer and click Next.
3. Select Create a new port and set Type
of port to Standard TCP/IP Port, then
click Next.
4. Click Next to setup TCP/IP port for
accessing the network printer.

WL-500W Wireless Router Quick Start Guide
19
English
5. Input the IP address of WL-500W in
the Printer Name of IP Address eld
and click Next.
6. Select Custom and click Settings.
7. S e t Protocol t o LPR a n d t y p e
LPRServer in Queue Name eld. Click
Next to continue.
8. Press Next to finish standard TCP/IP
port setting.
9. Press Finish to complete the settings
and return to Add Printer Wizard.
10.Install printer driver from the vendor-
model list. If your printer is not in the
list, click Have Disk to manually locate
the printer driver.
