Asus AP130-D5 User manual

Pentium®4 Pedestal Server
®
AP130-D5
User’s Manual

2
Disclaimer/Copyrights
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any
formorbyanymeans,exceptdocumentationkeptbythepurchaserforbackuppurposes,without
the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR
DATA, INTERRUPTION OF BUSINESSANDTHELIKE),EVENIFASUS HASBEENADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN
THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2) the
serial number of the product is defaced or missing.
Productsandcorporate names appearinginthismanualmayor maynotberegisteredtrademarks
or copyrights of their respective companies, and are used only for identification or explanation
and to the owners’benefit, without intent to infringe.
The product name and revision number are both printed on the product itself. Manual revisions
are released for each product design represented by the digit before and after the period of the
manualrevisionnumber.Manualupdatesarerepresentedbythethirddigitinthemanualrevision
number.
For previous or updated manuals, BIOS, drivers, or product release information, contactASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FORINFORMATIONALUSE ONLY,ANDARE SUBJECTTOCHANGEATANYTIMEWITHOUT
NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE
DESCRIBED IN IT.
Copyright © 2002 ASUSTeK COMPUTER INC. All Rights Reserved.
Product Name: ASUS AP130-D5
Manual Revision: 1.00 E1136
Release Date: October 2002

3
Contents
Disclaimer/Copyrights ................................................................. 2
ASUS Contact Information .......................................................... 6
FCC/CDC Statements ................................................................... 7
Safety Precautions ....................................................................... 8
Introduction: About This Manual .......................... 9
Audience ..................................................................................... 10
Contents ...................................................................................... 10
Conventions.................................................................................11
References ...................................................................................11
System Package Contents ........................................................ 12
Chapter 1: System Overview............................. 13
1.1 System Features................................................................ 14
1.2 Front Panel Features......................................................... 15
1.3 Rear Panel Features.......................................................... 16
1.4 Internal Features ............................................................... 17
Chapter 2: Hardware Setup ............................... 19
2.1 Remove the Chassis Cover .............................................. 20
Unlock the side cover .......................................................... 20
Remove the side cover........................................................ 20
2.2 Motherboard Placement ................................................... 21
Placement Direction ............................................................ 21
Motherboard Screws ........................................................... 21
2.3 Install a CPU ...................................................................... 22
CPU Socket Location .......................................................... 22
CPU Orientation .................................................................. 22
Unlock the CPU Socket....................................................... 23
Insert the CPU..................................................................... 23
Secure the CPU .................................................................. 23
Install the Fan Heatsink Assembly ...................................... 24
2.4 Install System Memory ..................................................... 26
DIMM Sockets Location ...................................................... 26
Install a DIMM ..................................................................... 26

4
Contents
2.5 Install a Hard Disk Drive ................................................... 27
Remove the HDD/Floppy Cage........................................... 27
Install the HDD .................................................................... 28
Connect the Cables............................................................. 28
2.6 Replace the Cover ............................................................. 29
Re-install the Cover............................................................. 29
Chapter 3: Powering Up .................................... 31
3.1 Getting Started .................................................................. 32
Connect a Monitor ............................................................... 32
Connect the Power Cord ..................................................... 32
Power On ............................................................................ 32
Check Power Status............................................................ 32
Appendix A: Power Supply ................................ 33
A.1 General Description .......................................................... 34
A.2 Specifications .................................................................... 35
Input Characteristics............................................................ 35
Output Characteristics......................................................... 35
Over-Voltage Protection (OVP) ........................................... 35
Appendix B: Troubleshooting............................ 37
B.1 Simple Fixes ...................................................................... 38

5
ASUS Contact Information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
General Tel: [phone]
General Fax: [phone]
General Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel): [phone] (English)
Support Fax: [phone]
Support Email: [email protected]
Web Site: www.asus.com.tw
Newsgroup: cscnews.asus.com.tw
ASUS COMPUTER INTERNATIONAL (America)
Address: 6737 Mowry Avenue, Mowry Business Center,
Building 2, Newark, CA 94560, USA
General Fax: [phone]
General Email: [email protected]
Technical Support
Support Fax: [phone]
General Support: [phone]
Web Site: www.asus.com
Support Email: [email protected]
ASUS COMPUTER GmbH (Germany and Austria)
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
General Fax: [phone]
General Email: [email protected] (for marketing requests only)
Technical Support
Support Hotline: MB/Others: [phone]
Notebook (Tel): [phone]
Support Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
Web Site: www.asuscom.de

6
FCC/CDC Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
providereasonableprotectionagainstharmfulinterference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installedandusedinaccordancewithmanufacturer’s instructions, may cause harmful
interferenceto radiocommunications.However,thereisno guaranteethatinterference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of shielded cables for connection of the monitor to the
graphicscard isrequiredtoassure compliancewithFCC regulations.Changes
or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.

7
Safety Precautions
Electrical Safety
Operation Safety
IMPORTANT
•Before installing or removing signal cables, ensure that the power
cables for the system unit and all attached devices are unplugged.
•To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
•When adding or removing any additional devices to or from the
system,ensurethat the power cables for the devicesare unplugged
before the signal cables are connected. If possible, disconnect all
power cables from the existing system before you add a device.
•If the power supply is broken, do not try to fix it by yourself. Contact
a qualified service technician or your dealer.
•Any mechanical operation on this server must be conducted by
certified or experienced engineers.
•Before operating the server, carefully read all the manuals
included with the server package.
•Before using the server, make sure all cables are correctly
connected and the power cables are not damaged. If any
damage is detected, contact your dealer as soon as possible.
•To avoid short circuits, keep paper clips, screws, and staples
away from connectors, slots, sockets and circuitry.
•Avoid dust, humidity, and temperature extremes. Place the
server on a stable surface.
IMPORTANT
This product is equipped with a three-wire power cable and
plug for the user’s safety. Use the power cable with a properly
grounded electrical outlet to avoid electrical shock.
CAUTION

8

9 ASUS AP130-D5 Pedestal Server
Introduction
About This Manual
“About This Manual”introduces the contents
ofthisdocument.This partincludes thetarget
audience, chapter description, and
conventions used. It also lists other sources
of information that are not contained in this
manual.

10 Introduction: About This Manual
Audience
Contents
This manual contains the following parts:
1. Introduction: About This Manual
This part introduces the contents of this document. It includes the target
audience, chapter description, and conventions used. It also lists other
sources of information that are not contained in this manual.
2. Chapter 1: System Overview
This chapter describes the general features of the AP130-D5 server. It
includes sections on front panel and rear panel specifications.
3. Chapter 2: Hardware Setup
Thischapterliststhehardwaresetupproceduresthatyouhavetoperform
when installing system components.
4. Chapter 3: Powering Up
This chapter tells how to get started with the AP130-D5 server after you
have installed the basic components.
5. Appendix A: Power Supply Information
This appendix gives information on the 200-watt switching power supply
that came with the AP130-D5 server.
6. Appendix B: Troubleshooting
This appendix lists the common problems that you may encounter while
using the AP130-D5 server. It lists the possible causes of the problems
and offers solutions. You may refer to this part and try to solve simple
problems before calling customer support.
This manual is intended for system integrators, and experienced users with
at least basic knowledge of configuring an entry-level server.

ASUS AP130-D5 Pedestal Server 11
Conventions
Symbols
Tomakesurethatyouperformcertaintasks properly,takenoteof thefollowing
symbols used throughout this manual.
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Informationtoprevent damageto thecomponentswhen
trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and information to aid in completing a task.
References
Refer to the following sources for additional information and for product and
software updates.
1. ASUS P4B533-M Motherboard User’s Manual
This manual contains detailed information about the P4B533-M
motherboard.
2. ASUS Websites
The ASUS websites worldwide provide updated information on ASUS
hardwareand softareproducts.TheASUSwebsitesarelistedin theASUS
Contact Information on page 5.
3. Optional Documentation
Your product package may include optional documentation such as a
CD-ROM manual, warranty flyers, and others that may have been added
by your dealer. NOTE: These documents are not part of the standard
server package.

12 Introduction: About This Manual
System Package Contents
Thefollowingchecklist enumeratesthecomponents includedin thestandard
system package.
1) ASUS AS-11 chassis
2) ASUS P4B533-M motherboard
3) 200W ATX power supply
4) 52X CD-ROM drive
5) 1.44MB floppy disk drive
6) AGP 4X card (optional)
7) Support CD that includes drivers, utilities, and the ASUS Server
Web-based Management (ASWM) software
8) User’s manuals (for system and motherboard)
If any of the above items is damaged or missing, contact your
dealer immediately.
NOTE

13 ASUS AP130-D5 Pedestal Server
This chapter describes the general features
of the AP130-D5 server. It includes sections
on front panel, rear panel, and internal
features of the server.
Chapter 1
System Overview

14 Chapter 1: System Overview
1.1 System Features
The ASUS AP130-D5 is a stylish barebone server featuring the ASUS
P4B533-M motherboard. The server supports the Intel
®
Pentium
®
4 478/
Northwood processor, and includes the latest I/O, audio, and video
technologies through the chipsets embedded on the motherboard.
Following are highlights of the server’s many features.
•Processor: Support for Intel Pentium 4 processor 533/400MHz FSB,
with 512KB L2 cache and speeds up to 2.8GHz or faster
•Memory: Two DIMM sockets support up to 2GB of system memory
using unbuffered ECC or non-ECC PC2100/PC1600 DDR DIMMs
•System Chipset: The Intel
®
845E Memory Controller Hub (MCH)
provides the processor interface with 533/400MHz frequency, system
memory interface at 133/100MHz operation, and 1.5V AGP interface
thatsupportsAGP2.0 specificationincluding2X/4XFastWriteprotocol.
TheMCHinterconnectstothe southbridgeICH4viatheIntel
®
proprietary
Hub Interface.
•LAN PHY: The Intel 82562ET LAN PHYworks with the integrated MAC
in the South Bridge (ICH4) to fully support 10BASE-T/ 100BASE-TX
Ethernet networking
•Audio CODEC:TheC-MediaCMI9738 isanAC’972.1compliant audio
CODEC designed for PC multimedia systems.
•Storage: Two 5.25-inch drive bays (one occupied by CD-ROM), two
3.5-inch drive bays, and a 1.44MB floppy drive
•Expansion: Three PCI expansion slots, one AGP 4X slot
•Power Supply: 200-watt ATX power supply with a 115Vac/230Vac
voltage selector switch
•Security: Equipped with security chassis keylock
In case of inconsistencies between the technical specifications in
the P4B533-M and the AP130-D5 user’s manuals, the
specifications in the AP130-D5 prevail.
NOTE

ASUS AP130-D5 Pedestal Server 15

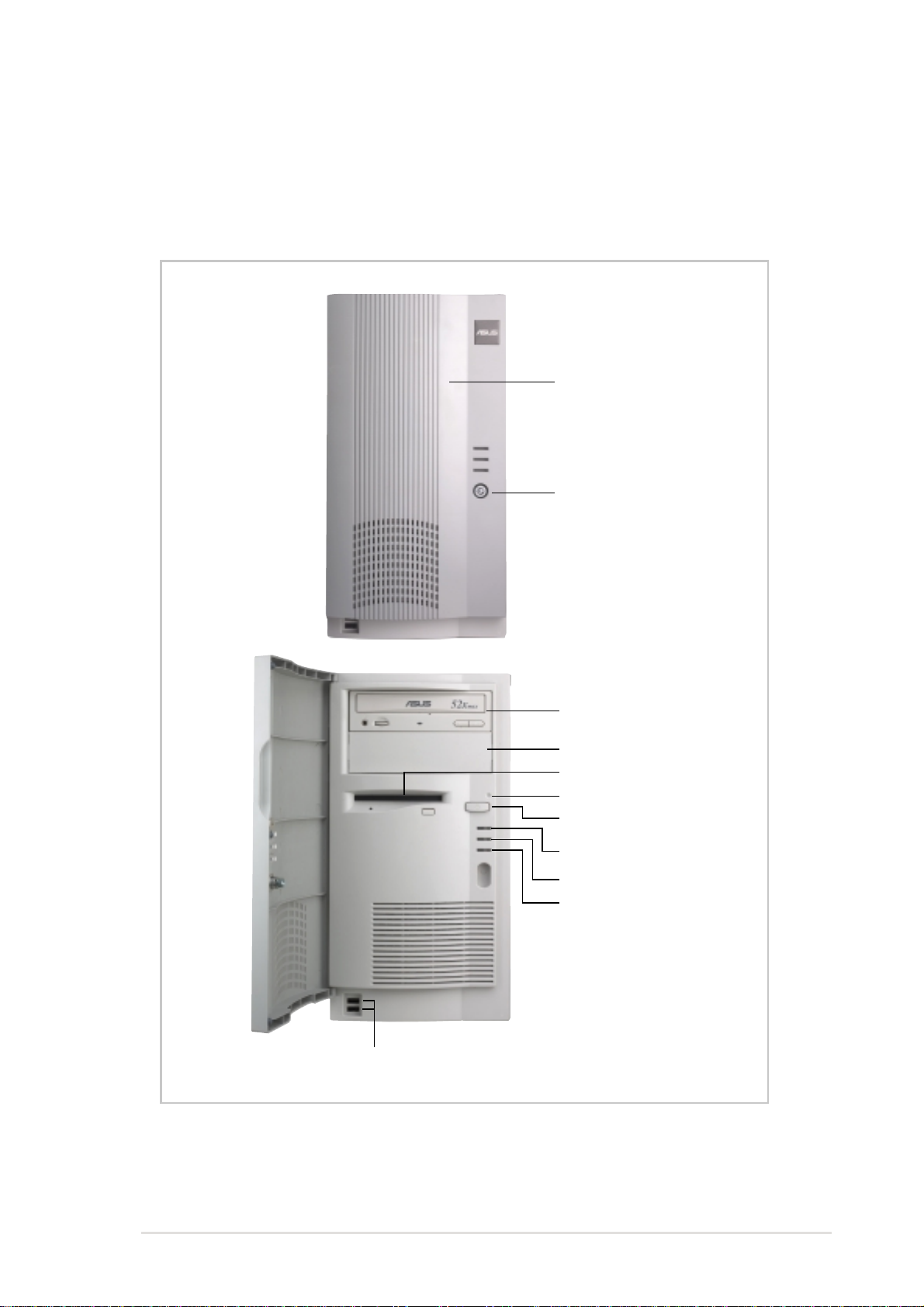

1.2 Front Panel Features
The AP130-D5 front panel is designed with a door secured by a keylock.
When locked, the door prevents unauthorized access to the front panel
components.
Front Panel Door
Keylock
Power Switch
CD-ROM Drive
5.25-inch Drive Bay
Floppy Disk Drive
Power LED
HD Access LED
Message LED
Front USB Ports
Reset Switch

16 Chapter 1: System Overview

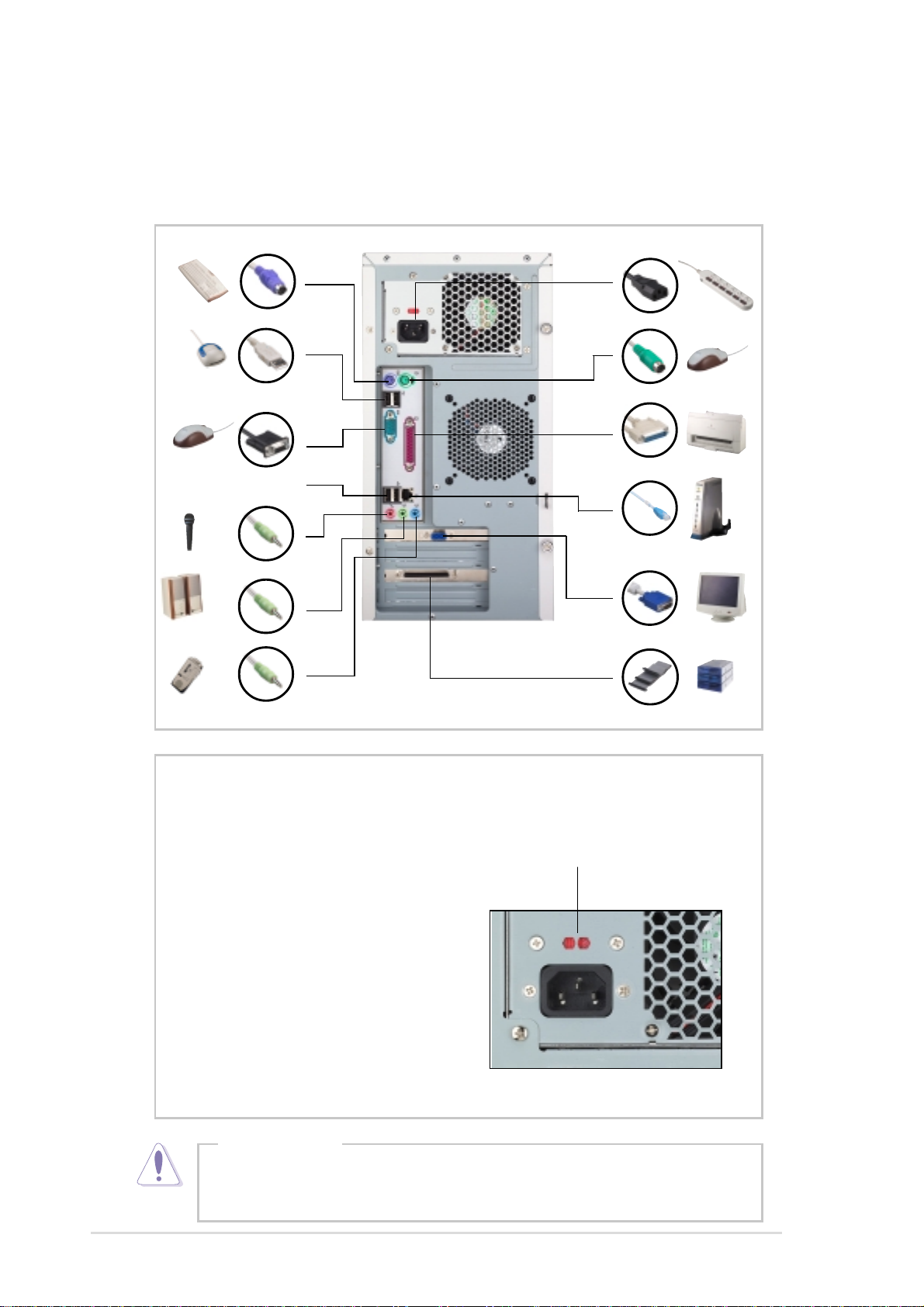

1.3 Rear Panel Features
TheAP130-D5rearpanelincludesthe externalI/Oports.Thefollowingpicture
shows the cable connectors and the devices that you connect to the ports.
Voltage Selector
The switching power supply that
came with the server has a voltage
selector switch below the power
socket.Usethisswitchtoselectthe
appropriatevoltageaccordingtothe
voltage supply in your area.
If the voltage supply in your area is
100-127V, set the switch to 115V.
If the voltage supply in your area is
200-240V, set the switch to 230V.
Setting the switch to 115V in a 230V environment will seriously
damage the server.
CAUTION
115V/ 230V
Voltage Selector
USB 2.0
(Ports 3 & 4)
Serial
AC Power
PS/2 Mouse
PS/2 KB
RJ-45
Parallel
VGA
Line Out
Line In
Mic
USB 2.0 (Ports 1 & 2)
SCSI (optional)

ASUS AP130-D5 Pedestal Server 17
1.4 Internal Features
Thestandard componentsinside theAP130-D5 serverinclude theP4B533-M
motherboard, power supply, floppy and CD-ROM drives, and cables.
The picture below shows the standard components of the server.
1. Power Supply
2. CD-ROM Drive
3. 5.25-inch Drive Bay
4. Floppy Disk Drive
5. 3.5-inch Internal Drive Bays
6. P4B533-M Motherboard
7. AGP 4X Card (optional)
8. Ultra-160 SCSI card (optional)
1
6
2
3
4
5
7
8

18 Chapter 1: System Overview

19 ASUS AP130-D5 Pedestal Server
This chapter describes the hardware setup
procedures that you have to perform when
installing system components.
Chapter 2
Hardware Setup

20 Chapter 2: Hardware Setup

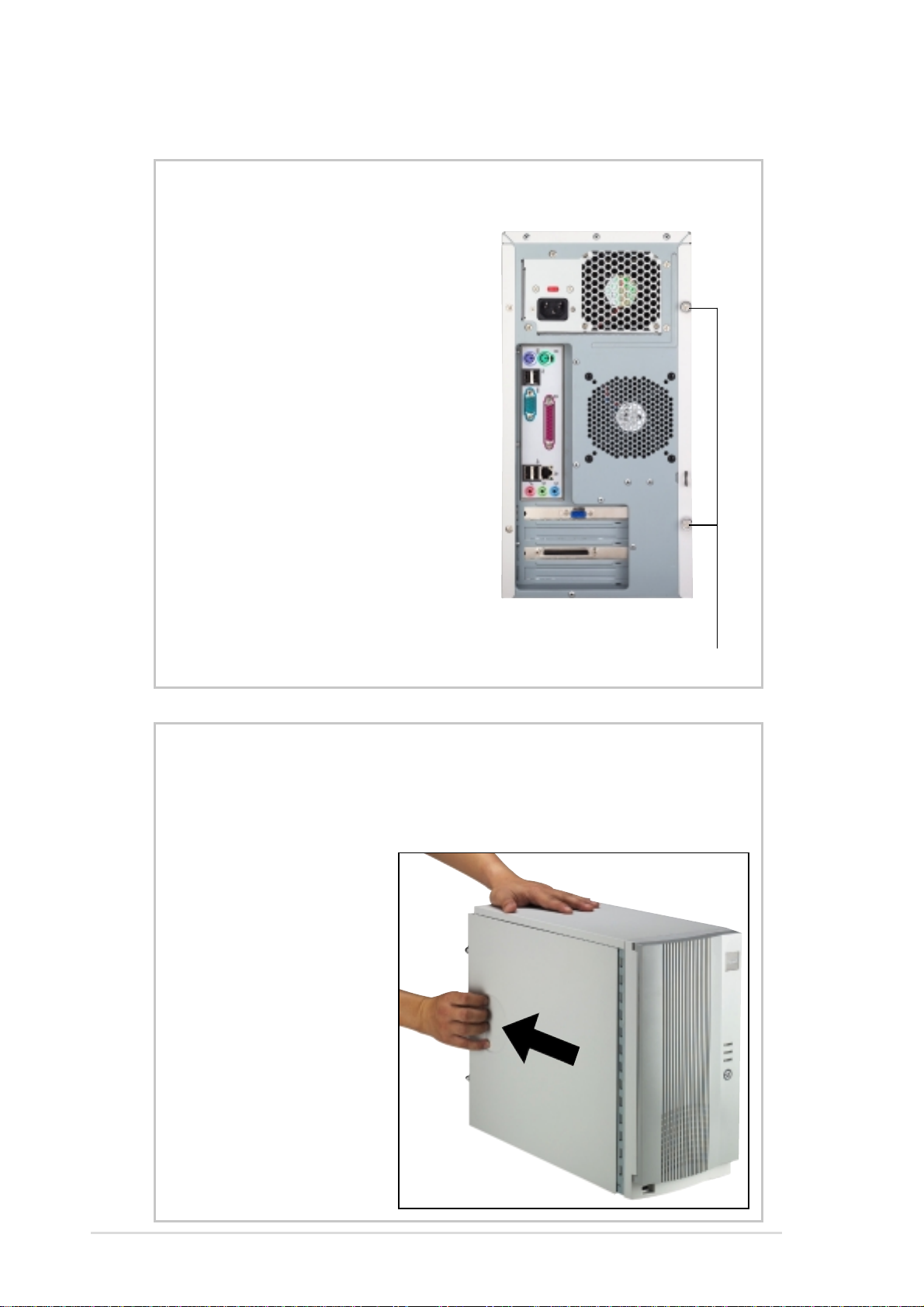

2.1 Remove the Chassis Cover
Unlock the side cover
Two thumbscrews secure the
removable side panel cover. Turn
these screws counter-clockwise to
release the cover. The screws are
attachedtothecover.Dopulloutthe
screws.
Remove the side cover
Slide the cover for about an inch
toward the rear panel then lif it out
of the chassis.
Thumbscrews
