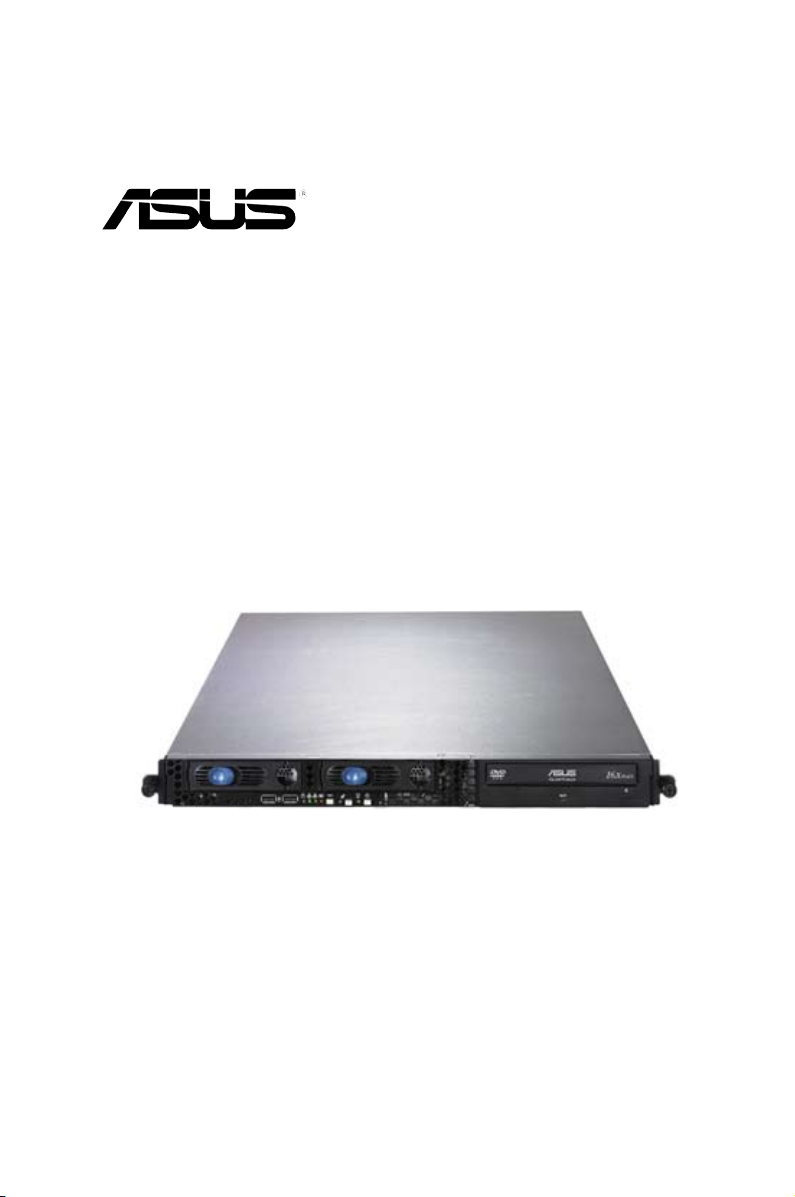

Asus RS120-E4 PA4 User manual

1U Rackmount Barebone Server
RS120-E5/PA2
User Guide

ii
Copyright © 2007 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means,
except documentation kept by the purchaser for backup purposes, without the express written permission
of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not
limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no
event shall ASUS, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental,
or consequential damages (including damages for loss of prots, loss of business, loss of use or data,
interruption of business and the like), even if ASUS has been advised of the possibility of such damages
arising from any defect or error in this manual or product.
Specications and information contained in this manual ae furnished for informational use only, and are
subject to change at any time without notice, and should not be construed as a commitment by ASUS.
ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual,
including the products and software described in it.
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
E3434
First Edition V1
October 2007

iii
Contents
Notices........................................................................................................ vii
Federal Communications Commission Statement........................... vii
Canadian Department of Communications Statement..................... vii
Safety information .................................................................................... viii
Electrical Safety .............................................................................. viii
Operation Safety ............................................................................. viii
About this guide ......................................................................................... ix
Chapter 1: Product introduction
1.1 System package contents........................................................... 1-2
1.2 Systemspecications ................................................................. 1-3
1.3 Front panel features..................................................................... 1-5
1.4 Rear panel features...................................................................... 1-5
1.5 Internal features ........................................................................... 1-6
1.6 LED information ........................................................................... 1-6
1.6.1 Rear panel LEDs............................................................. 1-6
1.6.2 Front panel LEDs ............................................................ 1-7
1.6.3 LAN (RJ-45) LEDs .......................................................... 1-7
Chapter 2: Hardware setup
2.1 Chassis cover............................................................................... 2-2
2.1.1 Removing the cover ........................................................ 2-2
2.1.2 Installing the cover .......................................................... 2-3
2.2 Central Processing Unit (CPU) ................................................... 2-4
2.2.1 Installing the CPU ........................................................... 2-4
2.2.2 Installing the CPU heatsink and airduct .......................... 2-6
2.3 System memory ........................................................................... 2-8
2.3.1 DIMM sockets location.................................................... 2-8
2.3.2 Memory congurations.................................................... 2-8
2.3.3 Installing a DIMM ............................................................ 2-9
2.3.4 Removing a DIMM .......................................................... 2-9
2.4 Hard disk drives ......................................................................... 2-10
2.5 Expansion slot............................................................................ 2-12
2.5.1 Installing an expansion card to the riser card bracket... 2-12
2.5.2 Reinstalling the riser card bracket................................. 2-14
2.5.3 Replacing the optional riser card .................................. 2-15
2.5.4 Conguring an expansion card ..................................... 2-16
2.6 Cable connections ..................................................................... 2-17
2.7 SATA backplane cabling............................................................ 2-18

iv
Contents
2.8 Removable components............................................................ 2-19
2.8.1 System fans .................................................................. 2-19
2.8.2 System fan with dummy case ....................................... 2-21
2.8.3 Device fan ..................................................................... 2-22
2.8.4 Power supply module.................................................... 2-23
2.8.5 Optical drive .................................................................. 2-24
2.8.6 Motherboard.................................................................. 2-26
Chapter 3: Installation options
3.1 Rackmount rail kit items.............................................................. 3-2
3.2 Rack rails assembly..................................................................... 3-2
3.3 Attaching the rails to the rack..................................................... 3-3
3.4 Rackmounting the server............................................................ 3-4
Chapter 4: Motherboard info
4.1 Motherboard layout...................................................................... 4-2
4.2 Jumpers ........................................................................................ 4-4
4.3 Connectors ................................................................................... 4-8
Chapter 5: BIOS setup
5.1 Managing and updating your BIOS ............................................ 5-2
5.1.1 Creating a bootable oppy disk....................................... 5-2
5.1.2 AFUDOS utility................................................................ 5-3
5.1.3 ASUS CrashFree BIOS 3 utility ...................................... 5-6
5.2 BIOS setup program .................................................................... 5-7
5.2.1 BIOS menu screen.......................................................... 5-8
5.2.2 Menu bar......................................................................... 5-8
5.2.3 Navigation keys............................................................... 5-8
5.2.4 Menu items ..................................................................... 5-9
5.2.5 Sub-menu items.............................................................. 5-9
5.2.6 Conguration elds ......................................................... 5-9
5.2.7 Pop-up window ............................................................... 5-9
5.2.8 Scroll bar......................................................................... 5-9
5.2.9 General help ................................................................... 5-9
5.3 Main menu .................................................................................. 5-10
5.3.1 System Time [xx:xx:xx] ................................................. 5-10
5.3.2 System Date [Day xx/xx/xxxx]....................................... 5-10
5.3.3 Legacy Diskette A [Disabled] ........................................ 5-10
5.3.4 Primary/Third/Fourth IDE Master/Slave .........................5-11
5.3.5 IDE Conguration.......................................................... 5-13

v
Contents
5.3.6 System Information ....................................................... 5-15
5.4 Advanced menu ......................................................................... 5-16
5.4.1 USB Conguration ........................................................ 5-16
5.4.2 MPS Conguration........................................................ 5-17
5.4.3 CPU Conguration........................................................ 5-18
5.4.6 Chipset Conguration ................................................... 5-20
5.4.7 Onboard Devices Conguration.................................... 5-22
5.4.8 PCI/PnP Conguration.................................................. 5-23
5.5 Server menu ............................................................................... 5-24
5.5.1 Remote Access Conguration....................................... 5-24
5.6 Power menu................................................................................ 5-26
5.6.1 ACPI APIC Support [Enabled]....................................... 5-26
5.6.2 APM Conguration........................................................ 5-27
5.6.3 Hardware Monitor ......................................................... 5-28
5.7 Boot menu .................................................................................. 5-29
5.7.1 Boot Device Priority ...................................................... 5-29
5.7.2 Hard Disk Drives ........................................................... 5-29
5.7.3 Boot Settings Conguration .......................................... 5-30
5.7.4 Security ......................................................................... 5-31
5.8 Exit menu.................................................................................... 5-33
Chapter 6: RAIDConguration
6.1 Setting up RAID............................................................................ 6-2
6.1.2 Installing hard disk drives................................................ 6-3
6.1.3 Setting the RAID item in BIOS ........................................ 6-3
6.1.4 RAID conguration utilities.............................................. 6-3
6.2 LSI Logic Embedded SATA RAID Setup Utility.......................... 6-4
6.2.1 Creating a RAID 0 or RAID 1 set .................................... 6-5
6.2.2 Adding or viewing a RAID conguration ........................6-11
6.2.3 Initializing the logical drives .......................................... 6-14
6.2.4 Rebuilding failed drives................................................. 6-19
6.2.5 Checking the drives for data consistency ..................... 6-21
6.2.6 Deleting a RAID conguration....................................... 6-24
6.2.7 Selecting the boot drive from a RAID set...................... 6-25
6.2.8 Enabling the WriteCache .............................................. 6-26
6.3 Intel®Matrix Storage Manager Option ROM Utility ................. 6-27
6.3.1 Creating a RAID 0 set (Stripe) ...................................... 6-28
6.3.2 Creating a RAID 1 set (Mirror) ...................................... 6-30
6.3.3 Deleting a RAID set ...................................................... 6-31

vi
Contents
6.3.4 Resetting disks to Non-RAID ........................................ 6-32
5.3.5 Exiting the Intel®Matrix Storage Manager .................... 6-32
6.4 Global Array Manager................................................................ 6-33
Chapter 7: Driver installation
7.1 RAID driver installation ............................................................... 7-2
7.1.1 Creating a RAID driver disk ............................................ 7-2
7.1.2 Installing the RAID controller driver ............................... 7-4
7.2 Intel®chipset software installation........................................... 7-13
7.3 LAN driver installation............................................................... 7-16
7.4 VGA driver installation............................................................... 7-19
7.4.1 Windows®Server .......................................................... 7-19
7.5 Management applications and utilities installation ................ 7-21
7.5.1 Running the support CD ............................................... 7-21
7.5.2 Drivers menu................................................................. 7-21
7.5.3 Management Software menu........................................ 7-22
7.5.4 Utilities menu ................................................................ 7-22
7.5.5 Contact information....................................................... 7-22

vii
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’
s instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class A limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This Class A digital apparatus complies with Canadian ICES-003.
WARNING! The use of shielded cables for connection of the monitor to the
graphics card is required to assure compliance with FCC regulations. Changes
or modications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This symbol of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment, and mercury-containing button cell battery) should not
be placed in municipal waste. Check local regulations for disposal of electronic
products.

viii
Safety information
Electrical Safety
• Before installing or removing signal cables, ensure that the power cables for
the system unit and all attached devices are unplugged.
• To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
• When adding or removing any additional devices to or from the system, ensure
that the power cables for the devices are unplugged before the signal cables
are connected. If possible, disconnect all power cables from the existing
system before you add a device.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your dealer.
Operation Safety
• Any mechanical operation on this server must be conducted by certied or
experienced engineers.
• Before operating the server, carefully read all the manuals included with the
server package.
• Before using the server, make sure all cables are correctly connected and the
power cables are not damaged. If any damage is detected, contact your dealer
as soon as possible.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Place the server on a stable
surface.
This product is equipped with a three-wire power cable and plug for the user’s
safety. Use the power cable with a properly grounded electrical outlet to avoid
electrical shock.
Lithium-Ion Battery Warning
CAUTION! Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
CD-ROM Drive Safety Warning
CLASS 1 LASER PRODUCT
Heavy System
CAUTION! This server system is heavy. Ask for assistance when moving or
carrying the system.

ix
About this guide
Audience
This user guide is intended for system integrators, and experienced users with at
least basic knowledge of conguring a server.
Contents
This guide contains the following parts:
1. Chapter 1: Product Introduction
This chapter describes the general features of the server, including sections
on front panel and rear panel specications.
2. Chapter 2: Hardware setup
This chapter lists the hardware setup procedures that you have to perform
when installing or removing system components.
3. Chapter 3: Installation options
This chapter describes how to install optional components into the barebone
server.
4. Chapter 4: Motherboard information
This chapter gives information about the motherboard that comes with the
server. This chapter includes the motherboard layout, jumper settings, and
connector locations.
5. Chapter 5: BIOS information
This chapter tells how to change system settings through the BIOS Setup
menus and describes the BIOS parameters.
6. Chapter6:RAIDconguration
This chapter tells how to change system settings through the BIOS Setup
menus. Detailed descriptions of the BIOS parameters are also provided.
7 Chapter 7: Driver installation
This chapter provides instructions for installing the necessary drivers for
different system components.

x
References
Refer to the following sources for additional information, and for product and
software updates.
1. ASUS Server Web-based Management (ASWM) user guide
This manual tells how to set up and use the proprietary ASUS server
management utility.
2. ASUS websites
The ASUS websites worldwide provide updated information for all ASUS
hardware and software products. Refer to the ASUS contact information.
Typography
Bold text Indicates a menu or an item to select.
Italics Used to emphasize a word or a phrase.
<Key> Keys enclosed in the less-than and greater-
than sign means that you must press the
enclosed key.
Example: <Enter> means that you must press
the Enter or Return key.
<Key1+Key2+Key3> If you must press two or more keys
simultaneously, the key names are linked with
a plus sign (+).
Example: <Ctrl+Alt+D>
Command Means that you must type the command
exactly as shown, then supply the required
item or value enclosed in brackets.
Example: At the DOS prompt, type the
command line: format A:/S
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the following
symbols used throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself
when trying to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
NOTE: Tips and additional information to help you complete a
task.
IMPORTANT: Instructions that you MUST follow to complete a
task.

1-
ASUS RS120-E5/PA2
This chapter describes the general
features of the chassis kit. It includes
sections on front panel and rear panel
specications.
Chapter 1
Product introduction

Chapter 1: Product introduction1-2
1.1 System package contents
Check your package for the following standard items.
1. ASUS R10 1U rackmount chassis with:
• ASUS P5BV-R motherboard
• 315 W single power supply
• SATA backplane with 2 x SATA cables
• PCI Express x8 and PCI Express x4 riser assembly
• Front I/O board (ASUS FPB-AR14)
• 4 x system fans (4 x 28 mm)
• 2 x hot-swap HDD trays
• Pre-connected device/power cables
2. 1 x bag of screws
3. 1 x RS120-E5 drivers and utilities CD (including ASWM)
4. 2 x User guide
• RS120-E5/PA2 user guide
• ASUS ASWM 2.0 user guide
5. Rail kit
Contact your dealer immediately if any of the items is damaged or missing.
* The system does not include a USB oppy drive. You may have to use a USB
oppy drive when creating a SATA RAID driver disk. Refer to Chapter 7 for
details.

ASUS RS120-E5/PA2 1-3
1.2 Systemspecications
The ASUS RS120-E5/PA2 is a 1U barebone server system featuring the ASUS
P5BV-R motherboard. The server supports the Intel®Xeon 3000/Wolfdale
Series and Xeon 3200 (G-0)/Yorkeld Series processor in the LGA775 package,
and includes the latest technologies through the chipsets embedded on the
motherboard.
Model Name RS120-E5/PA2
Processor 1 * Socket LGA775
Dual-Core Intel®Xeon®processor 3000/
Wolfdale sequence
Quad-Core Intel®Xeon®processor 3200 (G-0)/
Yorkeld sequence
System Bus FSB 800/1066/1333
Core Logic Intel®3200 MCH
Intel®ICH7R
ASUS Features Smart Fan Smart Fan III
ASWM2.0 �
Memory Total Slots 4 (2-channel)
Capacity Maximum up to 8GB*
Memory Type DDR2 667/800 Unbuffered , ECC
Memory Size 512 MB, 1 GB, 2GB*
Expansion Slots Total PCI/PCI-X/
PCI-E Slots
2
Slot Type 1 * PCI-E x 16 slot(x8 link) (Full-Height / Half-
Length)+1 *PCI-E x 8 slot(x4 link) (Full-Height /
Half-Length) (Default) or
1 * PCI-E x 8 slot(x8 link) (Full-Height / Half-
Length)+1 * PCI-X 64-bit/133MHz slot (Full-
Height / Half-Length) (Option)
Additional Slot 1 1* SO-DIMM socket for optional ASMB3-SOL or
ASMB3-iKVM
Storage SATA Controller Intel®ICH7R:
2 SATA2 300MB/s ports
Intel Matrix Storage (Windows only)
(Support software RAID 0 and 1)
LSI MegaRAID (Linux/Windows)
(Support software RAID 0 and 1)
HDD Bays I = internal
A or S will be hot-
swappable
2 * Hot-swap SATA2 HDDs Bays
Networking LAN 2 * Broadcom®BCM5721 PCI-E GbE LAN
Graphic VGA XGI Z9s/ 32MB DDRII VRAM
Auxiliary Storage FDD / CD / DVD 1 * 5.25” Optical Device Bay
Options: No Device / DVD-ROM / DVD-RW
Onboard I/O 1 * External Serial Port
3 * RJ-45 ports (GbE port*2; 10/100Mps port for
optional ASMB3-iKVM*1 )
4 * USB 2.0 ports (Fornt * 2, Rear * 2)
1 * VGA port
1 * PS/2 keyboard port
1 * PS/2 mouse port
(continued on the next page)

Chapter 1: Product introduction1-4
Anti-virus Software Optional CA®eTrust™ 7.1 anti-virus software
Management
Solution
Software ASWM 2.0
Out of Band
Remote
Management
Optional (ASMB3-SOL/ASMB3-iKVM)
Dimension (HH x WW x DD) 600mm * 444mm * 43.6mm
Net Weight Kg (CPU, DRAM & HDD
not included)
12Kg
Power Supply 315W Single Power Supply
Environment Operation temperature: 10℃ ~ 35℃ /
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non
condensing)
*Specicationsaresubjecttochangewithoutnotice.

ASUS RS120-E5/PA2 1-5
1.3 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, location switch, optical
drive, and two USB ports are located on the front panel.
Refer to section 1.6.2 Front panel LEDs for the LED descriptions.
Hot-swap HDD baysRack screw Rack screw
USB ports
LAN2 LED
HDD Access LED
LAN1 LED
Message LED
Power
button
Power LED
Location switch
Reset button
Location LED
Optical drive
1.4 Rear panel features
The rear panel includes the expansion slots, system power socket, and rear fans.
The middle part includes the I/O shield with openings for the rear panel connectors
on the motherboard.
The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN do
not appear on the rear panel if motherboard is not present.
Power fan
PS/2 keyboard port PS/2 mouse port
AC power socket
USB ports
LAN port1
Serial port
VGA port
Expansion slot
LAN port2
• Refer to section 1.6.1 Rear panel LEDs for the LED descriptions.
• The LAN port for ASMB3 iKVM functions only when you install ASMB3
iKVM management card. Remove the mylar on the LAN port before using.
Power fan Locator LED Locator switch LAN port for iKVM

Chapter 1: Product introduction1-6
1.5 Internal features
The barebone server includes the basic components as shown.
1. PCI-E x8 and PCI-E x4 riser
card bracket
2. Power fans
3. ASUS P5BV-R motherboard
4. Power supply
5. Device fan (x 1)
6. System fans (x 3)
7. SATA backplane
8. Hot-swap HDD tray 1 -
Connects to SATA1 port
(Port0)
9. Hot-swap HDD tray 2 -
Connects to SATA2 port
(Port1)
10. Front I/O board (hidden)
11. Optical drive
• The barebone server does not include a oppy disk drive. Connect a USB
oppy disk drive to any of the USB ports on the front or rear panel if you
need to use a oppy disk.
• Only ASUS CD/DVD-ROMs t the optical drive bay.
2
1.6 LED information
1.6.1 Rear panel LEDs
LED Display status Description
Location LED OFF Normal status
ON Location switch is pressed
(Press the location switch again to turn off)
43
1
5
6
7
811
9
10
Location LED

ASUS RS120-E5/PA2 1-7
LED Icon Display status Description
Power LED ON System power ON
HDD Access LED OFF
Blinking
No activity
Read/write data into the HDD
Message LED OFF
Blinking
System is normal; no incoming event
ASWM indicates a HW monitor event
Location LED OFF
ON
Normal status
Location switch is pressed
(Press the location switch again to turn off)
LAN LEDs
OFF
Blinking
ON
No LAN connection
LAN is transmitting or receiving data
LAN connection is present
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.6.2 Front panel LEDs
Message LED
LAN2 LED
HDD Access LED
LAN1 LED
Power LED
Location LED
1.6.3 LAN (RJ-45) LEDs
SPEED LED
ACT/LINK LED

Chapter 1: Product introduction1-8

ASUS RS120-E5/PA2
2-
This chapter lists the hardware setup
procedures that you have to perform
when installing or removing system
components.
Chapter 2
Hardware setup

Chapter 2: Hardware setup2-2
2.1 Chassis cover
2.1.1 Removing the cover
1. Use a Phillips screwdriver to remove the screw on each front end of the top
cover.
2. Loosen the two thunbscrews on the
rear panel to release the top cover
from the chassis.
3. Firmly hold the cover and slide it
toward the rear panel for about half
an inch until it is disengaged from
the chassis.
4. Lift the cover from the chassis.
1/2 inch distance
