This chapter describes the key features
of TS100-E5/PI4. It includes the product
overview and general specications.
Chapter 1
Product introduction

Chapter 1: Product introduction1-2
1.1 Key features
TS100-E5/PI4 is a uni-processor pedestal server, supporting 45nm Quad-Core /
Dual-Core Intel®Xeon® 3300 / 3200 / 3100 / 3000 series or Intel® Conroe-L 400
series platform and DDR2 800 / 667 un-buffered ECC memory. It´s ideal for SOHO
& SMB due to its super quietness.
Ultra-Quiet Working Environment
With ASUS unique FAN control technology, TS100-E5/PI4 is able to adjust fan
speed intelligently and run Quad-core CPU system at very low acoustic level
(26.1dBA at idle mode), providing super quiet working environment for customers,
which will especially facilitate SOHO & SMB users.
Optimal System Thermal Design
With optimal system thermal design, TS100-E5/PI4 is able to generate more
margin to keep the fans running at very low speed and still meet Intel thermal
design power criteria.
Quad GbE with Teaming & Failover Support
As the speed of the Intranet greatly helps in sharing information and transferring
data, the TS100-E5/PI4, with built in Quad-LAN with a “teaming” function that
integrates four high-speed Gigabit LAN ports into a single one, provides almost
four times the transferring bandwidth. Even if an error occurs to one port, the
networking connection will not be affected in any way.
Strict networking performance tests have shown that the Quad-LAN of the
TS100-E5/PI4 can improve transferring performances up to 383% in comparison to
a single LAN. Additionally, the four ports can also be used in individual sub-nets to
provide secure data and smooth transfers.

ASUS TS100-E5/PI4 1-3

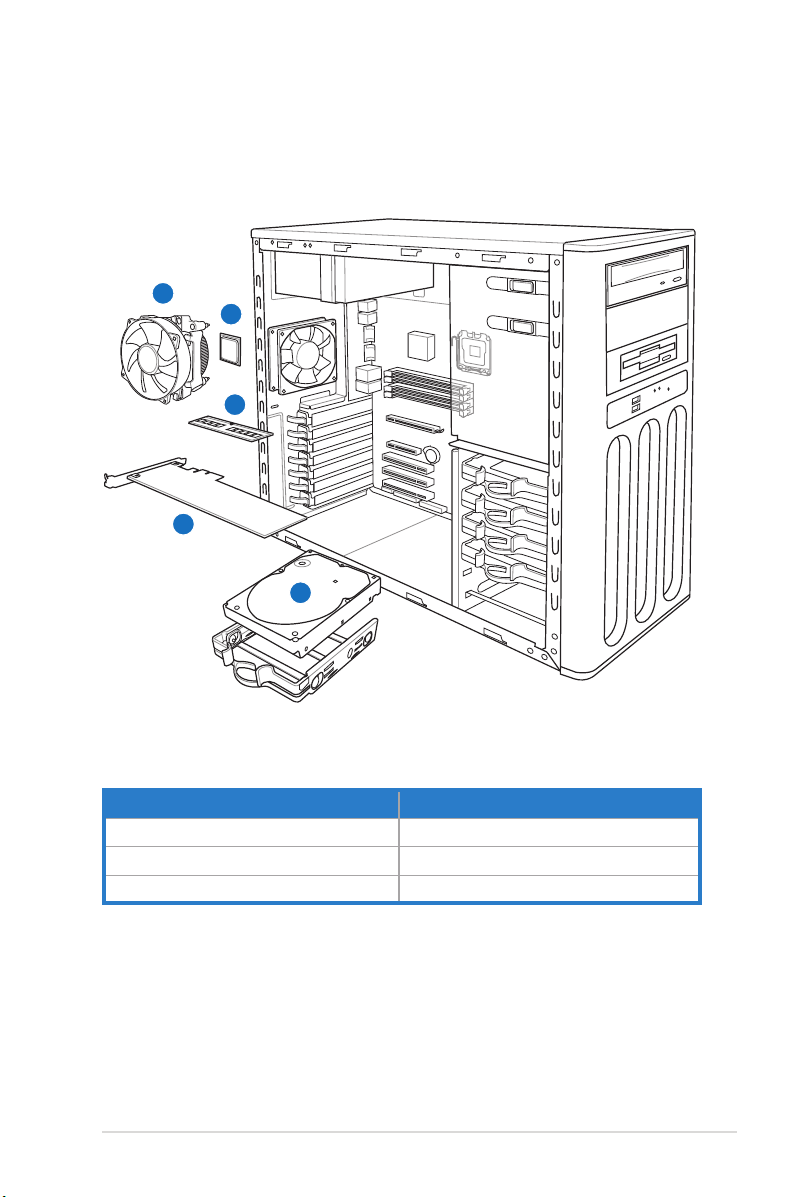

1.2 System overview
Items Items
1. Central processing unit (CPU) 4. Hard disk drives
2. CPU heatsink and fan 5. ASUS RAID card (optional)
3. System memory
1
2
3
4
5

Chapter 1: Product introduction1-4

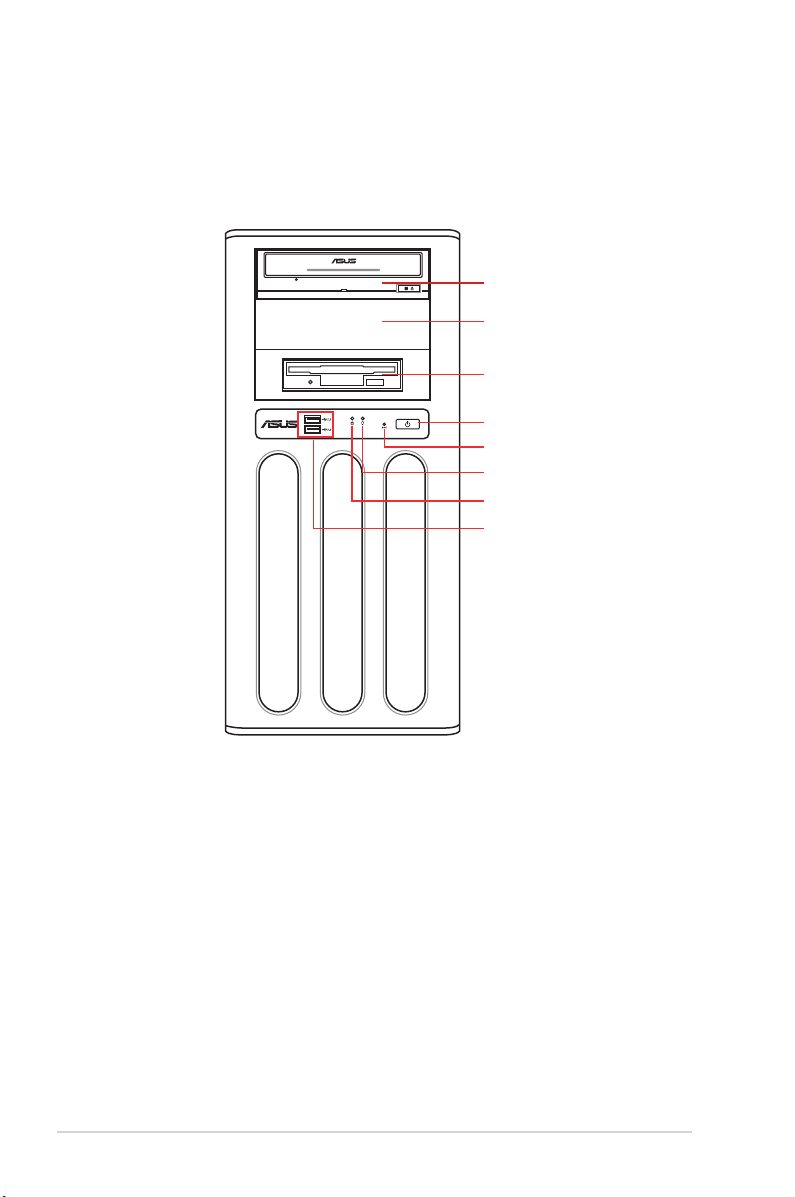

1.3 Front panel features
Optical Drive
Empty 5.25-inch bay
Floppy Disk Drive
USB 2.0 ports
Power button
Reset button
Power LED
HDD access LED

ASUS TS100-E5/PI4 1-5

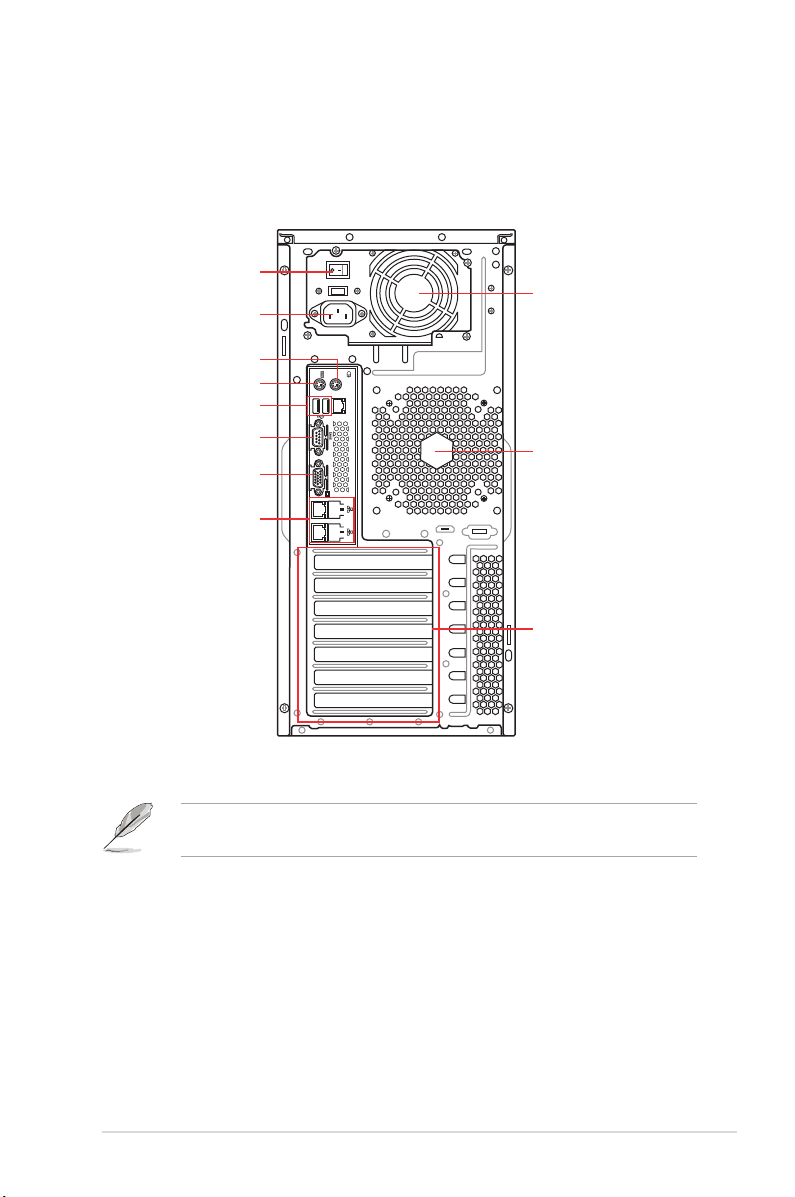

1.4 Rear panel features
Power supply module
95mm system fan
Expansion slots
Power supply switch*
Power cord connector
PS/2 keyboard port
PS/2 mouse port
USB 2.0 ports
Serial port
VGA port
Gigabit LAN ports 1-4
* Adjust the appropriate system input voltage according to the voltage supply in
your area.

Chapter 1: Product introduction1-6
1.5 Systemspecications
Processor support
Quad-Core Intel®Xeon® processor 3300 / 3200 series
Dual-Core Intel®Xeon® processor 3100 / 3000 series
Intel® Conroe-L 400 series
FSB 1333 / 1066 / 800 MHz
Core Logic Intel® 3200 MCH + Intel® ICH7R
Memory 4-DIMM support up to 8GB DDR2 800/667 un-buffered,
ECC
Storage
4 x Internal SATAII HDD bays (Easy-Swap)
1 x 5.25” Optical Device
1 x Floppy Disk Drive
RAID support Intel® MSM RAID 0, 1, 10, 5 (Windows Only)
LSI MegaRAID 0, 1, 10 (Windows & Linux)
NIC 4 x Marvell 8056 GbE LAN Controllers
Onboard Gfx XGI Z9s VGA Controller / 32MB
Expansion Slot
1 x PCI-E x16 slot (x 8 link)
1 x PCI-E x8 slot (x1 link)
3 x PCI 32-bit/33MHz slot (5V)
Power Supply 300W Single Power Supply (By Switching)
Dimension (L x W x H) 510 mm x 210 mm sx 450 mm
*Specicationsaresubjecttochangewithoutnotice.

1-
This chapter lists the key components
and optional accessories for the server
system.
Chapter 2
Components

Chapter 2: Components2-2

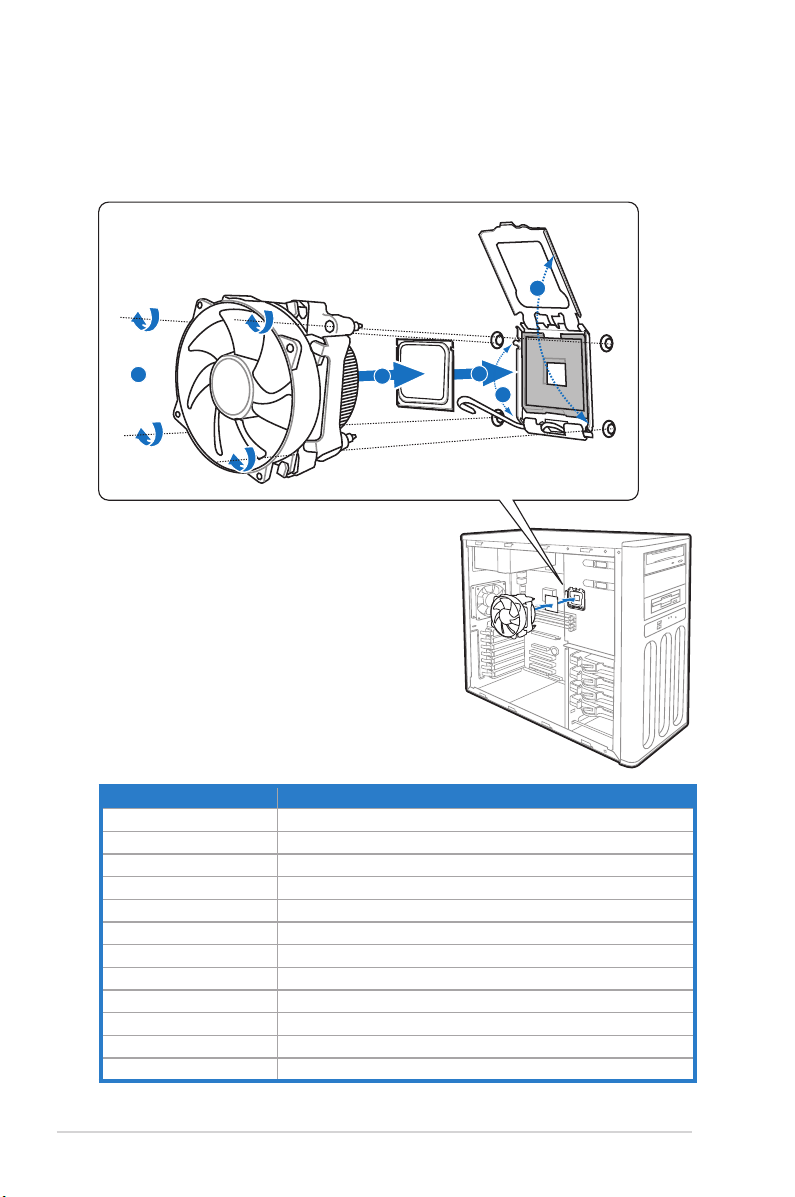

2.1 Upgrading CPU and CPU heatsink
The ASUS TS100-E5/PI4 supports Intel®Xeon®Quad-core 3300/3200 series and
Dual-core 3100/3000 series processor.
Order P/N Description
90-S000U02W0T Quad Core Intel Xeon X3360, 2.83G, FSB 1333, 12M L2
90-S000U02X0T Quad Core Intel Xeon X3350, 2.66G, FSB 1333, 12M L2
90-S000U02Y0T Quad Core Intel Xeon X3320, 2.5G, FSB 1333, 6M L2
90-S000U02V0T Quad Core Intel Xeon X3110, 3.0G, FSB 1333, 6M L2
90-S000U02E0T Quad Core Intel Xeon X3230, 2.66G, FSB 1066, 8M L2
90-S000U02F0T Quad Core Intel Xeon X3220, 2.40G, FSB 1066, 8M L2
90-S000U02G0T Quad Core Intel Xeon X3210, 2.13G, FSB 1066, 8M L2
90-S000U02H0T Dual Core Intel Xeon 3085 , 3.00G, FSB 1333, 4M L2
90-S000U02I0T Dual Core Intel Xeon 3075 , 2.66G, FSB 1333, 4M L2
90-S000U02J0T Dual Core Intel Xeon 3065 , 2.33G, FSB 1333, 4M L2
90-S000U0160T Dual Core Intel Xeon 3060 , 2.40G, FSB 1066, 4M L2
90-S000U0150T Dual Core Intel Xeon 3050 , 2.13G, FSB 1066, 2M L2
5
2
3
1
4

ASUS TS100-E5/PI4 2-3

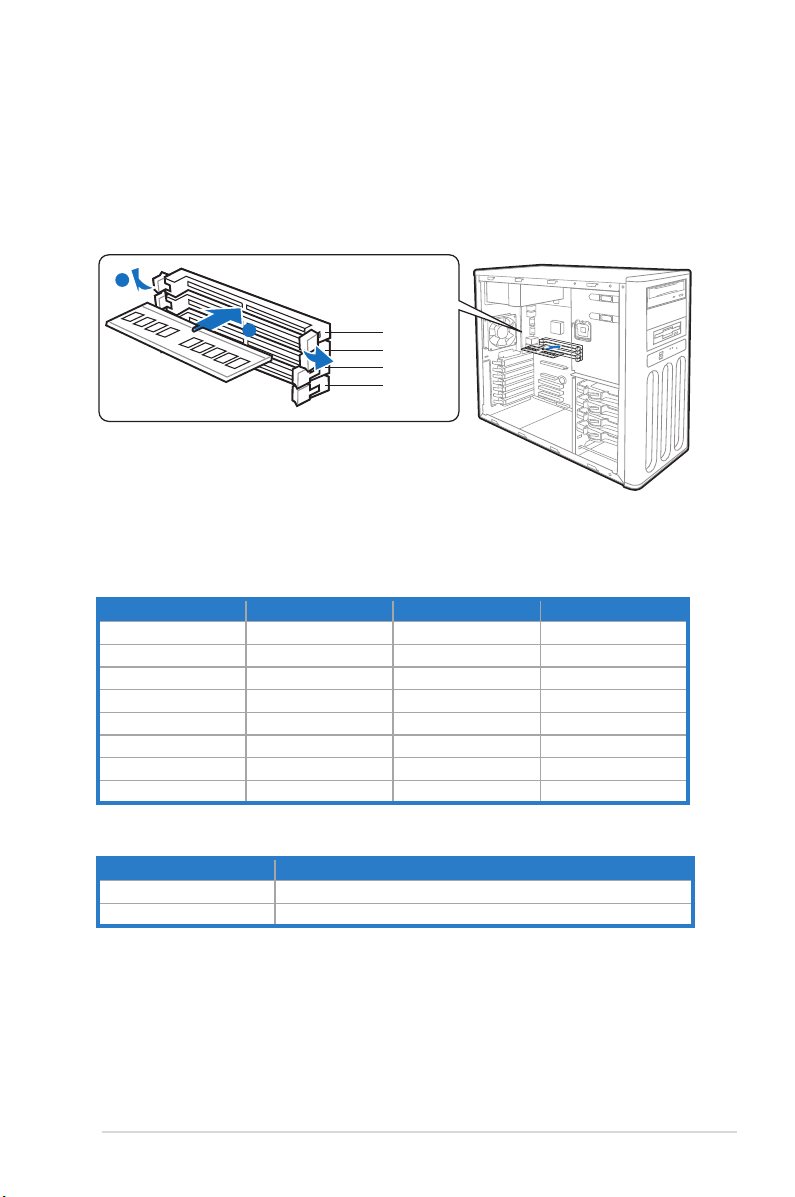

2.2 Upgrading system memory
The motherboard comes with four (4) Double Data Rate 2 (DDR2) Dual Inline
Memory Modules (DIMM) sockets.
Order P/N Description
90-S000I0240T 1GB DDR2 800 Un-buffered ECC / ASUS
90-S000I0250T 2GB DDR2 800 Un-buffered ECC / ASUS
DIMM_B2 DIMM_B1 DIMM_A2 DIMM_A1
- - 1 GB -
1 GB - 1 GB -
1 GB - 1 GB 1 GB
1 GB 1 GB 1 GB 1 GB
- - 2 GB -
2 GB - 2 GB -
2 GB - 2 GB 2 GB
2 GB 2 GB 2 GB 2 GB
Recommendedmemorycongurations
DIMM_B2
DIMM_B1
DIMM_A2
DIMM_A1
1
2

Chapter 2: Components2-4

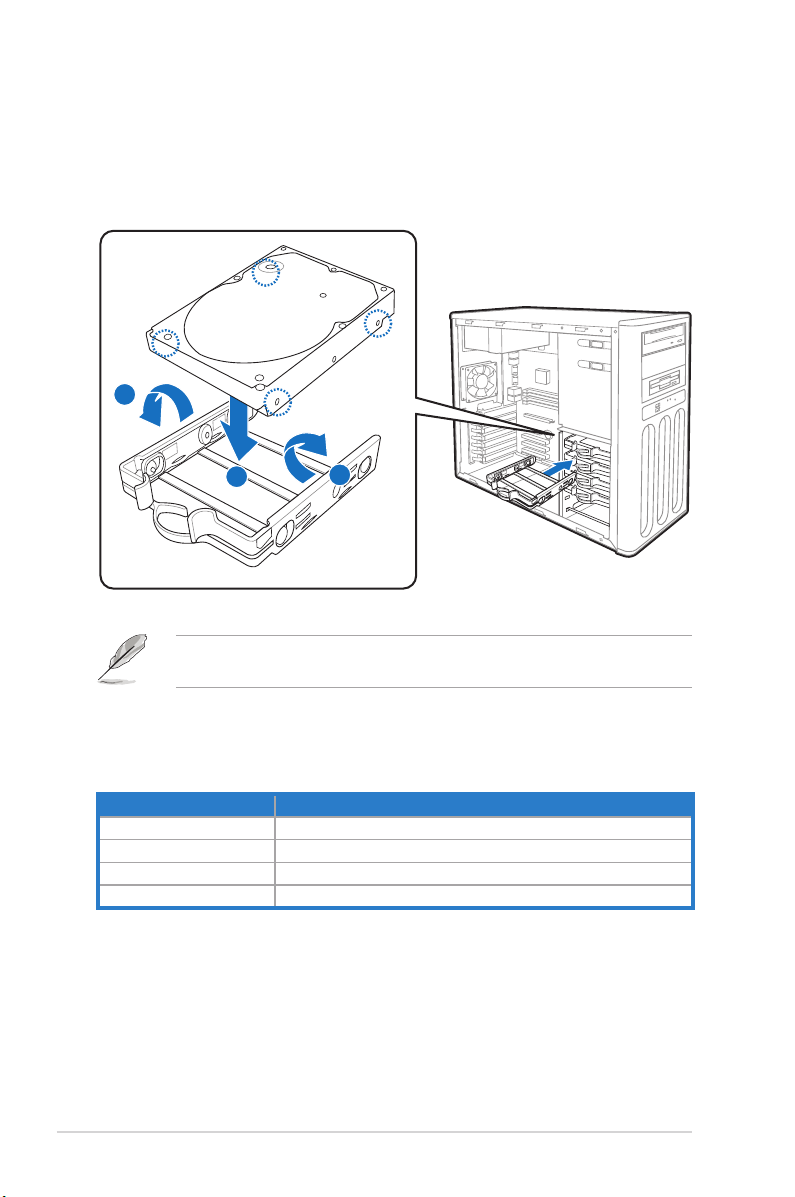

2.3 Upgrading hard disk drives
The system supports four Serial ATA hard disk drives through screw-free hard disk
drive holders.
Order P/N Description
90-S000H5500T 1TB, 3.5” SATAII HDD / ASUS
90-S000H5400 750GB, 3.5” SATAII HDD / ASUS
90-S000H5300 500GB, 3.5” SATAII HDD / ASUS
90-S000H5000 250GB, 3.5” SATAII HDD / ASUS
We recommend that you install identical drives of the same model and capacity
for RAID conguration.
1
1
2

ASUS TS100-E5/PI4 2-5

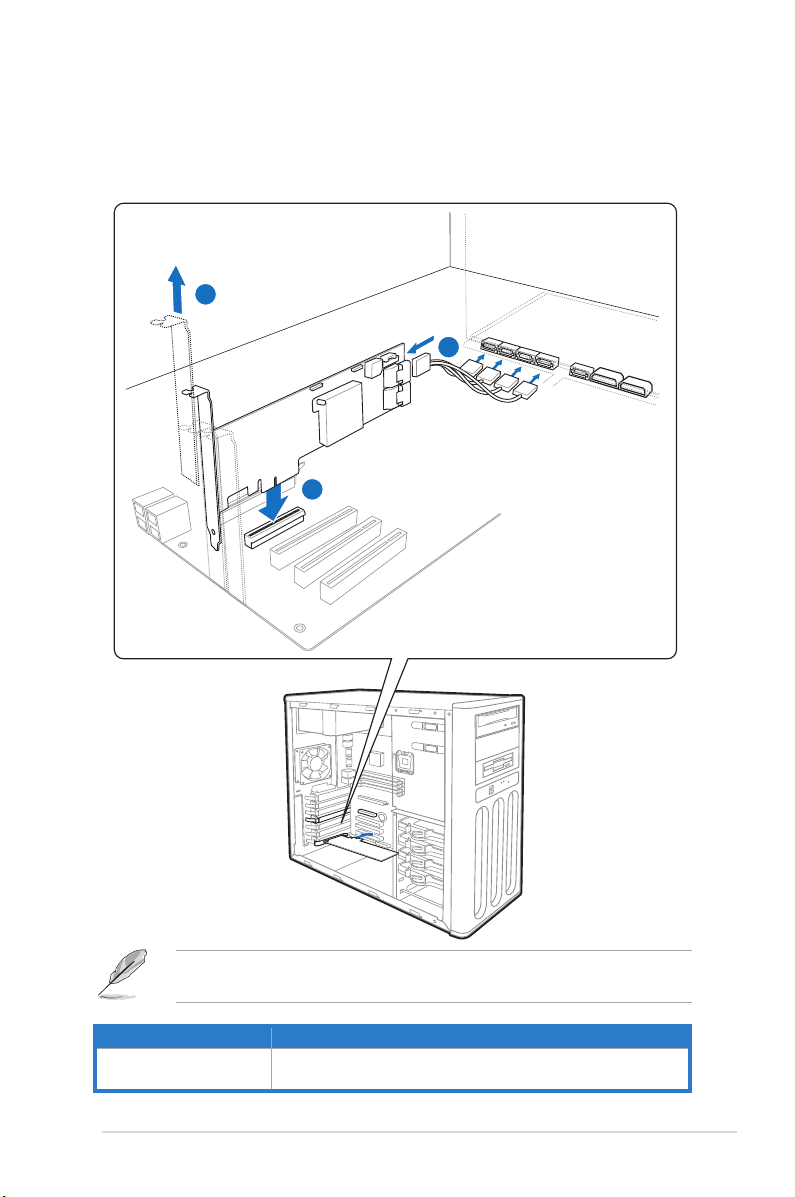

2.4 Installing ASUS RAID card
The ASUS RAID card allows users to create RAID 0, 1, 5, 6 and 10 from SATA
hard disk drives connected to the SATA connectors on the HDD backplane*.
Order P/N Description
90-S000R0030T ASUS RAID Card (8708) (Support Hardware RAID 0, 1, 5, 6,
10), data cable
* If the system does not have the HDD backplane built in, please plug the data
cable directly into HDD 7-pin connectors.
P0
P1
P2
P3
SATA1
SATA2
SATA3
SATA4
SATA5
3
1
2

Chapter 2: Components2-6
2.5 OS support list
Order P/N Description
90-S00SW7120T OS, Microsoft®Windows® Server 2003 R2 Standard 1-4 CPU, 5
CAL (32bit) (Traditional Chinese)
90-S00SW7130T OS, Microsoft®Windows® Small Business Server 2003 R2 STD
1-2 CPU, 5 CAL (32bit) (Chinese)
OS support list
Windows® Server 2003 R2 Enterprise 32-bit
Windows® Server 2003 R2 Enterprise 64-bit
RedHat® Enterprise Linux AS 4.0 UP5 32-bit
RedHat® Enterprise Linux AS 4.0 UP5 64-bit
RedHat® Enterprise Linux AS 5.0 32-bit
RedHat® Enterprise Linux AS 5.0 64-bit
SuSE® Linux Enterprise Server 10 SP1 32-bit
SuSE® Linux Enterprise Server 10 SP1 64-bit
