1.1 Key features
The ASUS®TS300-E8-PS4 is a 5U barebone server system featuring the ASUS
P9D-E/4L server board. The server supports Intel® LGA1150 Xeon® E3-1200 v3
processors with the latest technologies through the chipsets with support for up
to 32GB DDR3 1333MHz unbuffered ECC memory. This provides immediate
performance upscaling and higher processing speeds. With four (4) native SATA
6Gb/s ports, 4 hot-swap hard drive trays and ASUS PIKE cards, the TS300-E8-
PS4 delivers improved data transfer rates, more exible storage expansion and
complete RAID for SMB users.
The latest Intel®CPUs
The TS300-E8-PS4 is ready for the latest generation of Intel® Xeon® 32nm quad/
dual-core UP processors, which offer a signicant performance improvement over
previous generation CPUs. Meanwhile, Intel® Turbo Boost Technology 2.0 provides
an efcient, dynamic and intelligent way to enhance performance on demand.
Extreme power with easy-upgrade expandability
The ASUS TS300-E8-PS4 supports the latest Intel® Xeon® E3-1200 v3 processor
family, delivering extreme computing power, highly scalable expandability, more
exible storage with RAID, and complete remote server management through
ASWM Enterprise and ASMB7-iKVM. It also represents ASUS efforts in green
design, featuring an 80 PLUS Bronze power supply for enhanced energy savings.
Combined with its great computing power, it offers an ideal server choice for SMBs,
who require superior performance and controllable costs.
The latest Intel®CPUs
The TS300-E8-PS4 is ready for new-generation Intel® Xeon® 22nm processors,
which bring a signicant performance improvement over previous-generation
CPUs.
PCI Express 3.0-ready with workstation expandability
and extensive I/O
The TS300-E8-PS4 ships with one PCI Express 3.0 x16 slot, designed to
accommodate the power of graphics cards and other add-on components. Whether
for professional graphics work, heavy duty multimedia, or dedicated gaming, more
than ample graphics power can be applied whenever needed. It also has a PCI slot
for legacy LAN cards, graphics cards, and sound card applications. Four USB 3.0
ports provide up to ten times the data transfer speeds of USB 2.0.

ASUS TS300-E8-PS4 1-3
Digital power and green design
Exclusive ASUS Dr. MOS and Beat Thermal Chokes (BTC) help lower operating
a temperatures and promote efciency for signicant power savings and stability
increases. The TS300-E8-PS4 also features an 80 PLUS Bronze power supply to
reduce power loss and power consumption, helping consumers save on energy
bills.
ASUS PIKE RAID provides high reliability
ASUS PIKE technology allows the TS300-E8-PS4 to support exible storage
options. Customers can upgrade to highly reliable enterprise-grade SAS 6Gb/s
storage, while maintaining backward compatibility with existing SAS/SATA 1.5Gb/s
and 3Gb/s storage infrastructure. Creating RAID 0, RAID 1, RAID 5, RAID 6, RAID
10, RAID 50, and RAID 60 congurations is made easy.
Comprehensive remote management
ASUS presents the most complete remote server management, including out of
band ASMB7-iKVM and in-band ASWM Enterprise. Out-of-band ASMB7-iKVM
is an effective remote server supervision tool that provides OS-independent and
cross-platform monitoring of servers. It covers parameters such as temperatures,
voltages, and fan status. MIS can be informed of server conditions from anywhere
and at any time via instant event notications. In-band ASWM Enterprise provides
“one on many” usage, its centralized management allowing administrators
access to BIOS updates, remote control, and power supervision on all servers
simultaneously.

Chapter 1: Product introduction1-4
1.2 System overview
1
6
7
8
9
9
2
3
4
5
Items Items
1. Central processing unit (CPU) 6. ASUS Server management board (optional)
2. CPU heatsink and fan 7. ASUS PIKE SAS RAID card (optional)
3. System memory 8. Expansion card

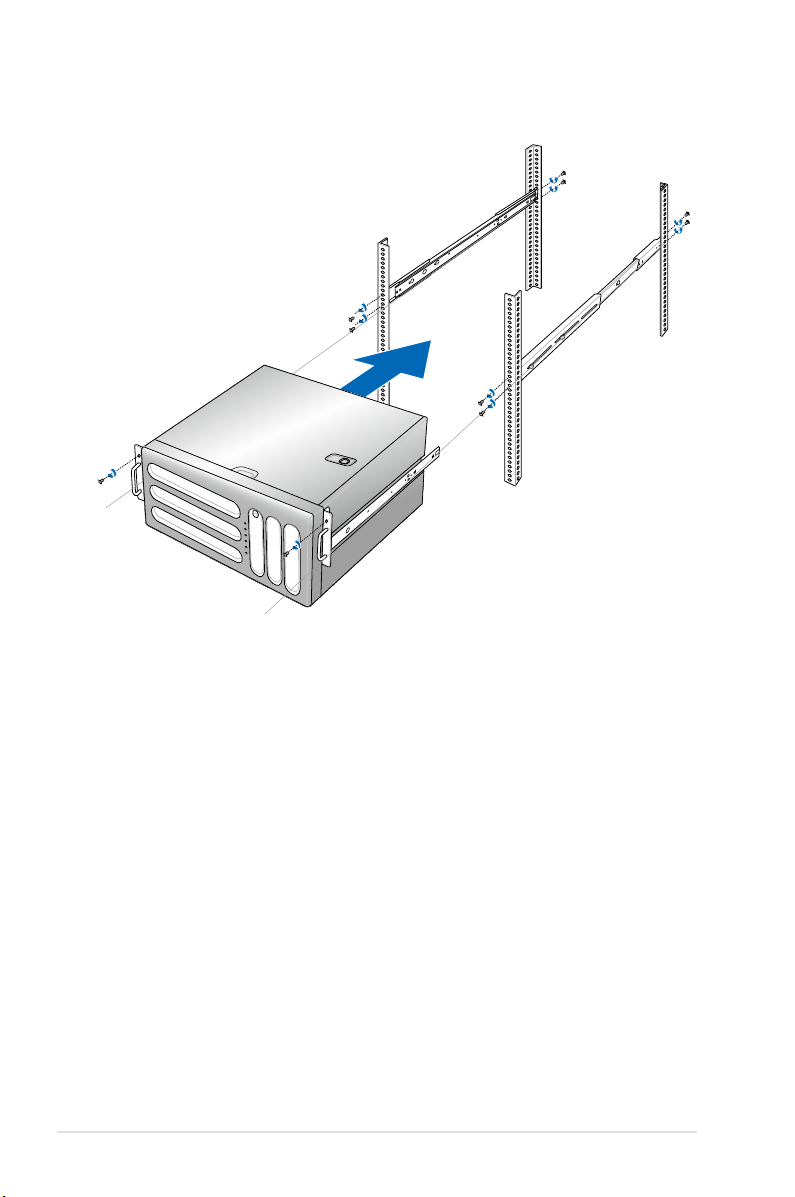

4. Hard disk drives 9. Rackmount rail kit (optional)
5. HDD trays

ASUS TS300-E8-PS4 1-5
1.3 Front panel features
*The function of front panel audio I/O ports is available only when the sound card is
installed.

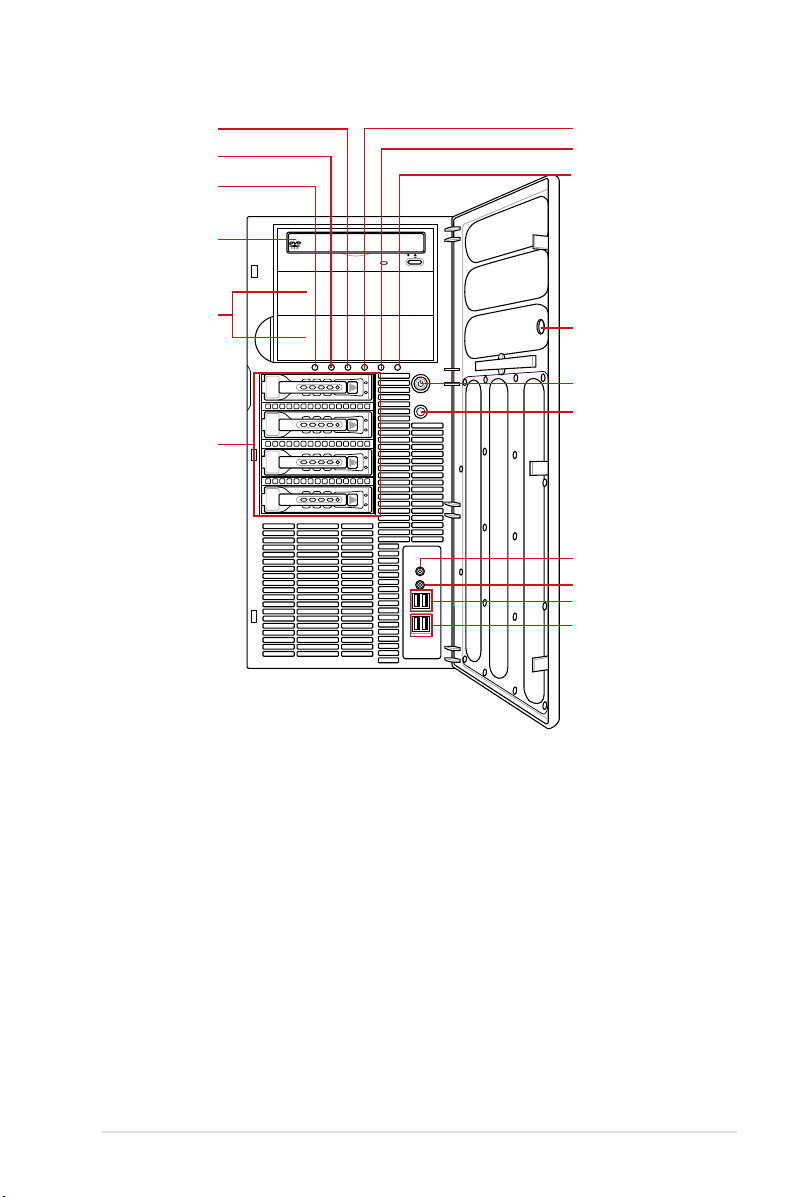

Optical drive
Power button
Reset button
Message LED
HDD access LED
Power LED
Security lock
LAN1 LED
LAN2 LED
4-bay HDD cage
Empty 5.25-inch bays
USB 3.0 ports
Headphone output jack*
Microphone jack*
Locate LED
USB 2.0 ports

Chapter 1: Product introduction1-6
1.4 Rear panel features
500W(80PLUS) Bronze
Single power supply
Power connector
Expansion slots
USB 2.0 ports
USB 3.0 ports
VGA port
Gigabit LAN port 1
Chassis lock
120mm x 38mm
system fan
PS/2 keyboard/
mouse port
Gigabit LAN port 2
Gigabit LAN port 3
Gigabit LAN port 4

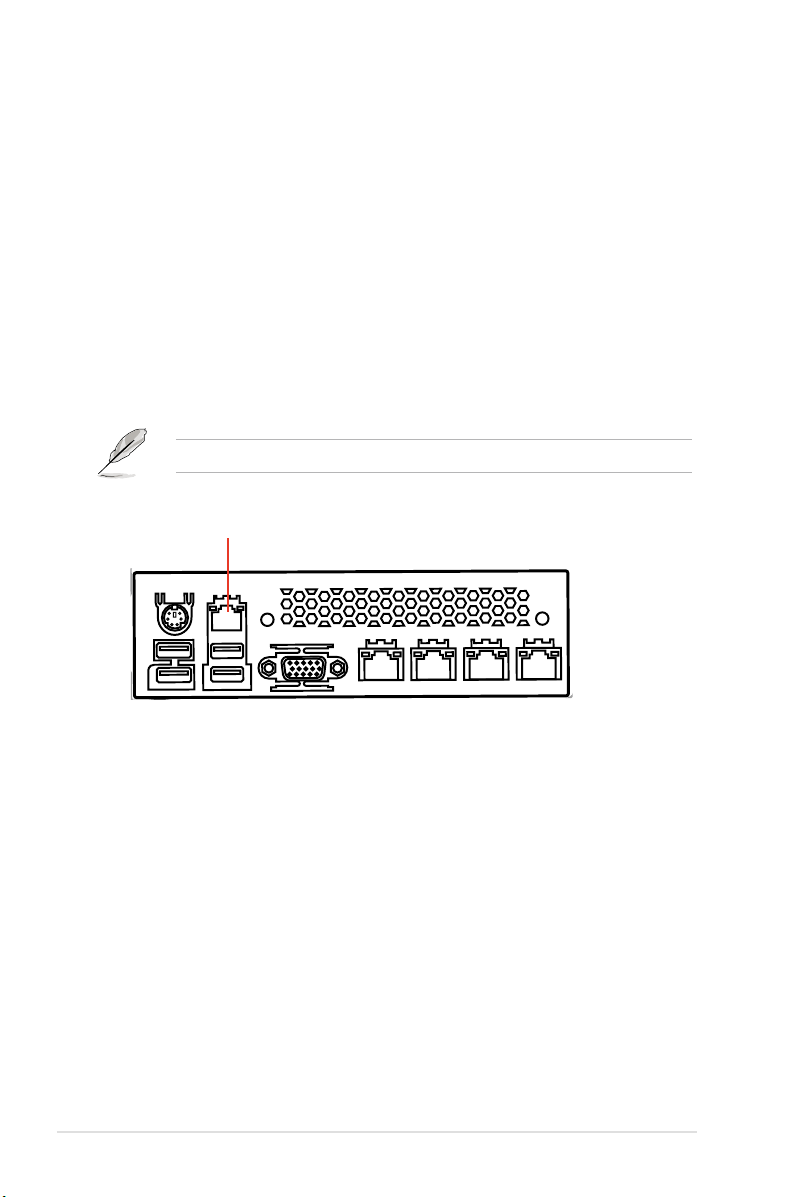

LAN port 5*
*The port is for ASUS ASMB7-iKVM controller card only.
COM port

ASUS TS300-E8-PS4 1-7
1.5 Systemspecications
(continued on the next page)
Model Name TS300-E8-PS4
Processor Support 1 x Socket LGA1150
Intel® Xeon® Processor E3-1200 v3 Product Family
Core Logic Intel® C224 PCH
Memory
Total Slots 4 UDIMMs (2 Channels)
Capacity Maximum up to 32GB (4 UDIMMs)
Memory Type DDR3 1333/1600 ECC UDIMM
Memory Size 2GB, 4GB, and 8GB (UDIMM)
Expansion
Slots
Total PCI/PCI-X/
PCI-E Slots 7
Slot Type
1 x PCI-E x16 (Gen3 x16 Link; auto-switch to x8 link if
slot 5 is occupied)
2 x PCI-E x8 (Gen3 x8 Link)
1 x PCI-E x1 (Gen2 x1 Link), MIO support
1 x PCI-E x1 (Gen2 x1 Link)
2 x PCI 32-bit /33MHz
Additional
Slot 1 1 x PIKE slot for Storage Enhancement
Storage
SATA Controller
Intel®C224:
- 2 x SATA 3Gbps ports
- 4 x SATA 6Gbps ports
- Intel®Rapid Storage Technology Enterprise (RSTE)
supports software RAID 0, 1, 10 & 5 (Windows®only)
SAS Controller
Optional:
ASUS PIKE 2008 8-port SAS 6G RAID card
ASUS PIKE 2108-32PD 8-port SAS 6G HW RAID card
ASUS PIKE 2208 8-port SAS 6G HW RAID card
ASUS PIKE 2308 8-port SAS 6G RAID card
HDD Bays
I = internal
A or S =
hot-swappable
4 x Hot-swap 3.5-inch HDD Bays
Networking LAN 4 x Intel® I210AT + 1 x Mgmt LAN
Graphics VGA Aspeed AST2300 + 32MB VRAM

Chapter 1: Product introduction1-8
*Specicationsaresubjecttochangewithoutnotice.
TS300-E8-PS4
Auxiliary Storage
FDD / CD / DVD
3 x 5.25-inch media bays
Options:
1. No Device
2. With DVD-RW for North America
Onboard I/O
5 x RJ-45 ports (One for ASMB7-iKVM)
4 x USB 3.0 ports (Front x 2, Rear x 2)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x Internal A Type USB port
1 x VGA port
1 x PS/2 keyboard/mouse port
Management
Solution
Out of Band
Remote
Management
Optional ASMB7-iKVM for KVM-over-IP support
Software ASWM Enterprise
Dimension
(HH x WW x DD) 445mm x 217.5mm x 545mm
Net Weight Kg
(CPU, DRAM, & HDD
not included)
20 Kg
Environment
Operation temperature : 10°C–40°C
Non operation temperature: -40°C–70°C
Non operation humidity : 20% ~ 90% (Non-
condensing)
Power Supply 500W(80Plus) Bronze Single Power Supply
Power Rating 100-240V, 10A-6A, 50-60Hz, Class I

1-
This chapter lists the key components
and optional accessories for the server
system.
Chapter 2
Components

Chapter 2: Components2-2

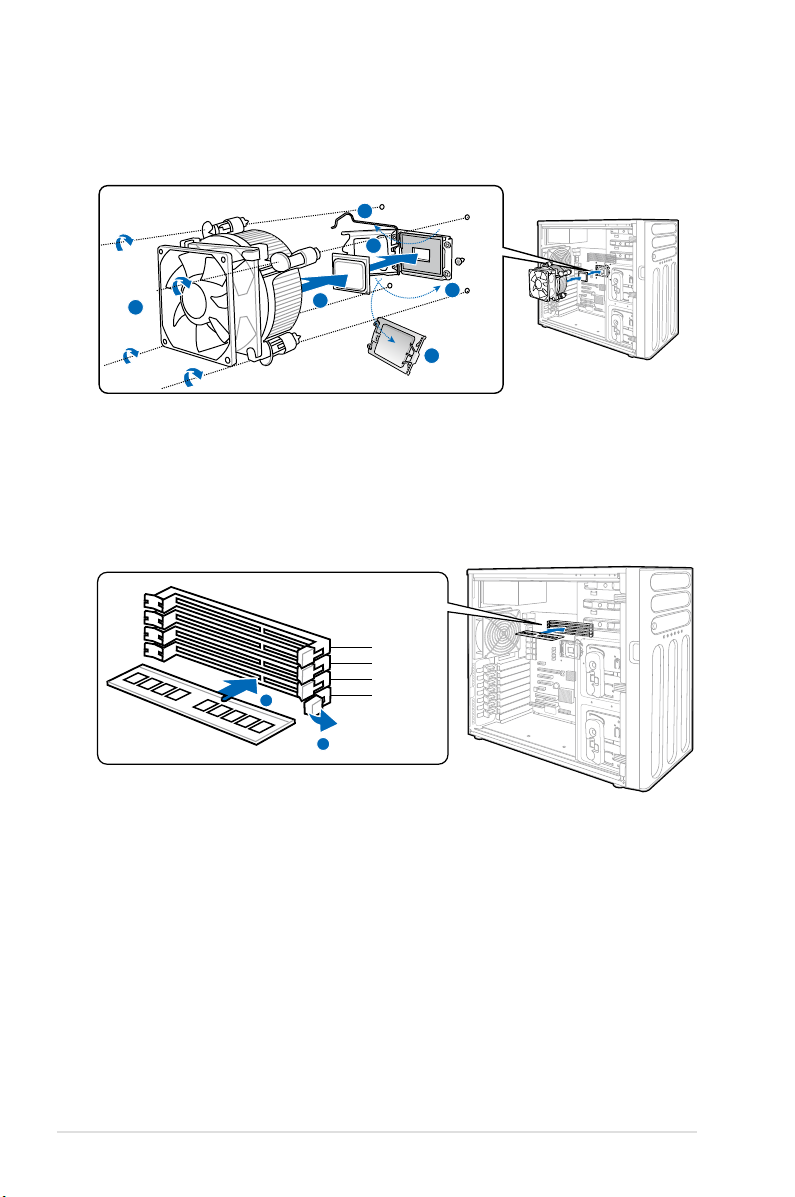

2.1 Upgrading CPU and CPU heatsink
The ASUS TS300-E8-PS4 supports Intel® LGA1150 Xeon® E3-1200 v3 processors.
2.2 Upgrading system memory
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory
Modules (DIMM) sockets.
2
6
4
5
1
3
DIMM_A1
DIMM_A2
DIMM_B1
DIMM_B2
1
2
You may install 2GB, 4GB and 8GB Unbuffered with ECC DDR3 DIMMs into the
DIMM sockets using the memory congurations in this section.

ASUS TS300-E8-PS4 2-3
UDIMM
DIMM Slot
Per Channel
DIMM Populated
per Channel DIMM Type Speed Rank per DIMM
21Unbuffered DDR3 ECC 1333/1600 Single Rank,
Dual Rank
2 2 Unbuffered DDR3 ECC 1333/1600 Single Rank,
Dual Rank
• Start installing the DIMMs from slot A2 and B2 (blue).
• Always install DIMMs with the same CAS latency. For optimum
compatibility, it is recommended that you obtain memory modules from the
same vendor.
2.3 Upgrading hard disk drives
The system supports four hot-swap SATAII/SAS hard disk drives.
We recommend that you install identical drives of the same model and capacity
for RAID conguration.
1
2
2

Chapter 2: Components2-4
2.4 Installing ASUS PIKE SAS RAID card
The ASUS PIKE SAS RAID card allows users to create SAS RAID sets from SAS
hard disk drives connected to the SAS connectors on the motherboard.

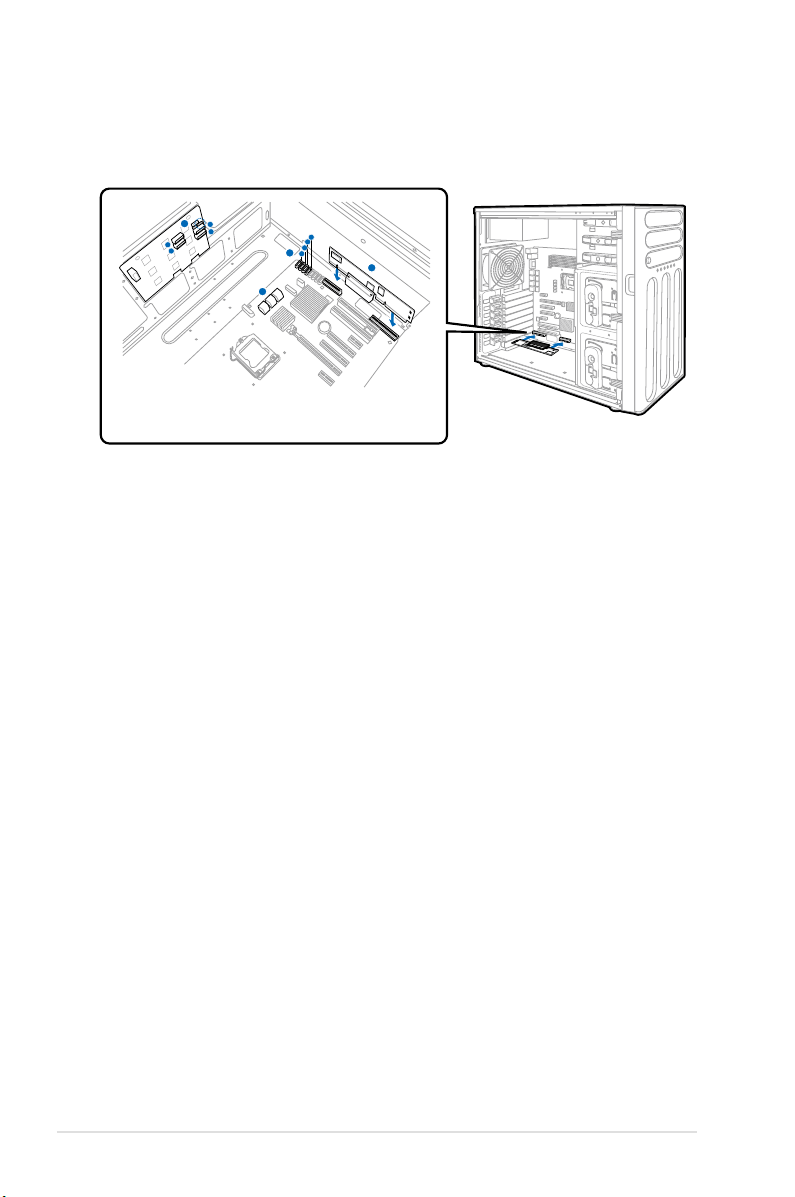

1. Locate the PIKE RAID card slot on the motherboard then insert the PIKE SAS
RAID card into the PIKE RAID card slot. Ensure that it is securely seated in
place.
2. Remove the data cables connected to the SATA connectors on the
motherboard.
3. Connect the data cables, by numerical order, to the SAS connectors labeled
PSAS1-4 (light blue) on the motherboard.
4. Locate the SGPIO_SEL1 jumper on the backplane then set it to pins 2-3.
1
2
3
4
B
A
C
D
A
B
C
D

ASUS TS300-E8-PS4 2-5
2.5 Installing ASUS Server Management
Board
ASUS Server Management Board is an Intelligent Platform Management Interface
(IPMI) 2.0-compliant board that allows users to monitor, control and manage a
remote server from the local or central server in local area network (LAN).

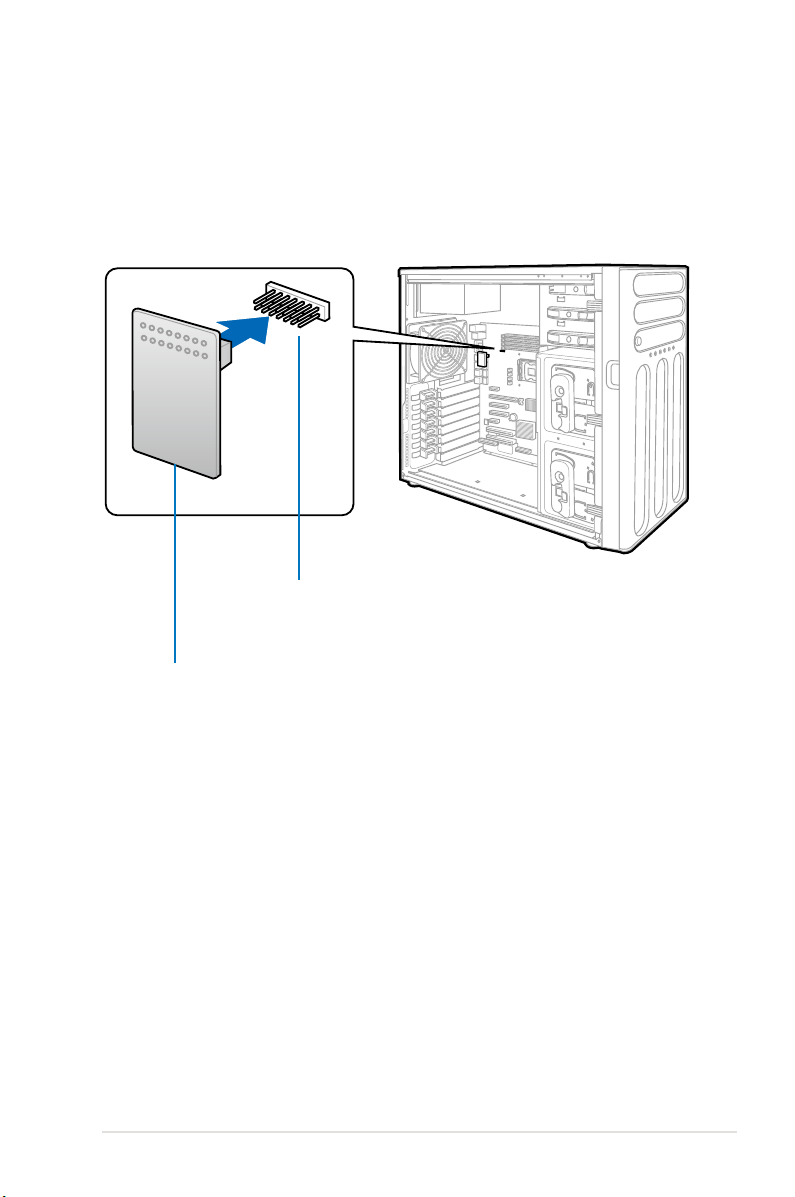

Baseboard Management
Controller (BMC) connector
ASUS Server Management Board

Chapter 2: Components2-6
ASMB7-iKVM
• Remote real-time access to servers with full control by keyboard, video monitor
and mouse (KVM) of a single local computer from anywhere at any time. In
addition, KVM function is based on BIOS-level access, therefore, even the server
OS is down, the KVM module can still work to provide around-the-clock remote
monitor and diagnosis through GUI (Web-based Graphical User Interface).
• Advanced server management functions including “remote power on/off/reset”,
“remote hardware health monitoring” and “system event log”.
• Allows administrators to share the date saved in a local drive (oppy, CD/
DVD-ROM, ash device, HDD) to target servers, which makes data-sharing
convenient.
We recommend to use LAN port 5 for server management.
LAN port 5

ASUS TS300-E8-PS4 2-7
2.6 Installing Expansion card
1
2
1
2
3
A
B

Chapter 2: Components2-8
2.7 Rackmount rail kit
