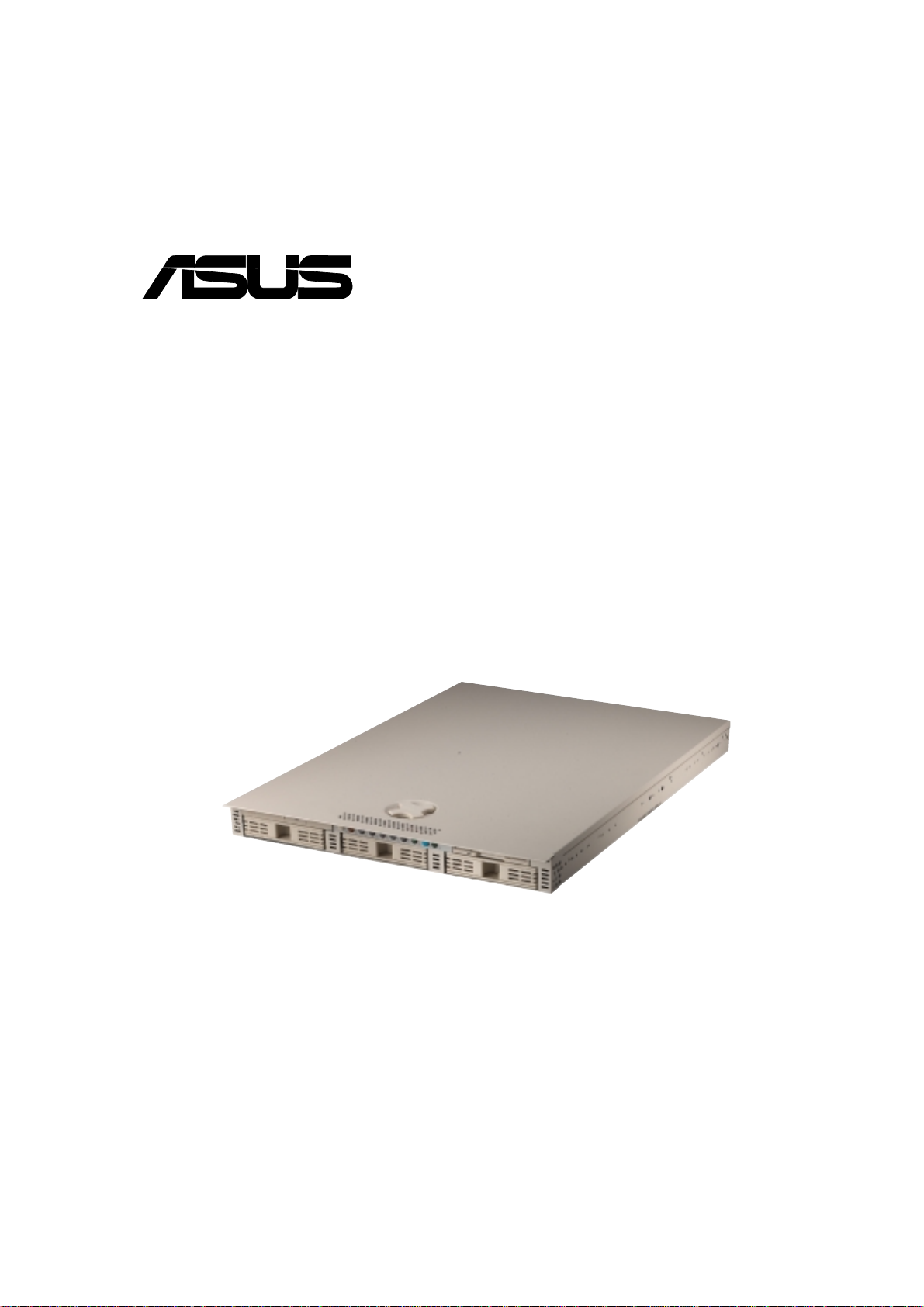

Asus AP1400R User manual

Dual Pentium®III 1U Rackmount Server
®
AP1400R
User’s Manual

2
Checklist
Disclaimer/Copyrights
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
anylanguageinanyformorbyanymeans,exceptdocumentationkeptbythepurchaser
forbackuppurposes, without theexpresswritten permission ofASUSTeKCOMPUTER
INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOTLIMITEDTO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS,
OFFICERS, EMPLOYEES ORAGENTS BE LIABLE FORANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Productwarranty or servicewill not be extended if:(1) the product is repaired,modified
or altered, unless such repair, modification of alteration is authorized in writing by
ASUS; or (2) the serial number of the product is defaced or missing.
Productsand corporatenames appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for
identification or explanation and to the owners’benefit, without intent to infringe.
The product name and revision number are both printed on the product itself. Manual
revisions are released for each product design represented by the digit before and
after the period of the manual revision number. Manual updates are represented by
the third digit in the manual revision number.
Forpreviousorupdatedmanuals,BIOS,drivers,or product release information, contact
ASUSathttp://www.asus.com.tworthroughanyofthemeansindicated on the following
page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATIONALUSE ONLY,ANDARE SUBJECTTO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY
FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTSAND SOFTWARE DESCRIBED IN IT.
Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved.
Product Name: AP1400R
Manual Revision: 1.00 E628
Release Date: March 2001

3
Features
ASUS Contact Information
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
Tel (English): [phone]
Tel (Chinese): [phone]
Fax: [phone]
Email: [email protected]
Newsgroup: news2.asus.com.tw
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
BBS: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone]
Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

4
Safeguards
FCC/CDC Statements
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
WARNING! The use of shielded cables for connection of the monitor
to the graphics card is required to assure compliance with FCC
regulations. Changes or modifications to this unit not expressly
approvedbythepartyresponsible for compliancecouldvoidtheuser’s
authority to operate this equipment.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissionsfromdigitalapparatus set outintheRadio Interference Regulations
of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.

5
Electrical Safety
Safet y Precautions
Safeguards
Observe the following safety precautions when you are connecting
or disconnecting any devices.
Operation Safety
Tools Required
Youneeda Philips(cross)screwdriver andaflat screwdriver toinstall
or remove the components in the server.
•Any operation on this server must be conducted by
certified or experienced engineers.
•Before operating your server, carefully read all the
manuals included with the server package.
•Before using the server, make sure all cables are correctly
connected and the power cables are not damaged. If any
damage is detected, contact your dealer as soon as
possible.
•To avoid short circuits, keep paper clips, screws, and
staples away from connectors, slots, sockets and circuitry.
•Before opening the chassis panels, make sure all power
cables are unplugged.
•Avoid dust, humidity, and temperature extremes. Place the
server on a stable surface.
•If the power supply is broken, do not try to fix it by
yourself. Contact an authorized dealer.
•It is recommanded that you wear gloves when assembling
or dissembling the server to protect from cuts and
scrapes.
•When the server is powered on, heat sinks and the
surfaces of certain IC devices may be hot. Do not touch
them. Check whether the fans are functioning properly.
IMPORTANT

6
Safet y Precautions
Electrical Safety
IMPORTANT
• Before installing or removing signal cables, ensure that the
power cables for the system unit and all attached devices
are unplugged.
• To prevent electrical shock hazard, disconnect the power
cable from the electrical outlet before relocating the
system.
• When adding or removing any additional devices to or from
the system, ensure that the power cables for those devices
are unplugged before the signal cables are connected. If
possible, disconnect all power cables from the existing
system before you add a device.
• Use one hand, when possible, to connect or disconnect
signal cables to prevent a possible shock from touching
two surfaces with different electrical potentials.
This product is equipped with a three-wire power cable
and plug for the user’s safety. Use the power cable with
a properly grounded electrical outlet to avoid electrical
shock.
CAUTION
Motherboards, adapters, and disk drives are sensitive to
static electricity discharge. These devices are wrapped
in antistatic bags to prevent this damage. Take the
following precautions:
• If you have an antistatic wrist strap available, use it while
handling the device.
• Do not remove the device from the antistatic bag until you
are ready to install the device in the system unit.
• With the device still in its antistatic bag, touch it to a metal
frame of the system.
• Grasp cards and boards by the edges. Hold drives by the
frame. Avoid touching the solder joints or pins.
• If you need to lay the device down while it is out of the
antistatic bag, lay it on the antistatic bag. Before picking it
up again, touch the antistatic bag and the metal frame of
the system unit at the same time.
• Handle the devices carefully to prevent permanent
damage.
IMPORTANT

7
Contents
Introduction: About This Manual .................................. 9
Audience ..................................................................................... 10
Contents Description ................................................................. 10
Conventions.................................................................................11
Symbols ...................................................................................11
Package Contents ...................................................................... 12
Standard Components............................................................ 12
Optional Components ............................................................. 12
Chapter 1: System Overview...................................... 13
Features ...................................................................................... 14
Chassis: ASUS AR-10 ............................................................ 14
Motherboard: ASUS CUR-DLSR ............................................ 14
Front Panel.................................................................................. 15
Back Panel .................................................................................. 15
Power Button and System LEDs............................................... 16
LED Information...................................................................... 16
Chapter 2: Basic Operation........................................ 17

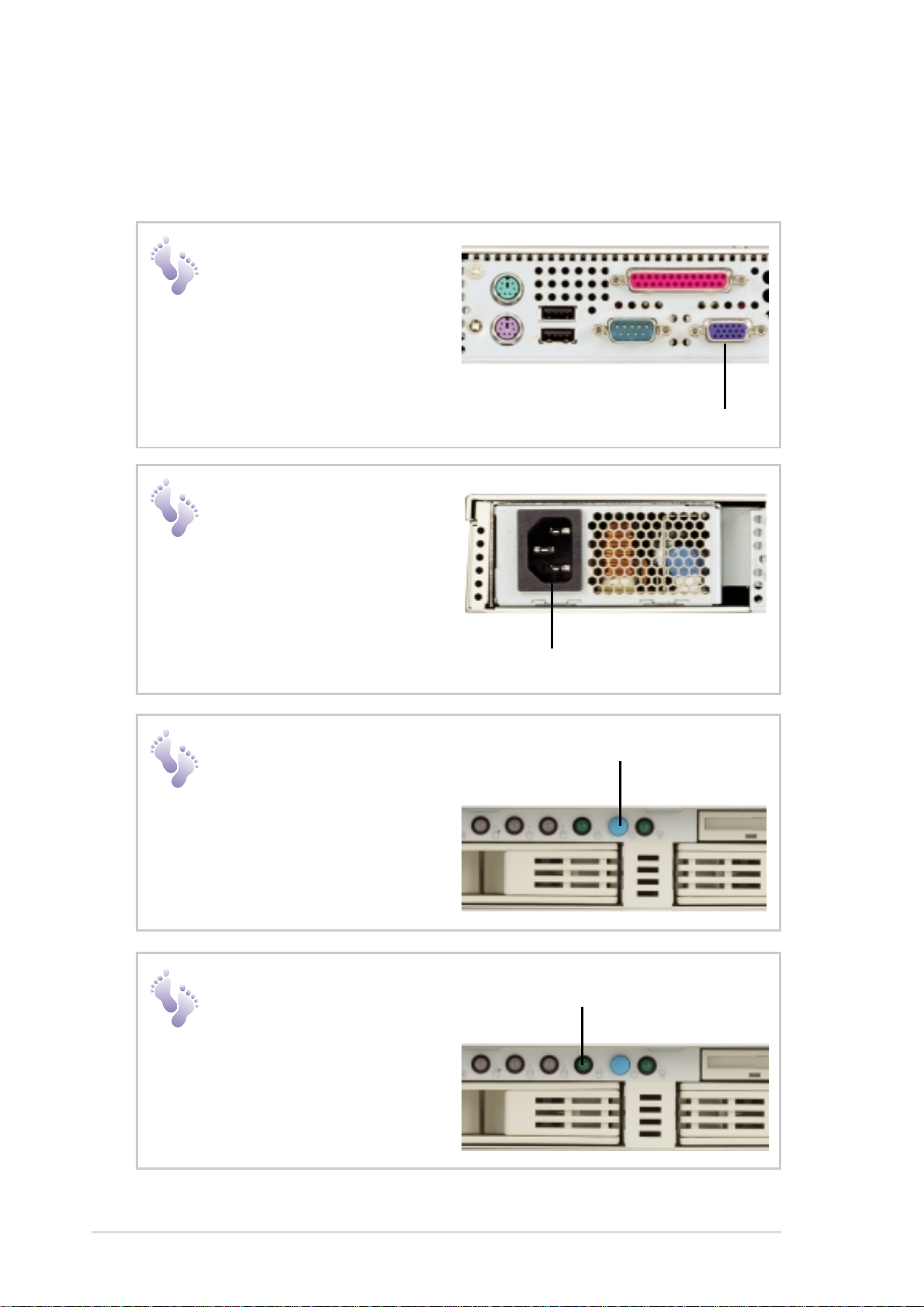

Getting Started ........................................................................... 18
Monitor Connection................................................................. 18
Power Connection .................................................................. 18
Power ON ............................................................................... 18
Check LED.............................................................................. 18
Chapter 3: Hardware Setup ........................................19
Opening the Chassis.................................................................. 20

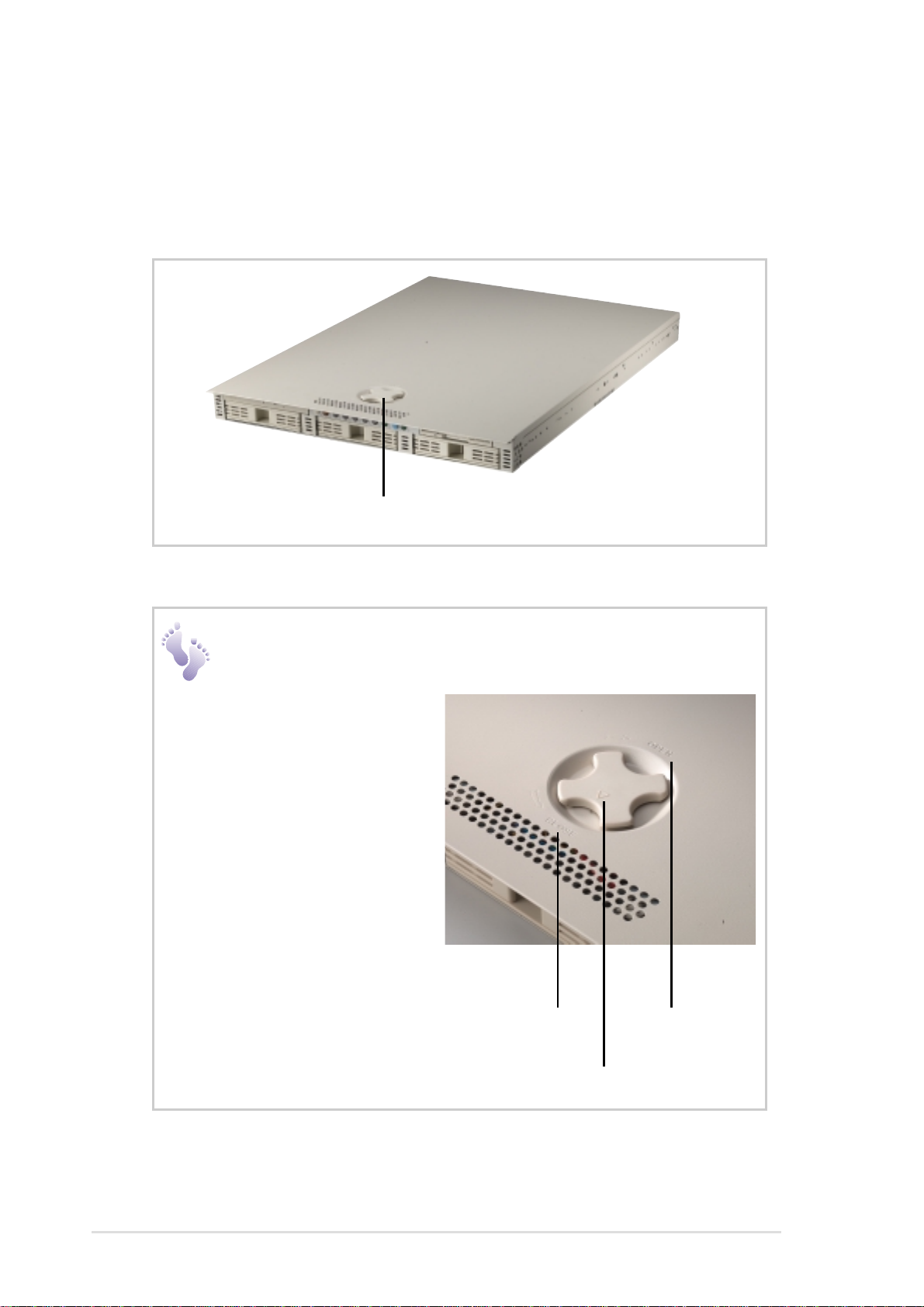

Unlocking the Cover ............................................................... 20
Removing the Cover ............................................................... 21
Internal Components ................................................................. 22
Motherboard Placement ............................................................ 23
Placement Direction................................................................ 23
Motherboard Screws............................................................... 23
Central Processing Unit (CPU).................................................. 24
CPU Orientation...................................................................... 24
CPU Socket Locations............................................................ 24
CPU Installation ...................................................................... 25
CPU Heatsink .............................................................................. 26
Attaching the Heatsink Front Clip ........................................... 26
Attaching the Heatsink Back Clip............................................ 26

8
Contents
CPU Terminator .......................................................................... 27
CPU Fan Cable............................................................................ 27
Connecting the Fan Cable ...................................................... 27
CPU Blower and Tube ................................................................ 28
CPU Blower and Tube Location.............................................. 28
Cooling Fans............................................................................... 29
System Memory .......................................................................... 29
DIMM Sockets Location.......................................................... 29
DIMM Installation .................................................................... 30
Riser Card / Expansion Card ..................................................... 31
Installing an Expansion Card .................................................. 31
Securing the Expansion Card ................................................. 32
Securing an Extended PCI Card............................................. 32
SCSI Backplane .......................................................................... 33
Front Side ............................................................................... 33
Back Side................................................................................ 33
Connecting Cables ..................................................................... 34
SCSI Cable ............................................................................. 34
IDE Cable ............................................................................... 34
Floppy Cable........................................................................... 35
LED Cable .............................................................................. 35
Power Cables ......................................................................... 36
Cooling Fan Cables ................................................................ 36
CD-ROM Drive............................................................................. 37
CD-ROM Mounting ................................................................. 37
CD-ROM Adapter Board ......................................................... 38
CD-ROM Installation............................................................... 38
Floppy Drive................................................................................ 39
Floppy Drive Mounting............................................................ 39
Floppy Drive Installation ......................................................... 39
SCSI Hard Disk Drives ............................................................... 40
Hot-Swap Drive Tray............................................................... 40
SCSI HDD Mounting............................................................... 40
HDD Installation...................................................................... 41
System Power Supply ................................................................ 42
Power Supply Specifications .................................................... 43
Output Voltage Regulation...................................................... 43
Output Current Capacity ......................................................... 43
Over-Voltage Protection (OVP)............................................... 43

9AP1400R Server User’s Manual
You are reading the AP1400R Server
User’s Manual. This manual provides
genaral and specific information about
the AP1400R server.
“About This Manual”contains an
introduction on the contents of this
document that include target audience,
chapter description, and conventions
used. It also lists the items included in
the system package.
Introduction
About This Manual

10 Introduction: About This Manual
Checklist
This manual contains the following parts:
1. Introduction: About This Manual
Thispartcontainsan introductionon thecontentsofthisdocument
thatincludetarget audience,chapterdescription,and conventions
used. It also lists the items included in the system package.
2. Chapter 1: System Overview
This chapter describes the external features of the AP1400R
server. It includes specific sections that identify these features.
3. Chapter 2: Basic Operation
This chapter tells how to get started with the AP1400R server.
Thebasicoperation includes connectingthecablesand powering
on the system.
4. Chapter 3: Hardware Setup
This chapter describes the hardware setup procedures that you
have to perform when installing system components. It also gives
detailedinformation ontheinternal componentsandhow toinstall
them.
Audience
This manual is intended for experienced users and integrators with
hardware knowledge of personal computers.
Contents Description

AP1400R Server User’s Manual 11
Features
Conventions
Symbols
To make sure that you perform certain tasks properly, take note of
the following symbols used throughout this guide.
WARNING: Information to prevent injury to yourself when
trying to complete a task.
CAUTION: Informationtopreventdamagetothecomponents
when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete
a task.
NOTE: Tips and information to aid in completing a task.
PHILIPS (CROSS) SCREW DRIVER:Atoolrequiredtoinstall
or remove the components in the server.
STANDARD (FLAT) SCREW DRIVER: A tool required to
install or remove the components in the server.
STEP: Actions to complete a task.

12 Introduction: About This Manual
Safeguards
Package Contents
This section lists the items included in the server package.
Standard Components
Motherboard CUR-DLSR
Chassis AR-10 1U Rackmount
Power Supply 200W
Processor (CPU) Pentium®III up to 1GHz
Memory Modules 64, 128, 256, 512MB, 1GB SDRAM
Hard Drive 80-pin SCA-2 Ultra160 SCSI interface
Floppy Drive Slim-type 1.44MB
CD-ROM Drive Slim-type 24X
PCI Riser Card 64-bit/33MHz PCI slot
SCSI Cable
S370 CPU Terminator
Rackmount Rails AR-10 rail kit
User’s Manuals CD-ROM, motherboard
Optional Components
RAID Controller ASUS PCI-DA2200 RAID controller

13AP1400R Server User’s Manual
This chapter describes the external
features of the AP1400R server. It
includes specific sections that identify
these features.
Chapter 1
System Overview

14 Chapter 1: System Overview
Checklist
Features
The AP1400R is configured for the ASUS CUR-DLSR smart
motherboard that uses the ServerSetTM chipset from ServerWorks®.
The motherboard supports dual Pentium III processors to accelerate
even the most complicated server tasks. The following are highlights
to the server’s many features. For additional information, refer to the
CUR-DLSR User’s Manual.
Chassis: ASUS AR-10
•Chassis: 1U form factor that fits in a standard 19”rack
•SCSI Backplane: Supports three SCSI hard drives using 80-
pin SCA-2 connectors
•Power: Pinot200Wsingle powersupplyequippedwith universal
AC input and ATX-compliant output cables
•Device Bays: Support for one 3.5-inch slim type floppy device,
one 5.25-inch slim type CD-ROM drive, and three 3.5-inch wide
1-inch high hot-swappable SCA SCSI hard disk drives in
removable trays
Motherboard: ASUS CUR-DLSR
•Processor: Dual Intel®Pentium III FC-PGA processors running
up to 1GHz
•Memory: Four 168-pin DIMM sockets that support up to 4GB
PC133 registered SDRAM with ECC support
•Onboard SCSI: LSI®53C1010-33 dual-channel Ultra160 SCSI
controller that supports up to 30 SCSI devices using two 68-pin
Wide SCSI connectors
•OnboardLAN:DualIntel®82559Fast-Ethernetservercontrollers
that supports 10BASE-T and 100BASE-TX, RJ-45 output
•Onboard VGA: ATI®Rage XL VGA controller with 4MB PC100
SDRAM
•Integrated Super I/O: PC97317 controller that supports one
floppy drive, two serial ports, one printer port, two USB ports,
one PS/2 keyboard, and one PS/2 mouse
•Expansion Slot: One full-length 64-bit/33MHz PCI slot on riser
card

AP1400R Server User’s Manual 15
Features
Front Panel
The front panel of the AP1400R server allows easy access to the
floppy, CD-ROM, and removable hard disk drives. The power button
and the system LED indicators are also located on the front panel
(see next page for descriptions).
Back Panel
The server back panel includes the connectors the system devices
and a slot for an expansion card.
HDD0 Drive Bay
CD-ROM Drive System LEDs Floppy Drive
HDD1 Drive Bay HDD2 Drive Bay
1. AC Power Connector
2. PS/2 Keyboard Port
3. PS/2 Mouse Port
4. USB Ports 1 and 2
5. Serial Port (COM1)
6. Printer Port
7. VGA Port
8. LAN1 Port (RJ-45)
9. LAN2 Port (RJ-45)
10. Expansion Slot
11. High-Density SCSI Connector
1 2 3 4 5 6 7 8 9 10 11

16 Chapter 1: System Overview
Safeguards
Power Button and System LEDs
Thechassisincludes systemLEDstoindicate fanandthermalstatus,
hard disk status, and system power status.
LED Information
Fan Fail LED
When the fan speed is normal, this LED is ON (steady green). The
LED turns to steady red when the fan speed crosses a critical
threshold.
Temperature LED
When the system temperature is normal, this LED is ON (steady
green). The LED turns to steady red when the system temperature
crosses a critical threshold.
SCSI HDD Drive Status LEDs
The SCSI hard disks have individual LEDs. When a hard disk is
installed, the specific LED for that hard disk is ON (steady green)
under normal conditions. When the disk becomes faulty, the LED
turns to steady red. The HDD LED is unlit when there is no hard disk
present.
HDD Activity LED
ThisLEDflickers(green)wheneverthereisanIDE/SCSIHDDactivity.
This LED is unlit when there is no disk activity.
Power LED
ThisLEDlightsup(steadygreen)whenyouapplypowertothesystem
by pressing the power button. This LED goes off when you turn off
the system.
Message LED
This LED is software programmable to indicate conditions such a
power outage.
1. Reset Switch
2. Fan Fail LED
3. Temperature LED
4. HDD0 Status LED
5. HDD1 Status LED
6. HDD2 Status LED
7. Hard Disk Activity LED
8. Power LED
9. Power Button
10. Programmable Message LED
1 2 3 4 5 6 7 8 9 10

17AP1400R Server User’s Manual
This chapter tells how to get started with
theAP1400Rserver.Thebasicoperation
includes connecting the cables and
powering on the system.
Chapter 2
Basic Operation

18 Chapter 2: Basic Operation
Getting Star ted
Before you turn on the server, make sure that you have completed
the basic system connections. Follow these steps when starting the
server.
Monitor Connection
Connect a monitor by
plugging a video cable to
thevideo port (blueport)at
the back of the server.
Video Port
Power Connection
Connect a power cord to
theAC power connector at
thebackof the server,then
plug the power cord to a
grounded wall socket.
AC Power Connector
Power ON
Turn on the server by
pressing the power button
on the front panel.
Power Button
Check LED
After turning on the power,
check if the power LED
lights up.
Power LED

19AP1400R Server User’s Manual
This chapter describes the hardware
setup procedures that you have to
perform when installing system
components. It also gives detailed
information on the internal components
and how to install them.
Chapter 3
Hardware Setup

20 Chapter 3: Hardware Setup
Checklist
Opening the Chassis
TheAP1400Rchassisisa1U form factordesigned foreasy assembly
anddisassembly, makingtheinstallation ofinternalcomponents very
convenient. At the top of the chassis is a rotating lock that secures
the cover to the chassis.
Rotating Lock
Unlocking the Cover
To unlock the cover, turn
the rotating lock
clockwise until the
triangle mark points to
OPEN.
OPEN
Triangle Mark
CLOSE
