Atag IC series User manual

User manual
8G.52.86.00 / 10.18 Changes reserved.
iC-Range
iS-Range
iR-Range

User manual ATAG iC, iS and iR-Range
2
Contents
1. Introduction ....................................................................................3
2. Safety .............................................................................................5
3. Boiler description............................................................................6
4. Display and functions .....................................................................6
4.1 DHW and Heating program....................................................7
4.2 Boiler information ...................................................................8
4.3 Pump function / Boiler frost protection .................................10
5. Filling the heating system.............................................................11
6. Error codes...................................................................................13
7. Maintenance.................................................................................14
8. Warranty.......................................................................................14
9. Disposal of the product ................................................................14
Important!
It is in your own interest that we should know that you have an ATAG
boiler. Please ll out the warranty card completely and send it back to us.
Then we can be fully at your service.

User manual ATAG iC, iS and iR-Range
3
1 Introduction
These operating instructions describe the functioning and the operating of the ATAG
i-Range boilers. This manual is for the end user. For installation and servicing there is an
installation & servicing instructions manual for the installer.
Read this manual fully before operating the boiler. In case of doubt or errors contact your
installer.
ATAG Heating Technology Ltd reserves the right to change the specications and
dimensions without prior notice.
Work on the boiler must be carried out by a competent person, (Ref: Gas Safe Register)
using correctly calibrated instruments with current test certication.
When replacing parts use only ATAG Service parts.
Contact details for ATAG Heating Technology Ltd can be found on the back page of this
manual.

User manual ATAG iC, iS and iR-Range
4
The Benchmark Scheme
ATAG Heating Technology Ltd is a licensed member of the Benchmark Scheme which aims
to improve the standards of installation and commissioning of domestic heating and hot
water systems in the UK and to encourage regular servicing to optimise safety, e󰀩ciency
and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council. For
more information visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside
back pages of the installation instructions supplied with the product and that you have
signed it to say that you have received a full and clear explanation of its operation. The
installer is legally required to complete a commissioning checklist as a means of complying
with the appropriate Building Regulations (England and Wales).
All installations must be notied to Local Area Building Control either directly or through
a Competent Persons Scheme. A Building Regulations Compliance Certicate will then
be issued to the customer who should, on receipt, write the Notication Number on the
Benchmark Checklist.
This product should be serviced regularly to optimise its safety, e󰀩ciency and performance.
The service engineer should complete the relevant Service Record on the Benchmark
Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty work and as
supporting documentation relating to home improvements in the optional documents
section of the Home Information Pack.

User manual ATAG iC, iS and iR-Range
5
2 Safety
Work on the installation should only be carried out by qualied personnel with calibrated
equipment. When replacing parts, only ATAG Service components may be used.
The device may be operated only by authorized persons who have been
instructed on the operation and use of the device. Improper use may cause
damage to the device and / or to the connected installation.
The appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction.
Children being supervised not to play with the appliance.
If you smell gas:
- No naked ames! No smoking!
- Do not switch lights on or o󰀨 or use other electrical switches.
- Do not use the phone
- Close the gas mains
- Open windows and doors
- Warn the occupants and leave the building
- Only call the gas company or installer once you are outside the building.
Corrosion protection
Do not use sprays, chlorine-containing cleaning products, solvents, paints etc. in the
vicinity of the device or its air supply. These substances have an adverse impact on the
device and can lead to corrosion that may result in failures.
Checking the heating water
Always use potable water for lling the installation.
Adding chemical agents such as frost and corrosion inhibitors are only to be added by your
installer.
If in doubt, check with your installer or ATAG Heating Technology Ltd.

User manual ATAG iC, iS and iR-Range
6
3 Boiler description
The ATAG i-Range boiler is a closed, condensing and modulating heating boiler which
meets the European standard (CE).
A declaration of conformity can be obtained from the manufacturer.
The efficiency of the boiler is very high and the radiation convection and standby
losses very low. The emission of noxious substances is far below the fixed standards
so the boiler is >88% E󰀩cient SEDBUK 2009 rated.
4 Screen and functions

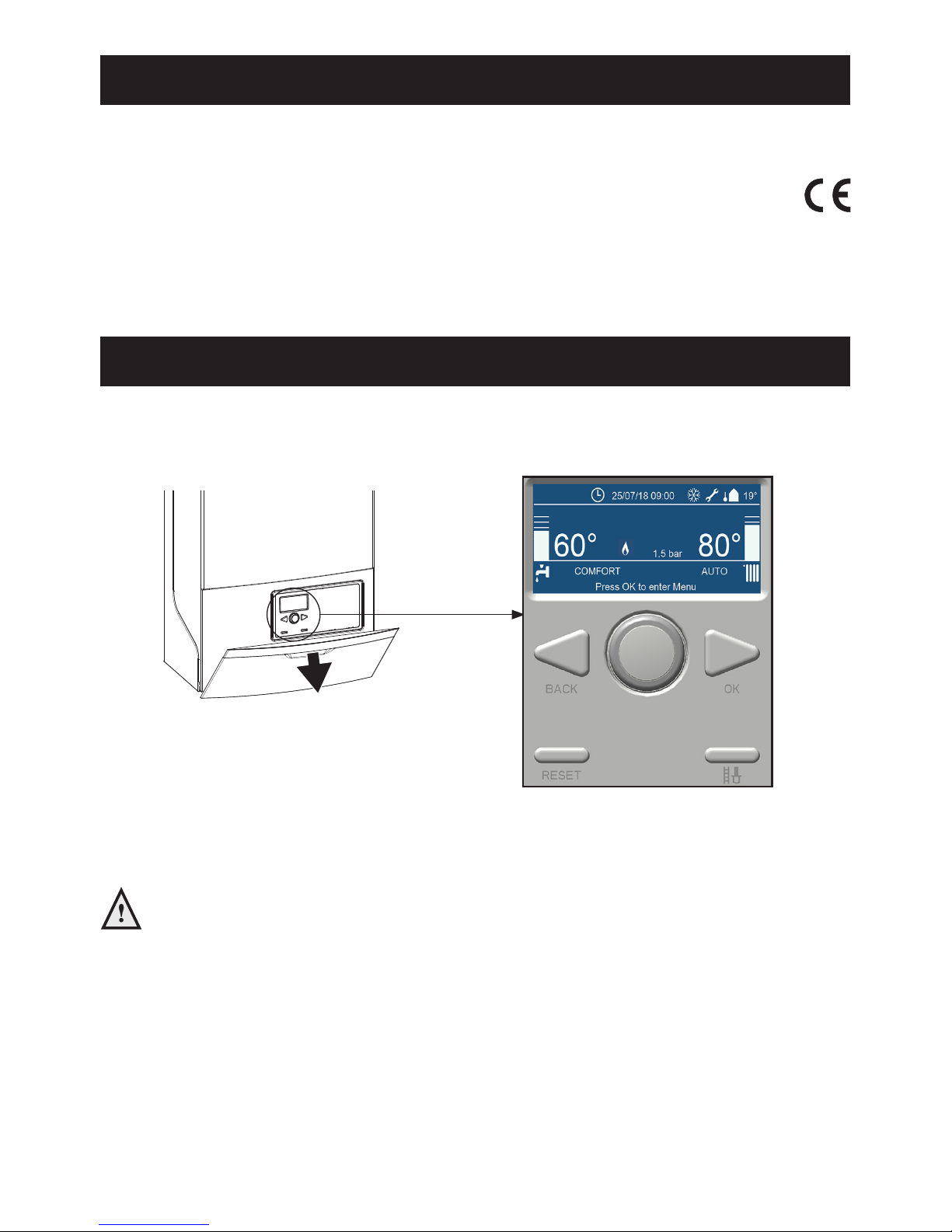

The boiler is equipped with a door at the front. For opening the door just pull at the door
handle.
After opening the ap you will nd on the inside of the ap a brief overview of the meaning
of all the buttons and icons. These are described hereafter.
The Control unit has a 'sleep mode' if no key is operated within a certain time.
Activation occurs by any key operation.
Explanation of the buttons
1. Selector Wheel Turn the wheel left or right to scroll through available menu
options
2. OK button Press to select/conrm an item
3. BACK button Press to go back one screen
4. RESET button Press to reset a fault code
5. Commissioning Press to enter into service mode which allows adjustment of
button high re/low re and CO2settings (Do not use. For service
purposes only)
2
45
31

User manual ATAG iC, iS and iR-Range
7
4.1 DHW and Heating program
Change the Central Heating Setpoint Temperature
1. From the Home screen, press OK.
2. Turn the selector wheel to highlight Complete Menu. Press OK.
3. CH Settings is highlighted. Press OK.
4. CH Setpoint Temp is highlighted. Press OK.
5. T set Z1 is highlighted. Press OK.
Note: T set Z2 and T set Z3 are inactive functions.
6. Turn the selector wheel until the desired temperature appears on the screen.
Press OK.
7. Press the Back button until the Home screen appears.
Change the DHW Setpoint Temperature
1. From the Home screen, press OK.
2. Turn the selector wheel to highlight Complete Menu. Press OK.
3. Turn the selector wheel to highlight DHW Settings. Press OK.
4. Option DHW Comfort Setpoint Temp is highlighted. Press OK.
5. The current DHW comfort Setpoint temperature is displayed. Press OK.
6. Turn the selector wheel until the desired temperature appears on the screen.
Press OK.
7. Press the Back button until the Home screen appears.
Outdoor temperature (if connected)
Maintenance warning present
Pump continuous/frost protection
Burner on
DHW status symbol. A box around
the tap symbol indicates DHW is in
operation
Central heating status symbol.
A box around the radiator symbol
indicates central heating is in
operation
Hot water is not preheated
Hot water is pre-heated and kept
hot
ECO
COMFORT

User manual ATAG iC, iS and iR-Range
8
4.2 Boiler information
To gain access to the Boiler information, proceed as follows:
The Boiler information is accessable through a code.
1 From the controller Home screen, press the BACK
and OK buttons at the same time for 7 seconds.
2 Turn the selector wheel to highlight 007 as the
Technical Code.
Press OK.
3 Turn the selector wheel to highlight Complete Menu.
Press OK.
It is now loading the menu.
As an example we take the CH Flow Set T.
4 Turn the selector wheel to highlight 8 Service
Parameters.
Press OK.
4 Option 8.3 Boiler Temperature is highlighted.
Press OK.
5 Option 8.3.0 CH Flow Set T is highlighted.
Press OK.
The screen left appears.

User manual ATAG iC, iS and iR-Range
9
A list of the most common Boiler information can be found in the table below
8.2.2 Fan Speed in Rpm
8.2.5 DHW Flow Rate in l/min
8.2.8 Gas Power in kW
8.2.9 Heating circuit pressure in bar
8.3.0 CH Flow Set T in °C
8.3.1 CH Flow T in °C
8.3.2 CH Return T in °C
8.3.3 DHW Flow T in °C
8.3.5 Outdoor T (only if an outside sensor is connected) in °C
8.7.5 Ionization current in µA

User manual ATAG iC, iS and iR-Range
10
4.3 Pump function
By default the boiler is set in such a manner that the pump will switch on in case of a heat
request for CH or
DHW. Switching on and o󰀨 is managed entirely by the control system.
Danger of frost
If there is danger of frost damage to the CH installation, it is advisable to let the pump run
continuously, proceed as follows:

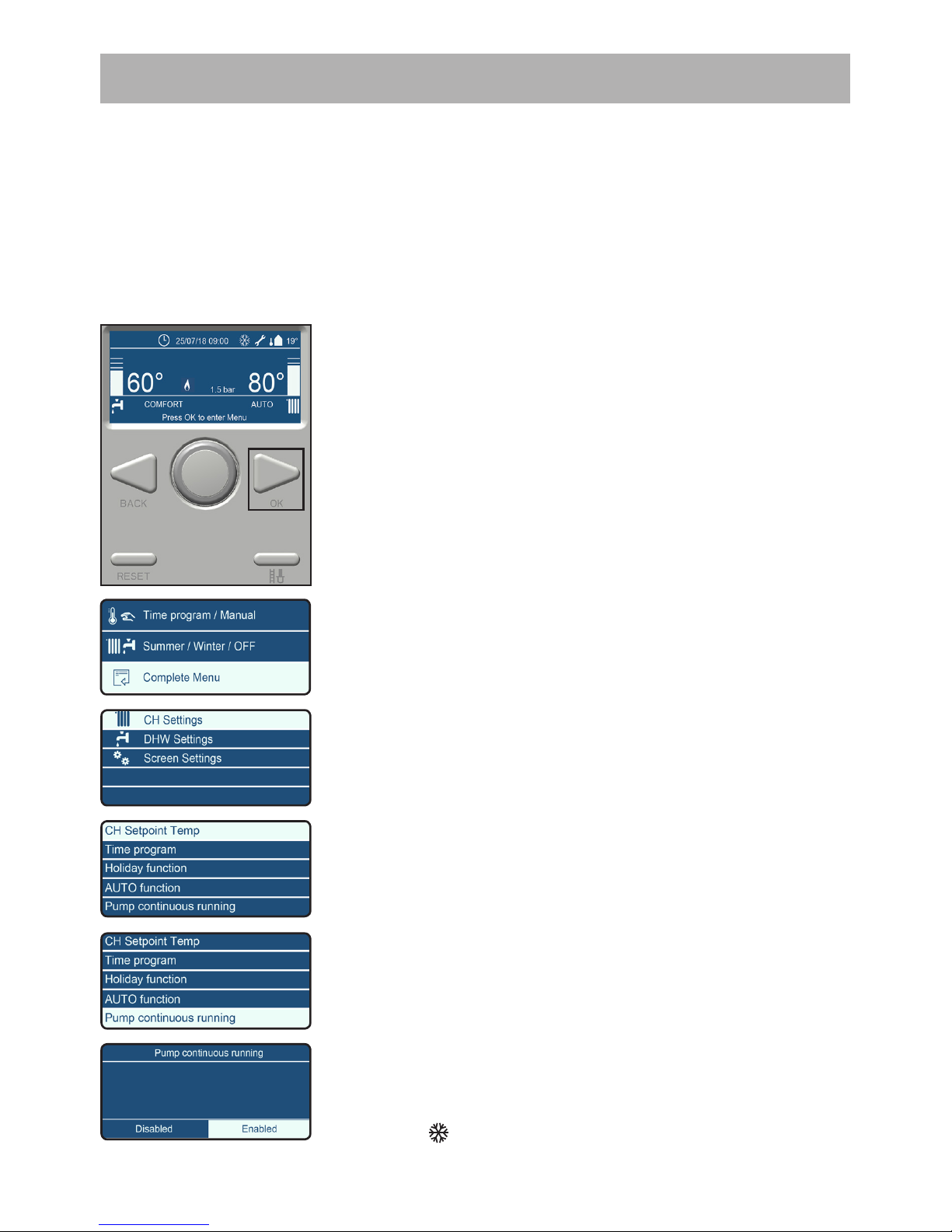

1 From the controller Home screen, press OK.
2 Turn the selector wheel to highlight Complete Menu.
Press OK.
3 CH Settings is highlighted.
Press OK.
4 Option CH Setpoint Temp is highlighted.
Press OK.
5 Turn the selector wheel to highlight Pump
continuous running.
Press OK.
7 Turn the selector wheel to highlight Enable.
Press OK.
If the pump is set to continuously this is displayed
by .

User manual ATAG iC, iS and iR-Range
11
Boiler frost protection
If the (T1) ow sensor registers a temperature of 5°C or below in the boiler, the boiler will
re up. The boiler keeps on ring until the temperature reaches 10°C (measured on the
ow sensor) and the boiler switches o󰀨 again.
5 Filling the heating system
Information on the water pressure (only iC and iS)
Information of the actual water pressure:
The controller Home screen shows OK. The actual water
pressure is always visible.
Water pressure is too low (<0.8 bar):
Power is reduced by 20%. The installation should be relled.
Water pressure is too low (<0.5 bar):
The boiler is taken out of operation. The installation should be
relled.
Air purge program:
After the installation has been relled and if the pressure was
below 0.5 bar the air purge program will start. This will last for
approximately 7 minutes.
Water pressure is too high (> 3.0 bar):
The boiler is taken out of operation.
The installation pressure should be reduced by draining water
from the heating system.
The central heating installation needs to be lled with potable water according to the
requirements in chapter 9.3 'Water quality' in the Installation manual. For lling or topping
up the installation use the lling loop according to the following procedure (see gure 1).

User manual ATAG iC, iS and iR-Range
12
Filling procedure
Combi boiler (iC-Range):
The iC-Range boiler is provided with a lling loop.

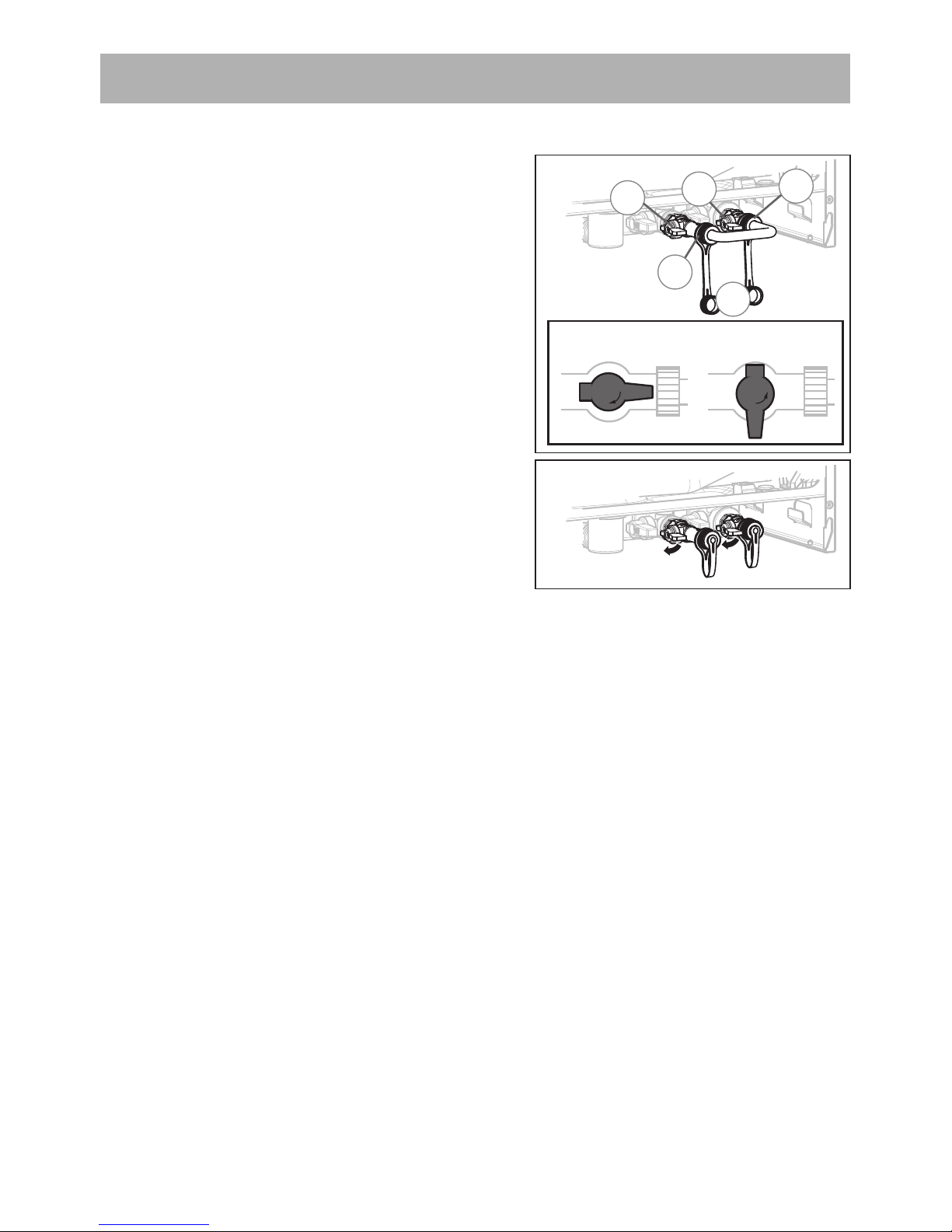

Connect the lling loop between cold water
connection (1) and CH connection (2)
- Open slowly the valves (A and B) of the lling
loop;
- Read the water pressure from the pressure
gauge under the boiler or from the display
according to the procedure described above
and wait until the pressure reaches between 1.0
and 1.2 bar;
- Close both valves (A and B) of the lling loop.
Always disconnect the lling loop and close the
valves with the cap nut (3).
System boiler (iS-Range)
The heating system connected to the iS-Range
boiler is provided with a lling loop.
Connect the lling loop between cold water tap and
the connection on the heating system
- Open slowly the valves of the lling loop
- Read the water pressure from the pressure
gauge under the boiler or from the display according to the procedure described above
and wait until the pressure reaches 1.2 bar.
- Close both valves of the lling loop
Always disconnect the lling loop.
Regular boiler (iR-Range)
This boiler is part of an 'Open Vent' heating system. The system is not pressurized, but is
lled automatically by a lling system in the loft.
If there is a problem with this system, please contact your installer.
When the heating system is lled and after a power interruption the boiler will be reset
and starts with a air purge program. The automatic air purge program will take approx. 7
minutes and will be followed by the home screen if the water pressure is above 0.8 bar
(pressure reading for iC & iS boilers only).
OPEN CLOSED
OPEN CLOSED
1
2
AB
3
Figure 1

User manual ATAG iC, iS and iR-Range
13
6 Error codes
A detected failure is indicated on the screen in blocking or error messages.
- Blocking code
A blocking code is a temporary error that can be automatically corrected
by the boiler.
- Error code
A error code requires the error to be reset and/or corrected for the boiler
to go back into a normal operating mode. A “Press the Reset button”
message appears on the screen.
An overview of the most common blocking and error codes are listed below.
101 Overheat
102 Pressure Sensor Error
104 Flow Check Failed
108 Pressure < Pmin (< 0.5 bar), Filling needed
1P4 Pressure < Pmin (0.5 - 0.8 bar), Filling needed
109 Pressure > Pmax
110 Send Probe Damaged
112 Return Probe Damaged
114 Outdoor Sensor Damaged
141 CH Flow Switch open
201 DHW Probe Damaged (Combi)
203 Tank Probe Damaged (Solo)
303 PCB Fault
304 Too many resets
501 No ame detected
612 Fan error (fan does not start up)

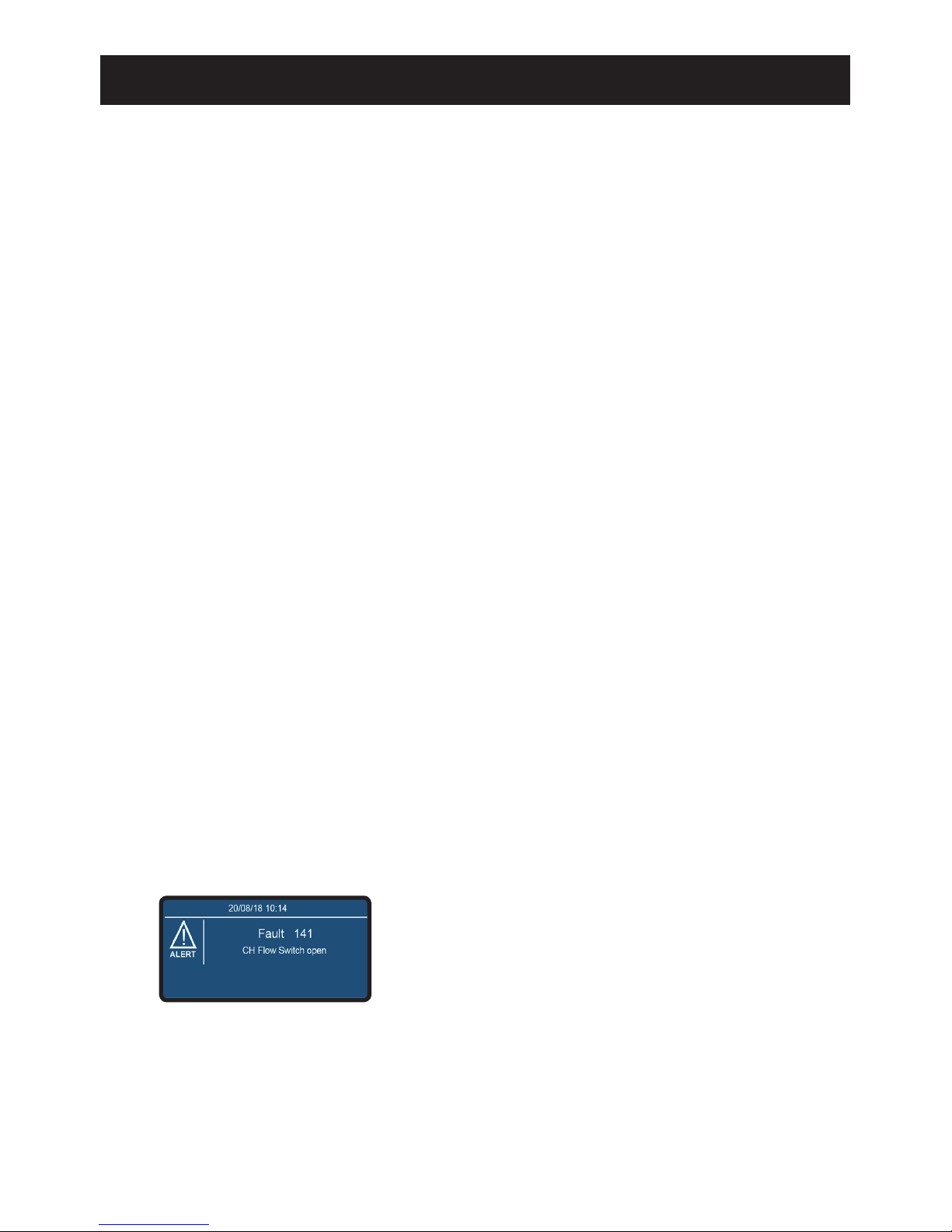

Example of screen of error message

User manual ATAG iC, iS and iR-Range
14
7 Maintenance
Conclude a maintenance agreement with your installer in order to have the installation
periodically checked and adjusted.
The cover of the boiler consists of metal and plastic parts, which can be cleaned with a
normal (non-aggressive) cleansing agent.
8 Warranty
For the warranty conditions, see the Warranty Card that has been supplied with the boiler.
9 Disposal of the product
This product should be handed in at a designated collection point, e.g. by handing it in at
a duly authorized reseller when purchasing a similar product, or at an authorized collection
site for recycling products which contains electrical and electronic equipment (EEE) and
batteries and accumulators. Because of the potentially hazardous substances that usually
accompany EEE, improper handling of this type of waste could have a possible impact on
the environment and human health.
Your cooperation in the proper disposal of this product will contribute to the e󰀨ective usage
of natural resources.
For more information on recycling this product, please contact your city o󰀩ce, local waste
disposal facilities, o󰀩cial service for chemical waste, landll site, or your supplier.

User manual ATAG iC, iS and iR-Range
15

This renewed publication cancels all previous installation instructions. The company reserves the right to change the specications and dimensions without prior notice.
E. & O. E.
ATAG Heating Technology Ltd. • 80 Churchill Square Business Centre • Kings Hill • West Malling • Kent ME19 4YU
Phone: [phone] • E-mail: [email protected] • Internet: www.atagheating.co.uk
