English Section

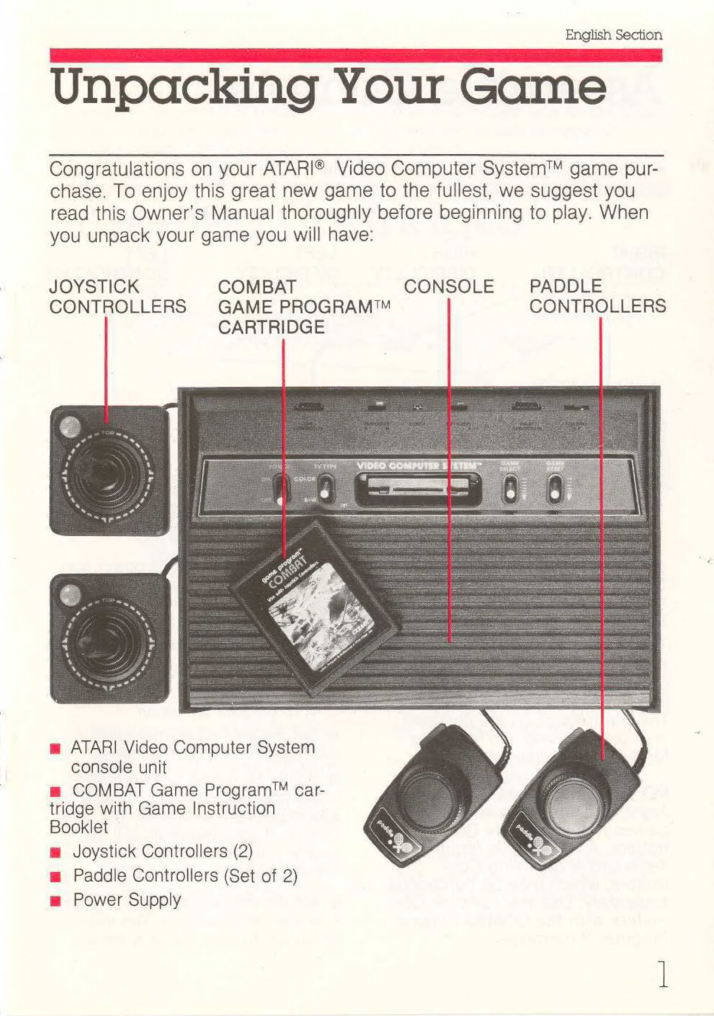

Unpacking Your Game
Congratulations on your ATARI® Video Computer System™ game pur-
chase. To enjoy this great new game to the fullest, we suggest you
read this Owner’s Manual thoroughly before beginning to play. When
you unpack your game you will have:
JOYSTICK COMBAT CONSOLE PADDLE
CONTROLLERS GAME PROGRAM™ | CONTROLLERS
CARTRIDGE
ATARI Video Computer System
console unit
1 COMBAT Game Program™ car-
tridge with Game Instruction
Booklet
Joystick Controllers (2)
| Paddle Controllers (Set of 2)
m Power Supply

English Section

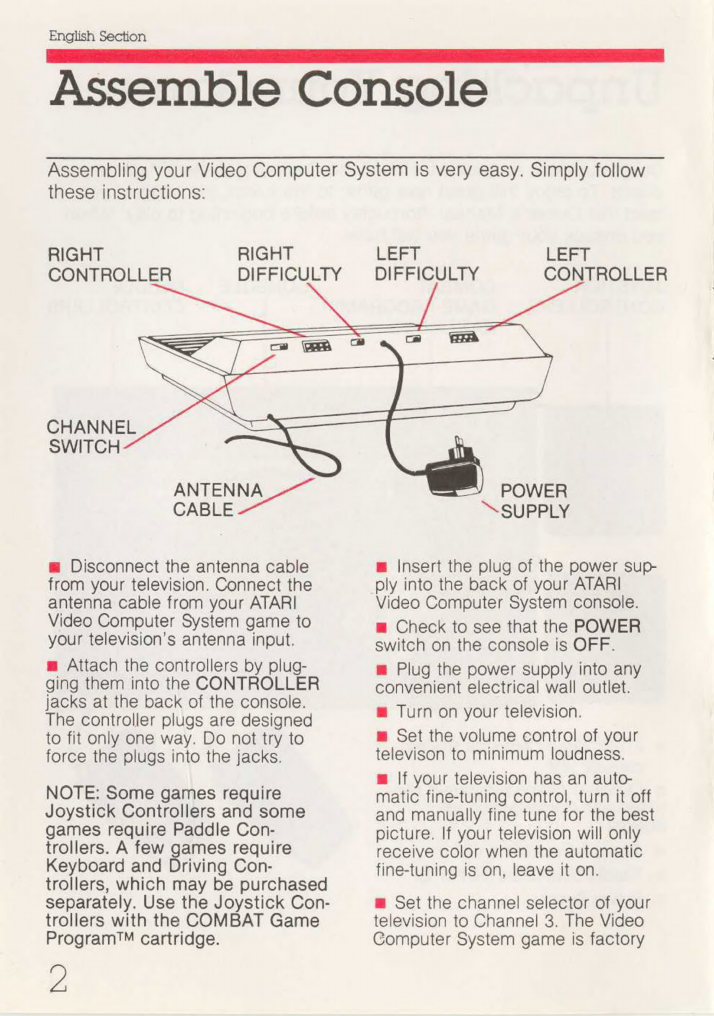

Assemble Console
Assembling your Video Computer System is very easy. Simply follow
these instructions:
RIGHT RIGHT
CONTROLLER DIFFICULTY
CHANNEL
SWITCH
ANTENNA _——
CABLE
m Disconnect the antenna cable
from your television. Connect the
antenna cable from your ATARI
Video Computer System game to
your television’s antenna input.
m Attach the controllers by plug-
ging them into the CONTROLLER
jacks at the back of the console.
The controller plugs are designed
to fit only one way. Do not try to
force the plugs into the jacks.
NOTE: Some games require
Joystick Controllers and some
games require Paddle Con-
trollers. A few games require
Keyboard and Driving Con-
trollers, which may be purchased
separately. Use the Joystick Con-
trollers with the COMBAT Game
Program™ cartridge.
Z
LEFT LEFT
DIFFICULTY
CONTROLLER
=/ POWER
“SUPPLY
m Insert the plug of the power sup-
ply into the back of your ATARI
Video Computer System console.
m Check to see that the POWER
switch on the console is OFF.
m Plug the power supply into any
convenient electrical wall outlet.
@ Turn on your television.
m Set the volume control of your
televison to minimum loudness.
m If your television has an auto-
matic fine-tuning control, turn it off
and manually fine tune for the best
picture. If your television will only
receive color when the automatic
fine-tuning is on, leave it on.
m@ Set the channel selector of your
television to Channel 3. The Video
Computer System game is factory

English Section
set to operate on Channel 3. pens, change the channel switch
However, if Channel 3 is broad- on your television and on the Video
casting in your area, you may Computer System console to
receive interference. If this hap- Channel 2 .

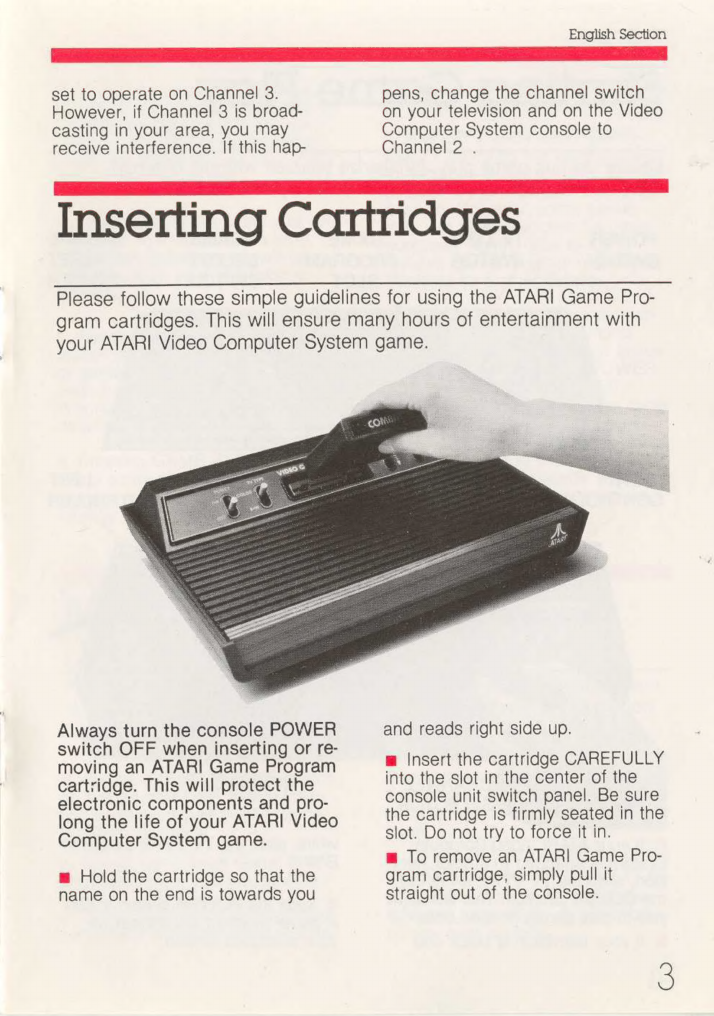

Inserting Cartndges
Please follow these simple guidelines for using the ATARI Game Pro-
gram cartridges. This will ensure many hours of entertainment with
your ATARI Video Computer System game.
Always turn the console POWER and reads right side up.
roving
an
ATARI
Game
Program
Insert
the
cartridge
CAREFULLY
cartridge. This will protect the into the slot in the center of the
electronic components and pro- console unit switch panel. Be sure
long the life of your ATARI Video the cartridge is firmly seated in the
m To remove an ATARI Game Pro-
wm Hold the cartridge so that the gram cartridge, simply pull it
name on the end is towards you Straight out of the console.

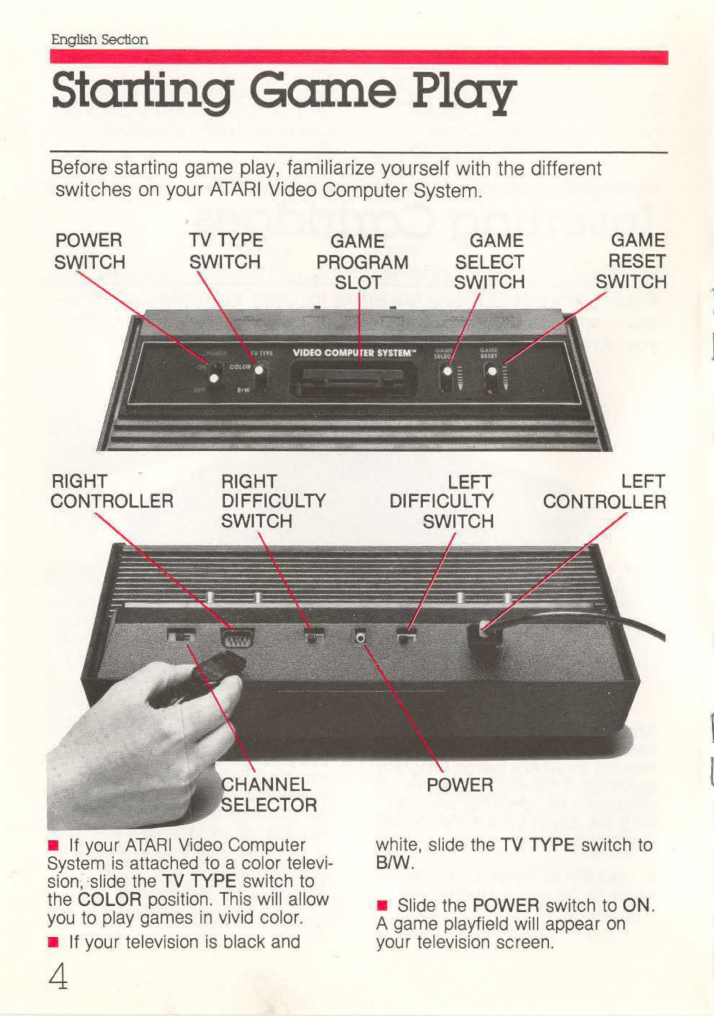

starting Game Play
Before starting game play, familiarize yourself with the different
switches on your ATARI Video Computer System.
POWER TV TYPE GAME GAME GAME
SWITCH SWITCH PROGRAM — SELECT RESET
sE \ SLOT SWITCH SWITCH
RIGHT RIGHT LEFT LEFT
CONTROLLER DIFFICULTY DIFFICULTY CONTROLLER
SWITCH
Paatoeveve : ee Soe
SWITCH
CHANNEL POWER
| SELECTOR
| If your ATARI Video Computer white, slide the TV TYPE switch to
System is attached to a color televi- B/W.
sion, slide the TV TYPE switch to
the COLOR position. This will allow Slide the POWER switch to ON.
you to play games in vivid color. A game playfield will appear on
@ |f your television is black and your television screen.
4

English Section
NOTE: If no playfield appears,
which can happen if you have in-
serted the Game Program car-
tridge while the console is ON,
slide the POWER switch to OFF
and then back to ON.

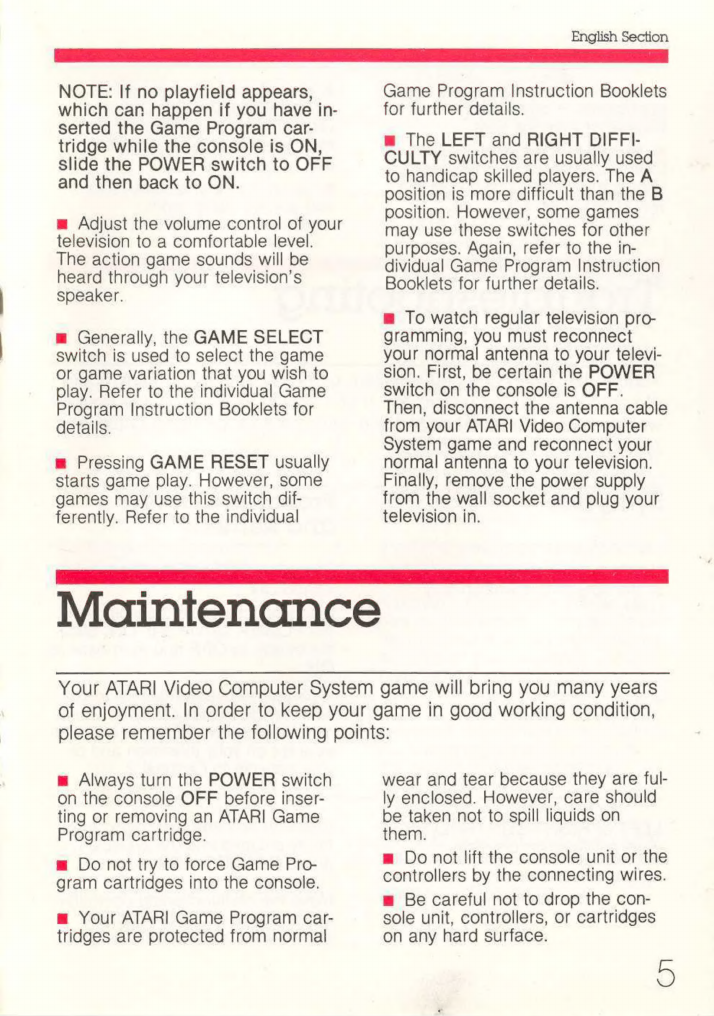

mw Adjust the volume control of your
television to a comfortable level.
The action game sounds will be
heard through your television’s
speaker.
m Generally, the GAME SELECT
switch is used to select the game
or game variation that you wish to
play. Refer to the individual Game
Program Instruction Booklets for
details.
m Pressing GAME RESET usually
starts game play. However, some
games may use this switch dif-
ferently. Refer to the individual
Game Program Instruction Booklets
for further details.
@ The LEFT and RIGHT DIFFI-
CULTY switches are usually used
to handicap skilled players. The A
position is more difficult than the B
position. However, some games
may use these switches for other
purposes. Again, refer to the in-
dividual Game Program Instruction
Booklets for further details.
m To watch regular television pro-
gramming, you must reconnect
your normal antenna to your televi-
sion. First, be certain the POWER
switch on the console is OFF.
Then, disconnect the antenna cable
from your ATARI Video Computer
System game and reconnect your
norma! antenna to your television.
Finally, remove the power supply
from the wall socket and plug your
television in.
Maintenance
Your ATARI Video Computer System game will bring you many years
of enjoyment. In order to keep your game in good working condition,
please remember the following points:
m Always turn the POWER switch
on the console OFF before inser-
ting or removing an ATARI Game
Program cartridge.
m Do not try to force Game Pro-
gram cartridges into the console.
m Your ATARI Game Program car-
tridges are protected from normal
wear and tear because they are ful-
ly enclosed. However, care should
be taken not to spill liquids on
them.
m Do not lift the console unit or the
controllers by the connecting wires.
mw Be careful not to drop the con-
sole unit, controllers, or cartridges
on any hard surface.

English Section
m Do not expose the console unit,
controllers, or cartridges to ex-
cessive or extreme heat.
m Always turn the ATARI Video
Computer System to OFF and
unplug the power supply from the
wall outlet when not in use.
m Use of any power supply other
than that designed for use with
your ATARI Video Computer System
can cause damage to the console
unit.
m Clean the exterior parts with a
soft, slightly damp cloth.

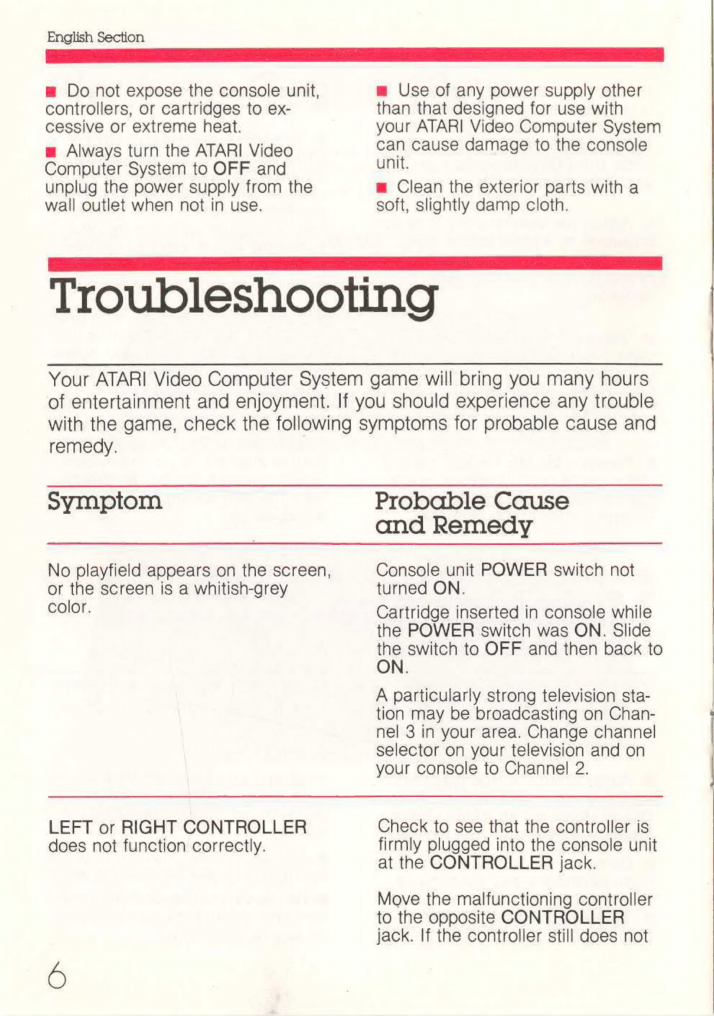

Troubleshooting
Your ATARI Video Computer System game will bring you many hours
of entertainment and enjoyment. If you should experience any trouble
with the game, check the following symptoms for probable cause and
remedy.
Symptom
No playfield appears on the screen,
or the screen is a whitish-grey
color.
LEFT or RIGHT CONTROLLER
does not function correctly.
Ox
Probable Cause
and Remedy
Console unit POWER switch not
turned ON.
Cartridge inserted in console while
the POWER switch was ON. Slide
ae switch to OFF and then back to
N.
A particularly strong television sta-
tion may be broadcasting on Chan-
nel 3 in your area. Change channel
selector on your television and on
your console to Channel 2.
Check to see that the controller is
firmly plugged into the console unit
at the CONTROLLER jack.
Move the malfunctioning controller
to the opposite CONTROLLER
jack. If the controller still does not

English Section
symptom
Playfield is unsteady or not receiv-
ing color.
Playfield is not sharp and not
steady. (Black and white)
Probable Cause
and Remedy
function correctly, it may require
replacement.
TV TYPE switch on console set at
B/W. Change to COLOR.
Television set not fine tuned for the
best picture. Make sure the auto-
matic fine-tuning is off and manual-
ly fine tune for the best picture.
(Note: If your television receives
color only when the fine-tuning is
on, keep the fine-tuning on.)
A particularly strong television sta-
tion may be broadcasting on Chan-
nel 3 in your area. Change channel
selector on your television and your
console to Channel 2.
TV TYPE switch on console set to
COLOR. Change to B/W.
A particularly strong television sta-
tion may be broadcasting on Chan-
nel 3 in your area. Change channel
selector on your television and your
console to Channel 2.
Sound is distorted or buzzing.
Television set not fine tuned. Adjust
the fine-tuning controls until both
the picture and the sound are
clear.
A particularly strong television sta-
tion may be broadcasting on Chan-
nel 3 in your area. Change channel
selector on your television and your
console to Channel 2.

English Section

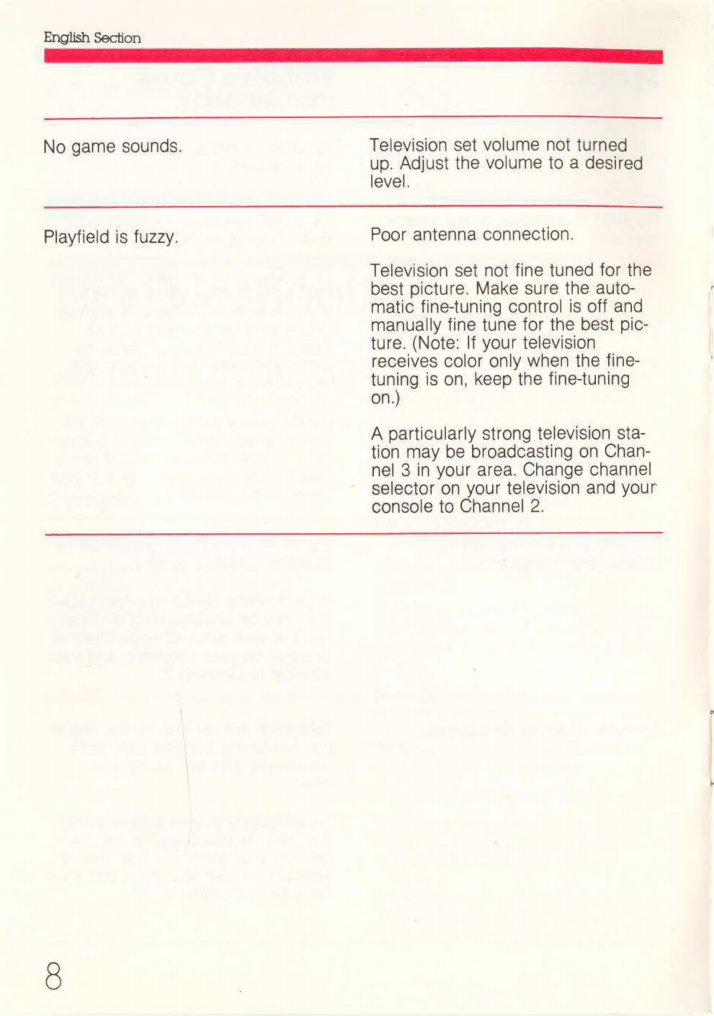

No game sounds.
Playfield is fuzzy.
Television set volume not turned
up. Adjust the volume to a desired
level.
Poor antenna connection.
Television set not fine tuned for the
best picture. Make sure the auto-
matic fine-tuning control is off and
manually fine tune for the best pic-
ture. (Note: If your television
receives color only when the fine-
not a is on, keep the fine-tuning
on.
A particularly strong television sta-
tion may be broadcasting on Chan-
nel 3 in your area. Change channel
selector on your television and your
console to Channel 2.
CO

~~
