Atek MLC 420 User manual

•Incremental Encoder Output A, B, Z, / A, / B, / Z
•Portable Reference Point
•Stroke Values up to 2000 mm
•Socket Building
•Perfect Retention System
•High Stability
•IP65 Protection Class
•Easy Installation
•Same Ruler Available Right or Left
•Delem, Cybelec and ESA Compatible with Devices
OPERATION
MANUAL
MAGNETIC LINEAR SCALES
MLC 420
PORTABLE
REFERENCE POINT

KK-MLC.010 19.02.21 Rev No:3
1

KK-MLC.010 19.02.21 Rev No:3
2
1. Connections must be completed by only authorized personnel.
2. Consider the warnings when completing the connections and using the scale.
3. Pay attention about the sensors power supply. (For TTL sensor max. 5V, for Push-Pull sensor
max. 30V). Don’t energize the scale before all connections completed.
4. Distance between sensor and control unit must be short as possible. Avoid additions except
the suitable connector unless it needs.
5. Be away the sensor cable from high power cables, contactor, engine, or inductive and
capacitive noise sources.
6. The screen cable must be connected to the earth line.
7. The magnetic tape must be away from magnetic areas.
8. The proximity of the band with comparator, magnet or similar instruments having a magnetic
effect, disrupts the working structure of the band.
9. Don’t make any connection when the scale energized.
10.Please call the service for any problem about the scale.
11. Transport and storage should be at their original packaging and an ambient temperature of -
25°C / +85°C in such a way that they will not be exposed to dust, humudity, impact, vibration,
falling or water.
12. Chemicals such as alcohol, thinner etc. should not be used for cleaning the product. The
product should be wiped with a damp cloth.
13. The product may be damaged and may become unusable if used outside of the specifications
in the user manual. In this case, the product will be out of warranty.
1. WARNINGS

KK-MLC.010 19.02.21 Rev No:3
3

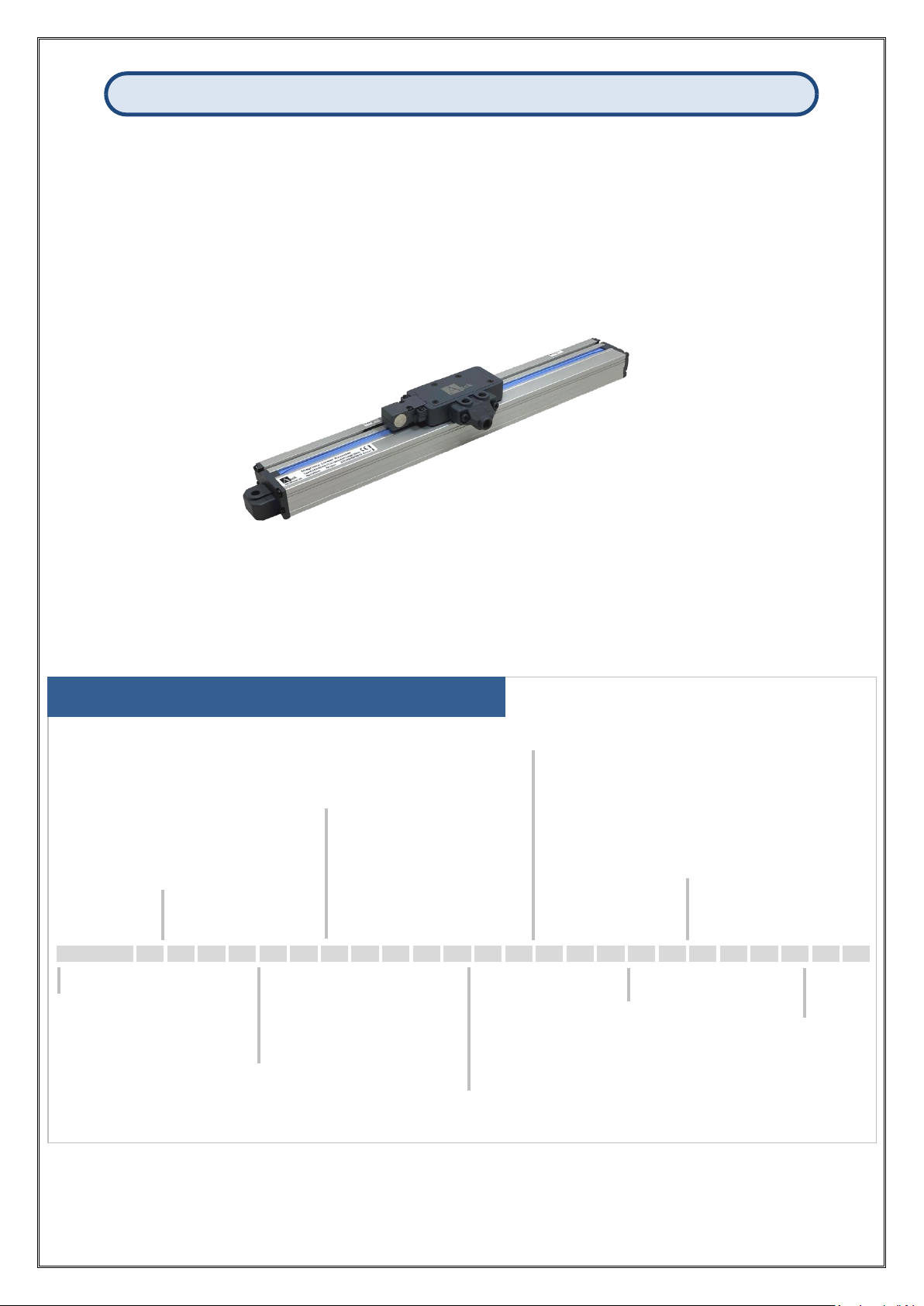

These scales are used to achieve the best performance until the measurement up to 2040 in high speed and
vibrotary area. Thanks to the ıt’s montage point and design, the faults that are appear due to temperature variation
are minimized. On the other hand, the all precautions that is caused by machine are taken. Thanks to the Ergonomic
design , cable output don’t block the scale and works in a stability.
Thanks to the reference point, the side of the MLC 420 that is send by production as a left or right can be changed by
user.
Sensor/Cable Type
C : PUR cable
Right/Left
L : left
R : right
Signal output type
2 : A, B
3 : A, B, Z
4 : A, /A, B, /B
6 : A, /A, B, /B, Z, /
Standard, single Z referance signal
Optional, Z signal at every 2 mm
Model
Cable Length
3M : 3 meters
3.5M : 3,5 meters
4M : 4 meters
5M : 5 meters
6M : 6 meters
7M : 7 meters
8M : 8 meters
9M : 9 meters
10M: 10 meters
15M: 15 meters
* Please ask for other options
Power Supply and Output
TTL : 5VDC Supply Voltage,
5 VDC TTL RS422 Line Driver Signal Output
PP : 10…30 VDC Supply Voltage,
10…30 VDC Push-Pull Signal Output
HTL : 10…30 VDC Supply Voltage,
5 VDC TTL RS422 Line Driver Signal Output
HPL : 5…30 VDC Supply Voltage,
5…30 VDC Push-Pull Signal Output
2. GENERAL INFORMATION
PRODUCT CODE
ÜRÜN KODLAMASI
MLC420
-
X
X
-
X
X
-
X
X
X
-
X
-
X
X
-
X
-
X
X
X
mm
-
X
Resolution
05 : 5µm
10 : 10µm
25 : 25µm
50 : 50µm
Measuring distance
See standard stroke lengths
table, contact for other stroke
lengths.
Magnetic tape
B2

KK-MLC.010 19.02.21 Rev No:3
4
Technical Specification
Operation Temperature
- 25 to 85 °C
Storage Temperature
- 40 to 100 °C
Protection Class
IP65
Body
Aluminum
Magnetic Tape Type
B2
Reading Tape Distance
1,5 mm
Opertaion Speed
3 m/s max.
Connection
D-Sub 9 Pin, 5 or 8 x 0,14 mm2shielded cable
Accuracy
± 40 µm
Repeataibility
± 1 pulse
ELEKTRICAL SPECIFICATIONS
Power Supply
5 Vdc, +10 Vdc…+30Vdc
Current Supply
40 mA/per channel max.
Output Type
TTL, Push Pull Line Driver
Output Signal
A, /A, B, /B, Z, /Z
Output Current
40 mA/per channel max.
Immunity
EN-61000-6-2:2005
DIMENSIONS
Standard Measuring
Lengths *
100
120
150
170
200
220
250
270
300
320
350
370
400
420
450
470
500
520
550
570
600
650
700
750
800
850
900
950
1000
1100
1200
1300
1400
1500
1600
1700
1800
2000
3. TECHNICAL SPECIFICATION

KK-MLC.010 19.02.21 Rev No:3
5
Pin Number
Cable Color
Signal
1
Yellow
A
2
White
/B
3
Red
POWER SUPPLY
4
Black
0 V
5
Blue
/A
6
Green
B
7
Grey
/Z
8
Pink
Z
9
SHIELD
GROUND
4. CONNECTION
1
2
3
4
5
6
7
8
9
4.1. Pin Connections

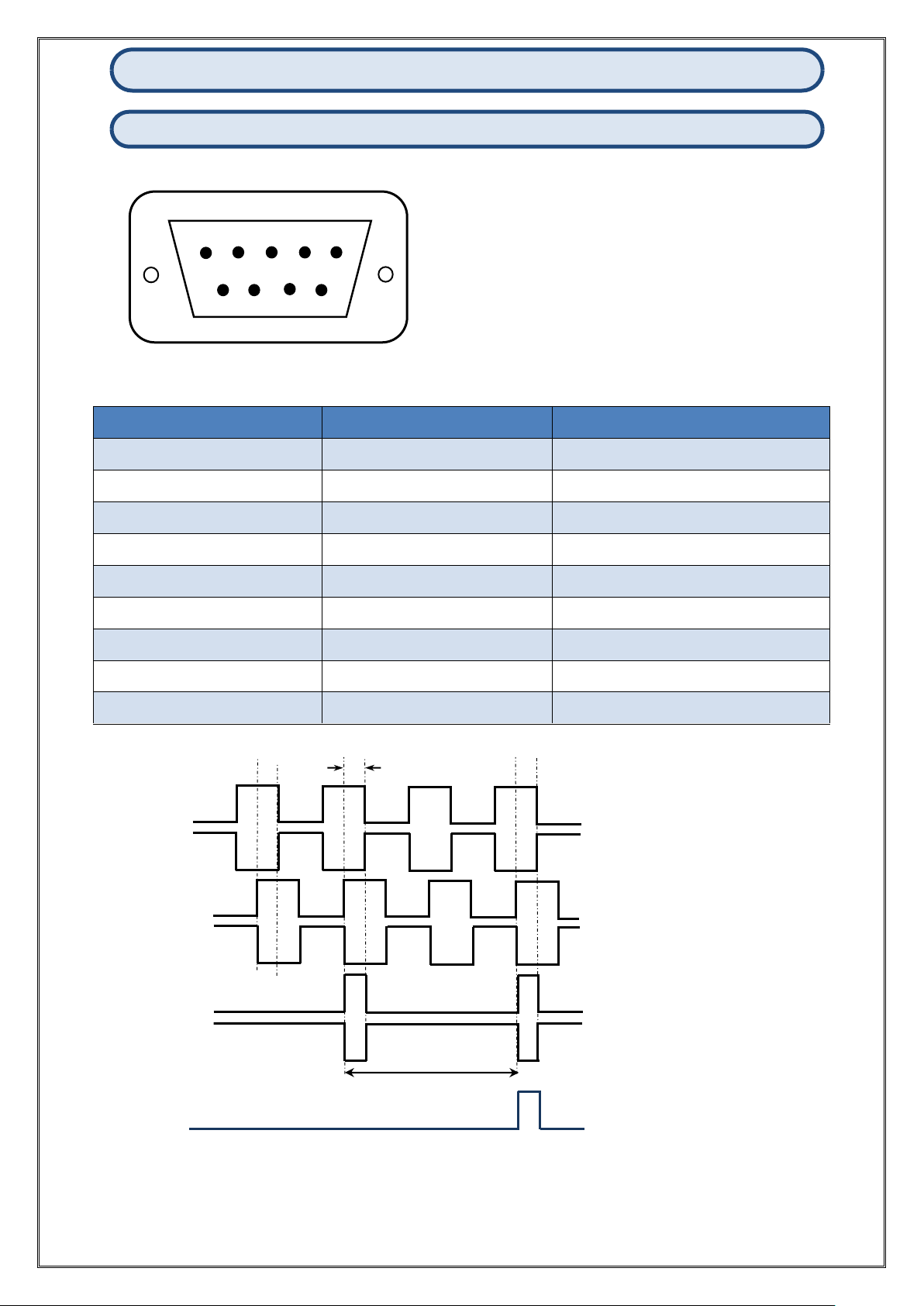

In the below table the cable color of the sensor
output signals is given. If the control circuit is
suitable in the Line Driver sensors the output
signal inverts (/A, /B, /Z) must be included in
the system. If the control circuit is not suitable
for this application /A, /B, /Z signal cables must
be immobilized seperately isolated. Don’t
forget that there are also currents on these
cables.
A
/A
B
B
/B
Z
/Z
90°Phase
Optional
Every 2 mm, Z Pulse
Standard
One “Z” Reference Signal
(for example at the start point)
2 mm

MLC 420, thanks to the movable reference point you can change the factory output directions. For example the
scales which is produced as right side can be return to the left side scale.
4.2. Reference Point Changing ( Right/ Left Changing )
For this operation a phillips screwdriver, a 1,5
mm allen, a 3 mm allen are needed.
The connector is detached by phillips screwdriver.
After detaching the connector open it by
phillips screwdriver to change the cable
direction..
Change the cable (1 ) and protection cover (2)
places. And close the connector.
1
2
The connector is put on its place. The screws is
closed again by Phillips screwdriver. Anymore
the cablo is on the other side.
The set screw screwdrivers of top installation
head are loosened with 3 mm allen and top
connection head is removed.
The top installation head that is removed is screwed
to the sensor’s other side with the help of the allen.
Reference determining’s set screw screws are removed to
change the reference point with 1,5 mm allen and drifted to
the other reference point. Set screw are squeezed again.
Anymore MLC 420 can be used as a
left scale.
Reference
Points

KK-MLC.010 19.02.21 Rev No:3
7
Installation the MLC 420 is an important point in terms of the proper system function. The reader head is bearded in
the profile, the distance between the profile and reader head is constant. The parallelism between the reader head
and profile should stay same during the whole distances. The scale and reader head body should be set with the
proper equipments like comparator during the montage stage.
EXAMPLE OF THE MLC 420 R&L (RIGHT AND LEFT) SENSOR APPLICATION
4.3. Montage
Max 0,2 mm
deviation can be.
0,2
Max 0,2 mm
deviation can be.
0,2
KEEP AWAY FROM THE STRONG MAGNETIC AREA
PRESS BRAKE
Control
Panel
D-Sub 9 Pin
Connector
D-Sub 9 Pin
Connector
Reference
Reference
Atek
WARNING !!!
When you are changing the cable place, pay attention to the arrow (1) must be like the figure.
1

KK-MLC.010 19.02.21 Rev No:3
8
S41 Socket
S87 Socket
S86 Socket
S71 Socket
S50 and S58 Socket
S42 Socket (SINO Connection)
*Other Socket Connections
Pin Number
Cable Color
Signal
1
-
-
2
RED
POWER SUPPLY
3
BLACK
GROUND
4
BLUE
/A
5
YELLOW
A
6
WHITE
/B
7
GREY
/Z
8
PINK
Z
9
GREEN
B
Pin Number
Cable Color
Signal
1
RED
POWER SUPPLY
2
BLACK
GROUND
3
YELLOW
A
4
PINK
Z
5
GREEN
B
6
WHITE
/B
7
GREY
/Z
8
BLUE
/A
9
-
-
Pin Number
Cable Color
Signal
1
PINK
Z
2
GREEN
B
3
YELLOW
A
4
-
-
5
BLACK
GROUND
6
GREY
/Z
7
WHITE
/B
8
BLUE
/A
9
RED
POWER SUPPLY
Pin Number
Cable Color
Signal
1
BLACK
GROUND
2
BLUE
/A
3
WHITE
/B
4
GREY
/Z
5
RED
POWER SUPPLY
6
YELLOW
A
7
GREEN
B
8
PINK
Z
9
-
-
Pin Number
Cable Color
Signal
1
PINK
Z
2
GREY
/Z
3
RED
POWER SUPPLY
4
-
-
5
BLACK
GROUND
6
YELLOW
A
7
BLUE
/A
8
WHITE
/B
9
GREEN
B
Pin Number
Cable Color
Signal
1
BLUE
/A
2
BLACK
GROUND
3
WHITE
/B
4
-
-
5
GREY
/Z
6
YELLOW
A
7
RED
POWER SUPPLY
8
GREEN
B
9
PINK
Z

KK-MLC.010 19.02.21 Rev No:3
9
S57 Socket
S43 Socket
Pin Number
Cable Color
Signal
1
YELLOW
A
2
BLUE
/A
3
-
-
4
PINK
Z
5
GREY
/Z
6
-
-
7
-
-
8
BLACK
GROUND
9
-
-
10
GREEN
B
11
WHITE
/B
12
-
-
13
-
-
14
-
-
15
RED
POWER SUPPLY
Pin Number
Cable Color
Signal
1
YELLOW
A
2
BLUE
/A
3
GREEN
B
4
WHITE
/B
5
PINK
Z
6
GREY
/Z
7
-
-
8
-
-
9
RED
POWER SUPPLY
10
-
-
11
BLACK
GROUND
12
-
-
13
-
-
14
-
-
15
SHIELD
GND

KK-MLC.010 19.02.21 Rev No:3
10

KK-MLC.010 19.02.21 Rev No:3
11
