CS533
USER MANUAL
USB to Bluetooth KM Switch

FCC Information
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instruction manual, may
cause interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna;
Increase the separation between the equipment and receiver;
Connect the equipment into an outlet on a circuit different from
that which the receiver is connected;
Consult the dealer or an experienced radio/television technician
for help.
You are cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void your
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC ID: JYX-CS533
RoHS
This product is RoHS compliant.

- 3 -

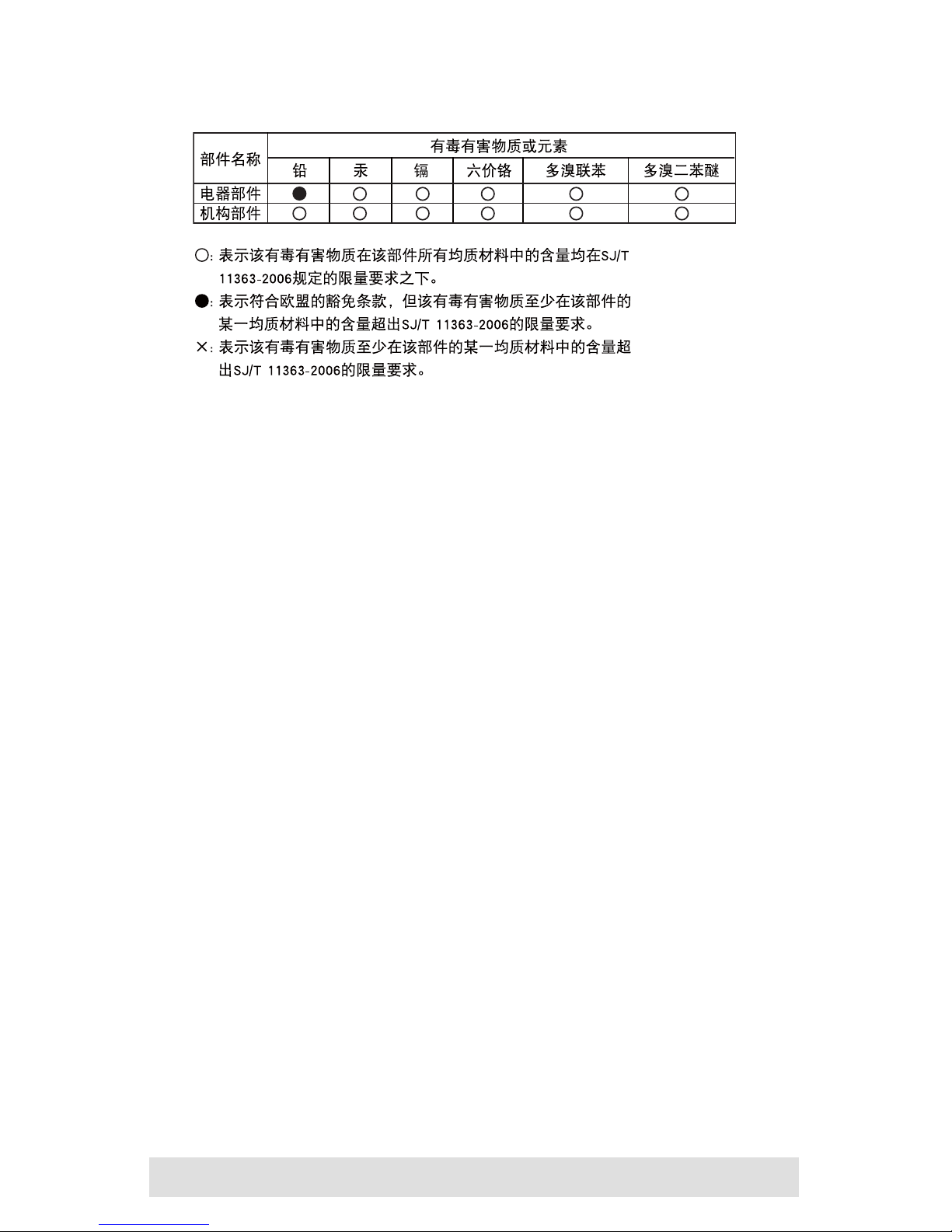

SJ/T 11364-2006
The following contains information that relates to China.

- 4 -
CS533 User Manual
Online Registration
Telephone Support
Technical Support
For international online technical support – including
troubleshooting, documentation, and software updates:
http://support.aten.com
For North American technical support:
International http://support.aten.com
North America http://www.aten-usa.com/product_registration
International 886-2-8692-6959
China 86-10-5255-0110
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
United Kingdom 44-8448-158923
Email Support [email protected]
Online
Technical
Support
Troubleshooting
Documentation
Software Updates
http://www.aten-usa.com/support
Telephone Support 1-888-999-ATEN ext 4998

- 5 -
Package Contents
The CS533 Tap package contains the following items:
1 CS533 Tap
1 User Instructions*
Check to make sure that all the components are present and that
nothing got damaged in shipping. If you encounter a problem,
contact your dealer.
Read this manual thoroughly and follow the installation and
operation procedures carefully to preventanydamagetothe unit,
and/or any of the devices connected to it.
*Features may have been added to the CS533 since this
manual was published. Please visit our website to download
the most up-to-date version of the manual.
Copyright © 2012 ATEN® International Co., Ltd.
Manual Date: 2012-04-11
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.

- 6 -
Overview
The CS533 Tap is a control unit that allows access to one
computer and two Bluetooth devices from a USB keyboard and
mouse. The CS533 eliminates the need to purchase a Bluetooth
keyboard or mouse for your mobile device, saving you valuable
work space, allowing you to use your favorite multimedia
keyboard with all your Bluetooth devices.
The CS533 Tap converts normal USB keyboard and mouse
signals into Bluetooth connections to allow for easy sharing
between your computer and mobile devices. The CS533 has a
compact design and provides a convenient hotkey share method
to switch quickly between a computer and two Bluetooth devices.
Setup is simple; plug a USB keyboard and mouse into the CS533
rear ports, connect the CS533 to your computer, sync your
Bluetooth devices with theCS533, then use the hotkeys to switch
USB keyboard and mouse use between your devices.

- 7 -
Features
Links use of a USB keyboard and mouse* between a PC and
2 Bluetooth devices
Quick switch access to the computer and two Bluetooth
devices via hotkey
Supports PC and Mac iOS Bluetooth media key mapping
Supports keyboard drivers
Supports wireless and multifunction keyboards
Mac keyboard support and emulation*
Supports USB hot-plugging
Supports: Windows 2000, XP, Vista, 7, Mac and Linux
USB powered
No software required
*Use of a USB mouse on any Bluetooth device depends on the
devices hardware manufacturer
*PC keyboard combinations emulate Mac keyboards.
*Mac keyboards only work with their own computers.

- 8 -
Requirements
Keyboard/Mouse
1 USB Keyboard
1 USB Mouse
*The CS533 will not work with Bluetooth keyboard or mouse
devices
Computer
Type A USB Port
Devices
Up to 2 Bluetooth HID devices
*USBMousewillnotfunctiononiOSdevicesandsomeBluetooth
devices.
USB Power Adapter (optional)
The CS533 is powered by the computers USB port
connection. USB Power Adapters may be used, but must be
be purchased separately from a local dealer.

- 9 -
Supported Devices
Below is a table of HID devices* that support Bluetooth Human
Interface Device Profiles (HID) for keyboard use. HID devices
support Bluetooth HumanInterfaceDeviceProfiles (HID) and will
work with the CS533.
Note: The term “HID device” refers to a compatible
Bluetooth device.
Supported HID Devices
Brand Product O.S. Version
ACER A500 / A501 / A100
Android 3.x / 4.x
ASUS Transformer TF101,
Prime TF201
Motorola XOOM
LG Optimus Pad
Sony Tablet S
Toshiba AT100
Samsung Galaxy Tab 8.9/10.1, Galaxy
Nexus, Galaxy Tab P1000 Android 2.x
HTC Sensation, Sensation XE,
Flyer, EVO 3D
Apple iPad 1 / 2 iOS 4.2.1 and higher
iPhone 3GS and higher
iPod Touch 2nd/3rd/4th
Generation
MacBook Air/Pro, Mac Pro,
Mac Mini, iMac OS 10.6 and higher
Microsoft Windows XP/2000/Vista/7

- 10 -

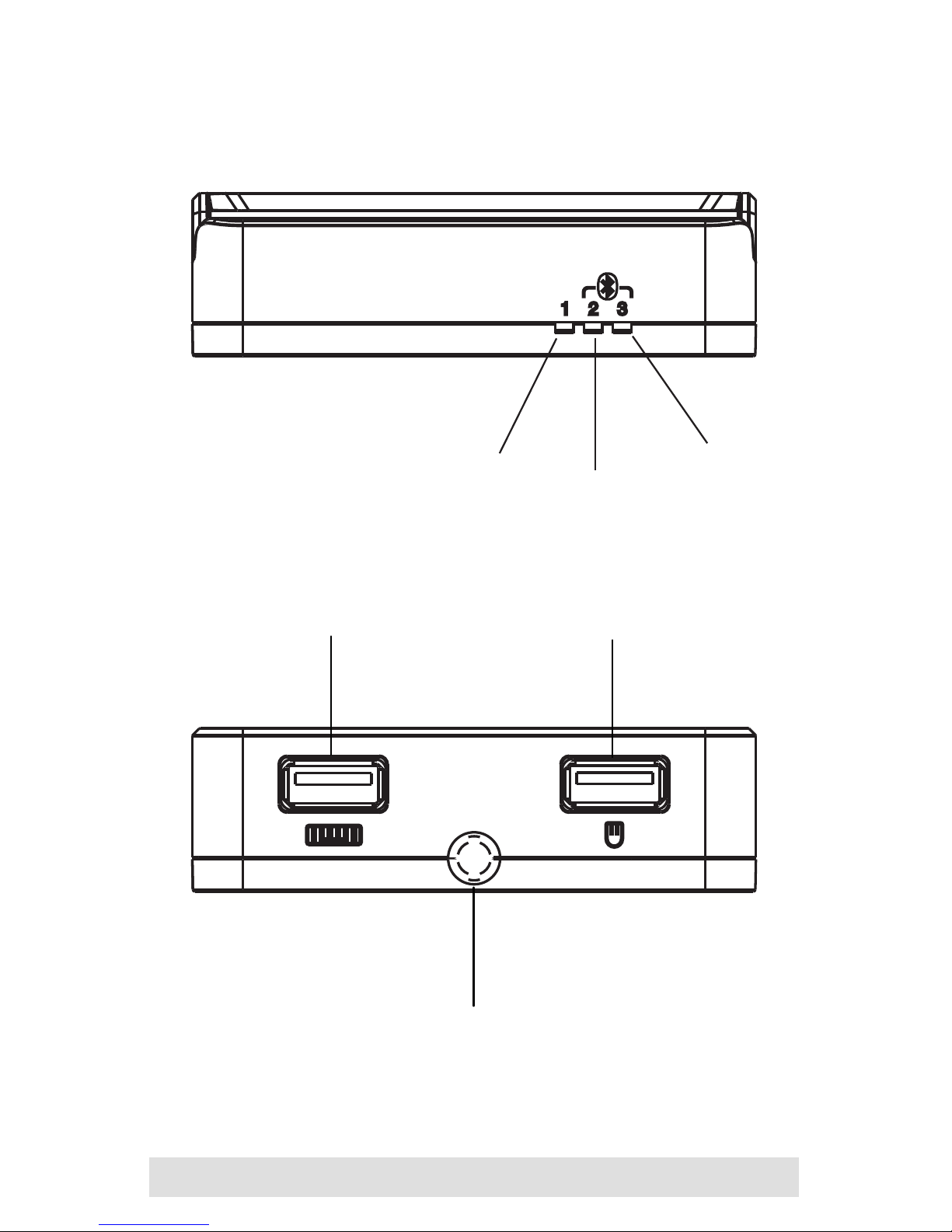

Components
Front View
Rear View
123
45
6

- 11 -
Top View
No. Component Description
1 Port 1 LED
(USB / Power
Supply)
Blue LED: light indicates USB Port 1 is
connected for use with the keyboard and
mouse.
2 Port 2 LED
(Bluetooth) Blue LED: light indicates Bluetooth Port 2 is connected for use with the keyboard and
mouse.
3 Port 3 LED
(Bluetooth) Blue LED: light indicates Bluetooth Port 3 is connected for use with the keyboard and
mouse.
4 USB Keyboard
Port Use this port to plug in your USB Keyboard.
5 USB Mouse Port Use this port to plug in your USB mouse.
6 USB Cable This USB cable plugs into your computer, or
USB power adapter to provide power and
connectivity to the CS533.
7 Plastic Stand This plastic backing provides an adjustable
stand for your Bluetooth device.
8 Cradle Holds your Bluetooth device.
6
7
8

- 12 -
Installation
1. Make sure that the power to any device that you
connect to the installation has been turned off. You
must unplug the power cords of any computers that
have the Keyboard Power On function.
2. Make sure that all devices you will be installing are
properly grounded.

- 13 -
Instructions
To use your CS533 Tap you must first setup the hardware, and
pair the Bluetooth connections.

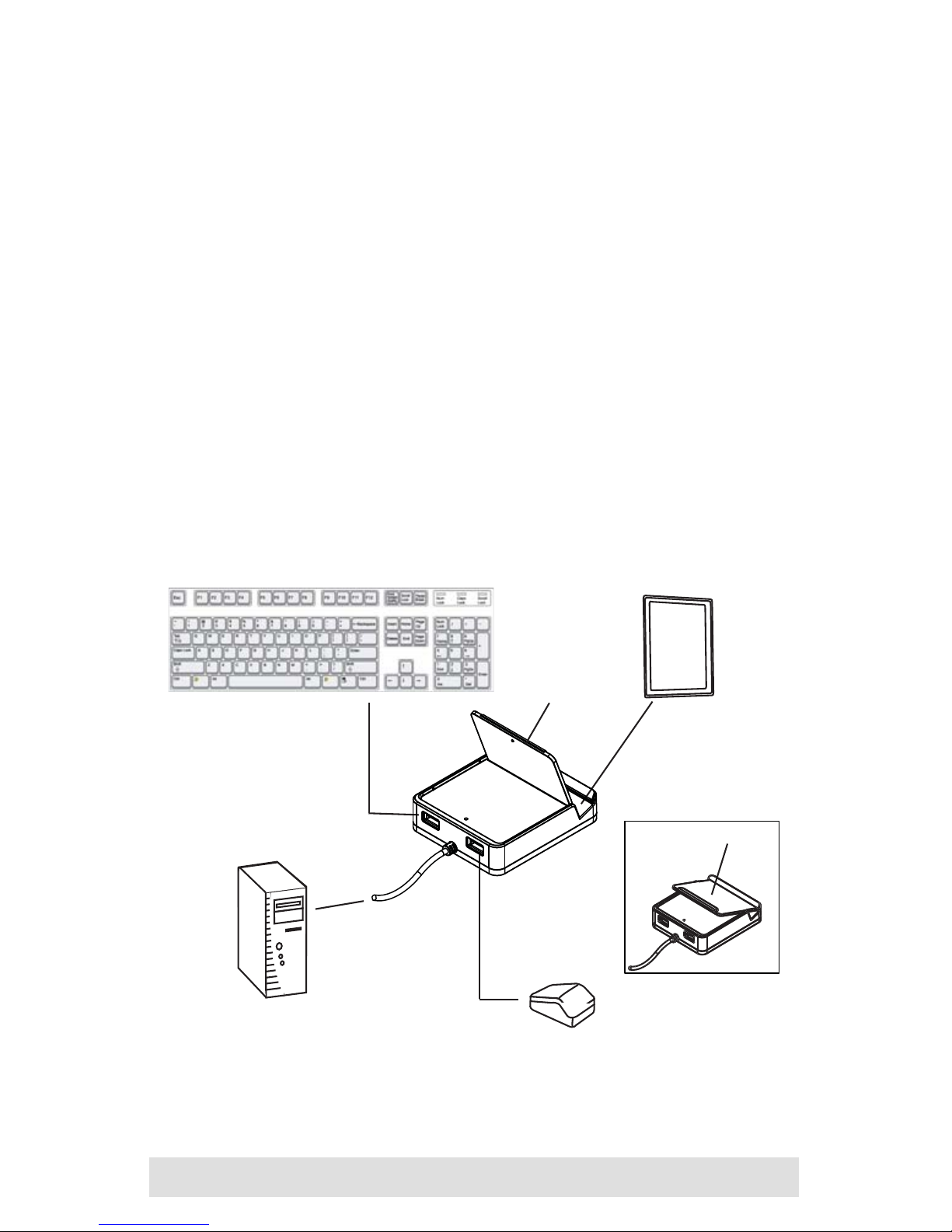

Hardware Setup
To setup the hardware use the diagram below, and do the
following:
1. Plug the CS533’s USB Cable into your computers USB port
2. Plug a USB mouse into the USB Mouse port
3. Plug a USB keyboard into the USB Keyboard Port
4. Place the Plastic Stand in the cradle’s slot and adjust it
according to your preference.
5. Place your Bluetooth device on or near the cradle.
1
2
3
4
5
4

- 14 -
Bluetooth Setup
With the hardware setup, the CS533 Tap can establish two
Bluetooth connections to share USB keyboard and mouse use
with the computer.
To establish a paired Bluetooth connection with the CS533, do
the following:
1. From the USB keyboard use the Hotkey: [Alt]+[F2] to switch
to: Port 2 Bluetooth (see Port Selection, page 15).
2. Enable Bluetooth discovery mode on your HID device.
3. Discover and pair a Bluetooth connection with:
ATEN CS533
4. Enter the passkey provided by your HID device*
5. Once the Bluetooth connection is paired with ATEN CS533,
the CS533 is ready to use.
6. To pair a second HID device: repeat step 1 using Hotkey
[Alt]+[F3] to switch to: Port 3 Bluetooth, and continue with
steps 2~5.
*The HID device will generate and display a password to
establish paired connections.

- 15 -
Using the CS533
Port Selection
The port selected for use with the USB keyboard/mouse is
indicated by the blue LED light on the front panel, and when lit
has exclusive use. Each port represents a device connection to
the keyboard/mouse: Port 1- USB Computer, Port 2- Bluetooth,
and Port 3- Bluetooth.
To switch USB keyboard and mouse use between your computer
and HID devices, you switch the port using hotkeys from the
Hotkey Table (page 16).
Switching Ports
To switch ports: hold the [Alt] key, then press a hotkey to activate
its function. Example:
Hotkey: [Alt]+[F1] switches to Port 1 (USB)
Hotkey: [Alt]+[F2] switches to Port 2 (Bluetooth)
Hotkey: [Alt]+[F3] switches to Port 3 (Bluetooth)
Mouse Usage
To use a mouse on an HID Bluetooth device depends on if the
manufacturer installs mouse capabilities with it. Some
manufacturers do not include mouse capabilities with their
device. Please consult your devices user manual for more
information on mouse functionality, and to see whether it has
been installed.

- 16 -
HotKeys
Hotkeys are used from your USB keyboard to initiate CS533
functions such as; switching ports, connecting/disconnecting
Bluetoothpairs,resetting default settings,andenablingkeyboard
mappings. The chart below lists all of the hotkeys and their
related functions.
HOTKEY TABLE
HotKey Function Description
[Alt] + [FN]
(FN = F1, F2,
F3)
Switch to Port:
F1: Port 1 (USB)
F2: Port 2 (Bluetooth)
F3: Port 3 (Bluetooth)
Switches use to the
port indicated
[Alt] + [Ctrl] Switch Port: Forward Switches use to the
next port
[Alt] + [~] Switch Port: Back Switches use to the
previously used port
[Alt] + [F6] Disconnect & Clear
Bluetooth Pairing Disconnects the Bluetooth pair for the
selected port
[Alt] + [F7] Reset default settings Resets the CS533 to
the default factory
settings
[Alt] + [F8]
then
[p] + [Enter]
Firmware Upgrade Invokes Firmware
Upgrade Mode
[Alt] + [F5]
then
[num] + [enter]
(num = 1, 2, 3)
Enable Keyboard Mapping:
1: QWERTY
2: Mac
3: iPad/iPhone
Sets custom keyboard
mappings for different
keyboard layouts
See CustomKeyboard
Settings, page 17
[Alt] + [F4] Print Settings Prints the current
CS533 settings

- 17 -
Custom Keyboard Settings
The CS533 Tap can customize the USB keyboard to mimic the
layout of different keyboards: QWERTY (standard PC), Mac
(Apple computer), and iPad/iPhone for each port.
To change the keyboard layout for a port use the Enable
Keyboard Mapping Hotkey:
[Alt] + [F5] then [1] + [enter] = QWERTY
[Alt] + [F5] then [2] + [enter] = Mac
[Alt] + [F5] then [3] + [enter] = iPad/iPhone
Once you’ve enabled a new keyboard mapping for a port, the
keyboard will function according to the Keyboard Mapping
Tables, beginning on page 18.

- 18 -

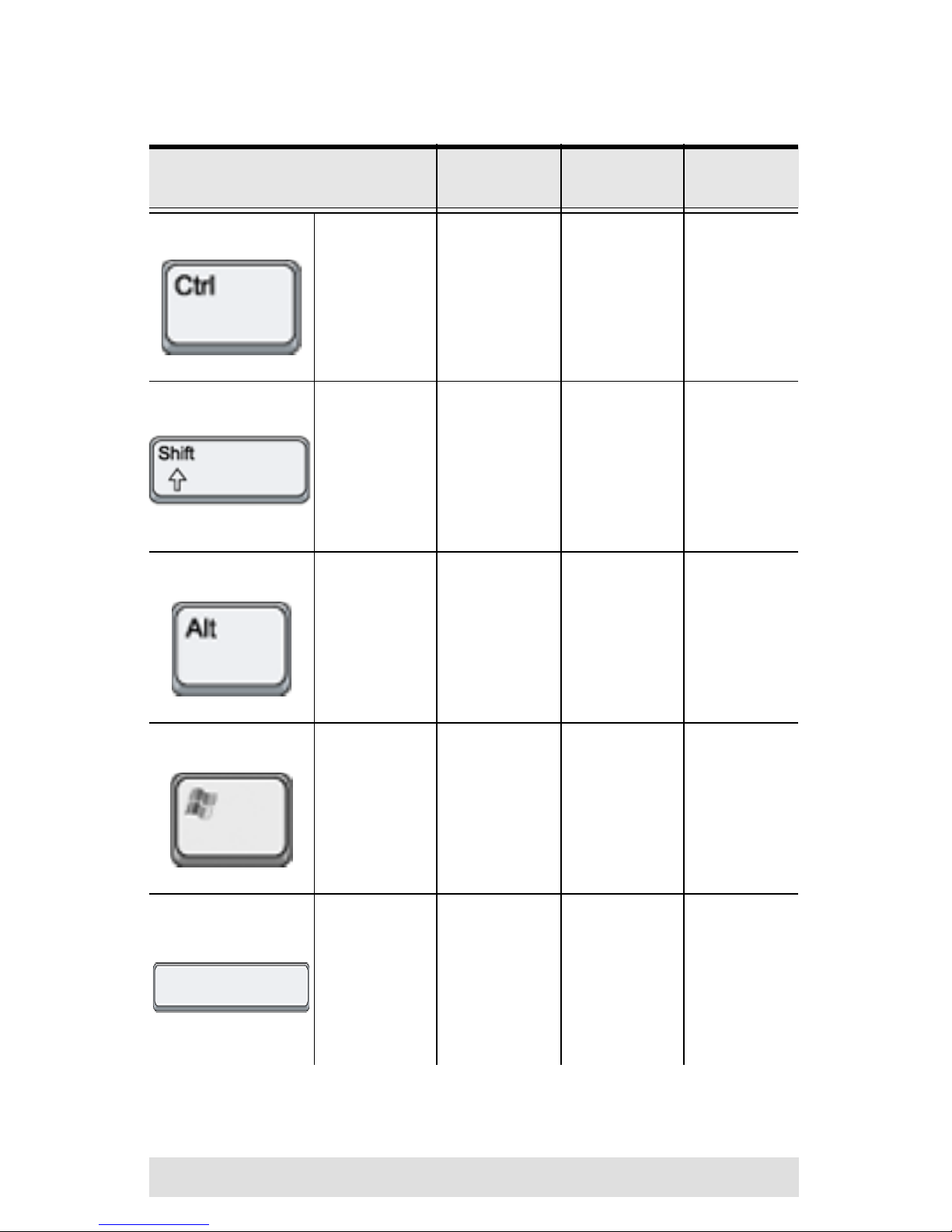

Keyboard mapping Tables
PC Keyboard Mapping
USB Keyboard MAC
Report iPad Report iPhone Report
Left-Control Left-Control Left-Control Left-
Control
Left-Shift Left-Shift Left-Shift Left-Shift
Left-Alt Left-Option Left-Option Left-
Option
Left-
Windows
Key
Left-
Command Left- Command Left- Command
Space Bar Space Bar Space Bar Space Bar

- 19 -

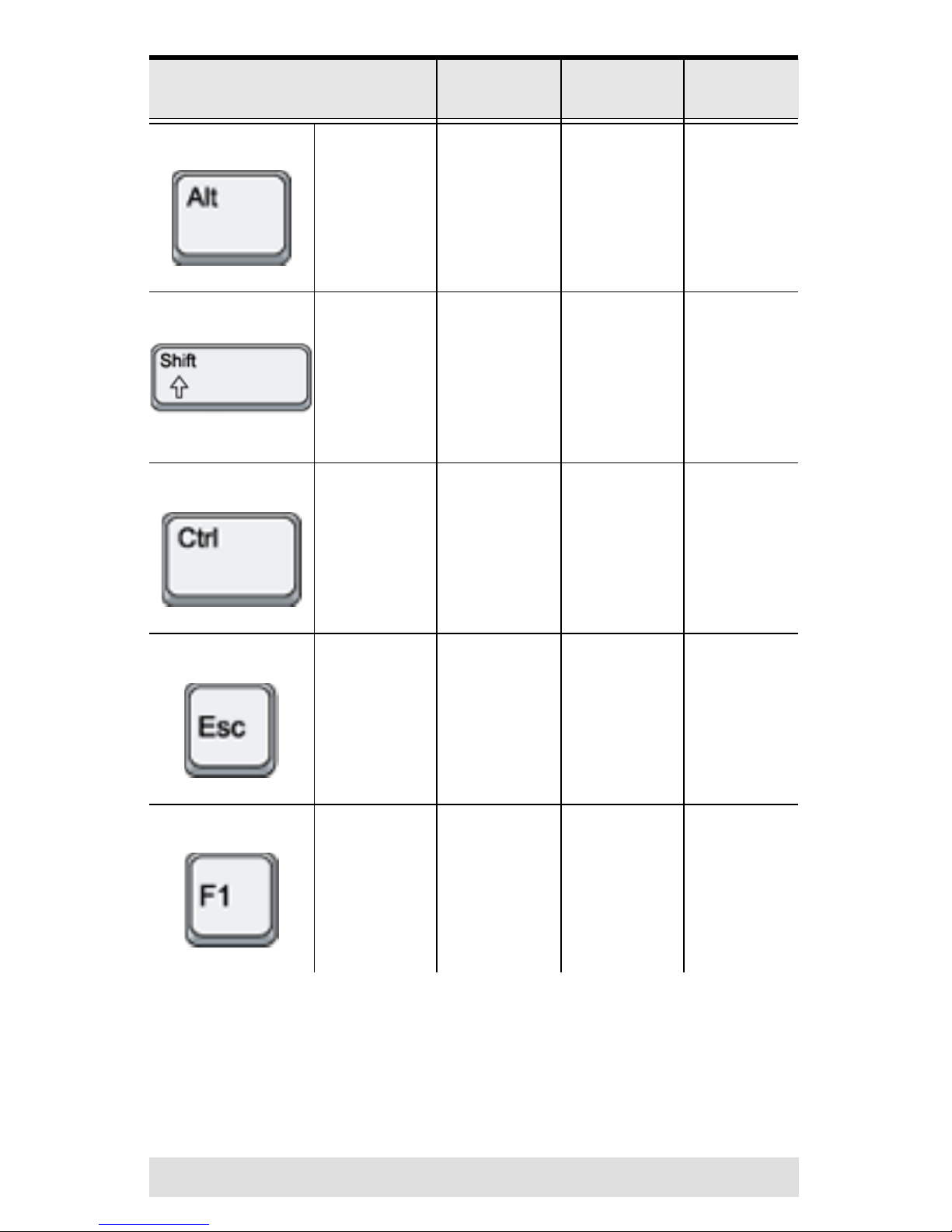

Right-Alt Right-
Option Right- Option Right- Option
Right-Shift Right-Shift Right-Shift Right-Shift
Right-
Control Right- Control Right- Control Right- Control
Escape Escape www Home www
Home
F1 Brightness
Down/F1 Brightness Down Brightness Down
USB Keyboard MAC
Report iPad Report iPhone Report

- 20 -

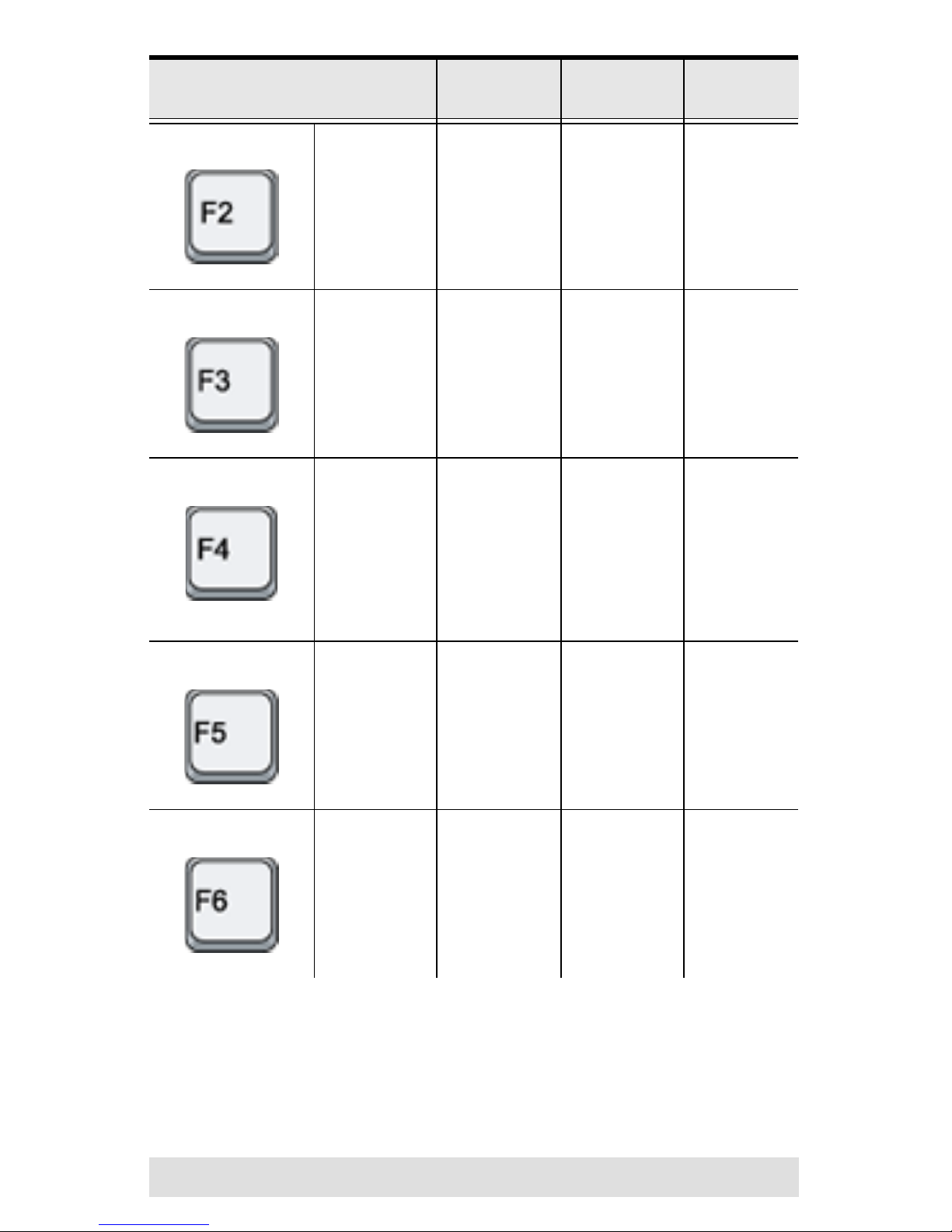

F2 Brightness
up/F2 Brightness up Brightness up
F3 Expose/F3 Spotlight
Search Spotlight Search
F4 DashBoard/
F4 Picture Frame
Mode
Frame
Mode
(iOS5)
Screen
Lock
(iOS4)
F5 F5 On-Screen
Keyboard On-Screen Keyboard
F6 F6
USB Keyboard MAC
Report iPad Report iPhone Report
