ATEN CV-100KM User manual

Overview The CV-100KM is a PS/2 keyboard and mouse emulator designed to provide a simple, inexpensive solution to common problems associeated with KVM (keyboard, video, mouse), switches. It permanently cures damaging computer lock-up commonly found in those KVM switches that do not provide keyboard and mouse emulation. With those switches, the computers ’lose’ the keyboard and/or mouse when the focus switches to a different system. Simply plug the emulator into the computer’s keyboard and mouse ports, and the CV-100KM’s state-of-the-art microprocessor appears to the system as if there were an actual keyboard and mouse present. The computer boots and operates normally, with or without the presence of a real keyboard and mouse. Because the CV-100KM’s circuitry allows seamless and fail-safe hot plugging of the keyboard and mouse, you can hot swap the two peripherals among any number of computers at any time. The emulator works with just the keyboard or just the mouse present, as well. Features MPrevents comptuer lockup due to keyboard signal loss with
KVM switches
MAllows hot plugging of the keyboard and mouse MAllow keyboardless/mouseless boot and run - for increased
security
MNon-powered - uses the computer’s keyboard power source MFor KVM devices that do not provide keyboard and mouse
emulation
System Requirements PS/2 Keyboard and Mouse ports installed on your computer or KVM switch.

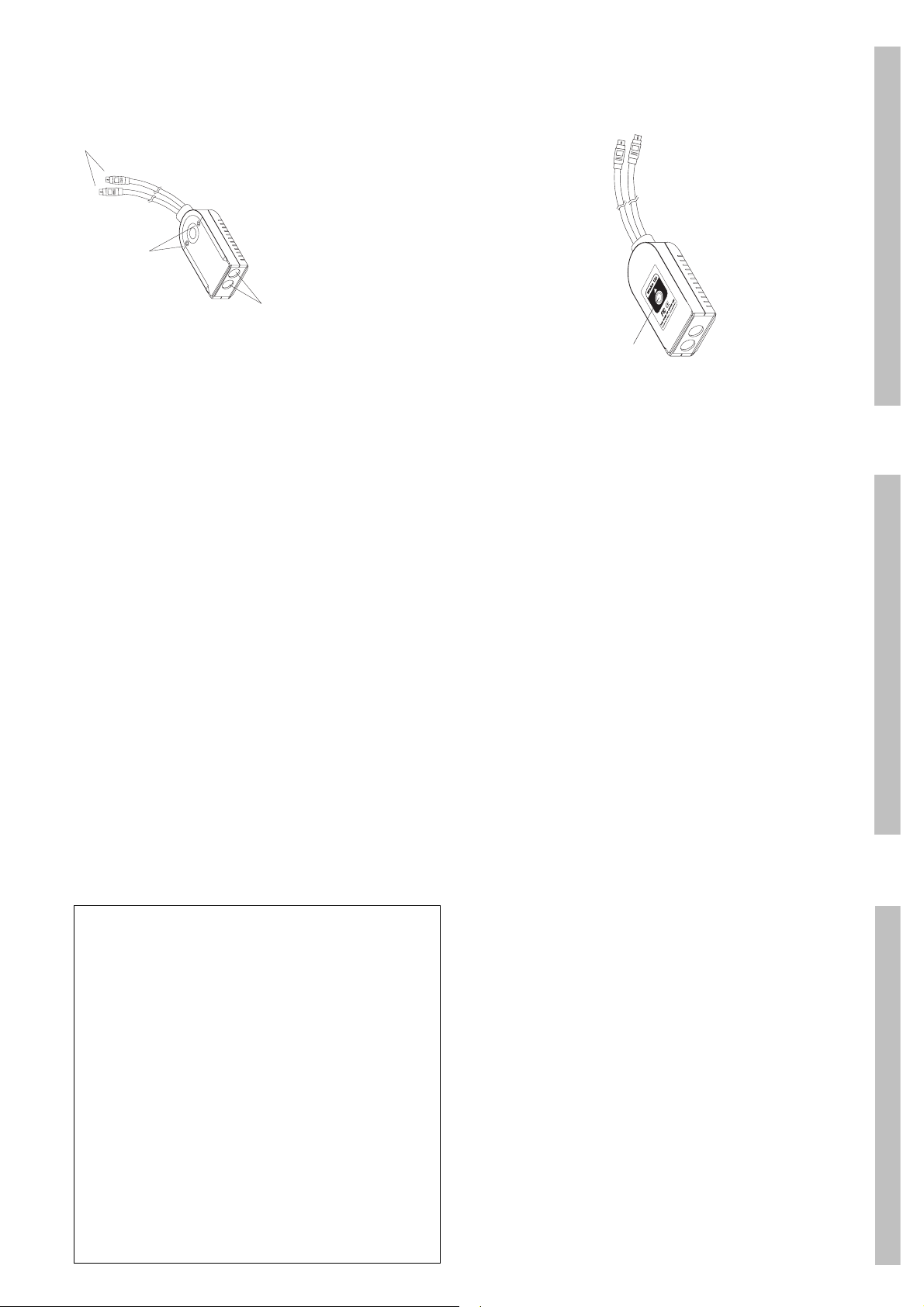

Top View 1. Mouse and Keyboard Ports
The cables from your PS/ 2 Mouse and PS/ 2 Keyboard plug in here. Each port is marked with an appropriate icon to indicate which one it is. Note: If you are using a KVM switch, the keyboard and
mouse connectors from the KVM cable plug in here.
2. Mouse and Keyboard LEDs
The LEDs light to show that the peripheral has connected to the computer. The corresponding LED flashes when the keyboard or mouse transmits data.
3. Mouse and Keyboard Connectors
These connectors plug into the keyboard and mouse ports of your computer. Each connector is marked with an appropriate icon to indicate which one it is.
Bottom View 1. Wake Up Switch
MIf your keyboard has Wake Up capability, you can bring
the computer back from power saving mode, by pressing its Wake Up key, or by tapping the Right Shift key.
MIf your keyboard does not have Wake Up capability, press-
ing this Wake Up switch brings the computer back from power saving mode.
NOTE:Thisequipmenthasbeentestedandfoundtocomply withthe limits foraClass Bdigitaldevicepursuant to Subpart J of Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
MReorient or relocate the receiving antenna. MIncrease the separation between the equipment and re-
ceiver.
MConnect the equipment into an outlet on a circuit different
from that which the receiver is connected.
MConsult the dealer or an experienced radio/television tech-
nician for help.
1
2
3
- 2 -
- 1 - - 3 -
1

Installation Installation simply entails plugging the cables into their appropriate sockets as shown in the diagrams below:
Troubleshooting
Problem Cause Action
Erratic Operation Static electricity may
cause the unit to operate erratically.
Unplug the CV-100KM’s cables from the computer’s
keyboard and mouse ports, then reinsert them.
Specifications
Function Specification
Connectors Keyboard 1 x 6 pin mini-din F (to keyboard)
1 x 6 pin mini-din M (to computer)
Mouse 1 x 6 pin mini-din F (to keyboard)
1 x 6 pin mini-din M (to computer)
LEDs 2 Switches 1 x Remote wakeup pushbutton Cable Length 30 cm Operating Temperature 0 ~ 50oC
Storage Temperature -20 ~ 60oC
Humidity 0 ~ 80% RH Housing Plastic
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose. The direct vendor also reserves the right to revise or update the device or documentation without obligation to notify any individual or entity of such revisions, or update. For further inquiries, please contact your direct vendor.
- 4 - - 5 -
User Manual CV-100KM Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit, and/or any of the devices connected to it. This package contains: M1 CV-100KM PS/2 Keyboard-Mouse Emulator M1 User Manual If anything is damaged or missing, contact your dealer. © Copyright 2003 ATEN®International Co., Ltd.
Manual Part No. PAPE-1227-1AT Printed in Taiwan 01/2003
