ATI Technologies 5D Thermal Aerosol Generator User manual
5D Thermal Aerosol Generator 1
5D Thermal Aerosol Generator
Operator Manual
www.atitest.com
Table of Contents
1. Introduction...........................................................................................................1
1.1. User Responsibility.........................................................................................................................................2
2. Precautions............................................................................................................3
3. What’s Included.....................................................................................................8
4. Optional Accessories............................................................................................9
5. Controls and Indicators......................................................................................10
5.1. Back Panel .....................................................................................................................................................10
5.2. Top Panel.......................................................................................................................................................11
5.3. Front Panel ....................................................................................................................................................12
6. Operation.............................................................................................................13
6.1. Pre-Operation Procedure ............................................................................................................................13
6.2. Operating the 5D ..........................................................................................................................................14
6.3. Shut Down .....................................................................................................................................................16
6.4. Changing Liquid Aerosol Reagent...............................................................................................................17
7. Maintenance........................................................................................................18
7.1. Replacing Main Power Fuses.......................................................................................................................18
7.2. Preventative Maintenance ..........................................................................................................................20
7.3. Scheduled Maintenance ..............................................................................................................................20
8. Appendix A: Warranty ........................................................................................21
................................................................................23
10. Appendix C: Spare Parts List ...........................................................................26
11. Appendix D: Troubleshooting .........................................................................27
12. Appendix E: Manual Revision History ............................................................30
1
1. Introduction
The instructions also contain important information required for operation of
generator’s operation must read and understand this entire manual and become
familiar with the terminology.
PERSONAL INJURY OR DEATH and/or risk of FIRE.
The ATI 5D Thermal Aerosol Generator uses a heating element to vaporize liquid
generating aerosol.
into contact with enough oxygen to combust. This quenching requirement makes
an air-gap mandatory between the aerosol output and the system the aerosol is
entering for testing. The 5D has built-in air quenching holes behind the output
shall not be covered or restricted.
It is to be used to introduce aerosol into below ambient pressure systems.
5D Thermal Aerosol Generator 2
1.1. User Responsibility
The user must:
• Read and understand the information contained in this manual before using the
product.
• Understand the electrical and mechanical system principles used in the
operation of this generator.
• Be trained in the use of high pressure gas equipment.
• Properly use this product for its intended purpose and follow all regulations and
procedures that apply to the location where this product is used.
•
• Maintain and keep in proper working condition along with any other equipment
associated with the operation of this product.
•
• Ensure that the inert gas has a minimum pressure of 3.45 bar (50 psi)
• Verify the type and quality of liquid aerosol reagent to be used with this product.
Product Specications
•
3
2. Precautions
5D Thermal Aerosol Generator 4
Precautions - Español
5
Precautions - Français
5D Thermal Aerosol Generator 6
Precautions - Svenska
7
Precautions - 中文
5D Thermal Aerosol Generator 8
1
2
3
3. What’s Included
The standard 5D ships with the following.
Item Description Part Number Quantity
1. Base 5D Unit 9300408 (120V) or 9300409 (240V) 1
2. Shoulder Strap 11-00248-001 1
3. Power Cord 6700179 (120V) or 6700180 (240V) 1
Operating Manual
(not shown) 73-00453-001 1
Carefully unpack and remove the 5D Generator and all accessories from its shipping
shipper immediately. The 5D Generator will consist of the base generator unit and
the optional accessories provided in the accessories list.
9
3
1
2
4. Optional Accessories
Item Description Part Number
1. Heavy Duty Rolling Case 9300410
2. Hose Adapter Assembly 0200445
9300411
9300412 (not shown)
9300436 (not shown)
9300437 (not shown)
91-00468-BLU (not shown)
5D Thermal Aerosol Generator 10

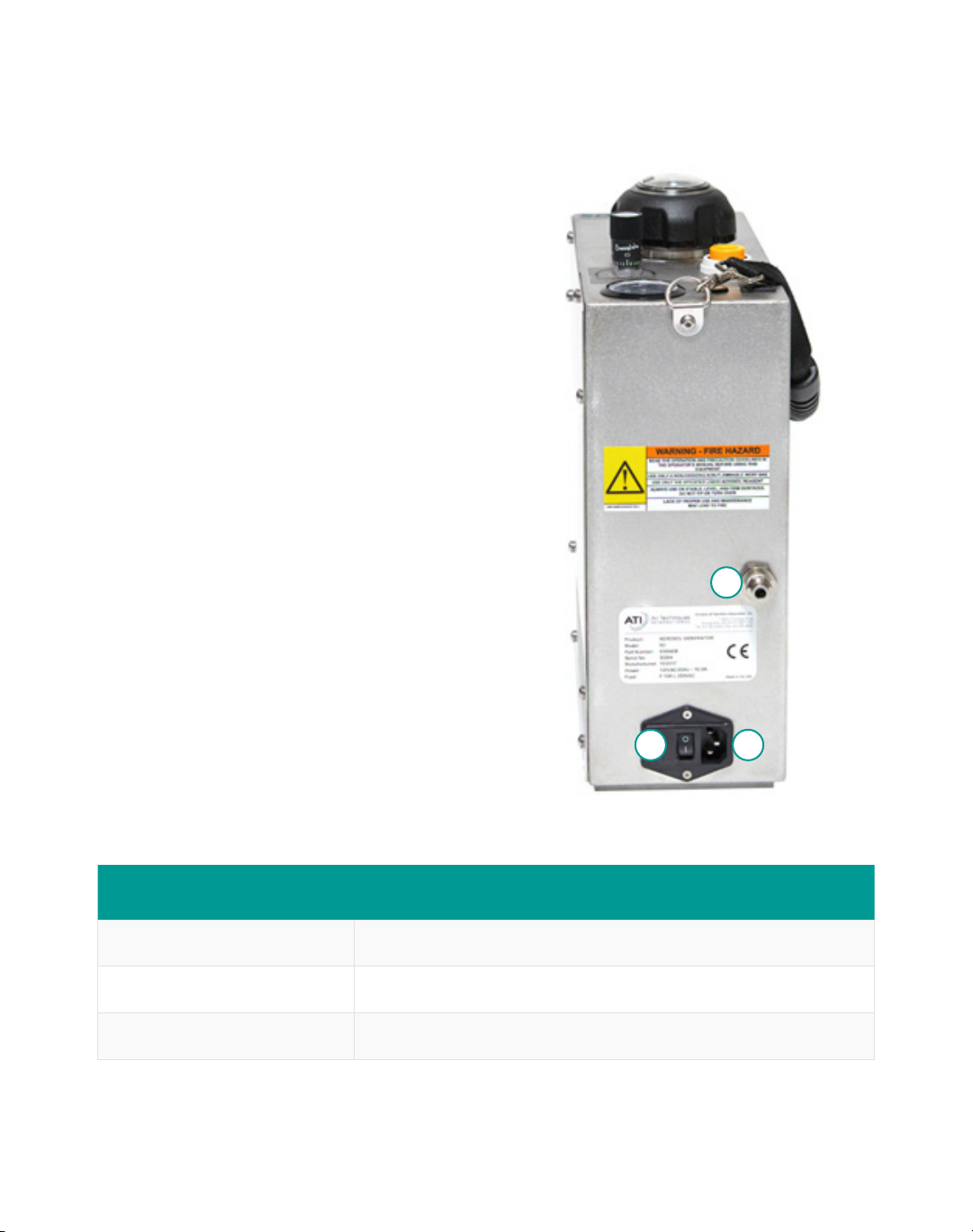

5.1. Back Panel
Feature Function
1. Inert Gas Inlet Connects user-provided tubing from inert gas source to unit
2. Power ON/OFF Switch Turns main power ON and OFF
3. Main Power Input & Fuse Connects power cord to unit
1
2 3
5. Controls and Indicators
11

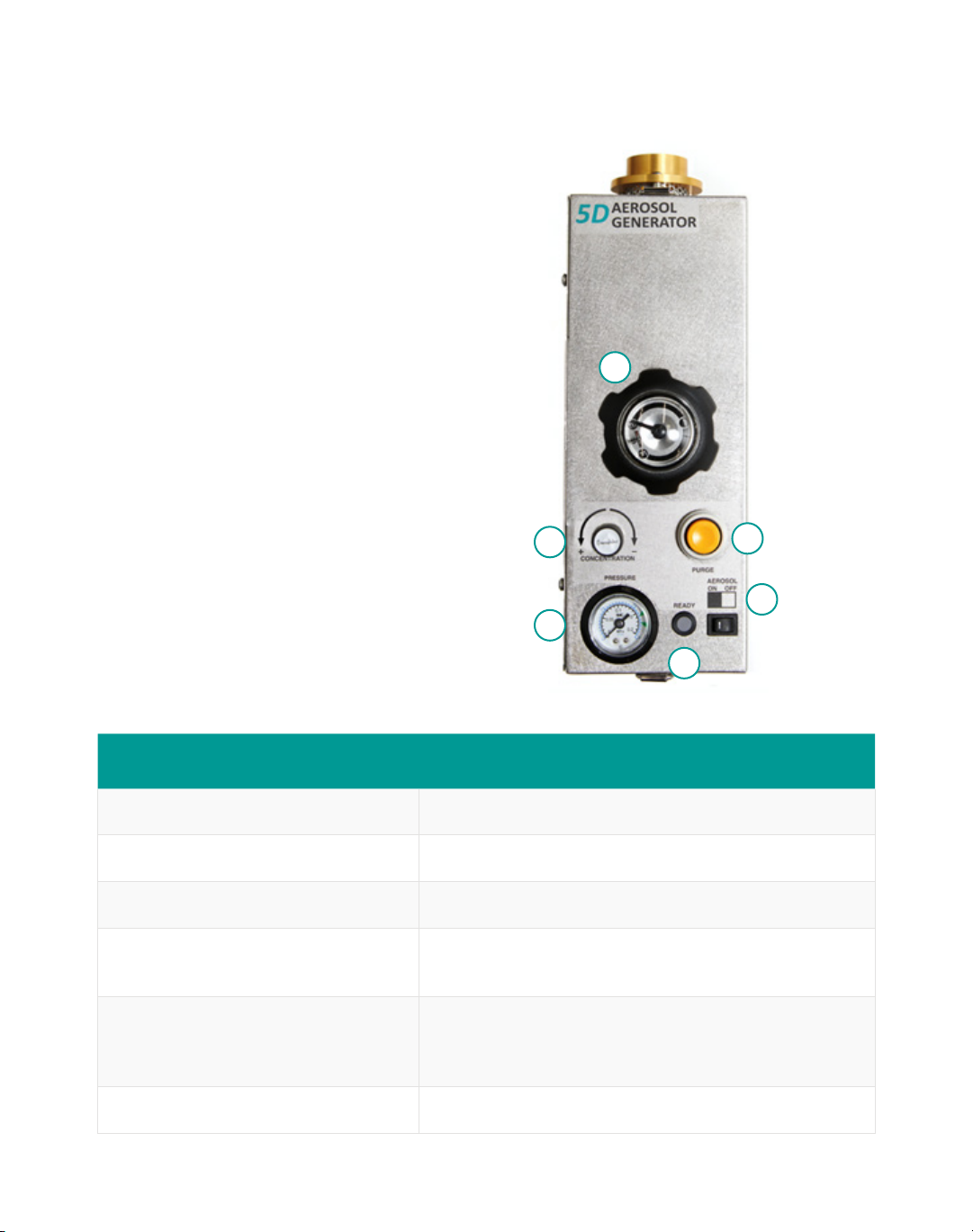

5.2. Top Panel
Feature Function
1. Liquid Level Indicator Fill Cap
2. Purge Valve Used to purge the unit after use
3. Aerosol ON/OFF Switch Controls ON/OFF of aerosol reagent
4. READY Light Luminates red when unit is on; turns green when
unit is ready for operation
5. Metering Valve Controls the aerosol concentration level. Turn
counter clockwise to increase concentration; turn
clockwise to decrease concentration.
6. Inert Gas Pressure Gauge Shows inert gas pressure
1
5
6
2
3
4
5D Thermal Aerosol Generator 12

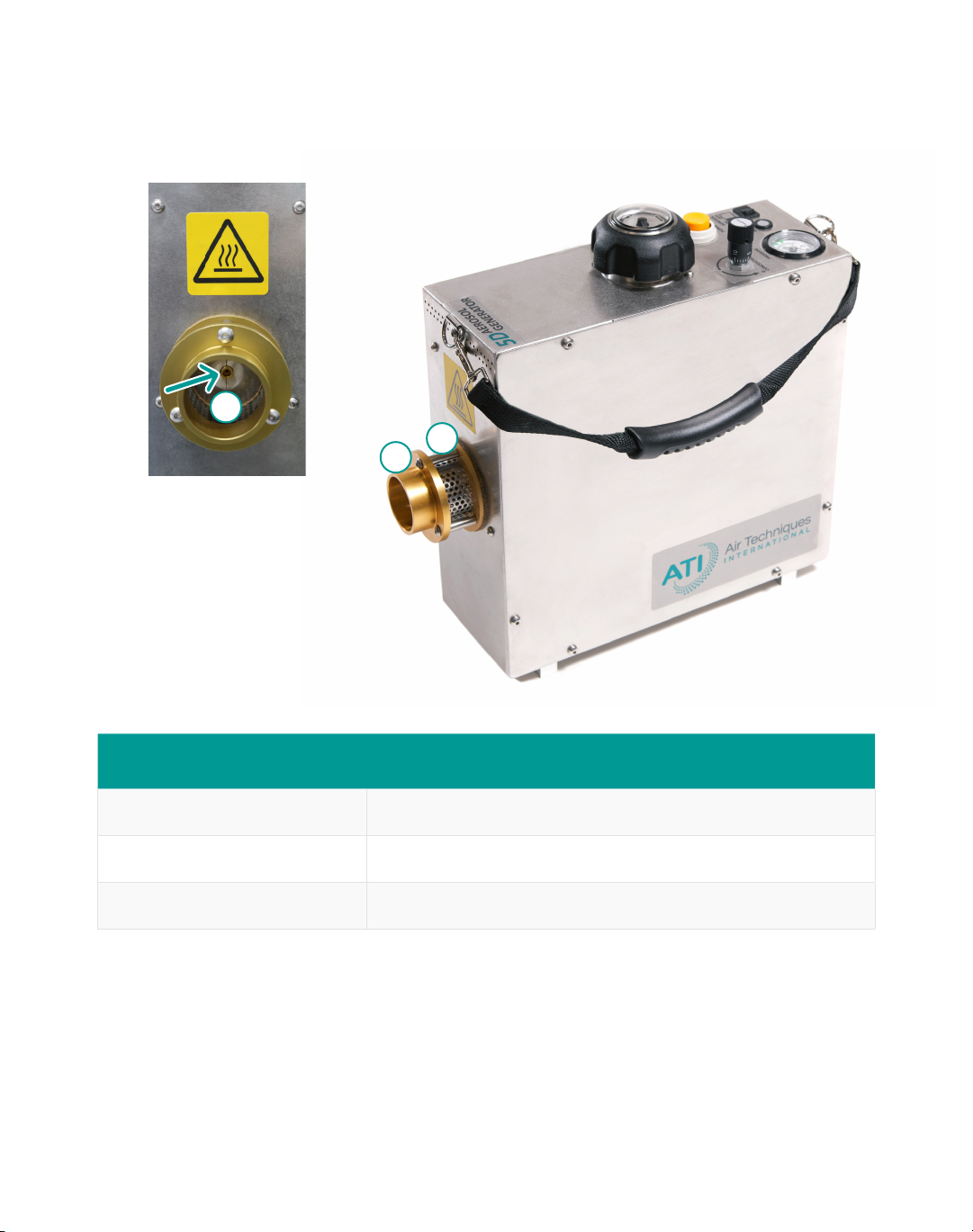

5.3. Front Panel
Feature Function
1. Output Nozzle Metal outlet for aerosol stream
2. Output Collar Attaches user-provided 2-inch hose or hose adapter to unit
3. Quenching Holes
2
3
1
13
6. Operation
6.1. Pre-Operation Procedure
inspections. Any failure of these inspections must be addressed and corrected
before attempting to start the generator.
Step 1.
power cord if necessary. Use only the ATI-supplied power cord (See Appendix C
Spare Parts List for replacement).
Step 2.
regulator operation.
Step 3.
Replace the line if necessary.
Step 4.
Also inspect liquid aerosol reagent for cleanliness and transparency.
Step 5. Fully close the Metering Valve and push the Aerosol Switch to OFF.
Step 6. Place the generator in the location where it will be used. Once the
Step 7. Position the generator so controls are readily accessible.
5D Thermal Aerosol Generator 14

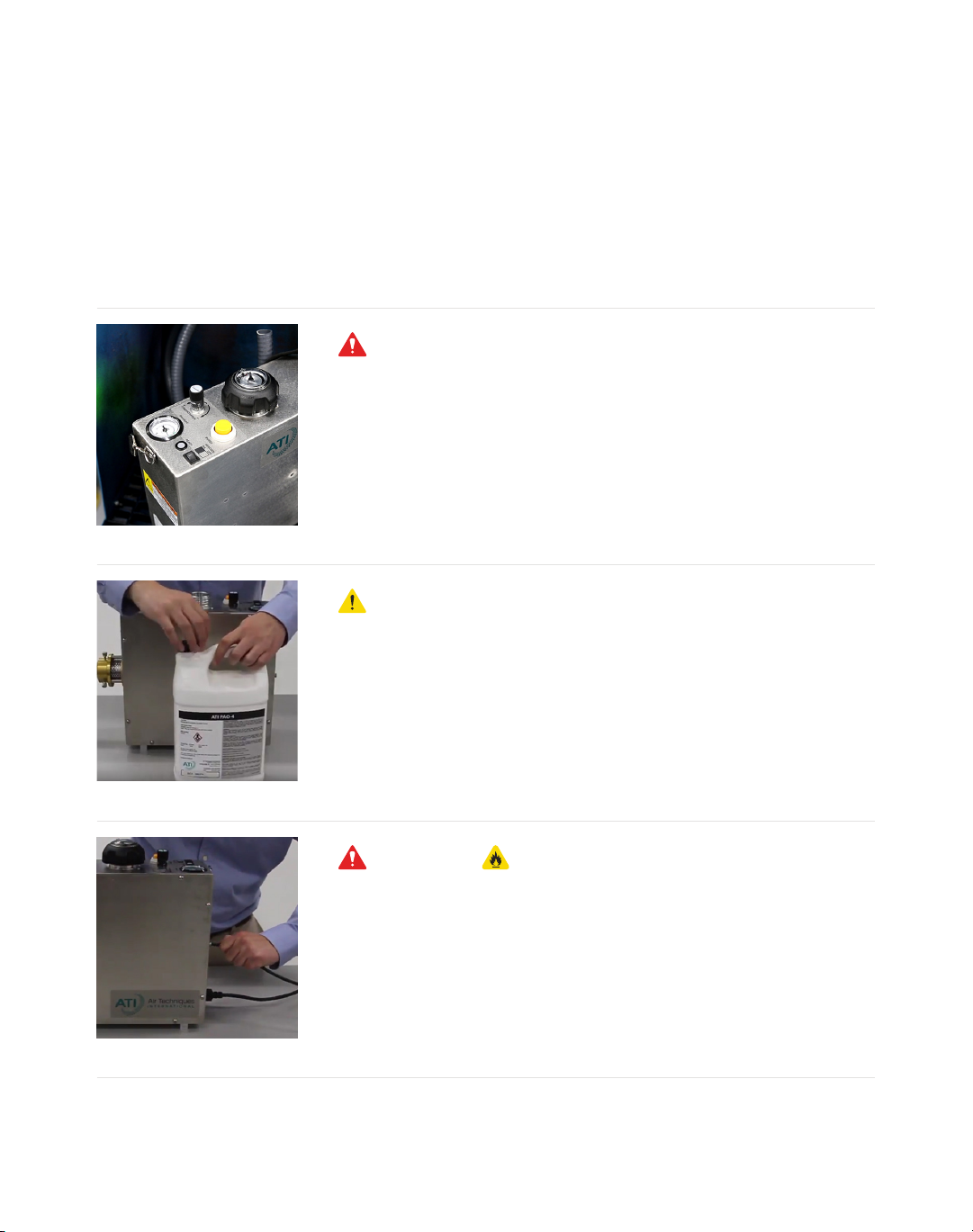

6.2. Operating the 5D
WARNING: Operator must be present for the safe
operation of the 5D. Do not leave a running 5D unattended.
Step 1.
damage. Clean unit of any oil before use. Make sure
aerosol switch is OFF and metering valve is completely
closed (turned fully clockwise).
CAUTION:
used as reagents for Thermal Aerosol Generators.
Step 2.
tank is not pressurized. Fill unit with appropriate reagent
before use.
WARNING FIRE HAZARD: Ensure that the
quenching holes are not blocked or covered. Failure to do
Step 3. Connect inert gas and verify pressure setting of
3.45 bar ± 0.07 bar (50 psi ± 1.0 psi) at source regulator.
15
Step 4. Turn main power ON. ( | )
Step 5. Wait for READY LIGHT to turn green.
Step 6. Turn aerosol ON.
Step 7. Turn metering valve 2 turns counter clockwise to
WARNING:
valve counter clockwise at a rate not to exceed two turns per
minute. A rapid increase in aerosol output will result in a wet
5D Thermal Aerosol Generator 16
6.3. Shut Down
Step 1. Push the aerosol switch to OFF.
Step 2. Close the metering valve by fully turning the metering valve knob clockwise.
Step 3. Allow all visible aerosol to purge out of the output collar.
Step 4.
Step 5.
Step 6. Hold down the PURGE button until all of the gas is expelled. This purges the
system of residual aerosol or wet liquid aerosol reagent and depressurizes the system.
Step 7.
Step 8. Allow the generator to cool for 10 minutes.
Step 9.
should be drained of liquid aerosol reagent into a properly labeled container.
CAUTION: Failure to follow the Shut Down procedure may result in damage to
the equipment.
17
6.4. Changing Liquid Aerosol Reagent
CAUTION:
Step 1.
Step 2. Drain reservoir.
Step 3.
Step 4. Replace cap.
Note: Unit’s oil reservoir must drained before storage or shipping.
