Atlas Copco LSV39 S066-M14 Instruction sheet

LSV39 S066-M14
Printed Matter No. 9834 4398 01 Sander
Publication Date 2020-03-25
Valid from Serial No. A2410001 Product Instructions
LSV39 S066-M14
(6600 r/min)
(6600 rpm)
8423013306
WARNING
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference

EN LSV39 S066-M14
2© Atlas Copco Industrial Technique AB - 9834 4398 01
A 8 Nm (5.9 ftlb)
B L = 900 mm (35") (Turbo 13)
C Ø13 mm (1/2")
D 6.3 bar (90 psig)
E 6600 r/m
F 15 Nm (11.1 ftlb)
G 5 Nm (3.7 ftlb)
H M14

3
© Atlas Copco Industrial Technique AB - 9834 4398 01
Table of Contents
Product Information................................................................................................5
General Information ..........................................................................................5
Safety Signal Words ..............................................................................5
Warranty ................................................................................................5
Website..................................................................................................5
ServAid ..................................................................................................6
Safety Data Sheets MSDS/SDS............................................................6
Country of Origin ...................................................................................6
Dimensional Drawings...........................................................................6
Overview...........................................................................................................6
Main Components and Functions..........................................................6
Technical Product Data .........................................................................7
Service Overview..............................................................................................7
Overhaul ................................................................................................7
Replacement of Vanes ..........................................................................7
General Service and Maintenance Safety .............................................7
Service Recommendations....................................................................8
Installation ...............................................................................................................9
Installation Requirements .................................................................................9
Air Quality ..............................................................................................9
Air Lubrication Guide .............................................................................9
Compressed Air Connection..................................................................9
Installation Instructions .....................................................................................9
Visual Inspection - Tools and Accessories ............................................9
Visual Inspection - Air Installation........................................................10
Installation Overview ...........................................................................10
Operation ...............................................................................................................11
Ergonomic Guidelines.....................................................................................11
Configuration Instructions ...............................................................................11
Wheel Configuration Options...............................................................11
Lever Assembly Options......................................................................12
Fitting of Support Handle.....................................................................14
Operating Instructions.....................................................................................14
Free Speed Check...............................................................................14
Operating the Tool...............................................................................15
Service ...................................................................................................................16
Maintenance Instructions................................................................................16
General Service and Maintenance Safety ...........................................16
Service Recommendations..................................................................16
Overhaul ..............................................................................................16
Replacement of Vanes ........................................................................16
Lubrication Instructions...................................................................................17
Rust Protection and Cleaning..............................................................17

4© Atlas Copco Industrial Technique AB - 9834 4398 01
Lubrication Guide ................................................................................17
Troubleshooting....................................................................................................18
Troubleshooting ..............................................................................................18
Recycling ...............................................................................................................20
Environmental Regulations.............................................................................20
Recycling Information .....................................................................................20

LSV39 S066-M14 EN Product Information
© Atlas Copco Industrial Technique AB - 9834 4398 01 5
Product Information
General Information
WARNING Risk of Property Damage or Severe Injury
Ensure that you read, understand and follow all instructions before operating the tool. Failure to follow
all the instructions may result in electric shock, fire, property damage and/or severe bodily injury.
►Read all Safety Information delivered together with the different parts of the system.
►Read all Product Instructions for installation, operation and maintenance of the different parts of
the system.
►Read all locally legislated safety regulations regarding the system and parts thereof.
►Save all Safety Information and instructions for future reference.
Safety Signal Words
The safety signal words Danger, Warning, Caution, and Notice have the following meanings:
DANGER DANGER indicates a hazardous situation which, if not avoided, will result in death or se-
rious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if
not avoided, could result in minor or moderate injury.
NOTICE NOTICE is used to address practices not related to personal injury.
Warranty
■Product warranty will expire 12 months after the product is first taken into use, but will in any case ex-
pire at the latest 13 months after delivery.
■Normal wear and tear on parts is not included within the warranty.
■Normal wear and tear is that which requires a part change or other adjustment/overhaul during
standard tools maintenance typical for that period (expressed in time, operation hours or other-
wise).
■The product warranty relies on the correct use, maintenance, and repair of the tool and its component
parts.
■Damage to parts that occurs as a result of inadequate maintenance or performed by parties other
than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the
warranty.
■To avoid damage or destruction of tool parts, service the tool according to the recommended mainte-
nance schedules and follow the correct instructions.
■Warranty repairs are only performed in Atlas Copco workshops or by Certified Service Partners.
Atlas Copco offers extended warranty and state of the art preventive maintenance through its ToolCover
contracts. For further information contact your local Service representative.
For electrical motors:
■Warranty will only apply when the electric motor has not been opened.
Website
Information concerning our Products, Accessories, Spare Parts and Published Matters can be found on
the Atlas Copco website.
Please visit: www.atlascopco.com.

Product Information EN LSV39 S066-M14
6© Atlas Copco Industrial Technique AB - 9834 4398 01
ServAid
ServAid is a portal that is continuously updated and contains Technical Information, such as:
■Regulatory and Safety Information
■Technical Data
■Installation, Operation and Service Instructions
■Spare Parts Lists
■Accessories
■Dimensional Drawings
Please visit: https://servaid.atlascopco.com.
For further Technical Information, please contact your local Atlas Copco representative.
Safety Data Sheets MSDS/SDS
The Safety Data Sheets describe the chemical products sold by Atlas Copco.
Please consult the Atlas Copco website for more information www.atlascopco.com/sds.
Country of Origin
For the Country of Origin, please refer to the information on the product label.
Dimensional Drawings
Dimensional Drawings can be found either in the Dimensional Drawings Archive, or on ServAid.
Please visit: http://webbox.atlascopco.com/webbox/dimdrw or https://servaid.atlascopco.com.
Overview

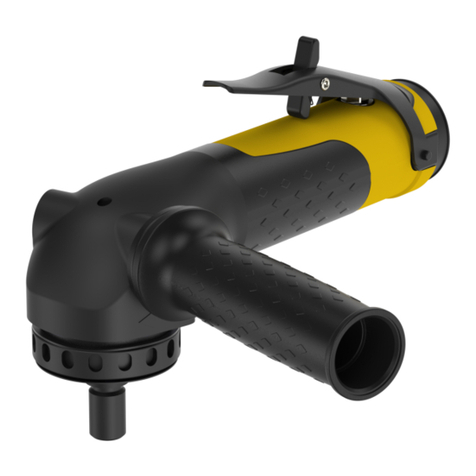

Main Components and Functions
Position Part Function
1 Air inlet For connection to compressed air through a whip hose.
2 Throttle lever Starts and stops the tool.
3 Security mechanism A two-step function for a safe start and stop of the tool. Press the re-
lease arm forward to release the throttle lever

LSV39 S066-M14 EN Product Information
© Atlas Copco Industrial Technique AB - 9834 4398 01 7
Position Part Function
4 Support handle Adjustable for a flexible working position for left or right handed opera-
tor.
5 Spindle locking button Locking the spindle to facilitate fastening of the wheel.
6 Spindle For fastening of the wheel.
Technical Product Data
Technical Product Data can be found on either ServAid, or the Atlas Copco website.
Please visit: https://servaid.atlascopco.com or www.atlascopco.com.
Service Overview
Overhaul
The tool should be examined regularly at six-month intervals. If it is in heavy duty service or not running
properly it should be taken out of service more often.
To increase life length of gears, change grease and replace bearings and sealings more often.
After a maximum of 1000 hours the angle gear grease shall be changed. If the grease are not changed in
time other angle gear and motor parts might get damaged.
For correct lubrication properties use Rhenus LKR03, a semifluid type of grease. The required amount of
grease is maximum 11 cm³.
The strainer at the air inlet should be cleaned frequently to prevent clogging and decreased capacity.
WARNING Risk of Serious Injury or Death
Overspeed can result in serious injury or death.
►If a speed governor is used, make sure that the correct speed governor is assembled. Careless
handling may put it out of order
►Do not disassemble security parts and always replace them if they are damaged.
►Always do a free speed check of the tool after service.
Replacement of Vanes
Replace the vanes in the motor when a power drop of the tool is experienced. If the vanes are not re-
placed in time other motor parts may be damaged. For increased life length of the vanes use an oil lubri-
cator to dose oil into the air inlet.
General Service and Maintenance Safety
Do not dismantle the tool.
The service must only be done by authorized workshops or qualified service technicians.
WARNING Polymer hazard
The vanes in this product contain PTFE (a synthetic fluoropolymer). Due to wear, there might be
PTFE particles inside the product. Heated PTFE can produce fumes which may cause polymer fume
fever with flu-like symptoms, especially when smoking contaminated tobacco.
Health and Safety recommendations for PTFE must be followed when handling vanes and other com-
ponents:
►Do not smoke when servicing this product
►PTFE-particles must not come in contact with open fire, glow or heat
►Motor components must be washed with cleaning fluid and not blown clear with an air line
►Wash your hands before starting any other activity

Product Information EN LSV39 S066-M14
8© Atlas Copco Industrial Technique AB - 9834 4398 01
Service Recommendations
Preventive maintenance is recommended at regular intervals. See the detailed information on preventive
maintenance. If the product is not working properly, take it out of service and inspect it.
If no detailed information about preventive maintenance is included, follow these general guide-
lines:
■Clean appropriate parts accurately
■Replace any defective or worn parts

LSV39 S066-M14 EN Installation
© Atlas Copco Industrial Technique AB - 9834 4398 01 9
Installation
Installation Requirements
Air Quality
■For optimum performance and maximum product life we recommend the use of compressed air with
a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration
type air dryer.
■Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of
liquid water. Install the filter as close as possible to the product and prior to any other air preparation
units to avoid pressure drop.
For impulse/impact tools make sure to use lubricators adjusted for these tools. Regular lubricators will
add too much oil and therefore decrease the tool performance due to too much oil in the motor.
Make sure that the hose and couplings are clean and free from dust before connecting to the tool.
Both lubricated and lubrication free products will benefit from a small quantity of oil supplied from a lu-
bricator.
Air Lubrication Guide
Brand Air lubrication
Atlas Copco Optimizer (1 liter) 9090 0000 04
Q8 Chopin 46
Shell Shell Air Tool Oil S2 A 320
Compressed Air Connection
WARNING Risk of severe injury
Air under pressure can cause injury.
►Always shut off the air supply when not in use or before any adjustments.
►Drain the hose of air pressure and disconnect the tool from air supply when not in use or before
any adjustments.
►Always use the correct hose size and air pressure for the tool.
WARNING Compressed Air
High air pressure can cause severe damage and bodily injury.
►Do not exceed maximum air pressure.
►Make sure that there are no damaged or loose hoses or fittings.
For correct air pressure and hose size, see the Technical Product Data on - https://
servaid.atlascopco.com or www.atlascopco.com.
Make sure that the hose and couplings are clean and free from dust before connecting to the tool.
Installation Instructions
Visual Inspection - Tools and Accessories
Inspect the tool and its parts visually before use.
The parts in the list below may vary depending on model.

Installation EN LSV39 S066-M14
10 © Atlas Copco Industrial Technique AB - 9834 4398 01
■Wheel guard or Backing pad
■Adapters, nuts or flange washers
■Support handle
■Throttle lever and security mechanism
■Autobalancer
■Spindle
Look for any damage, grease or oil leakage that can compromise the safety of the tool.
Visual Inspection - Air Installation
Inspect the air installation visually from the supply point to the tool before use.
■Hose
■Couplings
■System pressure
■Air filter
Look for any damage that can compromise the safety of the tool.
Installation Overview
Legend to page 2
A) Recommended torque
B) Hose length
C) Hose diameter
D) Max working air pressure
E) Max free speed
F) Recommended torque
G) Recommended torque
H) Spindle thread

LSV39 S066-M14 EN Operation
© Atlas Copco Industrial Technique AB - 9834 4398 01 11
Operation
Ergonomic Guidelines
Consider your workstation as you read through this list of general ergonomic guidelines to identify areas
for improvement in posture, component placement, or work environment.
■Take frequent breaks and change work positions frequently.
■Adapt the workstation area to your needs and the work task.
■Adjust for a convenient reach range by determining where parts and tools need to be located to
avoid static load.
■Use workstation equipment such as tables and chairs appropriate for the work task.
■Avoid work positions above shoulder level or with static holding during assembly operations.
■When working above shoulder level, reduce the load on the static muscles by lowering the weight
of the tool, using for example torque arms, hose reels or weight balancers. You can also reduce
the load on the static muscles by holding the tool close to the body.
■Take frequent breaks.
■Avoid extreme arm or wrist postures, particularly during operations requiring a degree of force.
■Adjust for a convenient field of vision that requires minimal eye and head movements.
■Use appropriate lighting for the work task.
■Select the appropriate tool for the work task.
■In noisy environments, use ear protection equipment.
■Use high-quality inserted tools and consumables to minimize exposure to excessive levels of vibra-
tion.
■Minimize exposure to reaction forces.
■When cutting:
A cut-off wheel can get stuck if the cut-off wheel is bent or not guided properly. Use the correct
flange for the cut-off wheel and avoid bending the cut-off wheel during operation.
■When drilling:
The drill might stall when the drill bit breaks through. Use support handles if the stall torque is high.
The safety standard ISO11148 part 3 recommends using a device to absorb a reaction torque
above 10 Nm for pistol grip tools and 4 Nm for straight tools.
■When using direct-driven screwdrivers or nutrunners:
Reaction forces depend on the tool settings and joint characteristics. Strength and posture deter-
mine the amount of reaction force that an operator can tolerate. Adapt the torque setting to the op-
erator's strength and posture and use a torque arm or reaction bar if the torque is too high.
■In dusty environments, use a dust extraction system or wear a mouth protection mask.
Configuration Instructions
Wheel Configuration Options
WARNING Risk of injury
►Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not
in use, before changing accessories or when making repairs.
►Always wear protective gloves when changing accessories or when making repairs.
The table below shows the configuration option for a pad with applicable attachment parts.

Operation EN LSV39 S066-M14
12 © Atlas Copco Industrial Technique AB - 9834 4398 01
1 Washers 3 Nut locking the pad and abrasive
2 Pad 4 Locking kit
Lever Assembly Options
WARNING Risk of injury
►Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not
in use, before changing accessories or when making repairs.
►Always wear protective gloves when changing accessories or when making repairs.
The lever can be turned from the top side to the underside of the tool.
1. Remove the support handle and attach two screws in the holes of the angle head.
Hold the tool by the screws using a vice.
2. Remove the lever using a slotted screwdriver.
3. Remove the trigger pin with bushing using a 10 mm socket.
Remove the adapter using a 21 mm socket.
Remove the inlet/outlet parts.
4. Remove the insulation sleeve.
5. Move the cover to the opposite side of the casing
Put the insulation sleeve back in position and turn it to attach it to the casing.
6. Assemble the inlet/outlet parts.
Make sure the inlet is positioned correctly relative to the trigger pin bushing.
Apply Loctite to the bushing threads.
Attach the bushing loosely by hand.
Apply Loctite to the adapter threads.
Tighten the adapter using a 21 mm socket and torque wrench.
Tighten the trigger pin bushing using a 10 mm socket and a torque wrench.
7. Attach the lever in the opposite position.

LSV39 S066-M14 EN Operation
© Atlas Copco Industrial Technique AB - 9834 4398 01 13

Operation EN LSV39 S066-M14
14 © Atlas Copco Industrial Technique AB - 9834 4398 01
Fitting of Support Handle
WARNING Risk of injury
►Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not
in use, before changing accessories or when making repairs.
►Always wear protective gloves when changing accessories or when making repairs.
The support handle can be attached to any side of the tool.
1. Remove the support handle by turning it counterclockwise.
2. Attach the support handle to the opposite side.
Tighten the handle clockwise to the recommended torque.
Operating Instructions
Free Speed Check
Do a daily free speed check with a tachometer. Always do a free speed check of the tool after ser-
vice.
This check should be done with the sanding equipment detached.
The free speed must not be more than the rated speed marked on the tool.

LSV39 S066-M14 EN Operation
© Atlas Copco Industrial Technique AB - 9834 4398 01 15
Operating the Tool
WARNING Risk of injury
►Always use applicable protective equipment when working with the tool such as; eye protection,
hearing protection and non skid safety shoes.
►Always wear protective gloves when replacing accessories or when making repairs.
►Make sure that the working area is kept free from other people to prevent injuries.
►Make sure that the workpiece is safely attached.
►Make sure that the air hose is not under pressure before connecting the tool to the air supply.
►Never remove or attach the throttle lever or security mechanism with tape or similar.
►Make sure that the selected combination of abrasive equipment and attachments parts corre-
spond to national regulations.
►Make sure that the abrasive equipment is not cracked or damaged.
►Make sure that the maximum speed of the abrasive equipment is higher than or equal to the
speed marked on the tool.
►Make sure that the speed of the tool is not higher than the maximum rated speed marked on the
tool.
►When working with the tool, always hold the tool with two hands and in such a way that they are
kept away from moving parts.
►Always operate the tool in the recommended working direction.
►Never touch any rotating parts when the tool is running or connected to the air line.
►Never use the tool above head height.
►Stop using the tool if abnormally loud noises and vibrations occur during use.
Instructions
1. Connect the tool to the air supply (if not already connected).
2. Point the air exhaust away from the operator.
3. Push the security mechanism to release the throttle lever.
4. Push down the throttle lever to start the sander.
Replace the throttle lever if it is not working properly.
WARNING Risk of Damage and Injury
Rotating parts may cause damage and injury
►Make sure that the tool is switched off and has stopped rotating before putting it down.

Service EN LSV39 S066-M14
16 © Atlas Copco Industrial Technique AB - 9834 4398 01
Service
Maintenance Instructions
General Service and Maintenance Safety
Do not dismantle the tool.
The service must only be done by authorized workshops or qualified service technicians.
WARNING Polymer hazard
The vanes in this product contain PTFE (a synthetic fluoropolymer). Due to wear, there might be
PTFE particles inside the product. Heated PTFE can produce fumes which may cause polymer fume
fever with flu-like symptoms, especially when smoking contaminated tobacco.
Health and Safety recommendations for PTFE must be followed when handling vanes and other com-
ponents:
►Do not smoke when servicing this product
►PTFE-particles must not come in contact with open fire, glow or heat
►Motor components must be washed with cleaning fluid and not blown clear with an air line
►Wash your hands before starting any other activity
Service Recommendations
Preventive maintenance is recommended at regular intervals. See the detailed information on preventive
maintenance. If the product is not working properly, take it out of service and inspect it.
If no detailed information about preventive maintenance is included, follow these general guide-
lines:
■Clean appropriate parts accurately
■Replace any defective or worn parts
Overhaul
The tool should be examined regularly at six-month intervals. If it is in heavy duty service or not running
properly it should be taken out of service more often.
To increase life length of gears, change grease and replace bearings and sealings more often.
After a maximum of 1000 hours the angle gear grease shall be changed. If the grease are not changed in
time other angle gear and motor parts might get damaged.
For correct lubrication properties use Rhenus LKR03, a semifluid type of grease. The required amount of
grease is maximum 11 cm³.
The strainer at the air inlet should be cleaned frequently to prevent clogging and decreased capacity.
WARNING Risk of Serious Injury or Death
Overspeed can result in serious injury or death.
►If a speed governor is used, make sure that the correct speed governor is assembled. Careless
handling may put it out of order
►Do not disassemble security parts and always replace them if they are damaged.
►Always do a free speed check of the tool after service.
Replacement of Vanes
Replace the vanes in the motor when a power drop of the tool is experienced. If the vanes are not re-
placed in time other motor parts may be damaged. For increased life length of the vanes use an oil lubri-
cator to dose oil into the air inlet.

LSV39 S066-M14 EN Service
© Atlas Copco Industrial Technique AB - 9834 4398 01 17
Lubrication Instructions
Rust Protection and Cleaning
Water in the compressed air can cause rust. To prevent rust we strongly recommend to install an air dryer.
Water and particles can cause sticking of vanes and valves. This can be prevented by installing an air fil-
ter close to the product to avoid pressure drop.
Before longer standstills always protect your tool by adding a few drops of oil into the air inlet. Run the tool
for 5–10 seconds and absorb any access oil at the air outlet in a cloth.
NOTICE Do not try to clear the air path using sharp tools.
The air inlet is equipped with a strainer. If this is punctured, foreign objects may harm the valves, resulting
in overspeed.
Lubrication Guide
Grease for general purpose
BP Energrease LS-EP2
Castrol OBEEn UF 1
Esso Beacon EP2
Q8 Rembrandt EP2
Mobil Mobilegrease XHP 222 NLG2
Klüber Lub. Klübersynth UH 1 14-151
Texaco Multifak EP2
Molykote BR2 Plus
Grease for angle gears
Rhenus LKR03

Troubleshooting EN LSV39 S066-M14
18 © Atlas Copco Industrial Technique AB - 9834 4398 01
Troubleshooting
Troubleshooting
The table below shows the most common troubleshooting procedures. Note that some actions must only
be done by authorized workshops or qualified service technicians.
Problem Reason Action
Tool does not start No air flow to the tool Do a check of air connection and
compressor
Rotor in dead position Disconnect air supply and then turn
spindle quickly
Air filter in tool air inlet blocked Clean air filter carefully
Throttle valve broken *
Motor jammed *
Inconsistent idling speed Unstable air pressure Do a check of air pressure regula-
tor
Resonance from exhaust Start tool rapidly and slowly until
noise disappear
Worn governor *
Low power Low air pressure Do a check of air pressure
Too long length or too small inner
diameter of air supply hoses and
pipes
Do a check of air hoses and air
pipes
Too small inner diameter of air con-
nections
Do a check of air connections
Blocked air supply filters Clean or replace filters
Air filter in tool air inlet blocked Clean air filter carefully
Too humid air (high dew point) Do a check of the compressor
Worn throttle valve *
Worn governor *
Worn vanes *
Too hot angle gear Too much or too little grease in
gear box
Do a check of grease level (to little
grease may cause premature
wear)
Blocked air relief passage *
Damaged seals *
Damaged needle bearing *
Damaged spindle bearing *
Damaged gear wheels *
Tool too cold by exhaust Because of pressure drop of inlet
air exhaust air gets cold
Assemble exhaust hose
Vanes wear fast High friction in motor Add oil into inlet air to increase life
length of vanes
Dirty air might wear vanes Do a check of filters in tool air inlet
and in air supply
Gear wear fast Too little grease in angle gear Refill correct amount of grease reg-
ularly.
Loose oil plug and spindle lock Tighten oil plug or spindle lock
Worn or damaged seals *
Damaged o-rings *

LSV39 S066-M14 EN Troubleshooting
© Atlas Copco Industrial Technique AB - 9834 4398 01 19
Problem Reason Action
Damaged bearings *
Grease leakage Loose oil plug and spindle lock Tighten oil plug or spindle lock
Worn or damaged seals *
Damaged o-rings *
Damaged bearings *
Too much grease in gear housing Do a check of that angle gear has
correct amount of grease
Tool starts unexpectedly Valve pin jammed in start position Replace pin and bushing
Damaged security meachanism Replace lever
Damaged throttle valve *
Vibrations Worn or damaged grinding wheel Replace wheel
Autobalancer not working properly Replace autobalancer
Damaged spindle *
Worn or damaged flange washers Replace flange washers
Too high idle speed Governor *
Too high air pressure Do a check of air pressure
Abnormal or high sound Resonance from exhaust Restart tool rapidly and slowly until
noise dissapear
Exhaust hose is missing Assemble exhaust hose
Too little grease in gear housing *
Damaged gear *
Damaged spindle *
Bad noise from gears *
Worn bearings *
* This service must only be done by authorized workshop or qualified service technician.

Recycling EN LSV39 S066-M14
20 © Atlas Copco Industrial Technique AB - 9834 4398 01
Recycling
Environmental Regulations
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle
the components in accordance with local legislation.
Batteries shall be taken care of by your national battery recovery organization.
Recycling Information
Position Part Recycle as
1 Housing Metal, Aluminium
2 Insulation sleeve Plastics, Other, TPU
3 Vane motor Metal, Steel*
4 Spindle complete Metal, Steel
5 Wheel guard Metal, Steel
6 End cover Metal, Steel
7 Screws Metal, Steel
