Congratulations and thank you for purchasing the AtlasIED AL-MAGPIE wireless infrared
microphone. This innovative, professional grade microphone has been designed to include
unique features and excellent performance that is required for delivering clear and concise
audio through voice amplification.
Key Features
• Provides Excellent Infrared Wireless Sound Reinforcement
• Keeps Teacher’s Voice Healthy and Sustainable
• Patent Pending Design
• Unique Handheld / Lanyard / Transmitter Microphone
• Microphone Volume Controlled via Transmitter
Applications
The AtlasIED AL-MAGPIE is an in-classroom sound reinforcement solution designed for
use in K-12 and higher education facilities or where a room constrained public address
system is required. When used in conjunction with the AL2450 amplifier / receiver,
it allows the teacher and students to walk freely around the room with the infrared
microphones / system control units and project their voices through installed speakers.

– 8 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual

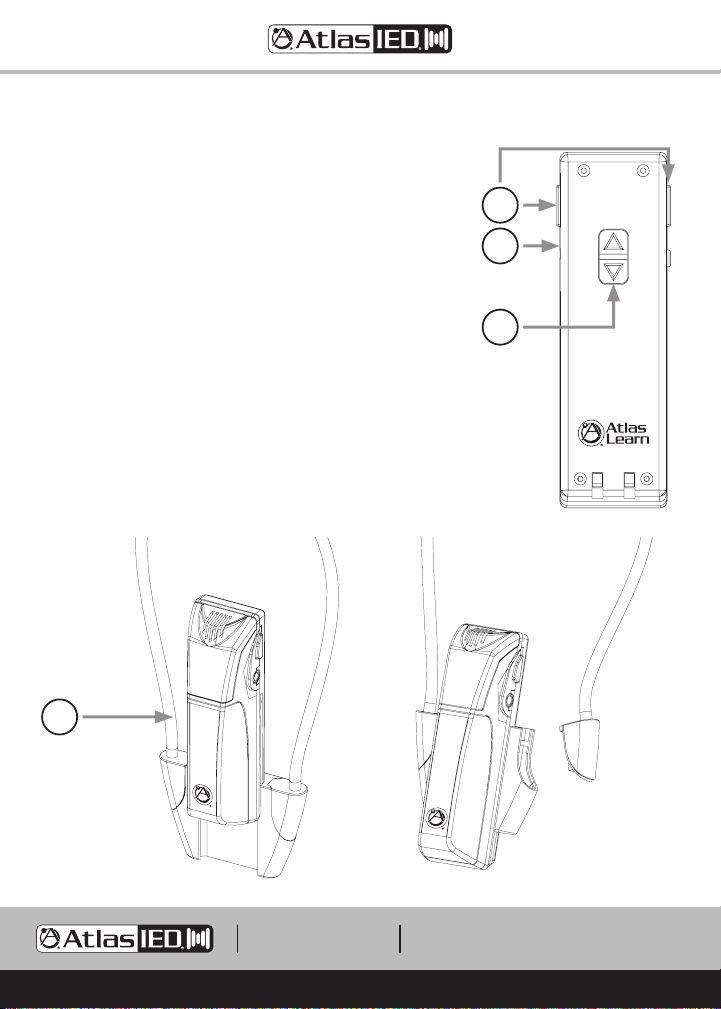

Microphone Description
1. Microphone
High quality internal microphone is used when the unit is
in the handheld or lapel configuration.
2. IR LEDs
This cluster of IR LEDs ensure quality communications
with an AL-IRDS infrared receiver.
3. Power LED
Displays the battery power of the AL-MAGPIE.
Blue Indicates good battery power.
Red Indicates low battery power.
Off Indicates the microphone is turned off.
4. IR Channel Switch
This slide switch sets the microphone channel to “A” or “B”.
5. Lockout Switch
When this switch is set to the lockout mode the unit
works as a microphone only, no operation buttons function.
Also referred to as “Student Mode”.
6. Power Button
When the AL-MAGPIE is off, holding this button for 3
seconds will turn the unit on. When on, holding this button
for 3 seconds will turn the unit off.
7. Battery and Cover
Conceals one rechargeable battery, IR channel switch and
lockout mode switch. Note: Only use a rechargeable
Lithium LIR17500 (3.7V) or damage may occur while
charging the mic.
VOLUME
6
7
VOLUME
1
2
3
4
5

– 9 –– 8 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual
8. Panic Button
When both red buttons are pressed simultaneously, a
signal is sent to the AL2450 amplifier / receiver to close
the “Panic” relay that sends a message to an external
source, like a school’s paging system.
9. Headset Microphone Input
3.5mm jack for connection of the optional AL-HSM
headset microphone. When connected the internal
microphone is disabled.
10. Volume Button
Depressing the UP or DOWN button will raise or lower
the microphone volume.
11. Lanyard
Included lanyard for a lapel configuration.
VOLUME
11
VOLUME
8
9
10

– 10 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual
AL-MAGPIE-NEST Charging Station Description
12. Microphone Charging Receptacles
Holds the microphones in place while charging.
13. Microphone Charging LEDs
These LEDs indicate the current charging status of each receptacle:
Red = Microphone is charging
Green = Microphone is charged
Note: The AL-MAGPIE must be charged for 12 hours before being used.
VOLUME
121313

– 11 –– 10 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual
AtlasIED System Function Description
The versatile AL-MAGPIE microphone performs the functions of a wireless microphone
and a microphone volume control. It can be used as a handheld microphone, a lapel
microhone with included lanyard (AL-LANYARD), or a belt pack microphone with optional
AL-HSM headset. Each AL-MAGPIE has a switch located under the battery door used to
set its IR Channel to either A or B. One AL-MAGPIE must be set to Channel A and the
other AL-MAGPIE must be set to Channel B. The system will not function properly if there
are two AL-MAGPIEs set to the same IR channel.
Also located under the battery door is the Lockout switch. When this is engaged all
function buttons are disabled and the unit can be used as a microphone only.
To turn the microphone on or off, press the power button for three seconds. When the
two panic buttons are pressed simultaneously, a signal is sent to AL2430 Receiver/
Amplifier. This closes its panic output relay. The panic output relay can be connected to
an external system, for example: the school’s paging/intercom system to alert someone
of an event in the classroom that requires immediate attention. If the unit fails to turn on,
place in active charging receptacle for 4 seconds, remove the charging base and press the
power button.
When the two Panic buttons are pressed simultaneously, a signal is sent to the AL2450
amplifier / receiver. This closes its Panic Output relay. The Panic Output relay can be
connected to an external system, for example: the school’s paging / intercom system to
alert someone of an event in the classroom that requires immediate attention.

– 12 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual
AL-MAGPIE Microphone Specications
IR LEDs 6
AUX Input 3.5mm Phono Jack, Mic Level
External Controls Power, Panic, Mic Volume
Internal Controls Lockout, Mic A/B Channel
Battery Lithium LIR17500 (3.7V) Rechargeable Only
Dimensions 1.15" x 1" x 3.8" (29mm x 25mm x 97mm)
Weight with Battery 0.14lb (65g)
Weight without Battery 0.08lb (36g)
AL-MAGPIE-NEST Charging Station Specications
AL-MAGPIE Charging Ports 2
Charge Indicator LEDs 2
PSU Type 100VAC – 240VAC, 50/60Hz, 0.2A, 5VDC, 1A
Dimensions 1.5 x 1" x 2.5" (38mm x 25mm x 64mm)

– 13 –– 12 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual
Notes

– 14 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual
Limited Warranty
All products manufactured by AtlasIED are warranted to the original dealer / installer,
industrial or commercial purchaser to be free from defects in material and workmanship
and to be in compliance with our published specifications, if any. This warranty shall
extend from the date of purchase for a period of three years on all AtlasIED products,
except as follows: one year on electronics and control systems; one year on replacement
parts; and one year on Musician Series stands and related accessories. Additionally, fuses
and lamps carry no warranty. AtlasIED will solely at its discretion, replace at no charge
or repair free of charge defective parts or products when the product has been applied
and used in accordance with our published operation and installation instructions. We will
not be responsible for defects caused by improper storage, misuse (including failure to
provide reasonable and necessary maintenance), accident, abnormal atmospheres, water
immersion, lightning discharge, or malfunctions when products have been modified or
operated in excess of rated power, altered, serviced or installed in other than a workman
like manner. The original sales invoice should be retained as evidence of purchase under
the terms of this warranty. All warranty returns must comply with our returns policy set
forth below. When products returned to AtlasIED do not qualify for repair or replacement
under our warranty, repairs may be performed at prevailing costs for material and labor
unless there is included with the returned product(s) a written request for an estimate of
repair costs before any nonwarranty work is performed. In the event of replacement or
upon completion of repairs, return shipment will be made with the transportation charges
collect.

– 15 –– 14 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
AL-MAGPIE
Owner’s Manual
Limited Warranty (Continued)
EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF
CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY, ATLASIED SHALL NOT BE
LIABLE IN TORT OR CONTRACT FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL
LOSS OR DAMAGE ARISING OUT OF THE INSTALLATION, USE OR INABILITY TO USE
THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES
INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
AtlasIED does not assume, or does it authorize any other person to assume or extend on
its behalf, any other warranty, obligation, or liability.
This warranty gives you specific legal rights and you may have other rights which vary
from state to state.

– 16 –
AtlasIED.com
TELEPHONE: [phone]
[e-mail]
1601 JACK MCKAY BLVD.
ENNIS, TEXAS 75119 U.S.A.
Service
Should your AL-MAGPIE Wireless Infrared Microphone require service, please contact the
AtlasIED warranty department through the online warranty claim process.
Online Warranty Claim Processes
1. Warranty submissions are accepted at: https://www.atlasied.com/warranty_statement
where the type of return Warranty or Stock return can be selected.
2. Once selected, you will be prompted to enter your login credentials. If you do not
have a login, register on the site. If already logged-in, navigate to this page by
selecting “Support” and then “Warranty & Returns” from the top menu.
3. In order to file a Warranty Claim, you will need:
A. A copy of the invoice / receipt of the purchased item
B. Date of Purchase
C. The product name or SKU
D. The serial number for the item (if no serial number exists, enter N/A)
E. A brief description of the fault for the claim
4. Once all required fields are completed, select the “Submit Button”. You will receive 2
emails:
1. One with a confirmation of the submission
2. One with a case# for your reference should you need to contact us.
Please allow 2-3 business days for a response with a Return Authorization (RA) number
and further instructions.
AtlasIED Tech Support can be reached at 1-800-876-3333 or atlasied.com/support.
Visit our website at www.AtlasIED.com to see other AtlasIED products.
©2021 Atlas Sound L.P.The Atlas “Circle A”, Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P.
IED is a registered trademark of Innovative Electronic Designs LLC. All Rights Reserved. All other trademarks are the
property of their respective owners. All specs are subject to change without notice. ATS004078 RevD 5/21
