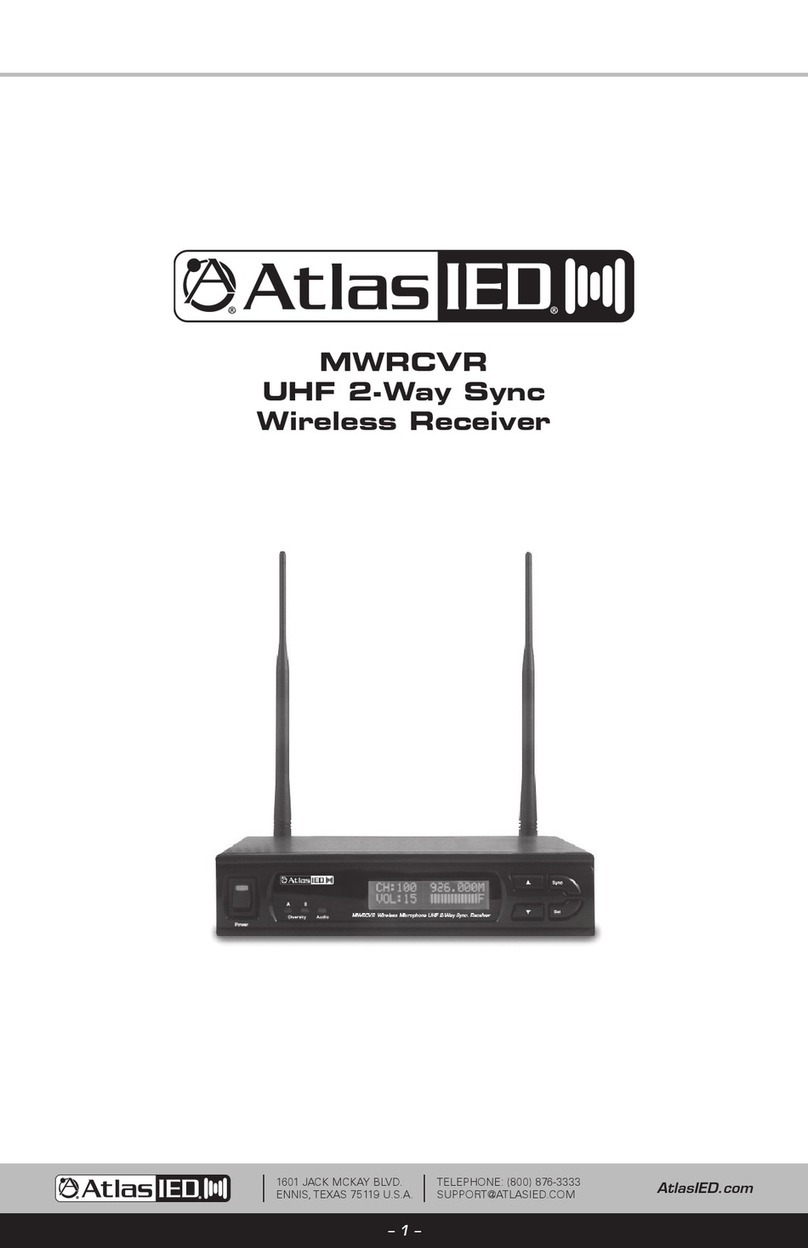

Atlas IED MWRCVR User manual

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com– 1 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
MWRCVR
UHF 2-Way Sync
Wireless Receiver

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Description
The AtlasIED MWRCVR wireless receiver is the ideal choice for a variety of applications ranging
from classrooms and conference rooms to lecture halls and live presentations. Designed to work in
conjunction with either the MWHHM wireless handheld microphone or the MWBTP wireless belt
pack microphone, the MWRCVR allows for great exibility in sound reinforcement applications.
With the ability to connect to a variety of devices via the included balanced XLR or unbalanced line
output the MWRCVR can be used with a variety of ampliers or mixers to address the needs of any
installation. Multiple units can be used in a single installation since the unit receives transmission
via the UHF frequency band and pairs to individual MWHHM or MWBTP on available channels. The
unit can be used as a standalone piece on a shelf or desk or it can be rack mounted by itself or with a
second MWRCVR using the rack mount kit, model MWRMK (sold separately).
Features
• Multi-function LCD display for channel / frequency, volume level, and signal strength
• Patented technology for 2-way data transfer between transmitter and receiver
• 100 frequencies available through the 25MHz signal band
• Dual antennas reduce distortion
• IR sensor for connection to wireless microphone
• Selectable mic or line output
Applications
• Classrooms
• Conference Rooms
• Lecture Halls
• Live Presentation

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com– 3 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Parts and Functions
1. Power Switch
2. IR Sensor Area
3. Diversity Indicator
4. Audio Signal Indicator
5. LCD Display
6. Up Button
7. Down Button
8. Synchronizing Button
9. Set Button
10. Antenna B Socket (BNC Type)
11. Balanced Audio Output
12. Unbalanced Audio Output
13. Mic/Line Output Level Switch
14. DC In
15. Antenna A Socket (BNC Type)
1601 Jack McKay Blvd. • Ennis, TX 75119
800.876.3333 • AtlasIED.com
MWRCVR Wireless Microphone UHF 2-Way Sync. Receiver
A B
Diversity Audio
Balanced Mic Out
1
2
3DC In
10-15V
Unbalanced
Line Out
Mic Line
Antenna AAntenna B
Power
Sync
Set
Select
–
+
1 2
3
10 11 12 13 14 15
1601 Jack McKay Blvd. • Ennis, TX 75119
800.876.3333 • AtlasIED.com
MWRCVR Wireless Microphone UHF 2-Way Sync. Receiver
A B
Diversity Audio
Balanced Mic Out
1
2
3DC In
10-15V
Unbalanced
Line Out
Mic Line
Antenna AAntenna B
Power
Sync
Set
Select
–
+
1 2
3
1 3 4 76 8952

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com – 4 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Changing Channel / Frequency
1. Press and release SET button until the CHANNEL |FREQUENCY page appears (Fig 1).
2. Press UP or DOWN button to select a new channel. As the channel changes, the frequency
changes accordingly (Fig 2).
3. After a channel is chosen, wait 5 seconds to store the setting.
Synchronizing Channels on the Receiver and Transmitter
Align infrared areas of the receiver and microphone within 12" (30cm).
A. Changing the receiver’s channel
1. Press the synchronizing button on the microphone (Fig 4).
2. The microphone’s LED will illuminate, indicating the frequency is being transmitted to the receiver
and that the receiver is synchronizing channels with the microphone (Fig 5).
3. “COPIED BY IRDA” will appear on the receiver’s LCD, indicating that the receiver has been
successfully synchronized (Fig 6).
Figure 1 Figure 2
Figure 3
< 12"
Figure 4 Figure 5
Figure 6

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com– 5 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
B. Changing the microphone’s channel
1. Press the synchronizing button on the receiver (Fig 7).
2. “IRDA DATA SEND” will appear on the receiver’s display (Fig 8).
3. “IRDA TX FINISH” will appear to denote data transferred (Fig 9).
If this does not synchronize the channels, ensure the IR sensor panels are properly aligned and are
located within 12" (30cm) of each other and try synchronizing again.
Channel Scanning
For an interference-free operation, a cleaner channel might be necessary if the current one receives
too much interference. Before scanning, the transmitter must be switched off.
1. Press and release SET button until the AUTO SCAN page appears (Fig 10).
2. Press UP or DOWN button to find and locate a clear, interference-free channel (Fig 11).
3. After a channel is chosen, wait 5 seconds to store the setting.
Figure 10 Figure 11
Figure 7
Figure 9Figure 8

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com – 6 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Adjusting Volume Level
1. Volume adjustment can be made from the home screen (Fig 12).
2. Press UP or DOWN button to choose a new level (Fig 13).
3. After the level is adjusted, wait 5 seconds to store the setting.
Adjusting Squelch Level
When interference is encountered try reducing the sensitivity of the receiver, thus less susceptible to
interference.
1. Press and release SET button until the SQUELCH SETUP page appears (Fig 14).
2. Press UP or DOWN button to choose a new level between 1 and 10 (Fig 15).
3. After the level is adjusted, wait 5 seconds to store the setting.
Since increasing the squelch level will also reduce the reception distance, it’s recommended to
choose the lowest level that can eliminate the interference. If this still does not solve the problem
it means this frequency is not suitable. Adjust the squelch back to its preset level and use the scan
function to locate a clear, interference-free channel.
Figure 14
Figure 13
Figure 15
Figure 12

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com– 7 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Audio Output Connection
Balanced Output: XLR connector provides balanced audio output signal from this jack to the
mixer/amplifier. Use an audio output cable with “XLR” or “Cannon” connector, connect one end to
the balanced output jack of the receiver, and the other end to the “LINE IN” or “MIC IN” jack of the
mixer/amplifier.
Level Switch Setting: When connecting to the LINE/AUX IN of a mixer/amplifier, switch to “LINE”
position (Fig 16). DO NOT use the “MIC” position as they may not deliver a sufficient output level.
When connecting to the “MIC IN” jack of a mixer/amplifier, switch to “MIC” position (Fig 17).
Distortion may occur at the wrong level position.
Figure 16 Figure 17

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com – 8 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Audio Output Connection
Unbalanced Output: 1⁄4" line output connector provides unbalanced audio output signal from this jack
to the mixer/amplifier. Use an audio output cable with 1⁄4" PHONE PLUG connector. Connect one end
from the unbalanced output jack of the receiver, and the other end to the “LINE IN” or “MIC IN” jack
of the mixer/amplifier.
Level Switch Setting: When connecting to the LINE/AUX IN of a mixer/amplifier, switch to “LINE”
position (Fig 18). DO NOT use the “MIC” position as they may not deliver a sufficient output level.
When connecting to the “MIC IN” jack of a mixer/amplifier, switch to “MIC” position (Fig 19).
Distortion may occur at the wrong level position.
Figure 18 Figure 19

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com– 9 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Receiver Installation
1. For best operation, the receiver should be at least 1m above the ground and 1m away from a wall
or metal surface to minimize reflections.
2. The transmitter should also be at least 1m away from a wall or metal surface to minimize
reflections. The microphone should also be at least 1m away from the receiver.
3. Keep antennas away from noise source such as motors, automobiles, neon light as well as large
metal objects.
Rack Mounting
The receiver can be cabinet-mounted by either one or two units. If only one receiver is to be
mounted, an optional kit is available (Fig 21). If two receivers are to be mounted, they can be
assembled by another kit (Fig 22).
Figure 20
Figure 21
Figure 22

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com – 10 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
System
Frequency Range UHF 566 - 585.8MHz
Switching Bandwidth 25MHz
Switchable Frequencies 100
Channels 1
Display Screen LCD
Operating Range 100m Direct Sight
Output Impedance Mic / Line
Oscillation Type PLL Synthesized
Frequency Stability ±0.005%
Receiving Method True Diversity
Sensitivity -95dBm
Synchronization 2-Way
Image Rejection > 85dB
S/N Ratio > 110dB
Peak (Maximum) Deviation ±40KHz
T.H.D. < 0.5%
Antenna Socket BNC type
Audio Outputs Line (Balanced) XLR Jack: +10dBm(2.4V) / 5KΩ
Line (Unbalanced) 6.35mm Jack: +4dBm(1.2V) / 5KΩ
Mic (Balanced) XLR Jack: -18dBm(100mV) / 600Ω
Mic (Unbalanced) 6.35mm Jack: -24dBm(50mV) / 600Ω
Squelch RF / Noise / Pilotone Squelch
Power Supply 100-240V AC, 12V DC/1.6A
Mechanicals
Dimensions 7.87" x 5.91" x 1.73" (200mm x 150mm x 44mm)
Weight 1.39 lbs / 0.63 kg
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
THIS DEVICE COMPLIES WITH PART 15C OF THE FCC RULES. This equipment complies with FCC RF
radiation exposure limits set forth for an uncontrolled environment.

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com– 11 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Notes

Owner’s Manual
MWRCVR
Wireless Receiver
AtlasIED.com – 12 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Limited Warranty
All products manufactured by AtlasIED are warranted to the original dealer/installer, industrial or
commercial purchaser to be free from defects in material and workmanship and to be in compliance
with our published specifications, if any. This warranty shall extend from the date of purchase
for a period of three years on all AtlasIED products, including SOUNDOLIER brand, INNOVATIVE
ELECTRONIC DESIGNS brand, and AtlasIED brand products except as follows: one year on
electronics and control systems; one year on replacement parts; and one year on Musician Series
stands and related accessories. Additionally, fuses and lamps carry no warranty. AtlasIED will solely
at its discretion, replace at no charge or repair free of charge defective parts or products when the
product has been applied and used in accordance with our published operation and installation
instructions. We will not be responsible for defects caused by improper storage, misuse (including
failure to provide reasonable and necessary maintenance), accident, abnormal atmospheres, water
immersion, lightning discharge, or malfunctions when products have been modified or operated
in excess of rated power, altered, serviced or installed in other than a workman like manner. The
original sales invoice should be retained as evidence of purchase under the terms of this warranty.
All warranty returns must comply with our returns policy set forth below. When products returned to
AtlasIED do not qualify for repair or replacement under our warranty, repairs may be performed at
prevailing costs for material and labor unless there is included with the returned product(s) a written
request for an estimate of repair costs before any nonwarranty work is performed. In the event of
replacement or upon completion of repairs, return shipment will be made with the transportation
charges collect.
EXCEPT TO THE EXTENT THAT APPLICABLE LAW PREVENTS THE LIMITATION OF CONSEQUENTIAL
DAMAGES FOR PERSONAL INJURY, ATLASIED SHALL NOT BE LIABLE IN TORT OR CONTRACT
FOR ANY DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE ARISING OUT OF THE
INSTALLATION, USE OR INABILITY TO USE THE PRODUCTS. THE ABOVE WARRANTY IS IN LIEU OF
ALL OTHER WARRANTIES INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf,
any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may
have other rights which vary from state to state.
Service
Should your MWRCVR require service, please contact the AtlasIED warranty department at
1-877-689-8055, ext. 277 or www.atlasied.com/support to obtain an RA number.
AtlasIED Tech Support can be reached at 1-800-876-3333 or www.atlasied.com/support
Visit our website at www.AtlasIED.com to see other AtlasIED products.
©2018 AtlasIED. The Atlas “Circle A”, Soundolier, and Atlas Sound are trademarks of Atlas Sound L.P. IED is a registered trademark of
Innovative Electronic Designs LLC. All Rights Reserved. All other trademarks are the property of their respective owners. All specs are
subject to change without notice. ATS005714 RevA 2/18
