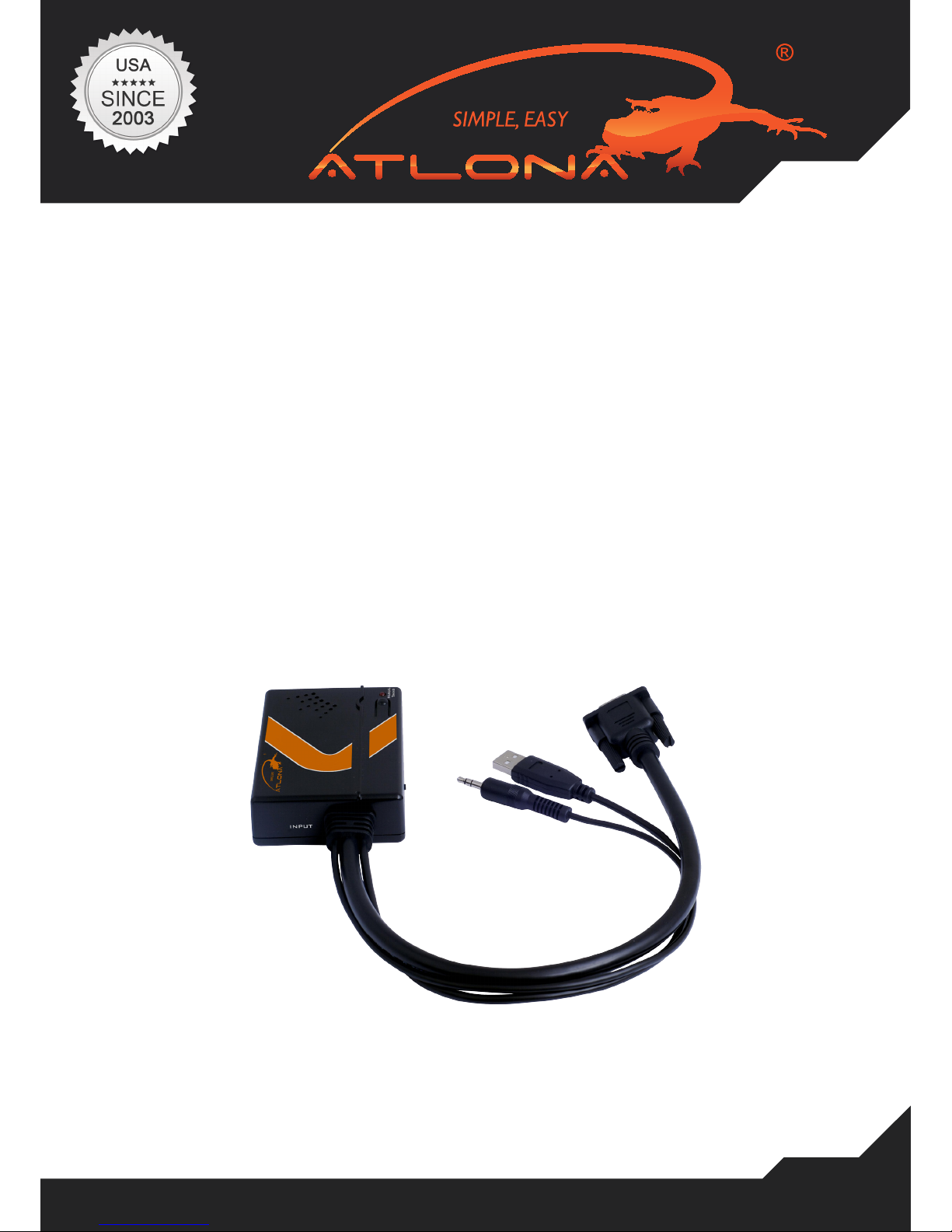

User Manual
AtlonA
VGA & USB with Audio to
HDMI Converter
AT-HDView

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Introduction .................................................. 3
2. Package Contents .................................................. 3
3. Features .................................................. 3
4. Applications .................................................. 3
5. Specication .................................................. 3
6. Panel Descriptions .................................................. 4
6.1. Top Panel .................................................. 4
6.2. Left Panel .................................................. 4
6.3. Right Panel .................................................. 5
6.4. Bottom Panel .................................................. 5
7. Activating a VGA output on a Laptop .................................................. 5
8. Connection Diagram .................................................. 8
9. Safety Information .................................................. 9
10. Warranty .................................................. 10
11. Atlona Product Registration .................................................. 11

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3
INTRODUCTION
PACKAGE CONTENTS:
FEATURES:
SPECIFICATIONS:
The Atlona AT-HDView is designed to take video and audio signal from a PC or Laptop and upscale it to digital
HDMI output of wide-ranged HDTV and PC resolutions, up to 1080p. The AT-HDView is a plug and play device,
automatically sensing the native resolution of the display and scales the computer’s output to match it. The
converter will take audio signal from the computer and embedded it into the HDMI signal output, so that user
is able to enjoy both audio and video though one cable. The HDVieW is a scaler-converter, which means that
it will always work without any adjustments to the video card software in addition to the video quality’s ability to
dramatically increase due to the built-in high quality scaler. The Atlona converter is USB powered and therefore
will not require additional power supplies.
• AT-HDView
• (1 foot VGA, Audio and USB Cables are built-in into the converter)
• 6ft HDMI Cable
• Display VGA signals out of Laptop or Desktop to an HDTV or a Monitor
• Audio Compatible, the converter will take audio from the computer and embedded it to the HDMI
output along with video signal
• High Quality scaler allows any PC resolution to be scaled to a native resolution of the display up to
1080p
• Converter will automatically sense the native resolution of the display and adjust to the output to that
resolution, manual selection is also available
• Supports resolutions of up to 1920 x 1200
• USB Powered
• VGA, Audio and USB pig-tail cables are attached to the converter
• Plug & Play
• 6ft HDMI Cable is Included
Input Ports VGA, USB and Audio (3.5mm input)
Output Ports HDMI
Output Resolution 480p@60, 720p@60, 1080p@60, 1280x800@60, 1366x768@60,
1920x1200@60
Input Resolution 640x480, 800x600, 1024x768, 1280x800, 1280x768, 1280x1024,
1680x1050, 1600x1200, 1920x1080, 1920x1200
Dimensions(mm) 4.4(W) x 2.5(D) x 1(H)
Weight(g) 0.5LB
APPLICATIONS:
• Convert PC signal to an HD TV or monitor

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 4
PANEL DESCRIPTION
1. Manual Timing Button: Press this button when switching the resolution
There are a total of six manual timing modes available.
2. Power LED: The RED LED light will illuminate when the power is on.
1. USB, VGA & Audio cable: Connect each cable to your PC accordingly (i.e USB to USB port on the com-
puter).
1. Top Panel
2. Left Panel
21
1

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 5
1. HDMI OUTPUT: Connect this slot with HDMI cable from the output display HDTV or monitor
3. Right Panel
1
1. Resolutions switch: Switch the resolution between manual and auto. There are a total of six built-in resolutions
available on this device. Move the switch to auto and the device will detect EDID displays as well as show the
best available resolution. OSD will appear on the left top corner of the display with selected timing.
4. Bottom Panel
1
ACTIVATING A VGA OUTPUT ON A LAPTOP
Most laptops have the VGA output disabled by default. In order to use Atlona converter user would have to en-
able it.
There are 2 x congurations:
A) Mirror mode. In this mode, your desktop (or screen) is duplicated on the second display, so your audience
sees what’s on your screen. For example, use Mirrored mode if you’re recording ideas as people mention them
during a brainstorming session and you want participants to see what’s being recorded. The main downside
of this mode is that instant message pop-ups, e-mail notications, and other potentially annoying messages
appear on the screen. Also, if you browse for a le or switch between programs, your audience will see these
actions on the second display.
Note: Most laptops have the VGA output disabled by default. User would have to press a combination of but-
tons to enable it.
1. On your laptop’s keyboard, nd the key marked “FUNCTION” or “Fn” (usually on the lower left corner of the
keyboard).
2. Then, search for a key that has either the letters “CRT/LCD” or a little monitor icon. Most often, it will be in
the top row of keys marked F1 through F12, but not always.
3. When you have keys located, press the FUNCTION key and then the LCD/CRT key that you located before
at the same time. It might take a couple of seconds for the computer to react.
4. This should toggle the screen image through a cycle like this:
Image on Laptop Screen Image on Projector Image on Both (to go from one mode to another, you
would have to simultaneously press Function key and LCD/CRT at the same time)

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 6
B). Extended mode.
In this mode, you extend your mobile PC screen space by using an additional display (whether a monitor or
a projector screen). You can then use each screen independently. This mode is well suited for presentations
because you can display the slides on one screen (usually the projector), and then hide notications and other
miscellaneous messages, and complete other tasks, such as taking notes, on your mobile PC screen. This
mode is also very useful when you want to extend your workspace while using your mobile PC at your desk.
Note: Most laptops have the VGA output disabled by default. User would have to make a few
adjustments in the video settings to enable the mode.
1.Right-click the desktop of your mobile PC, and then click Properties on the shortcut menu.
2.In the Display Properties dialog box, on the Settings tab, click the blue rectangle with the number 2 (which
represents the external monitor), and then select the Extend my Windows desktop onto this monitor check box.
3.Under Screen resolution, drag the slider to the right to change the screen resolution of Monitor 2 to 1024
by 768 pixels, and then click OK.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 7
4. When prompted, click Yes.
Note: If your desktop background does not appear on the external monitor, click No, and then repeat
step 3 to decrease the screen resolution.
Adjust the position of the monitors
By default, Windows places the second screen to the right of the rst (or primary) one. You can change the
position of the monitors to reect their physical position.
1. Right-click the desktop of your mobile PC, and then click Properties on the shortcut menu.
2. In the Display Properties dialog box, on the Settings tab, drag the graphical representation of Monitor 2 (the
blue box with the number 2 in it) to the left of Monitor 1, and then click OK.
3. When prompted, click Yes.
Adjust your screen settings
When you rst enable Extended Desktop mode, your taskbar and any icons on your desktop appear on the
mobile PC screen; desktop space without icons appears on the external monitor. You may nd it easier to show
the taskbar on the external monitor since it is usually the larger of the two screens.
1. On your mobile PC screen, right-click an empty area of the taskbar, and then click Lock the Taskbar.
2. Drag the taskbar to the external desktop and drop it where you want it to appear.
You can now take advantage of the extra screen space by dragging program windows to the external monitor.
You can also resize windows to stretch across the two screens.
By taking advantage of additional monitors, you can share information with others more effectively when you’re
giving a presentation and also improve your productivity by extending your workspace when you’re using your
mobile PC at your desk.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 8
CONNECTION AND INSTALLATION
3.5Ø Audio Cable
VGA port
USB port
AT-HDView
HDTV / Monitor
or or
HDMI cable
Notebook
PCMac
for power only
Note: USB only used for power

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 9
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-HDView. Opening the product will void
the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 10
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the ac-
companying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be free from
defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law
imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdic-
tions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’
option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this
Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty
is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Product will be war-
ranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLIERS
DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IM-
PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO
THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPE-
CIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JURISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLOGIES OR
ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, IN-
CIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING
OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA TECHNOLOGIES HAS BEEN AD-
VISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’
ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT ACTU-
ALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.

www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 11
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rmware
updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war-
ranty rights.
To register go to www.atlona.com/registration
