Atlona AT-DIS7-PROHD User manual

User Manual
Atlona 7” PRO HD Monitor
with HDMI, DVI, VGA and
Component Inputs
AT-DIS7-PROHD
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515

2
1. Introduction ............................................................................................ 3
2. Package Contents ............................................................................................ 3
3. Features ............................................................................................ 3
4. Specifications ............................................................................................ 3
5. Panel Descriptions ............................................................................................ 4
6. OSD Menu ............................................................................................ 4
7. EDID Learning ............................................................................................ 4
8. Connection and Installation ............................................................................................ 5
9. Safety Information ............................................................................................ 6
10. Warranty ............................................................................................ 7
11. Atlona Product Registration ............................................................................................ 8
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
Table of Contents

3
Bandwidth frequency 6.75Gbps
Input Ports 1 x HDMI/DVI
1 x VGA/Component
Resolution outputs Video: up to 1080p
Vesa: up to 1920x1200
Dimensions (HxWxD) 7.1x7.7x2 (inch) or 180.34x195.58x25.4 (mm)
Weight 2.5lbs or 1.13kg
Temperature Operating: 32°F to 104°F or 0°C to 40°C
Storage: -4°F to 140°F or -20°C to 60°C
Power consumption 9.6W
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
Bring the display to the source without having to move a 50” display. With the ability to not only test
resolutions up to 1080p, 1920x1200 and 3D but the ability to learn any display’s EDID. The
AT-DIS7-PROHD is a testing device that can duplicate hot plug events and validate audio signal
presence. Ensure no time is wasted on an installation or tech call with the Atlona 7” Portable Testing
Monitor.
Package Contents
Features
• 1 x AT-DIS7-PROHD
• 1 x Power Supply (5V DC 2.6A)
• 1 x 5ft VGA to Component Cable
• 1 x User Manual
• 7” HDMI, DVI, VGA and Component Testing Display
• EDID learning capabilities
• Supports resolutions up to 1920x1200 and up to 1080p
• HD15 input port for testing VGA and component (adapter included) signals
• Professional quality display offers great brightness and contrast
• Capable of 3D testing, when 3D content is being sent, the monitor will display a message
“3D Content is being Received”
• Supports Deep Color
• Built-in 2Ch audio speakers
Specifications

4
21 3 4 5 6 7 8
1. Output Speakers: These are the two built-in 2Channel speakers.
2. DC 5V: This input is for 5V power supply. If optional battery is used, the power supply is
not required
3. DOWN: Press this button to lower the audio volume. Also controls Menu and EDID
4. HDMI/DVI IN: Source is connected here. If using a DVI source an adapter will be needed.
5. UP: Press this button to raise the audio volume.
6. INPUT: Selects input signal type. Press repeatedly until signal is on correct input
7. POWER & LED: This buttons toggles the AT-DIS7-PROHD on and off.
8. VGA/COMPONENT INPUT: Source is connected here. If using a Component source, use the
included VGA to Component adapter.
The On-screen Display Menu can be moved so that you may have the input source menu and
AT-DIS7-PROHD menu available the same time. Press the up arrow or down arrow to change
the position of the OSD Menu.
Note: Before plugging in the source, change the OSD Menu position. Once an input is
plugged in the arrow buttons will only change volume.
The AT-DIS7-PROHD has the ability to copy the EDID of any display. Press the up and down
arrows simultaneously to start copying. “Check DDC...” will appear on the display screen
while in process. Once done you will see either a red (indicates the copy failed) or green
(indicates the copy was successful) message.
Note: There is no last memory. If power is lost from unplugging, pressing the power button,
or in any other way the copied EDID and OSD Menu will reset to factory settings.
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515
Panel Description
OSD Menu
EDID Learning

5

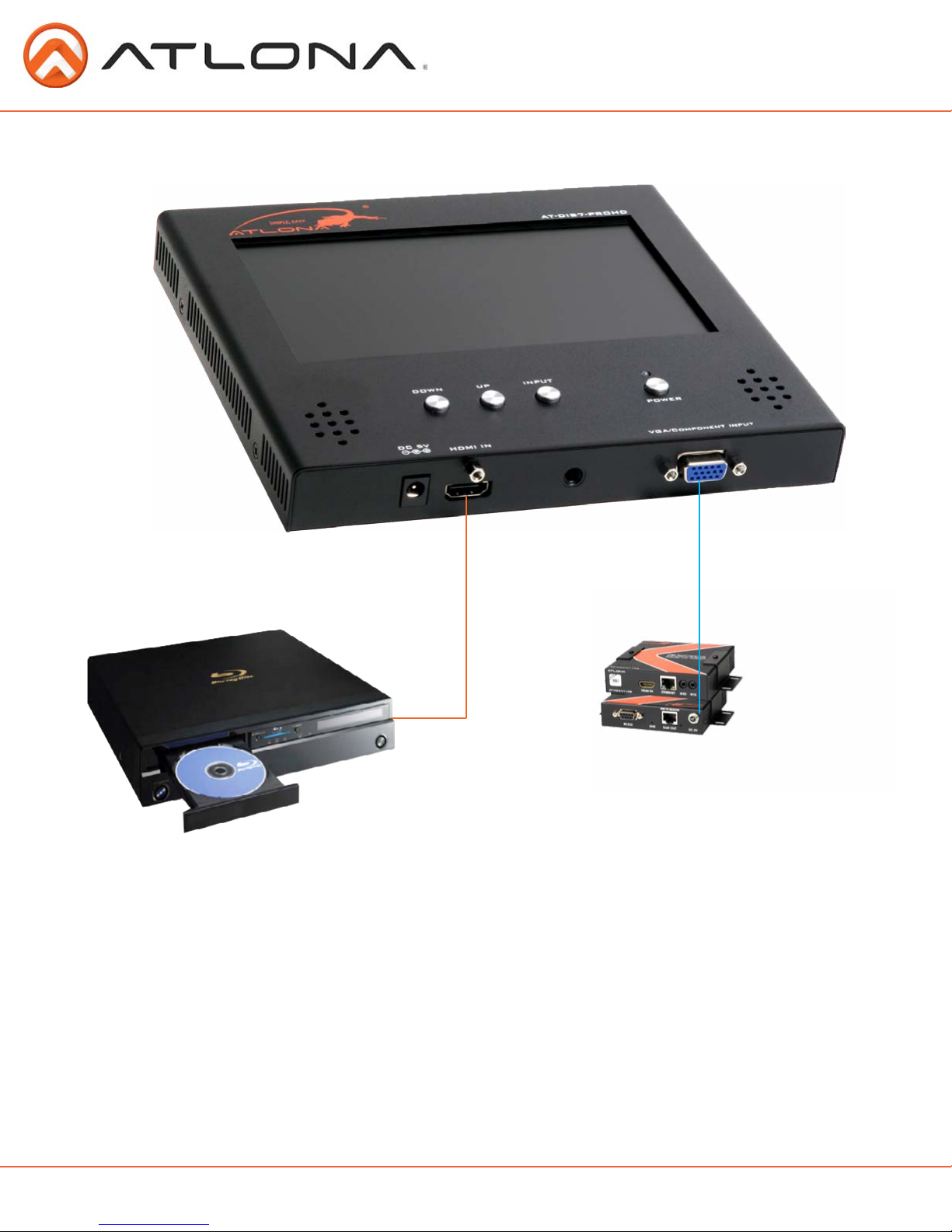

Connection and Installation
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515

6
Safety Information
Safeguards
Precautions
FCC regulations state that any unauthorized changes or modifications to this equipment,
not expressly approved by the manufacturer, could void the user’s authority to operate this
equipment.
Operate this product using only the included external power supply. Use of other power
supplies could impair performance, damage the product, or cause fires.
In the event of an electrostatic discharge this device may automatically turn off. If this occurs,
unplug the device and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed
on or against them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements,
fish tanks, and swimming pools.
Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or
aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some
substances may also mar the finish of the product.
Never open, remove unit panels, or make any adjustments not described in this manual.
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may
also cause damage to your AT-DIS7-PROHD. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized
Atlona reseller or contact Atlona directly.
To reduce the risk of electric shock, do not
expose this product to rain or moisture
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug. Doing so will
void the warranty and safety features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in the case it requires
disconnection.
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515

7
Coverage
Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and
workmanship under normal use, conditions and service.
Under its Limited Product Warranty, Atlona, at its sole discretion, will either:
A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper
operating condition and return defective products free of any charge for necessary parts, labor and shipping
OR
B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona
to perform substantially the same function as the original products
OR
C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products
are beyond repair and/or no direct or substantially similar replacement products exist.
Repair, replacement or refund of Atlona’s products is the purchaser’s exclusive remedy and Atlona’s liability does not extend to any
other damages, incidental, consequential or otherwise.
This Limited Product Warranty extends to the original end-user purchaser of Atlona’s products and is non-transferrable to any
subsequent purchaser(s) or owner(s) of these products.
Coverage Periods
Atlona’s Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-
purchaser ‘s sales or delivery receipt is the proof purchase date.
Limited Product Warranty Terms – New Products
• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013
• Lifetime Limited Product Warranty for all cable products
Limited Product Warranty Terms – Refurbished (B-Stock) Products
• 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June
1, 2013
Remedy
Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products.
Atlona can also be contacted directly. Visit www.atlona.com for Atlona’s contact information and hours of operation. Atlona requires
that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty
services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance
of returns.
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a
return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received
without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/
international) or via Atlona’s website at www.atlona.com.
Exclusions
This Limited Product Warranty excludes:
• Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packing or
shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.
• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any
unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any
other cause which does not relate directly to a defect in materials and/or workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the
product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of
distribution.
Atlona, Inc. (“Atlona”) Limited Product Warranty Policy
atlona.com Toll free: 1-877-536-3976
Local: 1-408-962-0515

8
Atlona, Inc Product Registration
Disclaimers
This Limited Product Warranty does not imply that the electronic components contained within Atlona’s products will not become
obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product,
technology or any future products or technologies in which Atlona’s products may be used in conjunction with. Atlona, at its sole
discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but
not limited to, damage inflicted to its products from acts of god.
Limitation on Liability
The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the
maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from
any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or
limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above
limitations or exclusions may not apply to you.
Exclusive Remedy
To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu
of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by
law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a
particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties
covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under
applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act
(15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied
warranties on its products,including warranties of merchantability and fitness for the particular purpose, shall apply as provided under
applicable law.
Other Conditions
Atlona’s Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to
state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products
are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona’s authorized distributors, dealers and
resellers can be found at www.atlona.com
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new
purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance
issues and firmware updates.
At Atlona we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product
registration is completely voluntary and failure to register will not diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
