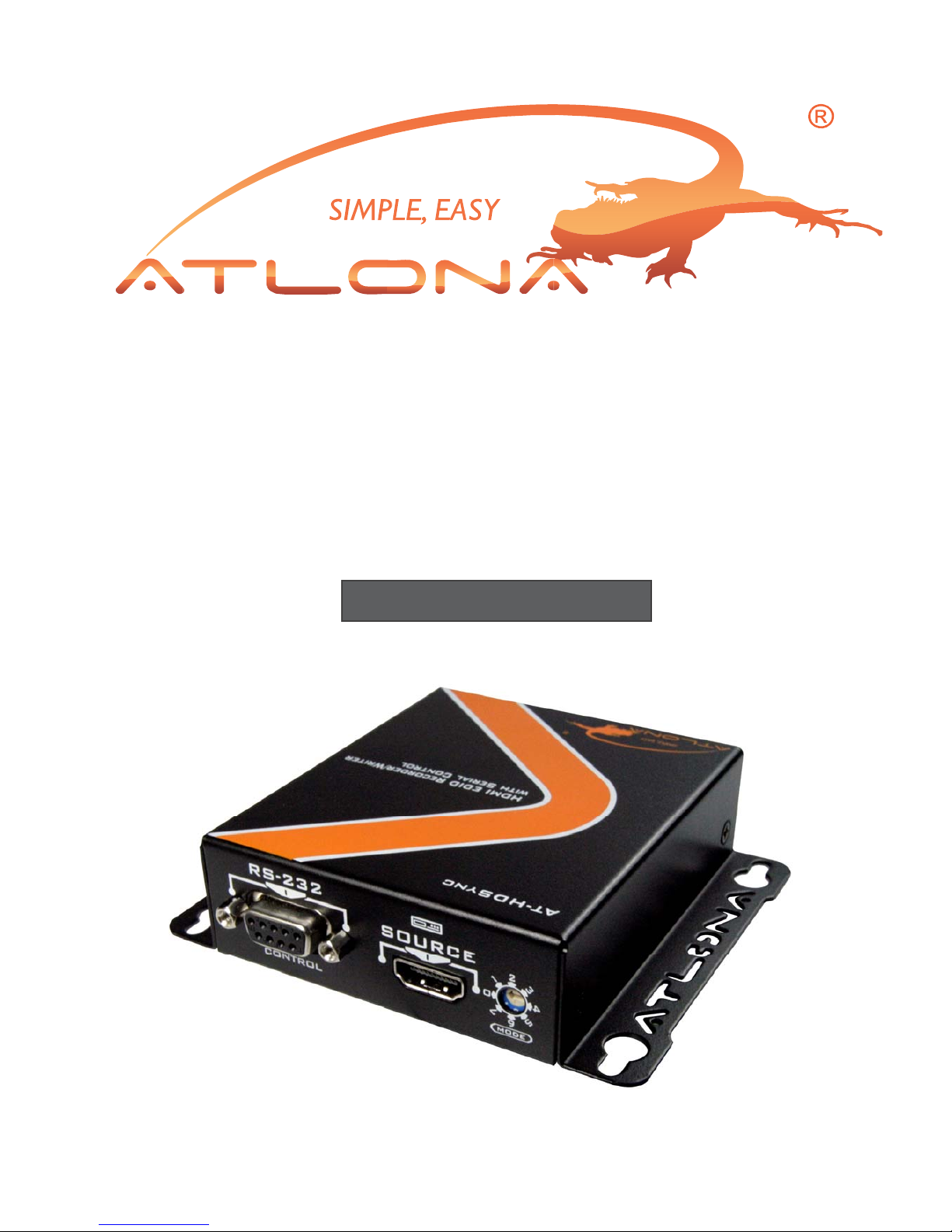

Atlona AT-HDSync User manual

HDMI™EDID Recorder-Writer
with Serial Control
Model: AT-HDSync
User’s Manual
Rev.1006

TABLE OF CONTENTS
1. Introduction ......................................................................... 1
2. Features ........................................................................ 1
3. Package Contents ........................................................................ 1
4. Specifications ........................................................................ 2
5. Panel Description ........................................................................ 3
6. Installation ........................................................................ 4
7. Software Operation ....................................................................... 5
8. Safety Information ........................................................................ 8
9. Warranty ........................................................................ 9
10. Atlona Product Registration ............................................................... 10

1
PACKAGE CONTENTS
FEATURES
INTRODUCTION
Atlona Technologies AT-HDSync HDMI™EDID Recorder-Writer with Serial Control is a device
that can emulate the EDID (Extended Display Identification Data) information. It stores and
recalls a default EDID setting in non-volatile memory and supports HDCP handshaking. AT-
HDSync allows your HDMI™source boot directly from AT-HDSync, and users can detach
HDMI™monitor at any time while installing AT-HDSync between HDMI™source and monitor. It
can also read and store the EDID of your HDMI™display and even let you modify the EDID
and upload the modified EDID to displays.
Note: Extended Display Identification Data (EDID) is a standard data format that contains basic
information about a monitor and its capabilities, including vendor information, maximum image size,
color characteristics, factory pre-set timings, frequency range limits, and character strings for the
monitor name and serial number.
The information is stored in the display and is used to communicate with the system through a
Display Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The
system uses this information for configuration purposes, so the monitor and system can work
together.
HDMI 1.3c, DVI 1.0 and HDCP 1.1 compliant
Built-in default EDID
Able to read and store the EDID of monitors/projectors
Prevent computers from deactivating inactive HDMI ports
Able to write EDID into the AT-HDSync or the DVI monitors/projectors
Maintain HDMI™video resolution
1x AT-HDSync unit
1x 5V DC power supply unit
1x User's manual

2
SPECIFICATIONS
Model Name AT-HDSync
Technical
HDMI™compliance HDMI™1.3c
DVI compliance DVI 1.0
HDCP compliance Yes
Video bandwidth Single-link 225MHz (6.75Gbps)
Video support Up to 1080p60 & WUXGA (1920x1200@60Hz)
Input 1x HDMI™+ 1x RS-232
Output 1x HDMI™
HDMI™connector Type A (19-pin female)
RS-232 connector DE-9 (9-pin D-sub female)
Flash EEPROM 256 byte (non-volatile)
Mechanical
Housing Metal enclosure
Dimensions
[L x W x H] Model 91 x 80 x 27mm (3.6” x 3.1” x 1.1”)
Package 270 x 175 x 80mm (10.6” x 6.9” x 3.2”)
Weight Model 240g (8.5oz)
Fixedness Wall-mounting case with screws
Power supply 5V DC
Power consumption 4 Watt (max)
Operation temperature 0~40°C (32~104°F)
Storage temperature -20~60°C (-4~140°F)
Relative humidity 20~90% RH (no condensation)

3

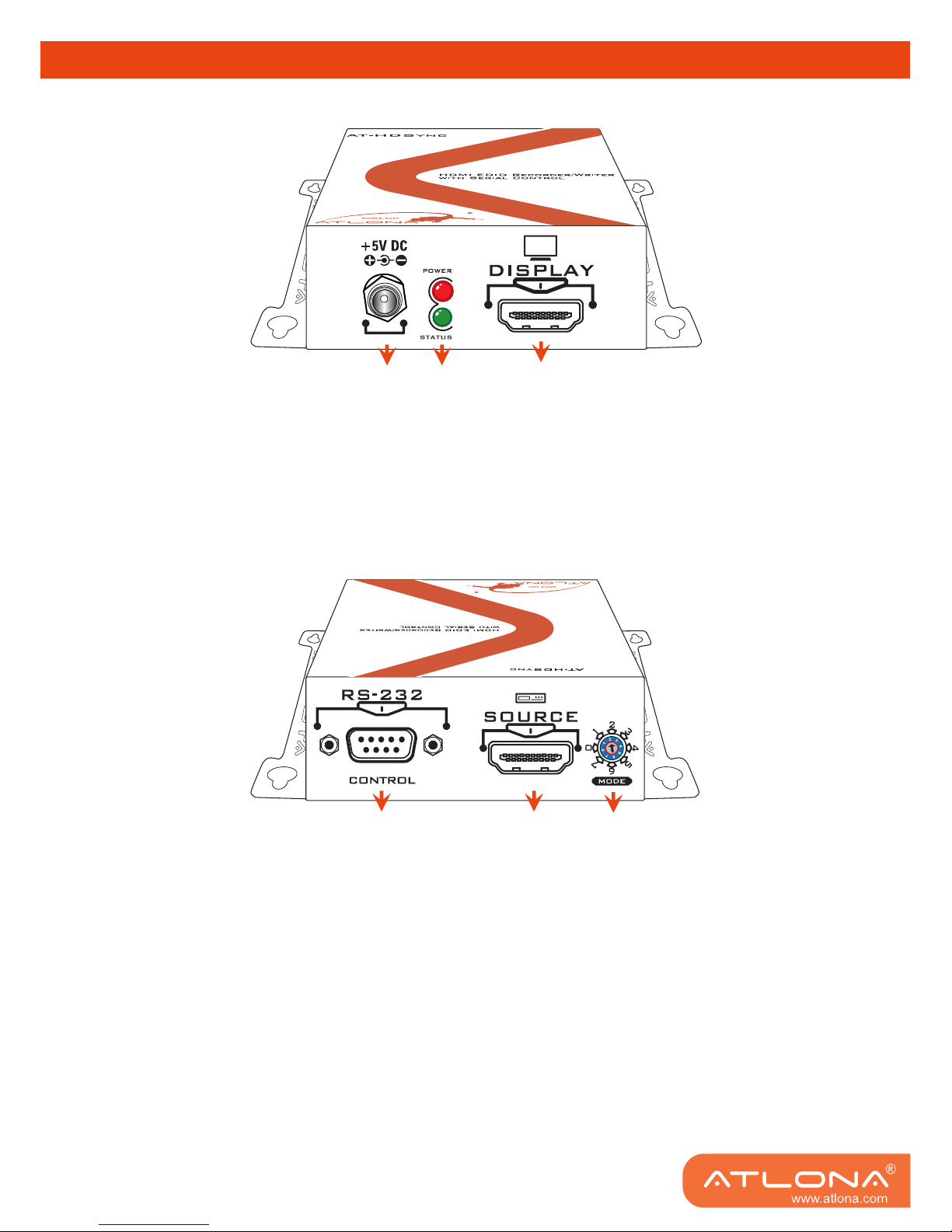

PANEL DESCRIPTION
Display Side
1. Connect to a 5V DC power supply unit.
2. Red light indicates the power on/off status. Green light indicates if the AT-HDSync is in the
process of reading or writing EDID or sync detection.
3. Connect to a HDMI™display.
Source and Control Side
4. Connect to a PC for RS-232 serial control to read/write EDIDs from/ to the display
5. Connect to a HDMI™source device so the AT-HDSync will be the bridge between the HDMI™
source and display
6. Mode 0 = [Video] – supports up to HDMI 1.3 output. [Audio] – supports up to 7.1ch output
Mode 1 = [Video] – supports up to HDMI 1.3 output. [Audio] – lock to stereo audio output
Mode 2 = [Video] – locks to HDMI 1.2 output. [Audio] – supports up to 7.1ch output
Mode 3 = [Video] – locks to HDMI 1.2 output. [Audio] – lock to stereo audio output
Mode 4 = [Video] – DVI display mode. [Audio] – no audio output
Mode 5 = [Safe Mode] – uses default EDID with video supported up to 1080p
Mode 6 = [Recording Mode] – Learning EDID from HDMI output manually
Mode 7 = [Serial Control Mode] – Control the AT-HDSync by software via RS-232
1 23
4 56

4
INSTALLATION
I. Read the EDID manually from a HDMI™monitor or projector
1. Connect the HDMI™display device to the AT-HDSync via the DISPLAY port.
2. Plug in the 5V DC power supply unit.
3. Set AT-HDSync to MODE 6.
4. The EDID reading sequence is done when the green LED lights off.
5. Switch the rotary switch back to MODE 0-4 based on your system setting.
DO NOT let the rotary arrow pass by Mode 5 which will erase the EDID just learned
and restore the default EDID.
II. Recall the default universal EDID
1. Set AT-HDSync to MODE 7.
2. Connect the HDMI™display device to the AT-HDSync via the DISPLAY port.
3. Plug in the 5V DC power supply unit.
4. Connect the AT-HDSync to the serial port of PC and run the control software.
5. Click on “HDMI Monitor Reader” button to read the EDID information from the HDMI™display.
6. The EDID reading sequence is done when the green LED lights off.
III.Write an EDID to a HDMI™monitor or projector
1. Set AT-HDSync to MODE 7.
2. Connect the HDMI™display device to the AT-HDSync via the DISPLAY port.
3. Plug in the 5V DC power supply unit.
4. Connect the AT-HDSync to the serial port of PC and run the control software.
5. Click on “HDMI Monitor Writer” button to write the EDID information to HDMI™display.
6. The EDID reading sequence is done when the green LED lights off.
Note: The AT-HDSync may not work on the monitors with EDID write-protection.

5

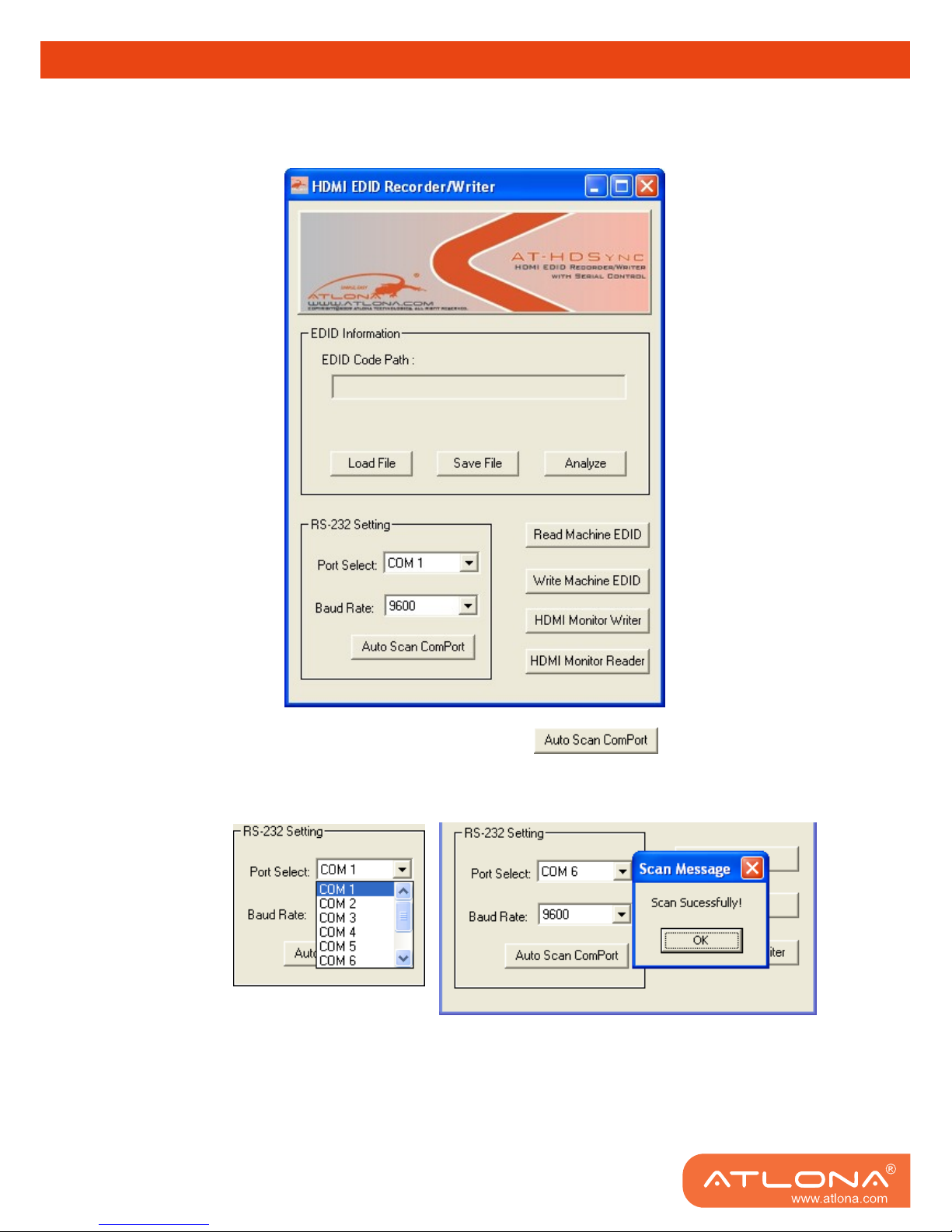

SOFTWARE OPERATION
Before running the software, please make sure the rotary switch is set to MODE 7.
1) Getting started
1. Firstly, make sure of the correct setup, and click on

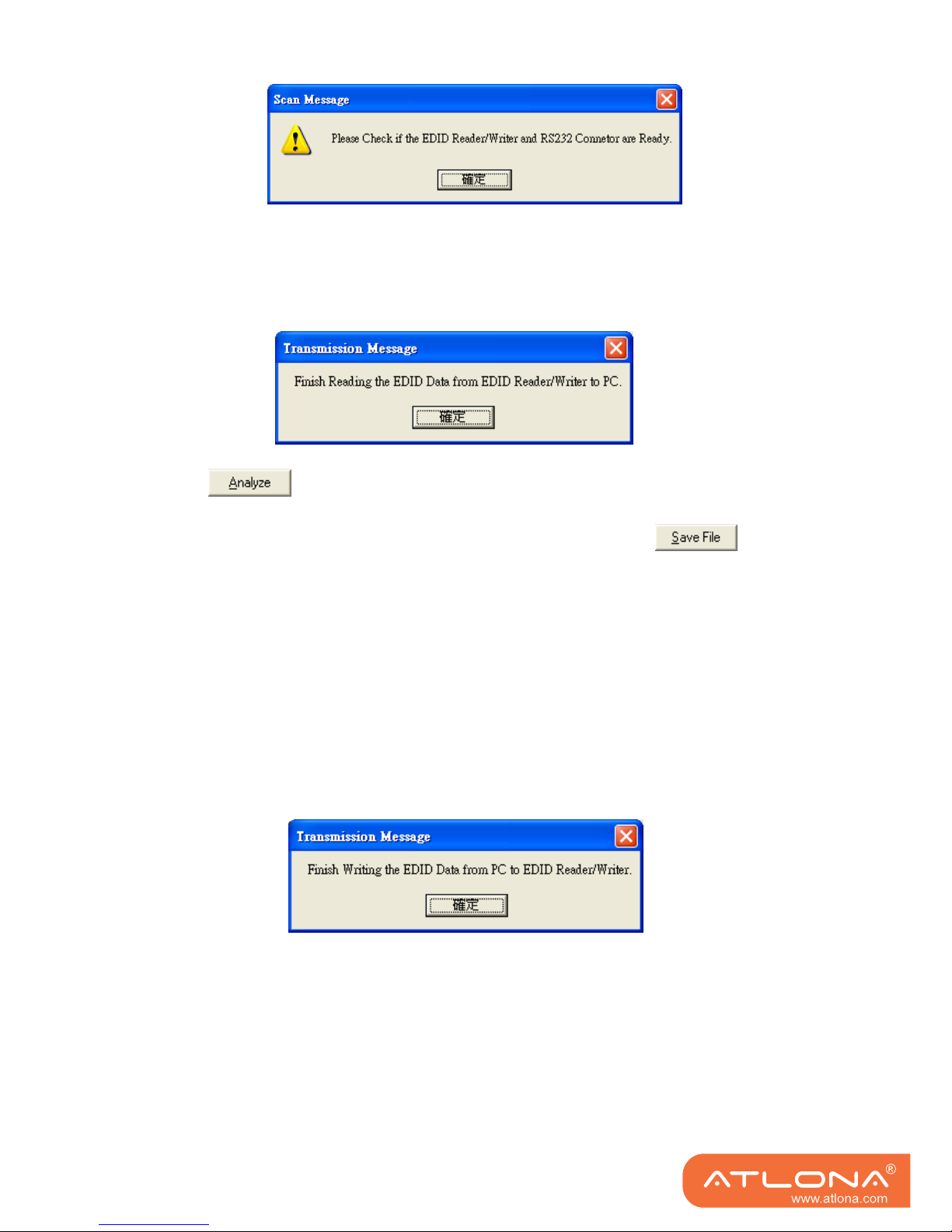

If the installation is done successfully, the following pop-up message window will show up to
indicate the RS-232 serial port is automatically detected and successfully connected.
2. If the error message as shown below appears, inappropriate setup has occurred. Check
at the power supply and RS-232 serial port connection.

6
2) Read EDID from AT-HDSync
1. If users would like to read EDID info from the AT-HDSync, simply click ”Read Machine EDID.”
You can see the following message to inform you the correct reading of the EDID has been
done.
2. Click and make a quick analysis on the EDID information just read, which
users are capable of monitoring or modifying.
3. To save the EDID information for your future reference, please click .
The pop-up window will guide you to save the EDID information within the PC.
3) Write EDID into AT-HDSync
1. You can modify EDID content in the pop-up window after you click “Analyze”. You can also
load the previously saved EDID information in the analysis window by clicking “Load File”.
2. While you finish editing EDID content, you can click “Write Machine EDID” to write the EDID
profile to the AT-HDSync. After the writing action is completed, the following message
window will show up.

7
4) Write EDID into a HDMI™monitor/projector
Executing “HDMI Monitor Writer” might cause damage to your monitor’s EDID. For instance, the
sudden power surge or the disconnection of the serial port while updating EDID may result in
an incomplete update process. Therefore, it is not recommended to use this function. If users
would like to update the monitor’s EDID content and acknowledge such risk, please make a
backup copy of the original EDID, and make sure there is no damage to your monitor’s EDID.
1. Click or click to load the pre-saved EDID profile in the analysis window.
2. Click “HDMI Monitor Writer” Click “HDMI Monitor Writer” and wait for the following message
window showing up.
3. The AT-HDSync may not work on the monitors with EDID write-protection. At this time , you
can see the following error message window showing up .
5) Read EDID from a HDMI™monitor/projector
1. Click ”HDMI Monitor Reader” and wait for the following message window showing up.
2. Click “Analyze” and make a quick analysis on the EDID information just read, which users
are capable of monitoring or modifying.
3. To save the EDID information for your future reference, please click .
The pop-up window will guide you to save the EDID information within the PC.
Note: The AT-DVISync may not work on the monitors with EDID write-protection.

SAFETY INFORMATION
8
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near the
socket outlet and the device should be easily
accessible in case it requires disconnection.
Precautions
FCC Regulations state that any unauthorized
changes or modifications to this equipment
not expressly approved by the manufacturer
could void the user’s authority to operate this
equipment.
Operate this product using only the included
external power supply. Use of other power
supplies could impair performance, damage
the product or cause fires.
In the event of an electrostatic discharge, this
device may automatically turn off. If this
occurs, unplug the device, and plug it back in.
Protect and route power cords so they will not
be stepped on or pinched by anything placed
on or against them. Be especially careful of
plug-ins, or cord exit points from this product.
Avoid excessive humidity, sudden temperature
changes or temperature extremes.
Keep this product away from wet locations such
as bathtubs, sinks, laundries, wet basements
and swimming pools.
Use only accessories recommended by ATLONA
to avoid fire, shock or other hazards.
Unplug the product before cleaning. Use a
damp cloth for cleaning. Do not use cleaning
fluid or aerosols, which could enter the unit and
cause damage, fire or electrical shock. Some
substances may also mar the finish of the
product.
Never open or remove unit panels or make any
adjustments not described in this manual.
Attempting to do so could expose you to
dangerous electrical shock or other hazards. It
may also cause damage to your AT-HDSync
Opening the product will void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA directly.

WARRANTY
9
WARRANTY
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in
accordance with the accompanying written materials for a period of 3 years from the date of
receipt and (b) that the Product will be free from defects in materials and workmanship under
normal use and service for a period of 3 years. In the event applicable law imposes any implied
warranties, the implied warranty period is limited to 3 years from the date of receipt. Some
jurisdictions do not allow such limitations on duration of an implied warranty, so the above
limitation may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be,
at Atlona Technologies’ option, either return of the price paid for the Product, or repair or
replacement of the Product that does not meet this Limited Warranty and which is returned to
Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of
the Product has resulted from accident, abuse, or misapplication. Any replacement Product will
be warranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES
AND ITS SUPPLIERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT AND ANY
RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES CUSTOMER SPECIFIC
LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE
JURISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
ATLONA TECHNOLOGIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES
WHATSOEVER (INCLUDING WITHOUT LIMITATION, SPECIAL, INCIDENTAL, CONSEQUEN-
TIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT,
EVEN IF ATLONA TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN ANY CASE, ATLONA TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE
LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT SHALL BE LIMITED TO THE
AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JURISDICTIONS
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ATLONA
1293 Mountain View Alviso Rd. Suite A
Sunnyvale, CA 94089
Toll Free: 1-877-536-3976
International: 408-962-0515
FAX: [phone]
Website: www.atlona.com
E-MAIL: [email protected]

WARRANTY
10
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates
an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of
performance issues and firm- ware updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is
completely secure. Of course, Atlona product registration is totally voluntary and failure to register
will not diminish your limited warranty rights.
To register go to www.atlona.com/registration
