ATN XTV 106 User manual

Page 1of 35
USER GUIDE FOR:
XTV 106

Page 2of 35
TABLE OF CONTENTS
1- General Introduction.
2- Current Features.
3-Connections/Wiring Diagram.
4- Setup Menu Setting.
5- Remote Control Operation.
6-Available Packages.
7- Available Channels.
8- Available Subscriptions.
9-DVR Operation.
10- New Features
11- Coming Soon Features.
12-Available Accessories.
13- Troubleshooting Error Messages.
14- Billing Questions
15-Technical Questions.
16- Contact information.
17- Receiver Activation.

Page 3of 35
1 –General Introduction:
The XTV 25 is one of the latest and most advanced ATN Network Receiver available in the market
now.
Right now, it can provide more than 700 Arabic favorite channels from Nilesat, TurkSat, EUTelSat,
Hotbird and ARABSAT including special channels, directly through the Internet.
The TV signal is broadcast in near-HD quality and can be received using an Internet speed of 2 Mbps,
which are within the capability of most Internet connections available worldwide.
2–Features:
The XTV 25 supports 3 different type of connections.
1- Composite Video
2- Component Video
3- S-Video
4- HDMI Connection
5- Optical Audio Out.

Page 4of 35
You can use any type of the connections listed above to connect your box to the TV, and the really
interesting part is that you can use the Composite & HDMI connection at the same time which makes
you connect the receiver to 2 different TVs using 2 different types of cables.
Another Option you can use the component & HDMI connection at the same or the S-Video & HDMI
Connections at the same time.
By having all these different connection types, it can connect to all kinds of TVs, videos, etc..
The Receiver provides an output of 1080i & 1080P24 & 1080P30 high resolutions for HDMI, and 720P
for near HD Quality Resolutions, as well as 640i & 480i which can be set for the HDMI output.
Note: setting Any of the high resolution output won’t affect the resolution of the S-Video, Composite
output, this will always be displayed as 640i, which can be used if for some reason you set up an
unsupported output for the TV, and the screen goes blank. Refer to the troubleshooting section for more
information.
3–Connections/Wiring Diagram:
Below is a screenshot for the Receiver front & Back display.
Back View Front View

Page 5of 35
A Closer View for the back panel of the receiver: The connection on the left corner is used to connect to
an external infrared remote control extender if needed.
A Closer View for the Front panel of the receiver:
To know the status of the receiver, check the power/ (on-off-standby) indicator as shown in the
screenshot below:
If the On/off/Standby indicator is red, this means that the receiver is not active.
If the receiver stands on one channel for more than 4 hours, the receiver goes into standby mode.
During stand-by mode, the TV screen goes black but the on/off/standby indicator is still green, this
means that the receiver is in stand-by mode. If that indicator is red, this means that the receiver is off,
and needs to be turned on by pressing the red button on the remote control to bring the receiver back-
on, or turning off then on the switch from the back, this will reboot the receiver and goes into active
again displaying channel “1”from the “Channels”menu.

Page 6of 35
Note: When the receiver is switched off and if turned on again, by default the channel goes back to “1”,
so you need to press the “OK”button and scroll to the channel you want, because it does not memorize
the last channel viewed when the receiver is switched off. This will be changed in the up-coming
firmware.
A Simple wiring diagram to connect your receiver with the TV is shown below:

Page 7of 35

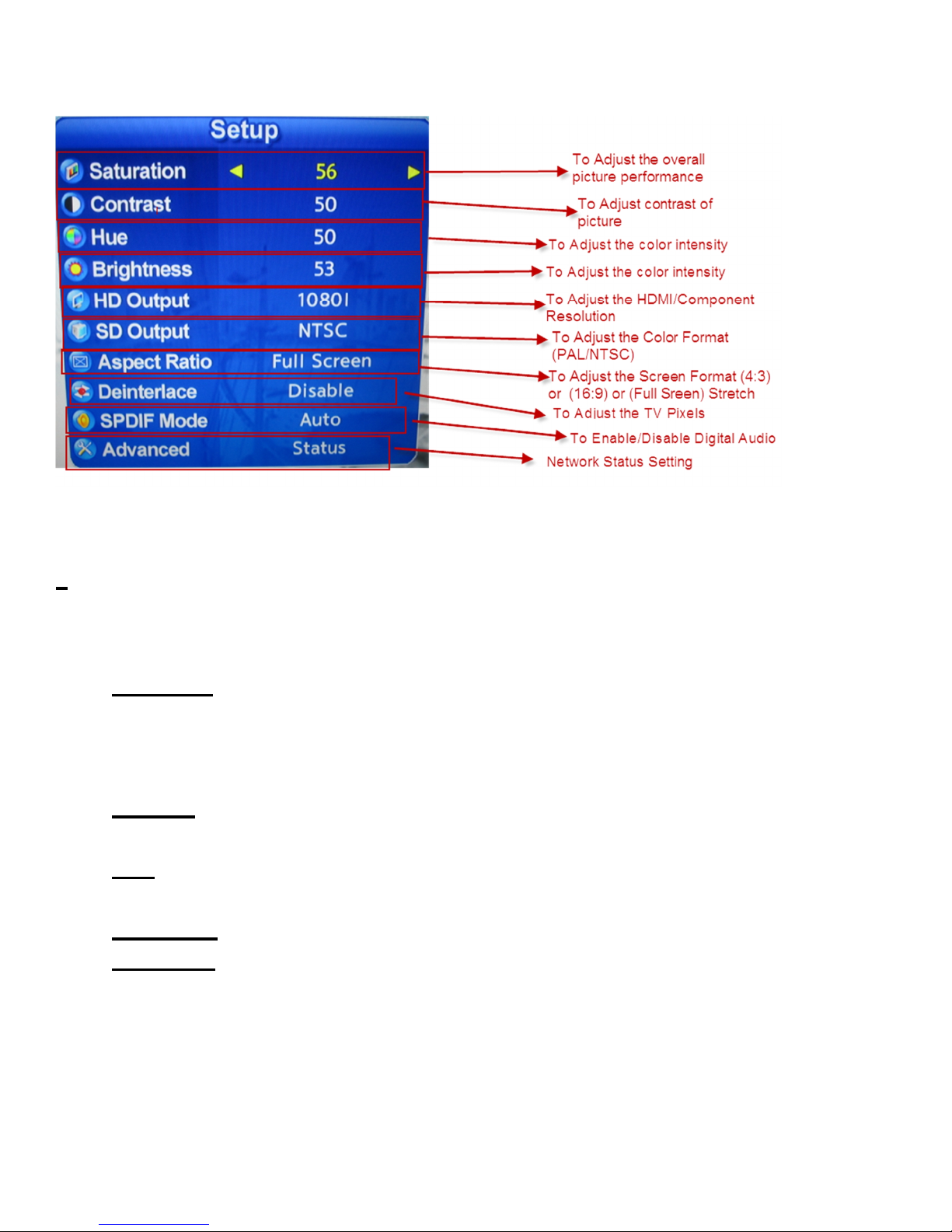

4–Setup Menu Setting:

Page 8of 35
The Setup menu can be accessed by pressing the “Setup”button on your remote to access some
advanced settings for the receiver. To move through each item, use the up/down arrow keys, to
adjust the value, using the left/right arrow keys located around the “OK”button.
1- Saturation: If you realize that the picture is not clear or saturated enough, you can adjust
that setting; a preview will apply immediately in background. Once you confirm you are
satisfied with the new setting, press the “OK”button to save the setting, otherwise, the
previous setting will be reverted back to the previous setting.
2- Contrast: If you think that the picture has too much contrast or too low contrast, use that
option to adjust it accordingly.
3-Hue: This will be used to adjust the level of color of the picture, if you find that the picture
does not show full color on the TV.
4-Brightness: Adjusting the brightness of the screen
5- HD Output: This setting can only be adjusted if you are using HDMI or Component Cables.
On S-Video/Composite output this does not affect the resolution or any adjustment on the
video. If you were using HDMI and you set it to a resolution that is not supported by your
TV, you can use one of the above 2 connections to change the setting back and then
reconnect the HDMI or component cables again.

Page 9of 35
6-SD Output: This can be used to adjust the color format, in USA, this setting should always
be NTSC, in other Europe/Middle East countries this needs to be set to PAL to be able to
see the picture.
7- Aspect Ratio: If your TV does not support widescreen, or if your TV does not show the
screen fully, you can adjust this setting to one of the 3 available settings, (4:3, 16:9, Full
Screen), this can also be accessed on the fly by pressing the Change Aspect Ratio “A/R”
button on your remote.
8- DEinterlace: This setting is not recommended to adjust if your screen
is clear, because this can only be used in some cases when the screen
flickers.
9- SPDIF Mode: if you are using any of the digital audio connection
(coaxial or optical), then you can permanently set it to ON without having
the system detect it, otherwise you can either set it to Auto or OFF mode to
permanently disable digital audio out.
10- Advanced: This will actually show you some settings for the receiver
like receiver Serial Number, MAC Address, Network IP Address, Subnet
Mask, and Gateway. This is a great troubleshooting option to see if the
settings are correct and to find out if the receiver is connected properly to
the internet. To access this menu, simply select this option and press the
“OK”button to view these settings, to exit that page, press the setup button.
Note: To exit out of the setup menu, the only way to do this is to press the
setup menu again and it will take you back to your default home screen.
5–Remote Control Operation:
Remote Type “1”:
1- Home Button: Will return to main home channel “1”
2- Power Button: To Turn On/Off Receiver.
3- Mute Button: Will temporary mute Receiver Audio.
4- Back button: will return to previous menu.
5-Page Up/Down buttons: will scroll the channel/Favorite menu one page
at a time.
6- Guide Button: will display the package menu.
7- Info Button: will display more info about the channel being viewed.

Page 10 of 35
8- Channel Buttons: For changing channels or Activation Code Input.
9- Back Space Button: To remove previous character on screen.
10- Volume Up/Down: To Adjust volume level
11- Channel Up/Down: To Change Channel Numbers sequentially.
12- Up/Down –Left/Right Navigation Buttons.
13- “OK”Button: to access the channel menu or confirm any setting.
14- Remove Favorite Channel or access YouTube video.
15-Add To Favorite Channel
16- Hide/Unhide left column “Channel”menu.
17- Move Favorite Channel or Recording Menu.
18- DVR Buttons: Includes F.R , Play/Pause, F.F.,Prev, Stop, Next Buttons.
19- Aspect Ratio Button: Adjust screen fit 4:3, 16:9, Full Screen, Stretch.
20- Reload Button: will load back the default page “1”similar to the home
button but this can only be used if you are having
some issues with channels
21- Setup Button: Will allow you to access the setup menu.
To use the remote control, follow the instruction above about each
Button and how to use it. You can use the remote for the full operation
of the receiver.
The Screenshot is self-explanatory for the basic remote control usage.
Remote Type “2”:
1- Home Button: Will return to main home channel “1”
2- Power Button: To Turn On/Off Receiver.
3-Mute Button: Will temporary mute Receiver Audio.
4- Back button: will return to previous menu.
5- Page Up/Down buttons: will scroll the channel/Favorite menu one page at a time.
6- Guide Button: will display the package menu.
7- Info Button: will display more info about the channel being viewed.
8- Channel Buttons: For changing channels or Activation Code Input.
9- Back Space Button: To remove previous character on screen.

Page 11 of 35
10- Volume Up/Down: To Adjust volume level
11- Channel Up/Down: To Change Channel Numbers sequentially.
12- Up/Down –Left/Right Navigation Buttons.
13- “OK”Button: to access the channel menu or confirm any setting.
14- Remove Favorite Channel or access YouTube video.
15- Add To Favorite Channel
16- Hide/Unhide left column “Channel”menu.
17-Move Favorite Channel or Recording Menu.
18- DVR Buttons: Includes F.R , Play/Pause, F.F.,Prev, Stop, Next Buttons.
19- Aspect Ratio Button: Adjust screen fit 4:3, 16:9, Full Screen, Stretch.
20- Reload Button: will load back the default page “1”similar to the
home button but this can only be used if you are having some
issues with channels
21-Setup Button: Will allow you to access the setup menu.
6–Available Packages:
Currently packages are bundled into 8 Major Packages, and 2 Sub Packages.
The Packages are as follows:
Packages: Arabic,ART,Indian,Turkey, Afghanistan,Pakistan,Kurdish,Iran,Africa.
The other 2 Packages are as follows:

Page 12 of 35
1-“ATN All Channels”, which includes all available channels.
2-“ART”
With one subscription you get access to all the 6 packages for only $35/month.
ART Package comes with separate subscription for just $5/month.
Having organized this way will make it easy for someone who only wants to view a bundled
package to view only channels related to it, without having to view the rest of the channels.
7–Available Channels:
Due to the large amount of Channels available, and to the change of channels every time by adding more
channels, the list of channels below might vary from time to time, if you are interested to see what new channels
are added, please visit our website at: http://www.iptvtech.net to get a list of the latest channels.

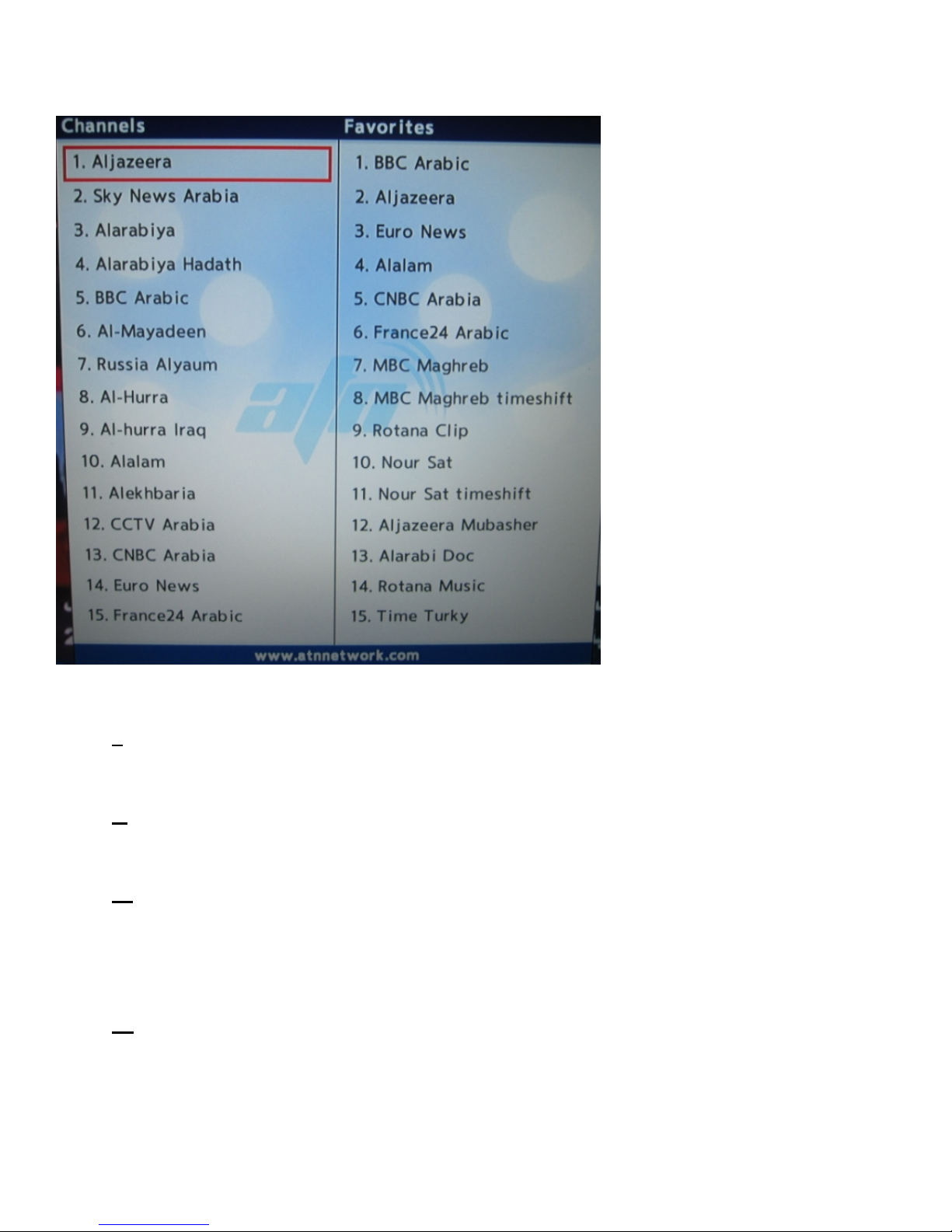

To Access the Channel Menu, Simply Press the “OK”button, and a pop-up box will display as follows:

Page 13 of 35
The left menus are Channels Available in each entire package.
I-To add a channel to the Favorites, select the channel you want from the left menu where the
selected channel has a red rectangle around it, then press the “Green”button, and it will be
moved to the Favorites Menu.
II- To remove a favorite channel, point your cursor to the right menu, and select the unwanted
channel by highlighting it in “Red”, and then press the “Red”button, and the channel will be
removed.
III- To move a channel up or down on the favorites menu, select the channel you want to move on the
right menu, and press the “Blue”Button on your remote, then scroll to where you want the
channel to be moved and press the “OK”button. This will move the channel to that channel
number you selected. If you can’t see the channel, then press the “Reload”button on your
remote, and the channel will re-appear normally.
IV- To hide the left menu, press the “Yellow”button on the remote, and you will only see the
favorites menu.

Page 14 of 35
Note 1: The channels/Favorite management buttons can only be used when the pop up window is
displayed, it will function for youtube & DVR feature if it is used outside that pop-up menu.
Note 2: The new channels might not be always fast, it might take time to update, but you can go to
the site and take a look and compare between this list and the list on the website for more
accuracy.
Note 3: When more channels gets added, the channel number will change, so if you find out that
the channel number you entered should show a specific channel and not showing your favorite
channel, then you have to go back to the left menu, find the new updated channel number, and
add it back to your favorite menu and move it using the “Blue”button to the channel number you
used to.
I- Arabic Channels:

Page 15 of 35
25 CHANNEL - (249)
4 SHABAB QURAN - (141)
4SHABAB - (139)
4SHABAB 2 - (140)
4SHABAB QURAN - (501)
A1 JORDAN - (286)
A3 - (301)
ABU DHABI - (207)
ABU DHABI DRAMA - (208)
ABU DHABI DRAMA
TIMESHIFT - (422)
ABU DHABI EMARAT - (209)
ABU DHABI EMARAT
TIMESHIFT - (519)
ABU DHABI SPORT 1 - (210)
ABU DHABI TIMESHIFT -
(518)
ABU DHABI TIMESHIFT -
(421)
ADALAH TV - (525)
AFAK TV - (171)
AFASI TV - (324)
AFASI TV TIMESHIFT - (565)
AFRAH - (260)
AGAPHY - (344)
AGHANINA - (187)
AGHANINA TIMESHIFT -
(508)
AGHAPY - (577)
AHFAD AL MUKHTAR - (319)
AHL AL QURAN - (567)
AJMAN TV - (221)
AJYAL - (128)
AL AAN TV - (155)
AL AAN TV TIMESHIFT -
(503)
AL AHD TV - (412)
AL AHLY TV - (254)
AL RAHMA - (89)
AL SABAH - (226)
AL-AMAKEN DRAMA - (269)
AL-AMAKEN DRAMA
TIMESHIFT - (540)
AL-ANBAR - (176)
AL-ANWAR - (338)
AL-AQEEQ - (597)
AL-BABELIYA - (174)
AL-DAFRA TV HD - (41)
AL-DAFTRA TV HD - (454)
AL-DIYA - (467)
AL-DIYAR - (182)
AL-EYMAN - (294)
AL-FAYHA - (172)
AL-FURQAN - (183)
AL-GAMIYA - (596)
AL-IRAQIA SPORT - (192)
AL-KANAL - (240)
AL-KAWTHAR - (342)
AL-KOUT - (526)
AL-MAALY - (271)
AL-MANAR - (153)
AL-MANARA - (327)
AL-MASIREH - (507)
AL-MASRY - (236)
AL-MOLED MUSIC - (257)
AL-MOLED MUSIC
TIMESHIFT - (536)
AL-MOUSOL - (177)
AL-MUSTAKILLAH - (316)
AL-NAHAR DRAMA - (120)
AL-NAHAR DRAMA
TIMESHIFT - (498)
AL-NAHAR MOVIES - (462)
AL-NAHAR MOVIES
TIMESHIFT - (463)
AL-NAHAR SPORT - (121)
AL-NAHAR TV - (119)
AL-RAYA - (199)
AL-RAYA TIMESHIFT - (514)
AL-RESALA - (330)
AL-SAEEDA - (292)
AL-SAHRAA - (542)
AL-SALAM TV - (506)
AL-SHABAB TV - (244)
AL-SHABAB TV TIMESHIFT -
(532)
AL-TUNISIA - (313)
AL-TUNISIA TIMESHIFT -
(561)
AL-ZAHABAIYA - (283)
AL-ZAHRAA - (343)
AL-ZERAH - (598)
ALALAM - (8)
ALAQSA TV - (548)
ALAQSA TV - (288)
ALARABI DOC - (15)
ALARABIA - (2)
ALARABIYA HADATH - (3)
ALBAGHDADIE - (162)
ALBAWADI - (405)
ALBAWADI TV - (225)
ALBEIT BEITAK CINEMA -
(122)
ALBEIT BEITAK CINEMA
TIMESHIFT - (423)
ALBET BETAK DRAMA -
(123)
ALETEJAH - (168)
ALHANEEN MUSIC -
(189)
ALHANEEN MUSIC
TIMESHIFT - (510)
ALHAYAT 1 - (75)
ALHAYAT 1
TIMESHIFT -
(425)
ALHAYAT 2 - (76)
ALHAYAT 2
TIMESHIFT -
(426)
ALHAYAT CINEMA -
(71)
ALHAYAT CINEMA
TIMESHIFT - (72)
ALHAYAT-SERIES -
(73)
ALHAYAT-SERIES
TIMESHIFT - (427)
ALHIWAR - (403)
ALHIWAR TUNISIA -
(312)
ALHYAT-SERIES
TIMESHIFT
- (74)
ALIRAQIYA - (158)
ALJADEED - (147)
ALJADEED TIMESHIFT
-
(419)
ALJAZEERA - (1)
ALJAZEERA
CHILDREN -
(135)
ALJAZEERA
CHILDREN
TIMESHIFT - (428)
ALJAZEERA DOC -
(13)
ALJAZEERA ENGLISH
-
AL-HADATH - (534)
AL-HAFEZ - (571)
AL-HUJA - (575)
AL-HURRIA - (165)
ALBET BETAK
DRAMA
TIMESHIFT - (424)
ALDUNIA - (197)
ALDUNIA TIMESHIFT -
(513)
ALEKHBARIA - (9)
ALESKENDRIA - (241)
(355)
ALJAZEERA GLOBAL - (360)
ALJAZEERA MUBASHER -
(356)
ALJAZEERA NEWS SPORT -
(361)
ALJAZEERA SPORT 1 - (358)
ALJAZEERA SPORT 2 - (359)
ALKAAS - (362)
ALKHALIJIAH - (266)
ALMAAREF - (341)
ALMASSAR TV - (411)
ALNAS TV - (572)
ALOLA ANT - (305)
ALOLA INTERNATIONAL 2 -
(559)
ALQASSIM - (407)
ALQUDS - (289)
ALRAFIDEN - (166)
ALRAI - (227)
ALRASHID - (161)
ALRIADIA SPORT - (309)
ALSAEED TV - (242)
ALSALAM ALEIKA - (569)
ALSEHA WALJAMAL - (504)
ALSHAAB IRAQ - (167)
ALSHOROOQ - (296)
ALSHOROOQ TIMESHIFT -
(552)
ALSUMARIA - (164)
ALSUNNAH - (337)
ALTAGHIER - (173)
ALTEET BELLY DANCE -
(261)
ALTEET BELLY DANCE
TIMESHIFT - (537)
ALTHAKAFIA - (543)
ALWAN TV - (334)
ALWATAN - (222)
ALWATAN TIMESHIFT - (522)
ALWATAN+ - (223)
ALWATAN+ TIMESHIFT -
(523)
ANB - (152)
ANN TV - (204)
ANWAR 2 - (339)
ARABICA TV - (156)
ARRABIA - (557)
ART AFLAM 1 - (48)
ART AFLAM 1 TIMESHIFT -
(429)
ART AFLAM 2 - (49)
ART AFLAM 2 TIMESHIFT -
(430)
CBC TV - (116)
CBC TV TIMESHIFT - (495)
CCTV ARABIA - (456)
CHABAB IRAQ - (191)
ART CINEMA - (50)
ART CINEMA TIMESHIFT -
(431)
ART HEKAYAT 1 - (51)
ART HEKAYAT 1 TIMESHIFT
- (432)
ART HEKAYAT 2 - (52)
ART HEKAYAT 2 TIMESHIFT
- (433)
ASHUR TV - (185)
ASSADISA - (558)
ASSOUFIA TV - (566)
ATHAKAFIA - (270)
ATN CINEMA - (16)
ATN QURAN - (19)
ATN TEENZ - (18)
ATN ZAMAN - (17)
AUC CHANNEL - (186)
AWTAN TV - (409)
AZAL YEMEN - (551)
AZHARI TV - (245)
AZHARI TV TIMESHIFT -
(533)
BADINAN TV - (594)
BAGHDAD - (163)
BAHRAIN - (374)
BARAEM - (133)
BARAEM TIMESHIFT - (134)
BAYAN TV - (335)
BAYAN TV - (335)
BBC ARABIC - (4)
BEDAYA - (404)
BELADI TV - (181)
BENA TV - (599)
BENGHAZI TV - (564)
BIN OTHAIMIN - (336)
BLUE NILE - (298)
BLUE NILE TIMESHIFT -
(553)
BURHAN TV - (573)
CAIRO CINEMA - (114)
CAIRO CINEMA TIMESHIFT -
(434)
CAIRO DRAMA - (115)
CAIRO DRAMA TIMESFIFT -
(435)
CAIRO TV - (237)
CANAL ALGERIA - (300)
CARTOON NETWORK - (126)
CARTOON NETWORK
TIMESFIFT - (436)
CBC DRAMA - (117)
CBC DRAMA + - (118)
CBC DRAMA + TIMESHIFT -
(497)
CBC DRAMA TIMESHIFT -
(496)
CIMA - (97)
CIMA TIMESHIFT - (485)
CITRUSS TV - (157)
CLAQUETTE TV - (40)
CLAQUETTE TV TIMESHIFT -
(466)
CNBC ARABIA - (10)
CORAN - (329)
CTV COPTIC - (348)
DALEL TV - (290)
DANAH TV - (284)
DELTA - (238)
DISCOVER ISLAM - (570)
DIYALA TV - (179)
DM TV - (217)
DREAM 1 - (94)
DREAM 1 TIMESHIFT - (484)
DREAM 2 - (95)
DREAM 2 TIMESHIFT - (96)
DREAM HD - (93)
DUBAI - (211)
DUBAI ONE - (212)
DUBAI ONE TIMESHIFT -
(438)
DUBAI SPORT 1 - (219)
DUBAI SPORT 2 - (220)
DUBAI TIMESHIFT - (437)
DURRAH TV - (413)
DW TV ARABIA - (406)
ELADALAH - (555)
ELCHOUROK ALGERIA -
(554)
ELMOSAR3 SPORT - (196)
ENNAHAR ALGERIA - (302)
ERI TV - (397)
ESTV - (399)
EURO NEWS - (7)
FALASTINAH TV - (546)
FALESTIN - (287)
FARAEEN - (246)
FATAFEAT - (92)
FATAFEAT TIMESHIF - (483)
FEKRA TV - (46)
FEZZAN TV - (603)
FORAT - (169)
FOUNON 1 - (224)
FOUNON 1 TIMESHIFT -
(524)
FOX MOVIES - (32)
FOX MOVIES TIMESHIFT -
(33)
FOX SERIES - (34)
FOX SERIES TIMESHIFT -
(35)
FRANCE24 ARABIC - (12)
FURQAN TV - (333)
FUTURE - (148)
FUTURE NEWS - (150)
FUTURE USA - (149)
FX ARABIA - (36)
FX ARABIA TIMESHIFT -
(461)
GALI KURDISTAN - (379)
GEAR ONE - (520)
GEM MUSIC - (402)
GHINWA - (282)
GLADIATOR - (43)
HADARA TV - (175)
HALABA TV - (353)
HANIBAL - (315)
HAWAS TV - (602)
HAWLER - (410)
HC SOMALI - (394)
HEMMA TV - (538)
HI TV - (401)
HOD HOD - (127)
HOGAR TV - (556)
HUDA TV - (328)
HURRA IRAQ - (6)
IFILM ARABIC - (39)
IMAGINE MOVIES - (408)
LBC TIMESHIFT - (441)
LCD TURKI SERIES - (464)
LIGHT TV - (544)
LINE SPORT - (272)
LOGOS TV - (346)
LYBIA AL AHRAR - (317)
LYBIA AWALAN - (318)
LYBIA NATIONAL TV - (320)
LYBIA SHABABIA - (563)
LYBIA SPORT - (321)
M2 - (306)
M2 TIMESHIFT - (560)
MAGHREB 1 - (303)
MAHBOBA - (138)
MAJD - (325)
MAJD QURAN - (326)
MAJESTIC CINEMA - (472)
MAKKAH TV - (323)
MARMORKOS - (347)
MARMORKOS - (578)
MASRAWI AFLAM - (470)
MASRAWI AFLAM
TIMESHIFT - (471)
MASRAWI TV - (256)
MASRIA ESC - (233)
MASRIA ESC 2 - (530)
MASRIA ESC TIMESHIFT -
(529)
MASRIYA ESC 2 - (234)
MASSAYA - (200)
MASSAYA TIMESHIFT - (515)
MAWAL TV - (91)
MAZZIKA - (262)
MAZZIKA ZOOM - (263)
MBC 1 - (22)
NATIONAL
GEOGRAPHIC
AD - (14)
NBN - (151)
NESMA - (311)
NILE CINEMA - (77)
NILE CINEMA
TIMESHIFT -
(444)
NILE COMEDY - (81)
NILE COMEDY
TIMESHIFT -
(445)
NILE CULTURE - (82)
NILE DRAMA - (78)
NILE DRAMA
TIMESHIFT -
(446)
NILE FAMILY AND
KIDS -
(481)
NILE FAMILY AND
KIDS -
(80)
NILE LIFE - (83)
NILE NEWS - (480)
NILE SPORT - (84)
NOJOOM 2 - (215)
NOJOOM 3 - (216)
NOOR AL DUNYA -
(235)
NOOR ALSHAM - (205)
NOOR DRAMA - (44)
NOOR DUBAI - (214)
NOOR DUBAI
PLAY HEKAYAT - (465)
PLAY MOVIES - (38)
PLAY MOVIES TIMESHIFT -
(447)
PRESS TV - (595)
QATAR - (354)
QETHARA TV - (190)
QETHARA TV TIMESHIFT -
(511)
RESALAT ALISLAM - (568)
ROJHELAT - (389)
ROTANA AFLAM - (53)
ROTANA AFLAM TIMESHIFT
- (473)
ROTANA CINEMA - (54)
ROTANA CINEMA
TIMESHIFT - (55)
ROTANA CLIP - (58)
ROTANA KHALIGI - (59)
ROTANA MASRIYA - (56)
ROTANA MASRIYA
TIMESHIFT - (57)
ROTANA MASRIYA
TIMESHIFT - (474)
ROTANA MUSIC - (60)
ROTANA ZAMAN - (61)
ROTANA ZAMAN TIMESHIFT
- (62)
ROYA TV - (201)
ROYA TV TIMESHIFT - (516)
ROYALI SOMALI - (395)
RTD-DJIBOUTI - (398)
RUSSIA ALYAUM - (5)
SADA EL BALAD - (247)
SAFA TV - (202)
MOGA COMEDY - (488)
MOGA COMEDY TIMESHIFT
-(489)
MOSAR3 TV - (42)
MRT/UNIVERSAL - (396)
MTV LEBANON - (146)
MTV LEBANON TIMESHIFT -
(455)
MURITANIA - (400)
NAJAF TV - (170)
KURDMAX - (592)
KURDMAX TIMESHIFT -
(593)
KURDSAT - (386)
KUWAIT - (527)
LBC - (144)
LBC EUROPA - (142)
LBC EUROPA TIMESHIFT -
(143)
TIME TURKY TIMESHIFT -
(494)
TOP MOVIES - (37)
TOP MOVIES TIMESHIFT -
(452)
TOYOR ALJANAH 1 - (130)
TOYOR ALJANAH 2 - (131)
TRT ARABIA - (202)
TRT ARABIA TIMESHIFT -
(517)
TUNIS 7 - (310)
TUNIS ALYAUM - (562)
TUNISNA - (314)
TURKMENELI - (388)
UNIV 1 - (601)
UNRWA TV - (549)
SHMOUS - (268)
SHMOUS TIMESHIFT - (539)
SKY NEWS ARABIA - (11)
SNTV SOMALIA - (391)
SOMALI CHANNEL - (393)
SOMALI NATIONAL TV -
(392)
SOMALISAT - (390)
SOUT AL SHAAB - (79)
SPACEPOWER - (129)
SPACEPOWER TIMESHIFT -
(500)
SRWAT TV - (416)
SSTV - (299)
STAR CINEMA - (101)
STAR CINEMA 2 - (102)
STAR CINEMA 2 TIMESHIFT
- (491)
STAR CINEMA TIMESHIFT -
(490)
SUDAN TV - (295)
SYRIA - (193)
SYRIA DRAMA - (194)
SYRIA DRAMA TIMESHIFT -
(195)
SYRIA EDUCATION - (206)
SYRIA TIMESHIFT - (512)
TAHA TV - (136)
TAHRIR TV - (243)
TAIBA TV - (239)
TAMAZIGH - (307)
TAQTAQ - (468)
TARANEM TV - (581)
TELELIBAN - (154)
TELELIBAN TIMESHIFT -

Page 16 of 35
II- Turkish Channels:
A S TV - (621)
AKDENIZ - (17)
AKILLI TV - (38)
ATV TURK - (45)
AZGI TV - (622)
BELGESEL - (31)
BERAT - (35)
BEYAZ - (44)
CAY TV - (24)
CINE 5 TURKEY - (623)
CNBC - (652)
CNN TURK - (5)
COCUK PLANET - (21)
DIJLE TV - (39)
DREAM T - (10)
DUNYA TV - (23)
E2 TURK - (757)
EKIN T - (36)
EURO D - (13)
EURO STAR - (9)
FB TV - (8)
FLASH TV - (27)
G KURDISTAN TV - (825)
HABER - (629)
HAWLER - (963)
HAYAT - (33)
HRT TV - (37)
KANAL 3 - (636)
KANAL 35 - (642)
KANAL 4 TV - (984)
KANAL 67 - (14)
KANAL 7 - (46)
KANAL T - (640)
KANAL TURK - (635)
KANAL URFA - (767)
KARADENIZ - (25)
KARAMEL - (1029)
KASTAMONU - (41)
KNN TV - (330)
KOMALA TV - (756)
KON TV - (12)
KOREK TV - (964)
MEHTAP - (20)
MMC TURK - (34)
MMC TV - (760)
NEWROZ - (759)
NRT NEWS - (118)
NTV - (691)
NTV SP - (731)
PEMBE - (824)
ROJ TV - (758)
ROJHELAT - (649)
RUMELI - (646)
S AVRUPA - (19)
S-HABER - (22)
SEMERKEND - (42)
SHOPPING - (559)
SHOW - (6)
SIM TV - (620)
SINEMA - (630)
SPEEDA TV - (537)
SRT TV - (40)
SYPSAK - (765)
TATLISES - (18)
TEMPO - (28)
TGRT - (7)
TISHK TV - (654)
TNT TURKEY - (11)
TRT 6 - (645)
TRT COCUK - (30)
TRT T - (29)
TURK - (26)
TURK 24 - (1054)
TURKC - (602)
TURKMENELI - (544)
TV 58 - (641)
TV1 TURK - (43)
TVT TURK - (49)
ULKE TV - (48)
ULUSAL - (16)
VATAN TV - (639)
VIN TV - (961)
VIVA TV - (625)
YAMURACK TV - (50)
IMAM HUSEIN 2 - (574)
INFINITY - (89)
IQRA - (331)
IRAQ TODAY - (505)
ISHTAR - (184)
JORDAN - (285)
JSC 1 - (363)
JSC 1 HD - (364)
JSC 1 HD - (583)
JSC 10 - (373)
JSC 2 - (366)
JSC 2 - (365)
JSC 2 HD - (367)
JSC 3 - (368)
JSC 4 - (369)
JSC 4 HD - (584)
JSC 5 - (370)
JSC 6 - (371)
JSC 7 - (585)
JSC 7 HD - (586)
JSC 8 - (587)
JSC 9 - (372)
JSC 9 HD - (588)
JSC EURO 2012 - (582)
JSC MUBASHER MISR -
(357)
KANAL 4 KURD - (382)
KANAL 4 KURD TIMESHIFT -
(439)
KARAMESH - (132)
KARBALA TV - (340)
KARIZMA - (414)
KARMA - (345)
KHORTUM TV - (297)
KIRKUK - (387)
KNN NEWS - (376)
KOREA TV - (281)
KOREK TV - (383)
KOREK TV TIMESHIFT -
(440)
KTV SPORT - (230)
KTV2 - (229)
KTV2 - (228)
KURD 1 - (381)
KURDISTAN - (385)
MBC 1 TIMESHIFT - (23)
MBC 2 - (24)
MBC 2 TIMESHIFT - (25)
MBC 3 - (26)
MBC 3 TIMESHIFT - (458)
MBC 4 - (27)
MBC 4 TIMESHIFT - (442)
MBC ACTION - (31)
MBC ACTION TIMESHIFT -
(460)
MBC DRAMA - (29)
MBC DRAMA TIMESHIFT -
(459)
MBC MAGHREB - (20)
MBC MAGHREB TIMESHIFT
- (21)
MBC MAGHREB TIMESHIFT
- (457)
MBC MAX - (30)
MBC4 LOW - (28)
MCP IRAQ MUSIC - (188)
MCP IRAQ MUSIC
TIMESHIFT - (509)
MEDI 1 SAT - (308)
MEHWAR - (250)
MEHWAR +2 - (535)
MELODY AFLAM - (85)
MELODY AFLAM TIMESHIFT
- (443)
MELODY DRAMA - (86)
MELODY DRAMA TIMESHIFT
-(482)
MELODY HITS - (87)
MELODY SPORT - (88)
MERGAB - (541)
MERSAL TV - (600)
MIRACLE - (350)
MISR 25 - (248)
MISR ZERAYA - (531)
MISURATA - (322)
MIX TV - (113)
MODERN HORRIA - (251)
MODERN KOORA - (253)
MODERN SPORT - (252)
TIMESHIFT -
(521)
NOUR SAT - (349)
NOUR SAT TIMESHIFT
-
(579)
NOURSAT ALSHABAB
-
(580)
NRT KURDISTAN -
(377)
OMAN 2 - (589)
OMAN TV - (375)
ON TV - (124)
ON TV TIMESHIFT -
(499)
ONTV LIVE - (125)
ORIENT NEWS - (203)
OSCAR DRAMA - (98)
OSCAR DRAMA 2 -
(99)
OTV LEBANON - (145)
OTV LEBANON
TIMESHIFT -
(502)
OTV TIMESHIFT - (417)
PALESTINE ALYAUM -
(547)
PANORAMA ACTION -
(63)
PANORAMA ACTION
TIMESHIFT - (64)
PANORAMA COMEDY
- (67)
PANORAMA COMEDY
TIMESHIFT - (68)
PANORAMA DRAMA -
(65)
PANORAMA DRAMA 2
- (66)
SALAH ALDIN - (180)
SAMA ALMOSOUL - (178)
SAMA CINEMA - (103)
SAMA CINEMA 2 - (104)
SAMA CINEMA 2 TIMESHIFT
- (492)
SAMA CINEMA TIMESHIFT -
(448)
SAMA DUBAI - (213)
SAT 7 PLUS - (351)
SAUDI 1 - (264)
SAUDI 2 - (265)
SAUDI SPORT 1 - (273)
SAUDI SPORT 1 HD - (275)
SAUDI SPORT 2 - (274)
SAUDI SPORT 2 HD - (276)
SAUDI SPORT 3 HD - (277)
SAUDI SPORT 4 HD - (278)
SAUDI SPORT 5 HD - (279)
SAUDI SPORT 6 HD - (280)
SCOPE - (231)
SCOPE TIMESHIFT - (528)
SELA - (267)
SEMSEM - (137)
SHA3BAYAT - (258)
SHA3BIYAT PLUS - (259)
SHADA SYRIA - (198)
SHAHED TV - (232)
SHARJAH - (218)
SHARQIA NEWS - (160)
SHARQIYA - (159)
SHEBA TV - (293)
SHEFA TV - (352)
PANORAMA DRAMA 2
TIMESHIFT - (479)
PANORAMA DRAMA
TIMESHIFT - (478)
PANORAMA FILM - (69)
PANORAMA FILM
TIMESHIFT - (70)
PAYAM - (378)
PELISTANK KURDISH - (591)
VIN TV - (384)
WANASAH - (90)
WELAD AL BALAD - (45)
WIN TV - (415)
YEMEN TODAY - (550)
YEMEN TV - (291)
ZAGROZ - (590)
ZARGOZ - (380)
ZEE AFLAM - (47)
ZEE AFLAM TIMESHIFT -
(453)
ZEE ALWAN - (469)
ZOOM SPORT - (255)
ZWEINA BALADNA - (545)
(418)
THAQALYN TV - (576)
TIME CINEMA - (105)
TIME CINEMA TIMESHIFT -
(449)
TIME COMEDY - (106)
TIME COMEDY TIMESHIFT -
(450)
TIME DRAMA - (107)
TIME DRAMA TIMESHIFT -
(451)
TIME ELSOBKI - (109)
TIME MAZIKA - (110)
TIME QURAN - (112)
TIME SPORTS - (111)
TIME TIATRO - (108)
TIME TURKY - (493)

Page 17 of 35
KRAL TV - (15)
KURD 1 TV - (117)
KURDISTAND - (1)
KURDSAT - (119)
MALATYA TV - (634)
YOL TV - (32)
YURDUM TV - (47)
III- African Channels:
AL-SAEDA - (524)
BLUE NILE - (411)
ERITREA - (506)
ETIOPIA - (795)
HC SOMALI - (856)
MURITANIA - (507)
ROYAL - (910)
SNTV - (334)
SOMALI LAND - (343)
SOMALI TV - (547)
SSTV - (942)
SUDAN TV - (546)
UNIVERSAL - (648)
VOX AFRICA - (732)
ZOAL TV - (528)
IV-Persian Channels:
ALTEET DANCE - (748)
ARIANA - (656)
ATV IRAN - (665)
AVA TV - (689)
BBC PERS - (822)
BEUTY TV - (671)
EBC TV - (858)
FARSI 1 - (929)
FARSIFACE - (833)
GEM MUSIC - (663)
ICC TV - (679)
IM-HUSSEIN - (827)
IRAN A TV - (835)
IRAN FMTV - (832)
IRAN MTN - (658)
IRAN MUSIC - (826)
IRIB 1 - (669)
IRIB 2 - (670)
KAHKESHAN - (676)
LIBYA TV - (830)
MBC PERS - (523)
MI TV - (675)
MOHABAT - (683)
NEJAT - (831)
PARS 1 - (548)
PAYAM - (829)
PDF TV - (685)
PEN IRAN - (695)
PERSIA 1 - (672)
PERSIAN S - (673)
SAHAR 1 - (667)
SAHAR 2 - (668)
SALAM TV - (682)
SAMEN TV - (49)
SAT7 PERS - (772)
TAK TV - (688)
THE PERSIAN MOVIES -
(659)
TV 20 - (828)
TV 4 IRAN - (674)
VOA PERS - (707)
ZEMZEM - (930)

Page 18 of 35
V- Kurdish Channels:
AGHANINA MUSIC - (1035)
G KURDISTAN - (859)
HANEEN MUSIC - (764)
HAWLER - (963)
IQRA - (331)
KANAL 4 TV - (984)
KIRKUK TV - (1061)
KNN TV - (2)
KOMALA TV - (756)
KOREK TV - (983)
KURD 1 TV - (1060)
KURDSAT - (3)
MAJD QURAN - (412)
MCP MUSIC - (781)
MMC TV - (760)
NEWROZ TV - (759)
NRT NEWS - (1058)
PAYAM - (430)
ROJ TV - (758)
ROJHELAT - (649)
SPEEDA - (537)
TISHK TV - (654)
TRT 6 - (645)
VIN TV - (1059)
ZAGROS - (335)
VI- Pakistani Channels:
ARIANA - (656)
ARY NEWS - (755)
DM DIGITAL - (701)
HIDAYAT TV - (747)
IMAGINE - (696)
IQRA PAK - (734)
MADANI CHANNEL - (733)
MTA TV - (736)
NOOR TV - (746)
PDF TV - (685)
PEACE TV - (535)
PEACE URDU - (743)
PRIME TV - (737)
PTV GLOBAL - (699)
TAKBEER - (697)
VII- ART Package:
ART AFLAM 1 - (1)
ART AFLAM 2 - (2)
ART AFLAM 3 - (3)
ART HEKAYAT 1 - (4)
ART HEKAYAT 1 (TS) - (5)
ART HEKAYAT 2 - (6)
ART HEKAYAT 2 (TS) - (7)

Page 19 of 35
8- Available Subscriptions:
Subscriptions can be purchased in 4 different options For Arabic & ART Packages.
1- Every Month.
2- Every 3 Months.
3-Every 6 Months.
4- Every 12 Months.
Purchasing Arabic Package, will allow you to access all channels available (Arabic, Persian,
Turkish, Indian, African, Pakistani, Kurdish) on the box except the ART channels with is sold
separately.
Purchasing a 12-Month Subscription will save you approx. $50 less due to the special offer that
comes with the package, and comes with Free ART Channels as well.
9- DVR Operation:
Currently the DVR option is not fully functional and is in the process of development, but it is
limited to a 20 min recording for the time being.
To use the DVR feature, a USB Thumb Drive that is fully formatted on windows 7 platform must
be used. If the thumb drive is not properly formatted or is not formatted XFS file system, you will
get an error message on the screen when you try to record or press any of the DVR features.
1- Plug the USB Thumb Drive in one of the 2 USB ports on the box.
2-From the remote control use the following buttons to control the DVR operation:

Page 20 of 35
Type 1: Type 2:
On the remote control,
a) The Back & Next Buttons are used to navigate through the entire contents of the USB
Thumb Drive.
b) The RR & FF is used to move the beginning or the end of the recordings.
c) The Play/Pause Button is used to play existing recordings as well as pause any recording.
d) The Stop button that will stop playback or recording.
A Screenshot of the Recording Feature is as follows:
To Record an event,
a) Press the green button once while a channel is on.
b) A pop-up window will display that requires to enter when to record the even, it can be to
start recording now, or based on the schedule below (start & end date/time) as well as the
date for the event.
c) After selecting the recording time, press the OK button.
