ATOMSTACK R30 User manual

F03-0093-0AA1 Version：1.0
Note: The picture is for reference only, the actual product shall prevail.
For more information, please scan the QR code.

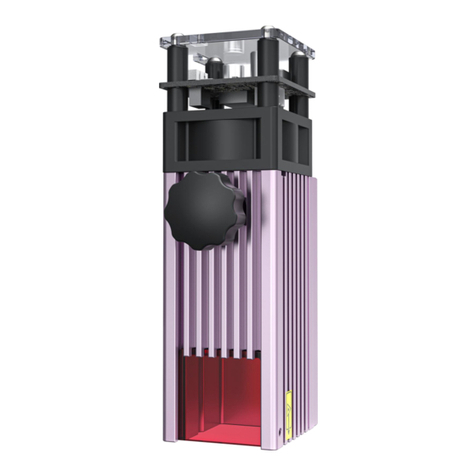

ATOMSTACK R30
Laser Module Installation Manual
English Deutsche Français

Catalogue
Cautions
Disclaimer
Packing List
Installation Guide
After-sales and Warranty Policy
01
02
03
04
13

This product is an integral pa of the laser engraving machine system, and must be installed on the laser
engraving machine for use. And the product belongs to the class 4 laser products, the laser system itself must
meet the requirements of the latest version of IEC 60825-1, otherwise the product will not be used.
Do not look directly at the laser beam to avoid skin exposure to type 4 beams, especially in close proximity.
Youth under the age of 18 must have parental supeision during use. Do not touch the laser when it is at work.
High-intensity laser beams produce extremely high temperatures and a lot of heat, and caing may burn
the substrate. Ceain materials may catch re during engraving, producing gas and smoke. Do not leave the
machine unattended while the laser is powered on.
When using a laser for engraving, the material produces smoke, steam, paicles, and toxic substances in plastic
and other combustible materials. These smoke or air pollutants can be harmful to your health.
Before using the laser for engraving, make sure that there are no ammable and explosive substances in the
caing area and always place available re extinguishers nearby to ensure safety.
Do not power on before the laser being installed to the engraving machine.
Please avoid machine vibration, machine vibration will cause the optical path to be inaccurate, resulting in
dangerous drift beam.
It is recommended to use at an ambient temperature of 20°C-30°C, lower or higher than the recommended
temperature will make the laser work unstable.
01.
02.
03.
04.
05.
06.
07.
08.
Cautions
01

05.
The product is a laser module, please scan the home page QR code for complete inst allat ion manual along
with the lat est instructions and warnings. Shenzhen At omst ack Technology Co., Ltd.(ATOM STACK) resees
the right to update this disclaimer and inst allat ion guide.
Be sure to read this document carefully before using the product to understand your legal rights, responsibilities,
and safety instructions; otherwise, it may cause propey losses, safety accidents, and personal safety hazards.
Once you use this product, you will be deemed to have understood and accepted all the terms and contents of
this document. Users promise to be responsible for their actions and all the consequences arising therefrom.
The user agrees to use the product only for lawful purposes and agrees to the full terms and contents of this
document and any relevant policies or guidelines that ATOMSTACK may have in place.
You understand and agree that ATOMSTACK may not be able to provide you with the cause of the damage or
accident and provide you with ATOMSTACK's after-sales seice unless you provide the original engraving le, the
conguration parameters of the engraving software used, operating system information, video of the engraving
process, and the operational steps before the problem or failure occurs.
ATOMSTACK is not responsible for any and all losses caused by their failure to use the products in accordance
with this manual.
ATOMSTACK has the ultimate right to interpret the document in compliance with the law. ATOMSTACK resees
the right to update, modify, or terminate the terms without notice.
01.
02.
03.
04.
Disclaimer
02

Packing List
Laser module Connect board Slider Circuit board Power adaptor Power cable
(M4*6)4PCS (M4*6)4PCS (M5*6)6PCS (M5*8)4PCS (M3*6)4PCS (M3*8)3PCS
(Handle) 2PCS Connect cable H3 wrench H2.5 wrench H2 wrench Installation Manual
Note: The picture is for reference only, the actual product shall prevail.
For more information, please scan the QR code.
ATOMSTACK R30
Laser Module Installation Manual
English Deutsche Français
03

Step 1: Install the connect board on the X-axis of the machine as
the following instructions
Installation Guide
Red screw hole / (M4*6)4PCS
X20 PRO / S20 PRO / A20 PRO / A20
A5 10W / A5 20W / A5 30W / A5 PRO
Blue screw hole / (M5*6)4PCS
* The remaining screw holes are applied to the other
laser engraving machines
A5 M30 / A5 M40 / A5 PRO + / X7
X7 PRO / A10 / A10 PRO / S10 PRO
Green screw hole / (M5*8)4PCS
04

X20 PRO / S20 PRO / A20 PRO / A20
Red screw hole / (M4*6)4PCS
05

A5 10W / A5 20W / A5 30W / A5 PRO
Blue screw hole / (M5*6)4PCS
06

A5 M30 / A5 M40 / A5 PRO + / X7
X7 PRO / A10 / A10 PRO / S10 PRO
Green screw hole / (M5*8)4PCS
07

Step 2: Assemble the slider on the connect board (M4 * 6 Round) 4PCS
Installation Guide
08

Step 3: Install the handle 2PCS
Installation Guide
09

Step 4: Connect to the circuit board
01：Connect the R30 laser module to the circuit board with the connect cable in the package
02：Connect the power adapter to the circuit board and turn on the power
03/04：Pull out the cable connecting the laser module on the original machine and connect it
into the circuit board (pay attention to distinguish between 3pin and 4pin)
Installation Guide
01
02
03
04
10

11
The red indicator light is on:
laser over-temperature protection prompt
The green indicator light is on:
it lights up when the laser is powered on
The blue indicator light is on:
it lights up when the laser is engraving
01.
02.
03.
Installation Guide
Step 5: Indicator light status
Blue Light
Green Light
Red light

12
01.
02.
03.
04.
05.
06.
Ensure that the tested object is placed
at before focusing (including the test
platform and the material itself)
Put down the focus pole so that the
focus pole just contact to the caed
object to determine the focal length
Tighten the handle to lock the laser
Take back the xed focus pole
Fix focus completed
Set engraving parameters refer to the parameter table
Step 6: Adjust the focal length
Installation Guide

13
Engraving
Material
Copper 0.01 500 100% Threshold NO
Iron 0.01 2000 100% Threshold NO
Natural color
alumina 0.01 600 100% Filled NO
Coated alumina 0.01 5000 100% Threshold NO
Brushed
Stainless Steel 0.01 1000 100% Threshold NO
Mirror
Stainless Steel 0.01 1000 100% Filled NO
painted furniture 0.01 5000 100% Jais NO
ABS 0.01 4500 25% Threshold NO
Quality Speed
（mm / min）Max-Power Image Mode Needs to be blackened
Lightburn Egnraving Parameter

14
Engraving
Material
Plastic 0.01 3000 80% Threshold NO
Leather 0.01 4000 100% Threshold NO
Aclic 0.01 6000 100% Threshold NO
Rubber 0.01 1000 100% Threshold NO
Oil
painting paper 0.02 2000 100% Threshold NO
Rock 0.01 1000 100% Filled NO
Quality Speed
（mm / min）Max-Power Image Mode Needs to be blackened
Remark：
1.The parameter table is only for the most widely used materials. Customers may need to t other uncommon
materials by themselves, or they can contact us to apply for testing.
2.PVector les line mode parameters：
Copper：Speed 500mm/m，acceleration 200,Natural color alumina：Speed 600mm/m，acceleration 200
Other materials：Speed 1000mm/m，acceleration 200
3.For engraving non-vector format les, please refer to the above parameter table.

15
Engraving
Material
Copper 100 500 1000 Threshold NO
Iron 100 2000 1000 Threshold NO
Natural color
alumina 100 600 1000 Filled NO
Coated alumina 100 5000 1000 Threshold NO
Brushed
Stainless Steel 100 1000 1000 Threshold NO
Mirror
Stainless Steel 100 1000 1000 Filled NO
painted furniture 100 5000 1000 Jais NO
ABS 100 4500 250 Threshold NO
Quality Speed
（mm / min）Max-Power Image Mode Needs to be blackened
LaserGRBL Egnraving Parameter

16
Engraving
Material
Plastic 100 3000 800 Threshold NO
Leather 100 4000 1000 Threshold NO
Aclic 100 6000 1000 Threshold NO
Rubber 100 1000 1000 Threshold NO
Oil
painting paper 50 2000 1000 Threshold NO
Rock 20 1000 1000 Threshold NO
Quality Speed
（mm / min）Max-Power Image Mode Needs to be blackened
Remark：
1.The parameter table is only for the most widely used materials. Customers may need to t other uncommon
materials by themselves, or they can contact us to apply for testing.
2.Vector les line mode parameters：
Copper：Speed 500mm/m，acceleration 200,Natural color alumina：Speed 600mm/m，acceleration 200
Other materials：Speed 1000mm/m，acceleration 200
3.For engraving non-vector format les, please refer to the above parameter table.

05.
06.
07.
All ATOMSTACK R30 laser modules are protected by the following specic warranty terms. All laser module
products are only guaranteed to the original purchaser that, when purchased through an ATOMSTACK authorized
seller, there are no manufacturer defects or faults for one (1) years from the date of purchase and lifelong
technical suppo. ATOMSTACK will request proof of purchase and date of purchase upon the claim.
ATOMSTACK R30 laser modules can enjoy an extended warranty at an extra charge. Please keep checking with
ATOMSTACK customer seice sta.
ATOMSTACK R30 Laser module warranty is limited to defects, faults or failure of the product, based on the
manufacturer's defects. No compensation shall be awarded for any improper use, lack of maintenance, incorrect
or inadequate power supply, and similar failure unrelated to the manufacturer's defect.
ATOMSTACK will not be responsible for the failure, operation or use of the product.
Warranty will cover the repair or replacement of related equipment with new or renovated equipment during the
warranty period, or in some cases replacing pas of the same model, at the Atomstack's discretion.
Within the ATOMSTACK clause, separate pas can be supplied to the customer instead of replacing the entire unit.
Such conditions may include, but may not be limited to, electronic board, adapters, screws or any other item that
ATOMSTACK considers more suitable for separate supply.
The terms and conditions of the ATOMSTACK warranty are subject to change without notice. Be sure to check the
ATOMSTACK warranty terms before you purchase.
01.
02.
03.
04.
After-sales and Warranty Policies
17

Customer Seice:
For detailed warranty policy,please visit our ocial website at:
www.atomstack.com
For technical suppo and seice,please email:
suppo@atomstack.com
Scanner APPLICATION:
QR code reader/ Barcode scanner or any APP with scanner.
Manufacturer:
Shenzhen AtomStack Technologies Co., Ltd.
Address:
17th Floor, Building 3A, Phase II, Intelligent Park,
No. 76, Baohe Avenue, Baolong Street, Longgang Dist., Shenzhen,
518172, China
18
