Atop AF100-2 User manual

Brief introduction
Thanks for purchasing ATOP’s Fast Ethernet optical transceiver.
This product supports IEEE802.3U 100Base-Tx/Fx protocol, as
well as half and full duplex mode. This manual refers to adaptive
10M/100M transceivers.
Ordering Information
Model Specifications
AF100-2 10/100M multi-mode 2KM,SC/ST1310nm
AF100-25 10/100M single-mode 25KM,SC 1310 nm
AF100-40 10/100M single-mode 40KM,SC 1310 nm
AF100-60 10/100M single-mode 60KM,SC 1310 nm
AF100-100 10/100M single-mode 100KM,SC 1550 nm
AFS100-25 10/100Msingle-mode single fiber 25km
AFS100-40 10/100Msingle-mode single fiber 40km
AFS100-60 10/100Msingle-mode single fiber 60km
*WDM Models should be ordered in pairs
Packing list
Please check the following items in the package before installing
the transceiver.
Fast Ethernet optical transceiver 1set
AC/DC adapter (For External PS) 1pc
Power line (For Internal PS) 1pc
User manual 1copy
Please contact the dealer immediately for any loss or damage to
the above items.
Installation
1. RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical
length of 100 meter. It features the function of Auto MDI-MDI-X
for automatically identifying strait or cross cable.
2. Fiber interface
SC fiber interface is of duplex mode type, including two
interfaces, tagged as TX and RX. When the two sets of optical
transceivers are interfaced or connected to a switch with fiber
interface, the fiber should be in cross connection mode, "TX-RX",
"RX-TX".
3. Connection
Connect the network device (work station, hub or switch) to the
optical transceiver using RJ-45 twisted-pair. Connect the
multi/single mode fiber to the SC/ST fiber interface of the optical
transceiver. Turn on the power. The corresponding LED will turn
on to indicate connection. (Please refer to the table below).

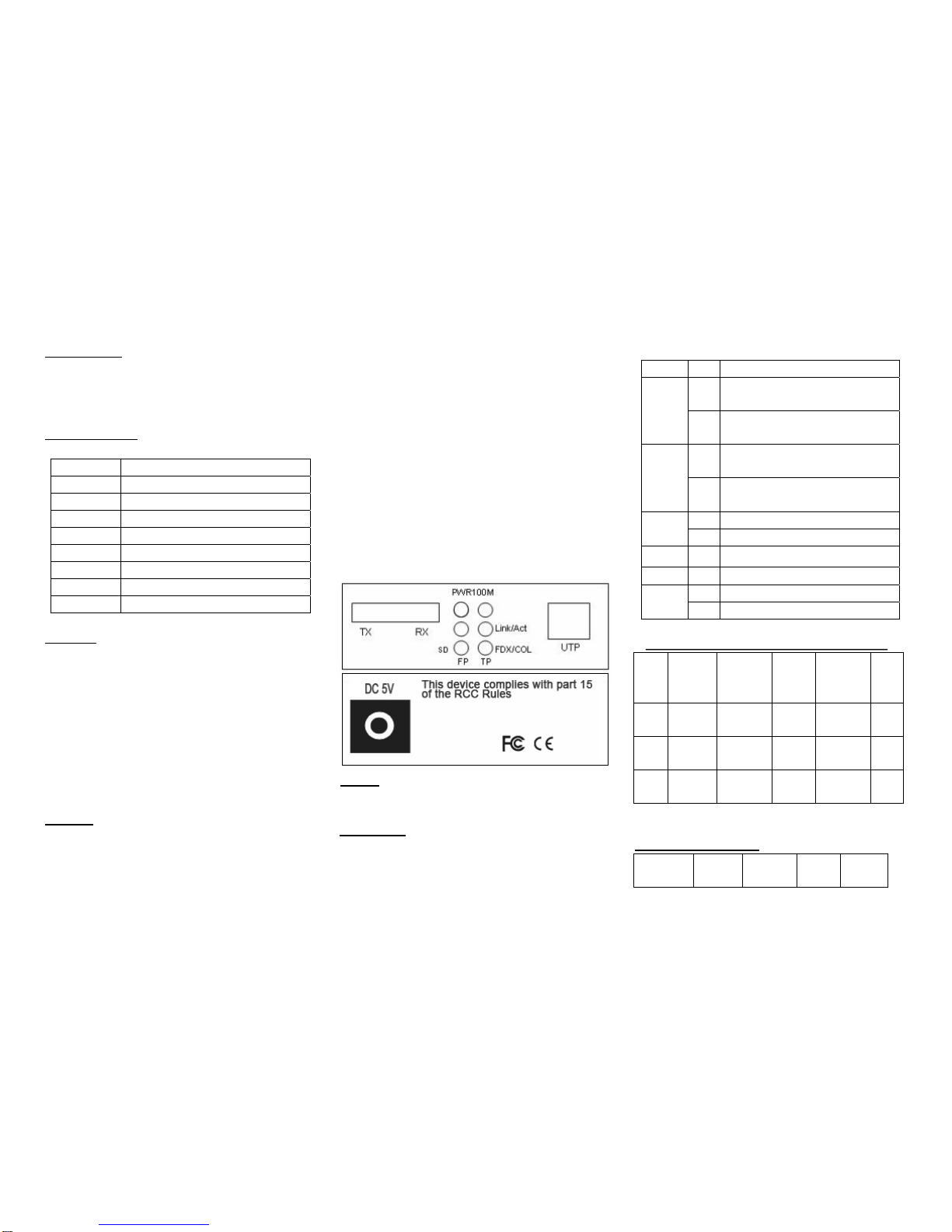

Figure 1: Schematic drawing of front andrear panel
LED indicators
LED indicators help to monitor the functionality of the device.
Please refer to the following table for additional information:
LED Status Explanation
On Connection status displayfor fiber link.
“On” - Fiber link connected properly.
FX
Link/Act Blink Activity status display of fiber link.
“Blink” – Data is transferred through Fx.
On Connection status display for electric link.
“ON” - Electrical link connected properly
TX
Link/Act Blink Activity status display of fiber link
“Blink” Data is transferred throughTx.
On Transceiver works in the full duplex mode.
FDX/COL Off Transceiver works in the half duplex mode.
PWR On
Power is on andnormal.
SD On
Fiber signal is detected.
On Electrical interface transfer rate is 100Mbps
100M Off Electrical interface transfer rate is 10Mbps.
Transmission characteristics of single fiber transceiver
Product
Model
Optical
Wavelength
(m)
Transmitting
Optical Power
(dbm)
Receiving
Sensitivity
(dbm)
Transmission
Distance (km)
Fiber
Type
(25km) 1310/1550
1550/1310 -12 ~ -6 -12 30 Single
mode
(40km) 1310/1550
1550/1330 -3 ~ -5 <-31 40 Single
mode
(60km) 1310/1550
1550/1330 -5 ~ -9 <-44 60 Single
mode
Fiber transmission features:
Product Model Optical
Wavelength Optical power Sensibility Saturability

AF100-2 1310 nm -19-14 dbm -31 dbm -12 dbm
AF100-25 1310 nm -14-7 dbm -34 dbm -3 dbm
AF100-40 1310 nm -9-5dbm -38 dbm -3 dbm
AF100-60 1310 nm -5-0dbm -38 dbm -3 dbm
AF100-100 1550DFB -5-0 dbm -38 dbm -3 dbm
Main features
1. Complies withIEEE 802.3 10 Base-Tstandard.
Complies with IEEE 802.3u 100 Base-TX/FX standards.
2. Max. 2M buffer memory built in chip.
3. Back pressure flowcontrol for full/half duplex IEEE802.3X.
4.Automatic identification of MDI/MDI-X cross-line.
5. High-performance 1.4Gbps memory bandwidth.
6. Complies with FCC, 15 CLASS Aand CE MARK.
Technical parameters:
Standard Protocol IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX/FX standard
Connectors UTP RJ-45, SC/STFiber connector
Operation mode Full /Half duplex mode
Power supply External 5V DC 1A
Internal 110-265VAC 48VDC
Temperature 0℃- 60℃
Humidity 5% - 90%
TP cable Cat5 UTP cable
Fiber Multi-mode: 50/125, 62.5/125 or100/140μm
Single-mode: 8.3/125, 8.7/125, 9/125 or 10/125μm
Dimensions External power supply: 26x71x94 (mm)
Internal power supply: 40x110x140 (mm)
Cautions:
1. This product is suitable for indoor application.
2. Please make sure to cover the fiber interface when not in use.
3. It is forbidden to stare at theTX fiber transceiver.

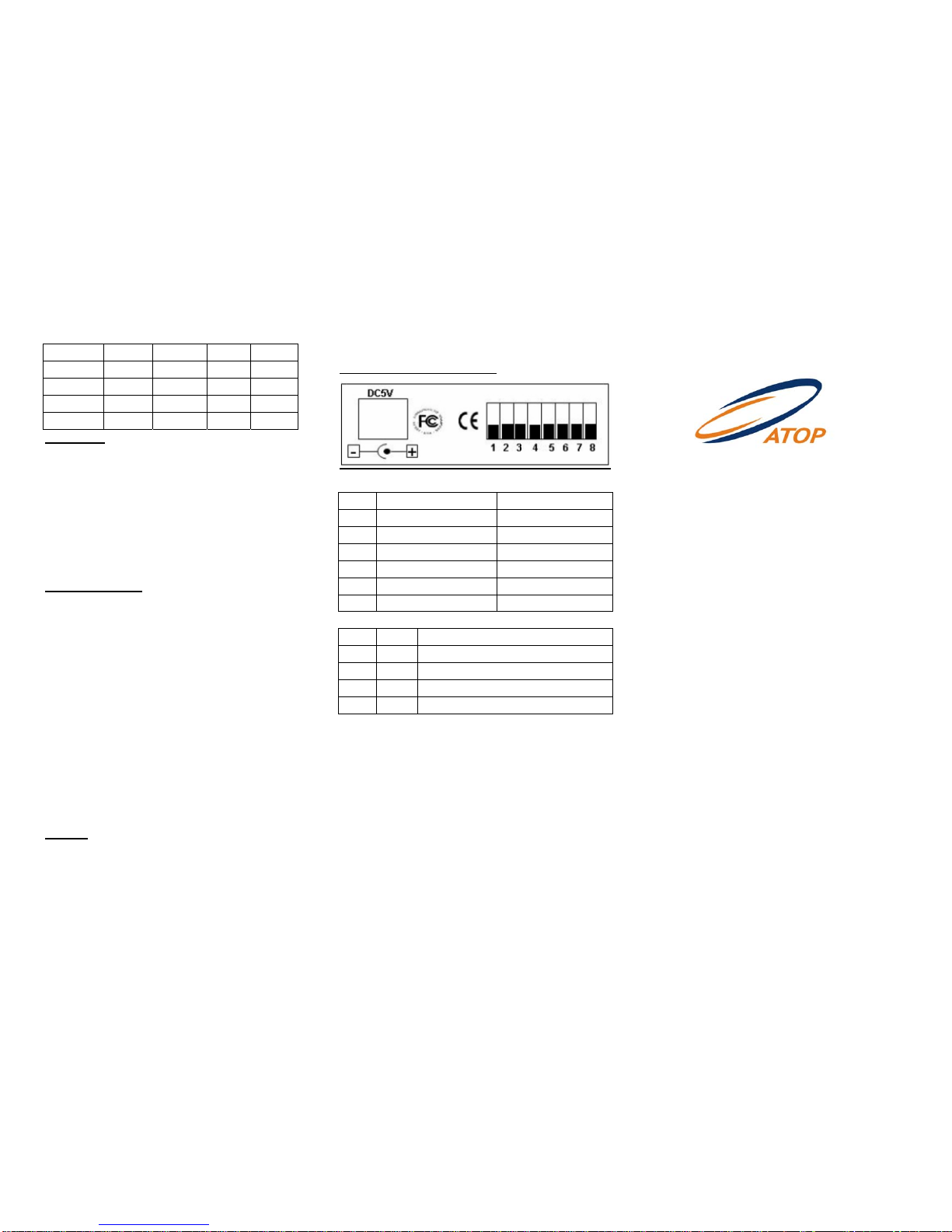

IF Media Converter with DIPswitch :
PinNo. ON OFF
1 LLF Enabled LLF Disabled
4 TX - Force Mode TX - Auto negotiation
5 IEEE802.3X - Disabled IEEE802.3X - Enabled
6 TX - 10M TX - 100M
7 TX - Half Duplex TX - Full Duplex
8 FX - Half Duplex FX – Full Duplex
PinNo.2 PinNo.3 Status
OFF OFF Store & Forward
OFF ON Cut-through
ON OFF Pure Converter mode
ON ON Converter with auto-change-forward function
