Atosa MBB59 User manual

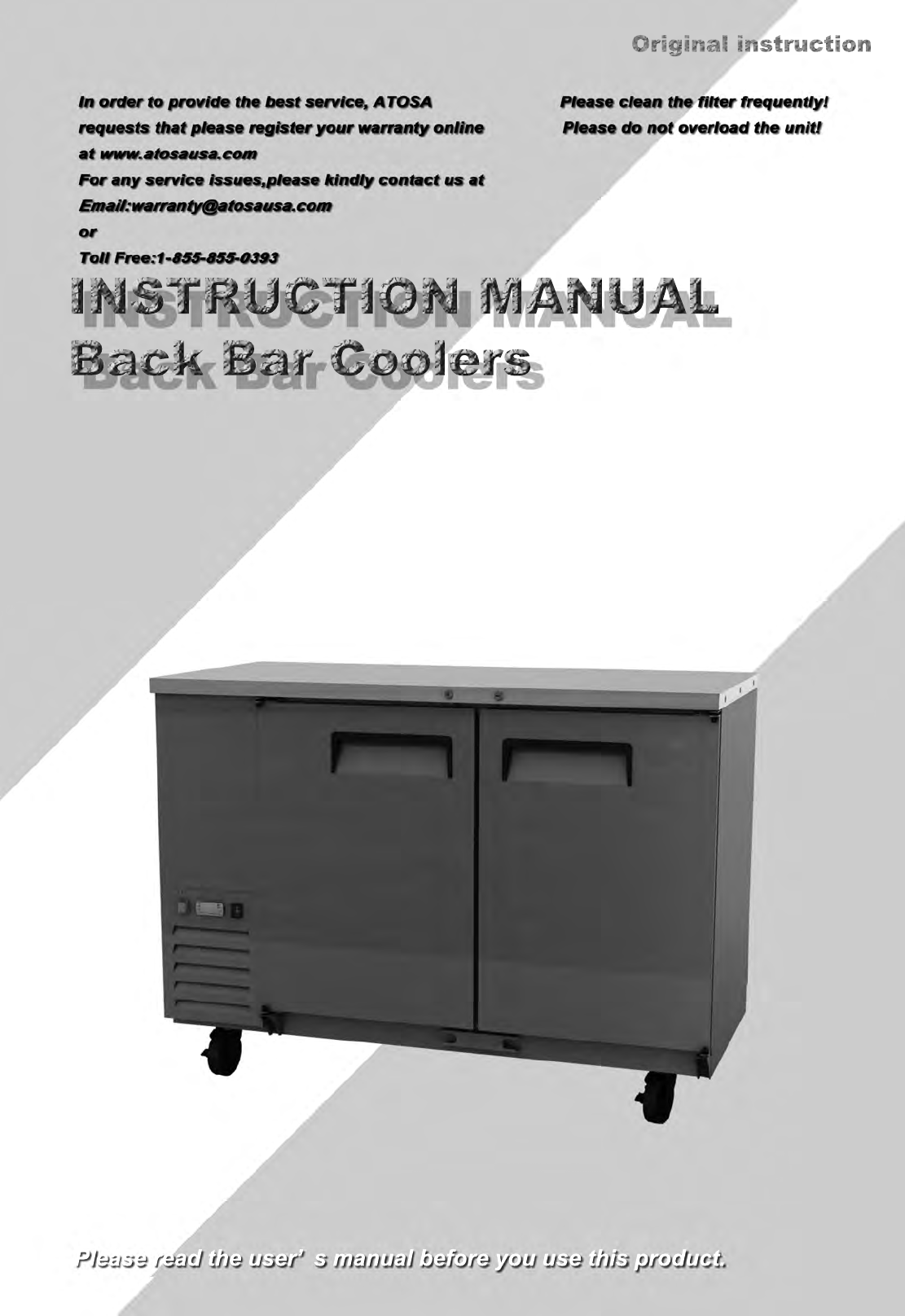

INSTRUCTION MANUAL
Back Bar Coolers
Original instruction
Please read the user’s manual before you use this product.

1
Back Bar Coolers
Installation, use and maintenance instructions

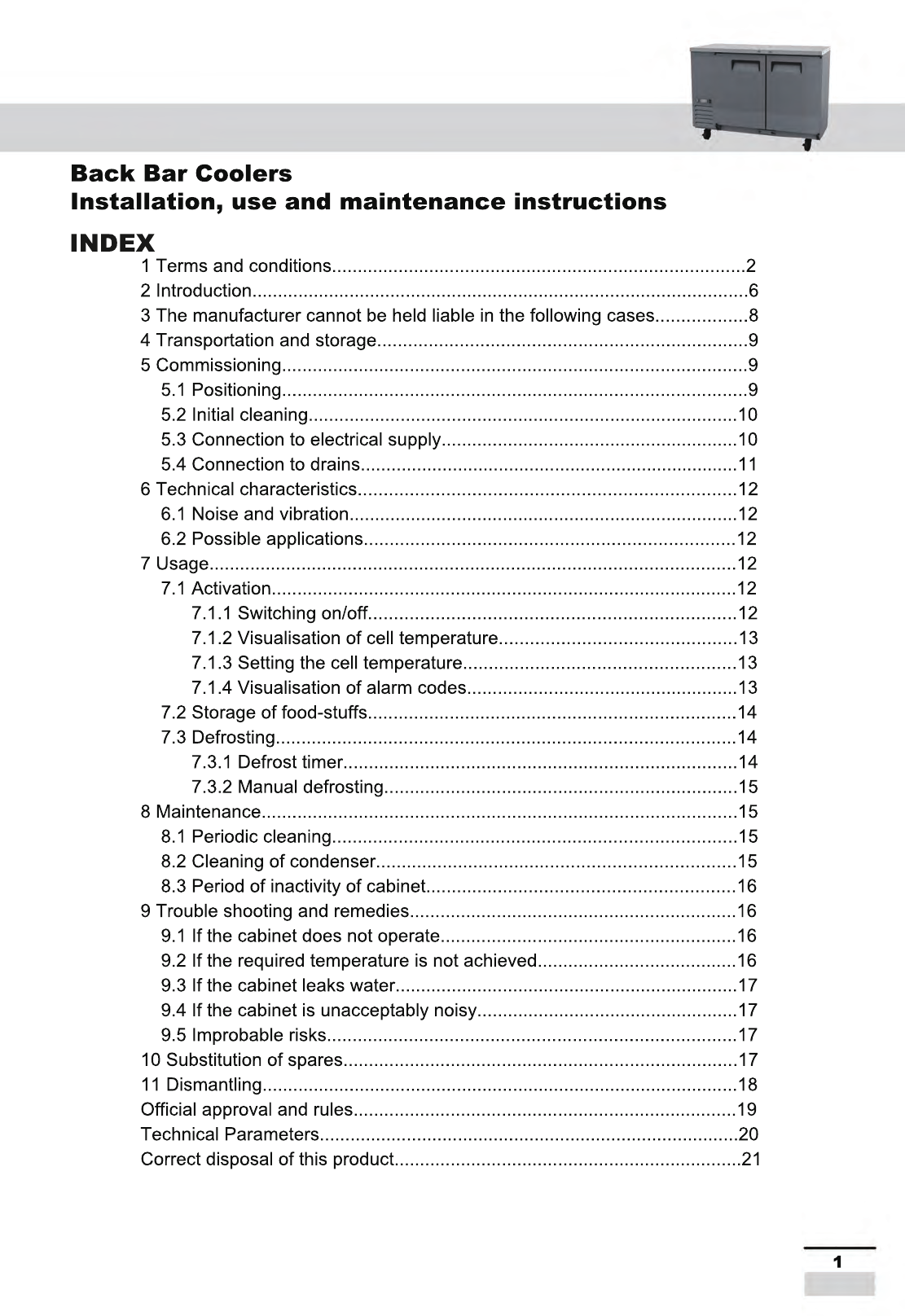

INDEX

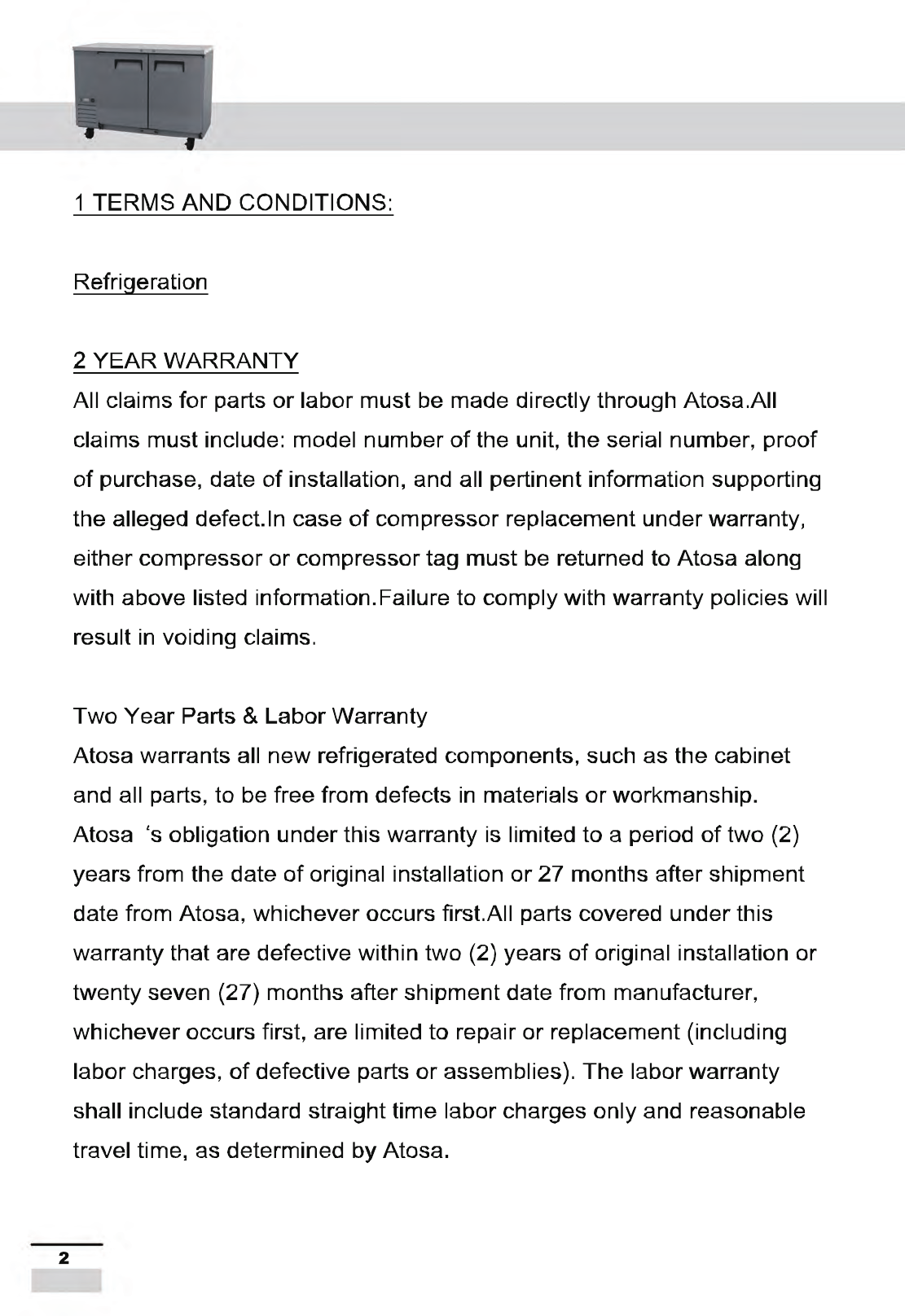

1 Terms and conditions......................................................................... ........ 2
2 Introduction............................................................................
..................... 6
3 The manufacturer cannot be held liable in the following cases
.................. 8
4 Transportation and storage
........................................................................ 9
5 Commissioning...............................................................
............................ 9
5.1 Positioning................................................................
........................... 9

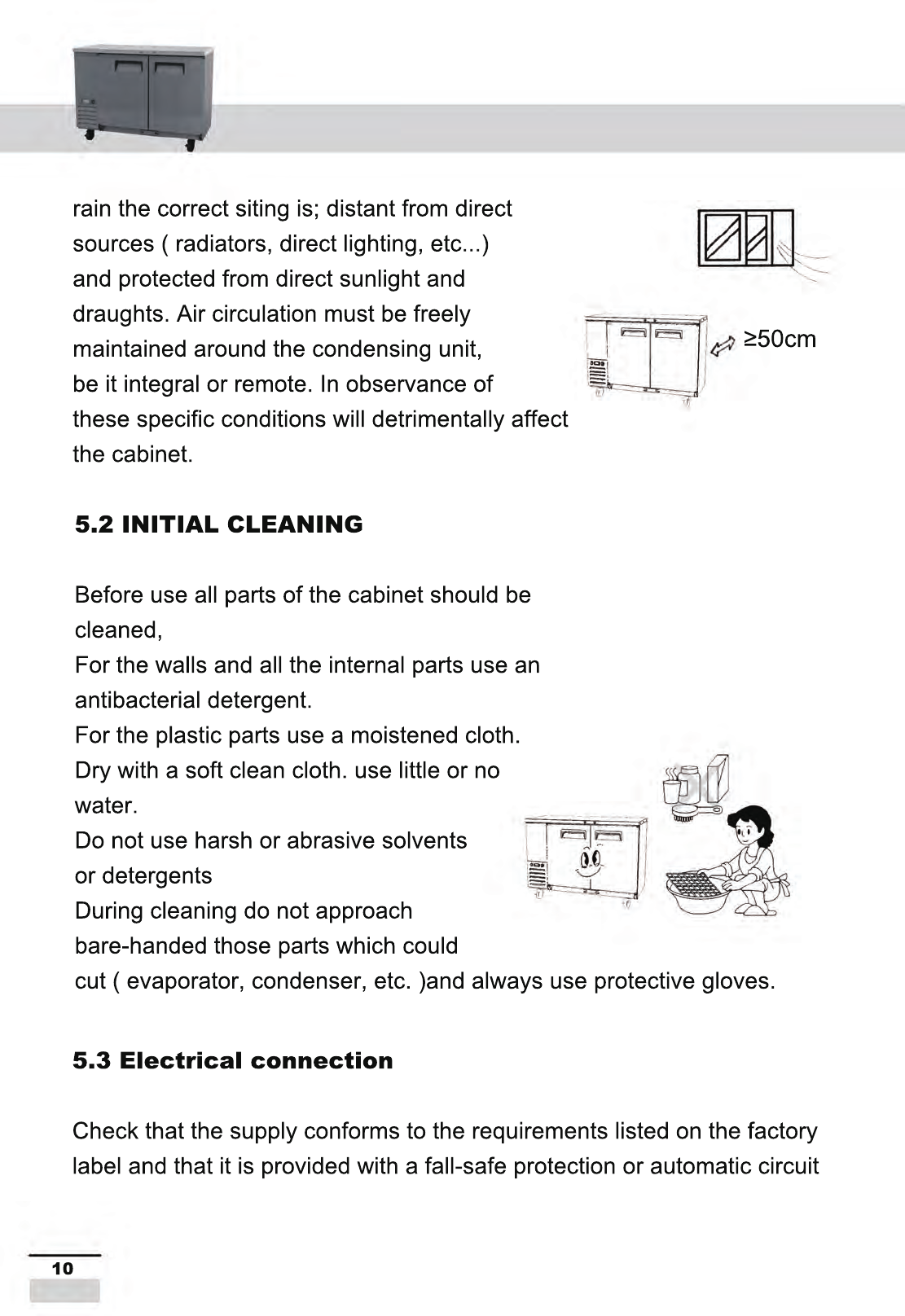

5.2 Initial cleaning....................................................................................10
5.2 Initial cleaning....................................................................................10

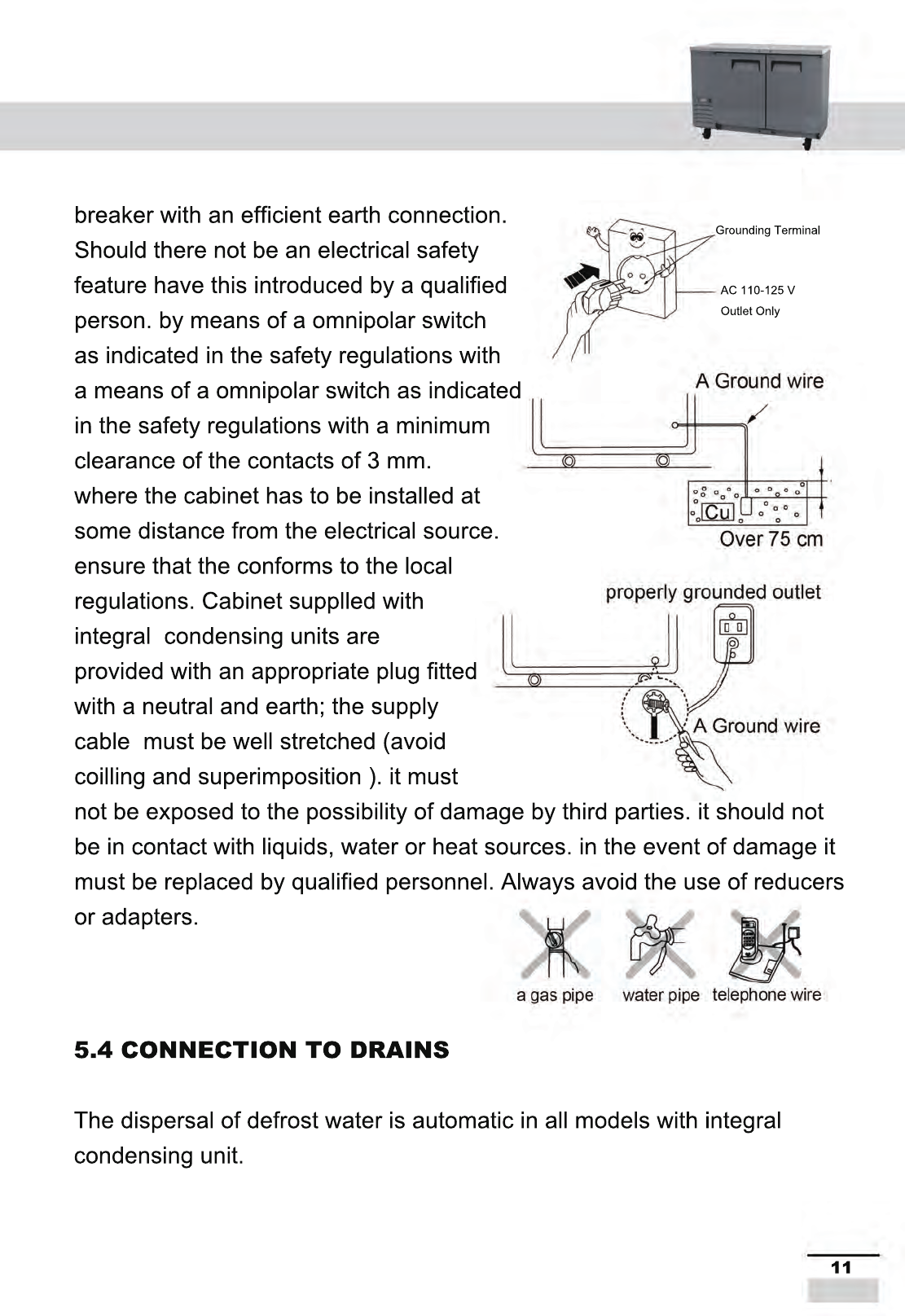

5.3 Connection to electrical supply..........................................................10
5.4 Connection to drains.........................................................
................. 11

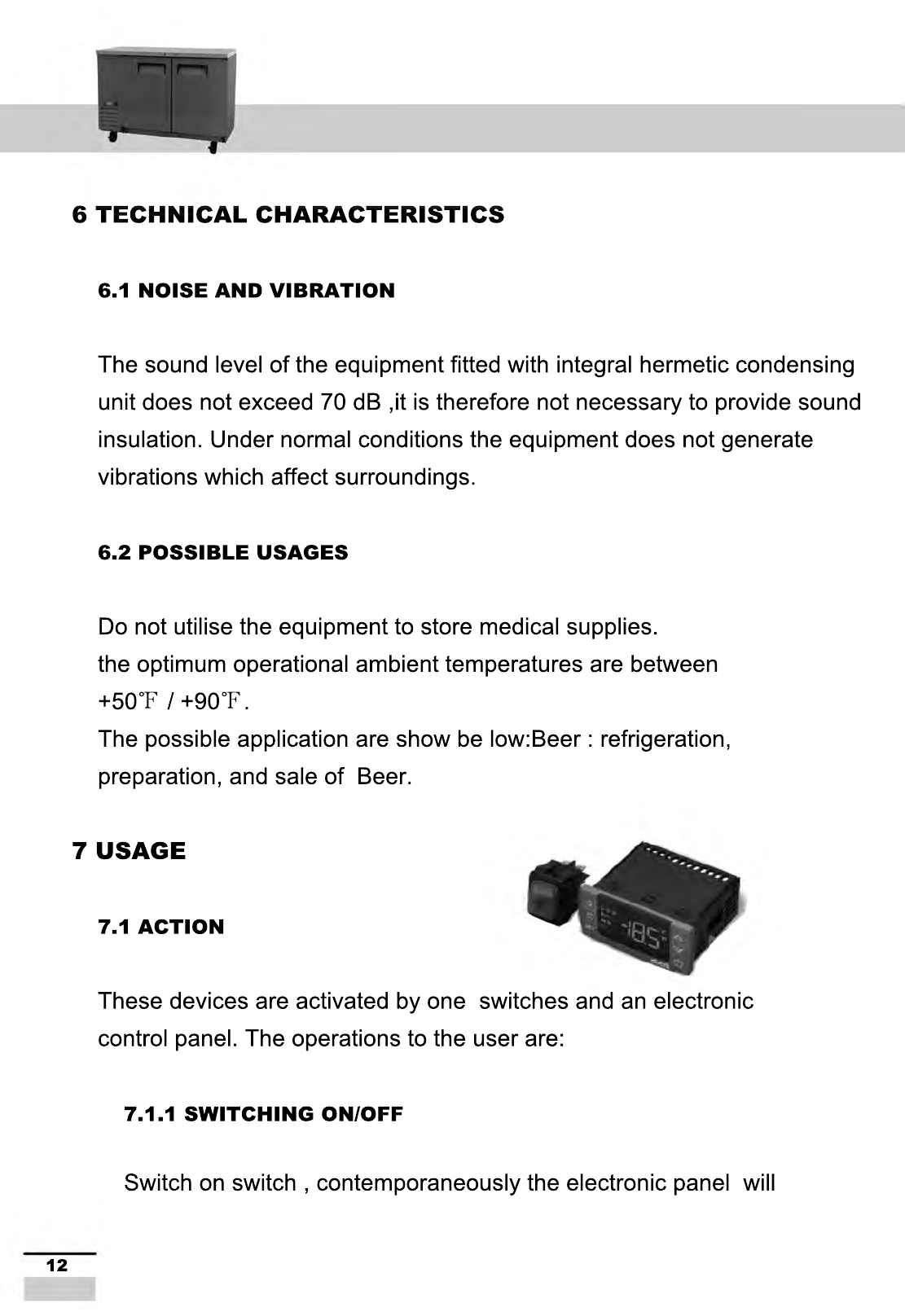

6 Technical characteristics
.........................................................................12
6.1 Noise and vibration............................................................................12
6.2 Possible applications
............................................... ......................... 12
7 Usage............................................................................
7 Usage............................................................................ ........................... 12
7.1 Activation...........................................................................................12
7.1.1 Switching on/off
....................................................................... 12

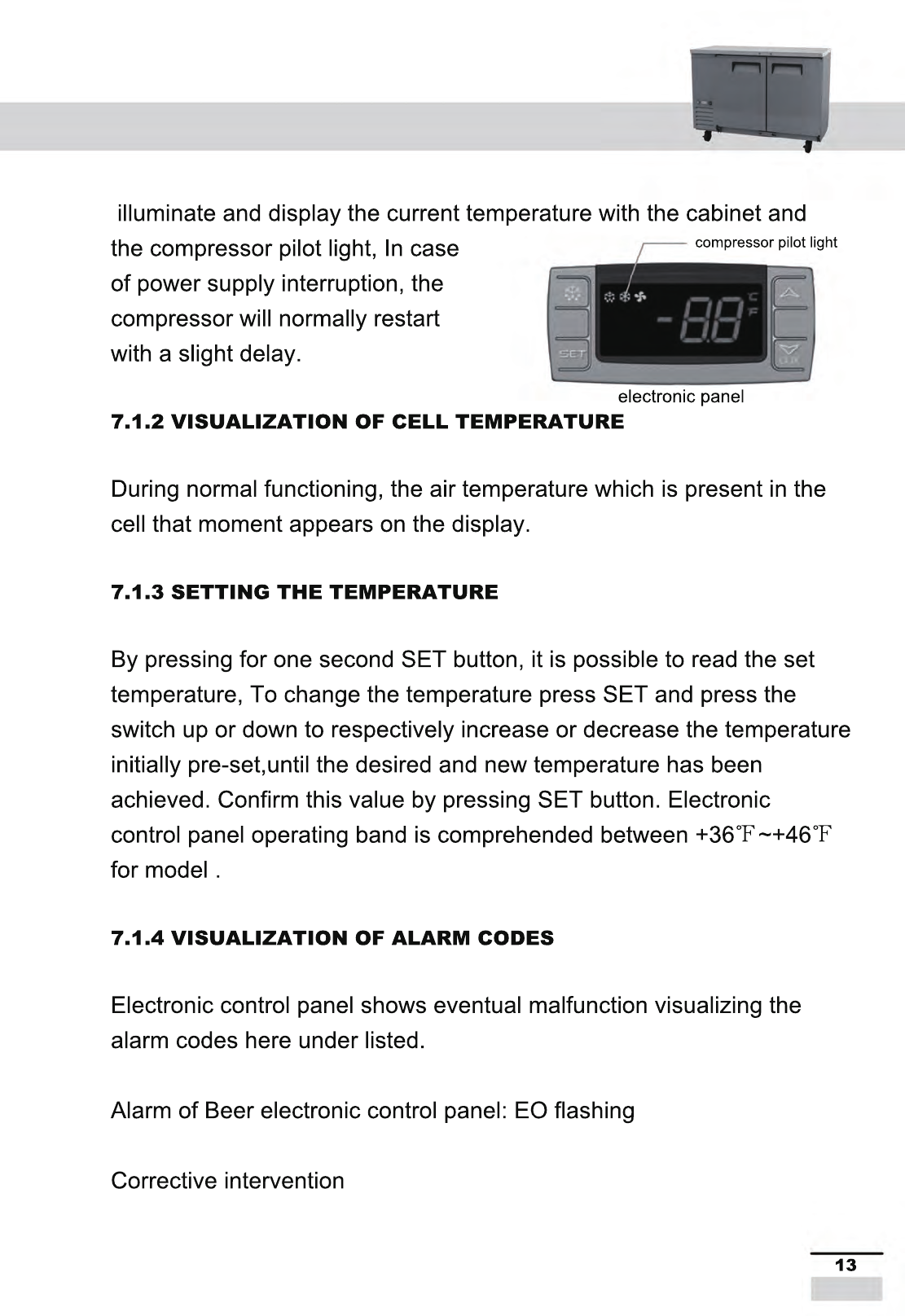

7.1.2 Visualisation of cell temperature
.............................................. 13
7.1.3 Setting the cell temperature
.............................. ...................... . 13
7.1.4 Visualisation of alarm codes.....................................................13
7.2 Storage of food-stuffs...........................................
7.2 Storage of food-stuffs........................................... ............................. 14
7.3 Defrosting.............................................................
............................. 14
7.3.1 Defrost timer................................................
............................. 14

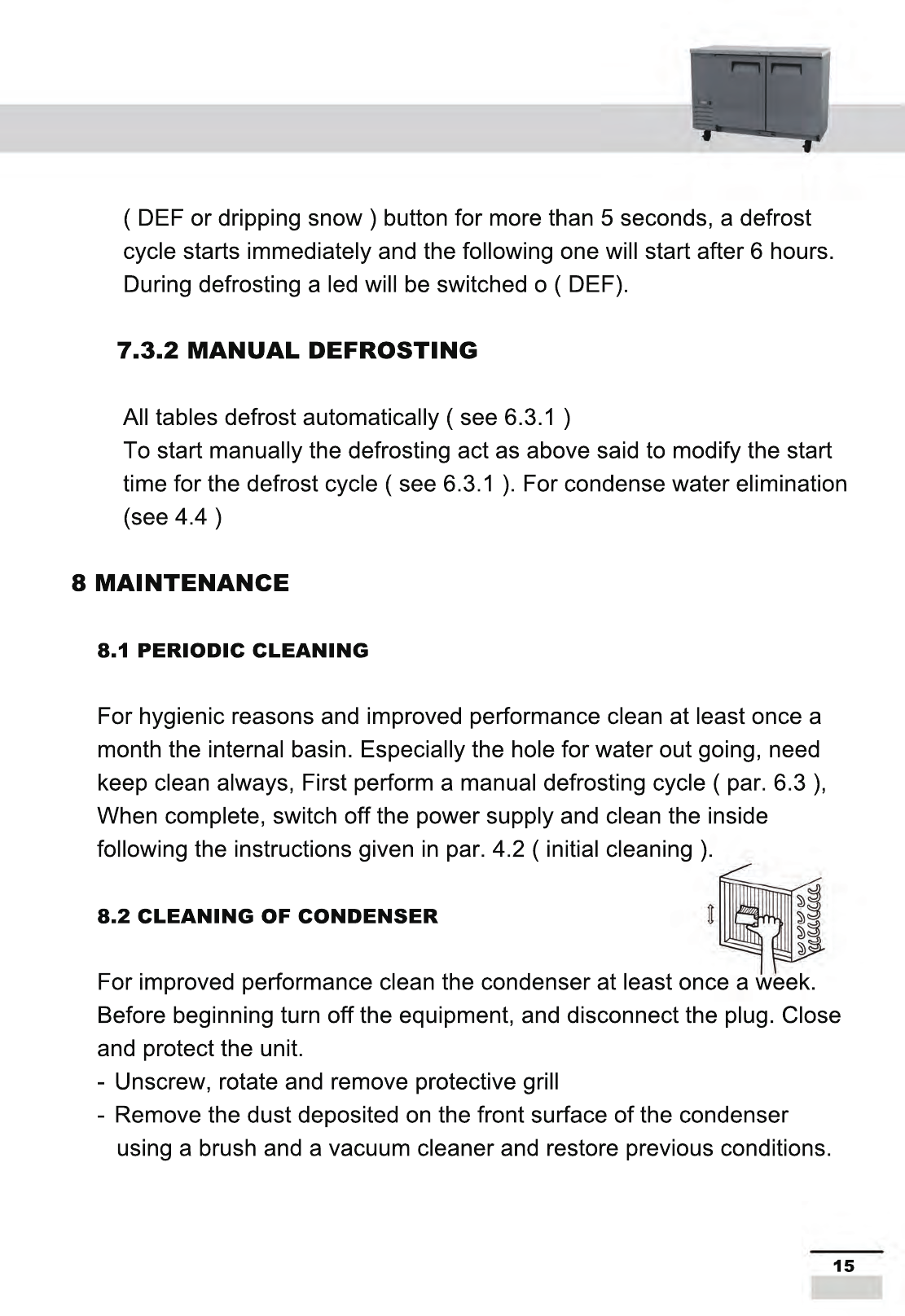

7.3.2 Manual defrosting........................................
............................ .15
8 Maintenance................................................................
........................... ..15
8.1 Periodic cleaning.....................................................
........................ ..15
8.2 Cleaning of condenser.................................
8.2 Cleaning of condenser................................. .................................... .15
8.3 Period of inactivity of cabinet..................
.......................................... 16
9 Trouble shooting and remedies................................................................16
9.1 If the cabinet does not operate..........................................................16
9.2 If the required temperature is not achieved.......................................16

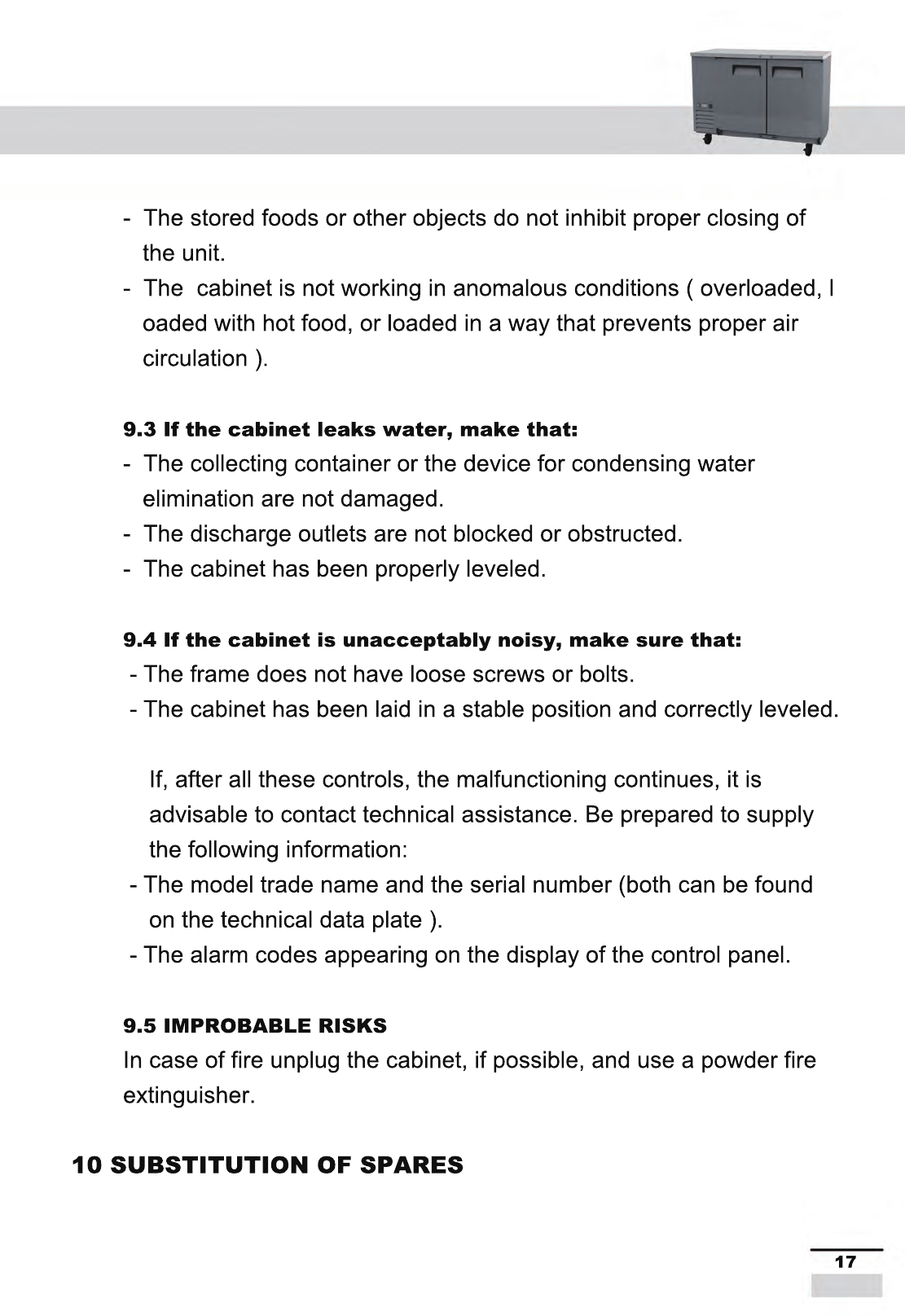

9.3 If the cabinet leaks water...................................................................17
9.4 If the cabinet is unacceptably noisy...................................................17
9.5 Improbable risks.......................................
9.5 Improbable risks....................................... ......................................... 17
10 Substitution of spares................................................
............................. 17
11 Dismantling.............................................................................................18
Official approval and rules...........................................................................19
Technical Parameters..................................................................................20
Correct disposal of this product....................................................................21

2

3
Additional Three Year Compressor Warranty
In addition to the two (2) year warranty stated above, Atosa warrants its
sealed compressor to be free from defects in both material and workman
ship under normal and proper use and maintenance service for a period
of three (3) additional years from the date of original installation, but not
to exceed five (5) years. Compressors that have been determined to be
defective from Atosa within this extended period will be either repaired or
defective from Atosa within this extended period will be either repaired or
replaced with a compressor or compressor parts of similar design and
capacity according to Atosa‘s discretion.The three (3) year extended
compressor warranty applies only to sealed parts of the compressor and
does not apply to any other parts or components. This includes, the
cabinet, paint finish, temperature control, refrigerant, metering device,
motor starting equipment, fan assembly, and other electrical components,
etc.
etc.
R290 Compressor Warranty
The five-year compressor warranty detailed above will be void if the
following procedure is not carefully adhered to:
1. This system contains R290 refrigerant and lubricant. The lubricant has
rapid moisture absorbing qualities.
2. Drier replacement is very important and must be changed when a
system is opened for servicing.
system is opened for servicing.
3. Micron level vacuums must be achieved to insure low moisture levels
in the system.
4. Compressor must be obtained through Atosa, unless otherwise
specified in writing, through Atosa’s warranty department.

4

5

6

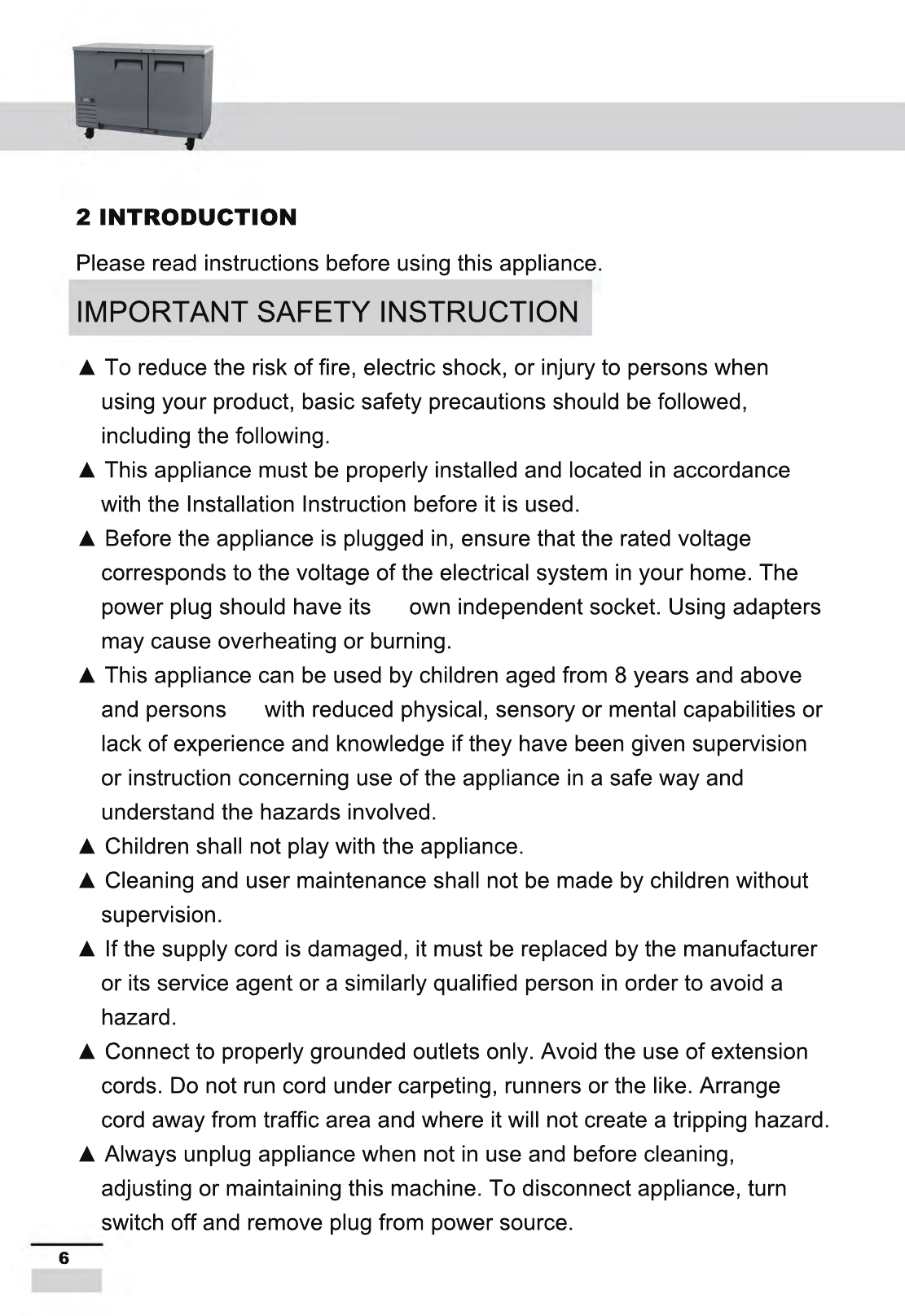

2 INTRODUCTION
Please read instructions before using this appliance.
IMPORTANT SAFETY INSTRUCTION
▲ To reduce the risk of fire, electric shock, or injury to persons when
using your product, basic safety precautions should be followed,
including the following.
▲ This appliance must be properly installed and located in accordance
▲ This appliance must be properly installed and located in accordance
with the Installation Instruction before it is used.
▲ Before the appliance is plugged in, ensure that the rated voltage
corresponds to the voltage of the electrical system in your home. The
power plug should have its own independent socket. Using adapters
may cause overheating or burning.
▲ This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
▲ Children shall not play with the appliance.
▲ Cleaning and user maintenance shall not be made by children without
supervision.
▲ If the supply cord is damaged, it must be replaced by the manufacturer
▲ If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a
hazard.
▲ Connect to properly grounded outlets only. Avoid the use of extension
cords. Do not run cord under carpeting, runners or the like. Arrange
cord away from traffic area and where it will not create a tripping hazard.
▲ Always unplug appliance when not in use and before cleaning,
adjusting or maintaining this machine. To disconnect appliance, turn
adjusting or maintaining this machine. To disconnect appliance, turn
switch off and remove plug from power source.

7
▲ Do not disconnect by pulling on the cord. Always disconnect by grasping
and pulling on the plug top.
▲ Do not pull out the cord or touch the power plug with wet hands. Clean
water or dust from the power plug and insert it with the ends of the pins
securely connected.
▲ Do not use outdoors.
▲ Do not splash water on the appliance. It may cause a malfunction or
▲ Do not splash water on the appliance. It may cause a malfunction or
electric shock.
▲ Do not disassemble, repair or alter the appliance. It may cause fire or
abnormal operations, which may lead to injury.
▲ After your fridge-freezer is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
▲ Never place glass products in the freezer because they may be broken
▲ Never place glass products in the freezer because they may be broken
when their inner contents are frozen.
▲ The refrigerant and insulation blowing gas used in the appliance require
special disposal procedures. When disposal, please consult with service
agent or a similarly qualified person.
▲ Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
▲ WARNING: Keep clear of obstruction all ventilation openings in the
▲ WARNING: Keep clear of obstruction all ventilation openings in the
appliance enclosure or in the structure for building-in.
▲ WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
▲ WARNING: Do not damage the refrigerant circuit.
▲ WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended
compartments of the appliance, unless they are of the type recommended
by the manufacturer.

8
3 The manufacturer cannot be held liable in the following
cases:
■ improper installation (not in accordance with the guidelines indicated
herein)
■ misuse of the refrigerator
■ power supply defects
■ improper or inadequate maintenance
■ unauthorised modification or tampering
■ use of non-original spare parts
■ use of non-original spare parts
■ partial or total failure to comply with the instructions
Warning: Risk of fire / flammable materials
CAUTION: RISK OF FIRE AND EXPLOSION WITH FLAMMABLE
REFRIGERANT R290.
All electrical equipment can be hazardous to health. Current standards
and legal requirements must be complied with during the installation and
use of any equipment.
This instruction manual provides all the necessary information regarding:
▲ use of the refrigerator
▲ technical specifications
▲ installation and handling
▲ operator procedures and instructions
▲ maintenance operation
The manual is to be considered an integral part of the refrigerator and
The manual is to be considered an integral part of the refrigerator and
should be stored in a safe place for father consult to permit a good
working life of the refrigerator.
The appliance is intended for commercial use only.
■
Component parts shall be replaced with like components and that
servicing shall be done by factory authorized service personnel.
▲ If you need the electronic version instruction manual, please ask the
manufacturer or its service agent .
▲ Max. Load of shelf is 176 LBS.
