AtriCure Switch Matrix ASB3
Instructions For Use
The AtriCure ASB3 Switch Matrix is a reusable accessory interface
module that allows simultaneous connection of AtriCure® Isolator™
Transpolar™ ablative handpiece and pen devices to the ASU RF
generator. Devices will be operational only when the ASB3 selector
switch is set to the device specific position. Please refer to the
applicable handpiece and pen device Instructions For Use. Please
refer to the ASU User’s Manual for descriptions of RF energy
delivery, modes of operation, output power and operating frequen-
cy.
The ASB3 has been tested and found to comply with the limits for
medical devices in IEC 60601-1-2:2001. These limits are designed
to provide reasonable protection against harmful interference in a
typical medical installation. The ASB3 generates and can radiate
radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to other
devices in the vicinity. However, there is no guarantee that
interference will not occur in a particular installation. If the ASB3
does cause harmful interference to other devices, which can be
determined by turning the ASB3 off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures; (1) reorient or relocate the receiving device, (2) increase
the separation between the ASB3 and the other devices, (3)
connect the ASB3 into an outlet on a circuit different from that to
which the other device(s) are connected, and (4) contact the
AtriCure service representative for assistance.
Inspect the following interface cables for any signs of physical
damage to the cable and connectors. If physical damage is found
or the interface cables do not perform within specification, notify
AtriCure. All returns must have approval from AtriCure. The cables
include: (1) A000442-ASB/ASU RF Interface Cable, and (2)
C001237-ASB/ASU Footswitch Interface Cable.
Environmental Conditions: (1) operational temperature +10°C to
+40°C, (2) storage temperature -35°C to +54°C, and (3) humidity
15 to 90% relative humidity.
Caution: Federal (U.S.A.) law restricts this device to sale
by or on the order of a physician.
Manufactured for:
AtriCure, Inc.
7555 Innovation Way
Mason, Ohio 45040
Customer Service: 1.866.349.2342
[email protected]
www.atricure.com
Perform annual preventative maintenance procedures to ensure all ASB3
components are functioning properly, including but not limited to: (1)
electrical power cords for fraying, damage, and proper grounding, (2) AC
power switch, (3) indicator damage (Power On, Footswitch Present, or
Handpiece Select), (4) handpiece connector damage, cracking or inability
to insert and latch handpiece plug, (5) carrying handle damage, inability to
latch or rotate, (6) rubber feet damage, cracking or inability for the ASB3 to
remain stabile on a flat surface, (7) interface cable fraying or damage, and
(8) footswitch connector damage cracking or inability to insert and latch
footswitch plug.
The ASB3 does not have any serviceable parts. For servicing issues,
contact AtriCure, Inc.
The ASB3 Accessory Cleaning and Disinfection Instructions; (1) use a mild
detergent (prepared to its specifications) and a damp cloth to clean the
exterior of the Switch Matrix, (2) do not submerge or allow fluids to enter
the chassis, (3) do not use caustic, corrosive, or abrasive cleaning
materials, and (4) the ASB3 and auxiliary device cable cannot be
sterilized.
Types and rating of fuses: (1) 100-120V, 220-240V, ~50/60 Hz, and (2)
1.25A/250V, T-lag, 5 x 20mm, UL Recognized, IEC Approved.
Replace fuses as marked.
Follow local governing ordinances and recycling plans regarding disposal
or recycling of device components.
Disclaimer - Under no circumstances will Atricure, Inc. be responsible
for any incidental, special or consequential loss, damage, or expense,
which is the result of the deliberate misuse of this product, including
any loss, damage, or expense which is related to personal injury or
damage to property.
Information in this document is subject to change without notice. Repro-
duction in any manner whatsover without the written permission of
AtriCure, Inc. is strictly forbidden. AtriCure and the AtriCure Logo are
trademarks of AtriCure, Inc. AtriCure disclaims proprietary interest in the
marks and names of others.
January 2009 Printed in the USA.
P000562.H

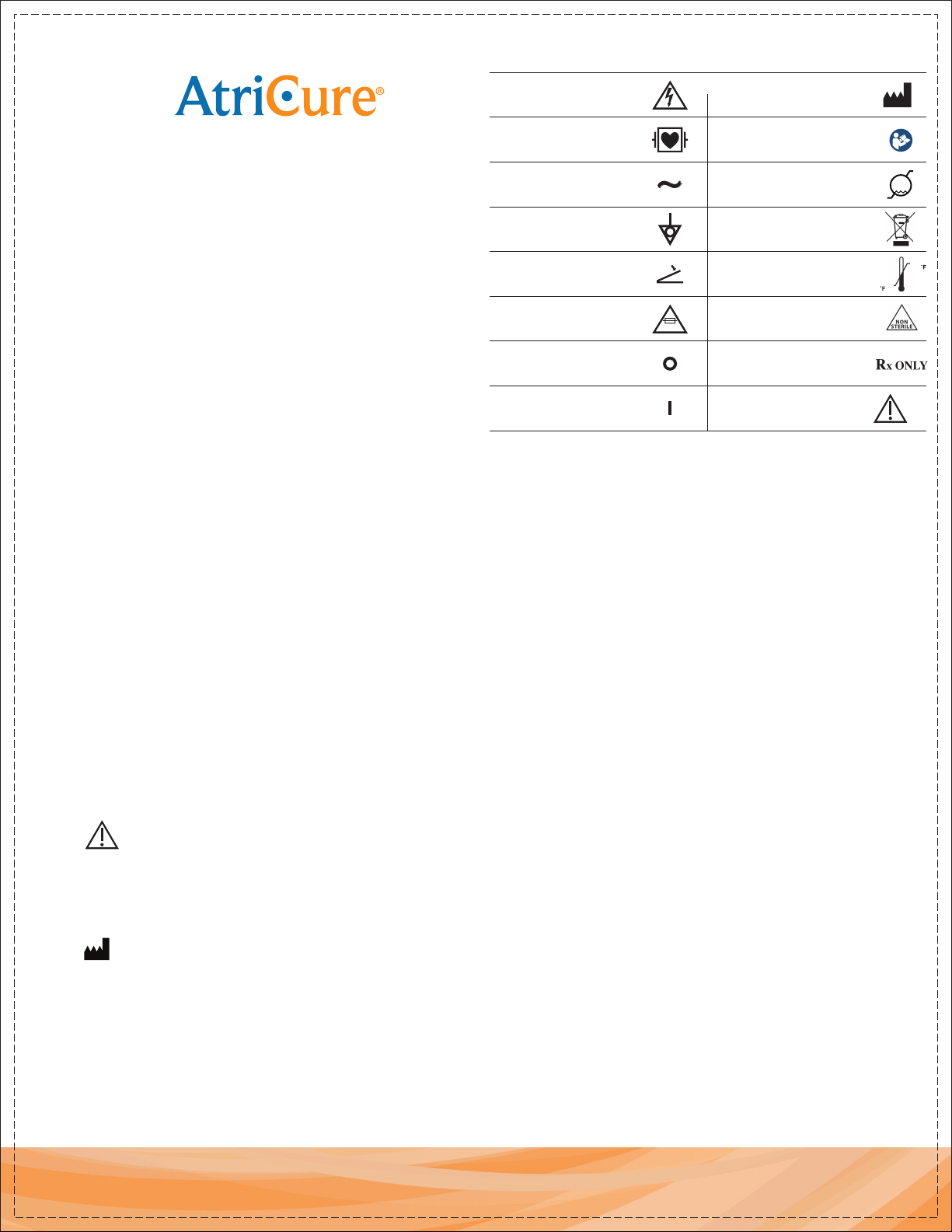

Dangerous Voltage
Type CF Defibrillation-Proof
Applied Part Patient
Isolated Equipment
Alternating Current
Equipotential
Footswitch
Fuses
Power OFF
Power ON
Manufacturer
Follow Instructions for Use
Humidity Limitations
Waste Electrical and
Electronic Equipment
Temperature Limitations
Non-Sterile
Caution: Federal (US) law
restricts this device to sale by
or on order of a physician
90%
15%
%
-35˚C
-31
54˚C
129
Caution

Isolator Synergy Clamps
Isolator Transpolar Pen
Coolrail - MCR1
MAX1
MAX5
MLP1 Isolator Clamp
EML2
EMR2
OLL2
OSL2
EMT1
OLL1
HANDPIECE
CR
