Instruction Manual
Jump starter Booster 12/24V 10000/5000A
INTRODUCTION
The publication and copyright of this documentation remain with the company
AKKU SYS Akkumulator- und Batterietechnik Nord GmbH.
Verbindungsweg 23 - 25469 Halstenbek / Hamburg - GERMANY
Phone +49 4101 | 3 76 76-0 / Fax +49 4101 | 3 76 76-66
[email protected] / www.akkusys.de
Thank you very much,
for purchasing our a-TroniX series jump starter booster series.
The booster is a compact mobile jump starter for 12V/24V lead batteries in cars, boats,
lawnmowers, camping vehicles, trucks, etc. and an ideal emergency helper.
Read carefully before use!
Read this manual carefully before installation.
It contains important regulations and instructions for the use of this product and provides
technical support for the operator of the unit.
All rights reserved.
AKKU SYS Akkumulator- und Batterietechnik Nord GmbH cannot be held responsible for
any inaccuracies or inappropriate information in this instruction manual.
The information in this document is subject to change without notice, but there is no
obligation to update it on an ongoing basis.
We reserve the right to make design and equipment changes to improve the production
process or the product. AKKU SYS GmbH accepts no liability for errors in this operating
manual and any consequences resulting therefrom.

09/2021 Page 3
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
Table of contents
Page
1. Symbols and abbreviations used in this guide 4
2. Important safety instructions 5
2.1 Risk of explosive gases 5
2.2 Risk of electric shock or re 5
2.3 Personal Precautions 6
2.4 Use Precautions 7
3. How to charge the emergency starter 8
4. How to use the emergency starter 9
5. Override function 10
6. Using the Emergency Starter as a 12V or 24V Memory Saver 12
7. Error warnings 13
8. Protecting the environment 14
9. Specification 15

Page 4 09/2021
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
1. Symbols and abbreviations
used in this guide
Batteries are also colloquially referred to as accumulators or rechargeable batteries.

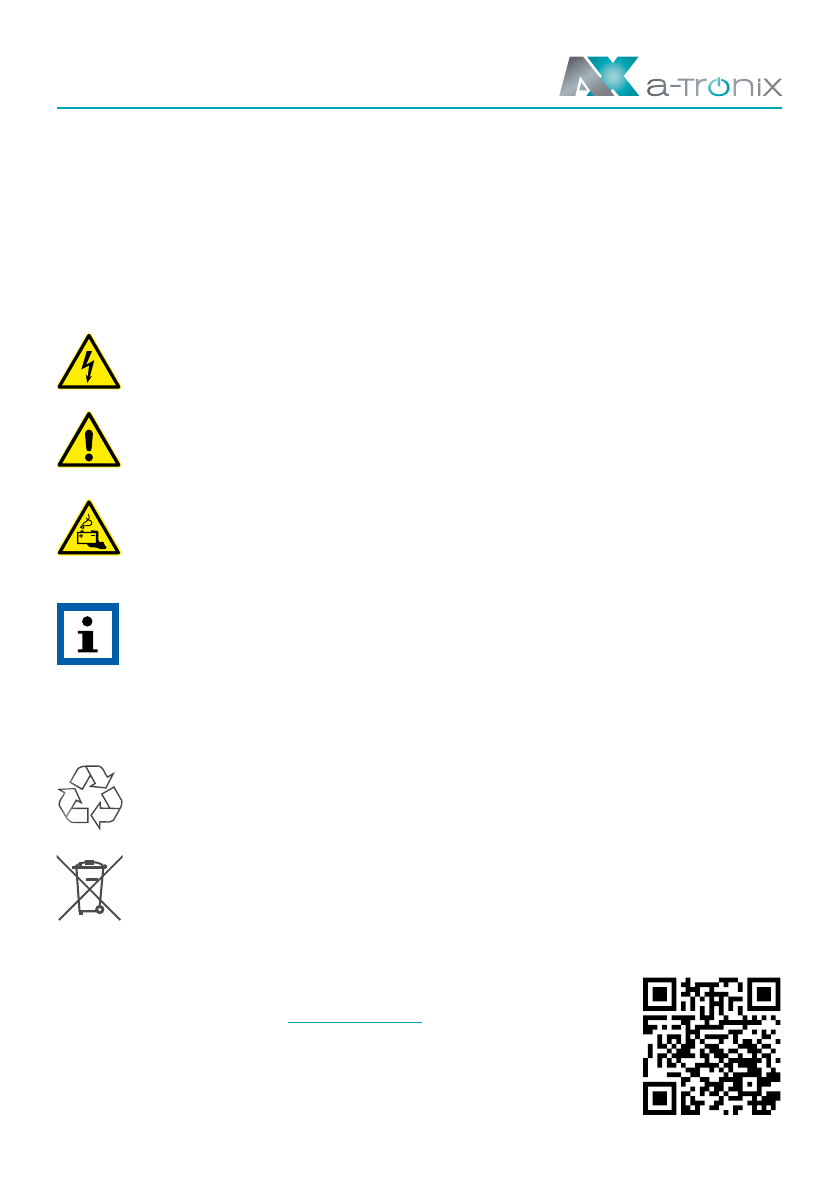

Warnings and notes are indicated by the corresponding symbols (pictograms) and must
be observed:
CAUTION:
Warning of dangerous electrical voltage.
CAUTION:
General warning of danger points.
CAUTION:
Warning when handling accumulators.
NOTES:
This symbol indicates texts, notes or tips. Failure to take precautionary
measures may result in damage to the product and/or its functions or to an
object in its vicinity.
ENVIRONMENT:
Indicates recycling information.
Indicates assemblies or parts that must be disposed of properly. Do not
dispose of them in the household waste. Defective accumulators must be
disposed of in an environmentally friendly manner. Do not throw them in the
household waste under any circumstances and observe the local disposal
regulations.
Use the certied and professional recycling service of our
AKKU SYS team. For more information, contact us on the order
hotline [phone], at [email protected] or use the QR code.

09/2021 Page 5
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
2. Important safety instructions
Please keep these operating instructions and read them before use. Follow these
instructions and precautions carefully. These instructions explain how to use the
machine safely and effectively. Failure to do so may result in serious injury or
death.
Charge the emergency starter immediately after purchase and for at least 8 hours
each time it is used. When the emergency starter is not in use, charge it at least
every three months to keep the internal battery in perfect performance condition.
Never leave the emergency starter uncharged for a long period of time as the
performance of the internal battery could be severely affected and the operating
efciency of the unit could be compromised.
Our company accepts no liability for damage caused by failure to observe the
safety instructions.
2.1 Risk of explosive gases
Working in the vicinity of a lead-acid battery is dangerous.
Batteries generate explosive gases during normal operation. It is important that
you follow these instructions each time you use the unit.
To reduce the risk of battery explosion, follow these instructions and those
published by the battery manufacturer and the manufacturer of any equipment
you intend to use in the vicinity of a battery. Review cautionary markings on
these products and on the engine.
■Do not set the unit on ammable materials, such as carpeting, upholstery,
paper, cardboard, etc.
■Never place the unit directly above battery being jumped.
■Do not use the unit to jump start a vehicle while charging the internal battery.
2.2 Risk of electric shock or fire
■Keep out of reach of children. This device may be used by children from age 8 and by
persons with reduced physical, sensory or mental capabilities or lack of experience and
knowledge, provided that they are under supervision or have been told how to use the
device safely and are aware of the potential risks. Children must not use the device as a
plaything. Cleaning and servicing tasks may not be carried out by children unless they
are supervised.

Page 6 09/2021
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
■Do not put ngers or hands into any of the unit’s outlets.
■Do not expose the unit to rain or snow.
■Use only the original charger to charge the booster. Use of a non-original charger may
result in a risk of re, electric shock or injury to persons or damage to property.
■To reduce the risk of damage to the electric plug or cord, pull by the adaptor rather than
the cord when disconnecting the unit.
■Do not operate the unit with damaged cables or clamps.
■Do not operate the unit if it has received a violent blow, been dropped or otherwise
damaged. Do not disassemble the unit. Take it to a qualied service person for repair or
maintenance. Improper reassembly may result in a re or electric shock hazard.
2.3 Personal Precautions
■NEVER smoke or allow a spark or ame in the vicinity of a battery or engine.
■Remove personal metal items such as rings, bracelets, necklaces and watches when
working with a lead-acid battery. A lead-acid lithium battery can produce a short-circuit
current high enough to cause a severe burn.
■Be extra cautious, to reduce the risk of dropping a metal tool onto the battery. It might
spark or short-circuit the battery or other electrical part that may cause an explosion.
■Do not permit the internal batteries of the unit to freeze. Never charge a frozen battery.
■To prevent sparking, NEVER allow clamps to touch together or contact the same piece
of metal.
■
Consider having someone nearby to come to your aid when you work near a lead-acid battery.
■Have plenty of fresh water, soap and baking soda nearby for use, in case battery acid
contacts your eyes, skin, or clothing.
■Wear complete eye and body protection, including safety goggles and protective
clothing. Avoid touching your eyes while working near the battery.
■If battery acid contacts your skin or clothing, immediately wash the area with soap and
water. If acid enters your eye, immediately ood the eye with cold running water for at
least 10 minutes and get medical attention right away.
■If battery acid is accidentally swallowed, drink milk, the whites of eggs or water.
DO NOT induce vomiting. Seek medical attention immediately.
■Neutralize any acid spills thoroughly with baking soda before attempting to clean up.
■This product contains a lithium ion battery. In case of re, you may use water, or a CO2
extinguisher to extinguish the re. Once the re is extinguished, douse the product with
water, an aqueous-based extinguishing agent, or other no alcoholic liquids to cool the
product and prevent the battery from re-igniting. NEVER attempt to pick up or move a
hot, smoking, or burning product, as you may be injured.

09/2021 Page 7
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
2.4 Use Precautions
■The Emergency Starter is designed to start up lead acid, lithium batteries.
Do not use it for other purposes. Do not start or charge non-rechargeable batteries.
Do not start up or charge frozen batteries.
■Do not start up or load batteries with voltages that are other than those specied for the
starter.
CAUTION:
Voltage incompatibility between the emergency starter and the voltage of the
vehicle´s electrical system can cause explosions and damage the vehicle,
product and people.
■Before starting up, switch off the vehicle lights and all other accessories.
CAUTION:
Never place the terminals of the two battery clips (red-positive and black
negative) in contact with one another.
CAUTION:
Never switch polarity. Always connect the output conductor with a red battery
clip (+) to the positive pole of the battery and the output conductor with a black
battery clip. (-) to the vehicle’s earth (ground).
CAUTION:
Inverting polarity can cause explosions, damage the vehicle, product and people.
NOTE:
Improper use of the Emergency Starter or tampering with the electronic circuit
inside the appliance void the warranty.

Page 8 09/2021
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
3. How to charge the emergency starter
CAUTION:
Charge the Emergency Starter for at least 8 hours immediately after purchase
and each time that it is used. If the Emergency Starter is not in use, recharge it at
least every 3 months to maintain the internal battery in perfect working order.
Charging the emergency starter using the 230VAC charger:
■Make sure that no appliance is connected to the Emergency Starter. Use the
TEST button to check the charge level on the voltmeter (red, battery at 30% –
yellow, battery at 60% – green, battery at 100%). If the voltmeter gauge does
not reach green, charge the battery of the Emergency Starter.
■Insert the plug of the 230V charger into the charging socket located on the
front of the Emergency Starter.
■Insert the charger into the socket of the 230V domestic supply.
■If the Emergency Starter is not in use, recharge it at least every 3 months for
8 hours to maintain the internal batteries in perfect working order. The battery
charger of the Emergency Starter is automatic, so it can remain connected to
the Emergency Starter permanently when it is not in use.
CAUTION:
Use only the charger provided.
CAUTION:
If you decide to stop the charge before it is completed (Full), switch OFF the
booster.

09/2021 Page 9
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
4. How to use the emergency starter
Using the Emergency Starter to start up vehicles:
■Always wear safety goggles and keep your face away from the battery when connecting it.
■Check that the emergency starter is in the OFF position.
■Check the voltage of the vehicle battery.
■
Connect the output wire with the red battery clamp (+) to the positive pole of the battery and
the output wire with the black battery clamp (-) to the negative pole of the vehicle (ground).
CAUTION:
Voltage incompatibility between the emergency starter and the voltage of the
vehicle´s electrical system can cause explosions and damage the vehicle,
product and people
CAUTION:
never switch polarity. Always connect the output conductor with a red battery
clip (+) to the positive pole of the battery and the output conductor with a black
battery clip (-) to the vehicle‘s earth (ground).
CAUTION:
Inverting polarity can cause explosions, damage the vehicle, product and people.
CAUTION:
If the LED RED / REVERSE is set on, the polarity has been reversed. Disconnect
the battery clips from the vehicle and connect them correctly.
CAUTION:
Check that the cables of the Emergency Starter are far away from fans, from
moving parts and from the fuel conduit.
■Identify the pole corresponding to the earth of the vehicle; this is generally
connected to the negative terminal
■Now PRESS „START/STOP“ button blue led lit on and display show „STRT“.
■The led lit in correspondence of the detected voltage (12V or 24V).
■If the detected voltage is 12V, but the battery is 24V, please use the „OVER
RIDE“ function. (Remove the clips and follow the OVER RIDE FUNCTION
procedure)
■Once the vehicle has been started up, emergency starter automatically turns
off after 30 seconds. Otherwise press START/STOP button to turn off the
emergency starter.

Page 10 09/2021
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
■Disconnect the output conductor with the black battery clip from the earth
of the vehicle and replace output conductor with the black battery clip in its
housing.
■Disconnect the output conductor with the red battery clip from the positive
terminal (+) of the battery and return it immediately to its seat.
CAUTION:
If you are unable to start the vehicle within 5 seconds, do not continue with the
starting attempt. Before trying to start up the vehicle again, let the Emergency
Starter rest for at least 3 minutes to avoid damaging the appliance.
CAUTION:
Always recharge the Emergency Starter after each time that it is used.
NOTE:
Maintaining your vehicle’s battery correctly prolongs its life. Once you reach your
destination, remember to connect your battery to a battery charger for vehicles
to restore it to maximum efciency.
5. Override function
This mode is recommended when a vehicle with completely or extremely at, absent or
cut-off battery needs to be started.
CAUTION:
SOME PROTECTION ARE NOT ACTIVE! TAKE CARE!
■Always wear safety goggles and keep your face away from the battery when
connecting it.
■Check that the emergency starter is in the OFF position.
■Check the voltage of the vehicle battery.
CAUTION:
Voltage incompatibility between the emergency starter and the voltage of the
vehicle´s electrical system can cause explosions and damage the vehicle,
product and people.
■Be sure that the Battery Clips are disconnected.
CAUTION:
If the Battery Clips are connected, the „Err8“ error, will showed.
■Now PRESS „START/STOP“, the display show „SET“
■Select the correct tension, 12V or 24V, using the selection button
■Set „OVER RIDE“ function.

09/2021 Page 11
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
■Now PRESS „START/STOP“ for 3 seconds, until „ON“ blink on the display.
■Release the button and the display show „STRT“
■Until 30“ you can connect the clamps and start up the vehicle.
■Identify the pole corresponding to the earth of the vehicle; this is generally
connected to the negative terminal.
CAUTION:
Never switch polarity. Always connect the output conductor with a red battery
clip (+) to the positive pole of the battery and the output conductor with a black
battery clip (-) to the vehicle‘s earth (ground).
CAUTION:
Inverting polarity can cause explosions, damage the vehicle, product and people.
CAUTION:
If the LED RED / REVERSE is set on, the polarity has been reversed. Disconnect
the battery clips from the vehicle and connect them correctly.
CAUTION:
Check that the cables of the Emergency Starter are far away from fans, from
moving parts and from the fuel conduit.
■Once the vehicle has been started up, emergency starter automatically turns
off after 30 seconds. Otherwise press START/STOP button to turn off the
emergency starter.
■Disconnect the output conductor with the black battery clip from the earth
of the vehicle and replace output conductor with the black battery clip in its
housing.
■Disconnect the output conductor with the red battery clip from the positive
terminal (+) of the battery and return it immediately to its seat.
CAUTION:
If you are unable to start the vehicle within 5 seconds, do not continue with the
starting attempt. Before trying to start up the vehicle again, let the Emergency
Starter rest for at least 3 minutes to avoid damaging the appliance.
CAUTION:
Always recharge the Emergency Starter after each time that it is used.

Page 12 09/2021
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
6. Using the Emergency Starter as
a 12V or 24V Memory Saver
■Always wear safety goggles and keep your face away from the battery when
connecting it.
■Check that the emergency starter is in the OFF position.
■Check the voltage of the vehicle battery.
CAUTION:
Voltage incompatibility between the emergency starter and the voltage of the
vehicle´s electrical system can cause explosions and damage the vehicle,
product and people.
■Be sure that the Battery Clips are disconnected.
NOTE:
If the Battery Clips are connected, the „Err8“ error, will showed.
■Now PRESS „START/STOP“, the display show „SET“
■Select the correct tension, 12V or 24V, using the selection button
■Set „MEMORY SAVER“ function.
■Now PRESS „START/STOP“ for 3 seconds, until „ON“ blink on the display.
■Release the button and the display show „MEMO“
■Connect the Battery Clips and perform the Memory Saver activities.
■Identify the pole corresponding to the earth of the vehicle; this is generally
connected to the negative terminal.
CAUTION:
Never switch polarity. Always connect the output conductor with a red battery
clip (+) to the positive pole of the battery and the output conductor with a black
battery clip (-) to the vehicle‘s earth (ground).
CAUTION:
Inverting polarity can cause explosions, damage the vehicle, product and people.

09/2021 Page 13
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
CAUTION:
If the LED RED / REVERSE is set on, the polarity has been reversed. Disconnect
the battery clips from the vehicle and connect them correctly.
CAUTION:
heck that the cables of the Emergency Starter are far away from fans, from
moving parts and from the fuel conduit.
■Once the activities are completed, press START/STOP button to turn off the
emergency starter.
■Disconnect the output conductor with the black battery clip from the earth
of the vehicle and replace output conductor with the black battery clip in its
housing.
■Disconnect the output conductor with the red battery clip from the positive
terminal (+) of the battery and return it immediately to its seat.
CAUTION:
Always recharge the Emergency Starter after each time that it is used.
7. Error warnings
Error Description
Err 1 Reverse / Short-circuit / damaged battery
Err 2 Wrong tension
Err 3 High temperature of internal battery
Err 4 Discharge internal lithium batteries
Err 5 –
Err 6 Over load (start function)
Err 7 Over load (Memory saver function)
Err 8 Wrong procedure in „override“ or „memory saver“ function
Err 9 Damaged internal fuses

Page 14 09/2021
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
8. Protecting the environment
The appliance displays the recycling symbol. This means that when the product comes
to the end of its life it must be disposed of separately in suitable collection points and not
together with normal domestic refuse. This is an environmental advantage that benets
everyone.
■The batteries can be recharged many times. Dispose of them at the end of
their life in compliance with environmental standards.
The batteries must be disposed of properly.
Do not throw them in the household waste.
Take advantage of the certied and professional recycling service offered by
our AKKU SYS team.
For further information, please contact us on the Hotline [phone],
at [email protected] or use the QR code.
Do not short-circuit the battery terminals.
■If possible, operate the unit so that the battery is fully discharged before
disposal.
■The packaging is recyclable. Please keep it after unpacking for reuse or
dispose of it professionally.
Starters must be charged regularly (as described in these instructions) using
only the charger supplied. Improper maintenance of the batteries will void the
warranty. When the emergency starter is sent in for repair, always include this
manual with the recorded charging data.

09/2021 Page 15
Instruction Manual
Jump starter Booster 12/24V 10000/5000A
9. Specification
Model a-TroniX Jump starter Booster 12/24V 10000/5000A
Article number 9885377
Operating Voltage (V) 12/24
Continuous Current (A) 2000/1000
Start max. Amperage (A) 5000/2500
Peak Ampere (A) 10000/5000
Cable Length (cm) 160
Cable Size (mm2) 25
Max. Charge Voltage (V) 14,5
Clamp Output (A) 1000
Battery type 2 Pack Lithium LiFePo4
Reverse Polarity Protection x
Short Circuit Protection x
Overvoltage Protection x
Size (mm) 350 x 240 x 140
Net Weight (kg) 5

09/2021
AKKU SYS Akkumulator- und Batterietechnik Nord GmbH
Verbindungsweg 23 · 25469 Halstenbek / Hamburg · GERMANY
Tel. +49 4101 | 3 76 76-0 / Fax +49 4101 | 3 76 76-66 / [email protected] / www.akkusys.de
Other manufacturers and product ranges
you will find in our
AKKU SYS complete catalogue:
Go to our catalogue:
