Attero Tech Zip4 User manual

614-00053 Rev 02 Attero Tech LLC 2018
IP Audio 4-Button Paging Station

Page 2
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com
IMPORTANT SAFETY INSTRUCTIONS
The symbols below are internationally accepted symbols that warn of potential hazards with electrical products.
This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure -- voltage
that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature.
Please read the manual.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and third grounding prong. The wider blade or the third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they
exit from the apparatus.
11. Only use attachments/accessories specified by Attero Tech
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
13. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
16. This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
17. When permanently connected, on all-pole mains switch with a contact separation of at least 3mm in each pole shall be incorporated
in the electrical installation of the building.
18. If rack mounting, provide adequate ventilation. Equipment may be located above or below this apparatus but some equipment
(like large power amplifiers) may cause an unacceptable amount of hum of may generate too much heat and degrade the
performance of this apparatus,
19. This apparatus may be installed in an industry standard equipment rack. Use screws through all mounting holes to provide the
best support.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

Page 3
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com
LIMITED FIVE YEAR WARRANTY
The equipment is warranted for five years from date of purchase from Attero Tech, LLC against defects in materials or workmanship. This
warranty does not cover equipment which has been abused or damaged by careless handling or shipping. This warranty does not apply to
used or demonstrator equipment. Should any defect develop, Attero Tech, LLC will, at our option, repair or replace any defective parts
without charge for either parts or labor. If Attero Tech, LLC cannot correct the defect in the equipment, it will be replaced at no charge with
a similar new item. Attero Tech, LLC will pay for the cost of returning your equipment to you. This warranty applies only to items returned
to Attero Tech, LLC, shipping costs prepaid, within five years from the date of purchase. This Limited Warranty is governed by the laws of
the State of Indiana. It states the entire liability of Attero Tech, LLC and the entire remedy of the purchaser for any breach of warranty as
outlined above. NEITHER ATTERO TECH, LLC NOR ANYONE INVOLVED IN THE PRODUCTION OR DELIVERY OF THE EQUIPMENT SHALL BE LIABLE
FOR ANY INDIRECT, SPECIAL, PUNITIVE, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THIS
EQUIPMENT EVEN IF ATTERO TECH, LLC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL THE LIABILITY OF
ATTERO TECH, LLC EXCEED THE PURCHASE PRICE OF ANY DEFECTIVE EQUIPMENT.
This warranty gives you specific legal rights. You may have additional legal rights which vary from state to state.
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules and EN55022. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference,
in which case the user will be required to correct the interference at their own expense.
This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection
facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For
more information on disposal and recycling of this product, contact your local municipality, disposal service, or the business
where you bought this product.

Page 4
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com
Contents
1 –Overview.........................................................................................................................................................................................................................................................5
1.1 –What’s in the Box ................................................................................................................................................................................... 5
1.2 –Optional Accessories.............................................................................................................................................................................. 5
2 –Device Installation.......................................................................................................................................................................................................................................7
2.1 –Microphone ............................................................................................................................................................................................ 7
2.1.1 –RJ45 Mic Port.................................................................................................................................................................................. 7
2.1.2 –Zip4 Expansion Port....................................................................................................................................................................... 7
2.1.3 –XLR Port (Zip4-3G Only) ................................................................................................................................................................. 7
2.1.4 –Preamp Configuration.................................................................................................................................................................... 7
2.2 –Mounting ................................................................................................................................................................................................ 8
2.3 –Mic Hanger Options ............................................................................................................................................................................... 8
2.4 –Zip4 Dimensions (2-Gang Dimensions) ................................................................................................................................................. 9
2.5 –Zip4-3G Dimensions (3 –Gang) ........................................................................................................................................................... 10
3 –Device Operation ...................................................................................................................................................................................................................................... 11

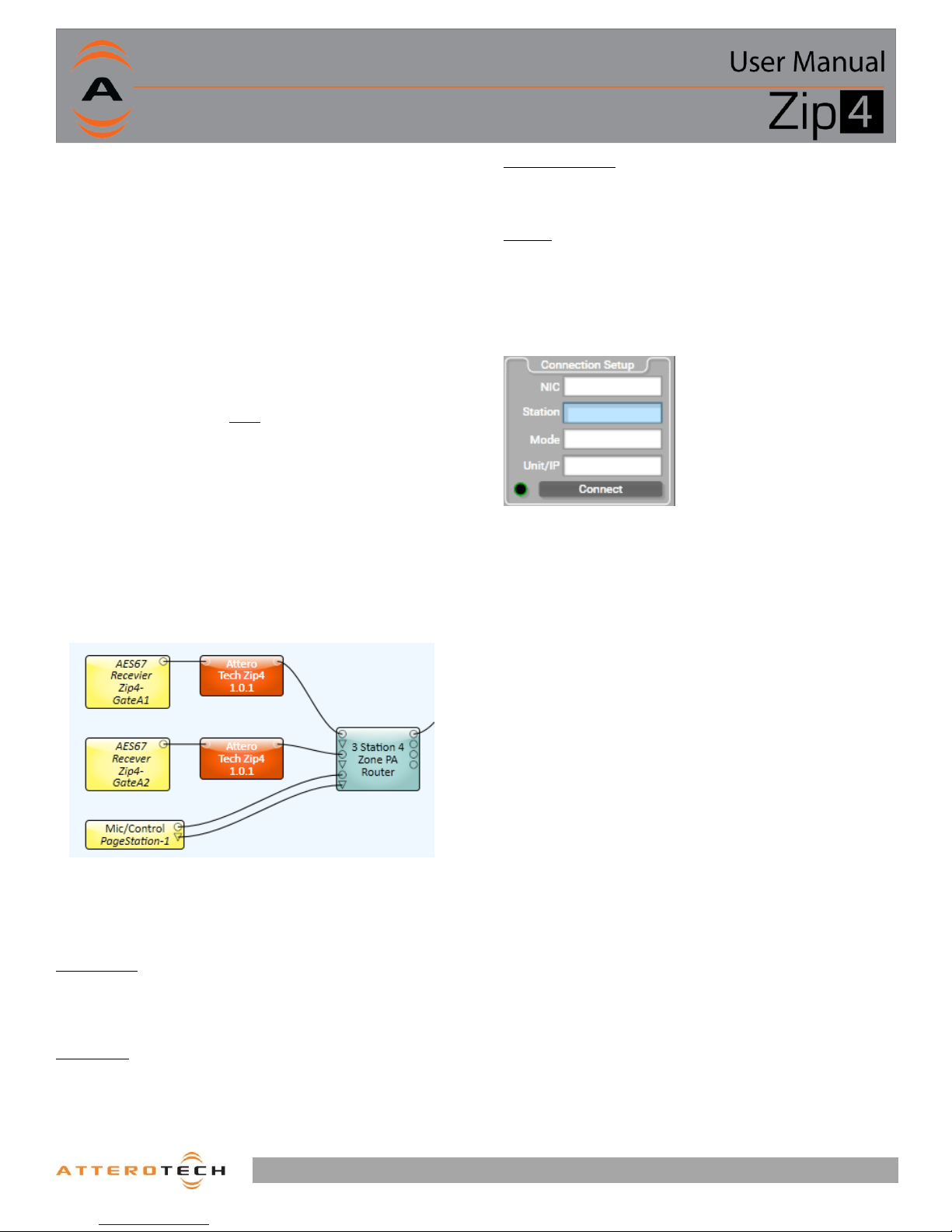

3.1 –Q-SYS Integration ................................................................................................................................................................................. 11
3.1.1 –Plug-in Properties......................................................................................................................................................................... 11
3.1.2 –Network Setup.............................................................................................................................................................................. 11
3.1.3 –Connecting a device..................................................................................................................................................................... 11
3.1.4 –Plug-in Setup ................................................................................................................................................................................ 12

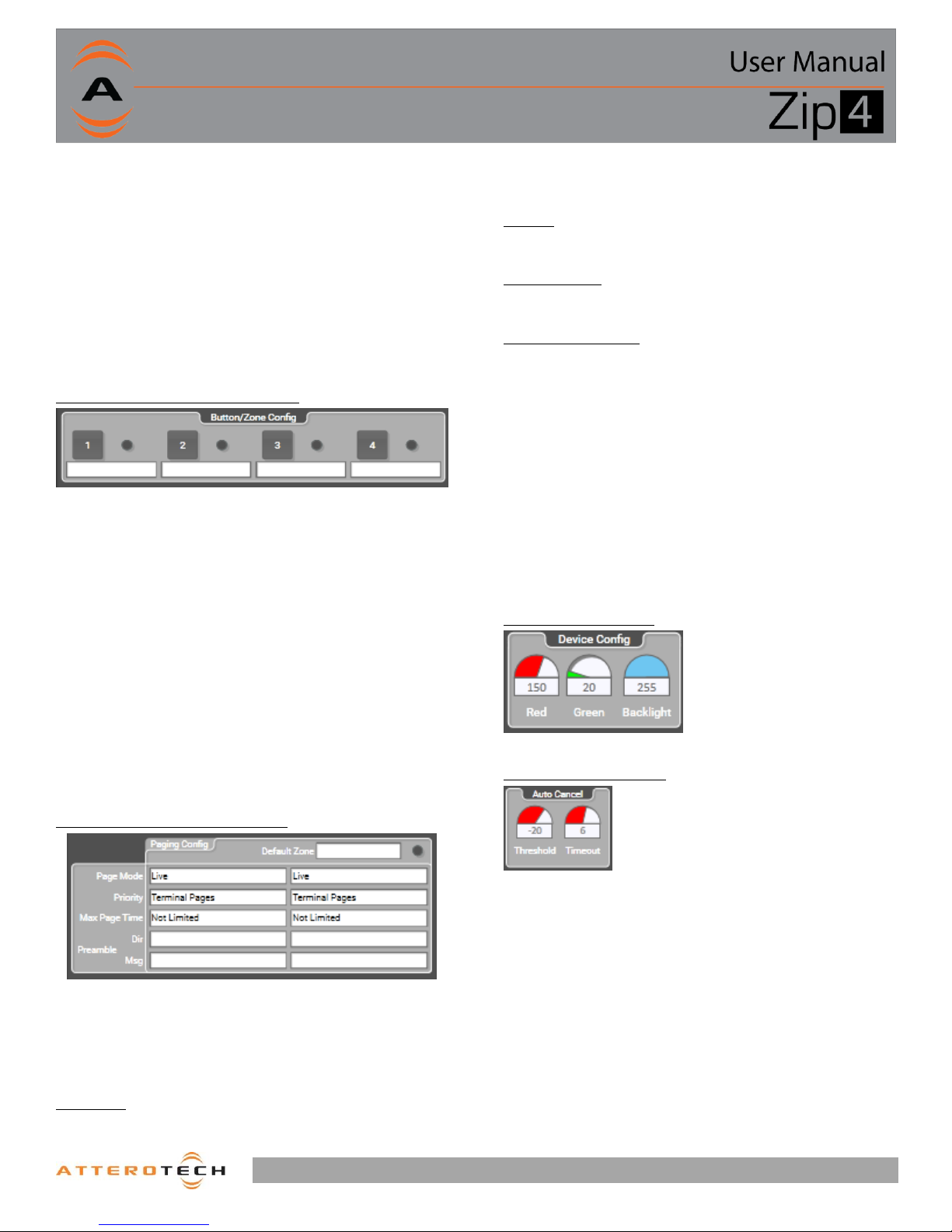

3.1.4.1 –Zone / Zone Tag setup ........................................................................................................................................................ 12
3.1.4.2 –Paging Config....................................................................................................................................................................... 12
3.1.4.3 –Brightness ............................................................................................................................................................................ 12
3.1.4.4 –Auto Cancel.......................................................................................................................................................................... 12
3.1.4.5 –Security ................................................................................................................................................................................ 13
3.1.4.6 –Status Controls .................................................................................................................................................................... 13
3.2 –3rd Party Usage .................................................................................................................................................................................... 14
3.3 –Factory Reset ........................................................................................................................................................................................ 14
3.4 –Firmware Updates ................................................................................................................................................................................ 14
ARCHITECTS & ENGINEERS SPECIFICATION –(Zip4) ....................................................................................................................................................................... 15
ARCHITECTS & ENGINEERS SPECIFICATION –(Zip4-3G) ................................................................................................................................................................ 15
Device Specifications...................................................................................................................................................................................................................................... 16

Page 5
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com

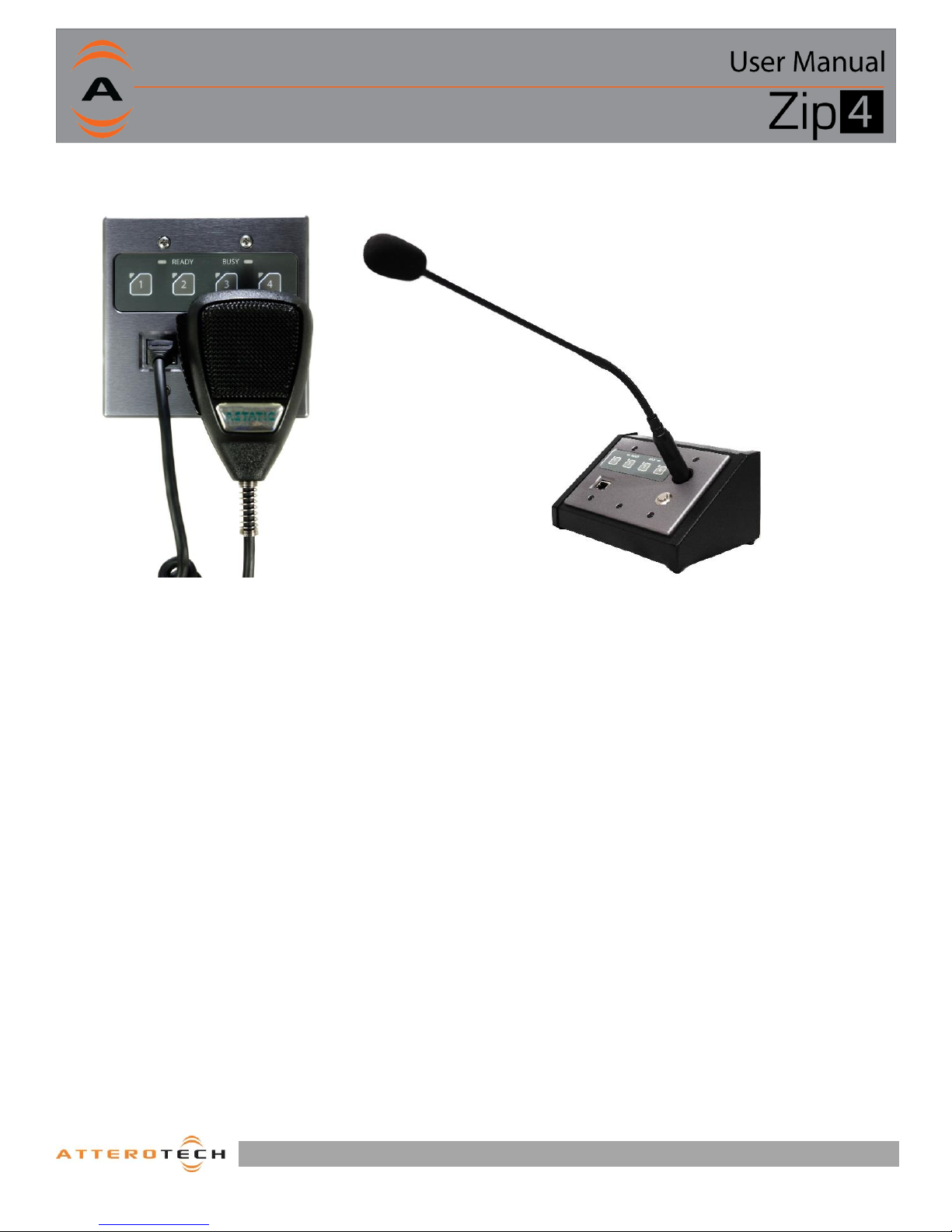

1 –Overview
The Zip4 4-zone in-wall Dante™/AES67 paging interface addresses
the unique paging audio needs of large sporting venues, transit
hubs like airport terminals and train stations, convention centers,
and corporate facilities.
Paging audio and status data can be routed over a Dante™ or
AES67 network to a DSP or other Paging Management System (PMS)
controller to distribute paging audio to up to four zones.
An RJ-45 jack serves as the PTT microphone interface, and the
included strain relief clamp can be installed into the mounting
screw below the RJ-45 to ensure a reliable and rugged connection.
A latching metal microphone clip is included for holding the PTT
microphone when not in use.
The Zip4 is available in a 2-Gang (Zip4) and 3-Gang (Zip4-3G) US
form factor. The Zip4-3G is optimized for desktop mounting and
includes a front panel XLR connection and PTT switch for use with
a gooseneck microphone.
Audinate’s Dante™ Controller or other 3rd party manufacturer's
Dante™ routing software can be used to control the Dante™ audio
routing configuration of the device.
1.1 –What’s in the Box
The Zip4 comes supplied with one of the following:
oZip4 Paging Station (P/N: 900-00221)
oZip4-3G Paging Station (P/N: 900-00221)
1.2 –Optional Accessories
The following are available as options for the Zip4 and may be
ordered separately:
oWired PTT paging microphone w/RJ45 termination,
standard hanger (P/N: 900-00227-01)
oWired PTT paging microphone w/RJ45 termination,
magnetic hanger (P/N: 900-00227-02)
o2-gang surface mount wall box, gray
(P/N: 308-00016-01)
o2-gang desktop mount enclosure kit
(P/N: 308-00014-01)
o3-gang desktop mount enclosure kit
(P/N: 308-00015-01)
oMagnetic mic hanger plate
(P/N: 900-00226-01)

Page 6
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com
1 2
3
4
56
1 2
4
5
3
7
8

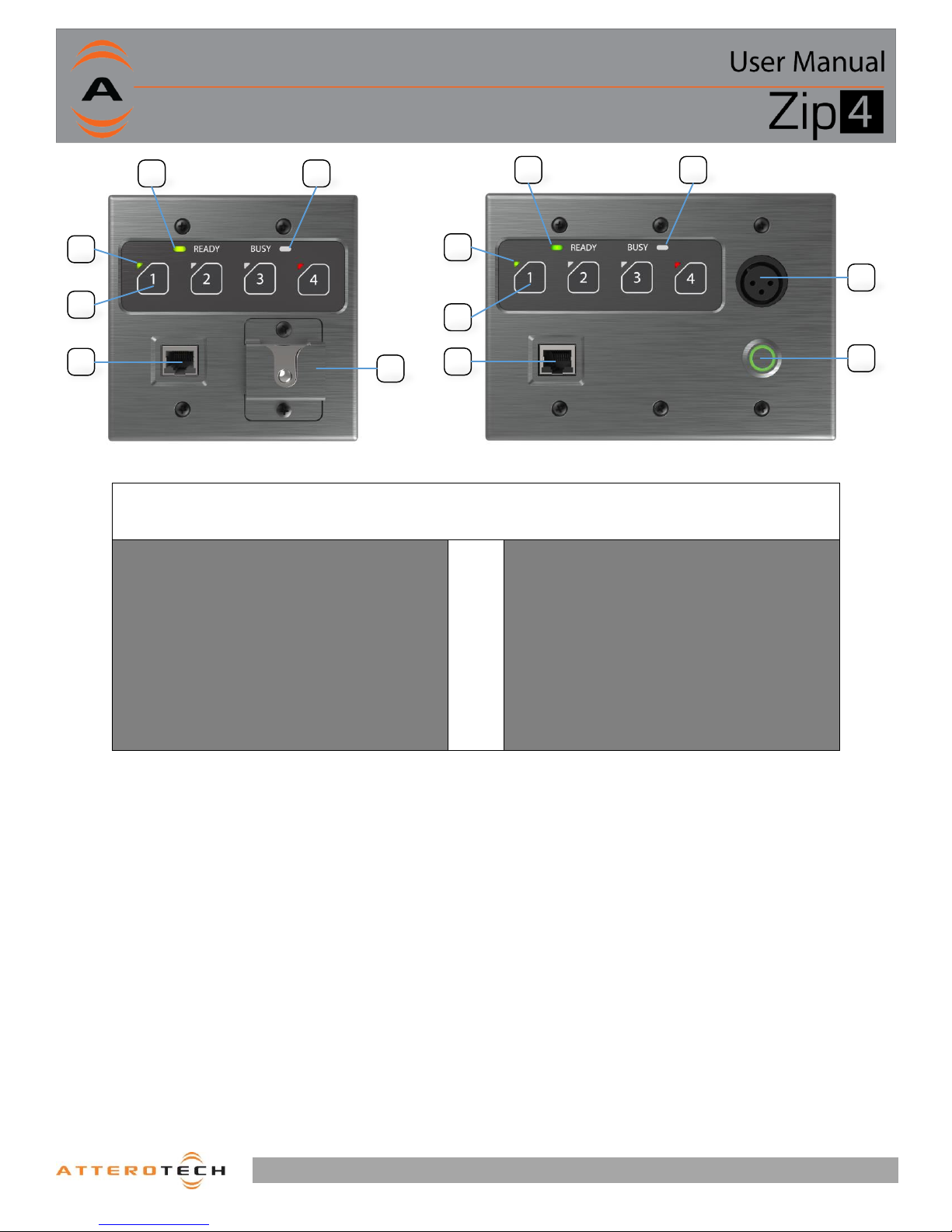

DEVICE FEATURES
ZIP4
ZIP4-3G
1 –Ready Indicator
1 –Ready Indicator
2 –Busy Indicator
2 –Busy Indicator
3 –Group Select buttons (x4)
3 –Group Select buttons (x4)
4 –Group Select Indicators (x4)
4 –Group Select Indicators (x4)
5 –Microphone connection
5 –Microphone connection
6 –Microphone holder bracket
7 –XLR gooseneck microphone connection
8 –PTT button
(Not shown) Side Phoenix microphone connection
*Note: The MAC address is located on a label on the rear of each Zip4 unit. This is important for initial device identification as the last six
digits make up part of the device’s default network name that is shown when the device is detected by Dante™ Controller or unIFY Control
Panel

Page 7
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com
2 –Device Installation
2.1 –Microphone
There are three microphone options depending on which model
of the Zip4 is used. The mic input includes a DIP switch
configurable microphone preamp.
Zip4 Microphone Options:
•Front Panel Mic Port (RJ-45)
•Side-mounted Expansion Port (Terminal Block)
Zip4-3G Microphone Options:
•Front Panel Mic Port (RJ-45)
•Front Panel XLR (3-Position XLR-F)
2.1.1 –RJ45 Mic Port
Pin
Number
Signal Description
1
GND
2
GND
3
Push to Talk Logic Input
4
Mic Input +
5
Mic Input -
6
GND
7
Unused
8
Unused
2.1.2 –Zip4 Expansion Port
Pin
Number
Signal Description
1
Mic Input +
2
Mic Input -
3
GND
4
Push to Talk Logic Input
5
+24V
6
LED (Cathode)
2.1.3 –XLR Port (Zip4-3G Only)
Pin
Number
Signal Description
1
GND
2
Mic Input -
3
Mic Input +

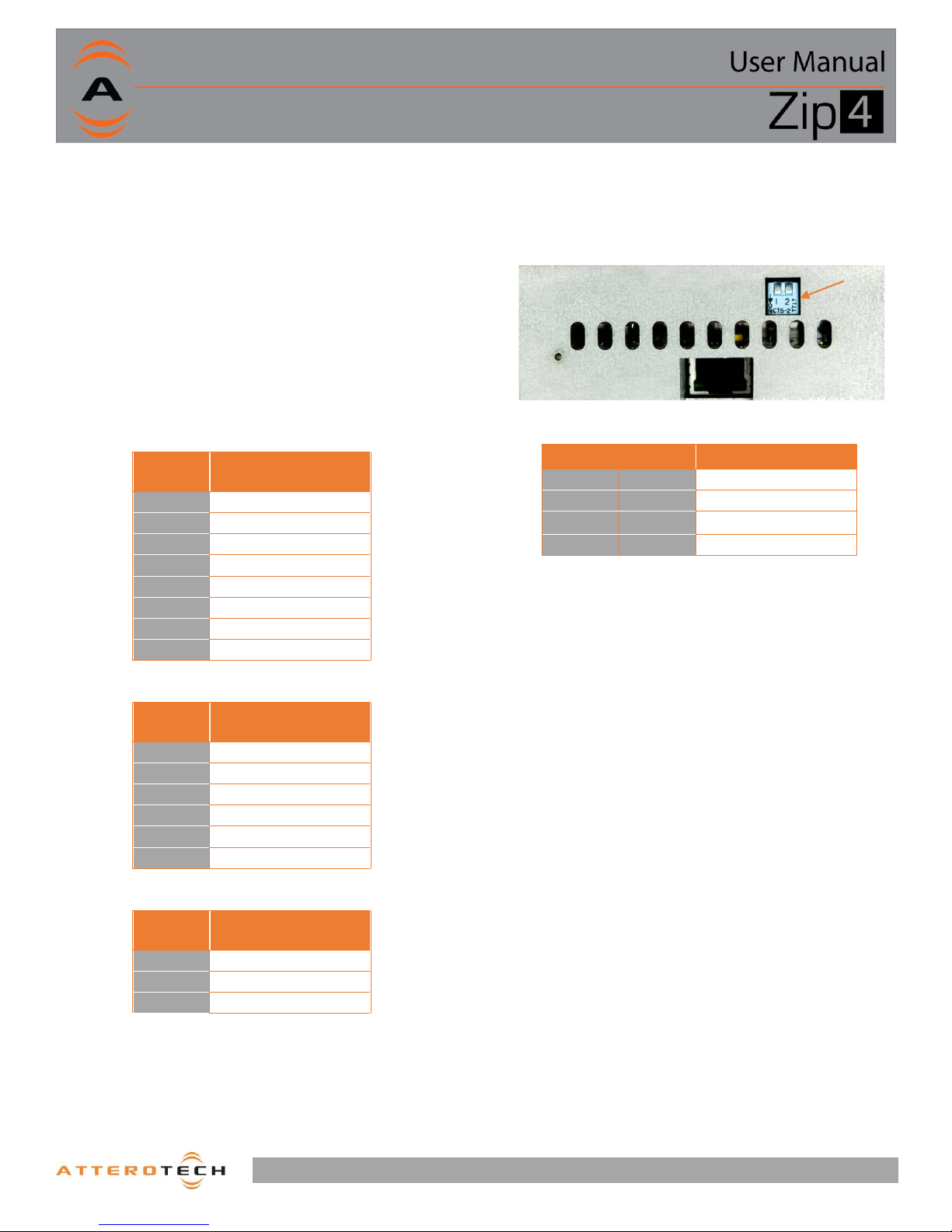

2.2 –Preamp Configuration
The microphone preamp is configured by setting 2 DIP switches
located on the rear of the Zip4. These should be set prior to
final installation in the target enclosure or wall box.
SW 1
SW 2
Preamp Mode
OFF
OFF
0 dB Gain (External Preamp)
ON
OFF
+25 dB Gain (Low Mic)
OFF
ON
+25 dB Gain (Low Mic w/48V
phantom)
ON
ON
+35 dB Gain (High Mic)
DIP SWITCHES
Figure 1 - Mic Preamp DIP Switch Location

Page 8
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com

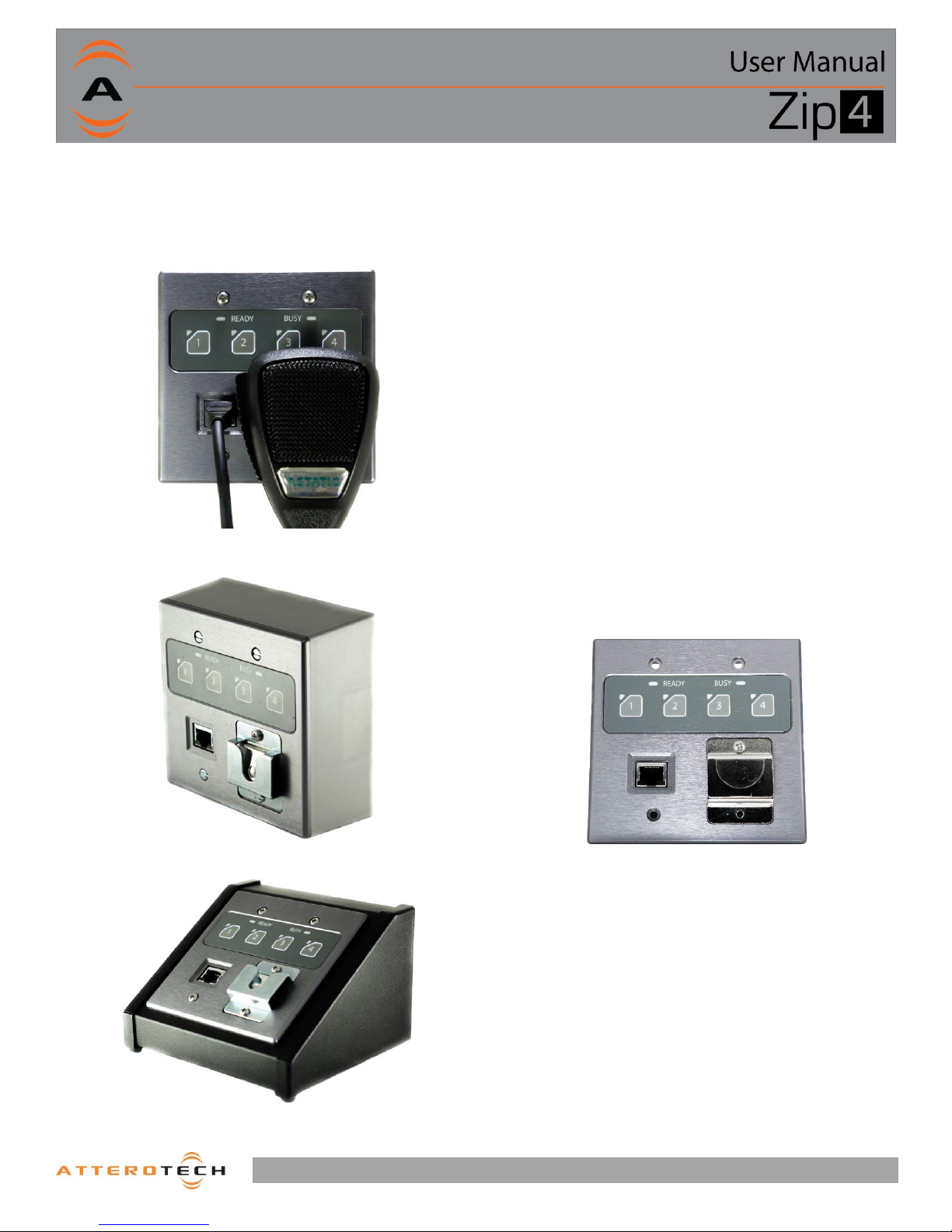

2.3 –Mounting
A typical installation will involve mounting the Zip4 wall plate into a pre-mounted wall box, wall mounting bracket, or desktop enclosure.
Before installation, make sure the wall box where the Zip4 is to be installed is pre-wired with a suitable cable back to a PoE-enabled network
switch or mid-span injector. If a mid-span injector is being used, the cable should be connected to the port that supplies both Ethernet and
power (refer to the mid-span injectors manual if unsure which port is which).
*Note: All Attero Tech products are tested using UTP cabling and
it is recommended that UTP cabling be used when installing them.
STP cabling can be used for installation though care must be taken
not to introduce grounding issues into the system by creating a
ground loop by doing so.
Attach the network cable from the switch/mid-span injector to the
Ethernet port of the Zip4. If the switch or mid-span injector is
already running and PoE is enabled, the unit should power up and
the backlight around the zone buttons should turn on.
With the cable attached, carefully place the Zip4 into the wall box
taking care to not trap the cabling. Once fully in place, secure the
front plate with the screws provided.
2.4 –Mic Hanger Options
The standard Zip4 product includes a latching metal microphone
clip. A magnetic mic solution is available as an accessory and
requires both the wired PTT with magnetic mic hanger and the
mounting plate. The mounting plate is installed by removing the
top mounting screw securing the mechanical hanger and
replacing it with the magnetic mic mounting plate.
Figure 5 –Zip4 w/ Magnetic Mic Hanger Plate
Figure 2 - In-Wall Mounting
Figure 3 - On-Wall Surface Mount (shown w/accessory box)
Figure 4 - Desktop Mount (shown w/accessory kit)

Page 9
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com
2.5 –Zip4 Dimensions (2-Gang Dimensions)
Complete CAD drawings are available for download via the Attero Tech website and customer portal.

Page 10
1315 Directors Row Suite 107 Fort Wayne, IN 46808 ⁞[phone] ⁞www.atterotech.com
2.6 –Zip4-3G Dimensions (3 –Gang)
