Aube Technologies TH305 User manual

TH305
Non-programmable Thermostat
Owner’s
Guide
69-2793EF-01.book Page -1 Thursday, January 31, 2013 1:55 PM

Overview
About your new thermostat ...................................................................1
Controls and display..............................................................................2
Installation
Installation guidelines ............................................................................ 3
Mounting the thermostat........................................................................4
Wiring ....................................................................................................5
Configuration switches ..........................................................................6
Setup menu ...........................................................................................7
Operation
Temperature display and setting............................................................ 8
Power outage ........................................................................................8
Appendices
In case of difficulty.................................................................................9
Specifications ...................................................................................... 10
3-year limited warranty ........................................................................ 11
Customer Assistance ..........................................................................12
Table of contents
69-2793EF-01.book Page 0 Thursday, January 31, 2013 1:55 PM

TH305
1
The TH305 thermostat is designed to control an electric heating system
such as a baseboard heater, a radiant ceiling, a convector or a fan-
forced convector.
This thermostat cannot be used with:
• a resistive load under 1.25 A
• a resistive load over 16.7 A
• a system driven by a contactor or a relay (inductive load)
• a central heating system
SUPPLIED PARTS
• One (1) thermostat
• Two (2) 6-32 mounting screws
• Two (2) solderless connectors
About your new thermostat
Do you need assistance?
We are here to help.
Call 1-800-831-2823.
69-2793EF-01.book Page 1 Thursday, January 31, 2013 1:55 PM

Owner’s Guide
2
Controls and display
Temperature
display
Temperature
adjustment
buttons
Keypad lock
Heating intensity
Appears when the thermostat
is configured for a fan-forced
heater.
69-2793EF-01.book Page 2 Thursday, January 31, 2013 1:55 PM

TH305
3
TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN POWER PANEL
TO AVOID ELECTRICAL SHOCK.
• The installation must be performed by a qualified electrician and must comply
with electrical codes of your region.
• Do NOT install the thermostat in an area where it can be exposed to water or
rain.
• Avoid locations where there are air drafts (such as the top of a staircase or an
air outlet), dead air spots (such as behind a door), or direct sunlight.
• Do not install the thermostat on a wall section that conceals air ducts, chimney
pipes or stove pipes.
• Install the thermostat about 1.5 m (5 feet) high, on an inside wall facing the
heater.
• Install the thermostat onto an electrical box.
• This thermostat has tinned copper wires for line and load connections. Special
CO/ALR solderless connectors must be used if the thermostat will be
connected to aluminium wires.
• The thermostat wires are not polarized; either wire can be connected to the
load or to the power supply.
• Keep the air vents at the top and bottom of the thermostat clean and free from
obstructions.
Installation guidelines
69-2793EF-01.book Page 3 Thursday, January 31, 2013 1:55 PM

Owner’s Guide
4
1) Loosen the screw and remove the faceplate of
the thermostat from its wallplate.
(The screw
remains captive on the wallplate.)
2) Make the connections using solderless
connectors for copper wires. The thermostat
wires are non-polarized; this means either wire
can be connected to either terminal.
3) Install the wallplate to the electrical box.
4) Set the configuration switches on the back of the
thermostat’s faceplate (see page 6).
5) Install the faceplate of the thermostat back on the
wallplate and tighten the screw.
6) If there is a protective film or sticker on the
thermostat’s screen, peel it off.
7) Apply power to the thermostat. Verify the
installation by checking that the heater can be
turned On and Off by raising and lowering the
setpoint using the and buttons.
Mounting the thermostat
69-2793EF-01.book Page 4 Thursday, January 31, 2013 1:55 PM

TH305
5
Wiring
Electrical
panel
Heater
Electrical
box
Thermostat
Electrical
panel
Heater
Electrical
box
Thermostat
69-2793EF-01.book Page 5 Thursday, January 31, 2013 1:55 PM

Owner’s Guide
6

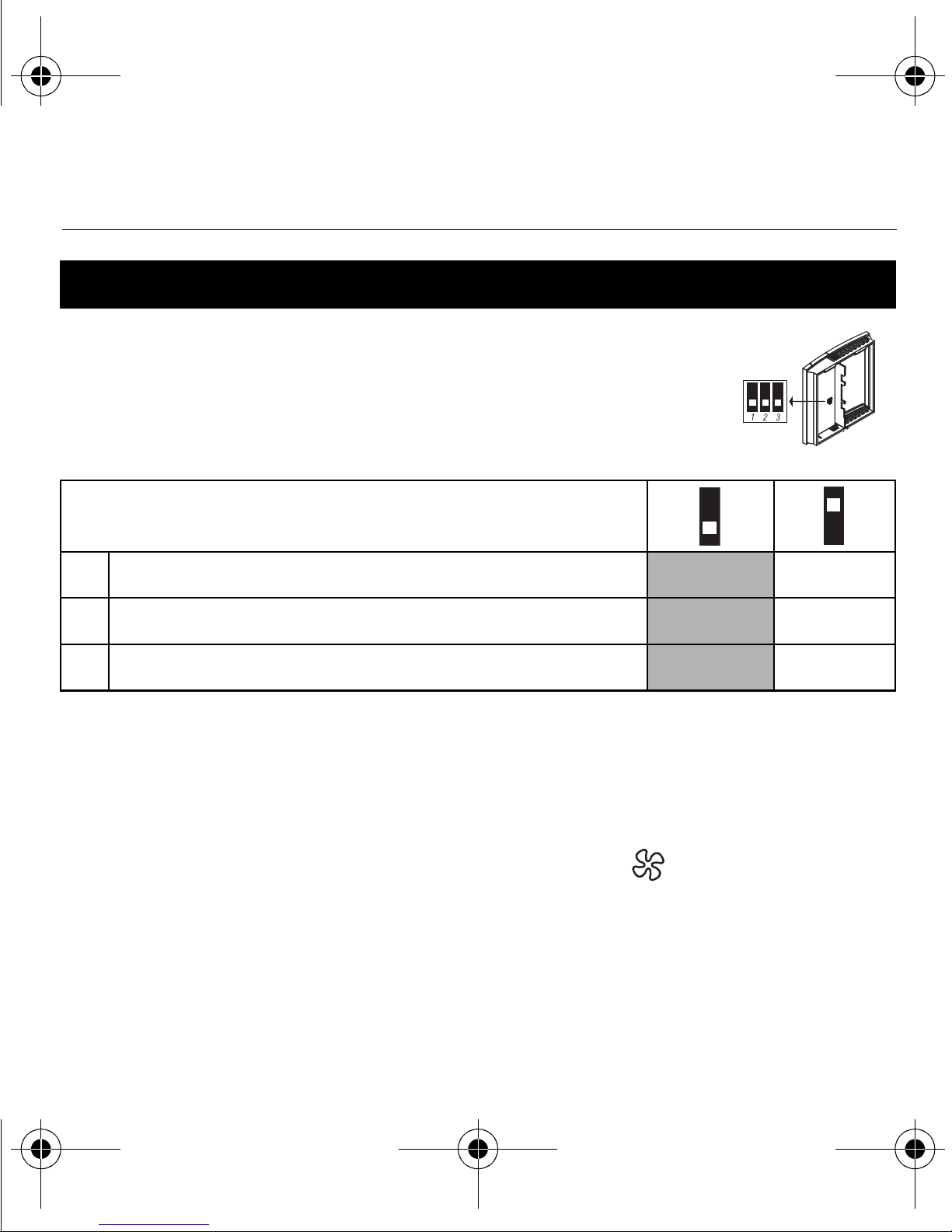

The configuration switches are on the back of the
thermostat. The factory settings are indicated by the
gray cells in the following table.
Configuration switches
Switches
1 Keypad lock a
a. The settings are locked. The temperature adjustment buttons only
allow you to view the temperature setpoint.
Off On
2 Cycle length b
b. Select short cycles (15 seconds) in most cases as it provides
better temperature control. However, you must select long cycles
(5 minutes) if you have a fan-forced heater. is displayed when
long cycles are selected.
Short Long
3 Temperature display format °C °F
69-2793EF-01.book Page 6 Thursday, January 31, 2013 1:55 PM

TH305
7
1) Press the and buttons simultaneously for three seconds to
enter the configuration menu.
2) Press the or button to set the displayed parameter.
3) Press the and buttons simultaneously for one second to
display the next parameter.
4) Press the and buttons simultaneously for three seconds to
exit the configuration menu.
NOTE: The thermostat will automatically save any changes made and
return to its normal display if you do not press any button for one
minute.
Setup menu
Parameter Settings Display and default setting
Minimum
setpoint
5 °C - 30 °C
(41 °F - 86 °F)
Maximum
setpoint
5 °C - 30 °C
(41 °F - 86 °F)
69-2793EF-01.book Page 7 Thursday, January 31, 2013 1:55 PM

Owner’s Guide
8
The thermostat normally displays the actual temperature.
• To view the setpoint temperature, press
once on either temperature adjustment
button. The setpoint temperature will
appear for 5 seconds. The icon
appears when the setpoint is displayed.
• To change the setpoint temperature,
press the appropriate button until the
desired value is displayed.
• The screen is backlit for 10 seconds when any button is pressed.
During a power outage, the setpoint is saved in memory. You do not
need to adjust the temperature when power returns.
Temperature Display and Setting
Power outage
69-2793EF-01.book Page 8 Thursday, January 31, 2013 1:55 PM

TH305
9
In case of difficulty
PROBLEM SOLUTIONS
Thermostat’s
housing is hot.
This is normal. When the thermostat is
running at full capacity, its housing can reach
40 °C (104 °F).
Wrong temperature
is displayed.
Rectify if any of the following conditions
applies:
• The thermostat is exposed to air draft.
• The sticker on the thermostat’s screen has
not been removed.
• The thermostat is located near or above a
heat source such as a light dimmer.
Display disappears
and reappears after
a few minutes.
The thermal protection device on the heater
has temporarily opened. This can happen if
the heater is obstructed by furniture or
curtain and has overheated, or if the heater’s
thermal protection device is too sensitive.
69-2793EF-01.book Page 9 Thursday, January 31, 2013 1:55 PM

Owner’s Guide
10
Power supply: 120/208/240 VAC, 60 Hz
Minimum load: 1.25 A / 150 W @ 120 VAC, 60 Hz
1.25 A / 260 W @ 208 VAC, 60 Hz
1.25 A / 300 W @ 240 VAC, 60 Hz
Maximum load: 16.7 A / 2000 W @ 120 VAC, 60 Hz
16.7 A / 3465 W @ 208 VAC, 60 Hz
16.7 A / 4000 W @ 240 VAC, 60 Hz
Setpoint range: 5 °C to 30 °C (41 °F to 86 °F)
Display range: 0 °C to 60 °C (32 °F to 140 °F)
Resolution: ± 0.5 °C (± 1 °F)
Storage: -20 °C to 50 °C (-4 °F to 120 °F)
Specifications
69-2793EF-01.book Page 10 Thursday, January 31, 2013 1:55 PM

TH305
11
Honeywell warrants this product, excluding battery, to be free from defects in the workmanship
or materials, under normal use and service, for a period of three (3) years from the date of
purchase by the consumer. If at any time during the warranty period the product is determined
to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell's option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you
purchased it, or
(ii) contact Honeywell. Honeywell will make the determination whether the product should
be returned, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is
shown by Honeywell that the defect or malfunction was caused by damage which occurred
while the product was in the possession of a consumer.
Honeywell's sole responsibility shall be to repair or replace the product within the terms stated
above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND,
INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY
OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR
ANY OTHER FAILURE OF THIS PRODUCT. Some provinces, states or regions do not allow
the exclusion or limitation of incidental or consequential damages, so this limitation may not
apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS
PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS
HEREBY LIMITED TO THE THREE-YEAR DURATION OF THIS WARRANTY. Some
provinces, states or regions do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from one
province, state or region to another.
3-year limited warranty
69-2793EF-01.book Page 11 Thursday, January 31, 2013 1:55 PM

Owner’s Guide
12
705 Montrichard Avenue,
Saint-Jean-sur-Richelieu, Quebec
J2X 5K8
Canada
1-800-831-2823
[e-mail]
www.aubetech.com
Printed in USA
69-2793EF-01 01-2013
Customer Assistance
69-2793EF-01.book Page 12 Thursday, January 31, 2013 1:55 PM

TH305
Thermostat non-programmable
Guide du
propriétaire
69-2793EF-01.book Page -1 Thursday, January 31, 2013 1:55 PM

Aperçu
À propos de votre nouveau thermostat .................................................1
Commandes et affichage.......................................................................2
Installation
Consignes d'installation......................................................................... 3
Installation du thermostat ......................................................................4
Branchement .........................................................................................5
Sélecteurs de configuration...................................................................6
Menu de configuration...........................................................................7
Fonctionnement
Affichage et réglage de la température .................................................8
Panne de courant ..................................................................................8
Annexes
Problèmes et solutions .......................................................................... 9
Fiche technique ...................................................................................10
Garantie limitée de 3 ans ....................................................................11
Service à la clientèle ...........................................................................12
Table des matières
69-2793EF-01.book Page 0 Thursday, January 31, 2013 1:55 PM

TH305
1
Le thermostat TH305 est conçu pour commander un appareil de
chauffage électrique tel qu’une plinthe électrique, un plafond radiant, un
convecteur ou un ventiloconvecteur.
Ce thermostat ne peut être utilisé avec :
• une charge résistive inférieure à 1,25 A
• une charge résistive supérieure à 16,7 A
• un appareil muni d’un contacteur ou d’un relais (charge inductive)
• un système de chauffage central
PIÈCES FOURNIES
• Un (1) thermostat
• Deux (2) vis de montage 6-32
• Deux (2) connecteurs sans soudure
À propos de votre nouveau thermostat
Besoin d'aide?
Nous sommes là pour vous aider.
Appelez au 1 800 831-2823.
69-2793EF-01.book Page 1 Thursday, January 31, 2013 1:55 PM

Guide du propriétaire
2
Commandes et affichage
Température
Clavier
verrouillé
Apparaît lorsque le
thermostat est configuré
pour un ventiloconvecteur Boutons de
réglage de la
température
Intensité du chauffage
69-2793EF-01.book Page 2 Thursday, January 31, 2013 1:55 PM

TH305
3
METTRE LE SYSTÈME DE CHAUFFAGE HORS TENSION AU PANNEAU
ÉLECTRIQUE AFIN D'ÉVITER TOUT RISQUE DE CHOC ÉLECTRIQUE.
• L’installation doit être effectuée par un électricien qualifié et doit être conforme
aux codes de l'électricité en vigueur dans votre région.
• Ne PAS installer le thermostat à un endroit où il risque d’être exposé à l’eau ou
à la pluie.
• Éviter les endroits où il y a des courants d'air (comme dans le haut d'un
escalier ou une sortie d'air), où il manque de circulation d’air (comme derrière
une porte) ou qui sont directement exposés au soleil.
• Ne pas installer le thermostat sur un mur qui dissimule des conduits d’air ou
d’une cheminée.
• Installer le thermostat à environ 1,5 mètre (5 pieds) du sol, sur une cloison
intérieure faisant face à l’appareil de chauffage.
• Installer le thermostat sur une boîte électrique.
• Le fils du thermostat servant à la connexion de l’alimentation et de la charge
sont en cuivre étamé. Si vous les reliez à des fils d’aluminium, utiliser des
connecteurs spéciaux sans soudure CO/ALR conçus à cette fin.
• Les fils du thermostat ne sont pas polarisés; le sens du branchement n’a donc
aucune importance.
• Garder les ouvertures d’aération du thermostat propres et dégagées en tout
temps.
Consignes d'installation
69-2793EF-01.book Page 3 Thursday, January 31, 2013 1:55 PM

Guide du propriétaire
4
1) Dévisser la vis et séparer la façade du thermostat
de sa plaque murale. (
La vis reste captive sur la
plaque murale
.)
2) Faire le branchement en utilisant des
connecteurs sans soudure pour fils de cuivre. Les
fils du thermostat sont non-polarisés; le sens du
branchement n’a donc aucune importance.
3) Installer la plaque murale sur la boîte électrique.
4) Configurer le thermostat à l’aide des sélecteurs à
l’arrière de la façade (voir la page 6).
5) Retourner la façade du thermostat sur la plaque
murale et serrer la vis.
6) Enlever la pellicule autocollante de l’écran s’il y
en a une.
7) Mettre le système de chauffage sous tension.
Vérifier l’installation en s’assurant que le système
de chauffage puisse être activé et désactivé en
augmentant et en diminuant la température de
consigne à l’aide des boutons et .
Installation du thermostat
69-2793EF-01.book Page 4 Thursday, January 31, 2013 1:55 PM
