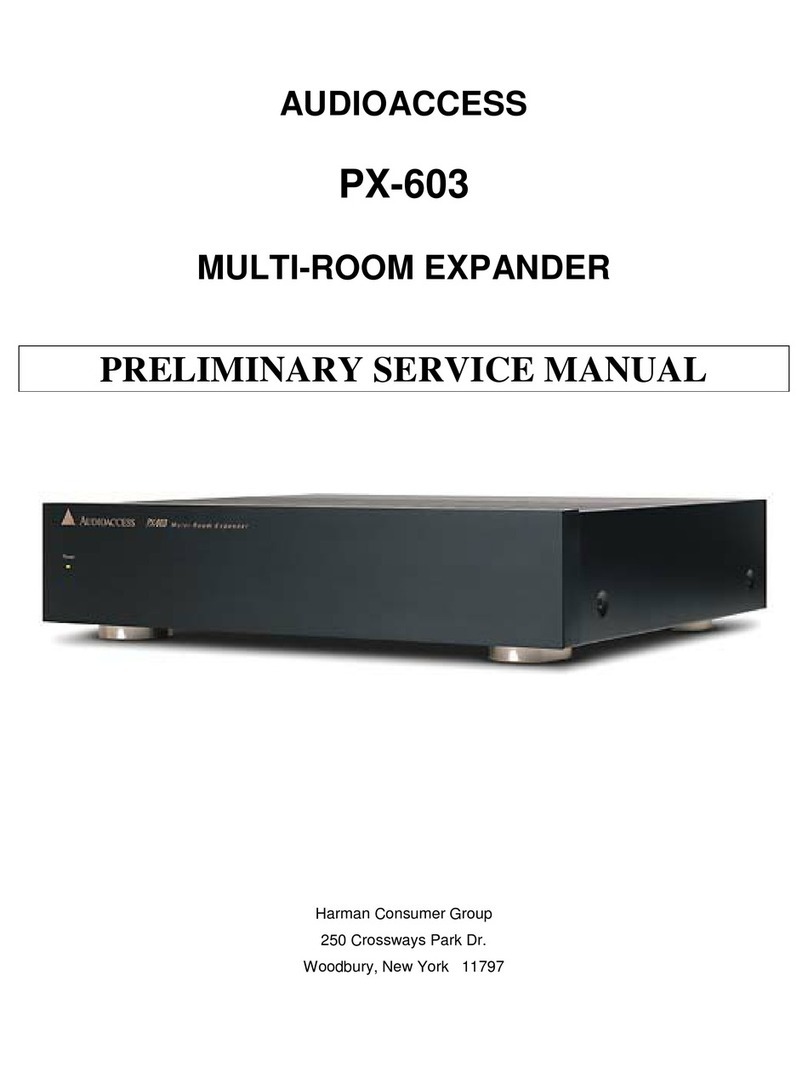

Audioaccess PX-603 User manual

AUDIOACCESS
ii

iii
Audioaccess
2081 South Main Street
Middletown, CT 06457
Manufactured in USA
©1995 Audioaccess
Table of Contents
Important Safety Information................................................................................................. iv
Unpacking and Inspection...................................................................................................... vi
AboutThis Manual .................................................................................................................1
PX-600 Software .....................................................................................................................1
KPS Software...........................................................................................................................1
PX-603 Product Description ...................................................................................................2
Technical Specifications...........................................................................................................3
Front Panel..............................................................................................................................4
Rear Panel ...............................................................................................................................5
System Operation....................................................................................................................6
Keypad Control .................................................................................................................6
System Installation ..................................................................................................................8
Pre-wire .............................................................................................................................8
Keypad Installation............................................................................................................8
Final Hookup ..................................................................................................................10
PX-603 Programming......................................................................................................13
Zone Setup ......................................................................................................................14
Group Setup ....................................................................................................................14
Paging Setup....................................................................................................................15
Multi PX-600 Systems.....................................................................................................15
SettingTurn on Volume...................................................................................................15
Appendix I: System Design.......................................................................................................16
System 1 Block Diagram..................................................................................................17
System 1 Line Diagram....................................................................................................19
System 2 Block Diagram..................................................................................................19
System 2 Line Diagram....................................................................................................21
Appendix II: Dealer/Manufacturer Questions and Answers.......................................................22
Appendix III: Troubleshooting Guide........................................................................................24
A Harman International Compan
y

AUDIOACCESS
iv
Important Safety Information
The safety information in this summary is for installation and operating personnel. Warnings
and cautions can also be found throughout the manual where they apply.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS IN-
SIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The lightning flash with the arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of un-insulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.
Retain Instructions - The safety and operating instruc-
tions should be retained for future reference.
Heed Warnings - All warnings on the appliance and in
the operating instructions should be adhered to.
Follow Instructions - All operating and use instructions
should be followed.
Water and Moisture - The appliance should not be
used near water - for example, near a bathtub, wash-
bowl, kitchen sink, laundry tub, in a wet basement,
near a swimming pool, and the like.
Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by
the manufacturer.
Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
Grounding - Precautions should be taken so that the
grounding means of the appliance is not defeated.
Power Cord Protection - Power supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the
appliance.
Servicing - The user should not attempt to service the
appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
TO PREVENT ELECTRICAL SHOCK DO NOT USE
THIS PLUG WITH AN EXTENSION CORD, RECEP-
TACLE OR OTHER OUTLET WITHOUT PROPER
GROUNDING CONNECTION.
SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

v
Power Source
This product is intended to operate from a power source that does not apply more than the
specified volts RMS indicated on the rear panel of the unit, as referenced between the supply
conductors or between either supply conductor and ground.
Grounding the PX-603 Multi-Room Expander
This product is grounded through the ground conductor of the power cord. To avoid the
potential of electrical shock, plug the power cord into a properly wired and grounded recep-
tacle before operating the PX-603. A protective ground connection, by way of the ground
conductor in the power cord, is essential for safe operation. A standard 3-pin IEC type in good
operational condition is the only acceptable cord that may be used to connect the PX-603 to a
power source.
Fuses
To avoid potential fire, electrical hazard and damage to internal components, replace fuses only
with fuses of the correct type, voltage and current rating as specified in this manual.
Removal of PX-603 Cover and Front Panel
To avoid personal injury and to ensure proper operation, do not remove the PX-603 cover or
front panel except as directed within this manual. Do not operate the unit without the covers
and panels properly installed.
Operating Environment
For the best operating results, install the PX-603 in an area where it will not be exposed to
direct sunlight or any heat source. The unit should be operated in a temperature range from
40˚ to 95˚F (5˚ to 35˚C). Place the unit where there is sufficient air circulation. It generates
heat and must be ventilated.
PX-600 Software
The PX-603 will only operate in PX-600 systems with software version 2.0 or above. See
page 1 of this manual for additional information.
KPS Software
KPS keypads must have software version 1.6 or above to operate correctly with the PX-600/
PX-603 system. See page 1 of this manual for additional information.

AUDIOACCESS
vi
Unpacking and Inspection
Use caution when unpacking this product and follow these procedures:
• Inspect the shipping carton(s) for exterior damage before opening them.
If any damage is discovered, notify your freight agent and Audioaccess immediately.
• To open the shipping box, carefully cut through the packaging tape along the top edges and
middle of the box, taking care not to cut through surrounding cardboard. Carefully remove
the staples securing the top flaps.
• Inspect the PX-603 Multi-Room Expander for signs of damage.
• Verify that the following items are contained in the package:
❏PX-603 Multi-Room Expander
❏IEC AC power cord (120 volt version only)
❏Important Safeguards sheet
❏Limited Warranty sheet (USA and Canada only)
❏Limited Warranty Registration card (USA and Canada only)
❏PX-603 Installation Manual
❏PX-603 Owner’s Manual
Important Note
Save all packing material. It is essential should the unit ever need to be returned for repair.

1
About This Manual
This manual contains information regarding the functions and installation of the Audioaccess
PX-603 Multi-Room Expander in new and existing PX-600 systems. Within it are revised
PX-600 programming instructions and updated KPS switch-setting data that augment the
material in the PX-600 Installation Manual. However, this manual does not contain the
essential instructions covered in the PX-600 Installation Manual.
Before you finalize your system design and begin installation, we suggest you review two
appendices of this manual. The Question and Answer appendix (Appendix II) contains actual
questions frequently asked by Audioaccess system designers and installers in conversations with
our Technical Support Department and during dealer training sessions. The straight-forward,
forum style explanations will help you better understand the interaction of the PX-600 and
PX-603 and help you make design choices early-on in system planning that will allow you to
configure a system that exactly matches your client’s needs. Furthermore, the System Design
Appendix (Appendix I) contains real-life descriptions of PX-603 applications, as well as repre-
sentative block and wiring diagrams.
We recommend that even experienced Audioaccess installers and system designers consider the
PX-600 and PX-603 Installation Manuals an essential part of their tool kit. For a complete
Audioaccess Technical Resource Manual which includes installation manuals, tech notes and
tech bulletins, please call our Customer and Technical Support Department at 860-346-0896.
PX-600 Software
To make existing PX-600 systems PX-603 compatible, you will need to upgrade the PX-600
software version to v. 2.0 or later. Earlier PX-600 software versions do not include the pro-
gramming screens for PX-603 setup. To determine the PX-600 software version, plug in the
PX-600 Programmer, press the PGM button, highlight ABOUT PX-600, and press ENTER.
The software version and date will appear on the programmer screen. All PX-600s shipped
after the release of the PX-603 will have v. 2.0 or later software installed.
KPS Software
To make existing KPS keypads PX-603 compatible, you will need to make sure they are
software version 1.6 or above. Earlier KPS software versions will not operate properly in
PX-600/603 systems. To determine the KPS software version, remove the wallplate surround-
ing each keypad and look for a pink dot on the mounting bracket. If a pink dot is not present,
or if the dot is another color, remove the keypad from the wall and remove the rear plate. The
software version should be on the processor I.C. itself. All KPS's shipped since July, 1994 have
software version 1.6 or above.

2
A
UDIOACCESS
PX-603 Product Description
The PX-603 Multi-Room Expander allows the addition of three areas of independent volume
control to any existing zone or zones of a PX-600 Multi-Room Preamp/Controller system
without the use of autoformers. The chassis contains three line-level audio inputs, three stereo
amplifiers with digitally controlled volume and fixed equalization, and a four conductor
communication bus. Up to six PX-603s may be connected to any PX-600 in a system for a
total of 18 additional areas of independent volume control per PX-600. Each area may be
controlled from the traditional KPS eight-button, wall-mounted keypad or a KP3 three-button
keypad. An Audioaccess handheld IR remote control may be used with either keypad for
on/off, volume and source control for the entire zone through the IR receiver built into both
keypads.
Each PX-603 Audio Input receives a line-level signal from a PX-600 Zone Output. Room
configurations and independent bass equalization (3dB boost) are set via DIP switches on the
PX-603 rear panel. ALL-ON grouping and time-out features are programmed at the PX-600
control unit with a detachable PX-600 Programmer. Turn-on volume for PX-603 rooms is set
at the KPS or KP3 keypad in each room.
General Features
• Simple, intuitive operation, installation and programming
• Zone source selection is available from KPS keypad and IR remote Controls
• KPS keypads and IR remotes control basic functions of the audio sources for the zone
• KP3 keypads control room on/off, volume level and mute
• PX-603 rooms may be activated with zone ALL-ON group
• Paging and doorbell features available with optional Page/Doorbell Module
• Independent access to each of three audio inputs and three stereo amplifiers
• Independent volume control and bass EQ in each room
• Infrared receiver built into KP3 and KPS keypads
• Four-conductor wiring directly from PX-603 and KPSs to KPT (two twisted pairs: telephone
or data cable)
• Six-conductor wiring directly from PX-603 to KP3 keypads
• Attaches to keypad termination board (KPT) for easy pre-wiring/troubleshooting
• Two-way communication with PX-600 Controller via four conductor bus
Inputs
• Three line-level audio inputs
• Three six-conductor modular KP3 keypad inputs
• AC power input
• DIP switch settable room addresses and Bass Boost

3
Outputs
• Loop-thru audio output for each audio input
• Push-terminal speaker connectors for three stereo pairs
• 22 Watts per channel into eight ohm speakers with all channels driven
Technical Specifications
Specification
Frequency Response
S/N (ref: 1k Hz at rated output, filter at 30k Hz)
THD + Noise @ 1k Hz, Filter at 30k Hz
Maximum Output
Left/Right Crosstalk (@ 1k Hz, each input)
Room to Room Crosstalk (@ 1k Hz, any two rooms)
Volume Attenuation
Mute Attenuation
Bass (Baxandall type, 100 Hz)
Input Sensitivity
Connector Type
RCA with short hot pin (makes shield connection first)
Power requirements *
120 volts AC, 60Hz, 480 watts max (230 volts AC, 50Hz, 480 watts max)
Dimensions
17 3/8" W x 4" H x 15 1/2" D (442 mm x 102 mm x 394 mm)
Includes connectors and feet
Weight
19 lbs/ 9 kg
Room Outputs
20-20k Hz, +0, -2.4 dB
>100 dB
<0.01% (@ rated power)
22W into 8Ω(6 channels driven)
24W into 8Ω(4 channels driven)
28W into 8Ω(2 channels driven)
<-81 dB
<-83 dB
0-76dB, 2dB steps
>110 dB
0dB, + 3dB (selectable)
1.5Vrms for rated output
* Refer to rear panel of unit.

4
A
UDIOACCESS
Companion Products and Accessories
The PX-603 is a Multi-Room Expander designed specifically to add up to three areas of inde-
pendent volume control to any zone of an Audioaccess system. The PX-603 complements the
PX-600 Multi-Room Preamp/Controller both functionally and aesthetically, and is visually
identical to the PX-612 Multi-Room Amplifier. The combination PX-600, PX-612 and
PX-603 system is a compact, easy to install, simple to operate, cost-effective solution for all your
multi-room needs. We have included system design and installation information pertaining to
PX-600, PX-612 and PX-603 configurations in this manual. Detailed descriptions and specifi-
cations for the PX-600 and PX-612 are contained in their respective installation manuals.
The following accessories are part of the PX-600/603 family of products. These products will
be referred to throughout the manual as they relate to a PX-600/603 installation. For a
complete description of PX-600 accessories, please refer to the PX-600 Installation Manual.
• KPS Full-function keypad (available in white, ivory or black)
• KP3 Three-button keypad (available in white only)
• RT-A Dedicated handheld IR remote control
• URC-8090 Programmable handheld IR remote control
• KPT Keypad Termination Board
• PDM Page/Doorbell Module
• MCI Multi-room Computer Interface
Front Panel
1Power Indicator
(LED)
The POWER INDICATOR reflects the current status of the PX-603. It will glow green when
at least one PX-603 room is in use or yellow when in standby.
PX-603 Multi-Room Expander
Power
CAUTION
1

5
Rear Panel
1Bass EQ
(DIP Settings)
The Bass EQ settings provide 3dB of bass boost independently selectable for each room.
2Audio Inputs / Loop-Thru
(RCA connectors)
The AUDIO INPUTS have corresponding loop-thru outputs for connecting up to three
PX-603 rooms to the Zone Output of any PX-600 zone without the use of Y-connectors.
3Speaker Outputs
(Push Terminals)
There is one stereo pair of SPEAKER OUTPUTS for each PX-603 amp. The outputs will
accept up to 12 AWG speaker wire.
4KP3 Connections
(Six-conductor telephone modular connectors)
KP3 keypads are switches with an IR receiver. The six-conductor wire allows hardwiring and
system IR communication.
5KPS Connection
(Four conductor pluggable screw terminal)
The KPS connection allows the PX-603 to communicate with PX-600's and KPS Keypads via
a KPT.
6Room Configurations
(DIP settings)
Each PX-603 room is associated with a zone, room and system via an 8 position DIP switch.
7Power Switch
The POWER SWITCH turns the main power to the PX-603 on and off.
8Power Inlet
The POWER INLET allows connection of the PX-603 to AC power via a standard IEC
grounded power cord (included with 120 volt version).
21 3 4 5 6 7 8
AUDIO INPUTS SPEAKER OUTPUTSEQ POWERKEYPADS ROOM CONFIGURATIONS
R
L
R
L
120V ~ 60Hz 480 WATTS
SERIAL NUMBER
MODEL: PX-603
MANUFACTURED IN THE USA
AUDIOACCESS, HAYWARD, CA
123
123
AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE. DO NOT REMOVE COVER. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
ZONE ROOM SYSTEM ROOM ZONE ROOM SYSTEM ROOM ZONE ROOM SYSTEM ROOM
KP-3 KPS
3
RED GRN YEL BLK
+
–
+
–
21
123
1
RL
2
RL
3
RL
12312345678 12345678 12345678
ON
ON
ON

6
A
UDIOACCESS
System Operation
The Audioaccess remote KPS and KP3 keypads and handheld IR remotes are an integral part
of a PX-600/PX-603 system. They are, to a large extent, the whole system from your clients’
point of view. For a description of the operation of a PX-600/PX-603 system from a KPS
keypad or IR remote controller, see the PX-600 Installation Manual.
PX-603 rooms share the source active in the PX-600 main room for the zone. When all rooms
in a PX-600 zone are turned off, source selection for the zone defaults to TUNER (unless a
room is still active and using a different source). The PX-600 Zone Output connected to the
PX-603 Audio Input carries a constant, fixed line-level signal that is present as long as the
PX-600 main power is on, whether or not the PX-600 main room is on. When a PX-603
room is turned on and the PX-600 main room is not active, the default source is TUNER.
Keypad Control
ON
• To turn on a single PX-600 or PX-603 room, momentarily press the ON button. The red
ON LED will illuminate on the KPS and KP3 keypads for that room. If the zone is turned
on from other than the main room, the green FM LED will light on KPS keypads in the
zone, but the red LED and main room audio will not come on. The TUNER input is
selected when any zone is first turned on from the PX-600 main room or PX-603 rooms.
• To turn off a single PX-600 or PX-603 room, momentarily press the ON button again.
• To turn on a group of PX-600 zones and selected PX-603 rooms (an ALL-ON group), start
with the room off, then press-and-hold the ON button on any keypad in the ALL-ON
group until the red ON LED flashes on the keypad (about 2 seconds). Note: pressing the
button until the associated LED flashes is called "press-and-hold".
URC-8090
Handheld IR
Remote Control
KP3 KeypadKPS Keypad
RT-A
Handheld IR
Remote Control

7
• To turn off an ALL-ON group, momentarily press the ON button from any room within
the group.
• To turn off all rooms in the system regardless of ALL-ON grouping, go to any keypad,
make sure it is ON, then press-and-hold the ON button until the red ON LED flashes on
the keypad (about 2 seconds).
VOLUME ▲ ▼
• To increase the volume, press ▲. To decrease the volume, press ▼.
• To mute the audio, press ▲and ▼together. (Press the MUTE button on the IR remote
control to get the same response.)
• To un-mute the audio, press either the ▲or ▼buttons. (Press MUTE again on the IR
remote.)
• To set PX-603 room turn-on volume: turn the room ON, adjust the volume to desired
level, turn the room off, and within 5 seconds press ▲and ▼simultaneously. The LED
will flash to indicate acceptance of the new setting.
Note
For a complete description of KPS and IR remote button functions, refer to the PX-600
Installation Manual.

8
A
UDIOACCESS
System Installation
Pre-wire
As in the PX-600 Installation Manual, we strongly suggest home-run wiring for all KPSs
and PX-603s in every system. Although a list of reasons for doing so appears in the PX-600
Installation Manual, several points are worth repeating here:
• Systems will be more easily serviced.
• Trouble-shooting time will be reduced.
• It is much easier to locate a faulty component.
• You and your clients will be happier if you can isolate and correct problems quickly.
During pre-wire, all speaker, KPS/KP3 keypad and other wiring is routed, and gang boxes or
rings are installed for the keypads. General pre-wire and trim-out instructions are covered in
the PX-600 Installation Manual, but there are some specific considerations for installations
that include the PX-603.
The four-conductor bus of each PX-603 should be home-run to a KPT for communication
with the PX-600.
KP3s require six-conductor, 24 AWG wire and must be home-run directly to the PX-603.
KPS keypads that will be used to control PX-603 rooms are not connected to the PX-603.
They should be home-run to a KPT. Distribute KPSs evenly among KPTs to equalize
electrical drain throughout the system, especially in multiple PX-600 systems.
Keypad Installation
This section covers the various aspects of installing, configuring and using the Audioaccess KPS
and KP3 keypads with the PX-603 Multi-Room Expander.
Keypad Termination Board (KPT)
The KPT (sold separately) is used to connect multiple, home-run KPS keypads and PX-603s.
Up to six separate connections may be made to the KPT in addition to a jumper to the
PX-600. The KPT may be mounted in any location between the PX-600, PX-603, and the
keypads. We recommend that it be easily accessible. The KPT is useful when troubleshooting
keypad and PX-603 operations, since individual lines may be tested by unplugging all but the
one in question. Miswires, incorrect DIP switch settings or malfunctioning keypads or
PX-603s can be quickly identified in this manner.
Daisy Chained Wiring
Daisy chaining refers to a method in which you connect a cable from one KPS keypad to the
next, with the final termination made directly to the PX-600 rear panel. This method is often
used when home-runs are not possible. In new construction, the risk of wire damage during
all stages of construction is high, and the daisy chaining method compounds the risk of losing
connection to many keypads with one accident. Thus, while daisy chaining may seem
efficient, extra care must be used when routing the wiring, especially in new construction.
Because KP3 keypad connections are hard-wired, KP3s must be home-run to the PX-603;
they cannot be daisy chained.

9
Home-Run Wiring
Ideally, all KPS and PX-603 wiring should be home-run separately to one or more KPTs, then
to the KEYPAD input on the PX-600 rear panel. This is the safest, most reliable method.
Each KPS and PX-603 should be connected to a separate connector on the KPT. If you
require more than six connections, use another KPT.
Keypad Mounting and Connection
Mount the KPS and KP3 keypads in ordinary electrical boxes or plaster rings. The bezels
of both keypads are sized for a single-gang “Decora®” style wall plate. Use caution when
attaching the wall plates to the keypads, as the paint on the bezels of the keypads can chip.
The KPS wiring color code is shown on the back-plate of each keypad and on the rear panels
of the PX-600 and PX-603. Be certain to follow the wire color code for all connections.
Terminate the cable on the keypad first, then the KPT and PX-600. This is the best way to
avoid blowing the keypad fuse on the PX-600. All four conductors of the wire must be
connected to the keypad. Be certain that the small “nipple” of insulation often left after
stripping wire does not get caught in the screw terminal, as this is often the cause of keypads
appearing to malfunction as well as system lock-up. To avoid shorting, do not leave any of the
wires disconnected or twisted together. See the PX-603 Room Configuration DIP Switch
Setting (page 11 of this manual) and the PX-600 Installation Manual for instructions on KPS
DIP switch settings.
KP3 Wiring
KP3 keypads require six-conductor wire (24 AWG), and must be home-run directly to the
back of the PX-603. Terminate wire ends with RJ11 six-pin, six-conductor modular plugs.
Standard six-conductor wire is color coded in orange, green and blue pairs: green with white,
white with green, orange with white, white with orange, blue with white and white with blue.
With the squeeze tab of the modular connector pointing downward and the pin end of the
connector pointing away from you, crimp the plug left to right with the green, orange and blue
pairs. Diagram 1 illustrates modular plug wiring. All modular plugs should be wired and
crimped in the same color order. When using a pre-terminated cable, make sure the order is
correct on both ends.
G / W
W / G
O / W
W / O
B / W
W / B
e
u
l
B
,
e
g
n
a
r
O
,
n
e
e
r
G
Diagram 1

10
A
UDIOACCESS
The KPS and KP3 IR Receivers
Many people confuse the IR receiver on a KPS or KP3 keypad with an IR repeater. The KPS
IR receiver takes specific IR signals from the Audioaccess RT-A or the URC-8090 and decodes
them at the keypad. The KP3 IR receiver sends the IR information as electrical signals to the
PX-603, where the signal is decoded as in the KPS. Control data is then sent to the PX-600.
No actual IR signal is transmitted to the PX-600 from the KPS or KP3 keypad. If the func-
tions of a repeater are needed, plan for the addition of a separate IR repeater next to the keypad
or somewhere conveniently located in the room.
For KPS keypads installed in areas of bright sunlight, we recommend that you turn off the IR
receiver on the keypad. This is done by setting DIP switch #9 on the keypad in the UP
position. For KP3 keypads in highly lit areas, disable the IR receiver by not connecting the
green wire pair to the modular plug. Strip wire ends and isolate with a wire nut, electrical tape,
shrink tube or other insulating method. Sunlight or beams from high-intensity light fixtures
can slow the operation of the keypad and/or confuse the incoming IR signal, causing the
PX-600 to “lock up” or exhibit other erratic system function.
Noise radiated from manually operated light dimmers may interfere with the operation of KPS
and KP3 keypads. Maintain at least 4" of space between keypads and dimmers. If installing
them closer is unavoidable, turn off the IR receiver by lifting DIP switch #9. A metal box
around the KPS keypad will also help protect it from this type of interference. If a KP3 must
be installed near a dimmer switch, disable the IR receiver in the manner described above.
Note
All KPS keypads in the system must have software version 1.6 or above.
Final Hookup
During Final Hookup, the PX-600, PX-603, amps, source equipment and all other equipment
is installed and connected. Like the PX-600 and PX-612, the PX-603 is not designed to be
rack mounted. The unit may be installed in a rack-type application by using a rack shelf. See
the PX-600 Installation Manual for detailed installation information.
The PX-603 is ready to operate once the zone, room and system DIP switches have been
addressed, and the PX-600 has been programmed. When any PX-603 room is turned on while
the PX-600 main room is off, TUNER is the default source selected.
In addition to the steps detailed in the PX-600 Installation Manual, the PX-603 requires the
following sequence of hookup and testing:
Audio Inputs
The Audio Inputs are numbered 1-3 for each PX-603 line amplifier. Plug in RCA-type audio
cables from the PX-600 Zone Outputs of the zone(s) that will have additional rooms into the
Audio Input section of the PX-603 rear panel. Each Audio Input jack has a corresponding
loop-thru jack. Connect these to the next Audio Input if more than one PX-603 room will be
added to a zone; there is no need for Y-cables (see Appendix I, diagram 3).
Speaker Outputs
The Speaker Outputs are numbered to correspond with the Audio Inputs. Connect the
stereo speaker pairs directly to the Speaker Outputs using up to 12 AWG speaker wire in
the push-terminal output pair. Note wire polarity for proper speaker phasing.

11
Keypad Connectors
The KP3 jacks are numbered according to the PX-603 room they control. Connect KP3
keypads directly to the back of the PX-603 using six-conductor 22-24 AWG wire terminated
with six-conductor modular plugs (see diagram 1 on page 9). A KPS may be used in any
PX-603 room if source selection is desired. Connect KPS keypads directly to the KPT (the
DIP switches on the KPS address the room it controls - see page 12) The four wire bus labeled
KPS is the communication link between the PX-600 Controller and PX-603 rooms. Connect
it directly to the KPT. Do not make any KP3 connections with the PX-603 main power on;
unpredictable system operation may occur.
Room Configurations
The Room Configuration DIP switches associate PX-603 rooms with a PX-600 zone. Each set
of eight switches is configured in much the same way as KPS DIP switch settings: switches 1-3
address the zone, switches 5-7 address the system, and switches 4 and 8 address the room. The
Room Configuration DIP switches must be set on the PX-603 and any KPS keypads that
control PX-603 rooms.
Setting PX-603 Room Configuration DIP Switches
Each Audioaccess PX-603 Room Configuration is assigned by an 8 position DIP switch to a
specific zone, system, and PX-603 room. Turn off the PX-603 main power while changing
these switch settings. The changes will automatically take effect when the unit is turned back
on.
Set the ZONE CODE to match the ZONE the PX-603 room is assigned to. PX-603 rooms
are fed audio signal from the PX-600 Zone Output; the same source signal is sent to all rooms
in the zone. The ZONE CODE switches, when in the "UP" or "ON" position, have these
values: SW 1=1, SW 2=2 and SW 3=4. Add them together to get totals equal to the zone
number, up to Zone Six.
12345678
Zone Code
Zone
1
12345678
Zone Code
Zone
2
12345678
Zone Code
Zone
4
12345678
Zone Code
Zone
5
}
}
}
}

12
A
UDIOACCESS
For a single-PX-600 system, set the SYSTEM CODE to “0” (switches 5 - 7 down). In a multi
PX-600 system, set the SYSTEM CODE to the number of the corresponding PX-600. The
SYSTEM CODE switches, when in the "UP" or "ON" position, have these values: SW 5=1,
SW 6=2 and SW 7=4. Add them together to get totals equal to the system number, up to
System Six.
12345678
System Code
System 1
12345678
System 2
12345678
System 4
12345678
System 5
System Code
System CodeSystem Code
}
}
}
}
Switches 4 and 8 are the ROOM CODE for the PX-603 room number in a zone. They must
be set according to the number of additional rooms attached to the PX-600 zone. Their values
are: SW 4=1, SW 8=2, when in the "UP" or "ON" position. Add these values together to get
totals equal to the room number.
The "Main Room" is always present in a zone; its room code is 0. Thus, a room code of 0
should never be set on the PX-603. For the first room added to a zone, the room code should
be set to 1 (switch 4 up). For the second added room in a zone, set the code to 2 (switch 8
up). For the third room added to the same zone, set the code to 3 (switches 4 and 8 up).
Note: KPS switch setting only.
Set DIP switches 4 and 8 down to address the PX-600 main room of the zone on KPS keypads
only.
Commit this pattern to memory and you’ll never have to consult a switch setting chart!
12345678
Main Room
12345678
Room 1
12345678
Room 2
12345678
Room 3
}
}
}
}

13
ZONE, SYSTEM and ROOM code settings are the same for the DIP switches on the KPS
keypads (see the PX-600 Installation Manual for a description of KPS switches 9 and 10).
PX-603 rooms that are controlled by KPS keypads must have both the PX-603 Room Con-
figuration DIP switches and KPS DIP switches set in the manner described above, rather than
as in the PX-600 Installation Manual. Room setting for KPSs in the main room of the zone is
0 – switches 4 and 8 down.
Here are a few additional examples of possible DIP switch settings:
12345678
Zone 2, Main Room, System 1
12345678
Zone 6, Room 1, System 2
12345678
Zone 5, Room 2, System 0
12345678
Zone 3, Room 3, System 3
}
}
}
}
EQ
You may wish to increase the bass level of one or more PX-603 rooms. The numbered EQ
DIP switches allow you to add 3 dB of “bass boost” to the corresponding room by changing
the EQ dip switch associated with that room to the "UP" or "ON" position.
Power Cord (Grounding)
Connect the AC power cord to the rear panel of the PX-603 and then to a properly grounded
AC outlet. Make all of the remaining connections with the power cord plugged in (for
grounding) and the AC power switch OFF.
PX-603 Programming
You will program most of the setup at the PX-600 with the PX-600 Programmer. Press the PGM
button on the programmer to bring up the MAIN MENU. To select an option or set a value,
use the
▲ and ▼ buttons to highlight the appropriate choice or change the alphanumeric value
and then press ENTER to confirm your selection. Changes to general PX-600 programming
instructions follow. Refer to the PX-600 Installation Manual for complete system programming
instructions.

14
A
UDIOACCESS
Zone Setup
Zone setup is accomplished as described in the PX-600 Installation Manual, with the
following change:
All zone names default to ZN#__MAIN, however you may manually name each main room
to reflect its primary function.
1. Select ZONE SETUP from the MAIN MENU.
2. Select a ZONE.
3. Select NAME.
4. Use ▲and ▼to select letters and numbers to designate a name for this zone. Press
ENTER after each character.
5. Continue as described in the PX-600 Installation Manual.
6. Repeat above steps for each main room as needed.
Notes on Zone Setup
• Any, all or none of the programming steps may be done for each main room. You may exit
at any time by pressing ENTER while the word EXIT is highlighted.
• The ZONE OUTPUTS are permanently fixed at the unity gain level. Volume control is
accomplished in the PX-603.
Group Setup
Use GROUP SETUP to set ALL-ON groups and TIME-OUT MODE. ALL-ON is a feature
that allows you to organize PX-600 main rooms and PX-603 rooms into groups that can be
turned on and operated together. This is most often used for party situations or any time
background music is desired throughout the house. Assign PX-600 zones to group A, B, C or
N for none; PX-603 rooms may be selected to come on with the ALL-ON group or not.
PX-603 rooms may not however, be assigned to a group independent of the main room.
ALL-ON for a group is initiated, with the room off, by pressing and holding the ON button
on a KPS keypad, KP3 keypad or IR remote.
Once you have assigned zones to groups, select one of three ways that the ALL-ON feature can
work for all the groups in the system as described in the PX-600 Installation Manual.
Group Setup Programming Instructions:
1. Select GROUP SETUP. Press ENTER.
2. Assign zones to groups as described in the PX-600 Installation Manual.
3. When you have all the zones assigned to the groups you want, highlight EXIT and press
ENTER.
4. As you exit the GROUP SETUP screen, the TIME-OUT MODE options will appear as
discussed in the PX-600 Installation Manual. TIME-OUT features are the same for the
PX-603 rooms as noted in the PX-600 Installation Manual.
