audiophony MT12A-UHF User manual

USER GUIDE
10286 - December 2014 Version 1.0
12 inches amplified speaker with 2 UHF microphones
GAIN
HL
GAIN
HL
MT A-UHF

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 2
English
Sound levels
Our audio solutions deliver important sound
pressure levels (SPL) that can be harmful
to human health when exposed during long
periods. Please do not stay in close proximity
of operating speakers.
1 - Safety information
This symbol signals an important safety
precaution. The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the
housing or attempt any maintenance by yourself. In the unlikely even your unit
may require service, please contact your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket,
power cord extension or connecting system without making sure they are
perfectly isolated and present no defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
Risk of electrocution
To prevent the hazard of electric shocks, do not use
extension cords, multi-socket or any other connection
system without making sure metal parts completely are
out of reach.

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 3
English
Instructions and recommendations
12 - Cleaning precautions :
Unplug the product before attempting any cleaning
operation. This product should be cleaned only with
accessories recommended by the manufacturer.
Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of
non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result
in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the
electronic components and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into
the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or
maintenance by yourself. Refer all servicing to
qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C,
relative humidity must be less than 85% (when
cooling vents are not obstructed).
Do not operate this product in a non-ventilated,
very humid or warm place.
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a
fixation system or support recommended by
the manufacturer or supplied with this product.
Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid
vibration and slipping while operating as it may result in
physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product,
and avoid any overheating risk.
Do not obstruct or cover these vents as it may
result in overheating and potential physical injury or
product damage. This product should never been
operated in a closed non-ventilated area such as a flight case
or a rack, unless cooling vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific
voltage. These information are specified on the label located
at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at lugs, convenience receptacles
and the point where they exit from the fixture.

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 4
English
3 - Technical specifications and features
2 - Introduction
The MT12A-UHF speaker is the ideal solutions for live performances.
It delivers an astonishing power of 300W. This powerful output is perfectly clear, warm and deep, adapted to
vocal, live or recorded sessions.
It's easy to install, light and compact: that's the best you can find for nomad installations without any
compromise on quality, power or possibilities.
Bi-amplification 250W RMS Class D for LF
50W RMS Class AB for HF
Total power output 300W RMS / 600W max.
Frequency response 55 Hz - 20 KHz
Power supply unit SMPS
H x V Dispersion 120° x 60°
Filter cutoff frequency 2,8 KHz
Sound Pressure Level 122 dB max.
Woofer
12"
2" coil
4 Ohms - 250W RMS
Tweeter
1" driver
8 Ohms
50 W RMS
Inputs 1 COMBO XLR/JACK MIC/LINE input
1 Mini Jack and Combo XLR/JACK LINE/AUX input
Output 1 XLR line output
Settings Volume settings for each zone
HIGH/LOW +/- 15 dB main volume settings
UHF microphone UHF diversity with 16 available frequencies
Handheld cardioid microphone
Frequency range UHF 863-865 Mhz - 10 mW
Protection Short-circuit, thermal and limiter
Dieaccdsdsds
2 monitor-specific angles
1 top handle and 2 side handles
2 M10 rigging points (below)
2 M10 rigging points (on top)
36mm mounting plate for a speaker stand
Dimensions 385 x 348 x 595 mm
Poids net 16,6 Kg

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 5
English
1Power input
Allows you to connect the speaker to an electrical outlet.
Use the supplied IEC cord, and make sure the voltage
delivered by the outlet is in adequation with the value
indicated by the voltage selector before turning on the
built-in amplifier.
2Fuse
Protects the power supply module and the built-in
amplifier.
If need to replace the fuse, please make sure the new
fuse has exactly the same characteristics.
3Power switch
Allows you to turn ON/OFF the amplifier.
4Voltage selector
Allows you to adapt the voltage of the amplifier to the
voltage of the electrical outlet.
A- Power supply zone
4 - Presentation of the unit
1
2
3
4MT A-UHF
Rear module
MT A-UHF
C
B
A
A - Power supply zone
B - Mixing zone
C -UHF receiver module

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 6
English
B - Control panel
5MIC/LINE input via COMBO connector
The COMBO connector allows you to connect either a
male XLR plug, or a male Jack mono or stereo connector.
This line level input is balanced.
Please refer to the following chapters for more details
about the different wiring.
6LINE/MIC selector
Allows you to adapt the incoming impedance to the type
of signal.
When pressed, the input level is adapted to microphone
signals, otherwise it is adapted to line level signals.
7MIC/LINE fader
Allows you to configure the MIC or LINE input level.
Please make sure the SIG/CLIP LED is not lit for long
periods to ensure an optimal sound quality.
8LINE input via COMBO connector
This combo socket allows you to plug either a male XLR
or male mono/stereo Jack.
This line level input is balanced.
Please refer to the following chapters for more details
about the different wiring.
9LINE/AUX fader
Allows you to configure the LINE or AUX input level.
Please make sure the SIG/CLIP LED is not lit for long
periods to ensure an optimal sound quality.
10 LINE/AUX selector
Allows you to selec either the LINE input (COMBO
socket) or the AUX input.
When not pressed, the incoming signal from the COMBO
socket is sent to the amplifier, otherwise the AUX signal
will be sent to the amplifier.
11 AUX input
Line level input via Jack 3.5;
Allows you to retrieve the signal of, for instance, an MP3
player.
12 Equalization zone
These two faders allow you to adjust the bass and treble
settings from -15dB to +15dB.
These adjustments affect the MASTER part of the signal.
13 LED POWER
This LED is lit when the built-in amplifier is turned ON.
14 LED SIG/CLIP
This LED has two functions:
- It lits in yellow when a signal is detected on one of the
two inputs.
- It lits in red when the sum of each signal levels exceeds
0dB.
Please make sure the SIG/CLIP LED is not lit for long
periods to ensure an optimal sound quality.
15 XLR LINE OUT socket
Allows you to retrieve the sum of each incoming signal
and transmit it to another amplified speaker, mixing
desk, or speaker/amplifier system.
5
6
121198 107
13
14
15

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 7
English
C- UHF receiver module
5 6 8 9
12
7
34
DOWN UP MUTE LEVEL POWER-VOL
OFF 15
12
8
4
IR
AF
RF
GAIN
HL
ON OFF
BATT
IR
1
2 5
3
4
6
D - Handheld microphone
1- Grille: Protects the capsule.
2- Gain control: Allows you to configure the
microphone sensitivity. The factory settings
are optimal, but you can increase/decrease the
sensitivity by turning it to the left (decreases) or
right (increases).
3- Radio frequency output level selector. H for
a strong signal, L for a lower signal. Allows you
to increase the range of your microphone.
4- Battery level indicator and ON/OFF power
switch.
The indicator flashes in red when the batteries
are discharged.
The indicator flashes in red when the ASC
function is activated.
5- Batteries compartment: LR06 x 2. Please
make sure you keep the same polarities if need
to replace the batteries.
6- Synchronisation IR diod. The ASC (Auto
Synchro Connection) function allows you to
synchronise a chosen channel between the
transmitting microphone and the receiver via
InfraRed transmission.
To do so, select a channel (from 1-16) on the
receiver. Press the ASC button and put the IR
diod of your microphone in front of the IR diod
(#9) of the receiver.
C1 - Volume control fader for the HF module. From OFF to full
power (clockwise).
C2 - Squelch control fader: allows you to configure the
threshold in case of HF signal interruption. The factory settings
do not require any modification.
C3&4 - Canal selection: allow you to browse through the 16
available frequencies.
C5 - Frequency display.
C6 - Radio Frequency indicator: this indicator is lit in red when
the emitting mic is ON.
C7 - Audio Frequency indicator: this indicator is lit in green
when a signal is being received.
C8 - ASC (Auto Synchro Connection) button: allows you to
synchronise a channel between the transmitter and receiver.
Select a channel (from 1 - 16), press the ASC button and put
the IR (#6) diod of your mic in front of the IR (#9) diod of your
receiver.
C9 - IR diod. Allows you to synchronise your mic with the
receiver.
Note about UHF microphones:
Please use one of the available frequencies (from 1 - 16) on both receivers. Caution: the microphones
need to have different frequencies to be used simultaneously.

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 8
English
Ring Tip
Tip >ĞŌĐŚĂŶŶĞů
Ring
ZŝŐŚƚĐŚĂŶŶĞů
Sleeve
Sleeve
'ƌŽƵŶĚ^ŚŝĞůĚ

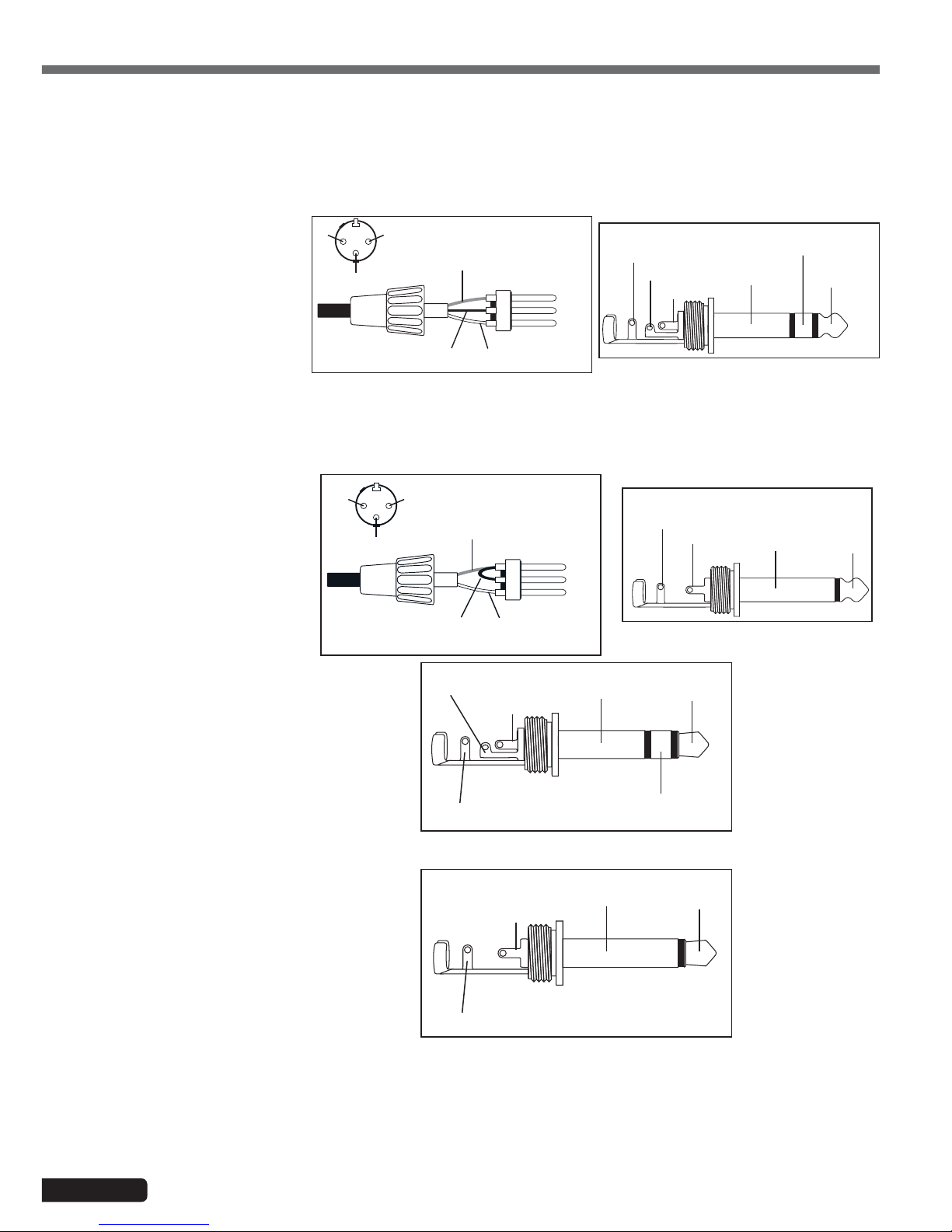

5 - Connectors
2 = Hotspot (+)
2
3
1
3 = Coldspot (-)
1 = Ground
2 = Hotspot (+)
2
3
1
Shunt between
1 and 3 pins
1 = Ground Tip
Tip Signal
Sleeve
Sleeve
Ground / Shield
Ring
Ring
Coldspot (-)
Tip
Tip Hotspot (+)
Sleeve
Sleeve
Ground / Shield
5.2 - Unbalanced
5.1 - Balanced
The COMBO sockets are
symetrical. This type of
connectors allows you to transmit
a signal over long runs of cables
without altering its quality, that
is why we recommend to use
balanced signals.
The figures opposite describe
the balanced wiring of the XLR or
Jack 6.35 plugs.
If you do not have any source
with balanced signal, please do
not use cables longer than 1.5 m.
The figures opposite describe the
unbalanced wiring of the XLR or
Jack 6.35 plugs.
Tip
Tip + Signal
Body
Body
Ground / Shield
5.3 - AUX input
The AUX input is used via a stereo Jack 3.5 socket.
The figures opposite describe its wiring.
Although it is a stereo input, it is able to transmit
any mono signal.
MONO
STEREO

MT12A-UHF - 12 inches amplified speaker with 2 UHF microphones
Page 9
English
6 - Block diagram
MP3
PLAYER
POWERED
SPEAKER
ACTIVE
DIBOX
WIRED MIC
GUITARE
GAIN
HL
GAIN
HL
UHF MIC

Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY® products on www.audiophony.com
AUDIOPHONY® is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
