audiophony JOGGER60 User manual

USER GUIDE
9894 - August 2011 Version 1.0
60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC

Page 2
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC
English
Sound levels
Our audio solutions deliver important sound
pressure levels (SPL) that can be harmful
to human health when exposed during long
periods. Please do not stay in close proximity
of operating speakers.
1 - Safety information
This symbol signals an important safety
precaution. The CAUTION symbol signals a risk of product deterioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must tho-
roughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as
it may result in electric shock.
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety ins-
tructions could result in fire, electric shock, injury, or damage to
this product or other property.
WARNING : This unit contains no user-serviceable parts. Do not open the
housing or attempt any maintenance by yourself. In the unlikely even your unit
may require service, please contact your nearest dealer.
In order to avoid any electrical malfunction, please do not use any multi-socket,
power cord extension or connecting system without making sure they are
perfectly isolated and present no defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your
product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment.
Risk of electrocution
To prevent the hazard of electric shocks, do not use
extension cords, multi-socket or any other connection
system without making sure metal parts completely are
out of reach.

Page 3
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC English
Instructions and recommendations
12 - Cleaning precautions :
Unplug the product before attempting any cleaning
operation. This product should be cleaned only with
accessories recommended by the manufacturer.
Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of
non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result
in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the
electronic components and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into
the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or
maintenance by yourself. Refer all servicing to
qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C,
relative humidity must be less than 85% (when
cooling vents are not obstructed).
Do not operate this product in a non-ventilated,
very humid or warm place.
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a
fixation system or support recommended by
the manufacturer or supplied with this product.
Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid
vibration and slipping while operating as it may result in
physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product,
and avoid any overheating risk.
Do not obstruct or cover these vents as it may
result in overheating and potential physical injury or
product damage. This product should never been
operated in a closed non-ventilated area such as a flight case
or a rack, unless cooling vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific
voltage. These information are specified on the label located
at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at lugs, convenience receptacles
and the point where they exit from the fixture.

Page 4
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC
English
Thank you for purchasing the JOGGER60.
The JOGGER60 is a battery-operated amplified sound system producing 60W RMS. It features a
speaker with built-in amplification module, a USB/SD reader compatible with MP3 files, a UHF handheld
microphone, wired microphone and a protective cover.
When ergonomy is a crucial factor, its very light weight, excellent sound rendering and battery life will meet
your every need.
This user guide will allow you to understand and use all the functions of the JOGGER60.
Please keep it within reach during the first uses in order to get familiar with the unit.
2 - Introduction

Page 5
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC English
1- Tweeter
2- Boomer
3- Control panel
4- Outer loop for shoulder strap
5- Transport handle
6- Battery compartment
A- Battery charge indicator
B- USB / SD reading module
C- UHF receiver module
D- Mic module / Main volume
3 - Description
Main features
Command panel
4
1
2
5
3
4
6
B
D
C
A

Page 6
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC
English
1 - Display: Gives information about the track currently playing.
2- Command module (identical to the infrared remote control)
: Previous track: Skips back to the previous track.
: Next track: Skips to the next track.
: Play/Pause : Allows you to play/pause a track.
: Allows you to choose a equalization/repeat mode.
EQ : Each pressure switches to another equalization mode:
Normal > Pop > Rock > Jazz > Classical > Country.
REPT. : Each pressure switches to another mode:
Off > Single > One > Folder > All > Random.
Stop : Stops the track being played.
3- Infrared receiver
4- SD slot
5- USB Slot
6- Volume fader (identical to the infrared remote control) :
Configures the output volume and allows you to turn off the
module.
7- Direct access buttons (only with the remote control) :
Allows you to directly access a track by pressing its number.
Elapsed time
Name of the track
Number of the track Number of files stored in the support
Total duration of the track
Playback status
Source type: SD or USB
USB/SD reading module with INFRARED REMOTE CONTROL
DISPLAY
5
6
1 23 4
6
2
7
6

Page 7
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC English

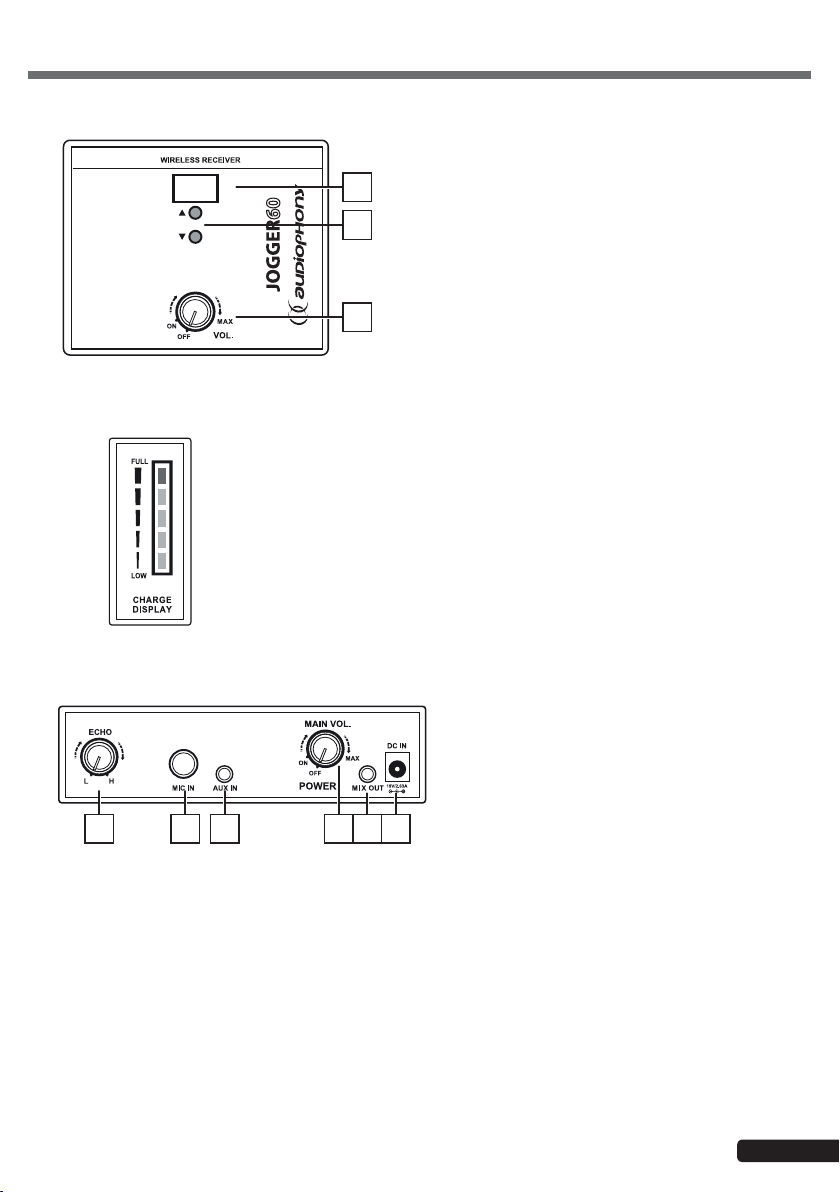

1- Fader allowing you to configure the output
volume and allows you to turn off the JOGGER60.
2- Echo level settings. From low to high (clockwise).
3- Mic input: Plug the supplied handheld mic here.
4- Auxiliary input (Jack 3.5): Allows you to connect a
line-level auxiliary source such as your mp3 player.
5- MIX OUT Output (Jack 3.5): Allows you to
retrieve the signal of the MASTER output. This signal
combines all the connected sources (built-in reader,
two mic and AUX IN input).
6- Power supply input (19V/2,63A): Connect the
power supply here. The battery automatically
charges when the JOGGER is connected to an
electrical outlet. Especially useful when the battery
though you still need to use the JOGGER60.
UHF RECEIVER MODULE
BATTERY CHARGE INDICATOR
MASTER MODULE
1
2
3
3 1 5 642
1- Fader allowing you to configure the output volume and
allows you to turn off the module.
2- Displays the receiving channel information (0 to F): 16
channels
3- Receiver channel selector
The battery is fully charged when the FULL LED is lit.
The gauge slowly decreases as you are using the JOGGER60.
When reaching LOW, the battery is almost fully discharged and should be charged as
quickly as possible to prevent any damage.

Page 8
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC
English
1
2
3
4
5
6

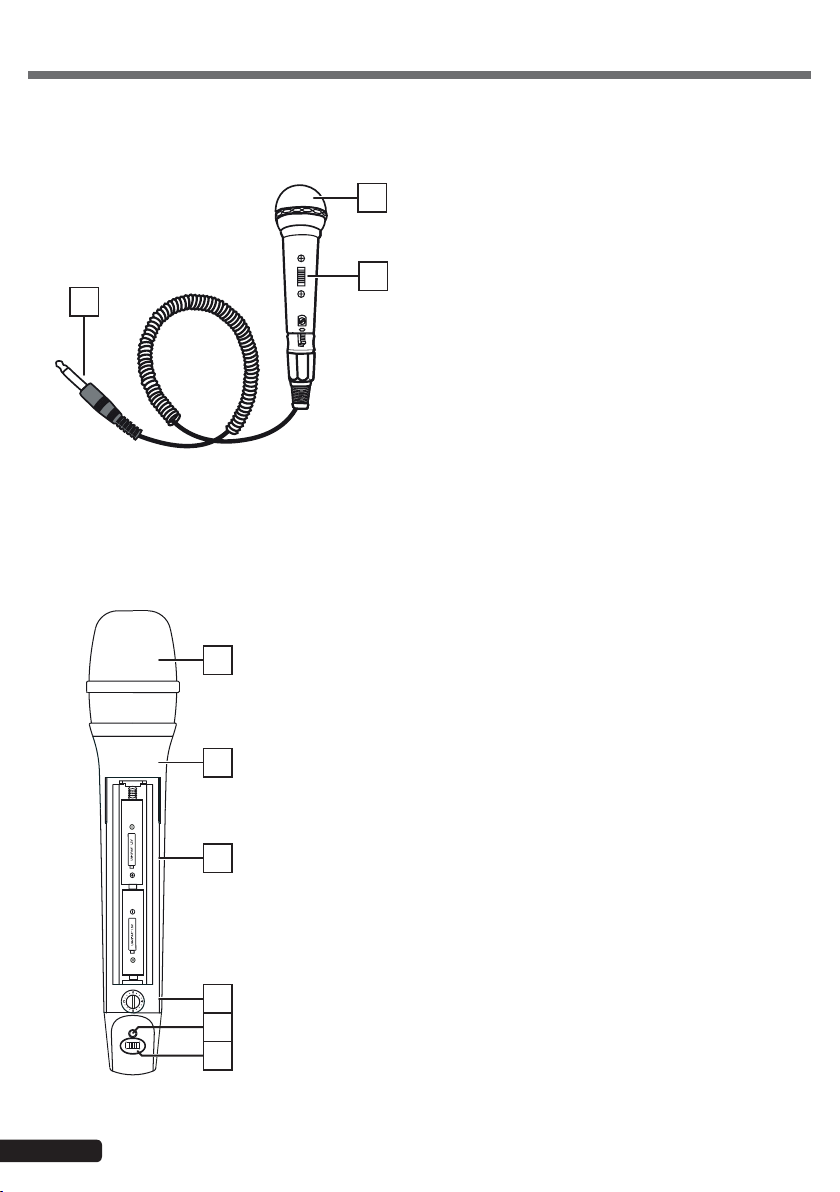

WIRED MICROPHONE
UHF MICROPHONE
1
2
3
1- Metal grille protecting the capsule
2- Power switch
3- Jack 6.35
The wired microphone can be connected the the MIC IN
input of the MASTER module.
1- Metal grille protecting the capsule
2- Body
3- Battery compartment: 2 x 1.5V ou 2 x 1.2V
4- Frequency selector (16 frequencies from 0 to F)
5- Charge level indicator: Flashes when the batteries are almost fully
discharged
6- Power switch
Set the microphone and the receiver module on the same frequency to use
the UHF mic with the JOGGER60.
NOTE:
Turn the microphone OFF and remove the batteries during long periods of
non-use.

Page 9
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC English
4 - Using the batteries
CHANGING AND REPLACING THE BATTERIES

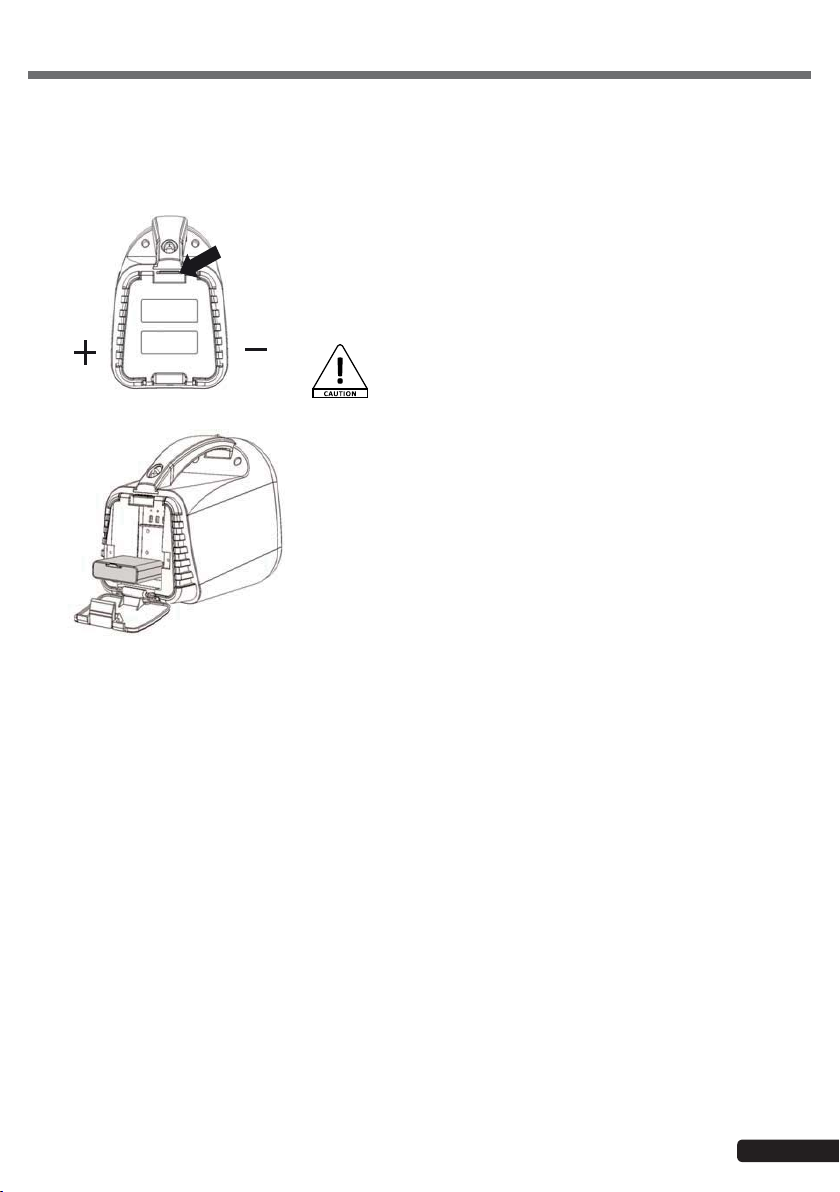

1 - First of all, turn your JOGGER60 OFF.
2 - Open the rear compartment as described on Figure 1.
3 - Remove the used battery by pulling the strip upwards.
4-Install the new battery within its compartment, as described on
Figure 2.
5 - Make sure the battery is in position and close the hatch.
Notes:
- Caution: Please make sure to position the battery properly,
as described on Figure 1, as your device can be damaged by
an improper positioning.
- A new battery must be fully recharged before being used.
The green indicator flashes during the charging process and
remains lit once the battery is fully charged.

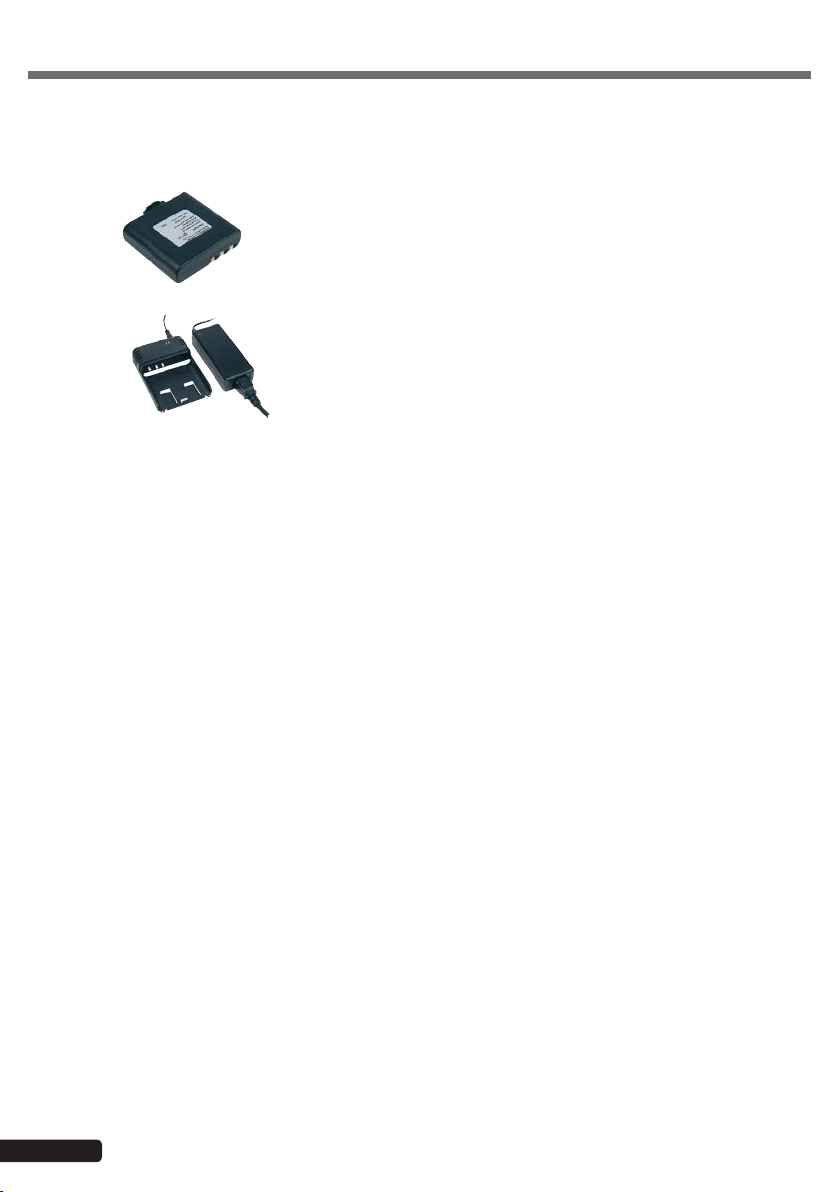

1 - This device features a 14.4 V / 2.6 Ah Lithium-ion battery allowing an average battery life of 2 to 8 hours.
2 - The complete charging process duration is approximately 4 hours and a half.
3 - A built-in power management system indicates if the battery needs to be charged.
4 - If the «LOW» red indicator flashes, please plug your JOGGER60 to an electrial outlet or replace the battery.
5 - Used batteries must be taken care of properly. Do not dispose of them in the environment.
6 - In order to preserve the battery, please completely turn off your device when not using it.
7-We strongly recommend to remove the battery during long periods of non-use.
8 - The battery must be charged regularly to prevent it from drying and becoming unusable.
9-The battery is considered a wearing part and is not covered by the warrant
Figure 1
Figure 2

Page 10
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC
English
LT2600
260mA Lithium-ion battery for JOGGER60.
The extra battery is perfect for extensive uses of theJOGGER60.
LTPOW
260mA Lithium-ion battery charger for JOGGER60.
This extra charger allows you to charge your battery independently
from the JOGGER60.
POWER SUPPLY ACCESSORIES

Page 11
JOGGER60 - 60W SOUND SYSTEM WITH USB READER + UHF MIC + WIRED MIC English
5 - Technical specifications
Loudspeaker 5 1/4" (13 cm) Boomer 4 Ohms + 1" 6 Ohms tweeter
Power output 58W at 4 Ohms
Frequency response 30Hz - 20KHz (+/-3dB)
T.H.D. < -0.5%
S/N ratio > 90dB
UHF mic UHF with 16 frequencies
Frequency range UHF 863-865 Mhz
Frequency deviation UHF : +/-40KHz
Oscillation PLL synthesising
Reader USB key or SD card reader. Supplied with an infrared remote control
Audio inputs AUX IN input via Jack 3.5 (line level) and Mic input via Jack 6.35
Autonomy 2 to 8 hours depending on the volume
Recharge time Approximately 4h30
Batteries / Power supply Lithium 14.4V - 2.6Ah / Power supply 19V - 2.63A
Power management Visualise the charge level via LED display. Charge it and use it simultaneously.
Automatic shutdown in case of low battery level.
Settings Reader volume, UHF mic volume, main volume, echo settings
Accessories Supplied with messenger bag and shoulder strap
Finish Polypropylene speaker, steel grille. 3/8'' microphone mounting plate.
Dimensions in mm 325 x 180 x 230
Net weight including batteries 2.8 kg

Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY® products on www.audiophony.com
AUDIOPHONY® is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
