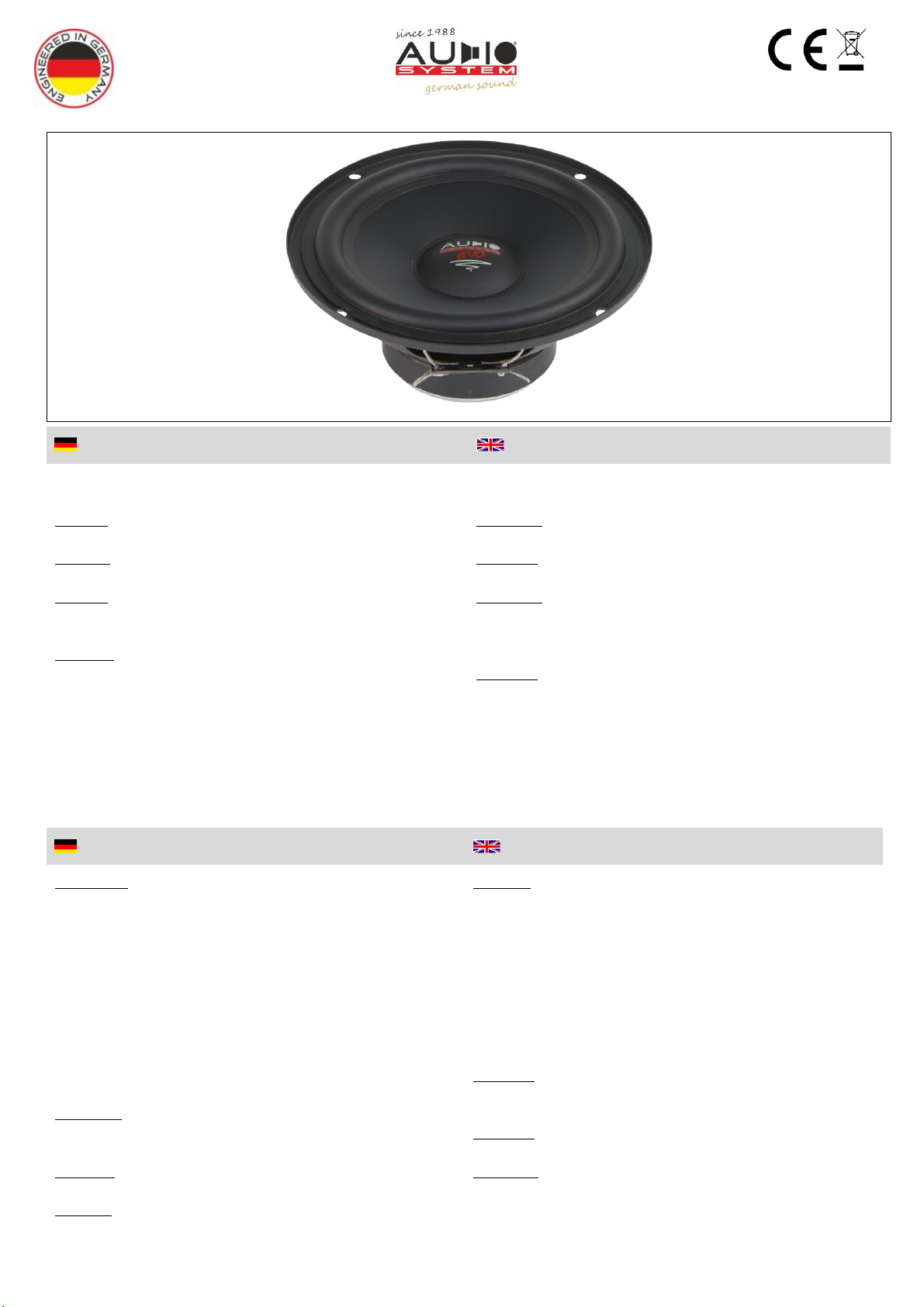

AS 165 DC EM - ANLEITUNG / USER MANUAL
EVO3
AS 165 DC EM EVO
Vielen Dank
Thank You
Wir beglückwünschen Sie zum Erwerb eines hochwertigen
AUDIO SYSTEM Produktes inklusiv GERMAN SOUND.
Wichtig: Lesen Sie diese Bedienungsanleitung vor der Installation
und Inbetriebnahme des Gerätes vollständig durch.
Achtung: Beachten Sie die Vorschriften Ihres Automobilherstellers
und achten Sie beim Anschließen auf die richtige Polarität.
Wichtig: Ihr Kaufbeleg dient als Garantienachweis für etwaige
Reparaturen oder Austausch. Heben Sie Ihren Kaufbeleg, diese
Bedienungsanleitung und die Originalverpackung sorgfältig auf.
Achtung: Der Gebrauch von Musikanlagen kann das Hören von
wichtigen Verkehrsgeräuschen behindern. AUDIO
SYSTEM GERMANY übernimmt keine Verantwortung für
Gehörschäden, körperliche Schäden oder Sachschäden, die aus
dem Gebrauch oder Missbrauch seiner Produkte entstehen. Wir
empfehlen Ihnen, die Installation von einer Fachwerkstatt /
Einbauspezialist vornehmen zu lassen, da ein fachgerechter
Einbau und Anschluss die Voraussetzung für ein klanglich
perfektes Ergebnis ist.
Congratulations on purchasing a high-quality
AUDIO SYSTEM product incl. GERMAN SOUND.
Important: Completely read this operating instruction before
installation and use of the device.
Attention: Pay attention to advices and instructions of the car
manufacturer. Check the polarity when connecting the speakers.
Important: You will need your purchase receipt as proof of
purchase for any and all warranty repairs and for insurance
purposes. Keep your receipt, owner´s manual and packing
materials in a safe location for possible future use.
Attention: Use of sound components can impair your ability to
hear necessary traffic sounds and may constitute a hazard while
driving your automobile. AUDIO SYSTEM GERMANY
accepts no liability for hearing loss, bodily injury or property
damage as a result of use or misuse of our products.
We recommend installing the equipment by an authorized service
center or dealer. A professional fitting and connection is the
requirement for further warranty and perfect sound.
Montage Tips
Mechanical Installation Tip
WARNUNG: Trennen Sie vor der Montage den Masse-Pol (-) von
der Fahrzeugbatterie. Kontrollieren Sie alle Anschlüsse auf
richtige Polung, dies kann sonst zu Kurzschlüssen an der
Fahrzeugelektrik führen. Die besten Einbaupositionen sind die
Originalplätze zwecks Originalität und einfacher Montage.
Beachten Sie, dass die Lautsprecher plan und stabil eingebaut
werden. Die Qualität des Einbaues entscheidet sehr stark das
Klangbild, daher sollte auf Dämmung und Sorgfalt bei der
Installation geachtet werden. Beachten Sie, dass die Lautsprecher
vor Hitze, Sonneneinstrahlung, mechanischen Einflüssen,
Feuchtigkeit und Nässe durch Zubehör von AUDIO
SYSTEM geschützt sind.
ACHTUNG: Verlegen Sie Ihre Kabel so, dass diese nicht
gequetscht werden oder über scharfe Kanten verlaufen. Dies kann
zu Kurzschlüssen mit Beschädigungen führen.
Vorsicht: Beim Entfernen von Innenverkleidungen können
Befestigungsteile beschädigt werden, diese müssen Sie ersetzen.
Wichtig: Die richtige Polarität der Lautsprecher zueinander
beeinflusst das Klangbild entscheidend. Dies kann z.B. durch
gemeinsames Verpolen der Hochtöner verbessert werden.
Warning: First disconnect negative pole of your car battery.
Check-polarity, changing polarity may cause serious damage to
your car electric. Best speaker positions are the original build in
positions. Easy installation and original look are the reasons.
Please note that the speakers are installed flat and stable. The
quality of the installation decides very much the sound, therefore,
attention should be paid to insulation and care during installation.
Please note that the speakers are protected from heat, sunlight,
mechanical influences, moisture and wetness by accessories
from AUDIO SYSTEM.
Attention: Install all cables as straight as possible without
squashing or laying them over sharp edges. Otherwise this can
cause short circuit or damages to your whole installation.
Attention: Be careful removing original plastic parts of your car.
The fitting parts could be damaged and have to be replaced.
Important: The right polarity of all speakers is extremely
important for the sound of your car audio system. We
recommend changing polarity of the tweeter finding out the best
possible sound.
The best is to listen and/or to measure it.
AS-SERIES ANLEITUNG / USER MANUAL
www.audio-system .de
audio system germany - falltorstrasse 6 - 76707 hambrückeN
EVO3
Ausprobieren und hören bzw. messen ist hier sinnvoll!
Maße und Spezifikationen
Dimensions / Specifications
Gewicht
1.02
Kilogramm
Weight
Umfang Außen ( a )
165
mm
External Diameter ( a )
Einbauöffnung ( b )
143
mm
Installation Diameter ( b )
Magnetdurchmesser ( c )
93
mm
Magnet Diameter ( c )
Einbautiefe gesamt ( d )
72
mm
Total Installation Depth ( d )
Einbautiefe ( e )
65
mm
Installation Depth ( e )
Membrane
Papier
Paper
Speaker Cone
Sicke
Elastomere
Elastomere
Surround/Edge
Korb
Stahl
Sheet Metal
Basket
Zentrierspinne
Connex
Connex
Spider
Schwingspulenträger
Aluminium
Aluminium
Coil Former
Staubschutzkappe
Supronyl
Supronyl
Dust Protection Cap
Maße und Spezifikationen
Dimensions / Specifications
Leistung
Music
2x 70
Watt
Power
RMS
2x 45
Watt
Kennschalldruck SPL (2,83V, 1m)
dB
91,8
dB
SPL
Frequenzbereich
Fb
65-5000
Hz
Frequency Range
Gleichstromwiderstand
Re
2x 3.3

DC Resistance
Impedanz
Zn
2x 4

Nominal Impedance
Resonanzfrequenz
Fs
62.9
HZ
Resonance Frequency
Schwingspulendurchmesser
D
25
mm
Voice Coil Diameter
Maximaler linearer Hub
+/-
4
mm
X-Max Linear Excursion
Mechanische Güte
Qms
6.27
Qms
Mechanical Q Factor
Elektrische Güte
Qes
0.66
Qes
Electrical Q Factor
Gesamtgüte
Qts
0.59
Qts
Total Q Factor
Bewegte Masse
Mms
17.32
Gramm
Moving Mass
Äquivalentvolumen
Vas
7.99
Liter
Equivalent Air Volume
Kraftfaktor
Bl
8.59
Tm
Force Factor
Effektive Membranfläche
Sd
131
cm²
Effective Membrane Surface
Frequenzgang und Impedanz
Frequency Response and Impedance
AS-SERIES ANLEITUNG / USER MANUAL
www.audio-system .de
audio system germany - falltorstrasse 6 - 76707 hambrückeN
EVO3
40 50 100 200 500 1k 2k Hz 5k 0.0
5.0
10.0
15.0
20.0
25.0
Ohm
50.0
60.0
70.0
80.0
90.0
100.0
dBSPL
