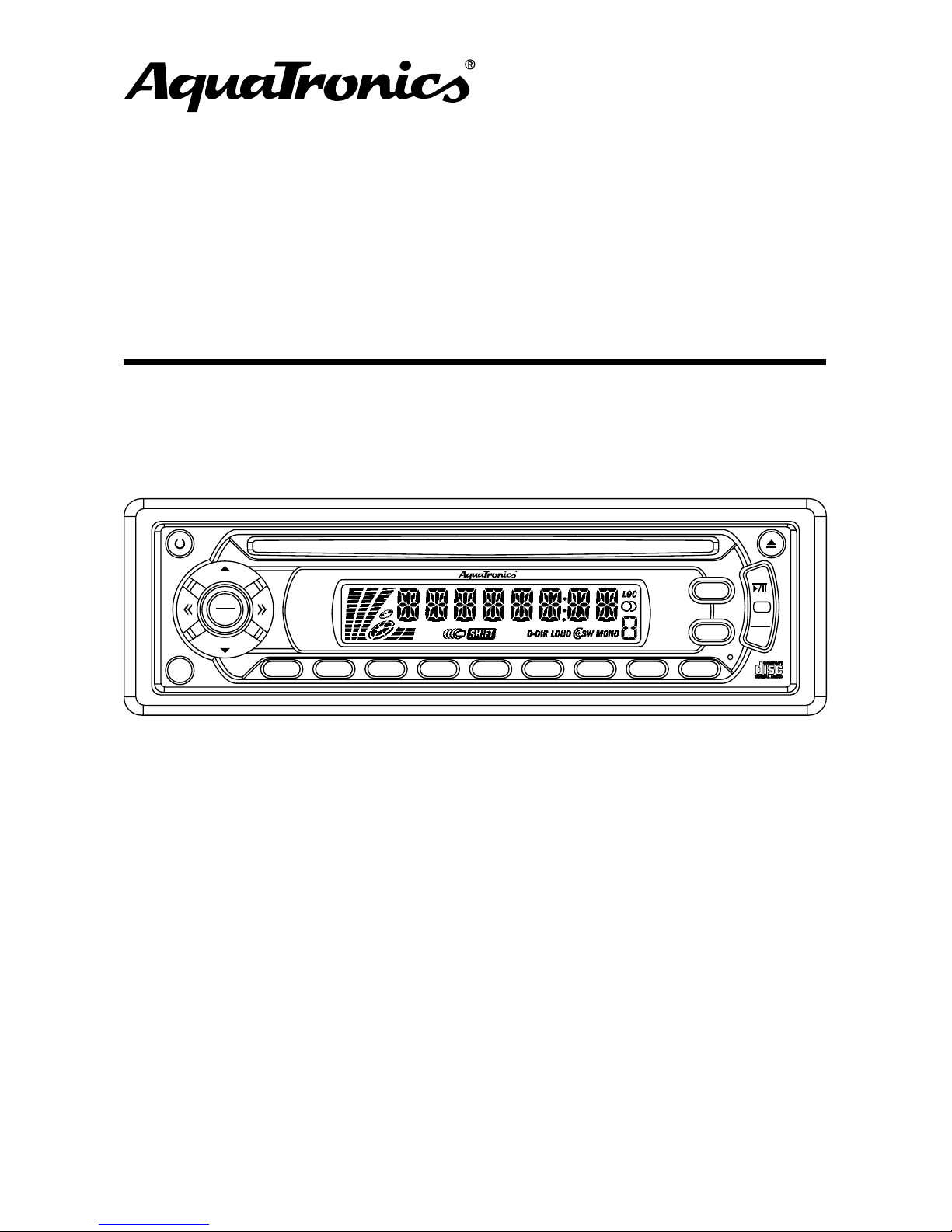

Audiovox AquaTronics MS1550 User manual

OWNER’S MANUAL
Marine Audio System
• Electronic AM/FM tuner with US/Euro selection
• Single CD player; plays CD, CD-R, CD-R/W
• LED backlit controls, silicone rubber keypad
• Marine features; solid top cover, corrosion resistant
hardware, coated circuit boards, uV stable plastics
• Maintains settings with no power applied
• CD changer controls (optional MCD10 changer)
• Wired remote option (REMMS1550)
• Aux input and line level outputs
• 4x40W power
• Two wire power connection (Switched 12V and ground)
MS1550
MS1550B
POWER
SHIFT
SCAN
SEL
MENU
VOL
VOL
MODE 1 2 SCN 3 RPT 4 SHF 5 DISC- 6 DISC+ AMS DISP
MONO
EQ
MUT
BAND
LOUD
MS 1550 4 x 40W

2
CONTENTS
Installation ...........................................3
Take out screw before installation.........3
DIN Front-Mount ..................................3
Installing the unit...................................3
Removing the unit.................................4
Wiring Connection ..............................5
Operation .............................................6
Location of keys....................................6
Switching on/off the unit.......................6
Sound adjustment.................................6
Menu selection function........................6
Loudness ..............................................7
Set the clock .........................................7
Mute ......................................................7
Equalization...........................................7
Liquid crystal display ............................7
Reset function.......................................7
Radio operation ....................................7
Switching to radio mode ...................7
Selecting the frequency band............7
Selecting station................................7
Automatic memory storing &
program scanning..............................7
Station storing ...................................7
Mono/stereo ......................................7
Scan...................................................7
CD operation.........................................8
Switching to CD mode ......................8
Selecting tracks.................................8
Pausing playing .................................8
Previewing all tracks..........................8
Repeating the same track .................8
Playing all tracks in random ..............8
Ejecting a disc ...................................8
CDC operation ......................................8
Switching to CDC mode .......................8
Selecting tracks.................................8
Pausing playing .................................8
Previewing all tracks..........................8
Repeating individual tracks or whole
CDs....................................................8
Playing all tracks in random ..............8
Selecting disc ....................................9
Disc notes .............................................9
Specification......................................10
Trouble shooting ...............................11

3
INSTALLATION
Notes:
• Choose the mounting location where
the unit will not interfere with normal
vehicle operation.
• Before finally installing the unit,
connect the wiring temporarily and
make sure the unit and the system
work properly.
• Use only the parts included with the
unit to ensure proper installation.
The use of unauthorized parts can
cause malfunctions.
• Consult with your nearest dealer if
installation requires the drilling to holes
or other modifications of the vehicle.
• If installation angle exceeds 30˚ from
horizontal, the unit might not give its
optimum performance.
• Avoid installing the unit where it would
be subject to high temperature, such
as from direct sunlight, or from hot air,
from the heater, or where it would be
subject to dust, dirt or excessive
vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either
from “Front” (conventional DIN Front-
mount) or “Rear” (DIN Rear-mount
installation, utilizing threaded screw holes
at the sides of the unit chassis).
For details, refer to the following
illustrated installation methods.

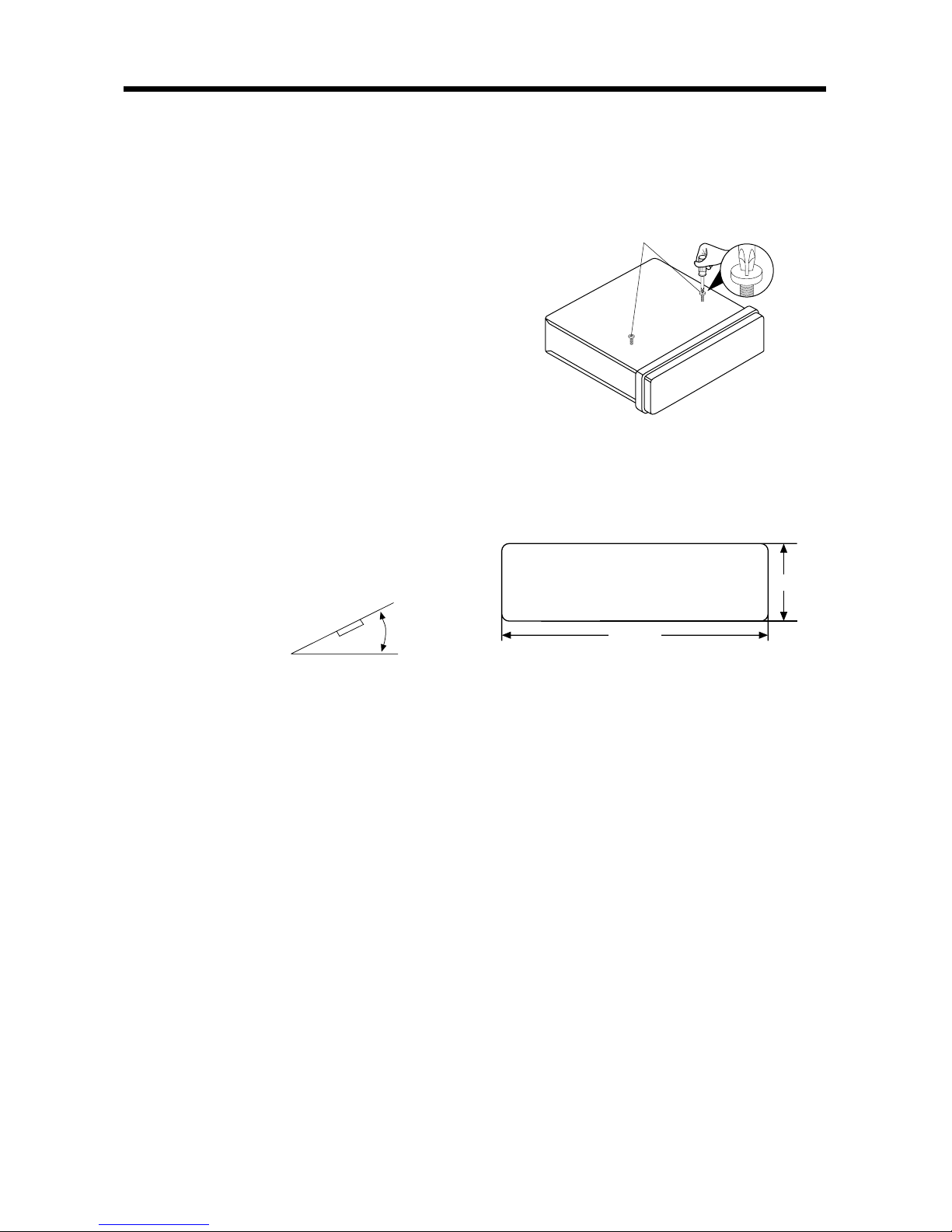

TAKE OUT SCREW BEFORE
INSTALLATION
Before install the unit, please remove the
two screws.
DIN FRONT-MOUNT
Installation Opening
This unit can be installed in any dashboard
having an opening as show below:
Installing the unit
Be sure you test all connections first, and
then follow these steps to install the unit.
1. Make sure the ignition is turned off,
and then disconnect the cable from
the vehicle's negative (-) battery
terminal.
2. Disconnect the wire harness and the
antenna.
3. Lift the top of the outer trim ring then
pull it out to remove it.
4. The two supplied keys release tabs
inside the unit's sleeve so you can
remove it. One key is for the right side
and the other is for the left side. Insert
the keys as far as they will go (with the
notches facing up) into the appropriate
slots at the middle left and right sides
of the unit. Then slide the sleeve off
the back of the unit.
30˚ 182 mm
53 mm
Take out screw before installation

9. Reconnect the cable to the vehicle
battery's negative (-) terminal.

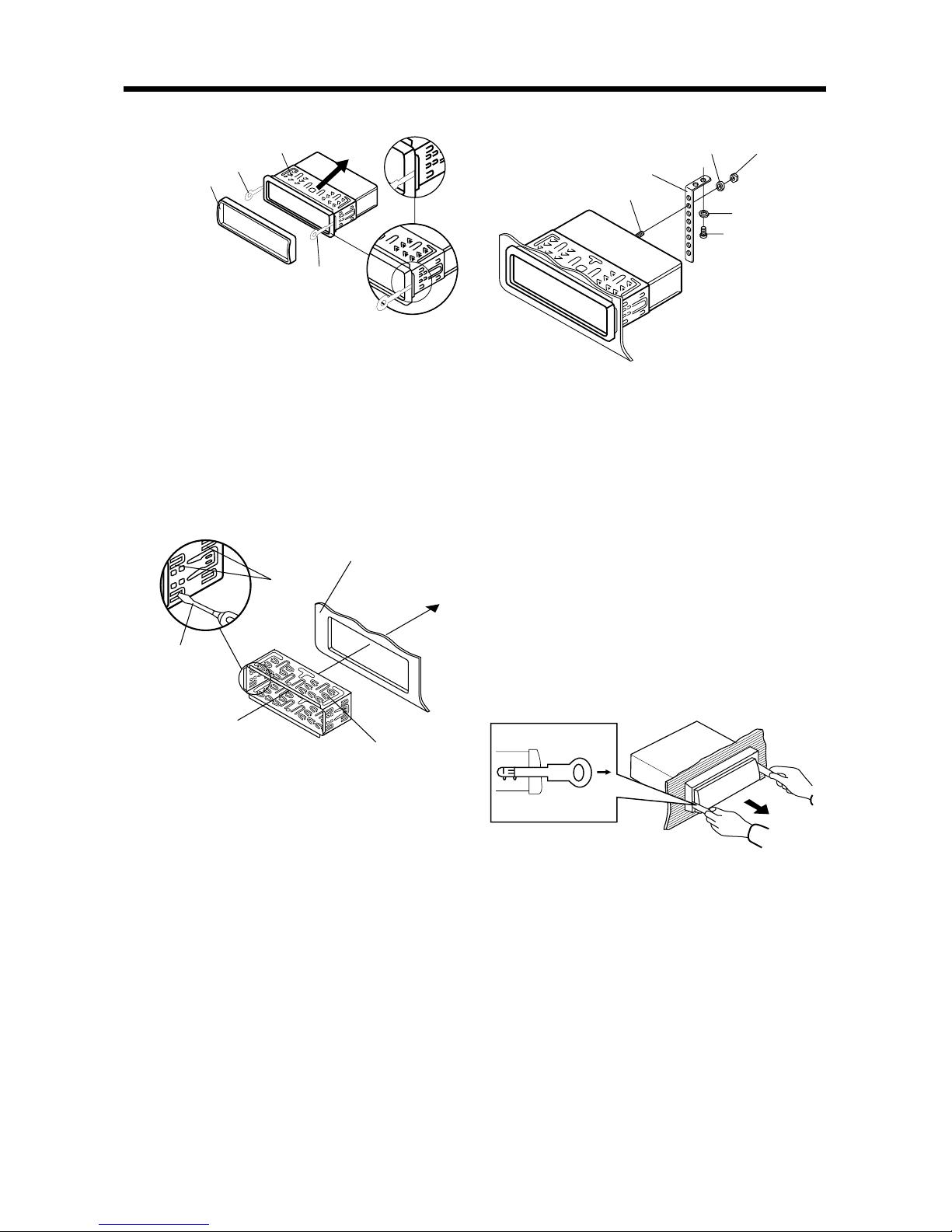

Removing the unit
1. Make sure the ignition is turned off,
and then disconnect the cable from
the vehicle battery's negative (-)
terminal.
2. Remove the metal strap attached the
back of the unit (if attached).
3. Lift the top of the outer trim ring then
pull it out to remove it.
4. Insert both of the supplied keys into
the slots at the middle left and right
sides of the unit, then pull the unit out
of the dashboard.
4
INSTALLATION
5. Mount the sleeve by inserting the sleeve
into the opening of the dashboard and
bend open the tabs located around the
sleeve with a screwdriver. Not all tabs
will be able to make contact, so
examine which ones will be most
effective. Bending open the
appropriate tabs behind the dashboard
to secure the sleeve in place.
6. Reconnect the wire harness and the
antenna.
7. Slide the unit into the sleeve until it
locks into place, being careful not to
pinch any wires or cables.
8. To further secure the unit, use the
supplied metal strap to secure the back
of the unit in place. Use the supplied
hardware (Hex Nut (M5mm) and Spring
Washer) to attach one end of the strap
to the mounting bolt on the back of
the unit. If necessary, bend the metal
strap to fit your vehicle's mounting
area. Then use the supplied hardware
(Tapping Screw (5x25mm) and Plain
Washer) to attach the other end of
metal strap to a solid metal part of the
vehicle under the dashboard. This strap
also helps ensure proper electrical
grounding of the unit.
Outer Trim Ring
L Key
Sleeve
R Key
Sleeve
Dashboard
Screwdriver
Tabs
Spring Washer
Tapping Screw
Plain Washer
Hex Nut
Metal Strap
Mounting Bolt

5
WIRING CONNECTION
RED
WHITE
Rch
Lch
Output RCA CABLE (GREY)
BLUE
YELLOW
BLACK
POWER ANTENNA
+12V POWER
GROUND (B-)
FRONT Lch
SPEAKER
REAR Lch
SPEAKER
GREEN
GREEN/BLACK
WHITE
WHITE/BLACK
VIOLET
VIOLET/BLACK
GREY
GREY/BLACK
FRONT Rch
SPEAKER
REAR Rch
SPEAKER
ANTENNA CONNECTOR
AV IN CABLE (YELLOW)
(BLACK)
CD CHANGER
CONNECTOR SOCKET
WIRING REMOTE
CONNECTOR SOCKET
(BLACK)
WHITE
Lch
RED
Rch
FUSE
Note: This unit is designed to use a switched 12V power lead such as the vehicle's IGN
lead or the ACC lead. It is not recommended to use a constant 12V supply (MEM) for power.

6
OPERATION
LOCATION OF KEYS
BEEP ON/OFF
•When the beep is ON, pressing any
key will generate a tone in the speaker.
•When the beep is OFF, no tones will be
generate.
Program power on volume level
In this mode, you can set the desired
volume level when the unit turns on.
USA/EUR
•USA radio spacing is 200k for FM and
10k for AM. This is the default
frequency spacing.
•European radio spacing is 50k for FM
and 9k for AM.
LOUDNESS
Press BAND/LOUD button (13) for
several seconds to reinforce the bass
output. Press it for several seconds again
to release this function.
MUTE
In radio/AUX IN mode, press MUTE/
button (3) to mute audio level. Press the
button again to release mute function.
EQUALIZATION
Press EQ button (7) to turn on
equalization function and to select
desired audio mode. There are four kinds
of mode as below:
SWITCHING ON/OFF THE UNIT
Switch on the unit by pressing any button
(except and button (4)). When system
is on, press POWER button (9) to turn
off the unit.
SOUND ADJUSTMENT
Press SEL/MENU button (10) shortly to
select the desired adjustment mode. The
adjustment mode will change in the
following order:
The selected function can then be
adjusted by pressing the VOL button
(11) or the VOL button (12).
MENU SELECTION FUNCTION
Press and hold the SEL/MENU button
(10) for 2-3 seconds to enter menu select
function, then step short press
SEL/MENU (10) to select different set
mode and separately to press VOL
button (11) or VOL button (12) to
select your desired settings as shown in
the diagram.
For details, please see below:
FLAT CLASSIC POP M ROCK M
VOL BAS TRE BAL FAD
(Volume) (Bass) (Treble) (Balance) (Fader)
BEEP ON/OFF Program power on volume level
12hours/24hours USA/EUR
9 11 10 17 5 8 1 7 4 3
13251518242322212019612 1416 2
POWER
SHIFT
SCAN
SEL
MENU
VOL
VOL
MODE 1 2 SCN 3 RPT 4 SHF 5 DISC- 6 DISC+ AMS DISP
MONO
EQ
MUT
BAND
LOUD
MS 1550 4 x 40W

LIQUID CRYSTAL DISPLAY
Exhibit current frequency and activated
functions on the display (8).
RESET FUNCTION
RESET button (25) must be activated
with either a ballpoint pen or thin metal
object. The RESET button is to be
activated for the following reasons:
- Initial installation of the unit when all
wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
RADIO OPERATION
•SWITCHING TO RADIO MODE
Press MOD button (6) shortly to select
radio mode, the radio mode appears
in the display together with the
memory band and frequency.
•SELECTING THE FREQUENCY BAND
At radio mode, press BAND / LOUD
button (13) shortly to select the desired
band.
The reception band will change in the
following order:
•SELECTING STATION
Press button (17) or button (16)
shortly to activate automatic seek
function. Press for several seconds
until “MANUAL”appears on the
display, the manual tuning mode is
selected. If both buttons have not
pressed for several seconds, they will
return to seek tuning mode and
“AUTO”appears on the display.
•AUTOMATIC MEMORY STORING &
PROGRAM SCANNING
- Automatic memory storing
Press AMS button (18) for several
seconds, the radio searches from the
current frequency and checks the
signal strength until one cycle search
is finished. And then 6 strongest
stations are stored into the
corresponding preset number button.
- Program scanning
Press the AMS button (18) briefly to
scan the station preset memories. The
radio will play each preset location for
several seconds, then move on to the
next memory location. To stop on a
given station, press the AMS button
again.
•STATION STORING
Press any one of the preset buttons
(14) (1 to 6) to select a station, which
had been stored in the memory. Press
this button for several seconds (until
2ND beeps), current station is stored
into the number button.
•MONO/STEREO
Press MONO button (1) to select mono
or stereo mode. You can sometimes
improve reception of distant stations
by selection mono operation.
•SCAN
Press SHIFT/SCAN button (2) to set
function to scan mode, which scanning
to higher frequency station with
receivable signal and keep on each
station for several seconds.
7
OPERATION
FM1 FM2 FM3 AM1/MW1 AM2/MW2

CD OPERATION
•SWITCHING TO CD MODE
If there is no CD inserted:
Gently insert the CD with the printed
side uppermost into the disc slot (5)
until you feel some resistance. The CD
is drawn into the driver automatically.
CD playback begins.
If a CD is already inserted:
Keep pressing MOD button (6) shortly
until the CD mode display appears.
•SELECTING TRACKS
Press button (16) or button (17) to
move to the previous track or the
following track. Track number shows
on display.
Hold button (16) or button (17) to
fast reverse or fast forward. CD play
starts from when you release the
button.
•PAUSING PLAYING
Press MUTE/ button (3) to pause
CD player. Press it again to resume
play.
•PREVIEWING ALL TRACKS
Press SCN button (20) to play first
several seconds of each track on the
current disc. Press again to stop intro
and listen to track.
•REPEATING THE SAME TRACK
Press RPT button (21) to continuously
repeat the same track. Press it again
to stop repeat.
•PLAYING ALL TRACKS IN RANDOM
Press SHF button (22) to play all tracks
on CD in random order. Press again to
cancel the function.
•EJECTING A DISC
Press button (4) to stop CD playing
and eject the disc from the disc slot
(5).
CDC OPERATION
You can connect a CD changer to the
unit with CDC operation version only.
Information on handling CDs, inserting
CDs and operating the CD changer can
be found in the operating instructions
supplied with your CD changer.
•SWITCHING TO CDC MODE
Keep pressing MOD button (6) shortly
until the CDC mode display appears.
Playback begins with the first CD that
the CD changer detects.
•SELECTING TRACKS
Press button (16) or button (17) to
move to the previous track or the
following track. Track number shows
on display.
Hold button (16) or button (17) to
fast reverse or fast forward. CD play
starts from when you release the
button.
•PAUSING PLAYING
Press MUTE/ button (3) to pause
CD player. Press it again to resume
play.
•PREVIEWING ALL TRACKS
Press SCN button (20) shortly to play
first several seconds of each track on
current disc. Press and hold SCN
button (20) for several seconds to play
first several seconds of the first track
on each disc in the CD magazine.
Press it again to stop intro and listen
to track.
•REPEATING INDIVIDUAL TRACKS
OR WHOLE CDs
Press RPT button (21) shortly to
continuously repeat the same track.
Press and hold RPT button (21) for
several seconds to continuously repeat
all tracks on the current disc. Press it
again to stop repeat.
•PLAYING ALL TRACKS IN RANDOM
Press SHF button (22) shortly to play
all tracks on the current disc in random
order. Press and hold SHF button (22)
for several seconds to select a disc in
8
OPERATION

DISC NOTES:
A. Notes on discs:
1. Attempting to use nonstandard
shape discs (e.g. square, start, heart)
may damage the unit. Be sure to
use round shape CD discs only for
this unit.
2. Do not stick paper or tape etc., onto
the label side or the recording side
of any discs, as it may cause a
malfunction.
3. Dirt, dust, scratches and warping
discs will cause misoperation.
B. Notes on CD-Rs (recordable
CDs)/CD-RWs (rewritable CDs) :
1.Be sure to use discs with following
marks only for the unit to play:
2.The unit cannot play a CD-R and
CD-RW that is not finalized.
(Please refer to the manual of your
CD-R/CD-RW recorder or CD-R/
CD-RW software for more information
on finalization process).
3.Depending on the recording status,
conditions of the disc and the
equipment used for the recording,
some CD-Rs/CD-RWs may not be
played on this unit. (See *1)
*1:To have more reliable play back,
please see following
recommendations:
a. Use CD-RWs with speed 1x to 4x
and write with speed 1x to 2x.
b.Use CD-Rs with speed 1x to 8x and
write with speed 1x to 2x.
c. Do not play a CD-RW which has
been written for more than 5 times.
Recordable Rewritable
random and play the selected disc in
random order. Press it again to cancel
the function.
•SELECTING DISC
Press CD- button (23) to select
previous disc and CD+ button (24) to
select next disc.
You can also use SHIFT/SCAN button
(2) to select disc. Press the button to
enter shift mode and then “SHIFT”will
appear on the display. At shift mode,
press button (16) or button (17) to
select previous disc or next disc. If
there isn’t any operation for several
seconds, it will exit shift mode
automatically.
9
OPERATION

10
GENERAL
Power Supply Requirements : DC 12 Volts, Negative Ground
Chassis Dimensions : 178 (W) x 160 (D) x 50 (H)
Tone Controls
- Bass (at 100 Hz) : ±10 dB
- Treble (at 10 KHz) : ±10 dB
Maximum Output Power : 4 x 40 watts
Current Drain : 15 Ampere (max.)
CD PLAYER
Signal to Noise Ratio : More than 65 dB
Channel Separation : More than 45 dB
Frequency Response : 40 Hz - 18 KHz
RADIO
For 2 Bands For 2 Bands
(Europe) (U.S.A.)
FM FM
Frequency Coverage : 87.5 to 108 MHz 87.5 to 107.9 MHz
IF : 10.7 MHz 10.7 MHz
Sensitivity (S/N = 30 dB) : 4 µV4µV
Stereo Separation : > 25 dB > 25 dB
MW AM
Frequency Coverage : 522 to 1620 KHz 530 to 1720 KHz
IF : 450 KHz 450 KHz
Sensitivity (S/N = 20 dB) : 36 dBu 36 dBu
SPECIFICATION

11
TROUBLE SHOOTING
Before going through the checklist, check wiring connection. If any of the problems
persist after check list has been made, consult your nearest service dealer.
Symptom Cause Solution
No power. The car ignition switch is If the power supply is
not on. connected to the car accessory
circuits, but the engine is not
moving, switch the ignition key
to “ACC”.
The fuse is blown. Replace the fuse.
Disc cannot be Presence of CD disc inside Remove the disc in the player,
loaded or ejected. the player. then put a new one.
Inserting the disc in reverse Insert the compact disc with
direction. the label facing upward.
Compact disc is extremely Clean the disc or try to play a
dirty or defective disc. new one.
Temperature inside the car Cool off or until the ambient
is too high. temperature return to normal.
Condensation. Leave the player off for an hour
or so, then try again.
No sound. Volume is in minimum.
Adjust volume to a desired level.
Wiring is not properly Check wiring connection.
connected.
Sound skips. The installation angle is Adjust the installation angle less
more than 30 degrees. than 30 degrees.
The disc is extremely dirty Clean the compact disc, then
or defective disc. try to play a new one.
The operation keys The built-in microcomputer Press the RESET button.
do not work. is not operating properly
due to noise.
The radio does not The antenna cable is not Insert the antenna cable firmly.
work. The radio connected.
station automatic
selection does not The signals are too weak. Select a station manually.
work.

88-C3380-01
WARRANTY
90 DAY / 12 MONTH LIMITED WARRANTY
AUDIOVOX SPECIALIZED APPLICATIONS, LLC (th Company) warrants to th original
r tail purchas r of this product that should this product or any part th r of, und r normal us
and conditions, b prov n d f ctiv in mat rial or workmanship within 90 days from th dat
of original purchas , such d f ct(s) will b r pair d or r plac d (at th Company’s option)
without charg for parts and r pair labor. Aft r th initial 90 day p riod and for a p riod of 12
months from th dat of th original purchas , th Company will supply at no charg a
r plac m nt for any d f ctiv part(s).
To obtain r pair or r plac m nt within th t rms of this warranty, th nd us r should contact
th O.E.M. Th product is to b d liv r d with proof of warranty cov rag ( .g. dat d bill of
sal , and s rial numb r of th unit, and vin#), sp cification of d f ct(s), transportation pr paid,
to an approv d warranty station.
This warranty do s not xt nd to th limination of xt rnally g n rat d static or nois , to th
corr ction of ant nna probl ms, to costs incurr d for r moval or r installation of th product,
or to damag to any tap s, cd’s, dvd’s, sp ak rs, acc ssori s, or l ctrical syst ms.
This warranty do s not apply to any product or part th r of which, in th opinion of th
Company, has b n damag d through alt ration, improp r installation, mishandling, misus ,
n gl ct, or accid nt. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE,
AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE
PRICE PAID BY THE PURCHASER FOR THE PRODUCT.
This warranty is in li u of all oth r xpr ss warranti s or liabiliti s. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE DURATION OF THIS WARRANTY. ANY ACTION FOR
BREECH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF
30 DAYS FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
FOR BREECH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED
WHATSOEVER. No p rson or r pr s ntativ is authoriz d to assum for th Company any
liability oth r that xpr ss d h r in in conn ction with th sal of this product.
Som stat s do not allow limitations on how long an impli d warranty lasts or th xclusion or
limitation of incid ntal or cons qu ntial damag s so th abov limitations or xclusions may
not apply to you. This warranty giv s you sp cific l gal rights and you may also hav oth r
rights which vary from stat to stat .
AUDIOVOX SPECIALIZED APPLICATIONS, LLC.
Visit us at www.asaelectronics.com
