Audison AP 1 User manual

OWNER’S
MANUAL
COMP - COAX - SYSTEM
audison.com
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 1Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 1 31/07/20 11:5731/07/20 11:57

6
English / English
Congratulations on purchasing our product. Your satisfaction is the rst requirement that our products
must meet: the same satisfaction as the one gained by those who long for experiencing the car audio
emotion. This manual has been drawn to provide the main instructions required to install and use the
system properly. However, the range of possible applications is wide; for further information, please
feel free to contact your trusted dealer or our technical support at the email [email protected]
Before installing the components, please carefully read all of the instructions contained in this manual.
Failure to respect these instructions may cause unintentional harm or damage to the product.
1. All components must be rmly secured to the vehicle structure. Do the same when installing any
custom structures you may have built. Conrm your installation is solid and safe. A component
coming loose while driving may cause serious damage to the passengers, as well as to other
vehicles.
2. Always wear protective eyewear when using tools, as splints or product residue may become
airborne.
3. In order to avoid incidental damage, keep the product in the original packaging until you are ready
for the nal installation.
4. Do not carry out any installation inside the engine compartment.
5. Before starting with the installation turn the head unit and all other audio system devices off, avoiding
any possible damage.
6. Make sure that the location you choose to install the components does not interfere with the normal
operation of any mechanical or electrical devices of the vehicle.
7. Do not install loudspeakers where they may be exposed to water, excessive humidity, dust or dirt.
8. Do not install the tweeter without the protective grille.
9. Do not install the components or make cable run close to electronic or mechanical devices of the
vehicle.
10. Be very cautious when drilling or cutting into the vehicle chassis, making sure there are no cables
or structural elements essential to the vehicle underneath or in the selected area.
11. When routing cables, make sure that the cable does not come in contact with sharp edges or near
moving mechanical devices. Make sure that it is rmly attached and protected along its entire
length and its insulation is self-extinguishing.
12. Only use cables with the proper section (AWG) indicated herein.
13. When running the cable through a hole in the vehicles chassis, protect the cable with a rubber ring
(grommet). Be sure to provide proper protection for cables running close to heat-generating devices.
14. Do not run the wires outside of the vehicle.
15. Use top quality cables, connectors and accessories such as found in the Connection catalogue.
16. Warranty certicate: For more information visit the Audison website.
SAFE SOUND
USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO
EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING. SAFETY MUST BE AT
THE FOREFRONT WHILE DRIVING.
Information on electrical and electronic equipment waste (for those European countries which organize the separate
collection of waste)
Products which are marked with a wheeled bin with an X through it can not be disposed of together with ordinary
domestic waste. These electrical and electronic products must be recycled in proper facilities, capable of managing the
disposal of these products and components. In order to know where and how to deliver these products to the nearest
recycling/disposal site please contact your local municipal ofce. Recycling and disposing of waste in a proper way
contributes to the protection of the environment and to prevent harmful effects on health.
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 6Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 6 31/07/20 11:5731/07/20 11:57

19
Owner’s Manual

The Audison products are warranted, under normal functioning conditions, for the
period of time as set by the laws in force, against defects concerning materials or their
manufacturing. The warranty is valid from the date of purchase, certied by receipt.
The warranty is not valid if:
• • the product is damaged by incidents, installations and/or improper use, or by
any other causes not depending on materials or manufacturing defects;
• • the product is modied or tampered with by unauthorised people;
• • its serial number has been altered or cancelled.
While the product is under warranty, defective parts will be repaired or replaced at the
manufacturer’s discretion.
The defective product, along with notication about it, must be returned to the dealer
from which it was purchased together with the warranty certicate duly lled in. If the
product is no longer under warranty, it will be repaired at the current costs.
Elettromedia s.r.l. does not undertake any liability for damages due to transportation.
Elettromedia s.r.l. does not take any responsibility for: costs or loss of prot due to the
impossibility to use the product, other accidental or consequential costs, expenses or
damages suffered by the customer.
Warranty according to laws in force.
For more information visit the Audison website.
Audison Warranty
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 19Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 19 31/07/20 11:5731/07/20 11:57

20
AP 1 AP 1P
APCX TW
Capacitor
Washer Screws
Adapter
AP 6.5
Optional
APG 6.5
AP 6.5 Ω2
Optional
APG 6.5
AP 8
APG 8
APX 570 APX 690
APG 690
APX 6.5
Optional
APG 6.5
AP 5
Optional
APG 5
AP 4
Optional
APG 4
APK 165
AP 1
AP 6.5
APG 6.5
APCX TW
APK 130
AP 1
APCX TW
APG 5
AP 5
/ Съдържание на опаковката /包裝內容包裝內容 / 内装物内装物/Sadržaj pakiranja / Obsah
balení / Pakkens indhold /Pakket inhoud / Packaging contents / Pakendi sisu / Pakkauksen
sisältö /
Contenu de l’emballage / Verpackungsinhalt / Περιεχόμενα συσκευασίας /
/A csomag tartalma / Isi kemasan / Contenuto dell’imballo / パッケージ内容パッケージ内容//패키지내용패키지내용 /
Lepakojuma saturs / Pakuotės turinys / Innhold // Zawartość opakowania
/Conteúdo da embalagem
/ Conținutul pachetului /Комплектация / Obsah balenia /
Vsebina embalaže
/ Contenido del embalaje /Förpackningens innehåll / ส่วนประกอบผลิตภัณฑส่วนประกอบผลิตภัณฑ
/Paket içeriği
AP 2 MV
APX 5
Optional
APG 5
APX 4
Optional
APG 4
AP 690
APG 6.5
Optional
AP 6.5P
AP 1P FP 2
FP 3/4
APCX P 2T
Gasket
T/MB
T/MB
GM
GM
T
T
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 20Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 20 31/07/20 11:5831/07/20 11:58

21
Owner’s Manual
APK 163 AP 1
AP 4 APCX MD
APCX WF
APCX TW 3W
AP 6.5
APG 6.5
APG 4
APK 570
AP 570
AP 1
APCX TW 570
APK 690
AP 690
AP 1
APCX TW 690
APK 165P
FP 3/4 APCX P 2W
AP 6.5P
APG 6.5
Optional
AP 1P
FP 2
APCX P 2T
AK 6.5 C2
APG 6.5
AP 1 C2
APCX WF C2
APCX TW C2
Optional
AP 6.5 C2
APK 165 Ω2
AP 1
AP 6.5 Ω2
APG 6.5
APCX TW Ω2
APCX WF Ω2
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 21Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 21 31/07/20 11:5831/07/20 11:58

22
FP2 - Faceplate 2
A
A
A
A B C D
AP 1 44 38,5 20 8,5 mm
1.7 1.5 0.78 0.33 in.
AP 1 C2 43,7 40,8 20,6 10 mm
1.72 1.61 0.81 0.39 in.
B
D
C
B
B
D
D
C
C
/ Размер / 尺寸尺寸 /规格规格 /Veličina /Velikost /Størrelse /Afmetingen / Size /
Suurus / Koko / Dimensions / Größe /Διαστάσεις / / Méretek / Ukuran /
Ingombro / サイズサイズ /크기크기 /Izmērs /Dydis / Størrelse / / Wielkość / Dimensão /
Dimensiuni / РазмерРазмер /Rozmery /Velikost /Tamaño /Storlek / ขนาดขนาด /Ebat
FP1 - Faceplate 1
AP 1P
AP 1 - AP 1 C2
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 22Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 22 31/07/20 11:5831/07/20 11:58

23
Owner’s Manual
A A3B C D
AP 1P FP1 43,7 - 40,8 21,8 12,2 mm
1.72 - 1.61 0.86 0.48 in.
AP 1P FP2 43,7 - 40,8 21,8 11,2 mm
1.72 - 1.61 0.86 0.44 in.
AP 1P FP3 40,8 46,8 40,8 17,7 19,3 mm
1.61 1.84 1.61 0.7 0.76 in.
AP 1P FP4 40,8 - 40,8 19,3 13,8 mm
1.61 - 1.61 0.76 0.54 in.
FP3 - Faceplate 3
FP4 - Faceplate 4
A
A3
A
B
B
D
C
C
D
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 23Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 23 31/07/20 11:5831/07/20 11:58

24
/ Монтаж / 安裝安裝/安装安装 / Montaža / Montáž / Montering /Montage / Mounting
/ Paigaldamine / Kiinnitys / Montage / Montage / Τοποθέτηση / / Beszerelés
/Pemasangan / Montaggio /マウントマウント /마운트마운트 /Uzstādīšana / Montavimas /
Montering / / Montaż / Montagem / Montaj / МонтажМонтаж / Montáž / Namestitev /
Montaje / Montering / การใส่ลำาโพงการใส่ลำาโพง /Montaj
AIF - Any Installation Faceplate
Dome
How to disassembly FP1, FP2,
FP3, FP4 faceplates on AP 1P
UNLOCK
2
3
Pay attention: not to touch /
damage the tweeter dome
during faceplate assembly /
disassembly.
LOCKED
1
LOCK
UNLOCK
Factory Default
AP 1P + FP1
AP 1P
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 24Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 24 31/07/20 11:5831/07/20 11:58

25
Owner’s Manual
How to assembly FP1, FP2, FP3, FP4 faceplates on AP 1P
FP1
AP 1P
AP 1P FP1
AP 1P FP2
AP 1P FP3
AP 1P FP4
AP 1P
AP 1P
AP 1P
FP2
FP3
FP4
1
2
Optional
cutting
LOCK
UNLOCK
LOCK
UNLOCK
2
2
2
2
1
1
1
1
FP4
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 25Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 25 31/07/20 11:5831/07/20 11:58

26

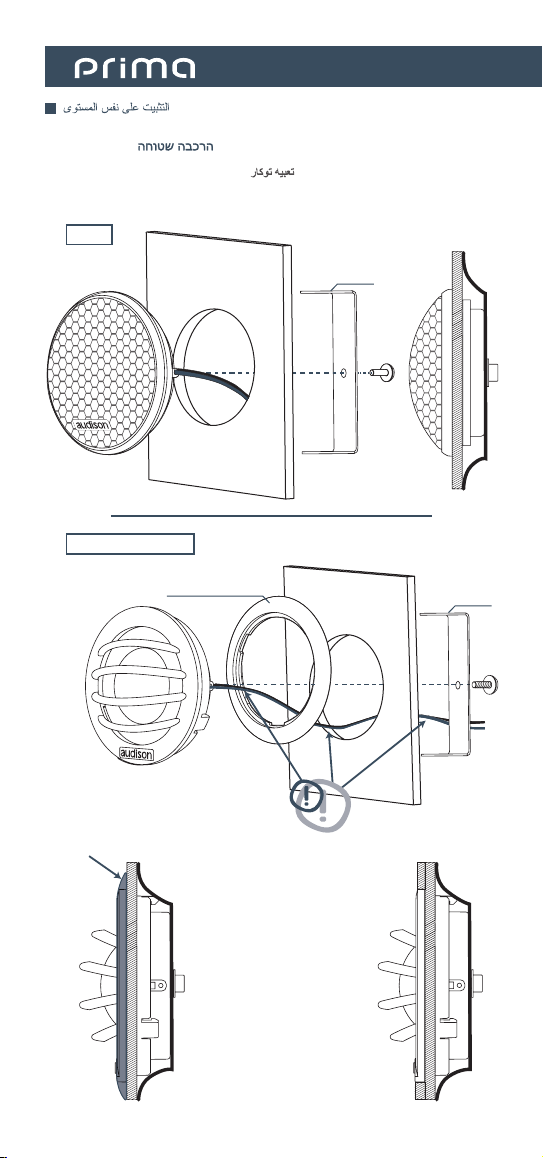

/ Скрит монтаж / 沖洗安裝沖洗安裝/嵌入装置嵌入装置 / Razinska ugradnja
/Montáž pod omítku / Flush montering /Inbouwmontage / Flush mounting /
Süvispaigaldus / Asennus pinnan tasoon /Montage encastré / Einbau / Χωνευτή
τοποθέτηση / /Szintbe szerelés / Pemasangan di dinding langit-langit
/ Montaggio incassato /フラッシュマウントフラッシュマウント /플러시마운트플러시마운트 / Iedziļinātā uzstādīšana
/ Rėmelio montavimas / Innfelling // Montaż płaski /Montagem embutida
/Montaj incastrat /СкрытыймонтажСкрытыймонтаж / Zapustená montáž /Prilegajoča namestitev /
Montaje empotrado /Spolmontering /การใส่ลำาโพงในแนวราบการใส่ลำาโพงในแนวราบ/Gömme montaj
Spring
Spring
Flush
(optional munting)
With FLUSH Without FLUSH
Note: Faceplate 1 & 2 also available
for install with AP 1 P
AP 1
AP 1 C2 - AP 1P
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 26Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 26 31/07/20 11:5831/07/20 11:58

27
Owner’s Manual
Cushion Tape
Cushion Tape
/ Монтаж с болтове Монтаж с болтове / 楔形安裝楔形安裝 / 楔形件安装楔形件安装 / Montaža s klinom /
Zaklínění / Wedge montering / Montage op hellende steun / Wedge mounting /
Kiilpaigaldus / Kiila-asennus / Montage avec cale / Montage der Keile / ΤοποθέτησηΤοποθέτηση
σεσυρτήβάσησεσυρτήβάση/ / Beszerelés ferdén / Pemasangan datar / Montaggio
con supporto inclinato / ウェッジマウントウェッジマウント / 웨지 마운트웨지 마운트 /Uzstādīšana ieķīlējot //
Tvirtinimo pleištų montavimas / Ekstern montering / / Montaż klinowy
/ Montagem de cunha / Montaj de xare / Клиновой монтажКлиновой монтаж /Delená montáž /
Namestitev z zagozdo / Cuña de montaje / Kilmontering / งัดการใส่ลำาโพงงัดการใส่ลำาโพง / Eğimli
destek montaj
X1 66mm (2.6 in.)
X2 91mm (3.58 in.)
X3 116mm (4.57 in.)
/ Фабричен монтаж / 工廠切割安裝工廠切割安裝/断流器安装断流器安装 / Montaža u tvorničkom
otvoru /Montáž do výřezu z výroby / Fabriksudskæringsmontering / Factory cut-
out kiinnitysjärjestelmä
/ Factory cut-out mounting /Tehase väljalõikega paigaldamine
/ Factory cut-out kiinnitys /Découpage et montage en usine / Montage der vom
Werk gefertigten Ausschnitte / Εργοστασιακή τοποθέτηση / /Beszerelés
gyárilag kialakított helyre / Pemasangan potongan pabrik /Montaggio in predisposizione /
出荷時カットアウトマウント出荷時カットアウトマウント /공장에설치공장에설치 / Gamyklinio išjungiklio montavimas /Montaż
w otworach fabrycznych / Montagem na fábrica / Instalarea de prol din fabrica /МонтажМонтаж
позаводскомупозаводскому профилюпрофилю/Montáž do výrezu z výroby / Namestitev s tovarniškim izrezom /
Recorte en fábrica / Fabriksutskuren montering /ที่ตัดการใส่ลำาโพงที่ตัดการใส่ลำาโพง/ Fabrika kesiğine montaj
Note: 2
Optional Cutting
Note: Faceplate 1 & 2 also available
for install with AP 1P.
Note: 1. Faceplate 1, 2 and 3/4 also available
for install with AP 1 P.
2. When using faceplate 3/4 pay
attention to align the three pins with
three seats on mounting accessory.
AP 1 C2 - AP 1P
AP 1 - AP 1 C2 - AP 1P
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 27Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 27 31/07/20 11:5831/07/20 11:58

28
/ Предложени дължина и ъгъл / 建議長度和角度建議長度和角度/建议长度及建议长度及
角度角度 /Preporučena duljina i kut nagiba /Požadovaná délka a úhel / Foreslået længde
og vinkel /Voorgestelde lengte en hoek /Suggested Length and Angle /Soovitatav
pikkus ja nurk /Suositeltu pituus ja kulma /Longueur et angle recommandés /
Empfohlene Länge und Winkel / Προτεινόμενο μήκος και γωνία / /
Javasolt hossz és szög /Panjang dan sudut terbaik / Distanze e angolazione suggeriti /
長さ・角度案長さ・角度案 /권장길이및앵글권장길이및앵글 / Ieteicamais garums un lenķis /Rekomenduojamas
ilgis ir pakreipimo kampas /Foreslått lengde og vinkel //
Sugerowana długość i kąt /Sugestão de extensão e ângulo / Distanța recomandată și
unghiul de instalare /РекомендуемоерасстояниеиуголустановкиРекомендуемоерасстояниеиуголустановки/Odporúčaná
dĺžka a uhol /Predlagana dolžina in nagib /Longitud y ángulo sugeridos / Föreslagen
längd och vinkel /ความยาวและมุมที่แนะนำาความยาวและมุมที่แนะนำา /Önerilen uzunluk ve açı
Option 1
DASHBOARD
Option 2
A-PILLAR
AP 2 MV without adapter
AP 1 - AP 1 C2 - AP 1P
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 28Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 28 31/07/20 11:5831/07/20 11:58

29
Owner’s Manual
A
AE F
A3
A3
A D
B
C
A A3B C D E F U V V1V2
AP 2 MV
without adapter
58,4 69,5 51 37 33,5 - - 64 -3,5 4,5 mm
2.3 2.74 2.01 1.46 1.32 - - 2.52 -0.14 0.18 in.
AP 4 102 130 93 43 41 150 26 117 -7 5 mm
45.12 3.66 1.7 1.62 5.9 1.09 4.6 -0.27 0.2 in.
AP 5 130 150 119 51,5 48,5 174 28 134,5 -8,1 5,2 mm
5.12 5.9 4.68 2.03 1.9 6.85 1.1 5.3 -0.32 0.2 in
AP 6.5 165 - 141 60 56 193 30 156 5- - mm
6.5 - 5.55 2.36 2.2 7.6 1.18 6.14 0.2 - - in.
AP 6.5P 165 - 141 75 66,5 193 30 156 5- - mm
6.5 - 5.55 2.95 2.62 7.6 1.18 6.14 0.2 - - in.
AP 6.5 C2
AP 6.5 Ω2
165 - 141 77,3 58,5 193 30 156 5- - mm
6.5 - 5.55 3.04 2.3 7.6 1.18 6.14 0.2 - - in.
AP 8 209 - 174 70 66 234 26 196 -85 mm
8.23 - 6.85 2.75 2.6 9.21 1.02 7.71 -0.31 0.2 in.
APX 4 102 130 93 43 41 150 26 117 -7 5 mm
45.12 3.66 1.7 1.62 5.9 1.09 4.6 -0.27 0.2 in
APX 5 130 150 119 51 48 174 28 134,5 -8,1 5,2 mm
5.12 5.9 4.68 2 1.89 6.85 1.1 5.3 -0.32 0.2 in
APX 6.5 165 - 141 61 57 193 30 156 5- - mm
6.5 - 5.55 2.4 2.24 7.6 1.18 6.14 0.2 - - in
V
U
/ Размер / 尺寸尺寸 /规格规格 /Veličina /Velikost /Størrelse /Afmetingen / Size /
Suurus / Koko / Dimensions / Größe /Διαστάσεις / / Méretek / Ukuran /
Ingombro / サイズサイズ /크기크기 /Izmērs /Dydis / Størrelse / / Wielkość / Dimensão /
Dimensiuni / РазмерРазмер /Rozmery /Velikost /Tamaño /Storlek / ขนาดขนาด /Ebat
V1
V2
AP 2 MV - AP 4 - AP 5 - AP 6.5 - AP 6.5P - AP 6.5 C2
AP 6.5 Ω2 - AP 8 - APX 4 - APX 5 - APX 6.5
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 29Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 29 31/07/20 11:5831/07/20 11:58

30
T/MB
GM GM
T/MB
T
T
A1
U1
U2
A2B2
D
C
B1
A1A2B1B2C D U1U2V1V2
AP 570 221 140 182 126 67 63 205 165,8 10 6,5 mm
8.7 5.5 7.17 4.96 2.64 2.48 8.07 6.52 0.39 0.25 in.
APX 570
221 140 182 126 67 63 205 165,8 10 6,5 mm
8.7 5.5 7.17 4.96 2.64 2.48 8.07 6.52 0.39 0.25 in.
A B C C1D V
AP 2 MV 77 50,5 36,8 13 31 3mm
3.03 1.99 1.45 0.51 1.22 0.12 in.
V1 -V2
AP 2 MV
AP 570 - APX 570
B
C1
D
C
AV
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 30Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 30 31/07/20 11:5831/07/20 11:58

31
Owner’s Manual
U
2
A1
B1
E1
A2B2
D
C
E2
F
A1A2B1B2C D U2V1V2E1E2F
AP 690 238 162 222 151 86 81 205 8,8 5,6 - - - mm
9.37 6.38 8.74 5.95 3.39 3.19 8.07 0.34 0.22 - - - in.
APX 690
238 162 222 151 96 81 205 8,8 5,6 276 202 25 mm
9.37 6.38 8.74 5.95 3.78 3.19 8.07 0.34 0.22 10.86 7.95 0.98 in.
V1 -V2
AP 690 - APX 690
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 31Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 31 31/07/20 11:5831/07/20 11:58

32
/ Монтаж / 安裝安裝/安装安装 / Montaža / Montáž / Montering /Montage / Mounting
/ Paigaldamine / Kiinnitys / Montage / Montage / Τοποθέτηση / / Beszerelés
/Pemasangan / Montaggio /マウントマウント /마운트마운트 /Uzstādīšana / Montavimas /
Montering / / Montaż / Montagem / Montaj / МонтажМонтаж / Montáž / Namestitev /
Montaje / Montering / การใส่ลำาโพงการใส่ลำาโพง /Montaj
Option 1
DASHBOARD
Option 2
A-PILLAR
AP 2 MV with adapter
AP 2 MV without adapter
T/MB
T/MB
GM
GM
T
T
Use 4 Screws to
assembly with
adapter
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 32Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 32 31/07/20 11:5831/07/20 11:58

33
Owner’s Manual
AP 2 MV
Toyota
AP 2 MV
Toyota / Mercedes Benz
AP 2 MV
General Motors /
Chevrolet /Bose
AP 2 MV
Universal
T
T
GM
GM
1
2
3
4
T/MB
T/MB
A: mounting Screws not included.
B: Use gasket and rubber washer where necessary.
A
A
A
B
B
B
B
B
B
B
B
Remove extra
mounting
brackets
B
Remove extra
mounting
brackets
B
Remove extra
mounting
brackets
B
Remove extra
mounting
brackets
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 33Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 33 31/07/20 11:5831/07/20 11:58

34
*Grille optional for: APX 4 - APX 5 - APX 6.5 - AP 6.5P - AP 6.5 C2.
*
AP 570 - AP 690
APX 570 - APX 690
AP 4 - AP 5 - AP 6.5 - AP 6.5P - AP 6.5 Ω2 - AP 8 - APX 4
APX 5 - APX 6.5
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 34Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 34 31/07/20 11:5831/07/20 11:58

35
Owner’s Manual
I
H
G
G H I
APCX TW
APCX TW C2
APCX TW 3W
APCX TW Ω2
APCX TW 570
APCX TW 690
46,5 37,5 20,1 mm
1.83 1.48 0.8 in.
APCX WF
APCX P 2W
APCX WF C2
APCX MD
APCX P 2T
APCX WF Ω2
72 45,5 23 mm
2.83 1.8 0.9 in.
/ Размер / 尺寸尺寸 /规格规格 /Veličina /Velikost /Størrelse /Afmetingen / Size /
Suurus / Koko / Dimensions / Größe /Διαστάσεις / / Méretek / Ukuran /
Ingombro / サイズサイズ /크기크기 /Izmērs /Dydis / Størrelse / / Wielkość / Dimensão /
Dimensiuni / РазмерРазмер /Rozmery /Velikost /Tamaño /Storlek / ขนาดขนาด /Ebat
Cushion Tape
Cable Tie
APCX TW - APCX MD - APCX WF - APCX 3W - APCX TW Ω2 -
APCX WF Ω2 - APCX 570 - APCX 690 - APCX TW C2
APCX WF C2 - APCX P 2T - APCX P 2W
APCX
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 35Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 35 31/07/20 11:5831/07/20 11:58

36
3
AP 1P
AMP
APCX P 2T
800 mm
300 mm
/ Свързване на системата / 連接系統連接系統 /连接系统连接系统 /Priključivanje
sustava
/ Připojení systému / Forbinding af systemer / Aansluiten van de systemen /
Connecting
the systems /Süsteemi ühendamine /Järjestelmän kytkeminen / Branchement du
système /
System anschließen /Σύνδεση του συστήματος / /A rendszer
csatlakoztatása /Menghubungkan sistem /Collegamenti dei ltri /システムの接続システムの接続 /
시스템연결시스템연결 / Sistēmas pievienošana / Sistemos sujungimas /Oppkobling av systemet
/ /Podłączając system /Ligar o sistema / Conexiunea sistemului
/Подключение системы / Pripojenie systému /Priključevanje sistema /Conexión
del sistema /Anslut systemet /กำาลังเชื่อมต่อระบบกำาลังเชื่อมต่อระบบ /Sistemin bağlanması
ACTIVE FILTER
HI-PASS @ 250 Hz -12 dB Oct.
250
PASSIVE FILTER
ACTIVE FILTER
Capacitor
82 µF - 100 V
(included)
AP 2 MV
AP 1P
Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 36Esec_JBL007_Owner's manual Prima Speaker_Rev 20D.indd 36 31/07/20 11:5831/07/20 11:58
