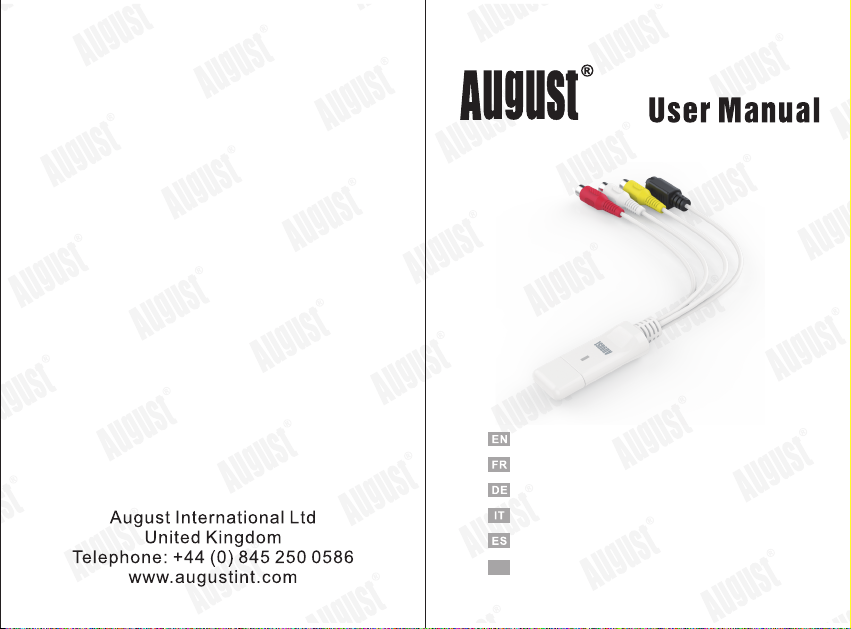

August VGB300 User manual

VGB300
USB Video Capture Card
USB Video Capture-Karte
Carte de Capture Vidéo USB
Scheda USB di Acquisizione Video
Tarjeta Capturadora de Video USB
PL Karta przechwytująca USB

1
2
2
6
18
19
3. Software Installation
1. Introduction
4. OBS
5 Troubleshooting

PC
Notebook
Camcorder
AV Cable
VHS
DVD
S-Videoin
Audioin(R)
Audioin(L)
Videoin
The VGB300 video capture card creates digital videos on
your Hard Drive. With S-Video and RGB In, you can
capture and edit footage from your camcorder, VCR, DVD
player and other video device. The enclosed software can
convert the recorded file to FLV/ MP4/ MOV/ MKV/ TS.
Capture video from VHS, camcorder or any other analogue
video source
Converts Files to flv / mp4 / mov /mkv / ts
Burn your video files onto DVDs or save file on USB or Hard Drive
Compatible with Video Source in NTSC PAL formats
Plug & Play Compatible with Mac OS, Windows 10 / 8 /
7 / Vista / XP, Linux
Operating System: Windows XP/ 2000/ 7/ 8/ 10/ Vista,
MAC OS
CPU: Intel Pentium 4 or higher
RAM: 256MB (512MB or above for editing)
Sound Card, USB 2.0 free port
HD: 1GB hard disk space for program installation, 4GB
or above hard disk space for video capture and editing
VGB300
Av multi-cable
SCART to RCA
User Manual
3. Software Installation
General Public License
OBS is open-source software developed by volunteer
contributors around the world in their free time. OBS is
distributed under the GPLv2 license. The summary of that
license is that OBS is free for anyone to use, for any reason.
OBS and OBS Studio are created and maintained by Jim.
Development by OBS Studio Contributors.
Online streaming regulations may vary on different
streaming service providers and countries. Ensure to check
the terms of use and local law or regulation.
Warning: Streaming or recording for any illegal purpose,
unauthorized contents, or in violation of any local, state,
national, or international law or regulation are strictly
prohibited.

Step 1: Download the software.
Use the link below to go to the software download page of
OBS (Open Broadcaster Softer). https://obsproject.com/
Click on your operating system to download the right version
of the OBS.
Once downloaded, run the setup application. Follow on
screen instruction to complete the software installation.
Step 2: Click “Next”
Step 3: Click “I Agree” to accept license agreement.
Step 4: Click “Next” to continue or “Browse” to
choose a destination folder.

Step 5: Click “Install” to install the software.
Step 6: Please wait whilst OBS installs.
Step 7: Click “Finish” to complete the installation.
Step 8: The OBS icon will now be on your desktop.
4. OBS
Note：If you need further information, please
visit the Help section on OBS’ website.
4.1 Setting
To use the VGB300 in OBS, please follow steps below
Step 1: Click on ‘+’ under the ‘Sources’ section.

Step 2: Select ‘Video Capture Device’.
Step 3: Change the device’s name or use the default name,
then click on ‘OK’ to continue.
Note：
As a few examples, select Game Capture if you're capturing a game,
Window for non-game applications, or Video Capture Device for a
webcam or capture card.
Laptop users: If your game / window / display capture sources still
show a black screen, please refer to the link below:
https://obsproject.com/w iki/Laptop-Troubleshooting Step 4: The “Properties” window pops up or you could right
click the source to open the “Properties” window.

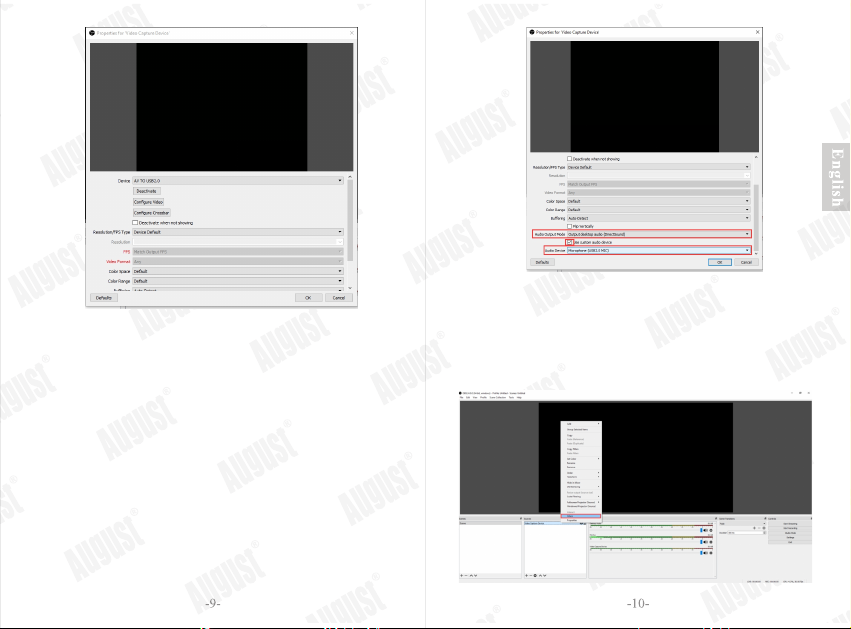

Step 5: Select ‘AV TO USB2.0’ in the ‘Device’. You
can set input resolution manually if you Select
‘Custom’ in the ‘Resolution/ FPS Type’.
Note: If select ‘YUY2’ in the ‘Video Format’, the
resolution should be set to 480x320. If set any other
resolution, please select ‘MJPEG’ or ‘ANY’ in the
‘Video Format’.
Step 6: Select ‘Output desktop audio (DirectSound)’ in the
‘Audio Output Mode’, then tick ‘Use custom audio
device’. Select ‘Microphone (USB 2.0 MIC)’ in the
‘Audio Device’, then click on ‘OK’ to continue.

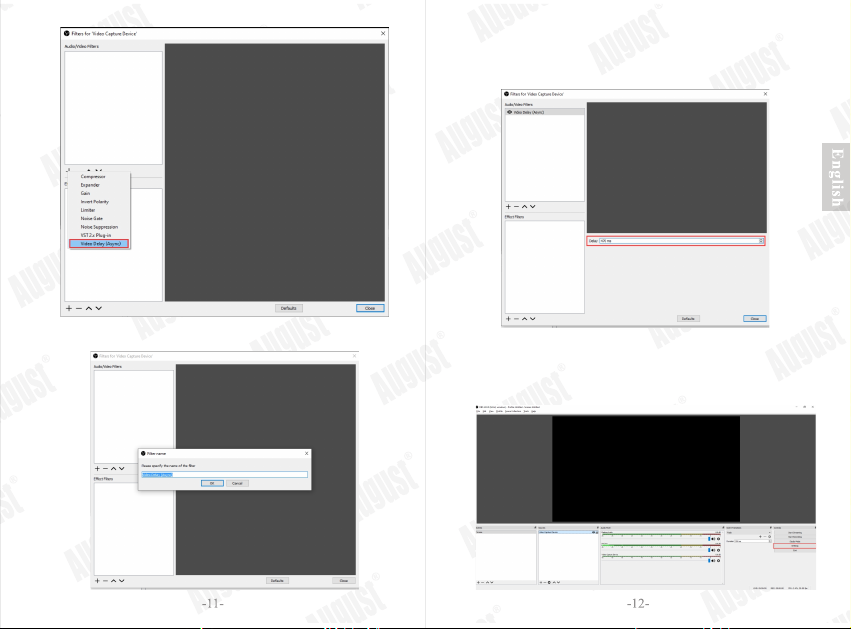

Step 7: In order to synchronize the audio and video,
you need to set the video delay. Right click on
"Video Capture Device" and select "Filter". In
the pop-up window, click "+" and select "Video
Delay (Async)". Type the name of your filter in
the new pop-up window, then click on ‘OK’.

Step 8: Enter 470ms in ‘Delay’, then press ‘Close’ to
close the window.
Note: you need to adjust the value according to the actual
situation until you find the audio and video synchronization.

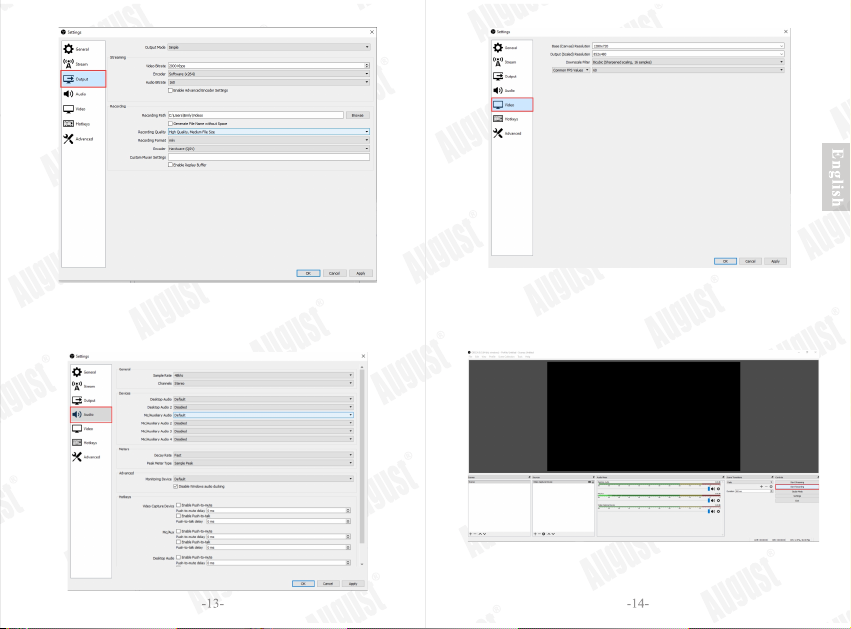

Step 9: Click ‘Settings’ to open the ‘Settings’ window. Click
the ‘Output’, then you can set the settings of output,
such as Recording Path and Recording Format.
Click ‘OK’.

Step 10: Click the ‘Audio’ or ‘Video’, then you can set the
settings of Audio or Video as you need. Click ‘Ok’.
4.2 Recording
Step 1: Click on the ‘Start Recording’ to start recording.

-16-
4.3 Streaming
Step 1: Click ‘Settings’ to open the ‘Settings’ window. Click the
‘Streaming’, then enter according information for
streaming. Click on ‘OK’.
Step 2: Click on the ‘Start Streaming’ to start streaming.
4.4 Quick Start Guide
Step 1：Run the auto-configuration wizard
When you load OBS Studio for the first time you should
see the Auto-Configuration Wizard. If you're new to OBS
or just want to get started as quickly as possible, follow the
steps to get good starting settings for your setup. If you only
see the main OBS Studio window, you can access the
Auto-Config Wizard in the Tools menu at the top. This
wizard will automatically test your system and attempt to
find settings that your PC can handle. This includes streaming
or recording, resolution, bitrate, encoder, streaming provider
and more. You can always modify the settings manually later.

-18-
-17-
5 Troubleshooting
5.1 The captured images and sounds are out of sync.
Refer to the 4.1of user manual to set the video delay.
5.2 There a black border on the recorded video.
Set ‘Base (Canvas) Resolution’ as close as possible to
‘Output (Scaled) Resolution’ in Settings -> Video.
5.3 I want use other capture software?
VGB300 support mainstream capture software, such as:
Potplayer, XSplit, AMCap and VLC. Refer to the relevant
software instructions for specific operation methods.
Step 2. Set up your audio devices
macOS users: If you're on macOS, you'll need an extra
app to capture desktop audio. This is due to limitations
in macOS that provide no direct capture methods for
desktop audio devices.For more information, please
refer to the link below:
https://obsproject.com/forum/res ources/os-x-capture-
audio-with-ishowu-audio-capture.505/
