Aura CARNABY ABFCAR3021 Series User manual

CARNABY Bathroom Vanity
ABFCAR3021-XX
Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
3012"
2178"
21"
18"
26"
58"
3012"
21"
26"
58"
12"
1218"
1938"
2178"

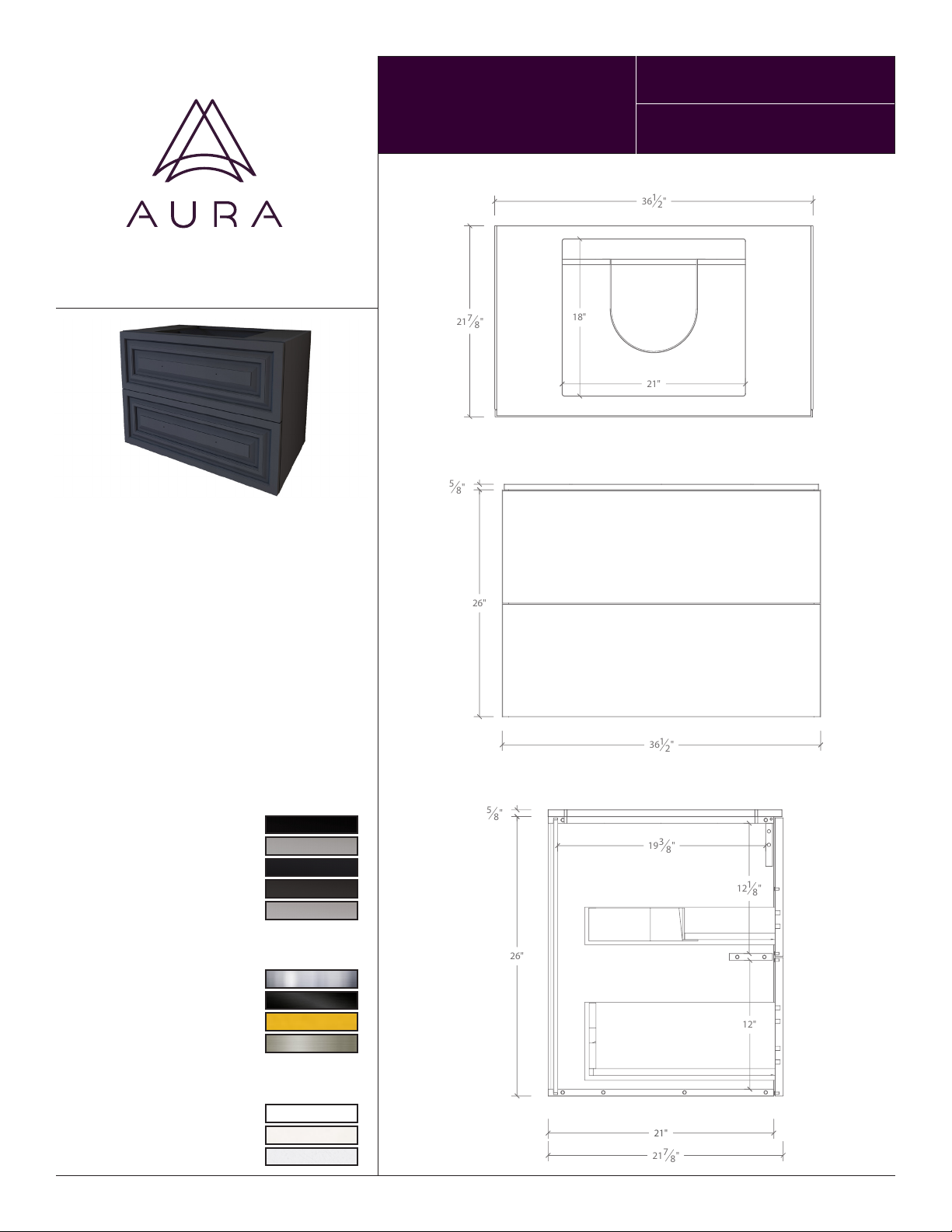

TOP VIEW
FRONT VIEW
SIDE VIEW
DESCRIPTION
• Made in Canada
• Soft Close Drawers w/ Adjustments
• Matte Finish
• Fingerprint resistant side gables
• Charcoal interior
• Reveal Sold Seperately
DIMENSIONS
• Width: 30 ⁄”
• Depth: 21 ⁄"
• Height: 26 ⁄"
AVAILABLE FINISHES
• AN: Anthracite
• AS: Ashe
• AZ: Azura
• LS: Lavastone
• SW: Shadow White
AVAILABLE HANDLE & REVEAL FINISHES
• Chrome
• Black
• Gold
• Brushed Nickel
AVAILABLE COUNTERTOPS
• Urban - White
• Exelis - Blanco Zeus
• Exelis - Eternal Saturio

CARNABY Bathroom Vanity
ABFCAR3621-XX
Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
2178"
3612"
18"
21"
3612"
26"
58"
21"
26"
58"
12"
1218"
1938"
2178"
TOP VIEW
FRONT VIEW
SIDE VIEW
DESCRIPTION
• Made in Canada
• Soft Close Drawers w/ Adjustments
• Matte Finish
• Fingerprint resistant side gables
• Charcoal interior
• Reveal Sold Seperately
DIMENSIONS
• Width: 36 ⁄”
• Depth: 21 ⁄"
• Height: 26 ⁄"
AVAILABLE FINISHES
• AN: Anthracite
• AS: Ashe
• AZ: Azura
• LS: Lavastone
• SW: Shadow White
AVAILABLE HANDLE & REVEAL FINISHES
• Chrome
• Black
• Gold
• Brushed Nickel
AVAILABLE COUNTERTOPS
• Urban - White
• Exelis - Blanco Zeus
• Exelis - Eternal Saturio

CARNABY Bathroom Vanity
ABFCAR4821-XX
Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
2178"
4812"
21"
18"
26"
58"
4812"
21"
26"
58"
12"
1218"
1938"
2178"
TOP VIEW
FRONT VIEW
SIDE VIEW
DESCRIPTION
• Made in Canada
• Soft Close Drawers w/ Adjustments
• Matte Finish
• Fingerprint resistant side gables
• Charcoal interior
• Reveal Sold Seperately
DIMENSIONS
• Width: 48 ⁄”
• Depth: 21 ⁄"
• Height: 26 ⁄"
AVAILABLE FINISHES
• AN: Anthracite
• AS: Ashe
• AZ: Azura
• LS: Lavastone
• SW: Shadow White
AVAILABLE HANDLE & REVEAL FINISHES
• Chrome
• Black
• Gold
• Brushed Nickel
AVAILABLE COUNTERTOPS
• Urban - White
• Exelis - Blanco Zeus
• Exelis - Eternal Saturio

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Bathroom Vanity
ABFCARXXXX
CARNABY
Installation
Manual
TWO PERSONS
REQUIRED

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 2
Bathroom Vanity
ABFCARXXXX
CARNABY
GENERAL INSTRUCTIONS
• Read this guide carefully and completely before
proceeding.
• It is recommended that you wear safety glasses
during the installation.
NOTICE
• For best results, we recommend that a licensed,
professional plumber installs this unit.
• Please read over these instructions thoroughly
before beginning installation.
• Make sure that you have all tools and supplies
needed to complete the installation.
• Please check local building code.
• Keep receipts (proof of purchase and place of
purchase) for this product. The receipt is required
should it be necessary to request warranty parts.
MAINTENACE & CARE
• Do not use any abrasive chemical or corrisve
powders, detergents, window cleans, disinfectants
or any other strong cleaners on your product as
they will destroy the finished and therefore void the
warranty.
MATERIALS AND TOOLS
REQUIRED
MATERIALS INCLUDED
Level Drill Pencil
Stud Finder Screw Driver
3X #8 2.5” Screw for
Mounting Z Clip to wall
3X #14 3” Screw for
securing cabinet to wall

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 3
Bathroom Vanity
ABFCARXXXX
CARNABY
PREPARATION
Your new cabinets can be hung
directly onto a suspension rail making
them easier to install and adjust.
It’s important to make sure your
suspension rail is straight and level,
and to secure it with the right screw
type for your wall.
Check that your wall is strong enough
to hang your suspension rail and
cabinets. Depending on your wall
material, it’s best to install your rail
onto a stud or a support beam. An
electronic stud finder can be helpful.
1A.
ATTENTION!
ATTENTION!
REMOVE ANY OBSTRUCTIONS
Double-check your plumbing is where you want it and ts with your
layout plan.
1A

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 4
Bathroom Vanity
ABFCARXXXX
CARNABY
C
E
N
T
E
R
S
T
U
D

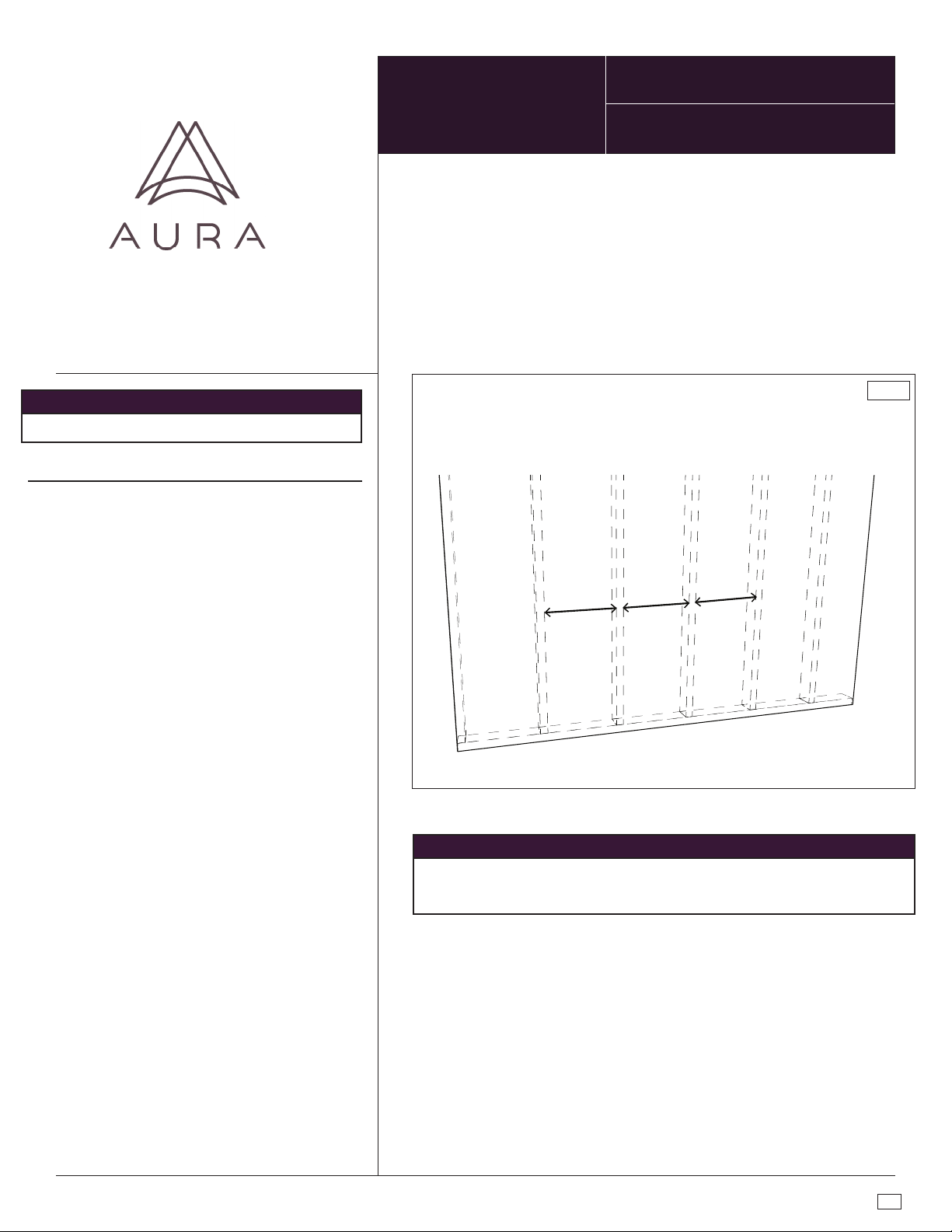

MOUNTING
Mount the suspension rails
Use level to check that the rail is level.
Fasten your rails. Make sure you’ve
found suitable points in the wall where
the rails can be fastened and that the
rails are level before drilling.
3A.
3A.
3A
ATTENTION!
USE 3X #8 2.5” SCREW TO MOUNT CLIP TO WALL

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 5
Bathroom Vanity
ABFCARXXXX
CARNABY
ATTACHING BASE TO RAIL
Easily lower the cabinet onto the rail until the
cabinet’s attached rail piece slides into the wall
rails slot.
SEE DIAGRAM 4A and 4B
4A.
4A
4B

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 6
Bathroom Vanity
ABFCARXXXX
CARNABY
2 1/2”
SECURE THE BASE
Drill a hole through the back of the cabinet into
the wall rougly where indicted on diagram 5A.
Then secure with a screw after into the wall
diagram 5B.
5A.
5A
5B
ATTENTION!
USE 3X #14 3” SCREW TO SECURE CABINET TO THE WALL

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 7
Bathroom Vanity
ABFCARXXXX
CARNABY

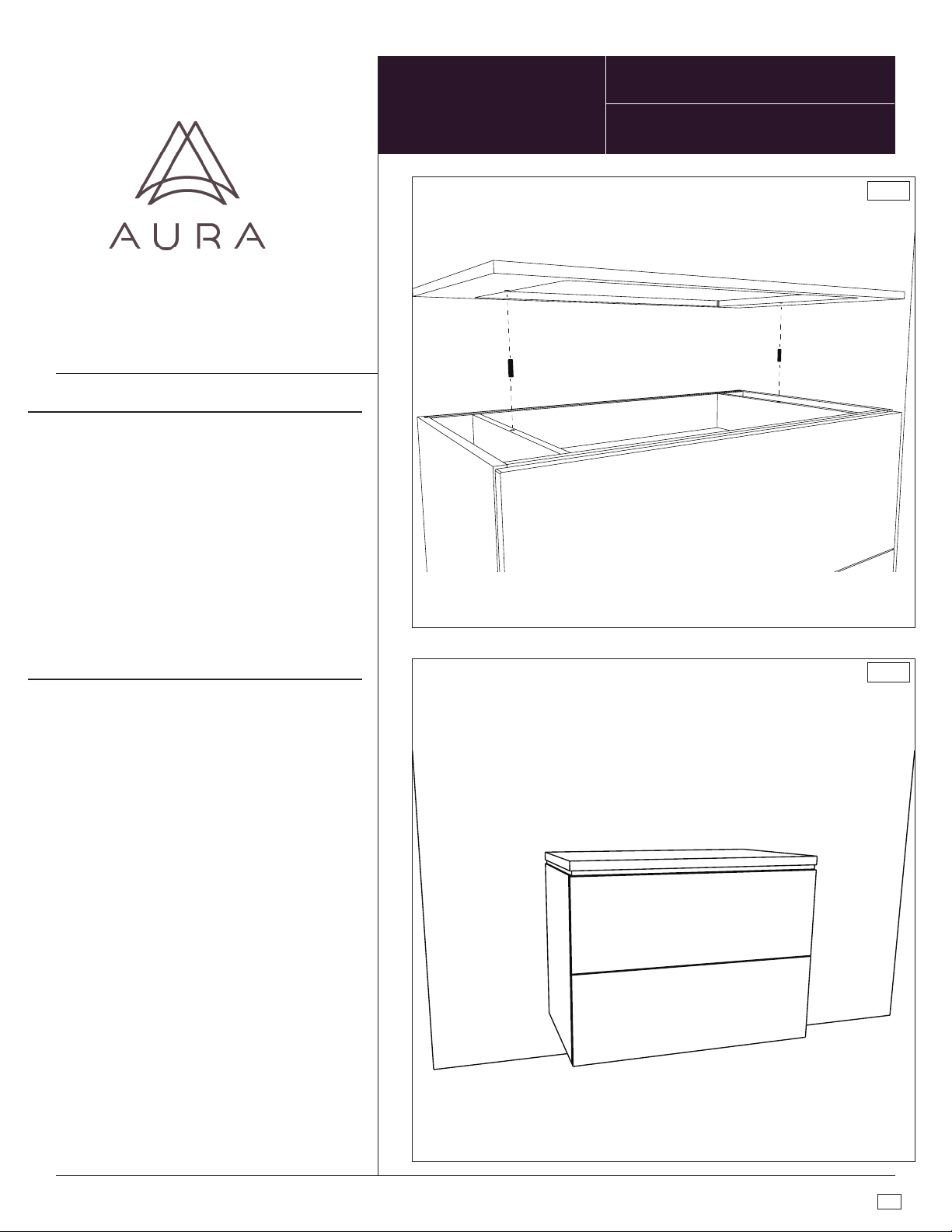

ATTACH THE REVEAL
PLACE COUNTERTOP
Place a wooden Dowel(included) into the bottom
of the reveal. The bottom of the reveal will have
a hole on each side to accomidate the dowels.
Gently place it atop the vanity making sure to
align the holes. It should sit snug and securily.
Carefully place the countertop atop the base
after the reveal has been secured. Adjust as
needed to make sure it is evenly positioned.
6A.
7A.
6A
7A

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 8
Bathroom Vanity
ABFCARXXXX
CARNABY

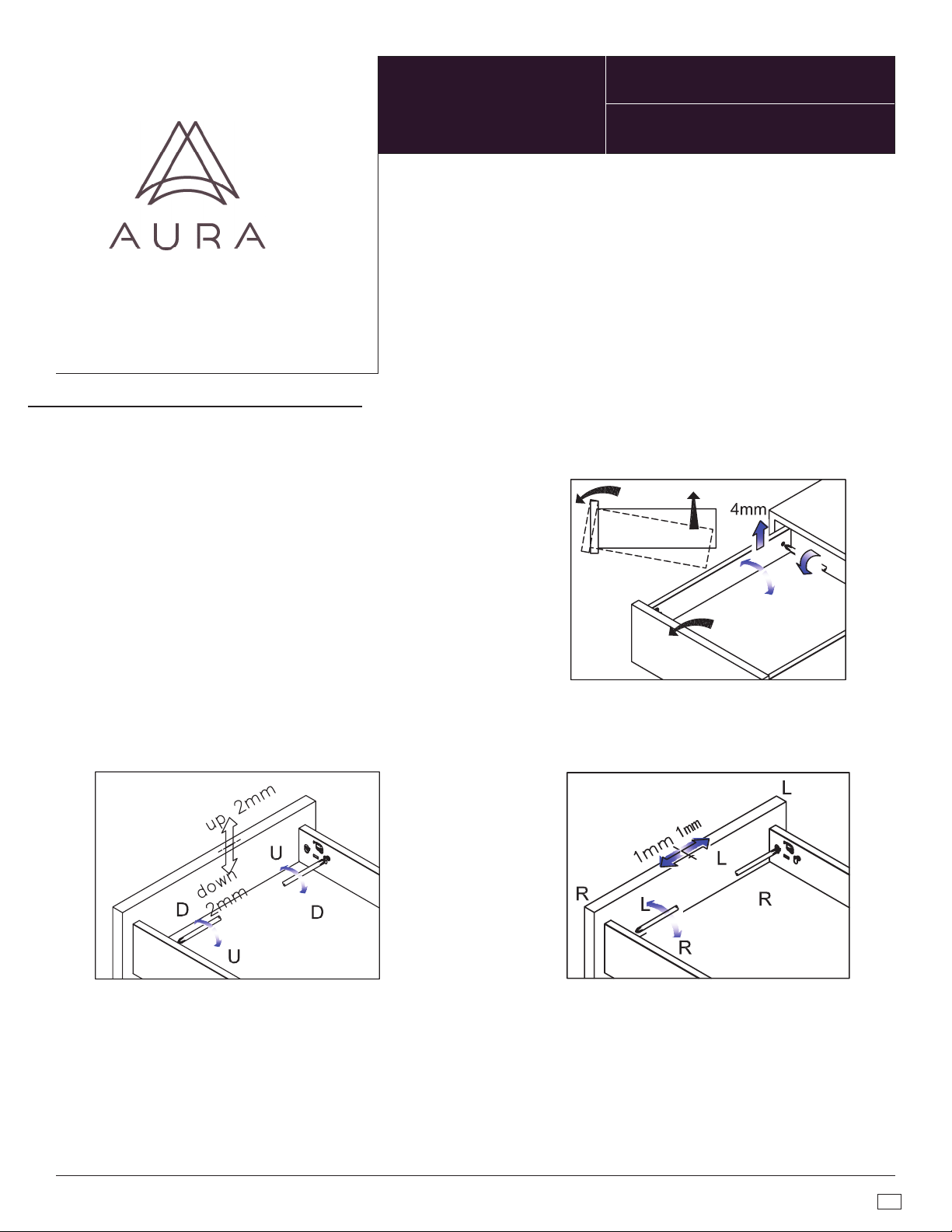

DRAWER ADJUSTMENTS
UP / DOWN ADJUSTMENTS LEFT / RIGHT ADJUSTMENTS
TILTING ADJUSTMENTS

Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. 9
Bathroom Vanity
ABFCARXXXX
CARNABY

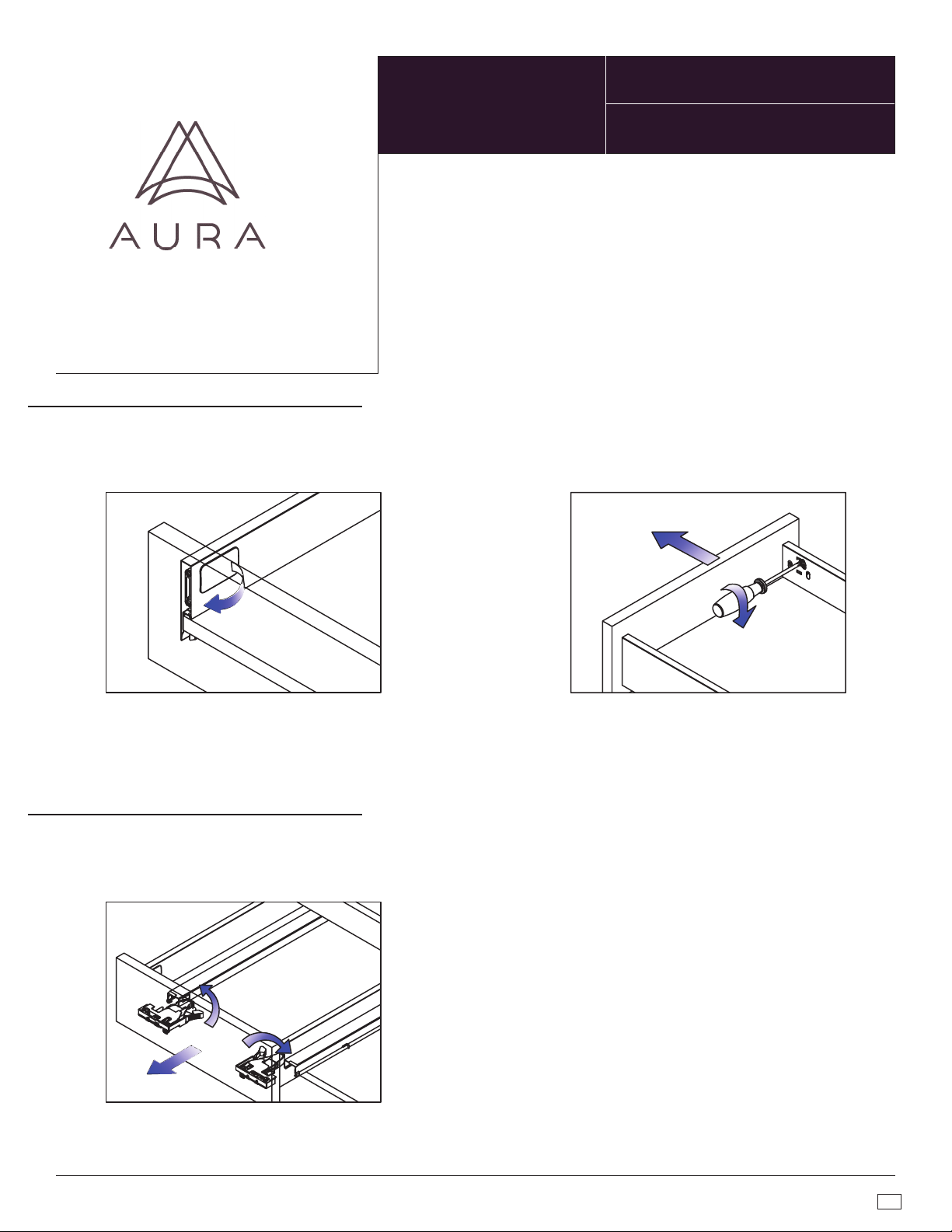

REMOVE DRAWER FRONT
REMOVE DRAWER
TIP UP COVER CAP
REMOVE DRAWER
RELEASE DRAWER
