1. Make sure that the on-board voltage of your vehicle is +12 volts
4. Connect the red wire (A7) to the ACC terminal of the ignition switch.
6. Blue wire (A5) - Connect to the amplifier's remote turn-on input or the antenna motor control
input.
5. Connect the black wire (A8) to the metal part of the car body.
8. Connect the rest of the wires according to the diagram.
2. Remove the fuse from the device before connecting the wires.
7. Connect the orange wire (A6) to the circuit where +12 volts appears when the dimensions are
turned on.
Note: Each time the yellow wire is disconnected from the 12 volt power circuit or the battery
terminal is removed, the device will revert to factory settings.
3. Connect the yellow (A4) wire to the +12 Volt DC power circuit.

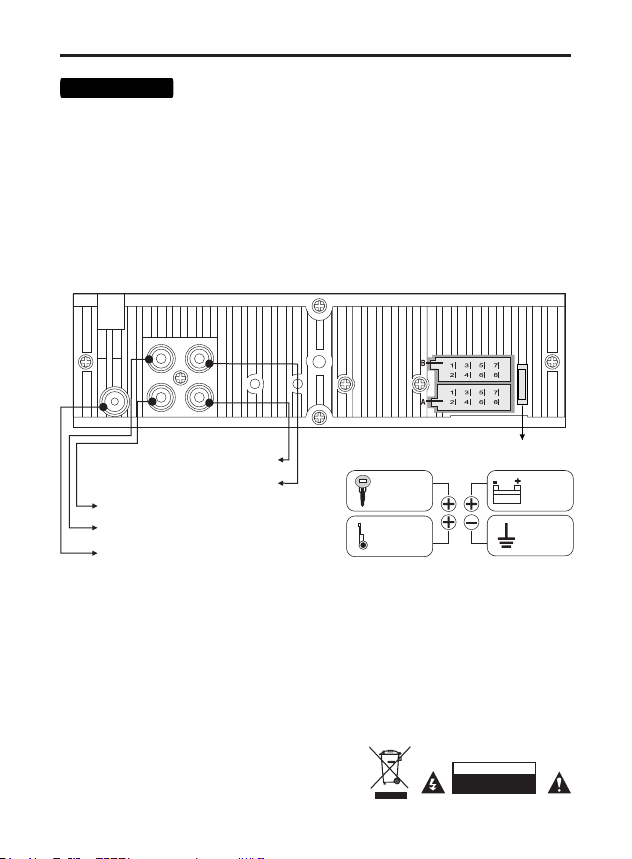

B3 Right channel + (gray)
Rear speakers
B1 Right channel + (purple)
B2 Right channel - (purple-black)
B4 Right channel - (gray-black)
B8 Left channel - (green-black)
B5 Left channel + (white)
B7 Left channel + (green)
Front speakers
B6 Left channel - (white-black)
WARNING
DO NOT OPEN
5
Radio antenna connection input
RCA front – Left (white)
RCA rear – Right (red)
RCA rear – Left (white)
RCA front – Right (red)
10 A
fuse
A5 + 12V control wire to control the motorized antenna
and remotely turn on / off amplifiers or other active
auxiliary devices.
A7 ACC + 12V DC wire - Connect to a power source
that can be turned on and off from the car ignition
switch.
A6 Dimmer. Connection to vehicle lighting control.
A4 Battery + 12V DC
+12 VDC - connect to the remote turn-on input of the
amplifier or the antenna motor control input (no more
than 100 mA, 12 V).
A8 Minus (ground) - connect to a metal part
RED
ACC +12V
YELLOW
constant
power
+12V
BLACK
ground
MINUS
BLUE
control
wire
+12V
Connection
