Aura FIREBALL-8 User manual

OWNER’S MANUAL
Frequency response graphs
Technical features:
Power RMS (Watts)
Maximum power (Watts)
Nominal impedance (Ohm)
Voice coil diameter
Magnet structure weight
Frequency response (Hz)
Resonant frequency Fo (Hz)
Mechanical Q (Qms)
Electrical Q (Qes)
Total Q (Qts)
Compliance Volume (Vas)
SPL (dB)
Overall depth (mm)
Mounting depth (mm)
Overall diameter (mm)
Mounting diameter (mm)
51
91
4
1" (25,4mm)
12.8 Oz (363g)
70-16000
80
6.493
1.726
1.363
13.2
92
85
80
206
184
FIREBALL-8
FIREBALL-8
MID-FREQUENCY DRIVER
www.aurael.ru
WARNING!
PLEASE READ CAREFULLY BEFORE USING
Due to continuous product development and improvement, all specifications are subject to change
©2019 AURA Electronics Inc. All rights reserved.

Precautions
To ensure safe movement, it is recommended to set the volume on the sound reproducing system
so that it does not interfere with all the noise of the surrounding traffic.
To ensure effective performance, the speakers are recommended to be used at an ambient
temperature of at least 5 ° C.
Install speakers only in a dry and well-ventilated area.
Package bundle
4. Logo sticker (x1)
1. Speakers (x2)
2. Mounting kit (x1)
3. Warranty card (x1)

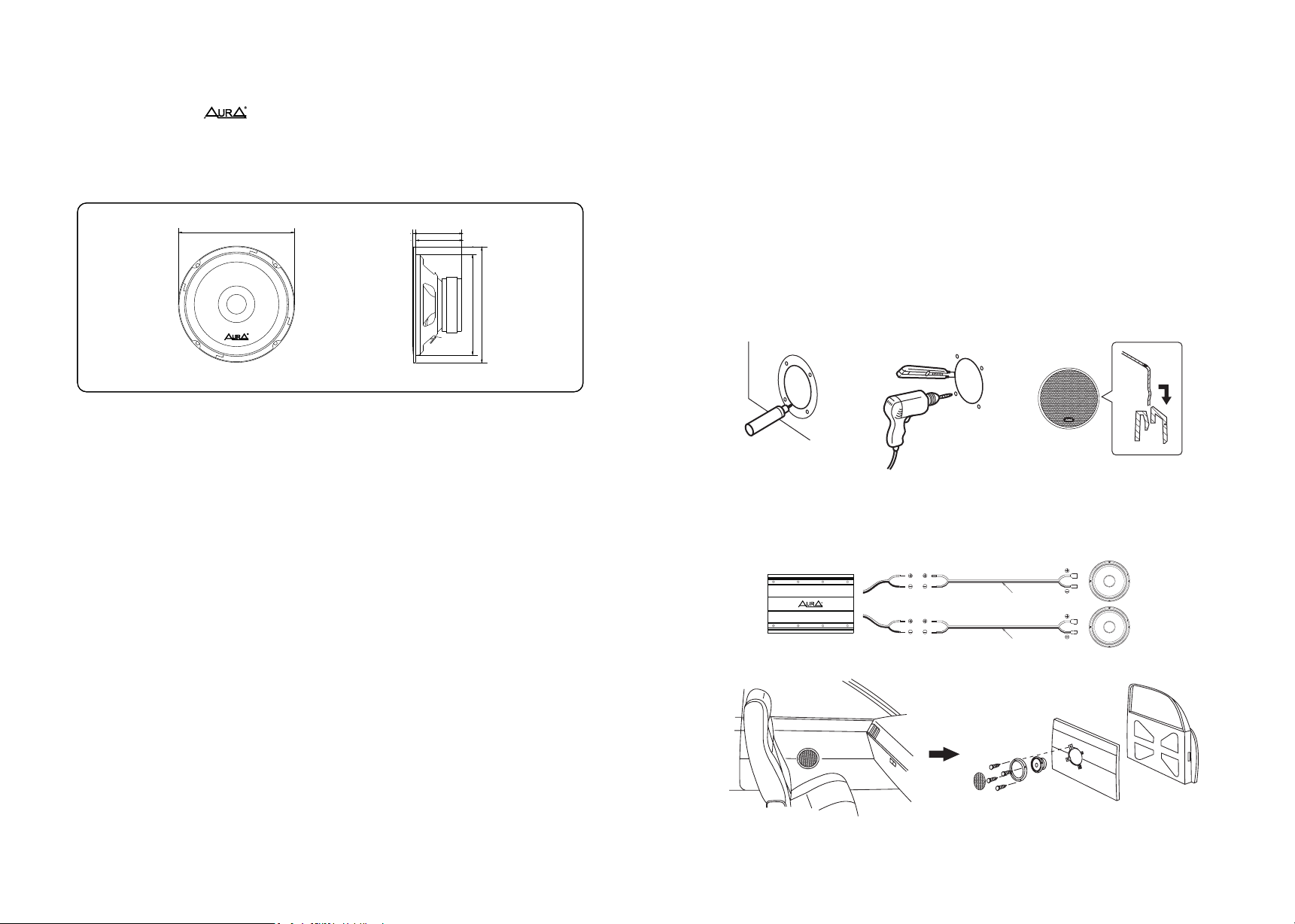

Installation
3. Trace the outlines of the speaker mounting hole and mounting holes. (fig. 1)
1. Stop the vehicle engine. Connecting components while the power is on may damage your speakers.
4. Cut out the marked hole and drill the locations for the mounting bolts. (fig. 2)
2. Use the provided template for marking on site.
5. Remove the protective grill (fig. 3)
fig.1 fig.2 fig.3
6. Strip the speaker cables on one side and connect them to the amplifier as shown in the figure below.
Pay attention to the polarity when connecting. If connected incorrectly, the low-frequency range level
may be reduced.
7. Strip the speaker cables on the other side and use 4.8 mm speaker terminals.
NOT INCLEDED
RIGHT CHANNEL
LEFT CHANNEL
NOT INCLUDED
Class AB MOSFET Car Amplifier AMP-4.60
SPEAKER
LEFT
SPEAKER
RIGHT
2-4 CHANNEL AMPLIFIER
8. Install the speakers as shown in the illustration below.
9. Install and secure the safety grill to the speakers.
Introduction
Description
3
2
Thank you for purchasing speaker systems
We strongly recommend using the services of a professional installation studio to install your speakers.
The correct configuration of the system and the qualifications of specialists will allow you to maximize
the potential of your speaker systems, avoid unpleasant situations, as well as eliminate connection
errors and possible malfunctions.
Installation in the car door.
- make sure that nothing bothers you in the chosen place of installation of speakers
You can install your speakers in the front or rear doors of your car
- check that the speaker terminals, basket or speaker magnet do not come into contact with internal
parts and mechanisms in the door (glass, opening mechanisms, etc.). Also, make sure that the safety
grill does not overlap the door handles, window buttons, etc.
- there may already be mounting holes on the inner door partition. In this case, it will be enough for you to
prepare only the outer skin.
• 8.0 "(20.3cm) Stamped metal basket
• 8.0 "(20.3cm) Durable cellulose diffuser
• 1.0 "(2.54cm) High Temperature Voice Coil
• Poly-cotton centering washer
206
80
85
206
184
