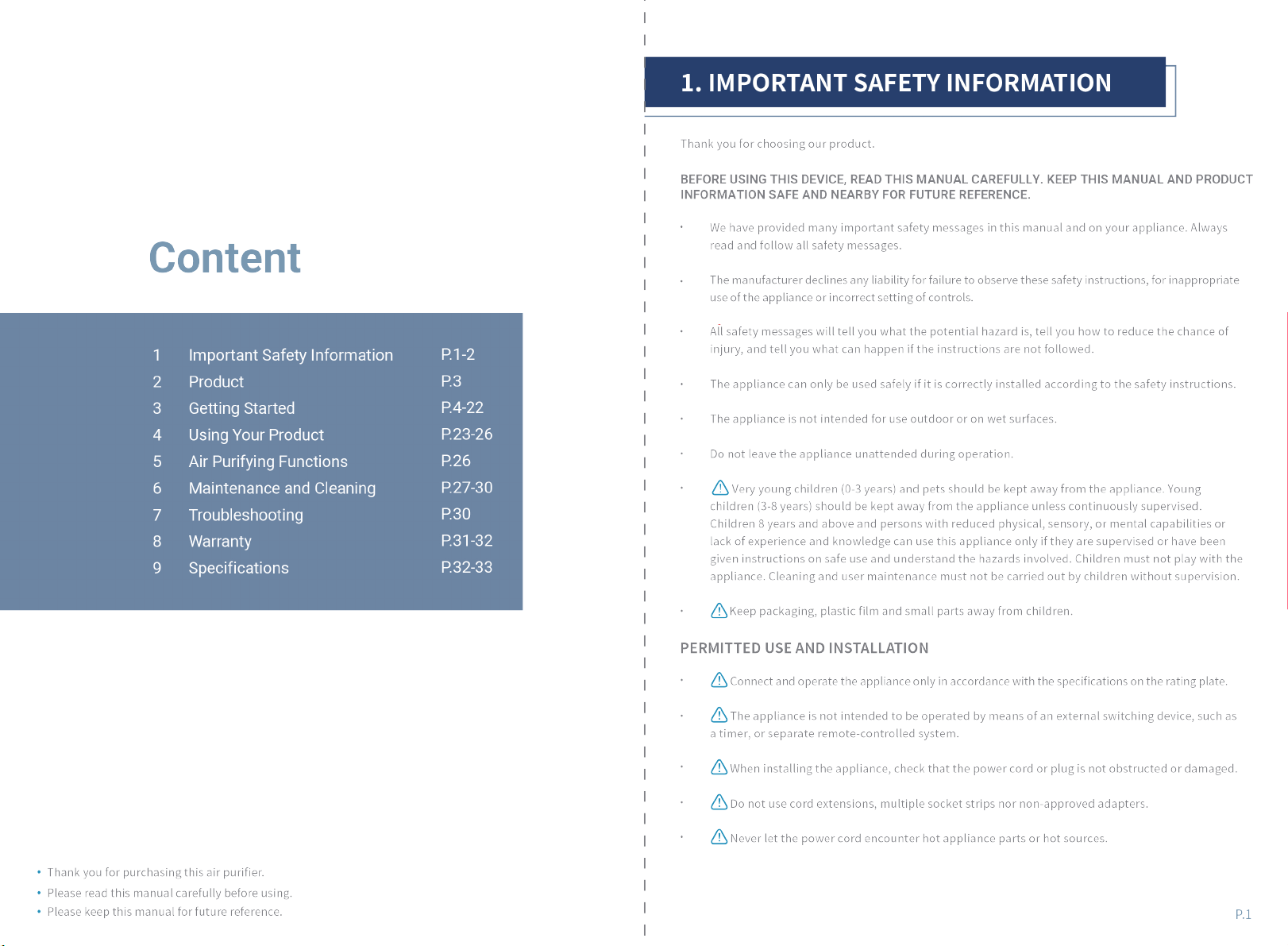

AURABEAT 3800 User manual

Aurabeat 3800
Large Capacity Sanitizing Air Purifier
Model ASP-X1
User Manual
Aurabeat North America
Distributed Exclusively by Brondell, Inc.
PO Box 470085
San Francisco, CA 94147-0085
[e-mail]
aurabeat-us.com

P.3P. 2
Never let the power cord encounter sharp points or edges.
Never kink, crush, or modify the power cord.
Turn off and unplug the device to replace filter.
Do not allow objects to enter, cover or block the air inlets and air outlets.
When unplugging the appliance from the power supply, do not pull on the power cord, pull on
the power plug.
Do not alter the power plug in any way.
Do not use the appliance near fire or hot surfaces.
Ensure the appliance is switched off and disconnected from the power supply before performing
any maintenance operation; never use steam cleaning equipment-risk of electric shock.
Repair and maintenance can only be carried out by one of our trained after-sales technicians. If
the appliance is defective, unplug the appliance from the power supply and contact the after-sales
service.
Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable
fluids cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum
products on plastic parts, interior and door liners, or gaskets. Do not use paper towels, scouring
pads or other harsh cleaning tools.
The packaging material is recyclable and is marked with the recycle symbol.
•
•
•
•
•
•
•
•
•
•
•

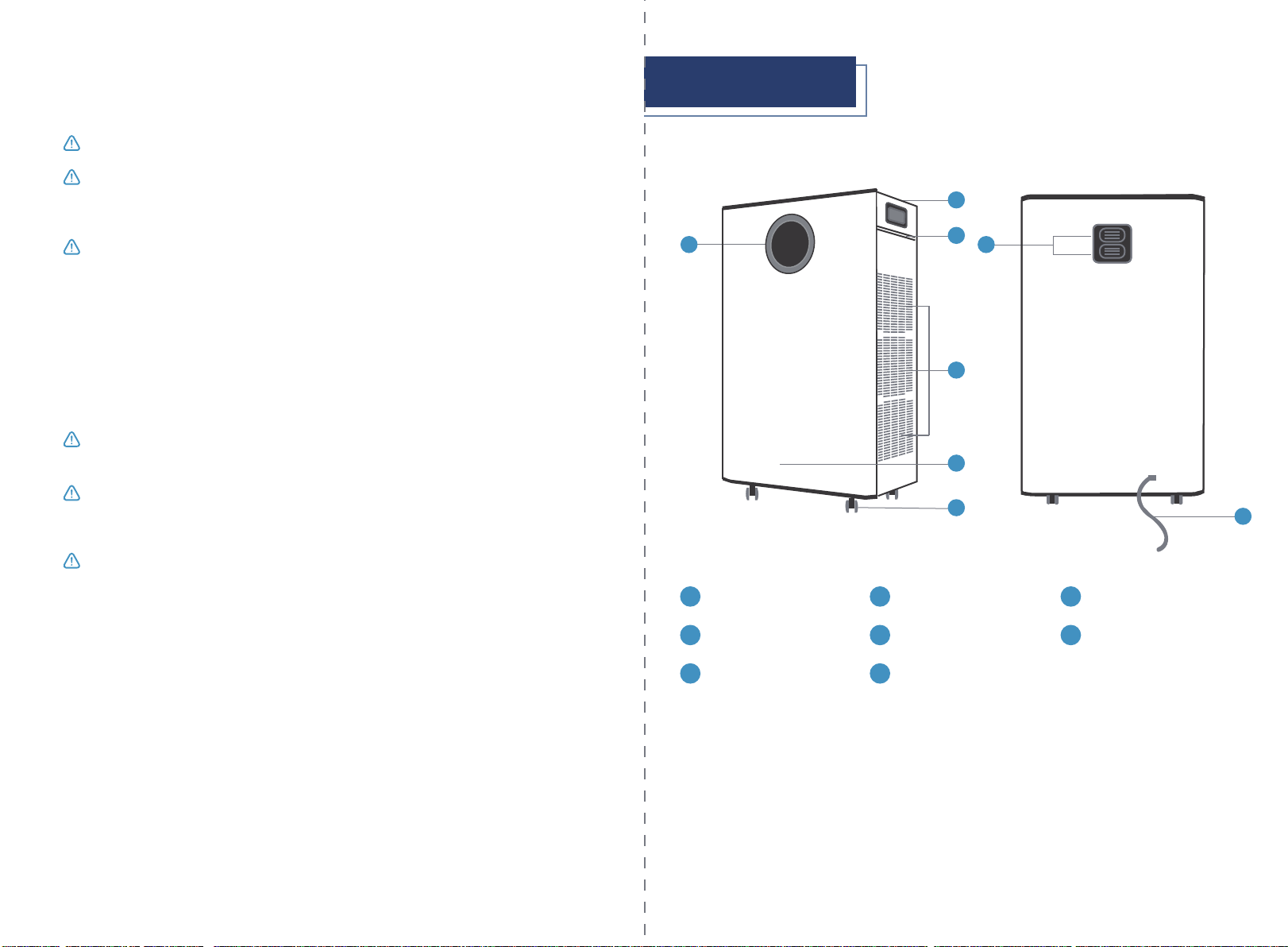

2. PRODUCT
17
4
8
Touch Display
1
UVC Lamp
5
Air Inlet
4
Power Cord
8
Air Quality Sensor
7
Handle
3Wheels
6
Upper Cover
2
2
3
5
6
CLEANING AND MAINTENANCE
DISPOSAL OF PACKAGING MATERIALS

P.5P.4
3. GETTING STARTED
1 x Air Purifier
1 x Remote Control
2 x 3-Stage HEPA Filters
2 x Metal Pre-Filters
1 x Quick Start Guide
•
•
•
•
•
1.
2.
3.
4.
Find an ideal location to maximize the air cleaning efficiency. The location should be farthest away from the
room's HVAC return vent, windows, and doorways.
Place the purifier on a flat, stable surface. Allow at least 4" of clearance on all sides of the purifier. Keep away
from anything that would block airflow.
Locate the closest electrical outlet.

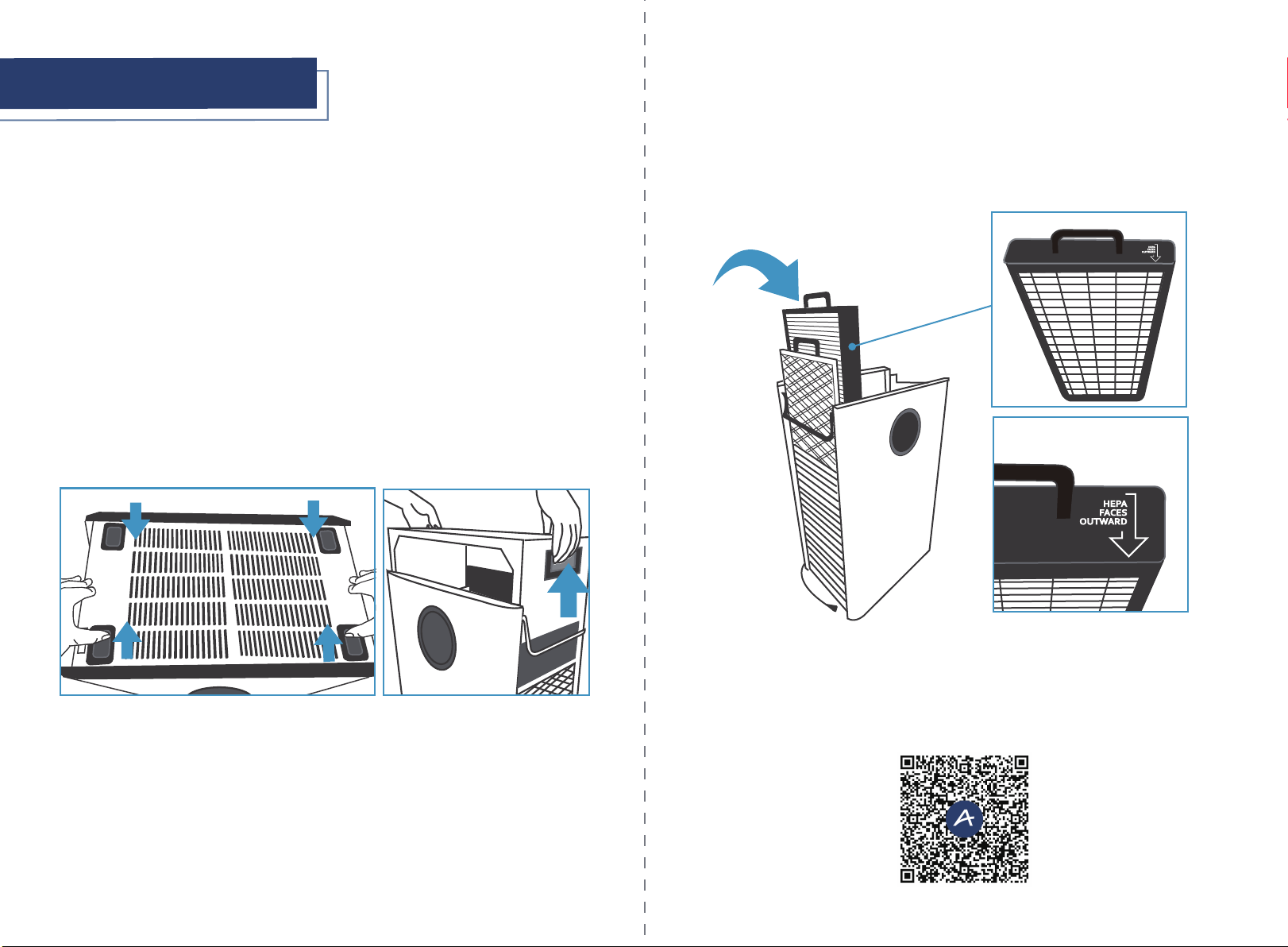

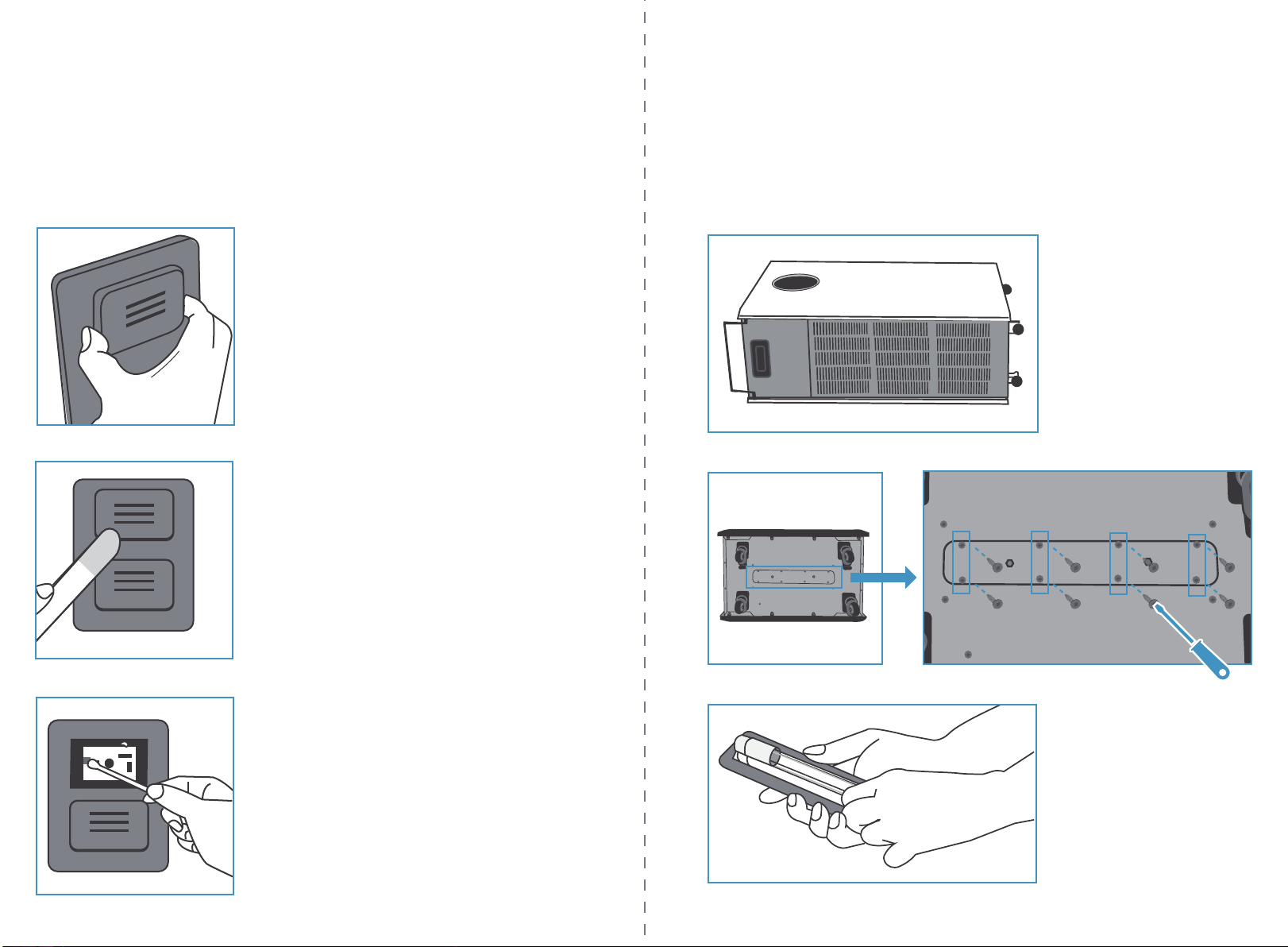

Before turning on the unit, remove the top cover by sliding the four locking tabs on the top of the unit.
5.
MAKE SURE YOU REMOVE ALL PACKAGING FOR FILTERS AND PRODUCTS BEFORE USING THE
APPLIANCE.
INSTALLATION
WHAT'S INCLUDED
Remove the plastic packaging from the air filters located inside the air purifier unit before turning on or
operating the unit.
After the plastic packaging is removed, insert both sets of filters into the unit. On each side, the Pre-Filter is
inserted in the slot toward the outside of the machine, and the 3-Stage HEPA Filter is placed closest to the
inside of the unit. The white HEPA portion of the 3-Stage HEPA Filter faces outward.
6.
Plug the power cord into an electrical outlet.
Press the power button to turn on the unit. The unit will enter Auto Mode with Plasma and UVC Lamp on.
YOU CAN FOLLOW STEP-BY-STEP INSTRUCTIONS BY SCANNING THE QR CODE BELOW FOR A LINK TO A
DEMONSTRATION VIDEO:
7.
8.

P.7P.6

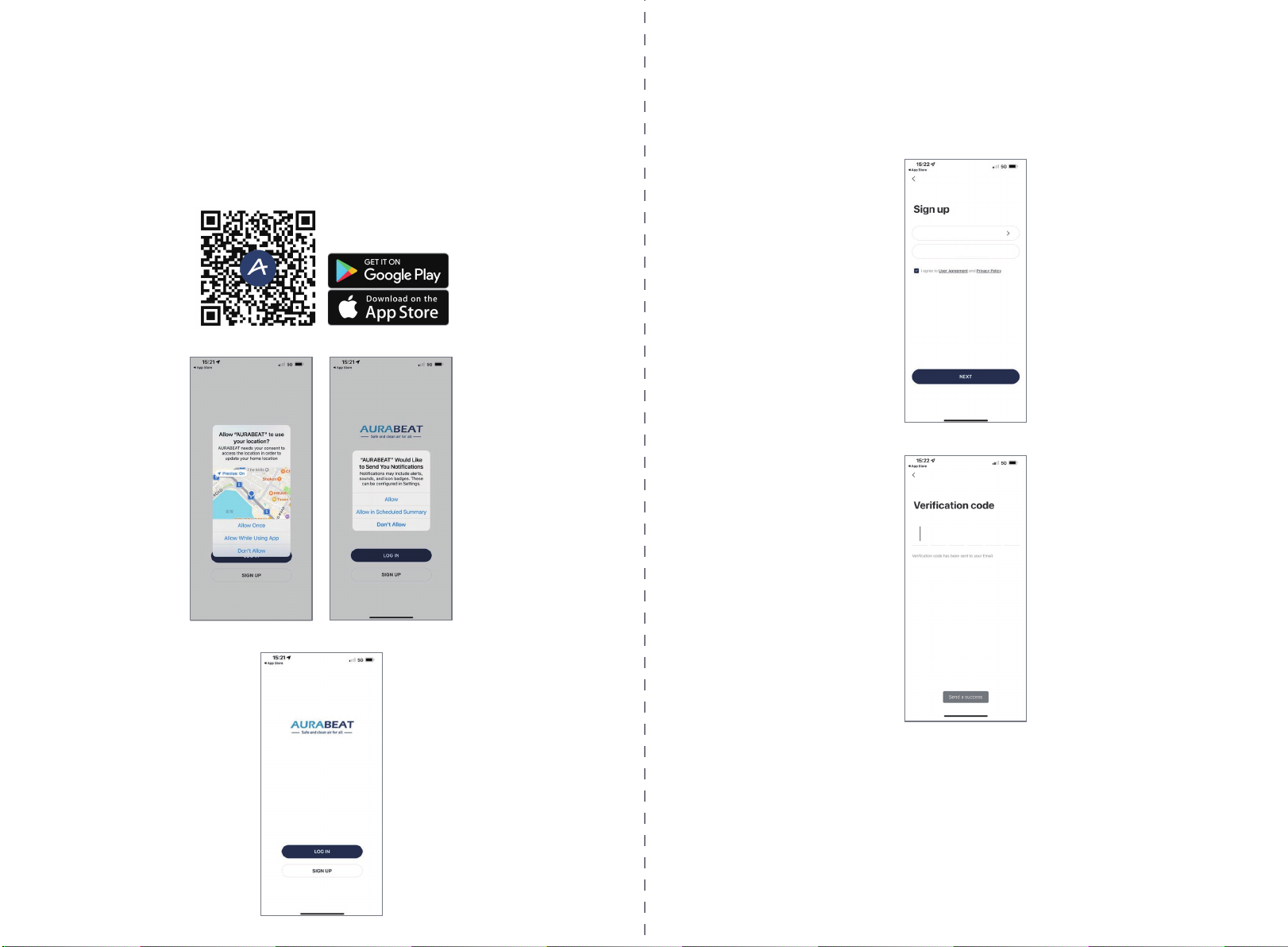

1. Scan the QR code to download the AURABEAT app from the App Store or Google Play. Once the app has been
successfully installed, you can pair the unit.
2. Press “Don't Allow” if you don't want to share your location or receive notifications.
SETTING UP THE APP
Press “Sign Up” to create an AURABEAT account.
3.
Enter your email address and check the box. Press “Next” to create an account.
4.
5. Enter the verification code that has been sent to your email.
[email protected]
[email protected] Resend(57s)
United States of America

P.9P.8

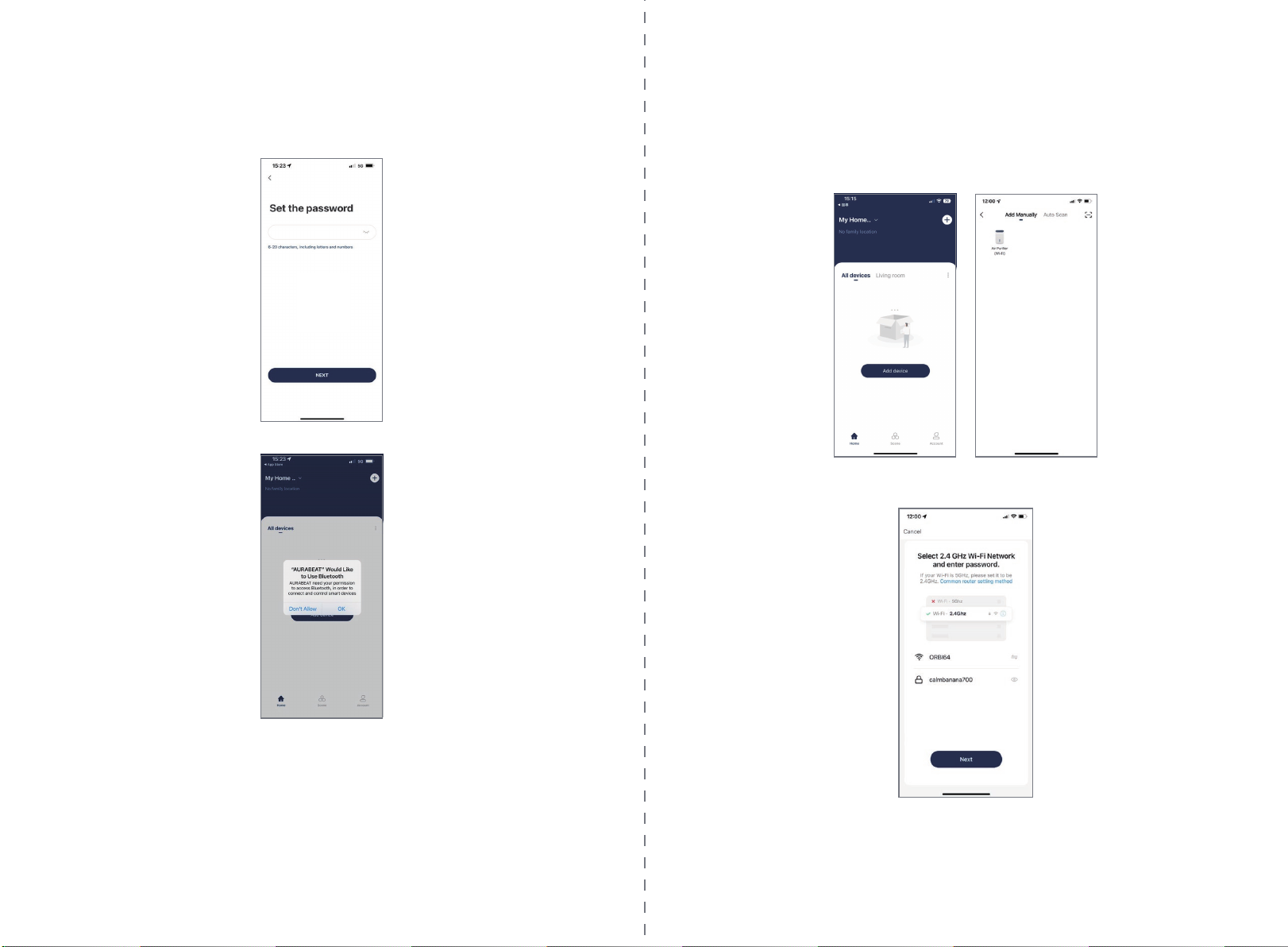

6. Set a password for your account then press “Next.”
Press “Don't Allow” if you don't want AURABEAT to access your Bluetooth.
7.
1. Press the “+” at the top right corner to add device and press “Air Purifier (Wi-Fi)” under “Add Manually.”
PAIR THE DEVICE
Select a 2.4 GHz Wi-Fi network and enter the password of the Wi-Fi network. Press and hold the unit's Wi-Fi
icon on the Touch Display for 5 seconds or until the icon begins blinking to activate the pairing mode.
2.

P.11P.10
Click “Next” to enter the network configuration page. If the app is not activated successfully within 2
minutes, please deactivate the Wi-Fi function by pressing the “Wi-Fi” icon on the unit and repeat step 2 and
3 again for the app's connection.
3.
After the network is successfully configured, click “Done” to enter the Main Page for the device operation.
4.
The first account paired with the device will be the owner. The owner can add members to the account to
allow other AURABEAT app users to control the device.
To change the owner of the device, follow instructions to reset the device on P. 22.
5.
6.
MAIN PAGE
Los Angeles 71°F Clear
Los Angeles
Los Angeles
Los Angeles 71°F Clear
Outdoor Temperature
and Air Quality
1Child Lock
7Indoor Humidity
12
Location
2Indoor PM2.5 Level
8Plasma
13
Indoor Temperature
3Filter Remaining
Percentage
9Manual Mode
14
Auto Mode
4Last 7 Days Outdoor and
Indoor Air Quality Record
10 Settings
15
Power On/Off
6
Sleep Mode
5Indoor Air Quality
11 UVC Lamp
16
1
2
8
9
10
3
4
5
6
7
12
13
14
15
16
11

P.13P.12
Press “Settings” and then press “Add” to add schedule in “Schedule.”
The schedule can be set for a maximum of 23 hours and 59 minutes and repeat by selected days of the week.
The schedule “ON/OFF” function can only be set when the product is on. Press “ON/OFF” and select “ON” if
you would like to schedule the device to turn on, select “OFF” if you would like to schedule the device to turn
off.
To remove a schedule, swipe left on the desired schedule then press “Delete.”
Press “Settings” and then press “Filter Reset” and “Confirm” to reset the filter.
RESET FILTER
1.
2.
SCHEDULE 3.
1.

P.15
P.14

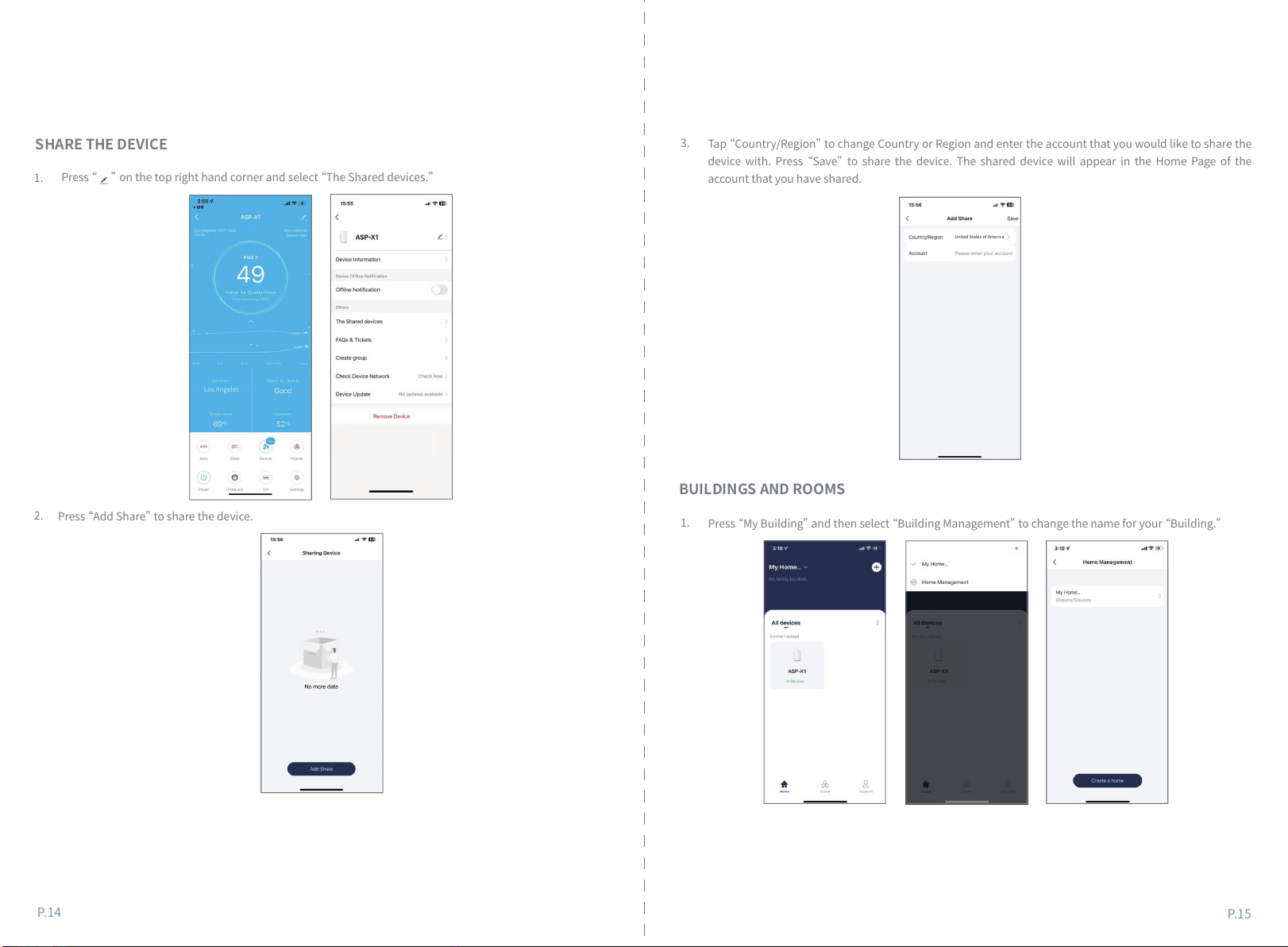

Press “ ” on the top right hand corner and select “The Shared devices.”
1.
Press “Add Share” to share the device.
2.
SHARE THE DEVICE
Press “My Building” and then select “Building Management” to change the name for your “Building.”
BUILDINGS AND ROOMS
1.
Los Angeles
Los Angeles 71°F Clear
Tap “Co untry/ Region” to ch ange Co un tr y or Region and e nter t he accoun t that y ou wo uld like to sh are th e
device with. Press “Save” to share the device. The shared device will appear in the Home Page of the
account that you have shared.
3.
United States of America

P.17
P.16

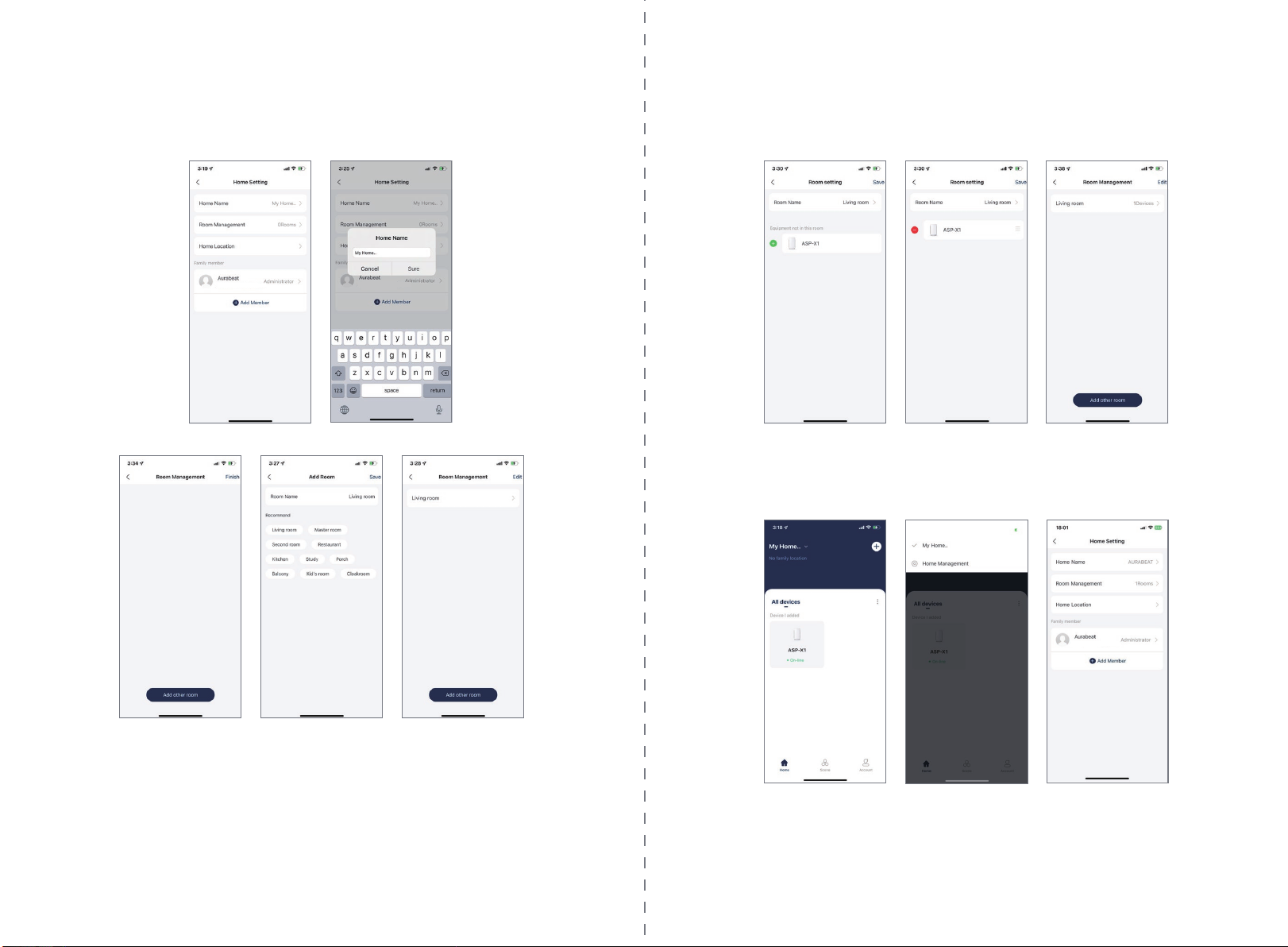

To add a room, in “Building Setting” select “Room Management.”
2.
3. Press “ A d d o t h e r r o o m ” i n “ R o o m M a n a g e m e n t ” t o a d d r o o m . E n t e r t h e r o o m n a m e a n d p r e s s “ S a v e . ”
Select added room. Press “+” and “Save” to add the device to the room.
4.
[email protected]
Press “My Building” and then select “Building Management.” Press “+ Add Member” to add member to
control the paired device.
1.
ADD MEMBERS

P.19P.18

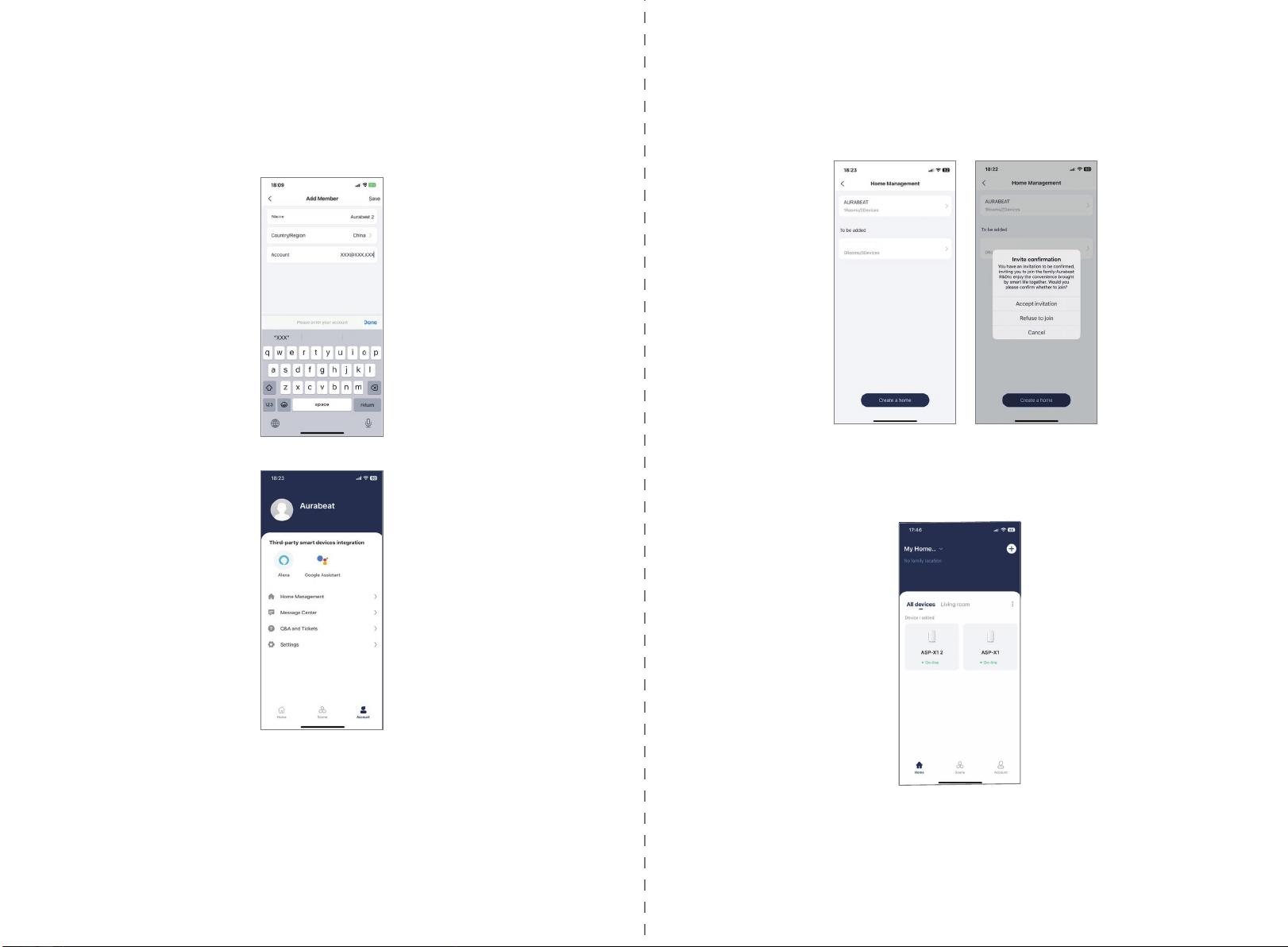

Enter the member's name and tap “Country/Region” to change Country or Region. Enter the member's
account and press “Save.”
Press “Account” and “Building Management” in the member's app.
2.
3.
Devices can be controlled as a group by selecting them one by one in the “Pair the device” section.
Select one of the devices.
1.
GROUP CONTROL
[email protected]
Select “create a Building” under “To be added” and accept the invitation.
4.
AURABEAT AURABEAT

P.21
P.20

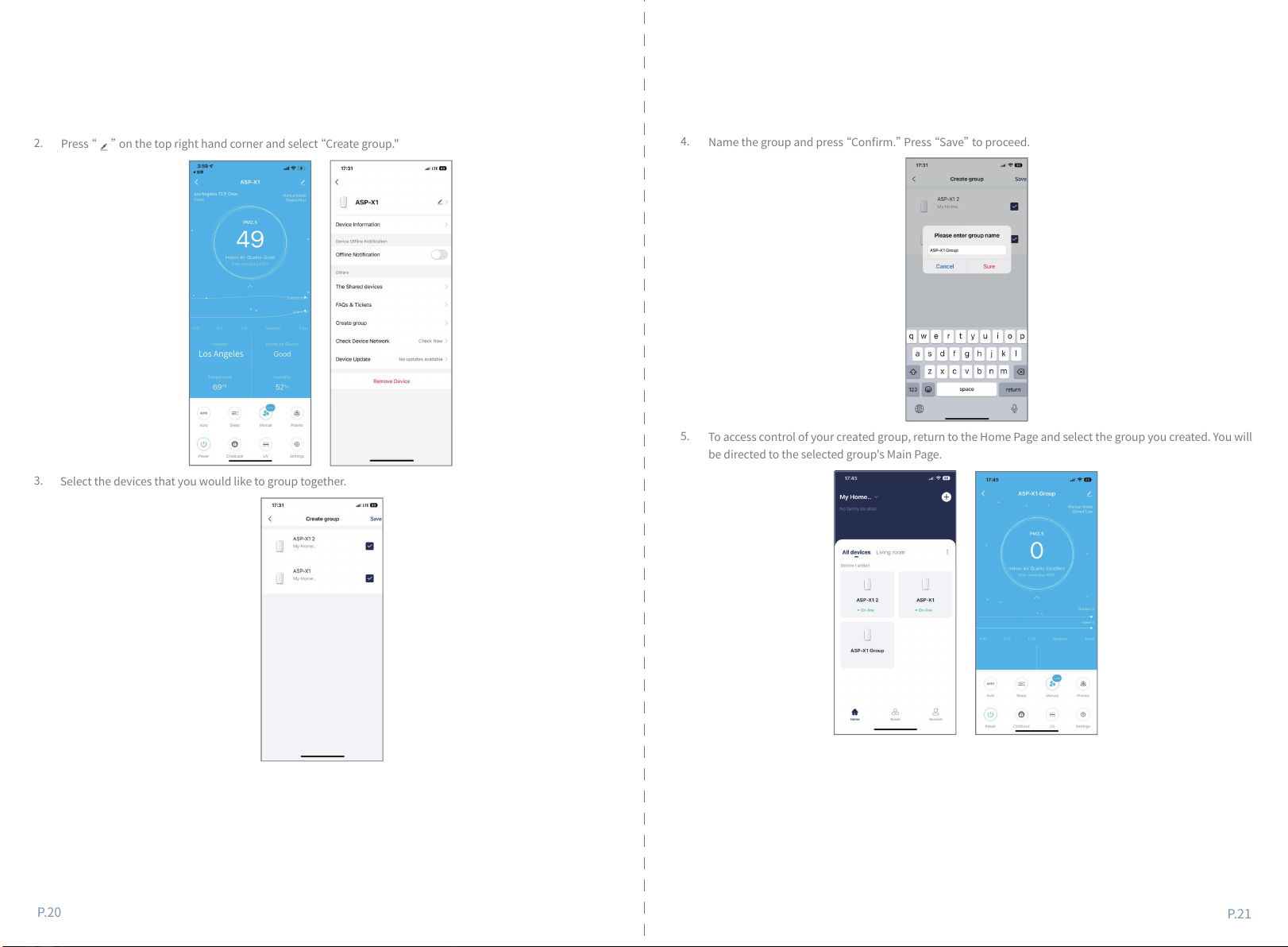

Select the devices that you would like to group together.
Name the group and press “Confirm.” Press “Save” to proceed.
To access control of your created group, return to the Home Page and select the group you created. You will
be directed to the selected group's Main Page.
Press “ ” on the top right hand corner and select “Create group."
2.
3.
4.
5.
Los Angeles
Los Angeles 71°F Clear

Power On/Off
6
Timer On
5
Air Quality Indicator
7
Plasma
8
P.23P.22
4. USING YOUR PRODUCT
3
4
5
ff
6
Max
Med
2
1
PM2.5 Indicator
1Filter Replacement
Indicator
9
Wi-Fi
2Child Lock
10
Sleep Mode
11
Fan Speed
4Timer Off
12
UVC Lamp
3
8
7
9
10
11
12

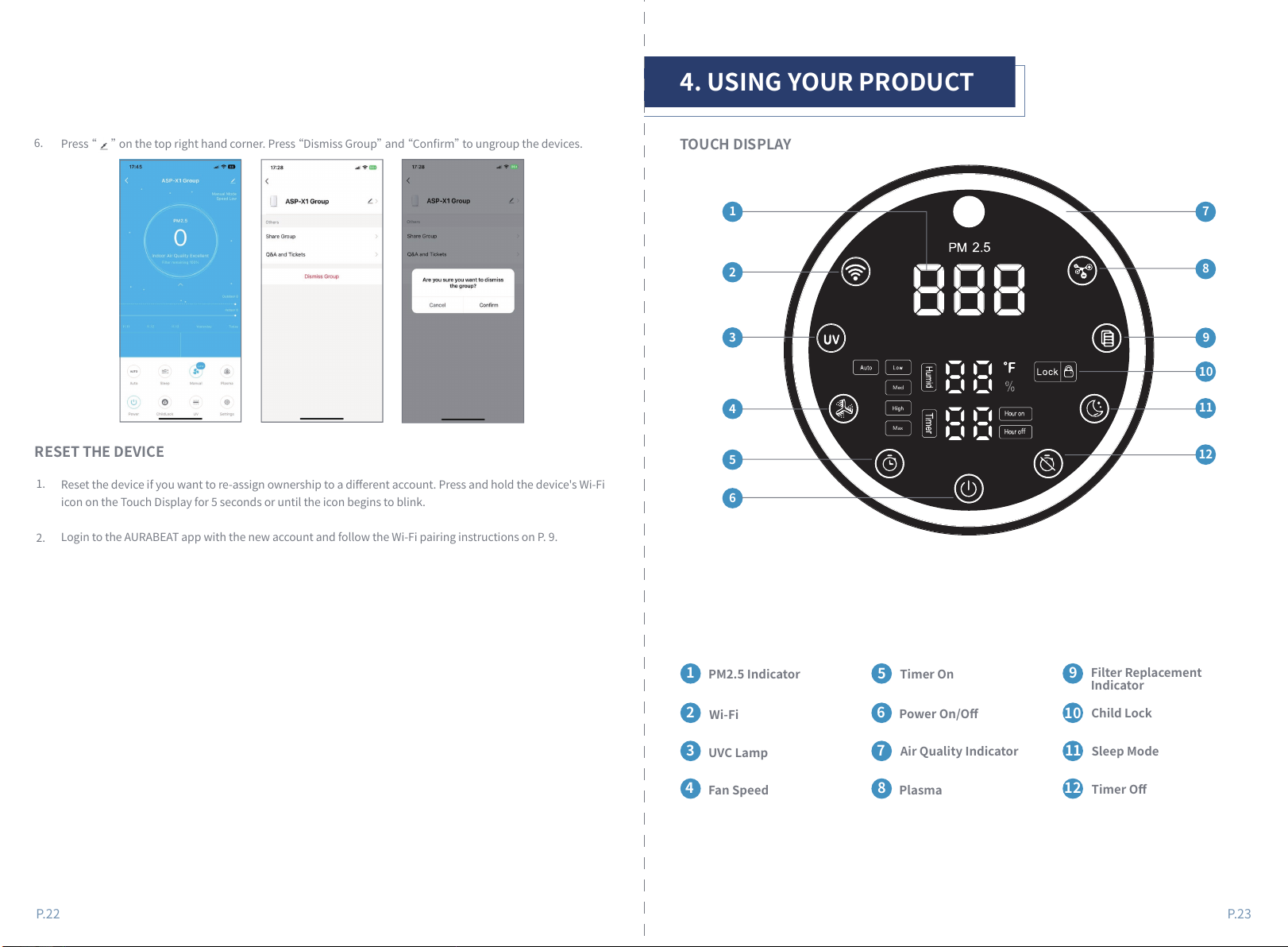

TOUCH DISPLAY
Press “ ” on the top right hand corner. Press “Dismiss Group” and “Confirm” to ungroup the devices.
6.
Reset the device if you want to re-assign ownership to a different account. Press and hold the device's Wi-Fi
icon on the Touch Display for 5 seconds or until the icon begins to blink.
Login to the AURABEAT app with the new account and follow the Wi-Fi pairing instructions on P. 9.
1.
2.
RESET THE DEVICE

P.24
Power On/Off
1Plasma
4Child Lock
7
Auto/Manual Mode
2Timer
5UVC Lamp
8
Fan Speed
3Sleep Mode 6
P.25
1
2
4
3
5
6
7
8

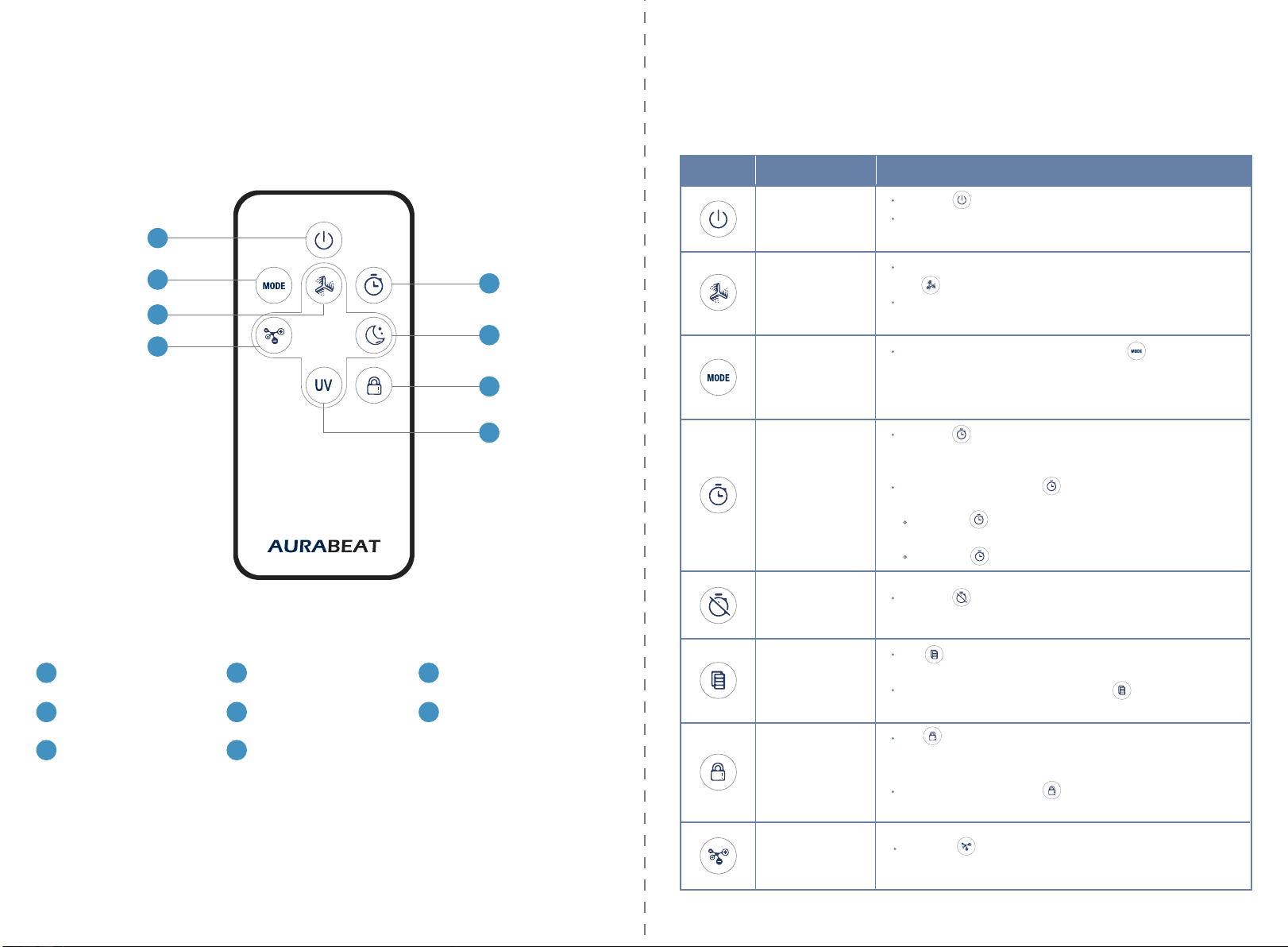

REMOTE CONTROL
Filter Replacement
Indicator
Child Lock
Timer On
Timer Off
OPERATING INSTRUCTIONS
Press the button to turn on/turn off the device.
The“On/Off,” “Auto,” “PM2.5,” “Temperature,” “Humidity”
icons will appear once product is turned on.
Adjust the fan speed from Auto and 1 to 4 speed levels by pressing
the button on the Touch Display or on the Remote Control.
The fan speed indicator will be on if the fan speed function is
activated.
Select “Auto/Manual Mode” by pressing the button on the
Remote Control to switch between Auto and Manual Mode.
In Auto Mode, the fan speed will automatically adjust according
to the air quality.
Icon
Power On/Off
Function Function Details
Fan Speed
Auto/Manual Mode
(Only on Remote)
Press the button on the Touch Display when the device is on
to set the Timer Off function from 1-12 hours.
The icon will appear on the Touch Display when activated.
This function can only be activated/deactivated from the Remote
Control and the AURABEAT app.
(Remote Control) Press the button to activate/deactivate
Child Lock.
The button will illuminate after the device has been operating
for 4320 hours to indicate it is time for filter replacement.
To reset the indicator, press and hold the button on the Tou ch
Display for 3 seconds.
Press the button on the Touch Display when the product is
connected but the device is off to set the Timer On function from
1-12 hours.
(Remote Control) Press the button to select Timer On/Timer Off
function.
Press the button when the product is connected but the
power is off to set the Timer On function.
Press the button to set Timer Off when the product is on.
Press the button on the Touch Display or Remote Control to
activate/deactivate this function.
Plasma

P.27P.26
Press the button on the Touch Display or the Remote Control
to activate this function. The device will operate at the lowest speed
and all icons except “Sleep Mode” will be turned off. The UVC Lamp,
Plasma and Timer settings will not change.
Press the button again to deactivate this function. The icons
on the Touch Display will illuminate and the fan speed will remain
at the lowest speed.
Press the button on the Touch Display or the Remote Control
to activate/deactivate this function.
Icon Function Function Details
Sleep Mode
UVC Lamp
1-79
80-199
200-500
>500
Good
Fair
Bad
Poor
Green
Blue
Red
Flashing red
PM2.5 Value Air Quality Level Air Quality Indicator Color

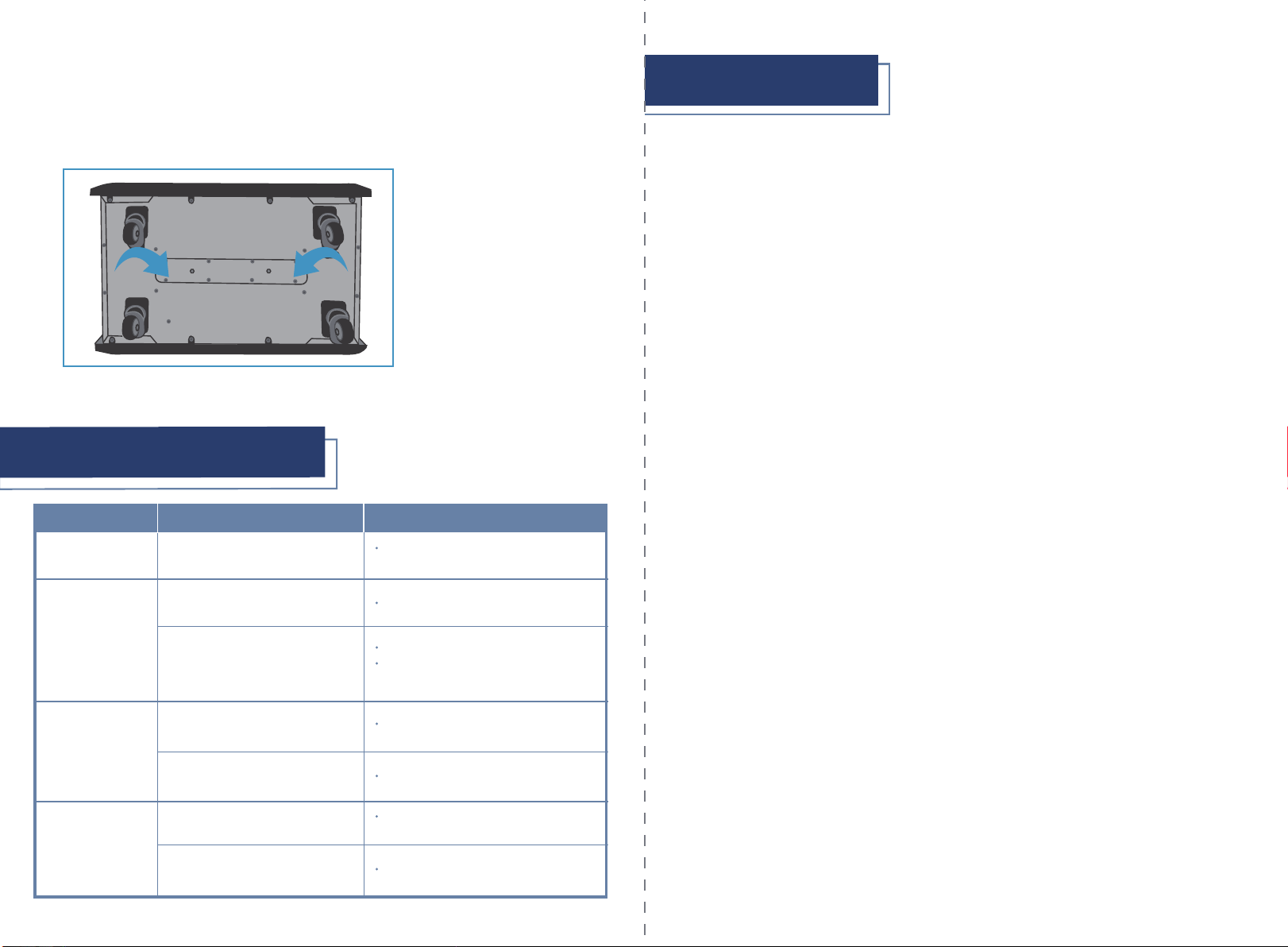

6. MAINTENANCE AND CLEANING
6. Plasma Purification: The positive and negative ions generated by the plasma generator neutralize in the air and
produce huge energy, which results in the change of the microorganism structure around or the conversion of
energy, thereby destroying the microorganisms. As the number of negative ions is greater than that of positive
ions, excess negative ions are still floating in the air, which can remove smoke, dust, odors and improve air
quality and health.
1.
2.
3.
4.
5.
Pre-Filter: Captures hair, fiber, large particles, dander, etc., can be vacuumed and reused.
High Efficiency Air Filter: H13 HEPA Grade filter filters ≥99.97% of airborne particles 0.3 microns in size. It
has low penetration, large capacity for holding dust, high clean air delivery rate can filter smoke and dust,
especially for PM2.5, efficiently filtering particles down to ≤0.01µm.
Activated Carbon Filter: Removes odors, VOC's, harmful gases and smoke.
Photocatalytic Oxidation Filter (PCO): Acting with UVC light, converts microorganisms, smoke, odors, VOC's,
and chemically active compounds (CAC's) into water, carbon dioxide.
UVC Light: UVC lamp helps to sanitize the air, surface of the filters and the inside of the unit.
NOTE
Never immerse the device in water or any other liquid.
CLEANING AND REPLACING THE FILTERS
EXTERIOR
Unplug device before cleaning.
Wipe the exterior of the air purifier with a soft, dry cloth. If necessary, wipe the housing with a damp cloth
then dry immediately.
Do not use abrasive chemicals when cleaning the air purifier.
•
•
For optimal performance, adhere to the recommended filter cleaning schedule.
Always unplug the unit before opening the filter cabinet.
•
•
•
•
Metal Pre-Filters
3-Stage HEPA
Filters
Clean: every 6 months.
Replace: every 3 years.
Replace when the red Filter
Replacement Indicator light is visible
on the Touch Display.
Replace when the AURABEAT app states
the filter life is at 0%.
Filter Method Cleaning cycle
Clean: Vacuum or rinse filter using
warm water. Allow filter to dry
completely before re-inserting
into unit.
Replace: Remove the filters and
place in trash bag before disposal.
Replace: Remove the filters and
place in trash bag before disposal.
5. AIR PURIFYING FUNCTIONS

Unplug the unit and lay it on its side.
UVC LAMP REPLACEMENT
Remove the 8 screws from the panel located at the bottom.
1.
2.
3. Remove the old lamp and replace it.
Replace the UVC lamp when it burns out using the following method:
Open PM2.5 Sensor cover.
AIR QUALITY SENSOR
If there is dust around the sensor area, a vacuum hose attachment may be used to remove the dust.
1.
2.
3. Wipe the lens with a dry cotton swab.
P.29
P.28
Clean the PM2.5 Sensor every 2 months using the following method:

P.30 P.31
7. TROUBLESHOOTING
The air inlet is covered. Ensure that the air inlet is not blocked.
The surface of the filter is dirty. Clean the surface of the air filter.
Replace the air filter if the air flow is not
improved after cleaning.
Please install the filter correctly.
Replace the filter.
Please remove the objects covering or
blocking the air inlet.
The filter is not installed correctly.
The filter is damaged.
The air inlet is covered.
There is an object inside the air
outlet. Please clean the air outlet.
The air outflow is
significantly
stronger than
before
Product is very
noisy during
operation
7. WARRANTY AND SERVICE
WARRANTY
Aurabeat North America products are backed by some of the most comprehensive warranties in the industry.
Aurabeat North America warrants that the Aurabeat 3800 Large Capacity Sanitizing Air Purifier shall be free from
defects in material and workmanship under normal use and service.
Residential & Commercial Warranty for Aurabeat 3800 Large Capacity Sanitizing Air Purifier - 3-year limited
Includes Base Model numbers: ASP-X1
100% Coverage of defects or malfunctions of all electronic parts and labor for the entire product excluding
consumable filters for the first 3 years from original date of purchase.
1.
2.
3.
Aurabeat North America warrants its products to be free from manufacturing defects under normal use
and service. This warranty is extended only to the ORIGINAL PURCHASER.
Aurabeat North America is not responsible for the cost of removal, return (shipping) and/or reinstallation
of products. This warranty does NOT apply to:
Aurabeat North America's obligations under this warranty are limited to repair or replacement, at
Aurabeat North America's option, of products or parts found to be defective, provided that such products
were properly installed and used in accordance with instructions. Aurabeat North America reserves the
right to make such inspections as may be necessary in order to determine the cause of the defect.
Aurabeat North America will not charge for labor or parts in connection with warranty repairs for the first 3
years from date of purchase on all products except those that may be subject to heavy commercial use
limitations.
8. WARRANTY
EXCLUSIONS AND LIMITATIONS
This warranty gives you specific legal rights. You may have other rights which vary from state to state.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY AURABEAT NORTH AMERICA. REPAIR OR REPLACEMENT
AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. AURABEAT
NORTH AMERICA SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL,
SPECIAL, OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER
COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT
SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES,
INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME
STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
4.
The air purifier is
not working
The air outflow is
significantly weaker
than before
The product is not connected. Please make sure that the power cord is
connected to a power supply.
Problem Symptoms Recommended Solutions
Place the panel back on the bottom and screw it in to reattach it.
REPLACEMENT UVC CAN BE PURCHASED FROM AUTHORIZED DISTRIBUTOR.
4.

P.32 P.33
To obtain repair service under this warranty, you must contact an authorized Aurabeat North America or
Brondell Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the
form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or
ship the unit pre-paid to the closest Aurabeat North America or Brondell authorized service center along with
the RMA number and proof of purchase. To obtain an RMA number, contact the Service Center at
[e-mail]
This device may not cause harmful interference. And
This device must accept any interference received, including interference that may cause undesired operation.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
HOW TO OBTAIN SERVICE
1.
2.
9. SPECIFICATIONS
Model Number
Voltage
Power
CFM
Recommended Area
Sensor Type
ASP-X1
120 V/60 Hz
175W
518 CFM
1300 sq ft
Product Dimension 20.9 x 13.0 x 35.4 in
PM2.5, Temperature, Humidity
Maximum Noise ≤60 dB(A)
Net Weight 60.6 lbs
5023573
Aurabeat North America
Distributed Exclusively by Brondell, Inc.
PO Box 470085
San Francisco, CA
94147-0085
[e-mail]
Research and Development in Hong Kong
Made in China
PLEASE RETAIN RECEIPT RECORDS FOR ANY WARRANTY CLAIMS.
Replacement filter:
APRF-100 Replacement Filter Pack
ABRF-100PRE Pre-Filter Replacement Pack
Item Specifications
