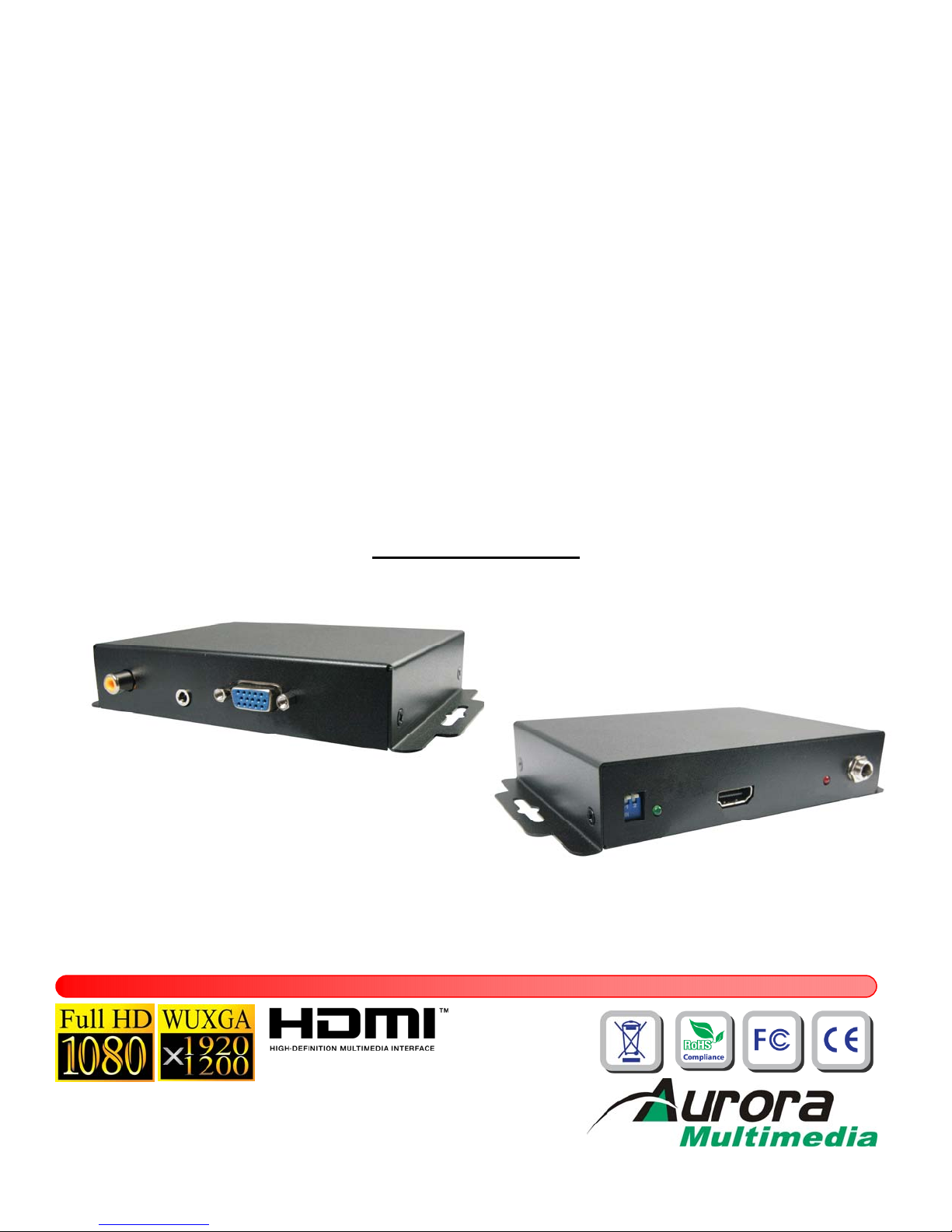

Aurora Multimedia ASP-VTH User manual
ASP-VTH
VGA & Audio to HDMI
Converter
User Manual
Manual Number: 100809
~ 1 ~
SafetyandNotice
The ASP-VTH VGA & Audio to HDMI Converter has been tested for conformity to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, the ASP-VTH should be
used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the
risk of damage to the unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep objects that might damage the device and assure that the placement of this unit is on a stable surface.
zUse only the power adapter and power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit.Always unplug the power to the device before cleaning.
Warning!
Thisdeviceisservedpurelyforconversionbetweenvideoformats.
ThisdeviceCANNOTconverttheinput/outputvideoresolutions.
~ 2 ~
ThisASP-VTH offers an easy and instant approach for converting analog PC video (VGA) with either digital audio
(S/PDIF) or analog stereo audio to digital HDMI. With this module, VGAbased devices such as PC with S/PDIF or analog
stereo audio can readily connect to your HDMI TV. With such a convenience, presentations, demonstrations, or digital
signage become easier and more cost effective.
Features
zHDMI 1.2a Compliant
zPC video supports up to UXGA(1600x1200) or WUXGA(1920x1200)
zSupports most popular VESAresolutions from 640x480 up to WUXGA
zFront panel LED indicators
zEasy installation
Introduction
HDTV
ASP‐VTH
DVIPC
HDMIdisplay/projector
HDMIcable
VGAcable
Audiocable
~ 3 ~
Specifications&PackageContents
Model Name ASP-VTH
Technical Converter
HDMI compliance HDMI 1.2a
DVI compliance N/A
Video bandwidth 165MHz [4.95Gbps]
Video support Up to single link: 1080p60, WUXGA[1920x1200@60Hz], UXGA
Audio support SPDIF/Stereo audio
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
Output video signal 1.2 Volts [peak-to-peak]
Output DDC signal 5 Volts [peak-to-peak, TTL]
Input 1x VGA
1x RCA
1x 3.5mm
Output 1x HDMI
HDMI connector TypeA[19-pin female]
DVI connector DVI-I [29-pin female digital only]
VGAconnector HD-15 [15-pin D-sub female]
RCAconnector Coaxial S/PDIF digital audio [PCM 48kHz]
3.5mm connector Analog stereo audio
Control Switch 2-pin DIP switch
Mechanical ASP-VTH
Housing Metal enclosure
Model 126 x 102 x 25mm [5” x 4” x 1”]
Package 270 x 175 x 80mm [10.6” x 6.9” x 3.1”]
Dimensions
[Lx W x H] Carton
Model 345g [12oz]
Weight Package 705g [1.6 lbs]
Power supply 5V 2ADC
Power consumption 4 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents 1x CV-105
1x 5V power supply unit
1x User manual
1xASP-VTH
1x 5V power supply unit
1x User manual
~ 4 ~
ResolutionSupport
PC video (VGA)
848 x 480 @60Hz 1024 x 768 @75Hz 1600 x 1200 @60Hz 1600 x 1200 @60Hz
640 x 480 @60Hz 1152 x 864 @75Hz 1792 x 1344 @60Hz 1920 x 1080 @50Hz
640 x 480 @72Hz 1280 x 768 @60Hz 1900 x 1200 @60Hz 1920 x 1080 @60Hz
640 x 480 @75Hz 1280 x 768 @75Hz 640 x 480 @60Hz 1920 x 1200 @60Hz
800 x 600 @56Hz 1280 x 960 @60Hz 800 x 600 @60Hz
800 x 600 @60Hz 1280 x 1024 @60Hz 1024 x 768 @60Hz
800 x 600 @72Hz 1280 x 1024 @75Hz 1152 x 864 @75Hz
800 x 600 @75Hz 1360 x 768 @60Hz 1280 x 768 @60Hz
1024 x 768 @60Hz 1400 x 1050 @60Hz 1280 x 1024 @60Hz
1024 x 768 @70Hz 1400 x 1050 @75Hz 1400 x 1050 @60Hz
DIPSwitch
Mode
1: OFF-[©] Reset to default factory EDID
1: ON-[ª] Learn & store connected monitor’s EDID
2: OFF-[©] Analog audio input
2: ON-[ª] S/PDIF audio input
~ 5 ~
FrontPanel
1. S/PDIF Input
2. Audio Input
3. VGAInput
RearPanel
4. Mode Switch
5. HDMI Detection
6. HDMI Output
7. Power Indicator
8. 5V DC
8754 6
1 2 3
Panel Descriptions
~ 6 ~
1. Connect VGAsource to the video input with a VGAcable.
2. Connect S/PDIF or stereo audio source to RCAjack or 3.5mm earphone jack respectively.
3. Connect HDMI display to the HDMI output connector with a HDMI cable
4. Power up theASP-VTH.
1. Power up theASP-VTH. Connect display to HDMI Output.
2. To learn EDID from HDMI display, pull down the DIP switch 1 to ON [ª], the green light will be dark and bright to
indicate the EDID learning process is complete.You DON’T NEED to pull up the DIPswitch again unless you want to
learn another EDID by pulling DIPswitch 1 up and down.
1. Only HDMI enabled TV sets with underscan/overscan*support, the full active video can be accurately displayed.
Some HDMI equipped TV sets may not support this feature. If underscan/overscan*is NOT supported, the top, bottom,
left and right border of the active video may be screened, and the S/PDIF audio may not sound right.
2. Analog stereo audio can merely support 2-channel audio. This version does NOTsupport 8-channel analog audio
applications.
3. S/PDIF audio input supports the main 2-channel audio input
4. S/PDIF supports only 48kHz audio sample rate. Other than this rate, the input digital audio should be adjusted to
48kHz in order to get audio signal correctly sent.
*Theunderscanmodedisplaysthefullvideoframe,whichrevealscontentontheedgethatisrecorded.Inoverscan,
thefieldmonitorzoomsintotheareathatwouldbevisibleonmosttelevisions.Setthefieldmonitortounderscan
ifyourvideowillbeviewedonacomputermonitororshownwithaprojectorandalsotolookforlightstands,
microphones,andotherunwantedobjectsontheedgesofyourshot.Setittooverscantoseehowthevideowill
lookonatelevision.
Hardware Installation
Notice
EDID Learning
~ 7 ~
Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and
workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized
mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are
covered for a period of 1 year. Batteries are not covered by this warranty. During the warranty period, and
upon proof of purchase, the product will be repaired or replaced (with same or similar model) at our option
without charge for parts or labor for the specified product warranty period.
This warranty shall not apply if any of the following:
A) The product has been damaged by negligence, accident, lightning, water, act-of-God or mishandling; or,
B) The product has not been operated in accordance with procedures specified in operating instructions: or,
C) The product has been repaired and or altered by other than manufacturer or authorized service center; or,
D) The product's original serial number has been modified or removed: or,
E) External equipment other than supplied by manufacturer, in determination of manufacturer, shall have
affected the performance, safety or reliability of the product.
F) Part(s) are no longer available for product.
In the event that the product needs repair or replacement during the specified warranty period, product
should be shipped back to Manufacturer at Purchaser's expense. Repaired or replaced product shall be
returned to Purchaser by standard shipping methods at Manufacturer's discretion. Express shipping will be
at the expense of the Purchaser. If Purchaser resides outside the contiguous US, return shipping shall be at
Purchaser's expense.
No other warranty, express or implied other than Manufacturer's shall apply.
Manufacturer does not assume any responsibility for consequential damages, expenses or loss of revenue or
property, inconvenience or interruption in operation experienced by the customer due to a malfunction of
the purchased equipment. No warranty service performed on any product shall extend the applicable
warranty period.
This warranty does not cover damage to the equipment during shipping and Manufacturer assumes no
responsibility for such damage.
This product warranty extends to the original purchaser only and will be null and void upon any assignment
or transfer.
Aurora Multimedia Corp.
205 Commercial Court, Morganville, NJ 07751
Phone: (732) 591-5800 Fax: (732) 591-5801
www.auroramultimedia.com
Limited 3 Year Warranty
