Aurora Multimedia ASP-DTH User manual
ASP-DTH
DVI & Audio to HDMI
Converter
User Manual
Manual Number: 100901
~ 1 ~
SafetyandNotice
The ASP-DTH DVI & Audio to HDMI Converter has been tested for conformity to safety regulations and
requirements, and has been certified for international use. However, like all electronic equipments, theASP-DTH should be
used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the
risk of damage to the unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep objects that might damage the device and assure that the placement of this unit is on a stable surface.
zUse only the power adapter and power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit.Always unplug the power to the device before cleaning.
Warning!
Thisdeviceisservedpurelyforconversionbetweenvideoformats.
ThisdeviceCANNOTconverttheinput/outputvideoresolutions.
~ 2 ~
The ASP-DTH DVI & Audio to HDMI Converter provides an easy and instant approach for converting digital video
(DVI-D) and both digital audio (S/PDIF) and analog stereo audio to digital HDMI. With this module, DVI based devices such
as PC with S/PDIF or analog stereo audio can readily connect to your HDMITV at lowest cost.
Features
zHDMI 1.2a compatible
zFully HDCP compliant
zDVI video up to 165MHz
zCoaxial S/PDIF audio input
zStereo analog audio input
zFront panel LED indicators
zEasy installation

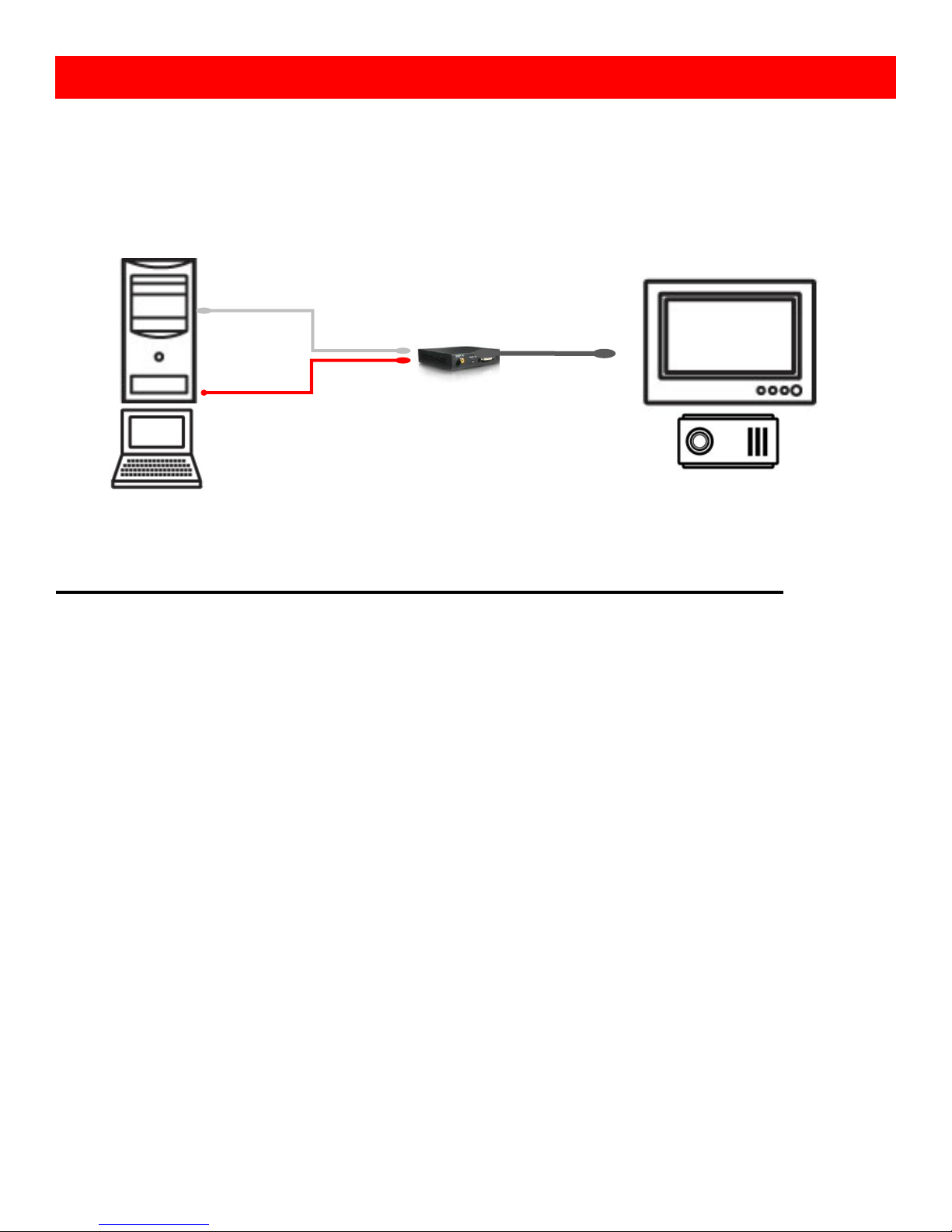

Introduction
HDTV
ASP‐DTH
DVIPCHDMIdisplay/projector
HDMIcable
DVIcable
Audiocable
~ 3 ~
Specifications&PackageContents
Model Name ASP-DTH
Technical Converter
HDMI compliance HDMI 1.2a
DVI compliance DVI 1.1
Video Bandwidth 165MHz [4.95Gbps]
Video support Up to single link: 1080p60, WUXGA[1920x1200@60Hz], UXGA[1600x1200@60Hz]
Component video — 720p / 1080i
Audio support Stereo audio
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
Output video signal 1.2 Volts [peak-to-peak]
Output DDC signal 5 Volts [peak-to-peak, TTL]
Input 1x DVI
1x RCA
1x 3.5mm
Output 1x HDMI
HDMI connector TypeA[19-pin female]
DVI connector DVI-I [29-pin female digital only]
VGAconnector HD-15 [15-pin D-sub female]
RCAconnector Coaxial S/PDIF digital audio [PCM 48kHz]
3.5mm connector Analog stereo audio
Control Switch 2-pin DIP switch
Mechanical ASP-DTH
Housing Metal case
Dimensions
[Lx W x H]
Model 125 x 95 x 25mm [4.9” x 3.7” x 1”]
Package 175 x 270 x 80mm [6.9” x 10.6” x 3.1”]
Carton 450 x 370 x 300mm [1’6” x 1’3” x 1’]
Weight Model 430g [15oz]
Package
Power supply 5V 2ADC
Power consumption 4 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents 1xASP-DTH
1x 5V power adapter
1x User Manual
~ 4 ~

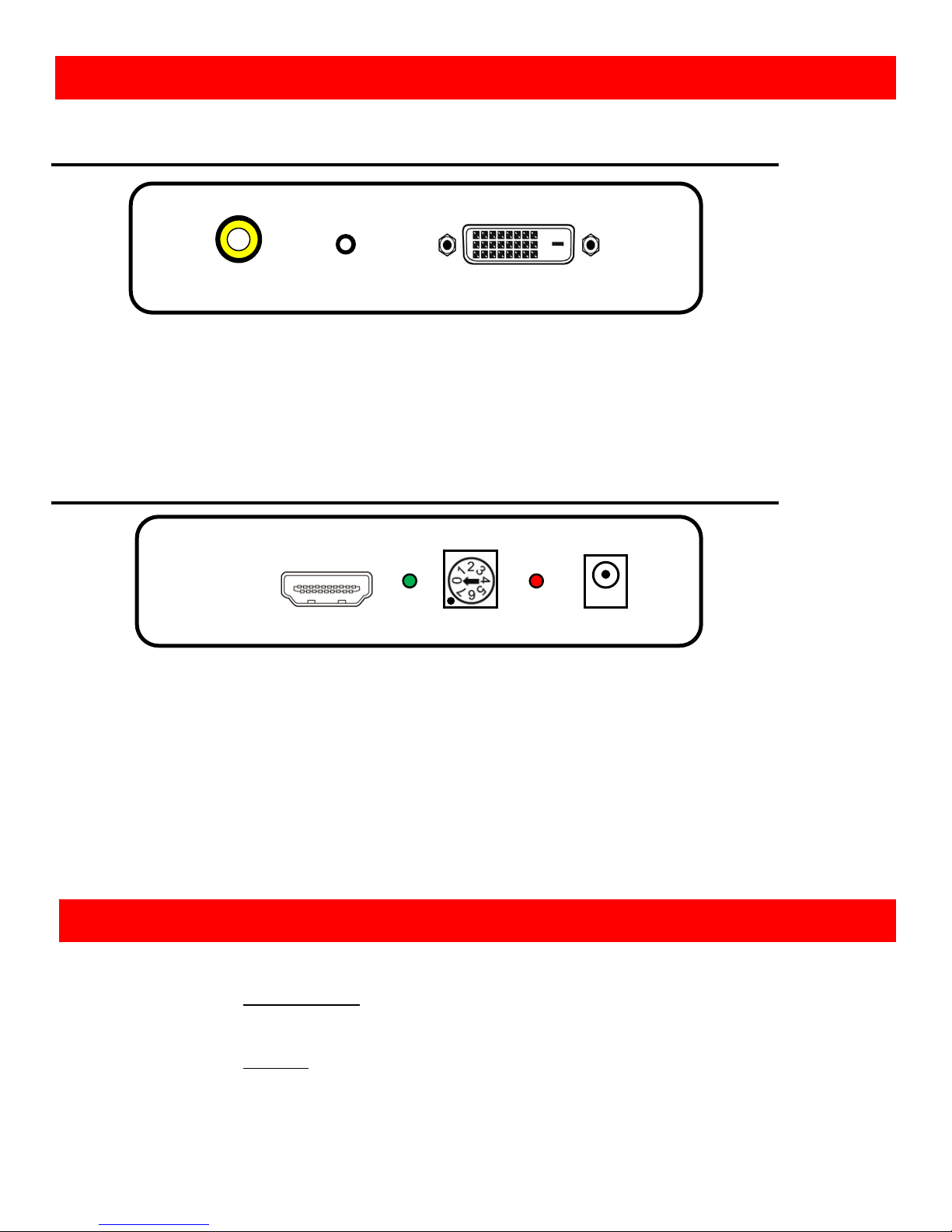

FrontPanel
SPDIF In: 2-channel digital S/PDIF audio input.
Audio In: 2-channel analog audio input thru the 3.5mm earphone jack.
DVI In: Connect to a DVI source with a DVI M-M cable here.
RearPanel
HDMI Out: Connect to a HDMI display with a HDMI M-M cable here.
Green light: Status indicator.
Rotary Control: 0 =Analog audio mode; 1 = S/PDIF audio mode; 2-5 = Reserved; 6 = Use default EDID; 7= Learn EDID
from HDMI display.
Power: Power indicator. Red light on means power on.
+5V DC: Connect to 5V DC power supply.
1. Power up theASP-DTH. Connect HDMI display to HDMI Out.
2. Turn the rotary control counterclockwise from 0 to 7.
3. The green light will be bright and then dark to indicate the EDID is learned.
4. Turn the rotary control clockwise from 7 to 0. DO NOT let the rotary control arrow pass 6, which will erase the just
learned EDID and reset to default EDID.
DVI In
Panel Descriptions
Audio In
SPDI
F
In
HDMI Out +5
V
D
C
Power
EDID Learning
~ 5 ~
1. Connect DVI video source to the video input with a DVI cable.
2. Connect S/PDIF or stereo audio source to RCAjack or 3.5mm earphone jack respectively.
3. Connect HDMI display to the HDMI output connector with a HDMI cable
4. Power up theASP-DTH.
1. Only HDMI enabled TV sets with underscan/overscan*support, the full active video can be accurately displayed.
Some HDMI equipped TV sets may not support this feature. If underscan/overscan*is NOT supported, the top, bottom,
left and right border of the active video may be screened, and the S/PDIF audio may not sound right.
2. Analog stereo audio can merely support 2-channel audio. This version does NOTsupport 8-channel analog audio
applications.
3. S/PDIF audio input can support 2 out of 8-channel audio input.
4. S/PDIF supports only 48kHz audio sample rate. Other than this rate, the input digital audio should be adjusted to
48kHz in order to get audio signal correctly sent.
*Theunderscanmodedisplaysthefullvideoframe,whichrevealscontentontheedgethatisrecorded.Inoverscan,
thefieldmonitorzoomsintotheareathatwouldbevisibleonmosttelevisions.Setthefieldmonitortounderscan
ifyourvideowillbeviewedonacomputermonitororshownwithaprojectorandalsotolookforlightstands,
microphones,andotherunwantedobjectsontheedgesofyourshot.Setittooverscantoseehowthevideowill
lookonatelevision.
Hardware Installation
Notice
~ 6 ~
Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and
workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. Motorized
mechanical parts (Hard Drives, DVD, etc), mechanical parts (buttons, doors, etc), remotes and cables are
covered for a period of 1 year. Batteries are not covered by this warranty. During the warranty period, and
upon proof of purchase, the product will be repaired or replaced (with same or similar model) at our option
without charge for parts or labor for the specified product warranty period.
This warranty shall not apply if any of the following:
A) The product has been damaged by negligence, accident, lightning, water, act-of-God or mishandling; or,
B) The product has not been operated in accordance with procedures specified in operating instructions: or,
C) The product has been repaired and or altered by other than manufacturer or authorized service center; or,
D) The product's original serial number has been modified or removed: or,
E) External equipment other than supplied by manufacturer, in determination of manufacturer, shall have
affected the performance, safety or reliability of the product.
F) Part(s) are no longer available for product.
In the event that the product needs repair or replacement during the specified warranty period, product
should be shipped back to Manufacturer at Purchaser's expense. Repaired or replaced product shall be
returned to Purchaser by standard shipping methods at Manufacturer's discretion. Express shipping will be
at the expense of the Purchaser. If Purchaser resides outside the contiguous US, return shipping shall be at
Purchaser's expense.
No other warranty, express or implied other than Manufacturer's shall apply.
Manufacturer does not assume any responsibility for consequential damages, expenses or loss of revenue or
property, inconvenience or interruption in operation experienced by the customer due to a malfunction of
the purchased equipment. No warranty service performed on any product shall extend the applicable
warranty period.
This warranty does not cover damage to the equipment during shipping and Manufacturer assumes no
responsibility for such damage.
This product warranty extends to the original purchaser only and will be null and void upon any assignment
or transfer.
Aurora Multimedia Corp.
205 Commercial Court, Morganville, NJ 07751
Phone: (732) 591-5800 Fax: (732) 591-5801
www.auroramultimedia.com
Limited 3 Year Warranty
