AUSTRALIAN MONITOR AMIS23X User manual

SPECIFICATIONS
Frequency Range
X1 80Hz to 920 Hz
X2 800Hz to 9.2 kHz
Hum and Noise
>93dBu
Low Frequency Section
Output @ 0dB <-106 dBu
High Frequency Section
Output @ 0 dB <-97d dBu
Signal-To-Noise Ratio
118 dB
CONTROLS
Input Level Continuously
variable; Output Level
Low, High Cont. variable;
CD Boost Rear panel
switch; mute Front panel
switch; Channel link Rear
panel switch; Phase Rear
panel switch
Dimensions HxWxD
1.75” x 19” x 8.5”
Weight
5.5 lbs

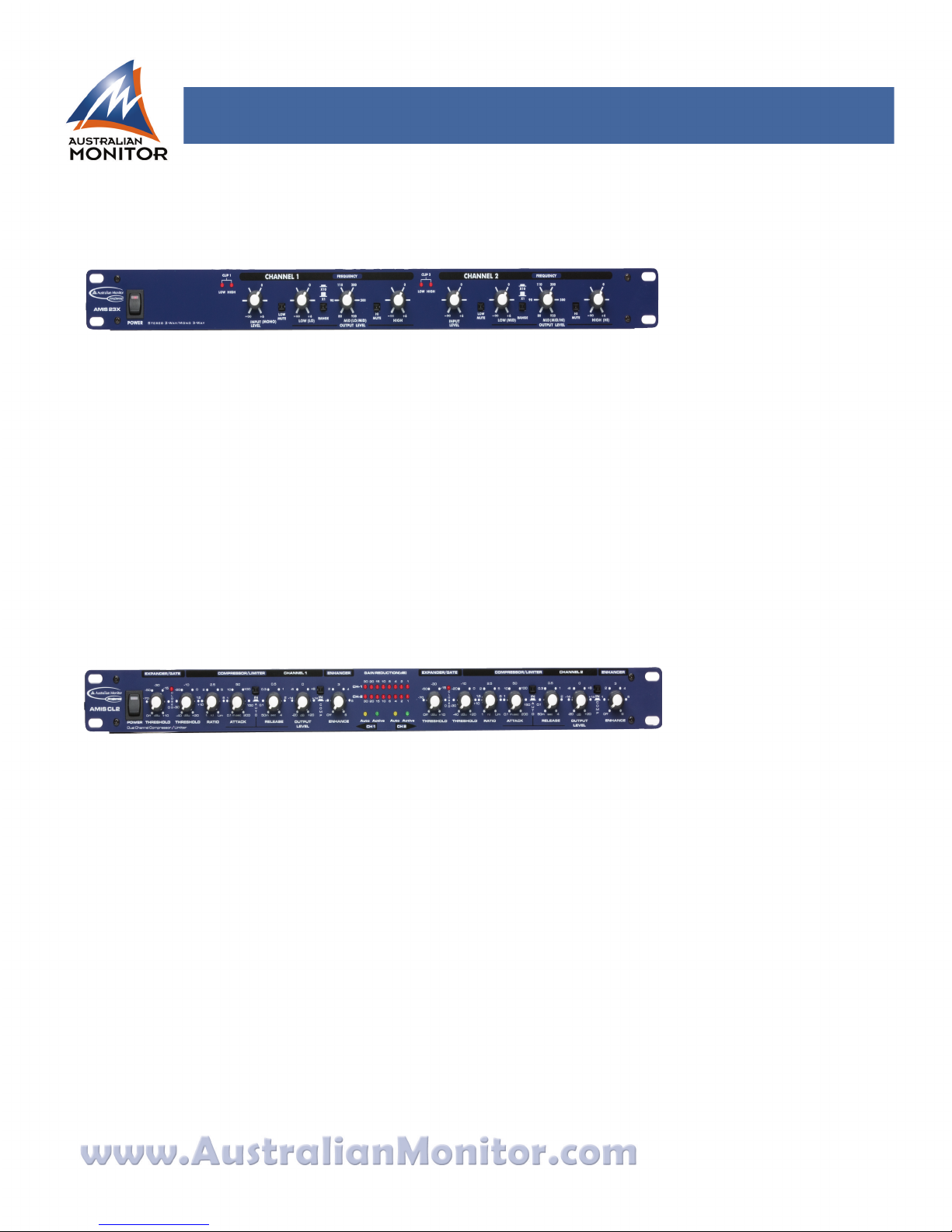

The Australian Monitor Pro Series AMIS23X is a one rack unit, fourth
order Linkwitz-Riley electronic crossover. The AMIS23X can be confi-
gured as either a stereo two way or a mono three way crossover.
Featuring clip LED indication per band per channel, frequency range
selector switch, CD horn boost switch & polarity reverse switching,
the AMIS 23X is a professional price-performing crossover.
SPECIFICATIONS
Input
Type RF-filtered, Servo-
balances input stage
Impedance 60K balanced
Nominal Operating Level -
10dBu to 4dBu
Maximum Input Level
+21dBu balanced and
unbalanced
CMR
@ 1kHz >40dB
Input detection
Type DC de-coupled,
unbalanced input
Impedance >20K ohms
Maximum Input+21dBu
Output
Type Electronically
buffered output stage
Impedance <40 ohms
Bandwidth
5Hz to 50kHz, +0, -1dB
THD
@ +4dBu 0.05%typ..
IMD (SMPTE)
@ +10dBu 0.01% typ.
Noise & Hum
>93dBu
Crosstalk
@ 20kHz >85dBu
The Australian Monitor Pro Series AMIS CL2 is a 1 RU, dual channel
compressor limiter. Featuring an expander/gate, compression & limiting
per channel, the AMISCL2 utilizes a high quality VCA to give excellent
performance from a budget priced dynamics processor. With added
features like selectable Automatic attack & release times & EQ
enhancement which automatically compensates for high end loss when
heavy compression is taking place, the AMISCL2 has the features & the
performance of a compressor/limiter many times the price.
2 Way Crossover
AMIS 23x & CL2AMIS 23x & CL2
AMIS 23x & CL2AMIS 23x & CL2
AMIS 23x & CL2
Compressor - Limiter

COMPRESSOR SECTION
Type IKC (Interactive Knee
Control);
Compressor Threshold Variable
(-40 to +20dBu);
Ratio Variable (1:1 to LIM.)
Attack Variable
(0.1 to 200 msec/20dB)
Release Variable (-20 to +20dB)
GATE SECTION
Type IRC (interactive Ratio
Control)
Expander/Gate
Threshold Variable
(Off to + 10dBu)
DYNAMIC ENHANCER SECTION
Type Dynamically Controlled
Frequency Correction
Process Variable (Off to 6)
FUNCTION SWITCHES
In/Out Bypass switch
Auto Programme-dependent
attack and release times
ABOUT
Australian Monitor
Corporate Headquarters
is located in Sydney,
Australia. The
organization has more
than 20 years experience
in the design and
manufacture of audio
amplifiers and
associated products.
They are a dynamic
corporation, priding
themselves on excellent
customer service, better
features and lower priced
products for Sound
Contractors and Audio
Visual Integrators
worldwide.
AMIS 23x & CL2AMIS 23x & CL2
AMIS 23x & CL2AMIS 23x & CL2
AMIS 23x & CL2
INDICATORS
CLOSE LED LED indicates onset of the
Expander/Gate
8 element GAIN 1/2/4/6/10/15/20/30dB
REDUCTION meter
POWER SUPPLY
Mains Voltages 100-120/200-240 VAC
50-60Hz
Power Consumption 9 Watts
Fuse 320mA (100-120V) slow-blow
Mains Connection Standard IEC
Dimensions H x W x D
1¾” x 19” x 8.5”
Net Weight 6.6 lbs
Shipping Weight
10lbs
