AUVIO 1500476 User manual

THE PERFORMANCE YOU NEED
®
®
Bluetooth®
Music Receiver
User’s Guide 1500476
Please read this user’s guide before using
your new receiver.

2
2
Package Contents
Bluetooth Music Receiver
AC Adapter
1/8” (3.5mm) Audio Cable
1/8” (3.5mm) to RCA Cable
User’s Guide
Use Your Receiver

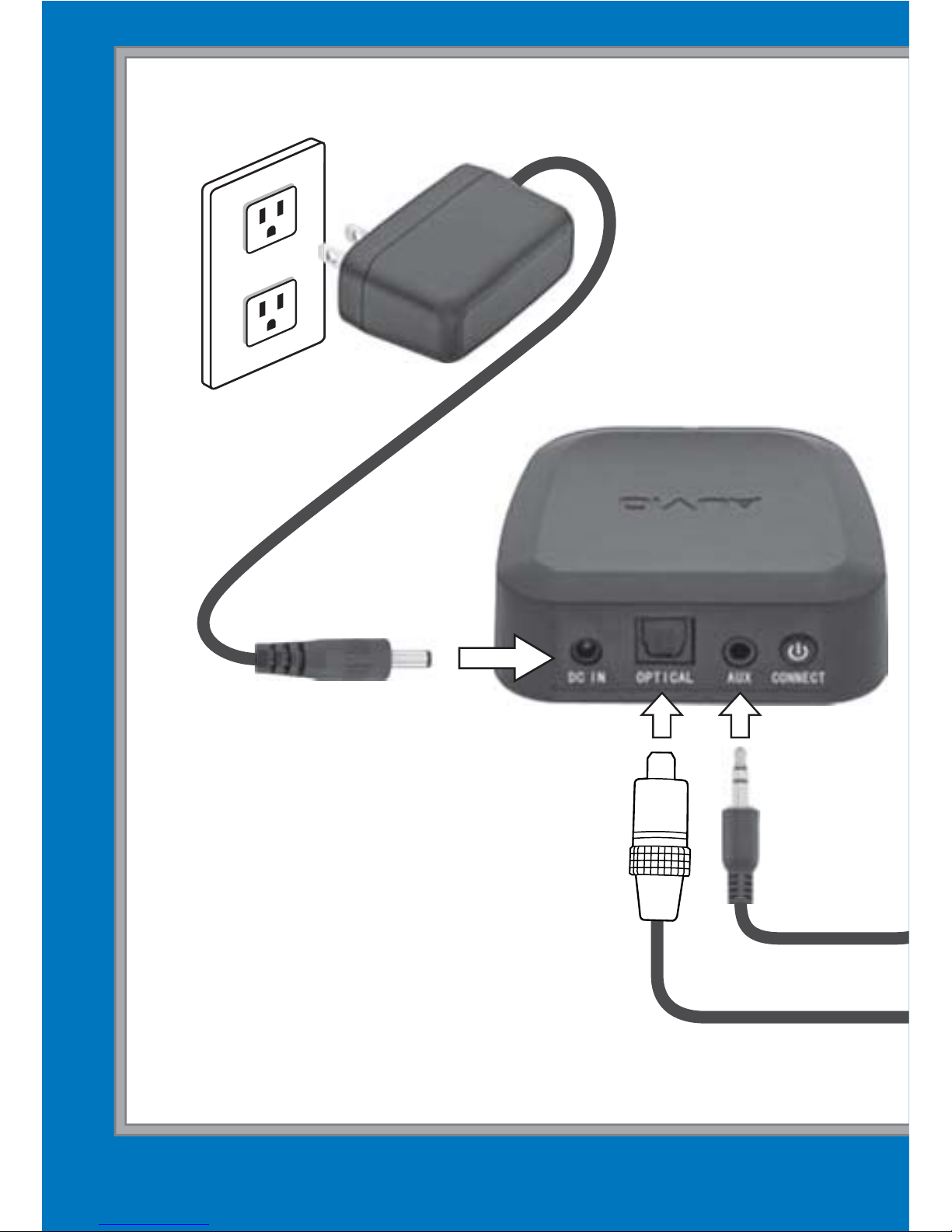

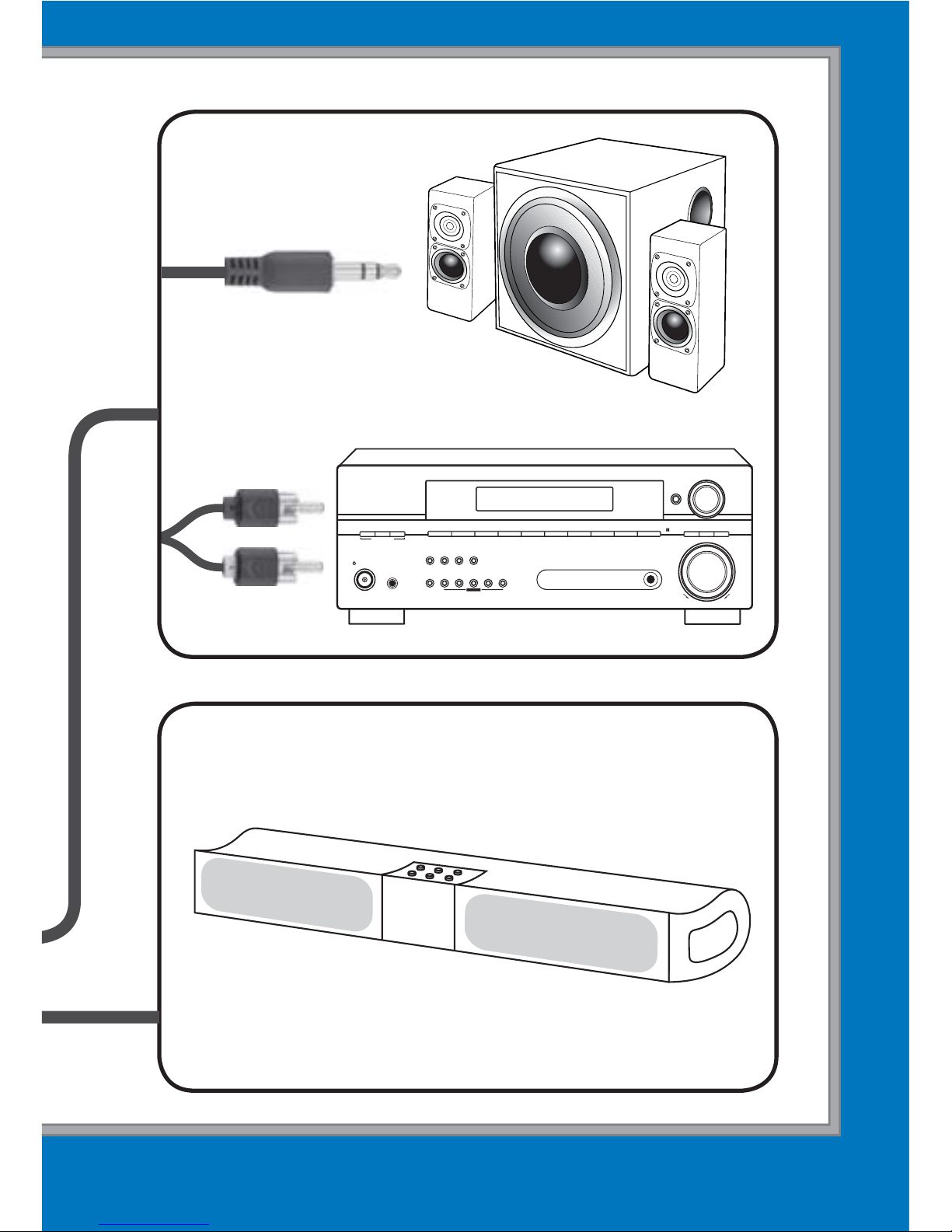

1. Plug the supplied audio cable or the
RCA cable into the AUX jack, OR plug
an optical cable (not included) into the
OPTICAL jack, then connect to your
speaker or amplifier.
2. Connect the supplied power adapter
to the DC IN jack, then plug into a
standard AC outlet.
3. Press and hold CONNECT until the
LED indicator lights red to turn on the
receiver.

3
3
-OR-

4
4
UPDOWN
MULTIJOG
MASTER
VOLUME
ENTER
AUDIO MULTI-CHANNEL RECEIVER
SX-218
FRONT
AUDIO INPUT
DVD/LD TV/ SAT DVR CD CD-R/TAPE/MD FRONTAUDIO FM AM
QUICK
SETUP SETUP RETURN
MUTE TONE
SLEEP
TUNER
EDIT
MULTIJOG
TUNING STATION MPX
VSB
MODE
DIALOGUE
ENHANCEMENT
-OR-

5
5
4. If the receiver has not been previously
paired with a device, the LED
indicator will light red. Press and hold
CONNECT until the LED indicator
flashes red and blue to enter pairing
mode.
5. See instructions of your Bluetooth-
enabled device to pair with the
receiver. After successful pairing,
the indicator lights blue. If you are
prompted for a PIN, enter 0000.
6. Use the playback controls on your
audio device.
7. Disconnect the Bluetooth connection
after using; the indicator flashes red.
8. Press and hold CONNECT for 3
seconds to turn off the receiver.
Note:
To avoid noise interference, always
power off your amplifier or speaker
before plugging or unplugging your
cables.

6
6
If the AUX and OPTICAL jacks are both
connected, sound output will only be
available from the AUX connection.
If the connected device moves too far
away from the receiver, the receiver
disconnects from the device but
resumes connection once the device is
close.
Using an adapter that does not meet the
receiver’s specifications could damage
the receiver.
NFC (Near Field Communication)
You can touch the receiver with a NFC-
enabled device to connect or disconnect
the Bluetooth communication. You may
need to try different places on your
phone as the NFC might be placed on
either the back, top or bottom of the
phone cabinet.
If you have two or more NFC devices,
when you touch the second device
to the receiver, it will automatically
connect to the receiver, and the first
device will automatically disconnect
from the receiver.

7
7
Specifications
Bluetooth Connection Range .......30ft. (9.14m)
Main Unit ...............ABS, with silicone foot pad
Frequency .................. Band 2.402 – 2.483 GHz
......................................... unlicensed ISM band
Sensitivity............................................. - 84dBm
Bluetooth Protocol..............V3.0+EDR, Class 2
Power Input ................................100 – 240 VAC
.............................................. 50/60 Hz, 300 mA
Power Output .........................5 VDC, 1000 mA
Specifications are subject to change and
improvement without notice. Actual product may
vary from the images found in this document.
FCC Information
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning

8
8
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Limited Warranty
Ignition L.P. warrants this product against defects
in materials and workmanship under normal use
by the original purchaser for ninety (90) days
after the date of purchase. IGNITION L.P. MAKES
NO OTHER EXPRESS WARRANTIES.
This warranty does not cover: (a) damage or
failure caused by or attributable to abuse, misuse,

9
9
failure to follow instructions, improper installation
or maintenance, alteration, accident, Acts of God
(such as floods or lightning), or excess voltage
or current; (b) improper or incorrectly performed
repairs by persons who are not a Ignition L.P.
Authorized Service Facility; (c) consumables such
as fuses or batteries; (d) ordinary wear and tear
or cosmetic damage; (e) transportation, shipping
or insurance costs; (f) costs of product removal,
installation, set-up service, adjustment or reinstal-
lation; and (g) claims by persons other than the
original purchaser.
Should a problem occur that is covered by
this warranty, take the product and the sales
receipt as proof of purchase date to the place of
purchase. Ignition L.P. will, at its option, unless
otherwise provided by law: (a) repair the product
without charge for parts and labor; (b) replace the
product with the same or a comparable product;
or (c) refund the purchase price. All replaced parts
and products, and products on which a refund is
made, become the property of Ignition L.P. New
or reconditioned parts and products may be used
in the performance of warranty service. Repaired
or replaced parts and products are warranted for
the remainder of the original warranty period.
You will be charged for repair or replacement
of the product made after the expiration of the
warranty period.

10
10
IGNITION L.P. EXPRESSLY DISCLAIMS ALL
WARRANTIES AND CONDITIONS NOT STATED
IN THIS LIMITED WARRANTY. ANY IMPLIED
WARRANTIES THAT MAY BE IMPOSED BY
LAW, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY AND, IF APPLICABLE,
THE IMPLIED WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE, SHALL EXPIRE ON
THE EXPIRATION OF THE STATED WARRANTY
PERIOD.
EXCEPT AS DESCRIBED ABOVE, IGNITION L.P.
SHALL HAVE NO LIABILITY OR RESPONSIBIL-
ITY TO THE PURCHASER OF THE PRODUCT
OR ANY OTHER PERSON OR ENTITY WITH
RESPECT TO ANY LIABILITY, LOSS OR DAMAGE
CAUSED DIRECTLY OR INDIRECTLY BY USE
OR PERFORMANCE OF THE PRODUCT OR
ARISING OUT OF ANY BREACH OF THIS
WARRANTY, INCLUDING, BUT NOT LIMITED TO,
ANY DAMAGES RESULTING FROM INCON-
VENIENCE AND ANY LOSS OF TIME, DATA,
PROPERTY, REVENUE, OR PROFIT AND ANY
INDIRECT, SPECIAL, INCIDENTAL, OR CONSE-
QUENTIAL DAMAGES, EVEN IF IGNITION L.P.
HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Some states do not allow limitations on how
long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not
apply to you. This warranty gives you specific

11
11
legal rights, and you may also have other rights
which vary from state to state.
You may contact Ignition L.P. at: Ignition L.P.,
3102 Maple Ave., Suite 450, Dallas, TX 75201
02/09
For product support, call
1-866-315-0426

12
12
© 2013. Ignition L.P. All rights reserved.
Auvio is a registered trademark used by Ignition L.P.
Package and insert are recyclable. Insert contains recycled
material.
The Bluetooth®word mark and logos are owned by Bluetooth
SIG, Inc. and any use of such marks by Ignition L.P. is under
license. Other trademarks and trade names are those of their
respective owners.
Complies with the European Union’s “Restriction of
Hazardous Substances Directive,” which protects
the environment by restricting specific hazardous
materials and products.
Printed
in China
1500476
06A13
