AUXO CALENT User manual

CALENT USER MANUAL

READ THIS MANUAL BEFORE USING THE
PRODUCT. FAILURE TO FOLLOW INSTRUCTIONS
AND SAFETY PRECAUTIONS IN THIS MANUAL
CAN RESULT IN SERIOUS INJURY OR DEATH.
FOR EASY FUTURE REFERENCE, DOWNLOAD
AND SAVE THIS USER MANUAL AND
WARRANTY POLICY.
DOWNLOAD THIS MANUAL AT:
www.auxo-official.com/pages/download

What’s in the Box
Calent x 1 USB Type-C Cable x 1
User Manual x 1Cleaning Brush x 1

Turning On/Off the Device
●
●
●
●
Press the power button for 3 seconds to turn on/off. The device’s LED
ring light will illuminate/fade out and make a short vibration
respectively.
If no activity is detected for 10 minutes or longer, Calent will turn off
automatically.
If the surface temperature of the device is over 116.6±1.8°F (47±1°C), the
device will implement overheat protection mode and stop working
automatically.
If the battery runs out of power, the LED ring light will blink 10 times
in red and short vibrations will occur shortly before turning off
automatically.
QUICK START
Packing Dry Herb
1.
2.
3.
4.
It is recommended to fully charge the device before first use.
Rotate the mouthpiece 180°, lift the magnetic mouthpiece from the base
to expose the heating oven.
Use medium-ground material. The grind should be small and
crumbled but not too fine. A powdery grind will restrict airflow.
Moderately fill the heating oven to the rim and tamp down gently. It is
not recommended to fill above the juncture line of the oven*.
Ensure the oven rim and other surfaces are completely free of debris
for a tight seal.
Put the magnetic mouthpiece back on the base. Make sure it is
seated correctly.
*Recommended fill weight: 0.3g
Fine CoarseMedium
Best
Do Not
Fill Over
the Black
Area.

TIP: Do not cover the air intake window
while using.
Mode
Setting Up the Device
1.
2.
3.
4.
5.
There are 4 heat settings. When the device is on, press the /
buttons to choose between different temperature options. The LED
ring light will indicate the mode accordingly – when it reaches heat
setting 4, the ring light will display a full circle.
Press the button for 3 seconds to start heating. The device will
vibrate to indicate the start of a session and enter its preheating phase.
The LED ring light will blink blue cyclically for approx. 30 seconds while
it preheats. When preheating ends, the LED ring light turns to steady
green and the session begins. Each standard heating cycle is 3 minutes.
When the session is over, the LED ring light will turn blue.
Assess the flavor of your material after every session. If you wish to
continue with another session, long press again.
Mode Settings
Temperature
356°F (180°C)1
Indication
392°F (200°C)2
410°F (210°C)3
428°F (220°C)4

1.
2.
3.
4.
5.
6.
Due to safety concerns, it is not recommended to use Calent while
charging.
To charge the device, connect one end of the USB-C charging cable to
your device and the other end to a charging adapter.
Charging via a standard 5V 2A power adapter takes approximately
2.5 hours for a full charge. Every full charge generates approximately
20-session usage.
To check the current battery level, press the power button 3 times and
the LED ring light will indicate its status. Each bar indicates ~25%
battery level.
If your battery level is low when you start your session, the device will
blink in red 3 times as a notification.
When the battery runs out of power, the LED ring light will blink
10 times in red, and short vibrations will occur. The device will then
turn off automatically.
Charging & Battery Level
The AUXO Connect App
AUXO Connect
1.
2.
3.
4.
5.
1.
2.
3.
4.

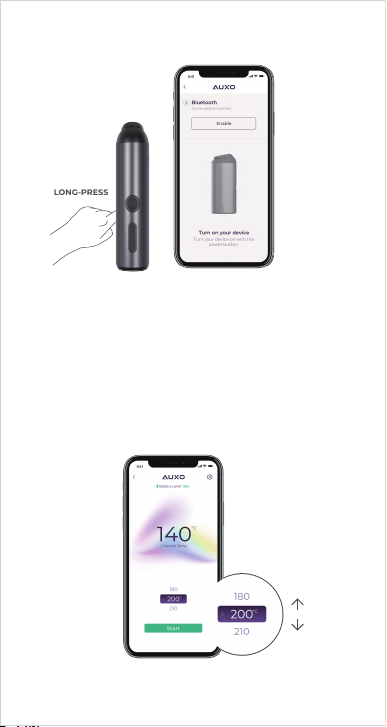

Turn on the device.
Turn on Bluetooth on your phone and place the device near your phone.
When only one device is found, select accordingly. The LED ring light
will blink 3 times when paired successfully. If multiple devices are found,
the selected device will blink slowly to indicate selection; if paired
successfully, the LED ring light will blink 3 times.
If the connection is unsuccessful, restart the app and connect again.
If on Android, your location services are enabled (mandated by Android).
Connecting Your Device to the App
Your AUXO app is up to date.
Your device is turned on (restart if necessary).
The Bluetooth on your phone is turned on.
The device is near your phone (as close as possible).
If you're having trouble pairing your Calent with your phone, please
ensure the following:

LONG-PRESS
Pre-set Heating Selection
1.
2.
On the main page, scroll the temperature bar on the bottom to adjust
to your preferred temperature.
The displayed temperatures are pre-set heat settings 1-4 respectively.
Select a heat setting and tap ‘Start’ to begin your session.

1.
2.
3.
Let the oven cool down to room temperature. Pull up the mouthpiece
to expose the oven.
Use the cleaning brush to clean residue out of the oven.
Dip a cotton swab in 90% isopropyl alcohol and swab the oven clean.
Vibration Intensity
On the top right corner, tap on the settings icon and find ‘Device
Settings’.
In the ‘Vibration Intensity’ section, adjust the vibration intensity to
your preference.
CLEANING & MAINTENANCE
Cleaning is highly recommended after each use.
Unit of Temperature
1.
2.
1.
2.
On the top right corner, tap on the settings icon and find ‘Device
Settings’.
In the ‘Temperature Unit’ section, select your preferred scale,
Fahrenheit(°F) or Celsius (°C).
Heating Oven
Isopropyl alcohol is highly flammable.
Let the device dry completely before heating.

1. Remove the mouthpiece from the battery by pulling up the
magnetic lid.
• Basic cleaning: Insert the cleaning brush into the opening of the
mouthpiece, gently run the brush to the end and move it back and
forth to remove grime or residue. The surface can be wiped clean with
cotton pads dabbed with 90% isopropyl alcohol.
Mouthpiece
Don’t handle if hot.
Storage
●
●
Do not expose the device to direct sunlight, dust, moisture or
mechanical shock.
Do not place heavy loads on the device or drop it – the device may no
longer work properly if such events occur.
2. Let the mouthpiece dry completely before use.
*Please note: cleaning and maintenance must NOT be performed before the
device is turned off and cools down to room temperature. Do not submerge
the battery/device base in any form of liquid.
Warning: Choking Hazard – Dissembled mouthpiece contains
small parts. Keep away from children and pets.
• Thorough cleaning:
The mouthpiece can be
disassembled into 8 separate parts
by removing the protruding filter
and blue silicon band. The inner
compartment will reveal itself with
the removal of the silicon band, and
the metal tab connecting the
rotating mouthpiece can be
removed by pulling it backwards.
Once isolated, submerge only the
zirconia-made mouthpiece in 90%
isopropyl alcohol and clean the other
parts with alcohol wipes. For
disassembly and assembly
instruction videos, visit the AUXO
website or AUXO YouTube channel.

Temperature and Humidity
Charging temperature: 50 to 113°F (10 to 45°C)
Working temperature: 14 to 140°F (-10 to 60°C)
Storage temperature: 68±9°F (20±5°C)
Operating humidity range: 35%-70% RH
Storage humidity range: 35%-70% RH
●
●
FCC/RoHS
AUXO Calent is in compliance with RoHS and the council EMC
2014/30/EU.
FCC Caution: The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
●
●
●
●
●
●
●
●
●
SAFETY
Do not attempt to disassemble or repair the device as damage or
personal injury may occur.
Keep body parts, clothing, etc. away from the heat source to prevent
scalding or damage to personal property.
To prevent scalding, do not touch the heating oven before it has
completely cooled down.
Refrain from using other power adapters not provided with the
device when charging your Calent.
Refrain from using the device while it is charging.
Keep hands dry when touching the charging device to prevent
electric shock.
The device is not water-resistant and not recommended for use
outdoors while it is raining, or in other circumstances where it may be
exposed to water.
The use of this device is not recommended for pregnant or
breastfeeding women.
If any abnormality is observed, stop using immediately and contact a
professional after-sales service technician.

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
●
●
●
●
●
●
Environmentally Friendly Disposal
You can help protect the environment! Please remember to respect local
regulations, and hand in any electronic equipment you wish to dispose
of at an appropriate waste disposal center.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
AUXO provides a limited warranty on authentic products purchased
from the AUXO official website and authorized offline stores against
defects in materials and/or workmanship under normal use. In order to
keep this limited warranty in effect, the product must have been
handled and used as prescribed in the instructions accompanying this
warranty. AUXO warrants only to the original purchaser of the product
and the limited warranty is nontransferable. The limited warranty does
not apply to products that were sold by any third-party resellers.
WARRANTY
Limited Warranty Coverage
13

AUXO offers a 10-year limited warranty on the device and a 2-year limited
warranty on the USB charging cable from the date of purchase. The
cleaning brush is not covered under the limited warranty.
In no event shall any recovery against AUXO exceed the actual price paid
for the purchase of the product.
Please retain your purchase receipt or other acceptable proof of
purchase for your records. If no purchase receipt or other proof of
purchase is provided, the warranty start/end dates will be determined
according to the device serial number.
Contact the AUXO Customer Support Team first at support@auxo-offi-
cial.com and submit a support request to initiate the warranty service.
Obtaining Warranty Service
Not Covered Under Warranty
This warranty does not apply to certain situations and conditions,
including but not limited to:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Any AUXO product sold by an unofficial AUXO website or unauthorized
offline store(s).
Damage(s) caused by accident, abuse, misuse, negligence, flood, fire,
earthquake or other external causes.
Damage(s) caused by the device being exposed to or coming in
contact with moisture (e.g. liquids, water, rain, extreme humidity,
unusually heavy perspiration or other moisture), or extreme thermal or
environmental conditions (e.g., sand, food, dirt or similar substances);
Damage(s) caused by operating the device or charging adapter
outside the permitted or intended use as prescribed in the user
manual.
Damage(s) in the heating oven due to tampering or counterfeit or
caused by filling with unrecognized or unauthorized materials.
Damage(s) caused by modifications to alter functionality or capability.
Cosmetic damage occurring through wear and tear, including but not
limited to scratches, dents and broken plastic on ports.
Any device or charging adapter where the serial number has been
tampered with, erased or obscured, or is not genuine.
Normal performance degradation of batteries. Please contact AUXO
Customer Support for more information on battery degradation.
Any other attachments and accessories which can be purchased
separately.
14

Additional Warranty Terms and Conditions
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION ON THIS CARD. AUXO DISCLAIMS AND EXCLUDES ANY
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
MERCHANTABILITY, AFTER THE EXPIRATION OF 10 YEARS AFTER
PURCHASE BY THE END USER. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not
apply to you.
In no event will AUXO be liable for any special or consequential
damages arising from the use of this product, nor for injury to any
person, or any claim for damages arising from the use of this
product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation may not
apply to you.
We encourage you to include as many details as you can in the request,
such as pictures and videos to help the team diagnose the issue.
An RMA (Returned Material Authorization) number and shipping
instructions will be sent to you if the issue cannot be resolved. Following
the shipping instructions, you will need to send the product along with
the RMA number.
Return & Refund Policy
Please carefully research the product you are interested in before
purchasing.
Refunds are only available for new and unused devices purchased on
www.auxo-official.com and must be returned to AUXO within fourteen
(14) days of receipt. If the tamper-proof seal is broken, a refund cannot be
honored. AUXO will not refund devices purchased through other
authorized retailers; in such case, any refunds must be obtained from the
authorized retailer whom you purchased the device from and will be
subject to the retailer’s policy on refunds.
Note: The customer is responsible for the return shipping fee.
1.
2.
3.
You must return your approved-for-warranty device or accessory
before AUXO sends you a replacement on your warranty claim.
Customers are responsible for all shipping costs associated with the
warranty process.
AUXO is not responsible for lost or damaged returns sent by the
customer.
Note:
13

Product:
(Based on the date from purchase receipt)
Date of Purchase:
AUXO reserves the right of final decision in all warranty cases.
AUXO may interpret and revise the content
of this warranty card.
Please present your warranty card together with your proof of
purchase in order to obtain your warranty service.
For more information please visit www.auxo-official.com
or email us at support@auxo-official.com
WARRANTY CARD
Serial Number:
Store Name:
Phone:
Store Information:
Date (YYYY/MM/DD)：
Store Address:
City: Country: ZIP Code:
Customer Address:
Customer Information:
City: Country: ZIP Code:
17

Not for sale to minors.
This vaporizer is only intended for use with products made from
federally legal hemp as defined in relevant provisions of the 2018
Farm Bill and codified at 7 U.S.C. § 1639o(1) and 21 U.S.C. §
802(16)(B)(i) and are not intended for use with any illegal
controlled substance.
This product is not designed or intended to vaporize any nicotine
or liquid product.
Visit us at www.AUXO-OFFICIAL.COM
WARNING: Reproductive Harm - www.P65Warnings.ca.gov

© AUXO All rights reserved. Subject to alteration.
