AV Access 4KSP12-P User manual

4KSP12-P
HDMI 2.0 Splitter 1 x 2
User Manual

Disclaimers
The information in this manual has been carefully checked and is
believed to be accurate. AV Access Technology Limited assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
AV Access Technology Limited assumes no responsibility for any
inaccuracies that may be contained in this document. AV Access
Technology Limited also makes no commitment to update or to keep
current the information contained in this document.
AV Access Technology Limited reserves the right to make
improvements to this document and/or product at any time and
without notice.
Copyright
Copy, Reproduce, Distribute and/or Edit of this document or part of it
as well as utilization of its contents and communication thereof to
others without express authorization are prohibited. Offenders will be
held liable for payment of damages. All rights created by patent grant
or registration of a utility model or design patent are reserved.
Copyright ©2016 AV Access Technology Limited All rights reserved.
Trademarks Notice
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Contact Us
Business inquiry: [e-mail]
Technical problems: [e-mail]

Important Safety Instructions
Do not expose this apparatus to rain, moisture, dripping or
splashing. No objects filled with liquids, such as vases, shall be
placed on the apparatus.
Do not install or place this unit in a bookcase, built-in cabinet, or in
another confined space. Ensure the unit is well ventilated.
To prevent risk of electric shock or fire hazard due to overheating,
do not obstruct the unit’s ventilation openings with newspapers,
tablecloths, curtains, or similar items.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not place sources of naked flames, such as lighted candles, on
the unit.
Clean this apparatus only with dry cloth.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Protect the power cord from being walked on or pinched,
particularly at plugs.
Only use attachments / accessories specified by the manufacturer.
Refer all servicing to qualified service personnel.

Table of Contents
Overview...............................................................................................................2
Package Contents.................................................................................................................. 2
Front Panel............................................................................................................................... 4
Rear Panel................................................................................................................................. 5
EDID Management ...............................................................................................6
Installation Instructions.......................................................................................8
Specification .......................................................................................................10
Warranty .............................................................................................................12
www.avaccess.com 1

Overview
Overview
4KSP12-P is a 1x2 HDMI splitter for HDMI 2.0 with 4k@60Hz 4:4:4 8 bit
which reliably distributes one HDMI source signal to 2 HDMI displays.
It also provides auto EDID management and HDCP management
which authenticates HDCP encryption between all devices, ensuring
the HDMI source reliably outputs correct content for display.
It is an ideal choice for applications which require the distribution of
an HDMI source signal to multiple outputs.
Distributes one HDMI sources to 2 HDMI displays
HDMI 2.0 with 4K@60Hz 4:4:4 8 bit and HDCP 2.2 compliant
Input/output HDMI cable length up to 10m for 1080P/4K
Threaded power port for locking or standard 12V DC connection
Front panel LED indicators for I/O and power connectivity
Auto EDID management
www.avaccess.com 2

Overview
Package Contents
Before you start the installation of the product, please check the
package contents:
1 x 4KSP12-P Splitter
1 x Power Supply (DC 12V 0.5A)
1 x User Manual
www.avaccess.com 3

Overview
Front Panel
ID Name Description
3 Power LED ON: The splitter is on.
OFF: The splitter is off.
2 HDMI In
LED
ON: HDMI source is connected to the splitter.
OFF: No HDMI source is connected to the splitter.
3 HDMI Out
LED
ON: HDMI display is connected to the splitter.
OFF: No
HDMI display is connected to the
splitter.
www.avaccess.com 4

Overview
Rear Panel
ID Name Description
1 DC 12V
12V DC power input, threaded port for
standard or locking connection
2 HDMI Out1 Connects to HDMI display device
3 HDMI In Connects to HDMI source device
4 HDMI Out2 Connects to HDMI display device
www.avaccess.com 5

EDID Management
EDID Management
EDID (Extended Display Identification Data) is data generated from
each display in the system to communicate the capabilities of the
device.
About Smart EDID function: Splitter is built-in 5 EDID: 4K@60Hz 4:4:4
HDR; 4K@60Hz 4:2:0 HDR; 4K@30Hz 4:4:4 HDR; 1080P@60Hz 2ch and
720P@60Hz 2ch. when the device is power on, it will compares all the
EDID of display devices and choose the lowest resolution to compare
with the 5 EDID that are built-in the splitter, finally select the one from
the 5 EDID which can be supported by the lowest EDID display to the
input source. In addition, the splitter will detect the output signals of
every time plug, unplug, sink standby or sink on to select the
appropriate EDID as above process.

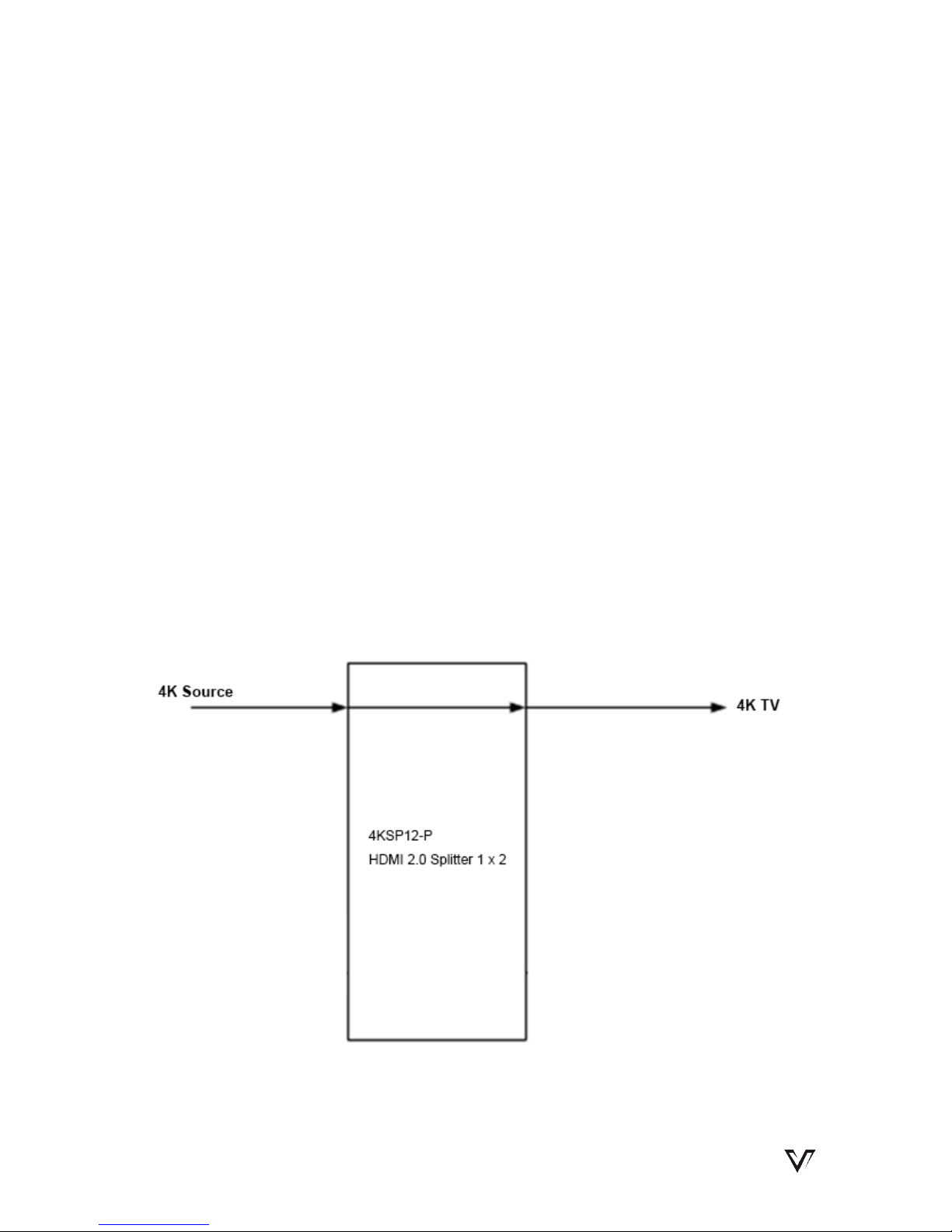

Take 4K as an example:
First, switching a 4k source to 4K TV, the splitter will automatically
output 4K signal to 4K TV.
www.avaccess.com 6

EDID Management
Then, switching a 4K source to 1080P TV, the splitter will automatically
output 1080P signal to 1080P TV.
Finally, switching the 4K source to 4K TV and 1080P TV, the splitter will
automatically output 1080P signal to both 4K TV and 1080P TV.
www.avaccess.com 7

Installation Instructions

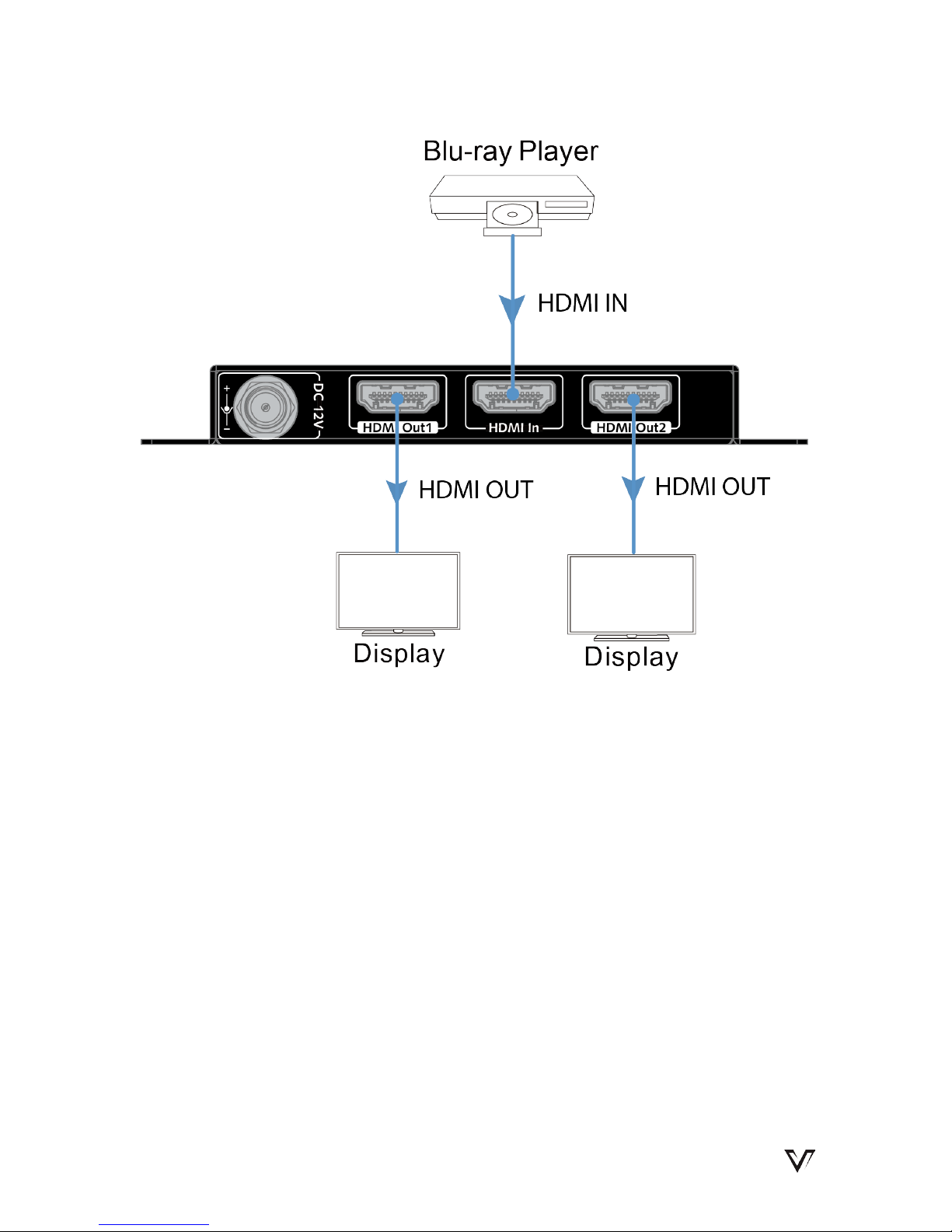

Installation Instructions
1. Using a quality HDMI cable, connect an HDMI source (such as
Blu-ray, games console, satellite/cable TV, media server etc.) to
the HDMI IN port of the splitter.
Note: Ensure power supplies are disconnected from all devices before
installation.
2. Connect HDMI display devices (LED/LCD display or projector) to
the HDMI OUT ports of the splitter.
3. Insert the 12V power adapter into the power input port of the
splitter and connect to power supply after ensuing the source
and displays are properly connected.
4. Check that the Power and HDMI IN/OUT LEDs on the front panel
are fully lit for correct connection. If not, check cable
connections.
Note: Both source and display devices must be powered on for the
splitter to detect device connections.
www.avaccess.com 8

Installation Instructions
www.avaccess.com 9

Specification
Specification
Technical
Input 1 x HDMI In (Type A female connector)
Output 2 x HDMI Out (Type A female connector)
Input / Output Signal
Type HDMI 2.0 with 4K@60Hz 4:4:4 8bit
Input / Output
Resolution Support
VESA:
800x600@60Hz, 1024x768@60Hz,
1280x768@60Hz, 1280x800@60Hz,
1280x960@60Hz, 1280x1024@60Hz,
1360x768@60Hz, 1366x768@60Hz,
1440x900@60Hz, 1600x900@60Hz,
1600x1200@60Hz, 1680x1050@60Hz,
1920x1200@60Hz;
SMPTE:
4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/30/50/60Hz,
1080P@24/25/30/50/60Hz, 1080I@50/60Hz,
720P@50/60Hz, 576P@50Hz, 480P@60Hz
Technical
Input Video Level 0.5~1.2 Vp-p
Input DDC Signal 5 Vp-p
Maximum Data Rate 18 Gbps
Maximum Pixel Clock 600 MHz
www.avaccess.com 10

Specification
General
Operating Temperature 0 to 45°C (32 to 113 °F)
Storage Temperature -20 to 70°C (-4 to 158 °F)
Humidity 10% to 90%, non-condensing
Power Supply DC 12V 0.5A
Power Consumption
(Maximum) 3.7 W
ESD Protection
Human-body Model:
±8kV(Air-gap discharge)/
±4kV(Contact discharge)
Device Dimensions
(W x H x D) 126mm x 15mm x 70.2mm
Product Weight 0.2kg
Certification CE, FCC, RoHS
www.avaccess.com 11

Warranty
Warranty
Products are backed by a limited 3-year parts and labor warranty. For
the following cases AV Access Technology Limited shall charge for the
service(s) claimed for the product if the product is still remediable and
the warranty card becomes unenforceable or inapplicable.
1. The original serial number (specified by AV Access Technology
Limited) labeled on the product has been removed, erased,
replaced, defaced or is illegible.
2. The warranty has expired.
3. The defects are caused by the fact that the product is repaired,
dismantled or altered by anyone that is not from an AV Access
Technology Limited authorized service partner. The defects are
caused by the fact that the product is used or handled
improperly, roughly or not as instructed in the applicable User
Guide.
4. The defects are caused by any force majeure including but not
limited to accidents, fire, earthquake, lightning, tsunami and war.
5. The service, configuration and gifts promised by salesman only
but not covered by normal contract.
6. AV Access Technology Limited reserves the right for
interpretation of these cases above and to make changes to
them at any time without notice.
Thank you for choosing products from AV Access.
www.avaccess.com 12

AV Access Technology Limited
V1.0.2
